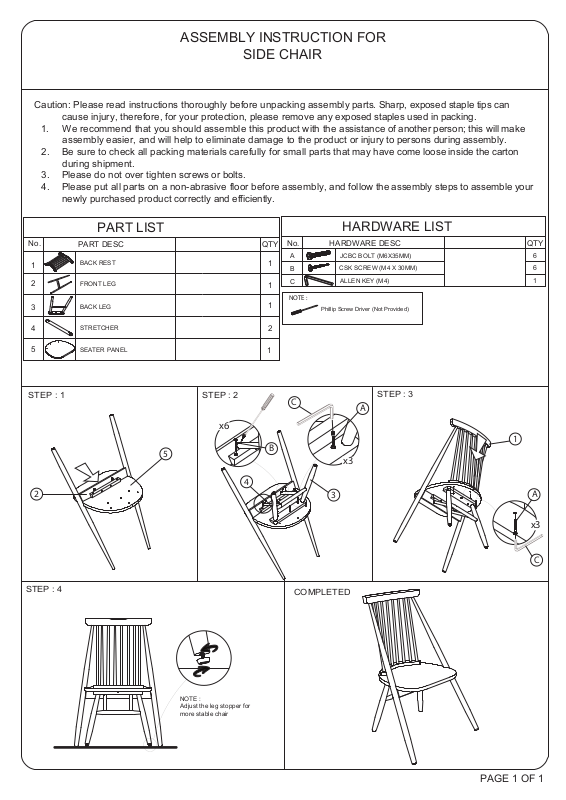

ASSEMBLY INSTRUCTION FOR
SIDE CHAIR
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose
du
ring shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
inside the carton
PART LIST
No.
1
2
3
4
5
STEP : 1 STEP : 2
2
PART DESC
BACK REST
FRONT LEG
BACK LEG
STRETCHER
SEATER PANEL
x6
5
HARDWARE LIST
No.
QTY
A
1
B
C
1
NOTE :
1
2
1
C
B
4
HARDWARE DESC
JCBC BOLT (M6X35MM)
CSK SCREW (M4 X 30MM)
ALLEN KEY (M4)
Phillip Screw Driver (Not Provided)
STEP : 3
A
x3
3
QTY
6
6
1
1
A
STEP : 4
NOTE :
Adjust the leg stopper for
more stable chair
x3
C
COMPLETED
PAGE 1 OF 1
