HARDWARE LIST
ITEM
DESCRIPTION
QTY
ITEM
DESCRIPTION
QTY
A
1 PC
1
2
3
CAUTIONS :
1.Do not FULLY-TIGHTEN the nuts or nut bolts until all are in place.
2.To prevent thread damage.Ensure that nuts or nut bolts are not over-tighten.
3.Hardware are to be kept out of reach from children.

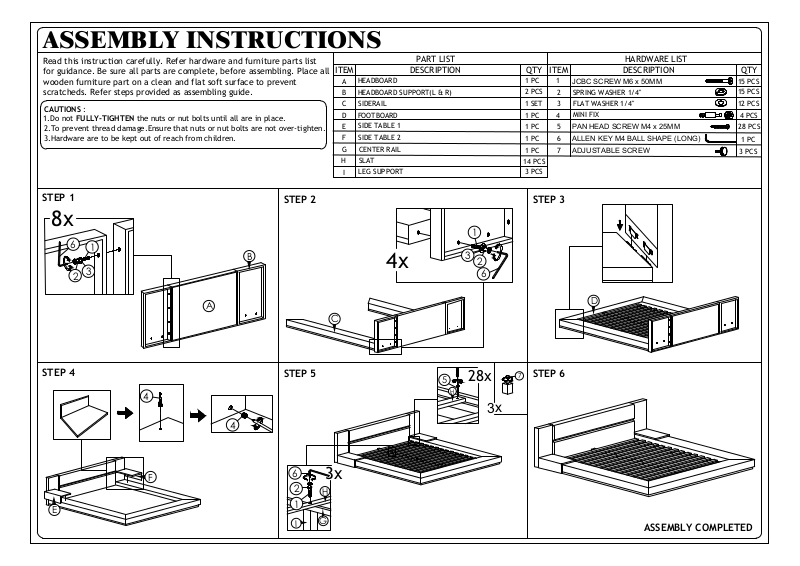

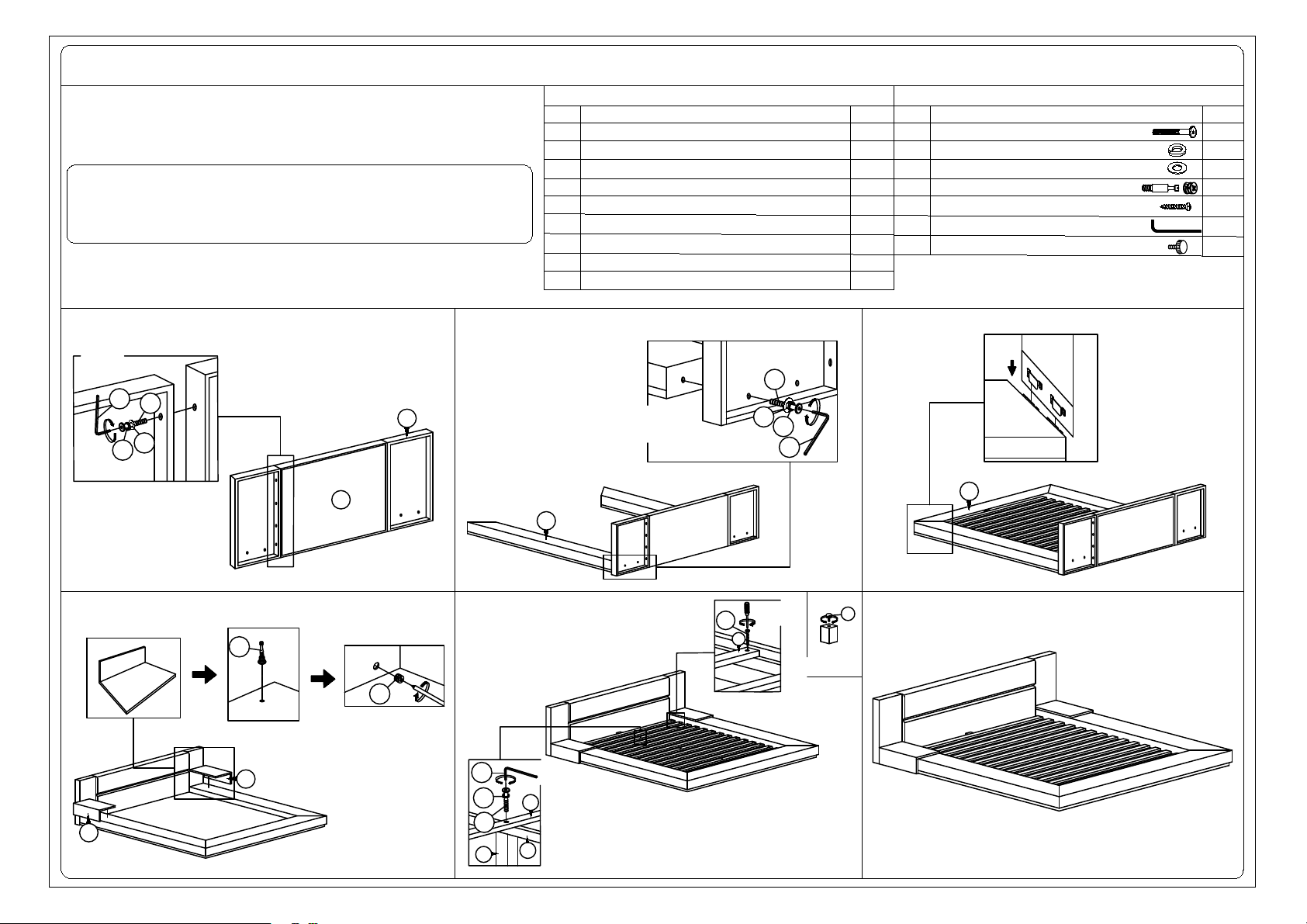

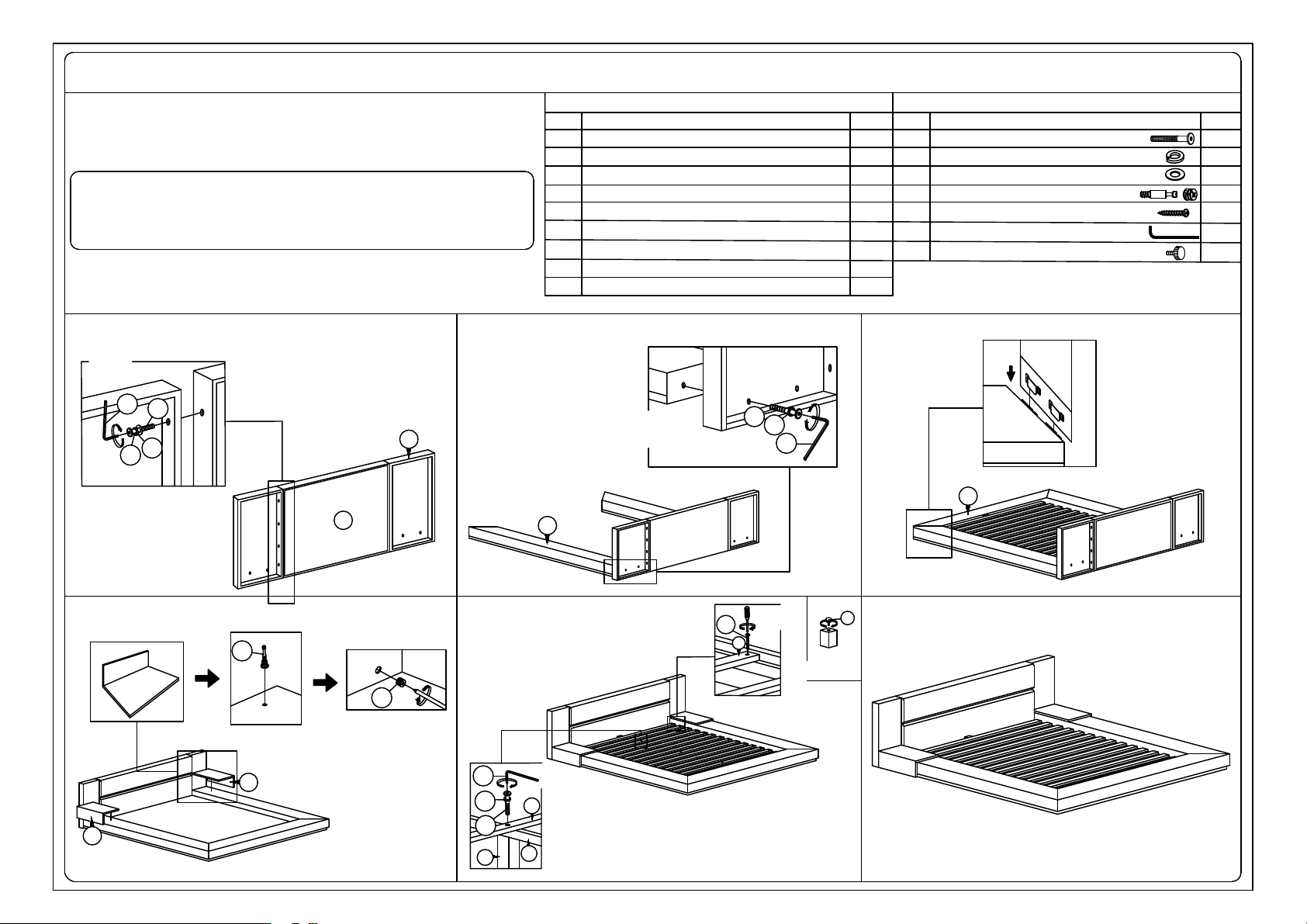

ASSEMBLY INSTRUCTIONS
4
Read this instruction carefully. Refer hardware and furniture parts list
for guidance. Be sure all parts are complete, before assembling. Place all
wooden furniture part on a clean and flat soft surface to prevent
scratcheds. Refer steps provided as assembling guide.
STEP 1
HEADBOARD
5
B
HEADBOARD SUPPORT(L & R)
C
SIDERAIL
D
FOOTBOARD
E
SIDE TABLE 1
F
SIDE TABLE 2
G
CENTER RAIL
2 PCS
1 SET
1 PC
1 PC
JCBC SCREW M6 x 50MM
SPRING WASHER 1/4"
15 PCS
STEP 4
PART LIST
8x
4x
STEP 2 STEP 3
STEP 6
STEP 5
ASSEMBLY COMPLETED
1
H
I
G
3x
6
2
5
H
3x
7
28x
FLAT WASHER 1/4"
MINI FIX
28 PCS
4 PCS
15 PCS
A
C
D
6
2
3
1
6
3
2
PAN HEAD SCREW M4 x 25MM
H
SLAT
I
LEG SUPPORT
3 PCS
B
E
F
6
ALLEN KEY M4 BALL SHAPE (LONG)
1 PC
4
4
7
ADJUSTABLE SCREW
3 PCS
1 PC
1 PC
14 PCS
12 PCS
1
Page 2
HARDWARE LIST
ITEM
DESCRIPTION
QTY
ITEM
DESCRIPTION
QTY
A
1 PC
1
2
3
CAUTIONS :
1.Do not FULLY-TIGHTEN the nuts or nut bolts until all are in place.
2.To prevent thread damage.Ensure that nuts or nut bolts are not over-tighten.
3.Hardware are to be kept out of reach from children.
ASSEMBLY INSTRUCTIONS
4
Read this instruction carefully. Refer hardware and furniture parts list
for guidance. Be sure all parts are complete, before assembling. Place all
wooden furniture part on a clean and flat soft surface to prevent
scratcheds. Refer steps provided as assembling guide.
STEP 1
HEADBOARD
5
B
HEADBOARD SUPPORT(L & R)
C
SIDERAIL (L & R)
D
FOOTBOARD
E
SIDE TABLE 1
F
SIDE TABLE 2
G
CENTER RAIL
2 PCS
1 PC
4 PCS
1 PC
13 PCS
3 PCS
JCBC SCREW M6 x 50MM
SPRING WASHER 1/4"
15 PCS
STEP 4
8 PCS
PART LIST
8x
4x
STEP 2 STEP 3
STEP 6STEP 5
ASSEMBLY COMPLETED
1
H
I
G
3x
6
2
5
H
3x
7
28x
FLAT WASHER 1/4"
MINI FIX
28 PCS
4 PCS
15 PCS
A
C
D
6
3
2
1
6
1
2
PAN HEAD SCREW M4 x 25MM
H
SLAT
3 PCS
I
LEG SUPPORT
3 PCS
B
E
F
6
ALLEN KEY M4 BALL SHAPE (LONG)
1 PC
4
4
7
ADJUSTABLE SCREW
3 PCS
