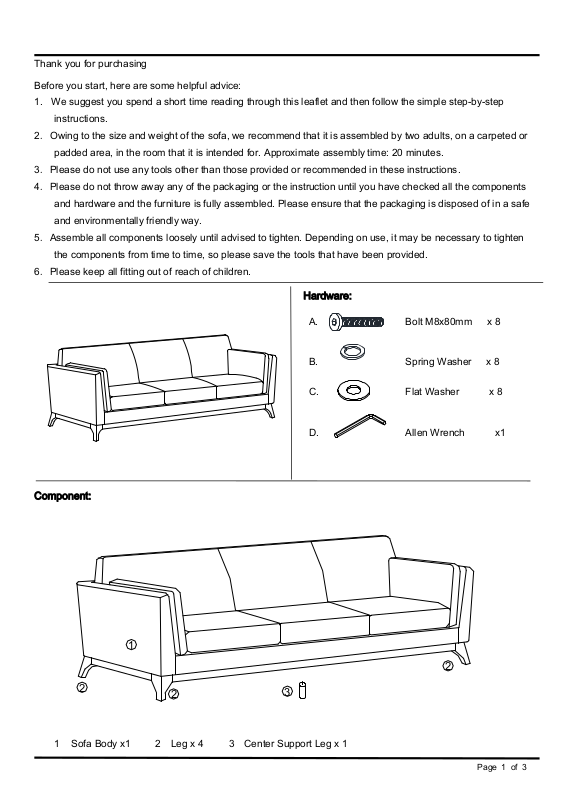

Thank you for purchasing
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 20 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.

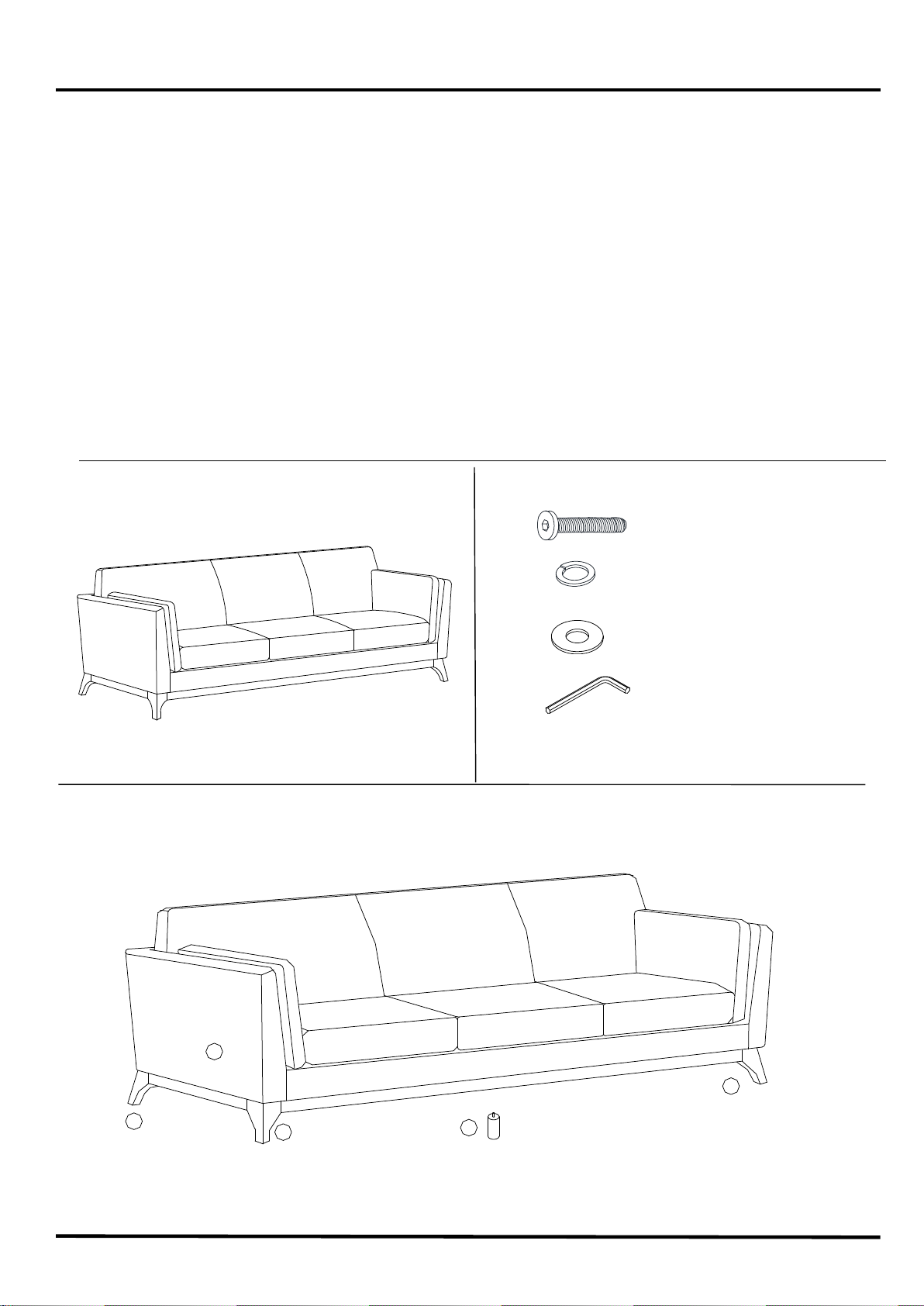

Hardware:
A. Bolt M8x80mm x 8
B. Spring Washer x 8
C. Flat Washer x 8
D. Allen Wrench x1
Component:
2
2
1 Sofa Body x1 2 Leg x 4 3 Center Support Leg x 1
3
Page 1 of 3
Page 2

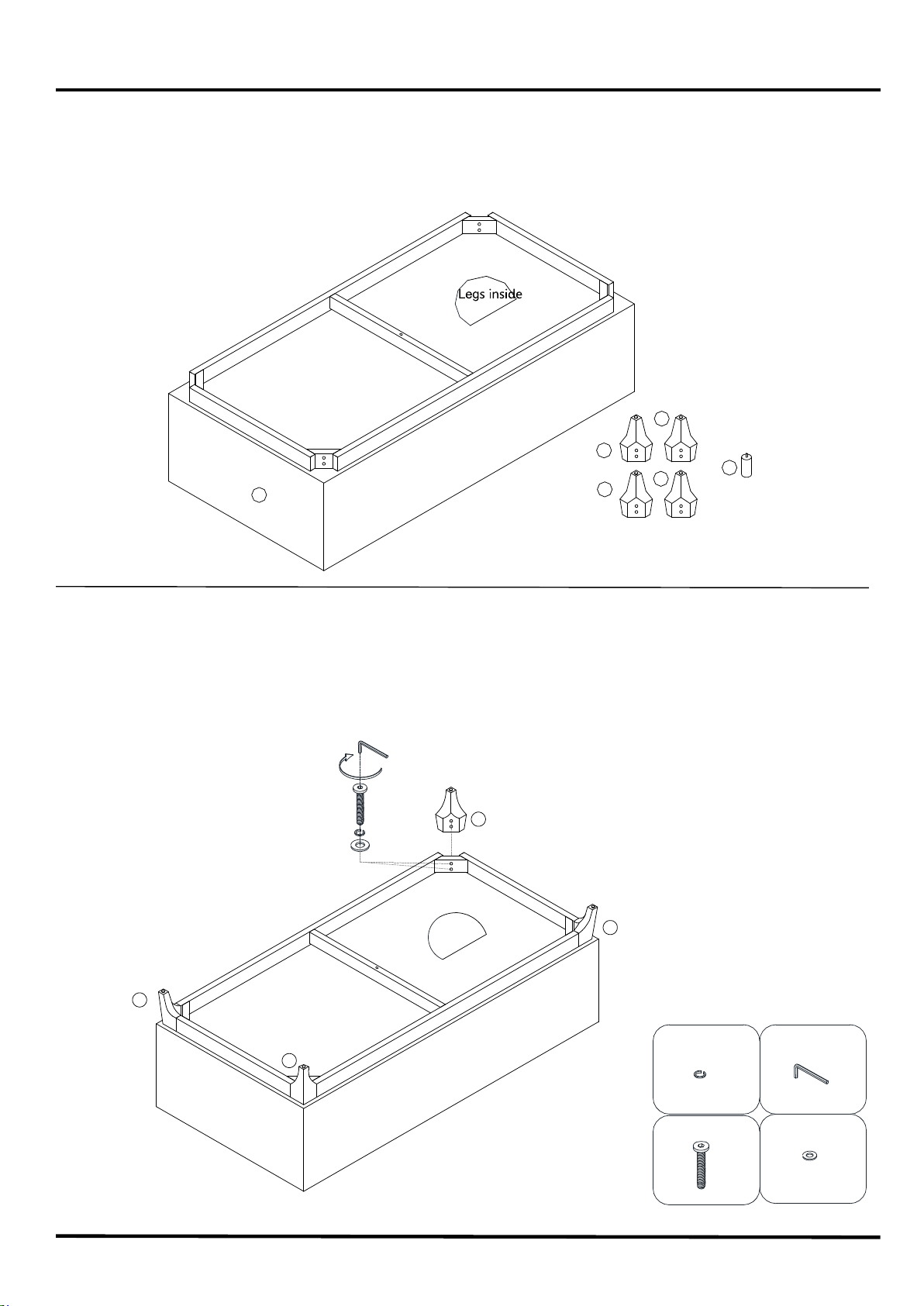

STEP 1:
Please put Sofa Body (1) on a carpeted or padded surface.
Open the Velcro strip on the bottom of the Sofa Body (1) and take out the 4 pieces of Legs (2) and 1 piece of
Center Support Leg (3) from the legs box.
1
2
2
2
2
3
STEP 2:
Attach 1 piece of Leg (2) to the bottom of Sofa Body (1) by using 2 pieces of Bolts (A) with 2 pieces of Spring
Washers (B) and 2 pieces of Flat Washers (C) as shown.
Repeat the same steps for other 3 pieces of Legs (2).
Tighten Bolts (A) by using Allen Wrench (D) as shown.
D
A
B
C
2
2
2
D
C
x 1
x 8
Hardware & Tools required
Page 2 of 3
Page 3

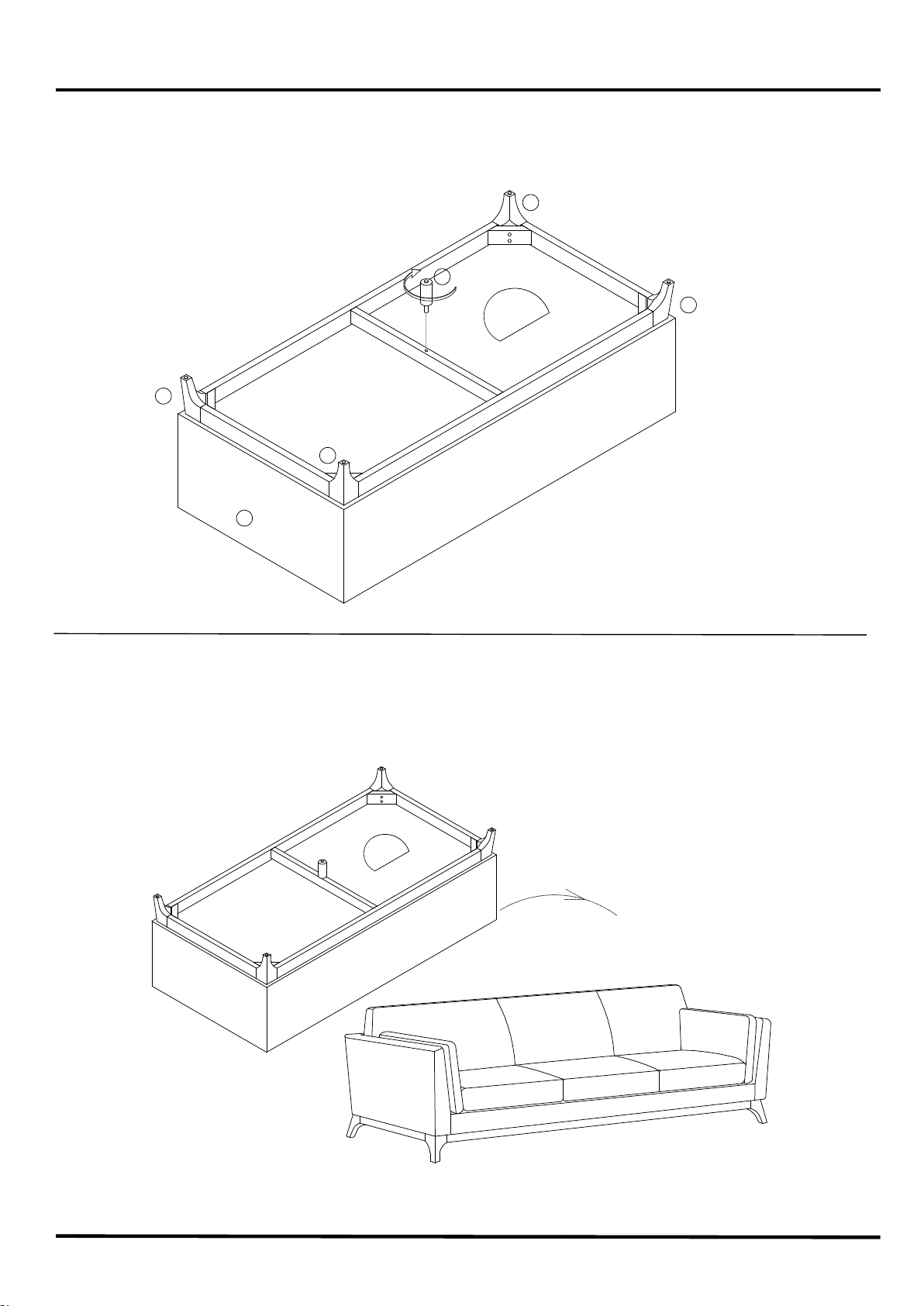

STEP 3:
Attach 1 piece of Center Support Leg (3) to the bottom of Sofa Body (1), and tighten the Center Support Leg
(3) in the direction of the arrow by hand as shown.
3
2
2
2
STEP 4:
Close the Velcro strip on the bottom of the Sofa Body (1).
Carefully turn over the assembled Sofa Body (1) and Legs (2) & (3) from step 3 as shown.
Assembly is complete. Your Sofa is ready to be used now!
Page 3 of 3
