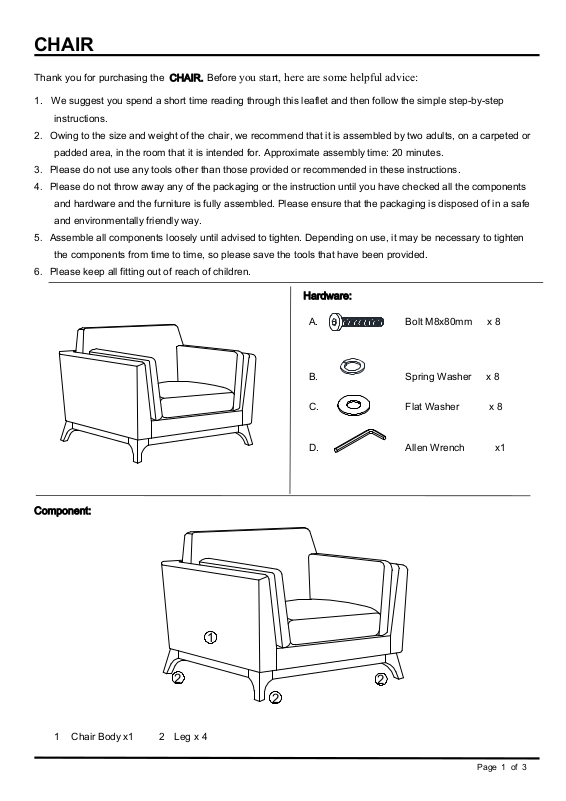

CHAIR
Thank you for purchasing the CHAIR. Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 20 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Hardware:
A. Bolt M8x80mm x 8
Component:
B. Spring Washer x 8
C. Flat Washer x 8
D. Allen Wrench x1
2
2
1 Chair Body x1 2 Leg x 4
Page 1 of 3
Page 2
A
x 8
B
x 8
2
CHAIR
STEP 1:
Please put Chair Body (1) on a carpeted or padded surface.
Open the Velcro strip on the bottom of the Chair Body (1) and take out the 4 pieces of Legs (2) from the legs
box.
Leg
s inside
2
2
1
STEP 2:
Attach 1 piece of Leg (2) to the bottom of Chair Body (1) by using 2 pieces of Bolts (A) with 2 pieces of Spring
Washers (B) and 2 pieces of Flat Washers (C) as shown.
Repeat the same steps for other 3 pieces of Leg (2).
Tighten Bolts (A) by using Allen Wrench (D) as shown.
2
2
D
A
B
2
C
2
D
2
x 1
C
x 8
Hardware & Tools required
Page 2 of 3
Page 3
2
1
CHAIR
STEP 3:
Close the Velcro strip on the bottom of the Chair Body (1).
Carefully turn over the assembled Chair Body (1) and Leg (2) from step 2 as shown.
Assembly is complete. Your Chair is ready to be used now!
2
2
2
Page 3 of 3
