Page 1
Important safety instructions:
Please carefully read all instructions before assembling the bench.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or
hardware.
Remove all parts and hardware from box along with any plastic protective packaging.
H1
H2
H3
H4
H5
H6
H7
H8
H9
Page 2

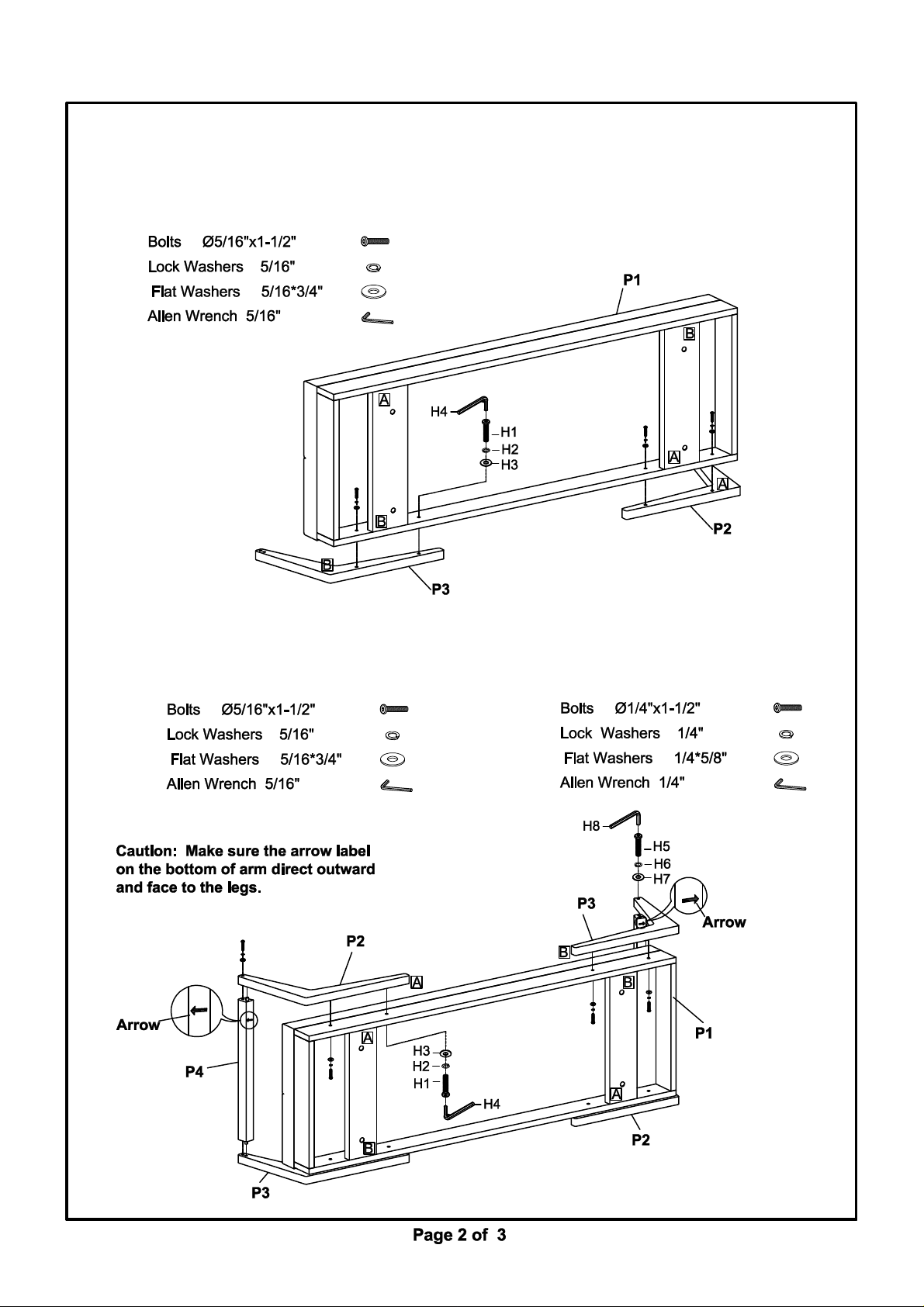

Assembly Procedures:
Step 1. Assemble the bench on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.
Attach one of Arm Support A (P2) and Arm Support B (P3) to seat cushion (P1) according to the labels "A" & "B"
on the Arm Supports (P2&P3) and bottom of seat cushion as shown below. Securely tighten the bolts with Allen
wrench (H4).
(H1)x4
(H2)x4
(H3)x4
(H4)x1
Step 2.
1) Loosely insert the dowel on the end of Arms (P4) to the assembled Arm Support A/B (P2/P3) as shown below.
2) Attach other
the
Arm Support A/B
Arm Support A/B
(P2/P3) and the bottom of seat cushion (P1) as shown below.
(P2/P3) to arms (P4) and seat cushion (P1) according to the labels "A" & "B" on
Securely tighten the bolts
with Allen wrench (H4 & H8).
(H1)x4
(H2)x4
(H3)x4
(H4)x1
(H5)x2
(H6)x2
(H7)x2
(H8)x1
Page 3

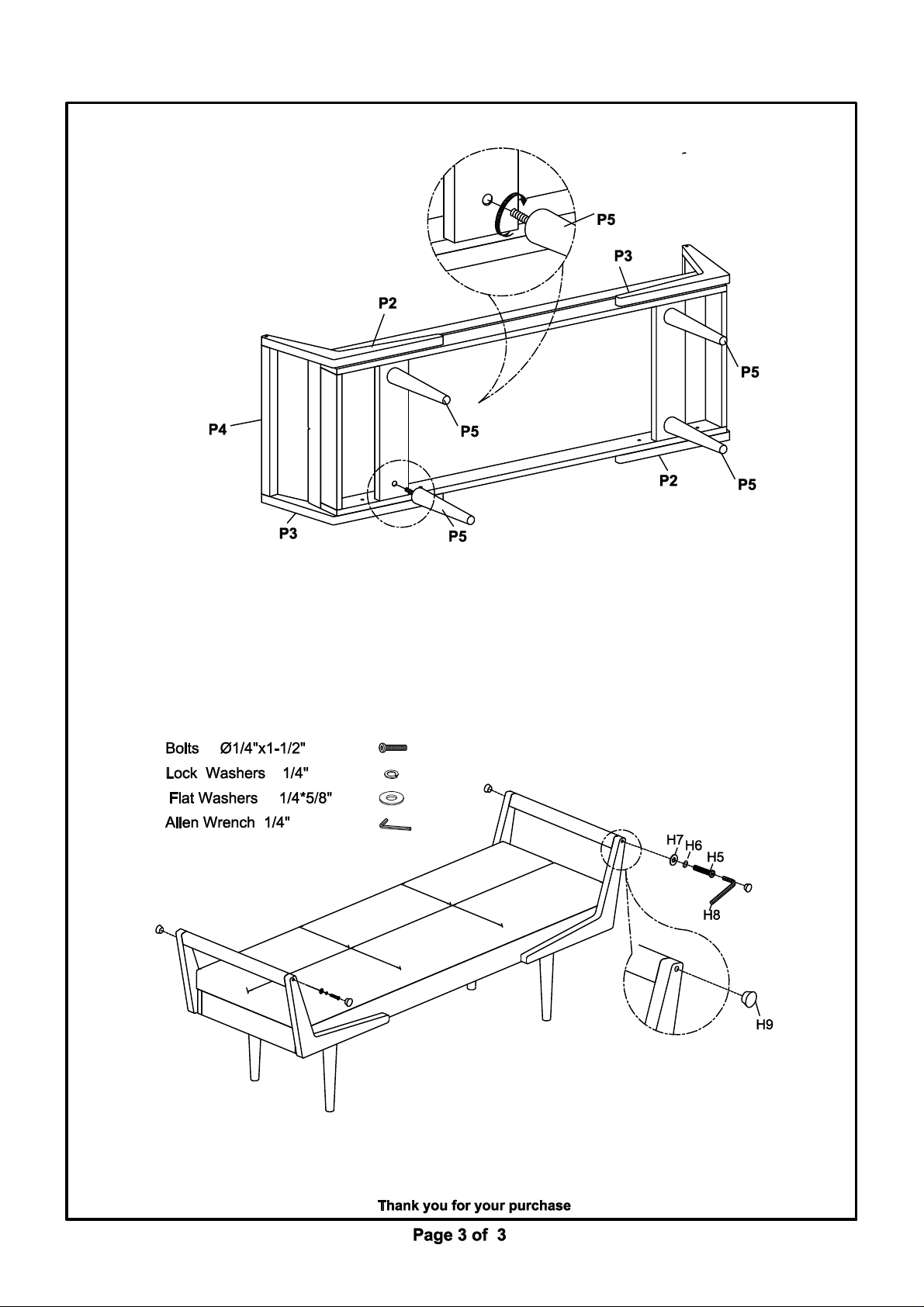

Step 3. Attach each leg (P5) to the bottom of Seat Cushion (P1).
Step 4.
1) T
urn the assembled bench to an upright position. Attach the other side arm supports A/B (P2/P3) to the
Arms (P4). Securely tighten all bolts.
2) Attach wooden plugs (H9) to each bolt hole, tighten with rubber hammer to knock the wooden plug till its
tighten. Note: use a soft cloth between the wooden plug and hammer to prevent damage to wooden plug
finish.
3)
Assembly is complete. Failure to follow these instructions may cause the bolts to misalign during
assembly.
(H5)x2
(H6)x2
(H7)x2
(H8)x1
ADDITIONAL NOTE ABOUT SAFETY: BOLTS MAY LOOSEN DURING NORMAL EVERYDAY USE. THEY SHOULD BE
PERIODICALLY INSPECTED AND RE-TIGHTENED TO PREVENT DAMAGE OR INJURY. ALWAYS CHECK TO BE SURE THAT ALL
HARDWARE IS KEPT TIGHTENED.
