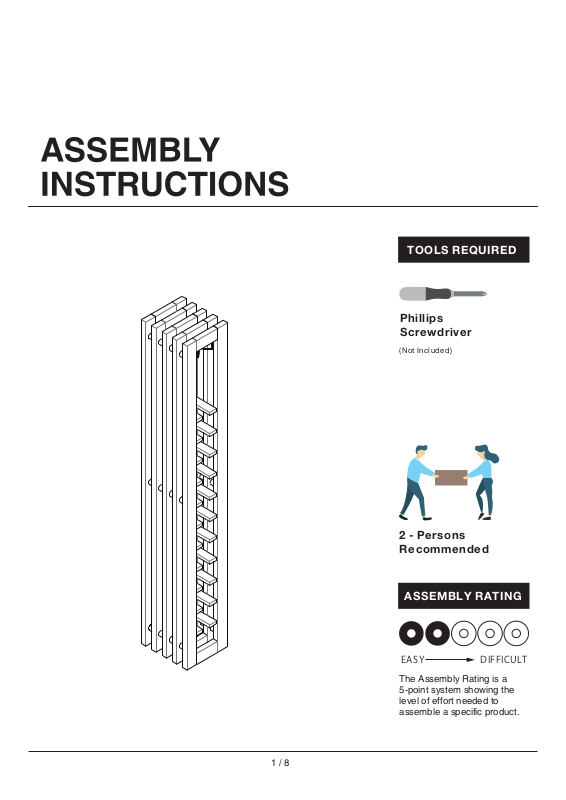

Page 1
TOOLS REQUIRED
Phillips
Screwdriver
(Not In cluded)
1 / 8
2 - Persons
Recommended
ASSEMBLY RATING
EA SY DIFFICULT
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Page 2
Thank you for your purchase!
We hope you enjoy this new addition to your home for many years to come.
Our commitment to providing quality products does not simply end when you
purchase our product. We fully stand behind our products from start to finish. To help
expedite our service, please have these assembly instructions readily available, along
with your order receipt.
CHECK
BEFORE STARTING
Are you missing anything?
Double-check all parts, hardware and
accessories listed on Page 6 are
accounted for.
Should we send any replacements?
Are there any irregularities or flaws in the
parts? We can send replacements!
Check out our Quick Tips!

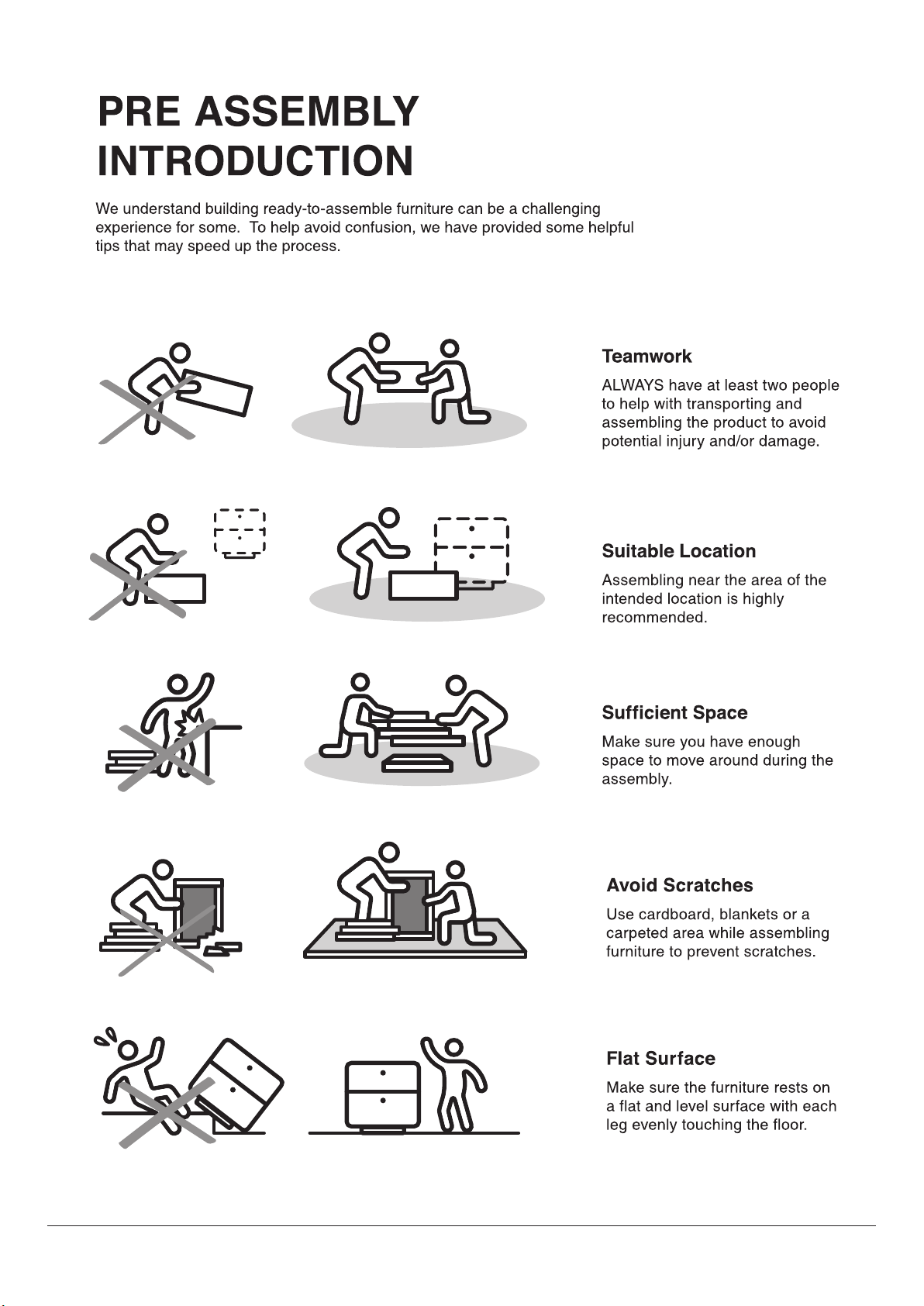

We recommend reviewing the pre-assembly
handouts. Even experts need a refresher now and
then!
Prep Time!
Please review the assembly instructions and all
diagrams prior to assembling. Arrange parts as
recommended on Page 7 and group identical
hardware together to make assembling easier.
02 / 14
Page 3
3 / 8
Page 4
ASSEMBLY
CARE ADVICE
FAILURE TO FOLLOW THE GUIDELINES BELOW MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
Position each part correctly
and insert screws or bolts into
their respective holes.
Save the instructions and store
any supplied tools for later
maintenance.
Turn clockwise to tighten and
only tighten when step is
completed or when instructed
to do so.
Use the appropriate hand tools
or power tools for assembly.
Select steps, such as tightening
screws and/or bolts, may require
hand tools to avoid causing
damage during assembly.
After two weeks, check and
tighten any loose hardware and
repeat again every six months
thereafter.
4 / 8
AND MAY CAUSE SERIOUS INJURY.
Page 5
WINE RACK
A
1PC
PARTS
A1
4PCS
A2
6PCS
A3
1PC
ACCESSORIES
A4
1PC
0. 71"
5 / 8
A5
1SET
1"
Page 6
1
A
Part x1PC
Accessory x4PCS
A1
Top
Front
2
Accessory x6PCS
A2
A1
A
Attac h and adjust t he
floor pr otectors ( #A1)
accor dingly to th e
floor le vels.
A1
A1
A1
A1
Top
Use the provided stickers
(#A2) to cover exposed
locks.
X6
Front
6 / 8
Page 7
3
Accessory x1PC
Accessory x1PC
Accessory x1SET
A3
A4
A5
Front
4
Top
A4
A3
A5
For safety, please secure
unit onto wall by using wall
mounted straps provided.

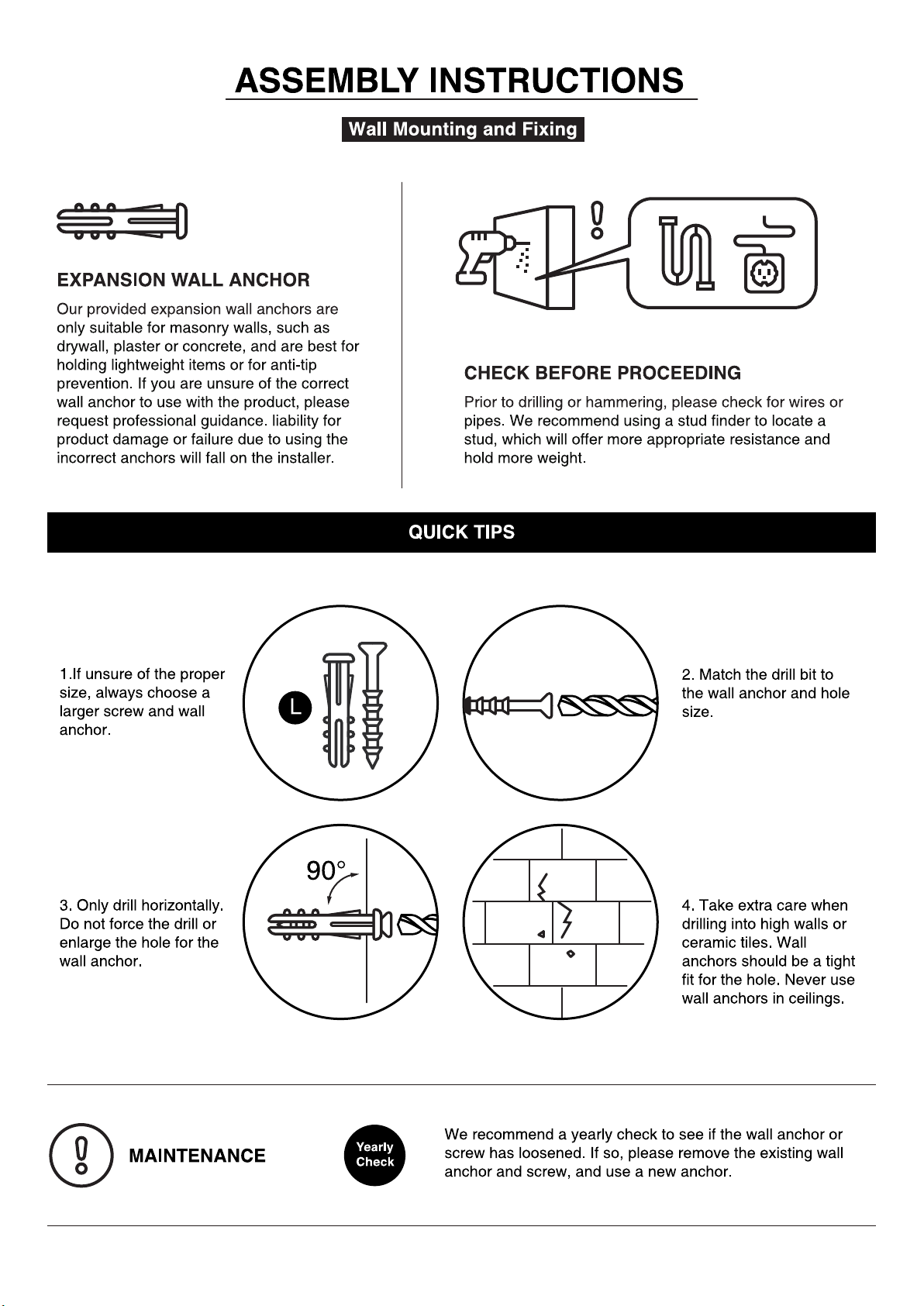

Refer to page 8 on wall
mounting guide.
ASSEMBLY
COMPLETED
Please ensure the
furniture rests on an even
and flat surface. If the
produst wobbles or feels
loose,double-check all
bolts and/or screws are
properly tightened and
secured.
Keep this handy!
Please retain this instruction
manual and any order-related
information for future reference.
7 / 8
Page 8
8 / 8
