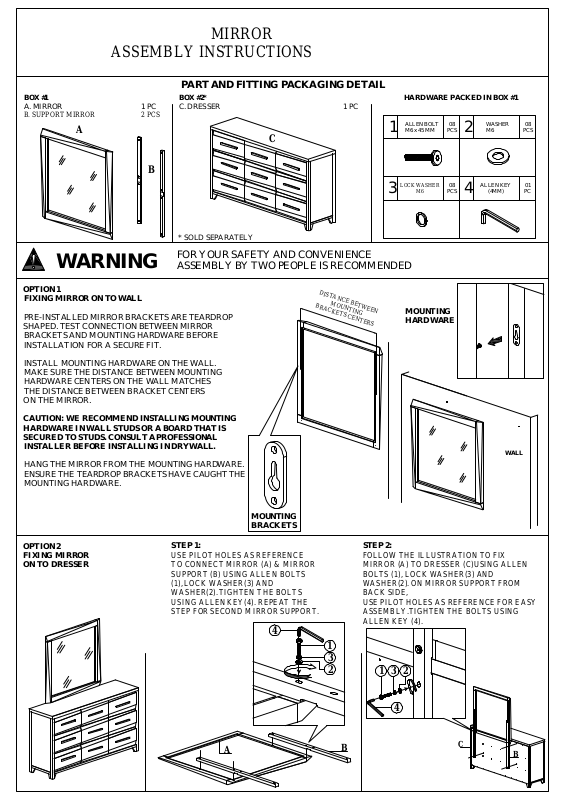

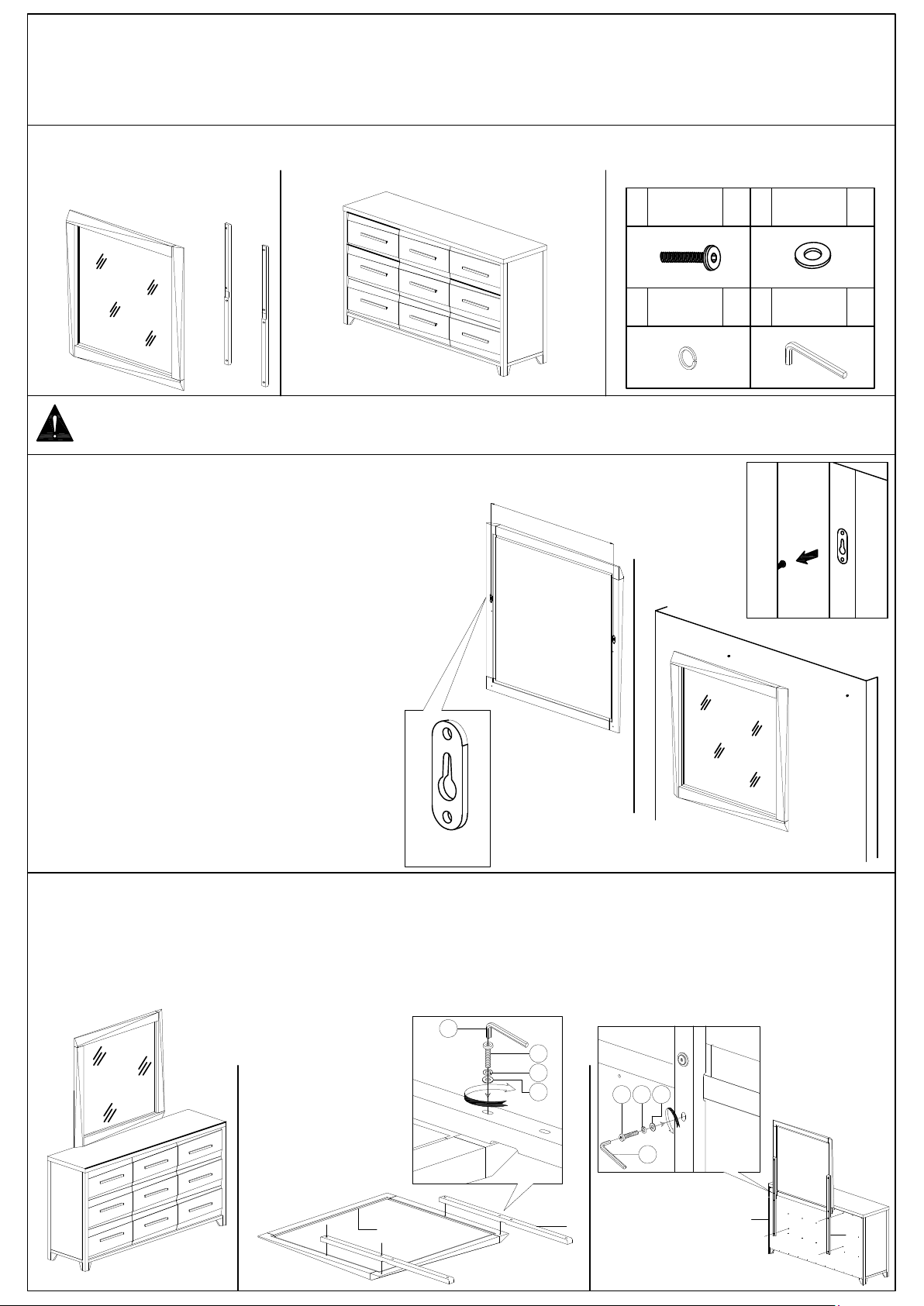

DISTANCE BETWEEN
MOUNTING
BRACKETS CENTERS
MIRROR
ASSEMBLY INSTRUCTIONS
BOX #1
A. MIRROR 1 PC
B. SUPPORT MIRROR 2 PCS
PART AND FITTING PACKAGING DETAIL
BOX #2*
C. DRESSER 1 PC
HARDWARE PACKED IN BOX #1
* SOLD SEPARATELY
1
ALLEN BOLT
M6 x 45 MM
08
PCS
4
01
PC
ALLEN KEY
(4MM)
WASHER
M6
2
08
PCS
WARNING
FOR YOUR SAFETY AND CONVENIENCE
ASSEMBLY BY TWO PEOPLE IS RECOMMENDED
OPTION 1
FIXING MIRROR ON TO WALL
PRE-INSTALLED MIRROR BRACKETS ARE TEARDROP
SHAPED. TEST CONNECTION BETWEEN MIRROR
BRACKETS AND MOUNTING HARDWARE BEFORE
INSTALLATION FOR A SECURE FIT.
INSTALL MOUNTING HARDWARE ON THE WALL.
MAKE SURE THE DISTANCE BETWEEN MOUNTING
HARDWARE CENTERS ON THE WALL MATCHES
THE DISTANCE BETWEEN BRACKET CENTERS
ON THE MIRROR.
CAUTION: WE RECOMMEND INSTALLING MOUNTING
HARDWARE IN WALL STUDS OR A BOARD THAT IS
SECURED TO STUDS. CONSULT A PROFESSIONAL
INSTALLER BEFORE INSTALLING IN DRYWALL.
HANG THE MIRROR FROM THE MOUNTING HARDWARE.
ENSURE THE TEARDROP BRACKETS HAVE CAUGHT THE
MOUNTING HARDWARE.
MOUNTING
BRACKETS
WALL
MOUNTING
HARDWARE
B
C
3
08
PCS
LOCK WASHER
M6
A
A
B
C
B
4
1
3
2
1 3 2
4
OPTION 2
FIXING MIRROR
DRESSER
ON TO
STEP 1:
USE PILOT HOLES AS REFERENCE
TO CONNECT MIRROR (A) & MIRROR
SUPPORT (B) USING ALLEN BOLTS
(1),LOCK WASHER(3) AND
WASHER(2).TIGHTEN THE BOLTS
USING ALLENKEY(4). REPEAT THE
STEP FORSECOND MIRROR SUPPORT.
STEP 2:
FOLLOW THE ILLUSTRATION TO FIX
MIRROR (A) TO DRESSER (C)USING ALLEN
BOLTS (1), LOCK WASHER(3) AND
WASHER(2).ON MIRROR SUPPORT FROM
BACK SIDE,
USE PILOT HOLES AS REFERENCE FOR EASY
ASSEMBLY.TIGHTEN THE BOLTS USING
ALLEN KEY (4).
