Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come
loose inside the carton during shipment.

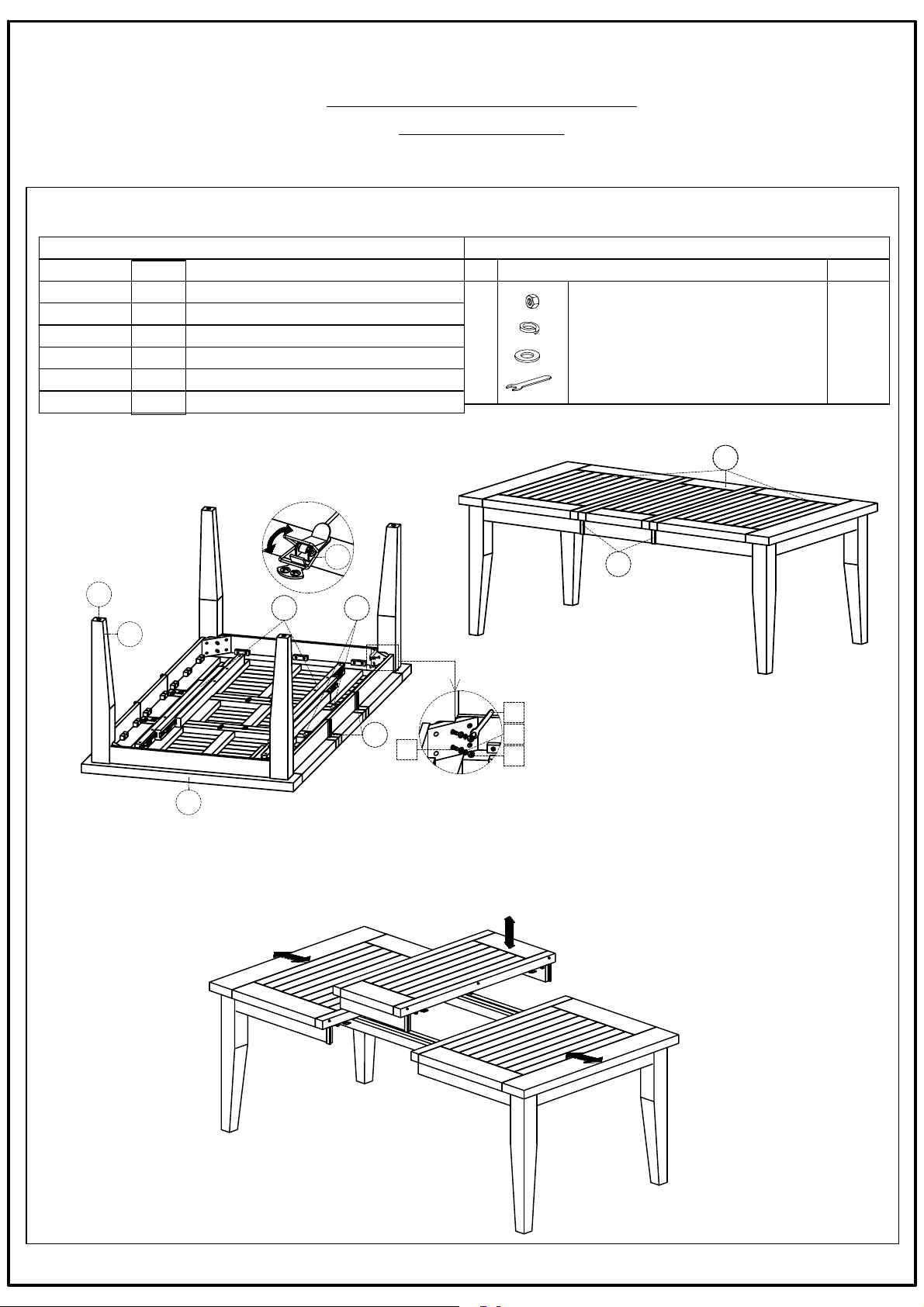

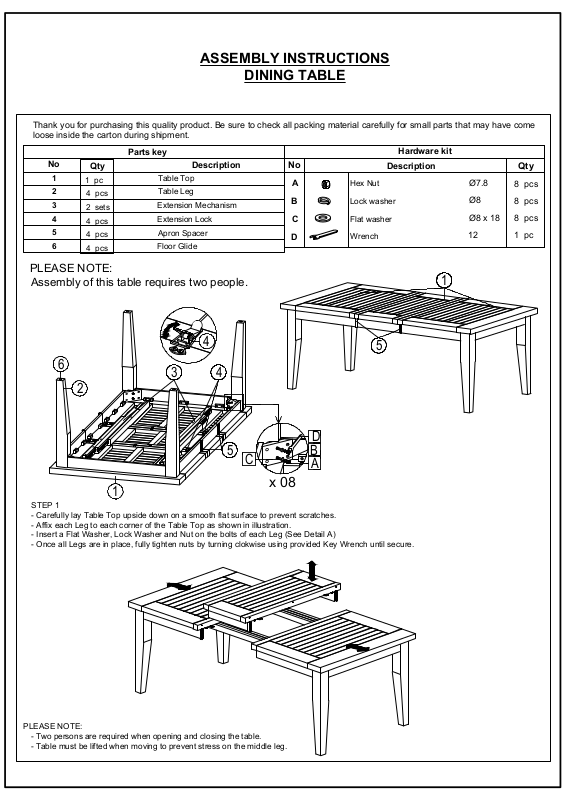

ASSEMBLY INSTRUCTIONS
No
Hex Nut
Lock washer
Flat washer
Wrench
A
B
C
D
Table Top
Table Leg
Extension Mechanism
Extension Lock
Apron Spacer
Floor Glide
PLEASE NOTE:
Assembly of this table requires two people.
STEP 1
- Carefully lay Table Top upside down on a smooth flat surface to prevent scratches.
- Affix each Leg to each corner of the Table Top as shown in illustration.
- Insert a Flat Washer, Lock Washer and Nut on the bolts of each Leg (See Detail A)
- Once all Legs are in place, fully tighten nuts by turning clokwise using provided Key Wrench until secure.
PLEASE NOTE:
- Two persons are required when opening and closing the table.
- Table must be lifted when moving to prevent stress on the middle leg.
1
5
3
6
2
5
4
1
x 08
A
B
D
C
4
DINING TABLE
No
1
2
3
4
5
6
Qty
1 pc
4 pcs
2 sets
4 pcs
4 pcs
4 pcs
Parts key
Description
Hardware kit
Description
Qty
Ø7.8
Ø8
Ø8 x 18
12
8 pcs
8 pcs
8 pcs
1 pc
