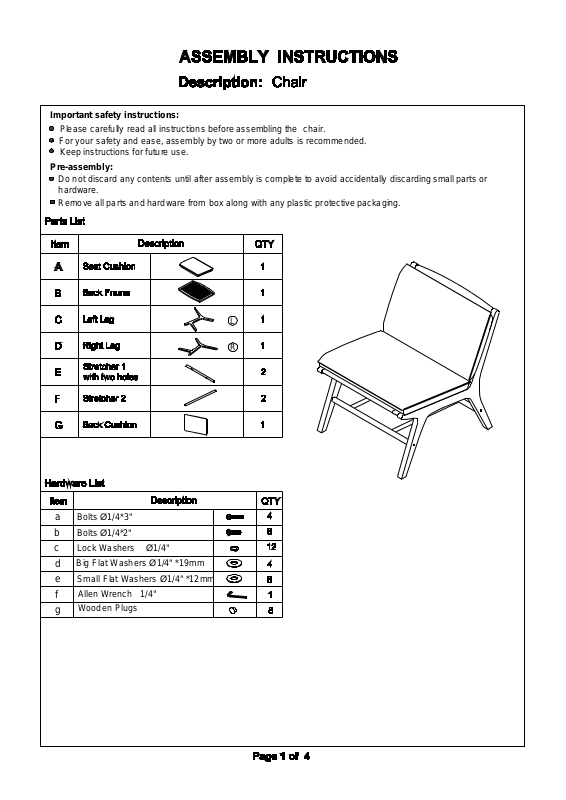

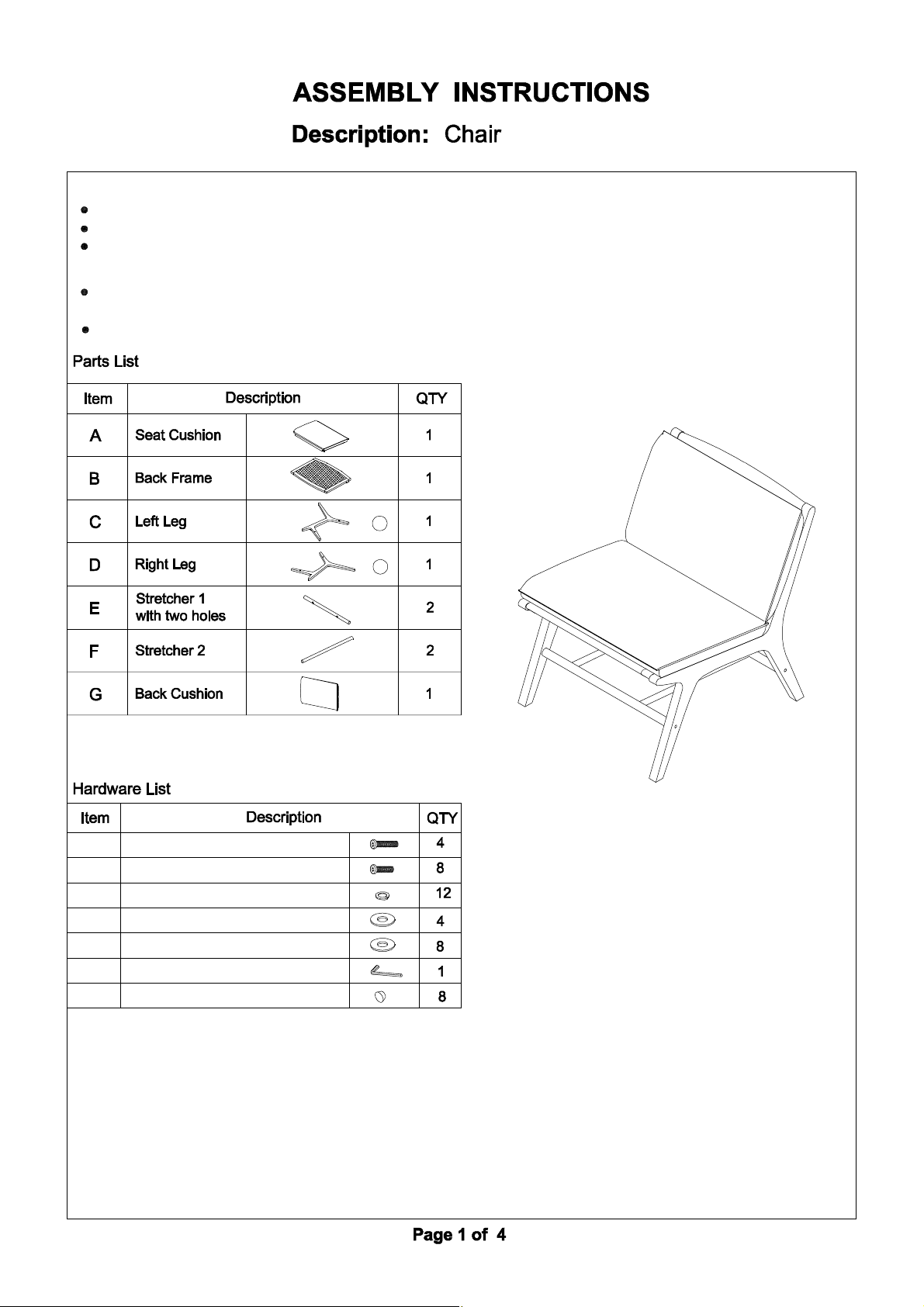

Important safety instructions:
Please carefully read all instructions before assembling the chair.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or
hardware.
Remove all parts and hardware from box along with any plastic protective packaging.
L
R
a
Bolts Ø1/4*3"
b
c
d
e
f
g
Ø1/4*2"
Bolts
Lock Washers Ø1/4"
Big Flat Washers Ø1/4" *19mm
Small Flat Washers Ø1/4" *12mm
Allen Wrench 1/4"
Wooden Plugs
Page 2
Assembly Procedures:

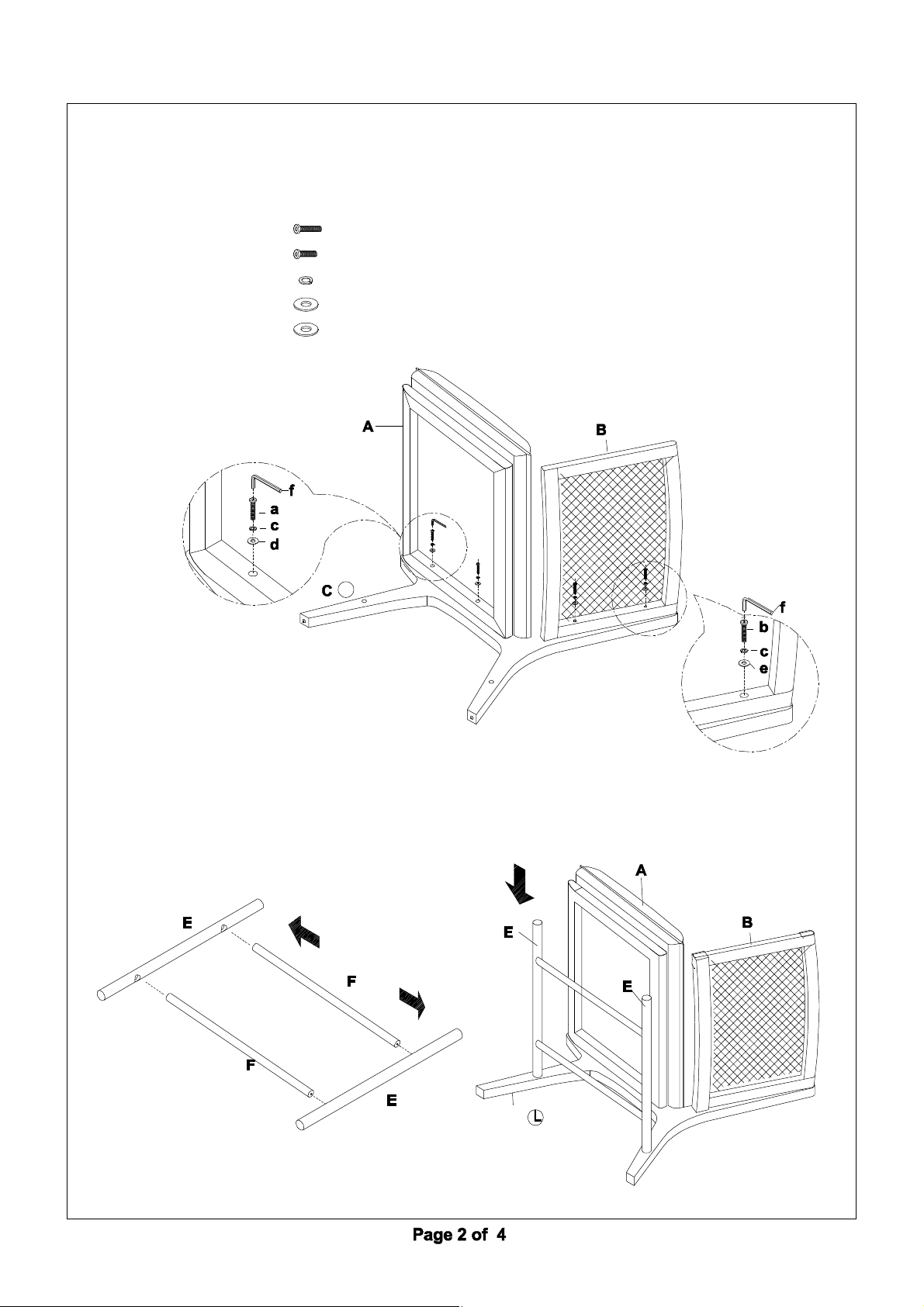

Step 1. Assemble the chair on a flat, soft surface such as a carpet or cloth to prevent scratching the finish. Attach
seat cushion (A) and back frame (B) to the left leg (C)
bolts with Allen wrench (f) .
according to the label "L" on the left leg. Securely tighten all
(a)x2
(b)x2
(c)x4
(d)x2
(e)x2
Bolts
Bolts
Lock Washers
Big Flat Washers
Small Flat Washers
L
Step 2. Insert stretchers 2 (F) to the holes on the stretchers 1 with two holes (E). then insert the assembled
stretcher 1 (E) to the holes of left leg (C).
C
Page 3

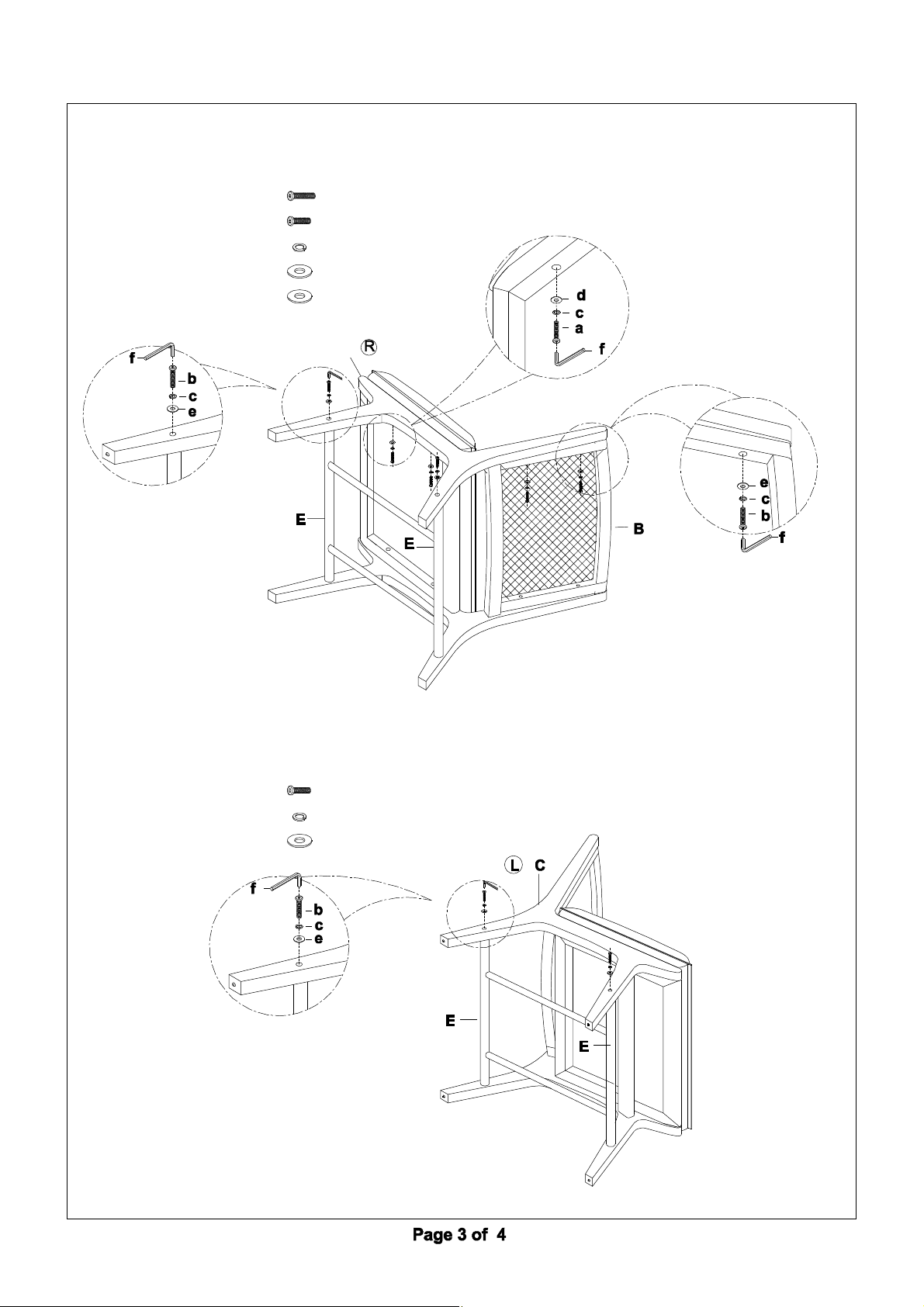

Step 3. Loosely attach right leg (D) to the seat cushion (A), back frame (B) and stretchers 2 (F) according to the
label "R" on the right leg
as show below
. Securely tighten all bolts with Allen wrench (f) .
(a)x2
(b)x4
(c)x6
(d)x2
(e)x4
Bolts
Bolts
Lock Washers
Big Flat Washers
Small Flat Washers
D
Step 4. Lay the other right leg (D) on a flat, soft surface such as a carpet or cloth. Then attach the stretcher 1( E)
and the stretcher (E) Repeat assembled left leg (C) to stretchers 1 (E) using bolts (b), lock washers (c) and flat
washers (e) according to the label "L" on the left leg. Securely tighten all bolts with Allen wrench (f) .
(b)x2
(c)x2
(e)x2
Bolts
Lock Washers
Small Flat Washers
Page 4

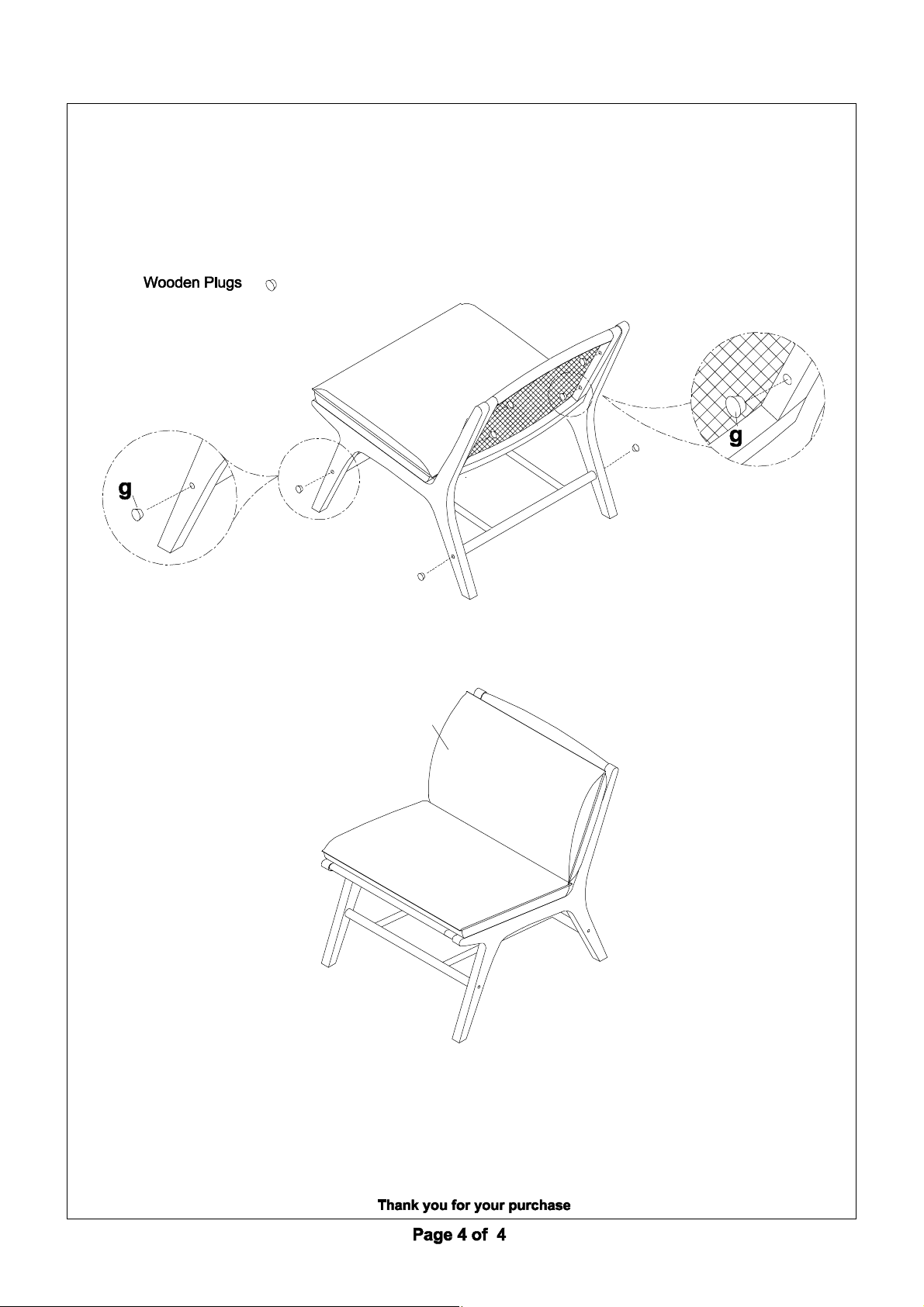

Step 5.
1) Turn the assembled chair to an upright position. Securely tighten all the bolts with Allen wrench (f).
2) Attach wooden plugs (g) to each bolt hole, tighten with rubber hammer to knock the wooden plug till its tighten.
Note: use a soft cloth between the wooden plug and hammer to prevent damage to wooden plug finish.
3) Assembly is complete. Put the back cushion (G) on the assembled lounge.
(g)x8
G
ADDITIONAL NOTE ABOUT SAFETY: BOLTS MAY LOOSEN DURING NORMAL EVERYDAY USE. THEY SHOULD BE
PERIODICALLY INSPECTED AND RE-TIGHTENED TO PREVENT DAMAGE OR INJURY. ALWAYS CHECK TO BE SURE THAT ALL
HARDWARE IS KEPT TIGHTENED.
