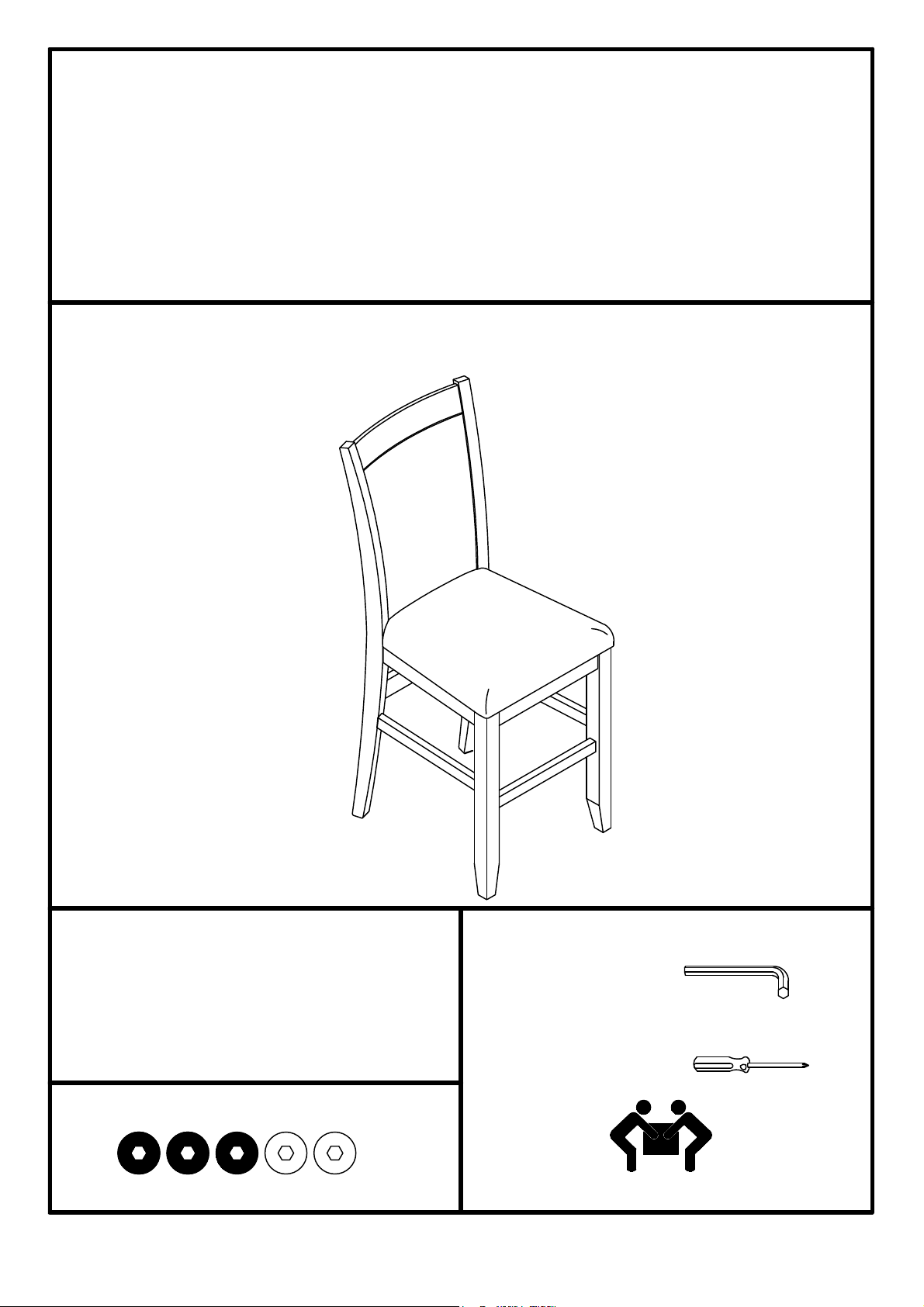

EASY
DIFFICULT
Page 1 of 5

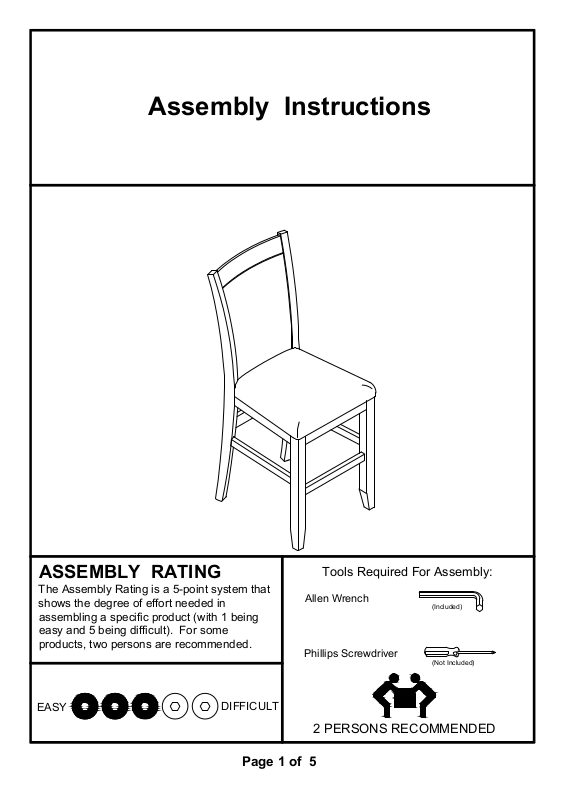

ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
(Not Included)
Assembly Instructions
Page 2
Page 2 of 5

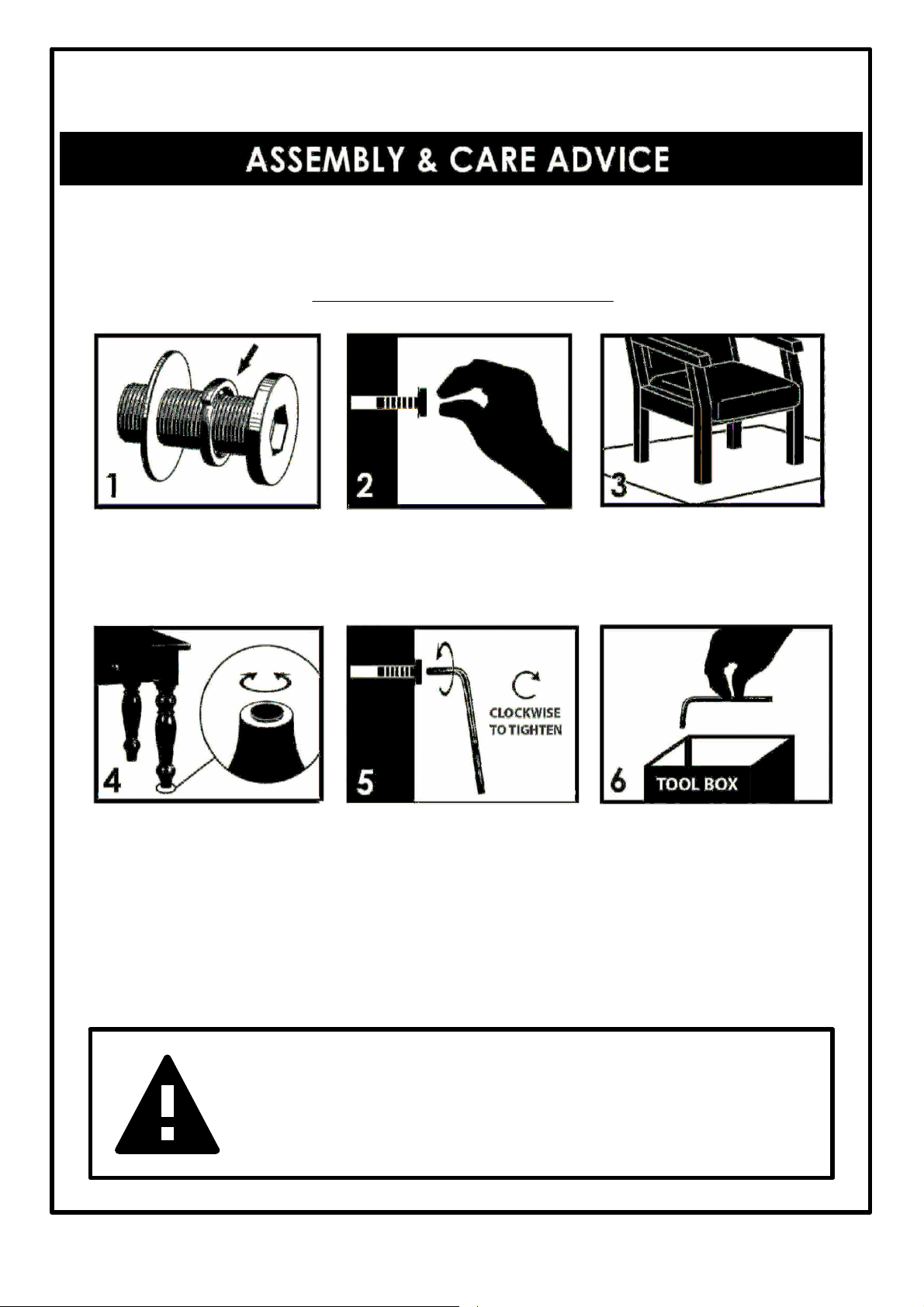

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches
.Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
Page 3

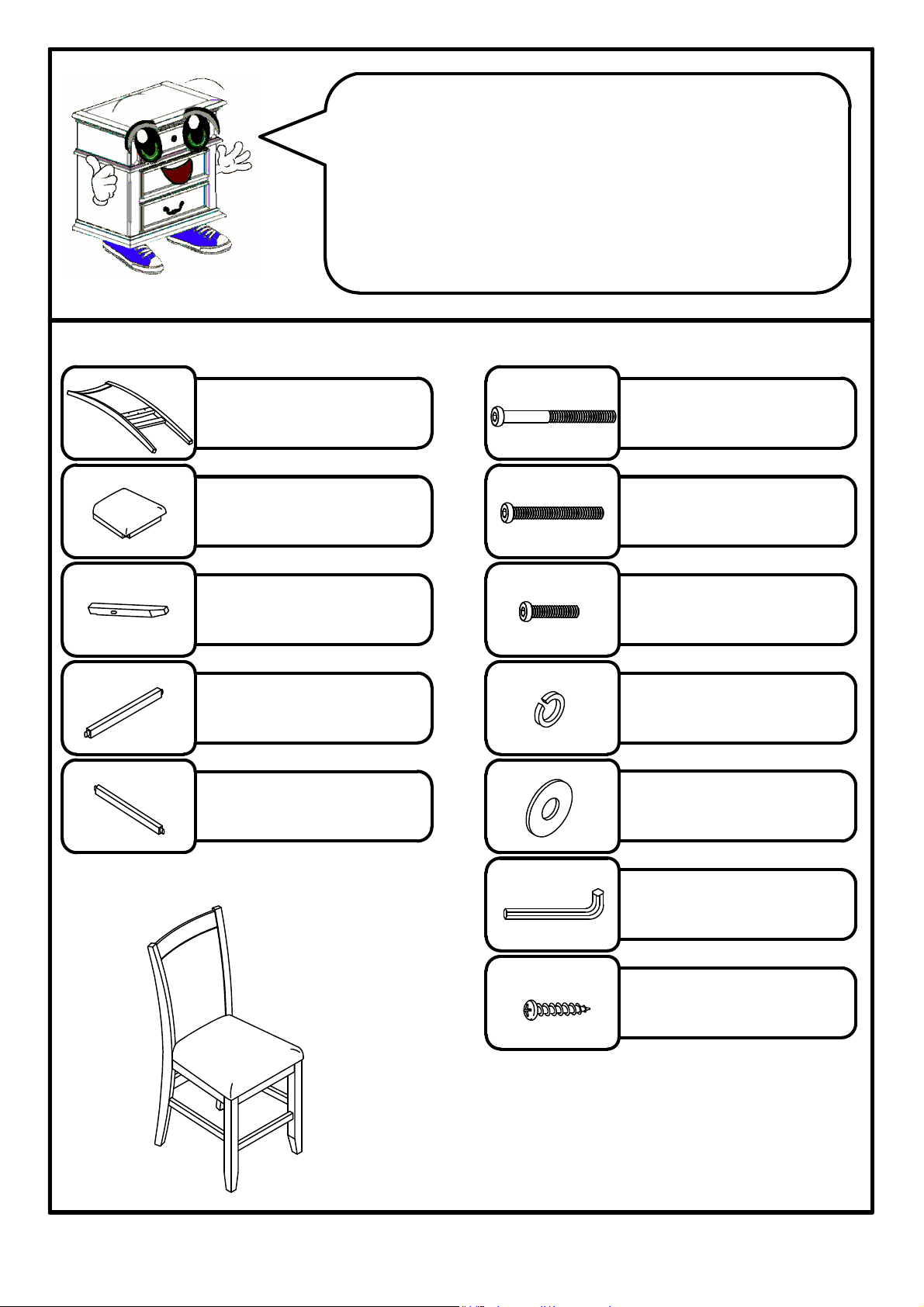

Parts List
Hardware List
#1 x 1pc x 2
#2 x 1pc x 2
#4 x 1pc x 2
#A x 4pcs x 2
Bolt Ø1/4" x 3''
#B x 4pcs x 2
#C x 3pcs x 2
#D x 11pcs x 2
Lock Washer
Ø1/4"
Bolt
Ø1/4"
x 2-1/4''
Bolt Ø1/4" x 1-1/2''
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Front Leg Support
Leg Support
Chair Back
Cushion Seat
Front Leg (L&R)
#3 x 2pcs x 2
#5 x 2pcs x 2
Flat Washer
Ø1/4"
Allen Wrench M4
Screw #4 x 1-1/2"
#E x 11pcs x 2
#F x 1pc
#G x 6pcs x 2
Page 3 of 5
x 2
Page 4
Page 4 of 5
#A x 4pcs
#D x 4pcs
#E x 4pcs
#C x 3pcs
#D x 3pcs
#E x 3pcs
#1
#2
#2
#1
#D
#E
#A
#F
#D
#E
#F
#C

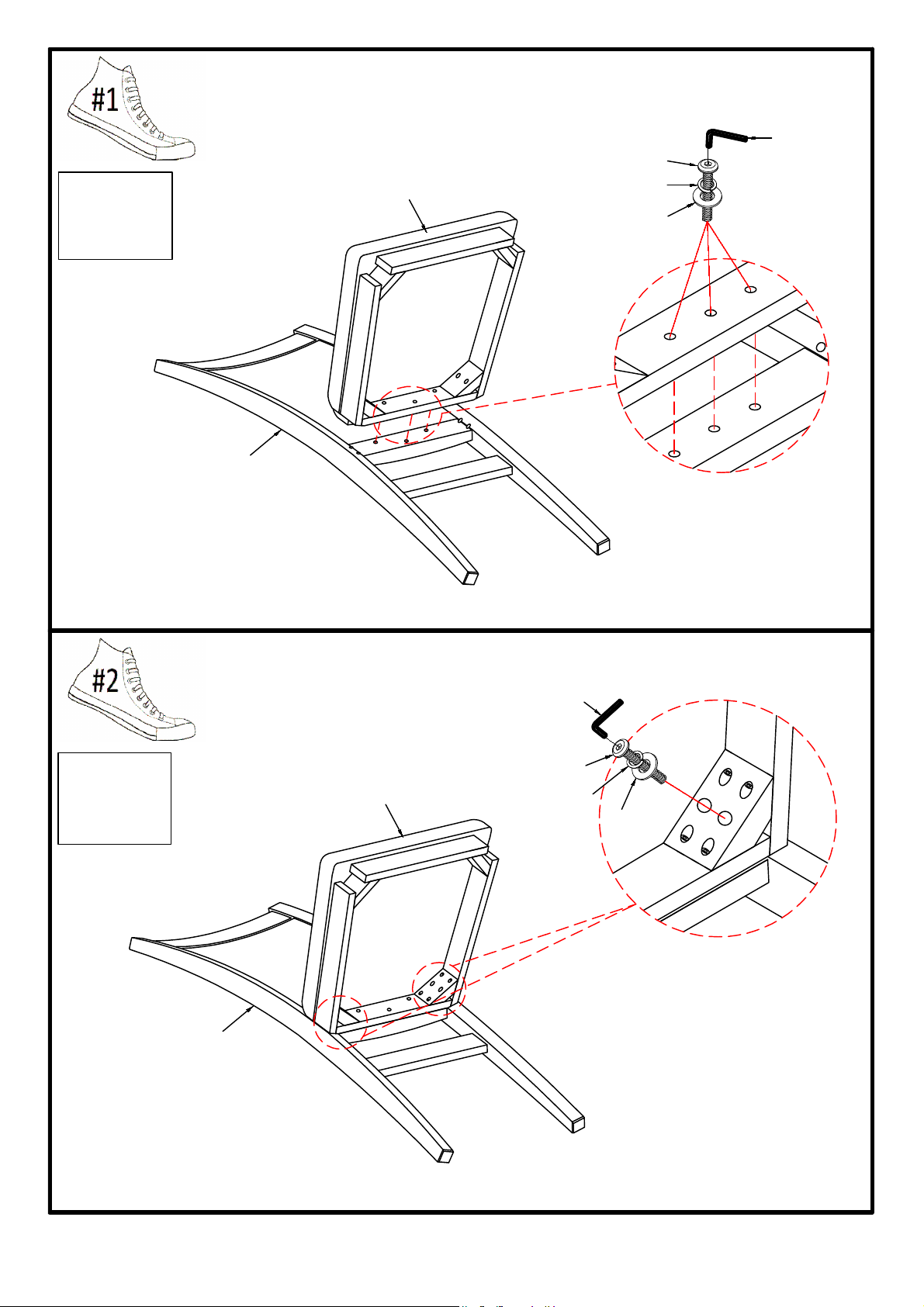

Prepare 3 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C).
Align seat cushion (#2) to the holes of the chair back (#1), then secure with bolts (#C).
Prepare 4 bolts assembly by inserting lock
washer (#D), then flat washer (#E) onto bolts
(#A). Secure the corner holes of the seat
cushion (#2) with bolts (#A).
Page 5
Page 5 of 5
#G x 6 pcs
#B x 4pcs
#D x 4pcs
#E x 4pcs
#2
#3R
#F
#3L
#B
#D
#E
#G
#5R
#5L
#4
#5
#5
#4
#2

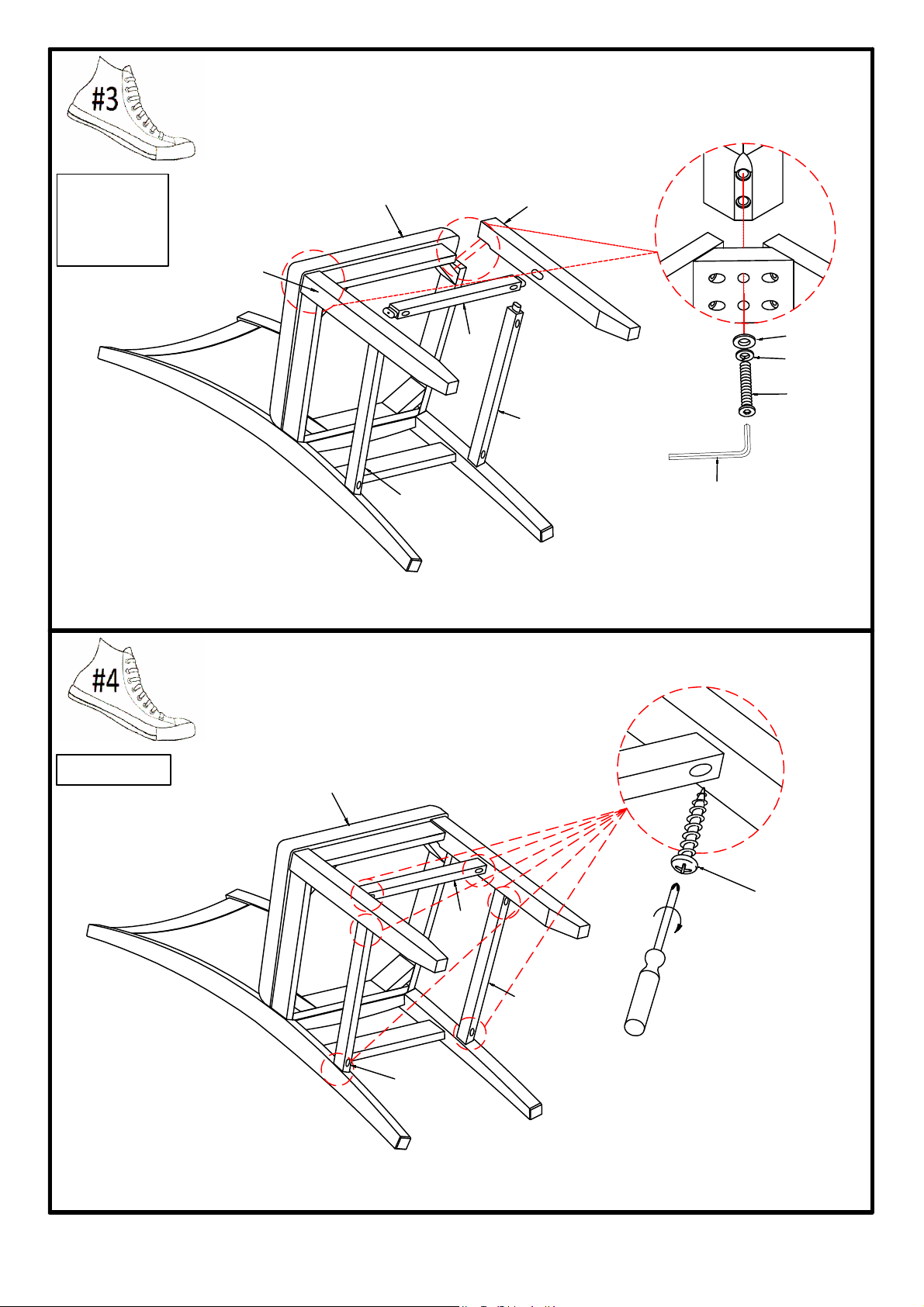

Prepare 4 bolts assembly by inserting lock washer (#D), then
flat washer (#E) onto bolts (#B). Align front legs (#3R/L) to
the holes of the cushion seat (#2), then align the leg supports
(#4,5) to the gaps of the legs. Secure front legs (#3R/L) to
seat cushion (#2) with bolts (#B).
Secure leg supports (#4,5) with screws (#G).
