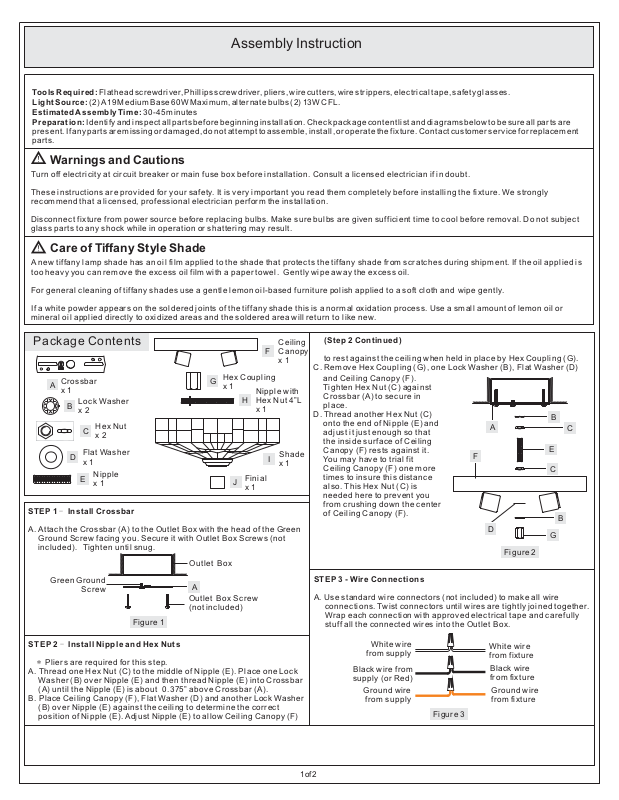

Assembly Instruction
ToolsRequired: Flatheadscrewdriver,Phillipsscrewdriver,pliers,wire cutters,wirestrippers, electricaltape,safety glasses.
LightSource:
EstimatedAssembly Time:
Preparation:
present.Ifany partsaremissing ordamaged,do notattemptto assemble,install,or operatethefixture. Contactcustomerservice forreplacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
(2)A19 MediumBase60W Maximum,alternatebulbs (2)13WCFL.
30-45minutes
Identifyandinspect allpartsbefore beginninginstallation.Check packagecontentlist anddiagramsbelow tobesure allpartsare

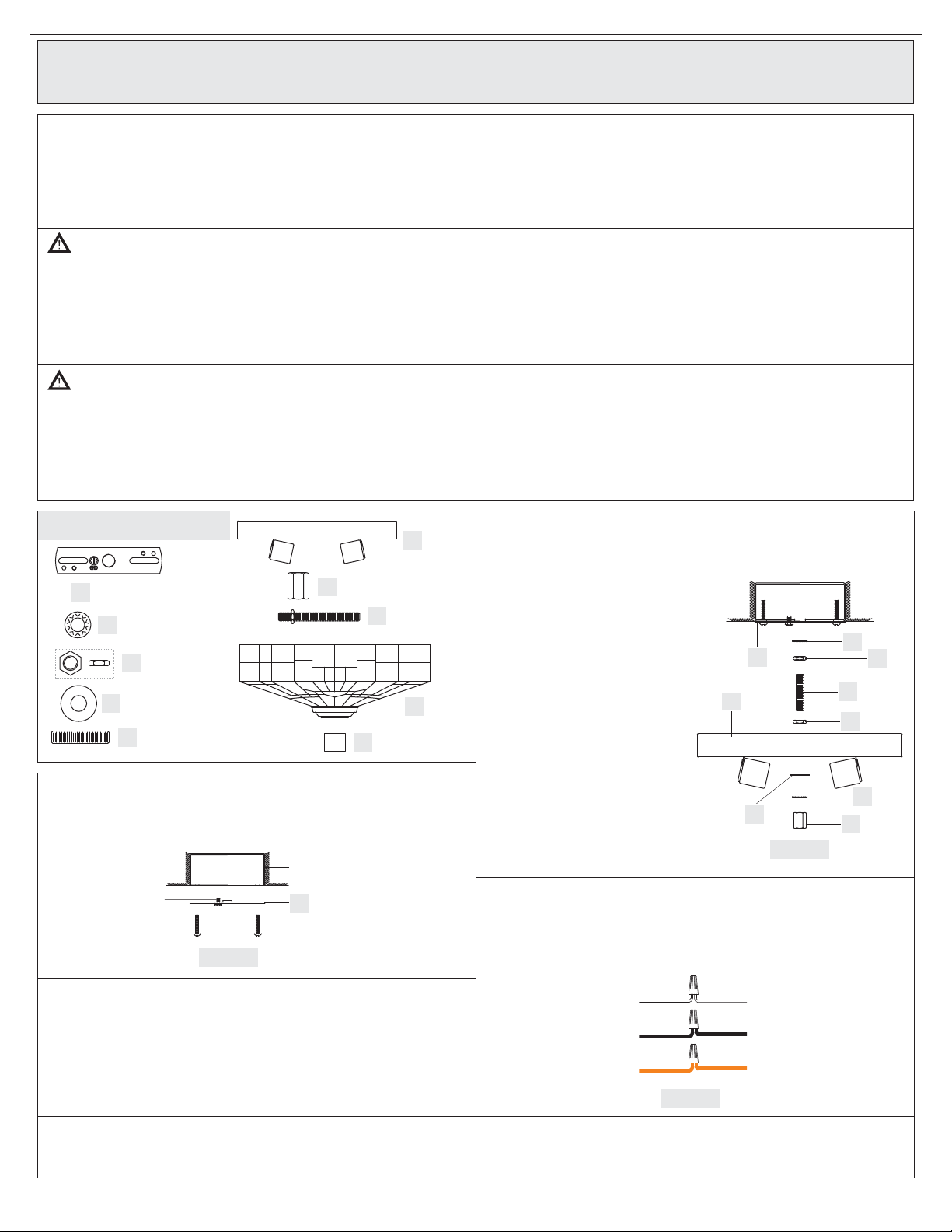

Package Contents
Crossbar
A
x1
Lock Washer
B
x2
Hex Nut
C
x2
Flat Washer
D
x1
Nipple
E
x1
STEP 1 Install Crossbar-
A. A)Attach the Crossbar ( to the Outlet Box with the head of the Green
Ground Screw facing you. Secure it with Outlet Box Screws (not
included) Tighten until snug..
Outlet Box
Green Ground
Screw
Figure 1
A
Outlet Box Screw
(not included)
Hex Coupling
G
x1
J
H
Finial
x1
Ceiling
F
Canopy
x1
Nipple with
Hex Nut 4”L
x1
Shade
I
x1
(Step 2 Continued)
to rest against the ceiling when held in place by Hex Coupling (G).
C. Remove Hex Coupling (G), one Lock Washer (B), Flat Washer (D)
and Ceiling Canopy (F).
Tighten Hex Nut (C) against
Crossbar (A) to secure in
place.
D. Thread another Hex Nut (C)
onto the end of Nipple (E) and
adjust it just enough so that
the inside surface of Ceiling
Canopy (F) rests against it.
You may have to trial fit
Ceiling Canopy (F) one more
times to insure this distance
also. This Hex Nut (C) is
needed here to prevent you
from crushing down the center
of Ceiling Canopy (F).
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
A
F
D
Figure 2
B
C
E
C
B
G
STEP 2 Install Nipple and Hex Nuts-
* Pliers are required for this step.
A. Thread one Hex Nut (C) to the middle of Nipple (E). Place one Lock
Washer (B) over Nipple (E) and then thread Nipple (E) into Crossbar
(A) until the Nipple (E) is about 0.375” above Crossbar (A).
B. Place Ceiling Canopy (F), Flat Washer (D) and another Lock Washer
(B) over Nipple (E) against the ceiling to determine the correct
position of Nipple (E). Adjust Nipple (E) to allow Ceiling Canopy (F)
1of2
White wire
from supply
Black wire from
supply (or Red)
Ground wire
from supply
White wire
from fixture
Black wire
from fixture
Ground wire
from fixture
Figure 3
Page 2

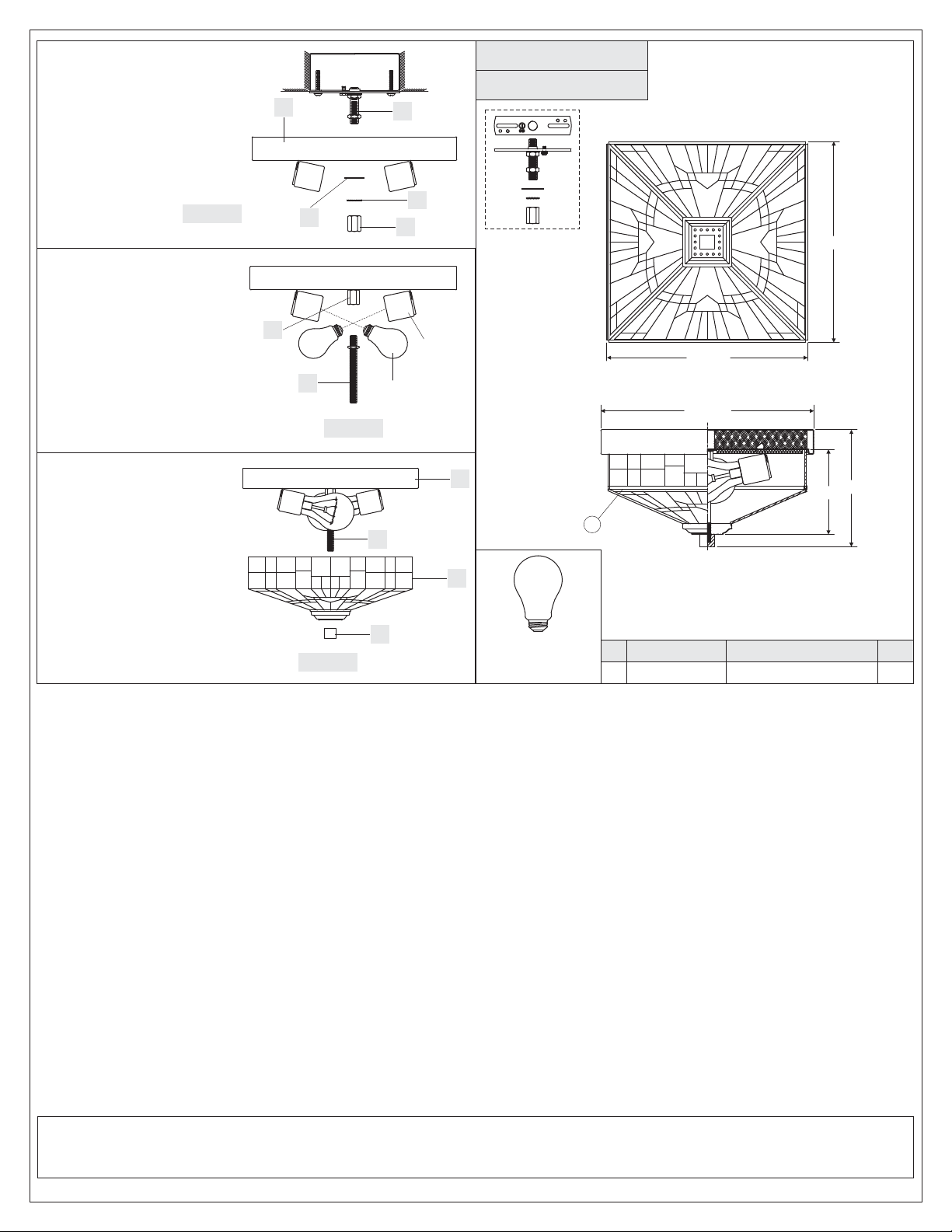

STEP 4 - Install Ceiling Canopy
A. Place Ceiling Canopy (F), Flat
Washer (D) and another Lock
Washer (B) over Nipple (E)
and secure with Hex Coupling
(G). Hand tighten until snug.
Figure 4
STEP 5 - Install Bulb
A. Thread the Hex Nut end of
Nipple with Hex Nut (H) into
Hex Coupling (G). By using
pliers, thread Hex Nut
against Hex Coupling (G)
and hand tighten until snug.
B. This fixture uses standard
bulbs with medium screw
base. Maximum 60 watts.
Insert bulb and screw snugly
into place.
STEP 6 - Install Shade
A. Place Shade (I) over the end
of Nipple with Hex Nut (H)
and secure with Finial (J).
Hand tighten until snug.
Your fixture is now
assembled and ready to use.
Enjoy!
G
F
D
H
Figure 5
Figure 6
E
G
Bulb (not
supplied)
H
J
B
Socket
FINISH: VALIANT BRONZE
F
I
Base
Medium
Bulbs
(2) 60W
(Not Supplied)
1
PART NUMBER
PART NUMBER
NO.
1
10.25”
10.25”
11” SQ .
6”
4.5”
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/4"
REPLACEMENT PART
QTY.
SHADE
1
2of2
