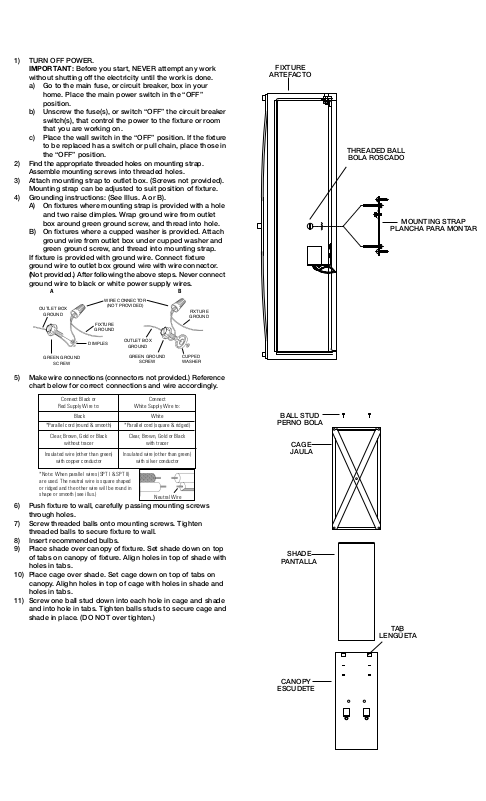

Foundry Select W007506065 Installation & Assembly

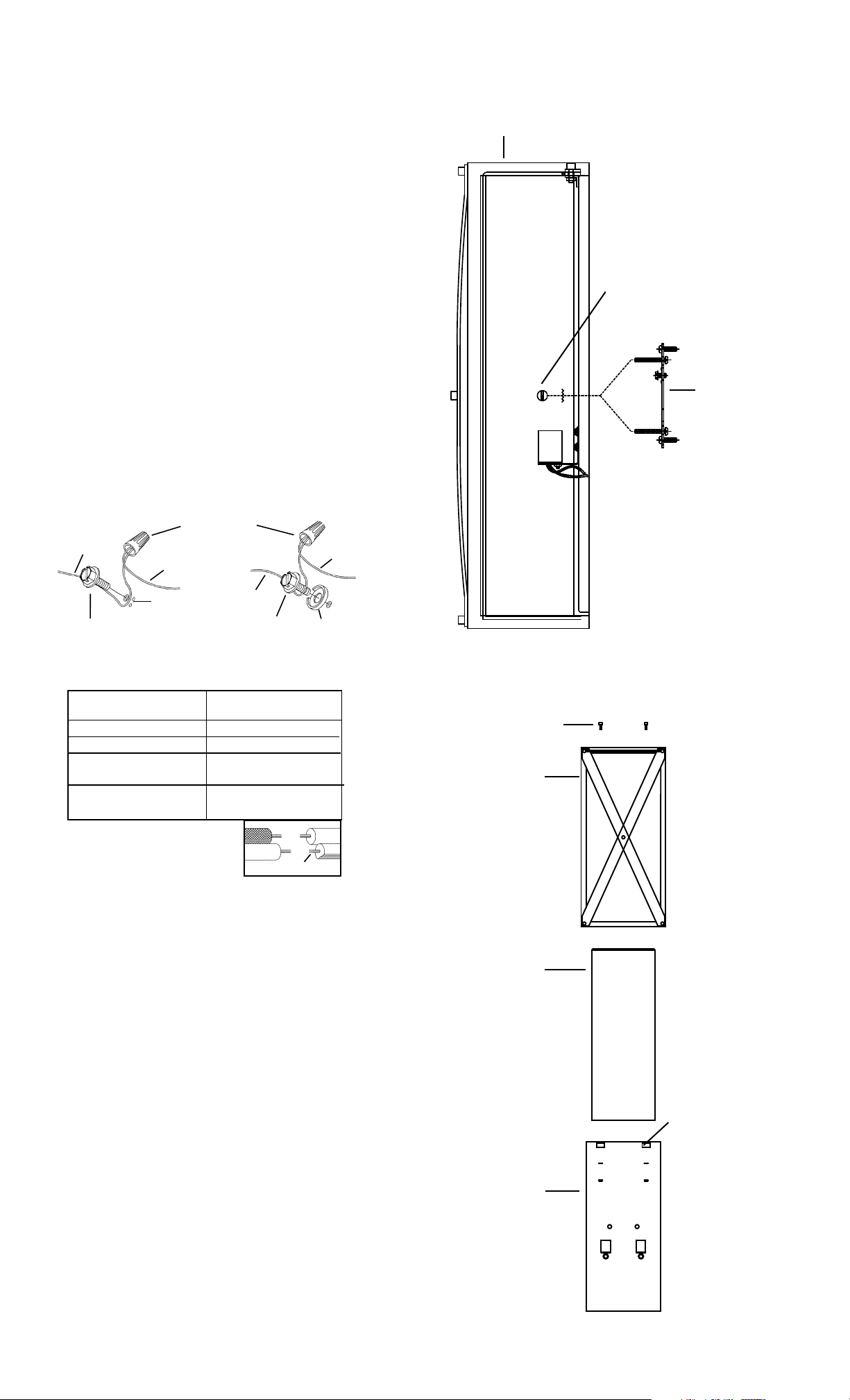

Page 1
1) TURN OFF POWER.
SCREW
IMPORTANT: Before you start, NEVER attempt any work without shutting off the electricity until the work is done. a) Go to the main fuse, or circuit breaker, box in your home. Place the main power switch in the “OFF” position. b) Unscrew the fuse(s), or switch “OFF” the circuit breaker switch(s), that control the power to the fixture or room that you are working on. c) Place the wall switch in the “OFF” position. If the fixture to be replaced has a switch or pull chain, place those in the “OFF” position.
2) Find the appropriate threaded holes on mounting strap. Assemble mounting screws into threaded holes.
3) Attach mounting strap to outlet box. (Screws not provided). Mounting strap can be adjusted to suit position of fixture.
4) Grounding instructions: (See Illus. A or B). A) On fixtures where mounting strap is provided with a hole and two raise dimples. Wrap ground wire from outlet box around green ground screw, and thread into hole. B) On fixtures where a cupped washer is provided. Attach ground wire from outlet box under cupped washer and green ground screw, and thread into mounting strap. If fixture is provided with ground wire. Connect fixture ground wire to outlet box ground wire with wire connector. (Not provided.) After following the above steps. Never connect ground wire to black or white power supply wires.
A
OUTLET BOX
GROUND
GREEN GROUND
WIRE CONNECTOR
(NOT PROVIDED)
FIXTURE GROUND
DIMPLES
OUTLET BOX
GROUND
GREEN GROUND
SCREW
B
CUPPED WASHER
FIXTURE GROUND
FIXTURE
ARTEFACTO
THREADED BALL
BOLA ROSCADO
MOUNTING STRAP
PLANCHA PARA MONTAR
5) Make wire connections (connectors not provided.) Reference chart below for correct connections and wire accordingly.
Connect Black or
Red Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
*Note: When parallel wires (SPT I & SPT II) are used. The neutral wire is square shaped or ridged and the other wire will be round in shape or smooth (see illus.)
Insulated wire (other than green)
Connect
White Supply Wire to:
Clear, Brown, Gold or Black
with tracer
with silver conductor
Neutral Wire
6) Push fixture to wall, carefully passing mounting screws through holes.
7) Screw threaded balls onto mounting screws. Tighten threaded balls to secure fixture to wall.
8) Insert recommended bulbs.
9) Place shade over canopy of fixture. Set shade down on top of tabs on canopy of fixture. Align holes in top of shade with holes in tabs.
10) Place cage over shade. Set cage down on top of tabs on canopy. Alighn holes in top of cage with holes in shade and holes in tabs.
11) Screw one ball stud down into each hole in cage and shade and into hole in tabs. Tighten balls studs to secure cage and shade in place. (DO NOT over tighten.)
BALL STUD
PERNO BOLA
CAGE
JAULA
SHADE
PANTALLA
TAB
LENGÜETA
CANOPY
ESCUDETE

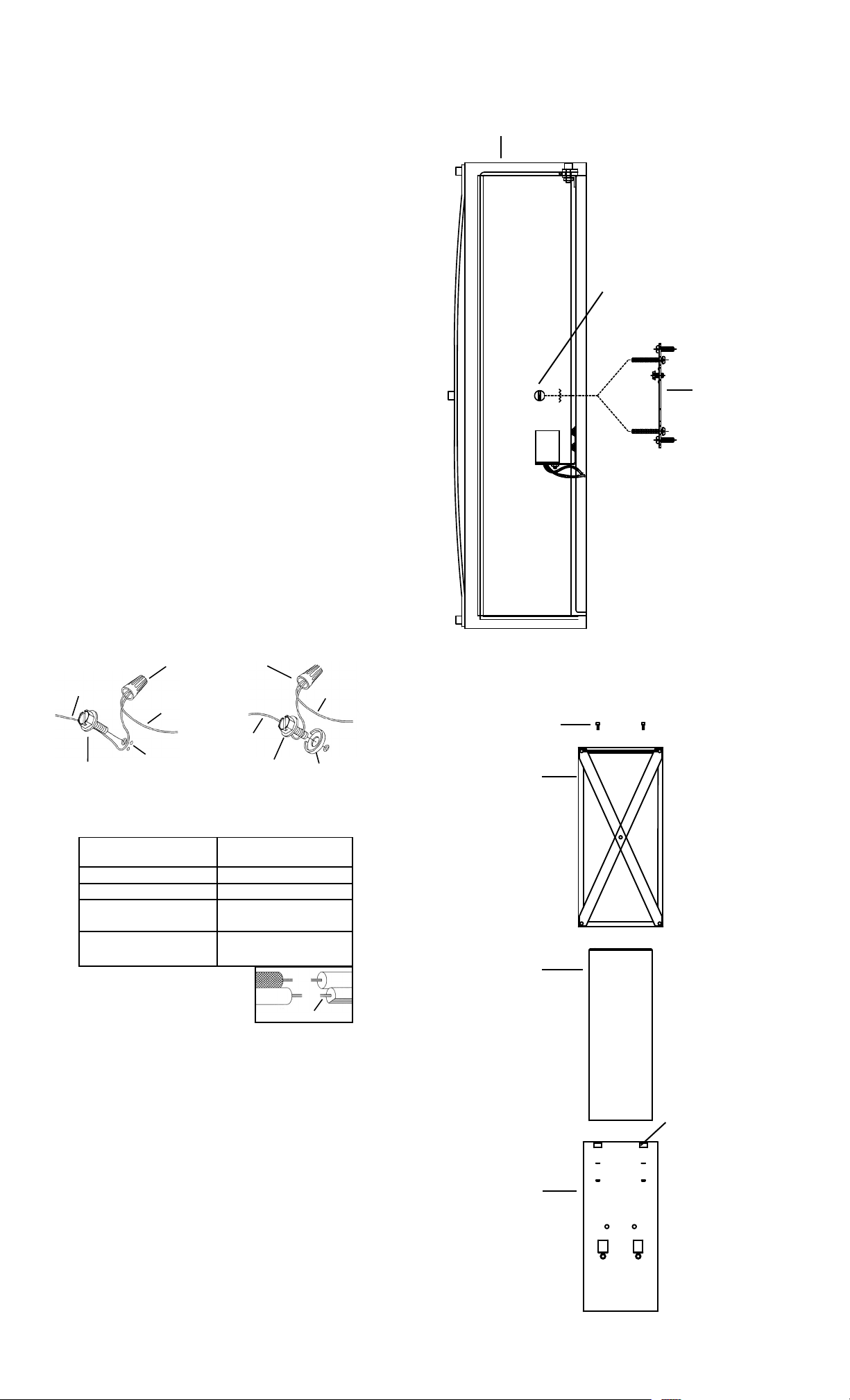

Page 2
1) APAGUE LA ALIMENTACIÓN ELÉCTRICA. IMPORTANTE: Antes de comenzar, NUNCA trate de trabajar sin antes desconectar la corriente hasta que el trabajo se termine. a) Vaya a la caja principal de fusibles, o interruptor o caja de circuitos de su casa. Coloque el interruptor de la corriente principal en posición de apagado “OFF”. b) Desatornille el (los) fusible (s), o coloque el interruptor o interruptores del breaker en posición de apagado “OFF”, que controla (n) la corriente hacia el artefacto o habitación donde está trabajando. c) Coloque el interruptor de pared en posición de apagado “OFF”. Si el artefacto que se va a reemplazar tiene un interruptor o cadena que se jala, colóquelos en la posición de apagado “OFF”.
2) Encontrar los agujeros roscados correctos en la abrazadera de montaje. Instalar los tornillos de montaje en los agujeros roscados.
3) Unir la abrazadera de montaje a la caja de conexiones. (No se proveen tornillos). La abrazadera de montaje puede ajustarse para acomodar la posición del artefacto.
4) Instrucciones de conexión a tierra solamente para los Estados Unidos. (Vea la ilustracion A o B). A) En las lámparas que tienen el fleje, de montaje con un agujero y dos hoyuelos realzados. Enrollar el alambre a tierra de la caja tomacorriente alrededor del tornillo verde y pasarlo por el aquiero. B) En las lámparas con una arandela acopada. Fijar el alambre a tierra de la caja tomacorriente del ajo de la arandela acoada y tornillo verde, y paser por el fleje de montaje. Si la lámpara viene con alambre a tierra. Conecter el alambre a tierra de la lámpara al alambre a tierra de la caja tomacorriente con un conector de alambres. (No incluido) Espués de seguir los pasos anteriores. Nunca conectar el alambra a tierra a los alambres eléctros negro o blanco.
A
TIERRA DE LA
CAJA DE SALIDA
TORNILLO DE TIERRA,
VERDE
CONECTOR DE ALAMBRE
(NO SE PROVEE)
TIERRA
ARTEFACTO
DEPRESIONES
CAJA DE SALIDA
TIERRA DE LA
TORNILLO DE TIERRA,
VERDE
B
TIERRA
ARTEFACTO
ARANDELA
CONCAVA
5) Haga les conexiones de los alambres (no se proveen los connectores.) La tabla de referencia de abajo indica las conexiones correctas y los alambres correspondientes.
Conectar el alambre de
suministro negro o rojo al
Negro Blanco
*Cordon paralelo (redondo y liso)
Claro, marrón, amarillio o negro
sin hebra identificadora
Alambre aislado (diferente del verde)
con conductor de cobre
*Nota: Cuando se utiliza alambre paralelo (SPT I y SPT II). El alambre neutro es de forma cuadrada o estriada y el otro alambre será de forma redonda o lisa. (Vea la ilustracíón).
Conectar el alambre de
suministro blanco al
*Cordon paralelo (cuadrado y estriado)
Claro, marrón, amarillio o negro
con hebra identificadora
Alambre aislado (diferente del
verde) con conductor de plata
Hilo Neutral
FIXTURE
ARTEFACTO
THREADED BALL
BOLA ROSCADO
MOUNTING STRAP
PLANCHA PARA MONTAR
BALL STUD
PERNO BOLA
CAGE
JAULA
SHADE
PANTALLA
6) Empuje la unidad contra la pared, pasando con cuidado al tubo roscado a travès del agujero.
7) Atornille las bolas roscadas en los tornillos de montaje. Ariete las bolas roscadas para sujetar el artefacto a la pared.
8) Inserte las bombillas recomendadas.
9) Coloque la pantalla sobre el escudete del artefacto. Coloque la pantalla hacia abajo en la parte superior de las lengüetas de la escudete del artefacto. Alinee los agujeros en la parte superior de la pantalla con los agujeros de las lengüetas.
10) Coloque la caja sobre la pantalla. Coloque la jaula hacia abajo en la parte superior de las lengüetas del escudete. Alinee los agujeros en la parte superior de la jaula con los agujeros en la pantalla y los agujeros de las lengüetas.
11) Atornille un perno bola abajo en cada agujero en la jaula y la pantalla y en el agujero en las lengüetas. Apriete los pernos de bolas para asegurar la jaula y la pantalla en el lugar. (NO apriete demasiado.)
TAB
LENGÜETA
CANOPY
ESCUDETE
