Page 1

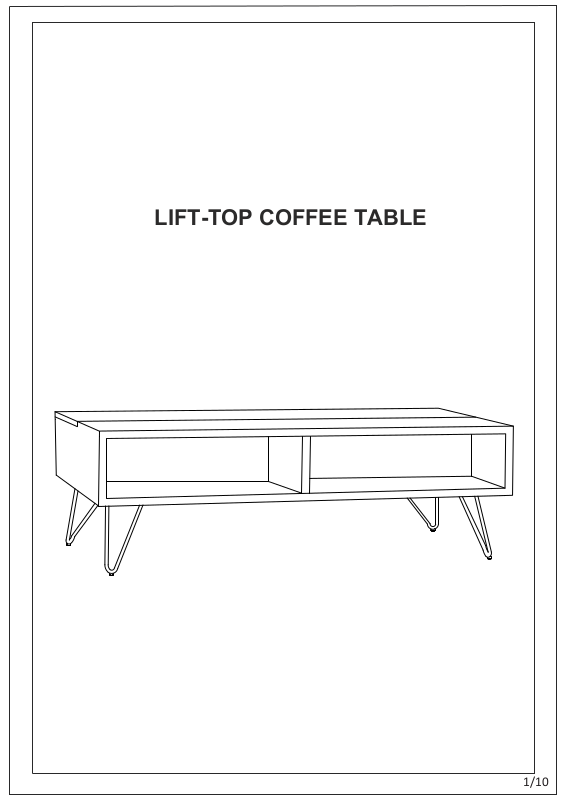

LIFT-TOP COFFEE TABLE
1/10
Page 2
Questions, problems, assembly help, missing parts?
No need to return the product, we will gladly help and ship your
replacement parts free of charge
Please call our Customer Service
In order to assist you in a timely manner, please have the following information ready:
Model # ____________________Part Number or Letter______________________
Purchased at _________________Date of Purchase _________________________
If you wish to return the product, please contact the retailer where the
product was purchased.
2/10
Page 3
3/10
Page 4
Wood Furniture Care
Perhaps the greatest environmental damage to wood furniture comes from wide swings in
relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity
rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and
contracts unequally along different grain directions. As humidity changes, the components
of wooden objects are continually pushing and pulling against each other. This pressure
often results in parts of furniture no longer fitting together closely or becoming distorted or
breaking from their own internal stresses.
The response to relative humidity changes begins with determining the annual average RH
for your particular space. Then try to keep the RH in the space where your furniture is as
close to that average as possible, generally within about 10% up or down. De-humidify in
the summer and humidify in the winter.
Be aware that raising the temperature lowers the humidity and vice versa. Thus, modern
heating systems, which can drive down interior RH in the winter, almost invariably cause
problems for furniture. To counteract their effect, you can either modify the RH by keeping
furniture containing spaces cooler in the winter or most importantly, have a good working
humidifier for your home. A humidistat automatically works to balance the humidity in
your home so it is constant. Dry indoor air can suck enough moisture from its surroundings
to do permanent damage to wood, causing it to crack or split.
Remember, that not all woods are created equal. Two factors that help determine how
rapidly a wood will lose moisture are pore size and surface hardness. A piece made from a
dense and hard wood will dry less rapidly than pieces made from softer woods.
Furniture that is sealed and lacquered will lose moisture more slowly than an unfinished
piece while pieces with veneer finishes are not only stronger, but lose moisture more slowly
than other finishes.
To help protect your wood furniture, take these steps:
• Use a humidifier, preferably one with an automatic control system that can sense
the humidity level and adjust itself accordingly. Don't over-humidify; that can
damage wood by causing it to expand and contract.
• Keep furniture out of direct sunlight, which can cause it to dry out, crack and warp.
• If you can avoid it, don't put furniture near heating vents. If you must, keep the
piece 3 to 4 inches away from the wall, giving the heat and air space to circulate.
• Dust with soft dry cloth.
• Do not use liquid or aerosol products.
• To avoid marking, do not place rubber ON SURFACE (FOOT PADS, ETC)
• For soil build-up, wipe with damp cloth & dry.
• Do not use abrasive cleaner.
4/10
Page 5
A
TOP
QTY 1
LEG
QTY 4
ALLEN KEY BOLT
M 6 X 15 mm
QTY 12
WASHER
∅ 17 / ∅ 8 X 1.5 mm
QTY 12
ALLEN KEY
QTY 1
B
1 2 3
5/10
Page 6
A
B
6/10
Page 7
STEP - 1
ABA312B
B
A
1. Attach Legs B to Top A with Allen key Bolts 1 and Washers 2 .
2. Use Allen Key 3 to tighten .
7/10
Page 8
STEP -
2

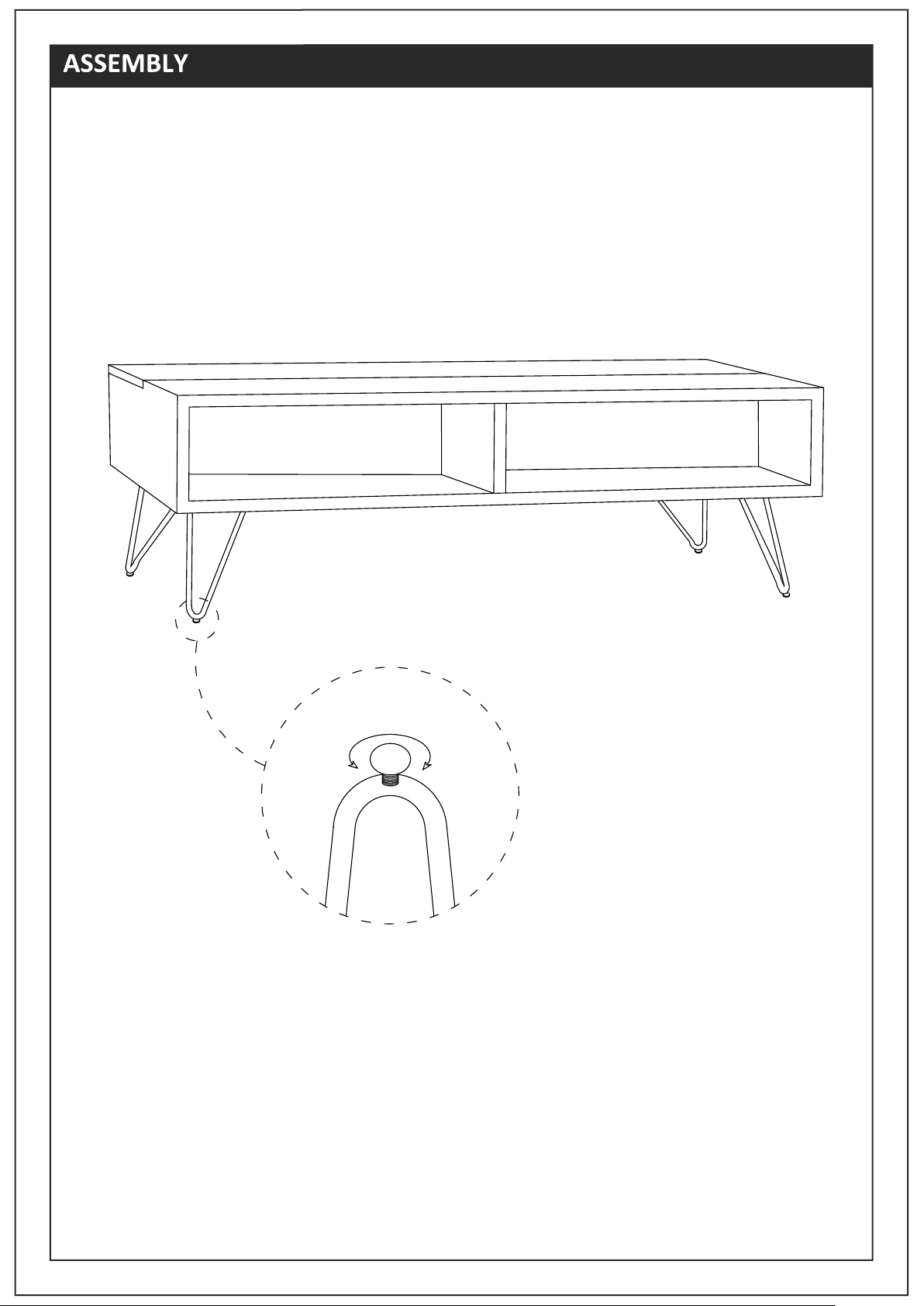

Note: Levelers on bottom of legs can be adjusted if floor is uneven.
8/10
Page 9
To Use Lift - Top
1. Slide fingers in openings on the closed end of top A .
2. Gently lift the top A until brackets are extended and top A is stable.
9/10
Page 10
Thank you for purchasing our product. These products have been
made to demanding, high-quality standards and are guaranteed for
domestic use against manufacturing faults for a period of 12 months
from the date of purchase. This warranty does not affect your
statutory rights.
In case of any malfunction of your product (failure, missing
parts, etc.) please contact us at our toll free service line or by
email.
We reserve the right to repair or replace the defective product,
at its discretion.
This product is guaranteed for 12 months if used for normal purposes.
Any warranty is invalid if the product has been overloaded or subject to
neglect, improper use or an attempted repair by other than an
authorized agent. Heavy-duty or daily professional/commercial usage
are not guaranteed.
Due to continuous product improvement, we reserve the right
to change the product specifications without prior notice.
10/10
