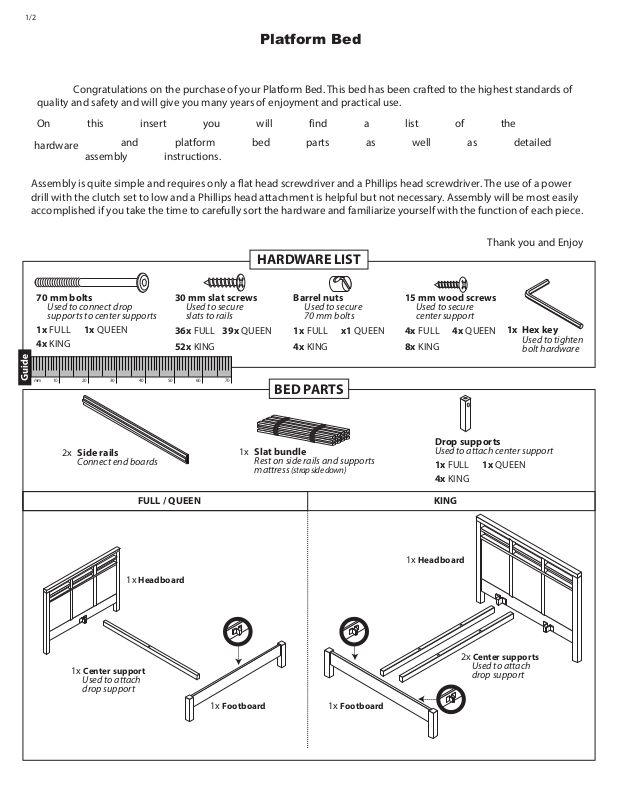

Platform Bed
Congratulations on the purchase of your Platform Bed. This bed has been crafted to the highest standards of
quality and safety and will give you many years of enjoyment and practical use.
On this insert you will find a list of the
and platform bed parts as well as detailed
assembly instructions.
Assembly is quite simple and requires only a flat head screwdriver and a Phillips head screwdriver. The use of a power
drill with the clutch set to low and a Phillips head attachment is helpful but not necessary. Assembly will be most easily
accomplished if you take the time to carefully sort the hardware and familiarize yourself with the function of each piece.
Thank you and Enjoy
HARDWARE LIST
70 mm bolts
Used to connect drop
supports to center supports
1x FULL 1x QUEEN
4x KING
mm 10 20 30 40 50 60 70
30 mm slat screws
Used to secure
slats to rails
36x FULL 39x QUEEN
52x KING
Barrel nuts
Used to secure
70 mm bolts
1x FULL x1 QUEEN
4x KING
15 mm wood screws
Used to secure
center support
4x FULL 4x QUEEN
8x KING
1x Hex key
Used to tighten
bolt hardware

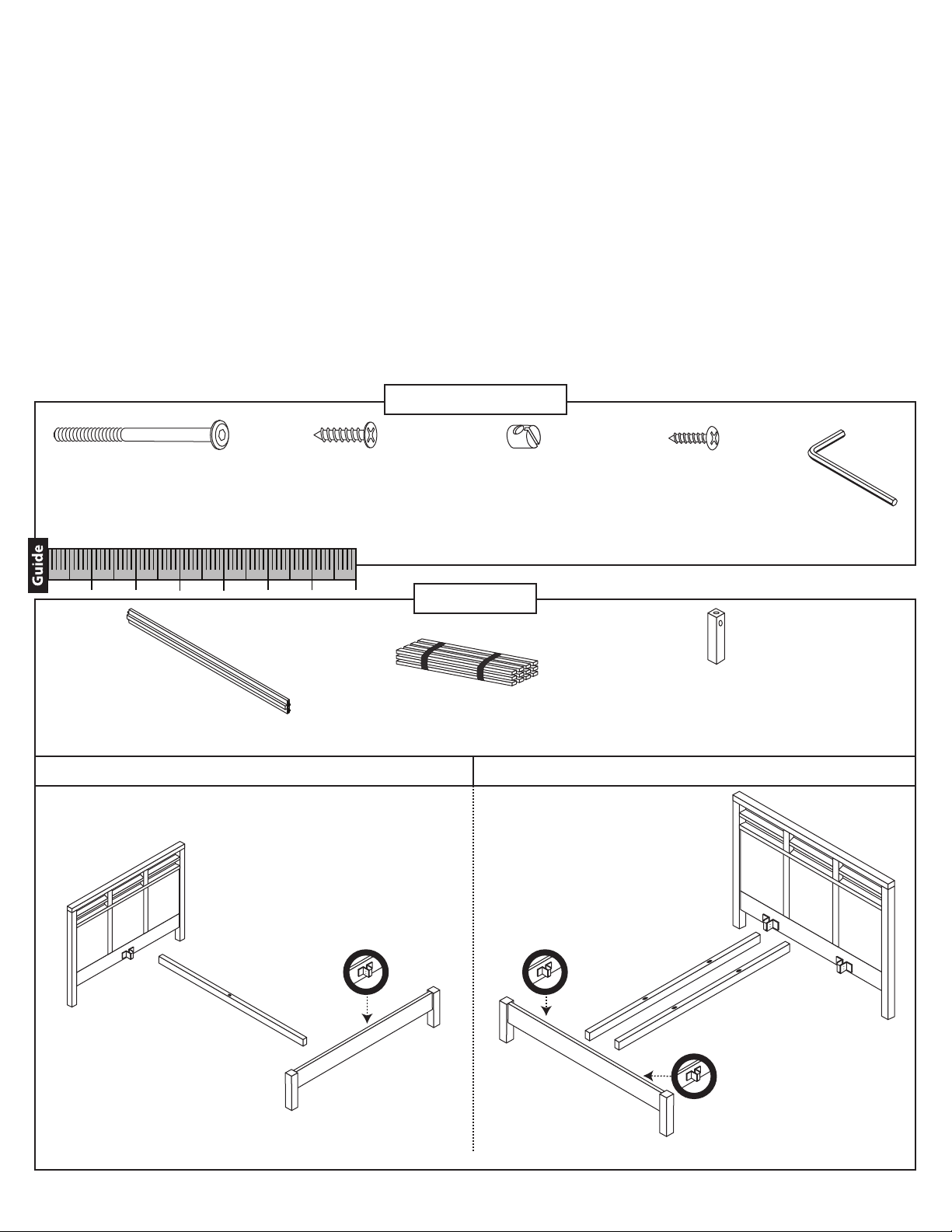

BED PARTS
2x Side rails
Connect end boards
1x Center support
Used to attach
drop support
Headboard
1x
1x Slat bundle
Rest on side rails and supports
mattress (strap side down)
1x Footboard
Drop supports
Used to attach center support
1x FULL 1x QUEEN
4x KING
KINGFULL / QUEEN
1x Headboard
2x Center supports
Used to attach
drop support
1x Footboard
Page 2
1/2
1
2

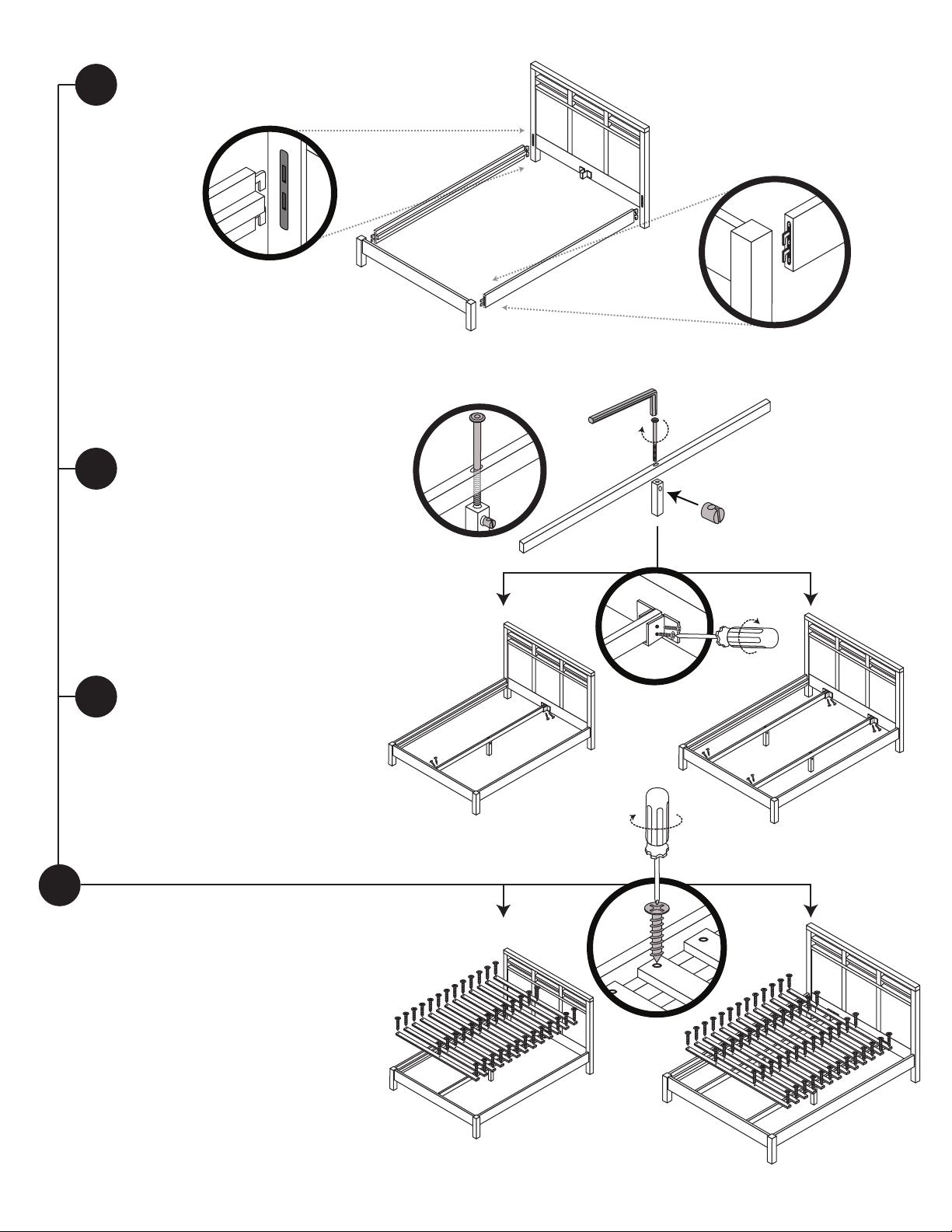

Slide one rail into the grooves of the headboard.
Make sure the slat rail is facing the inside of the bed.
Repeat this process with the other side rail.
Next, do the same with
the other end of the
rails into the footboard.
Then tap the top of the rail ends gently with a rubber mallet to make sure the connections are secure.
Attach the drop support to the
center support by placing the barrel
nut into the hole in the side of the
drop support. Then insert a 70mm
bolt through the center support into
the barrel nut and tighten with the
Hex key provided.
4
Insert the center support into the
bottom of the brackets. Drive two
15 mm wood screws through the
3
holes in the side of the headboard
bracket with a Phillips Head
screwdriver.
Then drive another two wood
screws through the holes in the
opposite side of the footboard bracket
into the end of the center support.
Spread the slat bundle (strap side down)
evenly across the side rails.
Use the 30mm wood screws to secure all
slats to the side rails with a Phillips Head
screwdriver.
FULL & QUEEN KING
FULL & QUEEN KING
