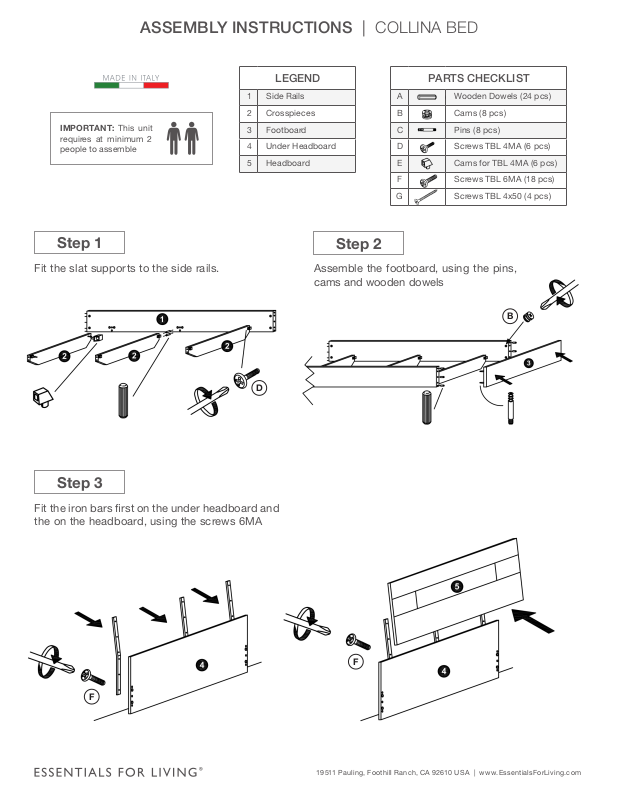

Page 1
ASSEMBLY INSTRUCTIONS | COLLINA BED
IM P ORTAN T: This unit
requires at minimum 2
people to assemble

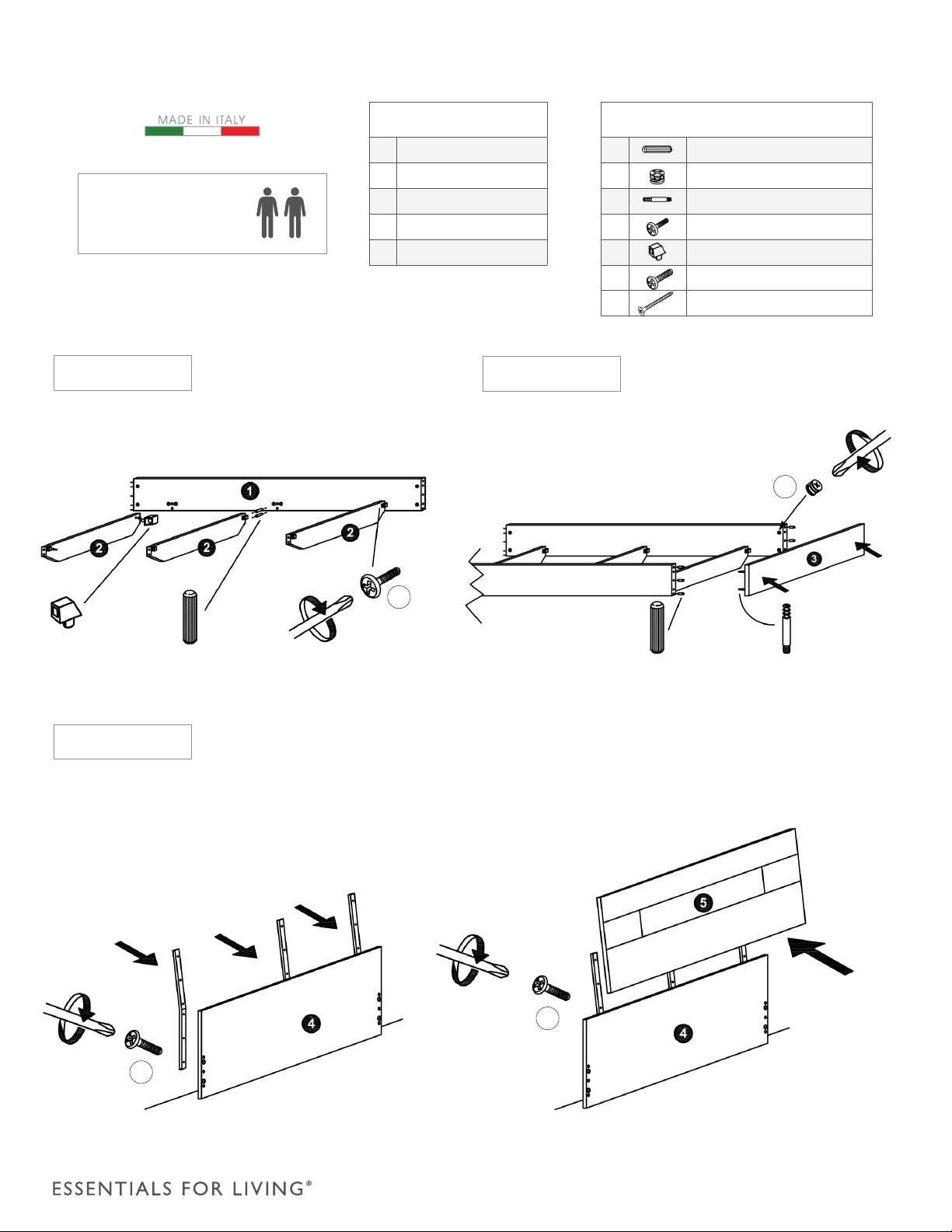

Step 1
Fit the slat supports to the side rails.
LEGEND
1 Side Rails
2 Crosspieces
3 Footboard
4 Under Headboard
5 Headboard
Assemble the footboard, using the pins,
cams and wooden dowels
PARTS CHECKLIST
A Wooden Dowels (24 pcs)
B Cams (8 pcs)
C Pins (8 pcs)
D Screws TBL 4MA (6 pcs)
E Cams for TBL 4MA (6 pcs)
F Screws TBL 6MA (18 pcs)
G Screws TBL 4x50 (4 pcs)
Step 2
B
D
Step 3
Fit the iron bars first on the under headboard and
the on the headboard, using the screws 6MA
F
F
19511 Pauling, Foothill Ranch, CA 92610 USA | ww w.EssentialsForLiving.com
Page 2
ASSEMBLY INSTRUCTIONS | COLLINA BED
1 Side Rails
2 Crosspieces
IM P ORTAN T: This unit
requires at minimum 2
people to assemble
3 Footboard
4 Under Headboard
5 Headboard

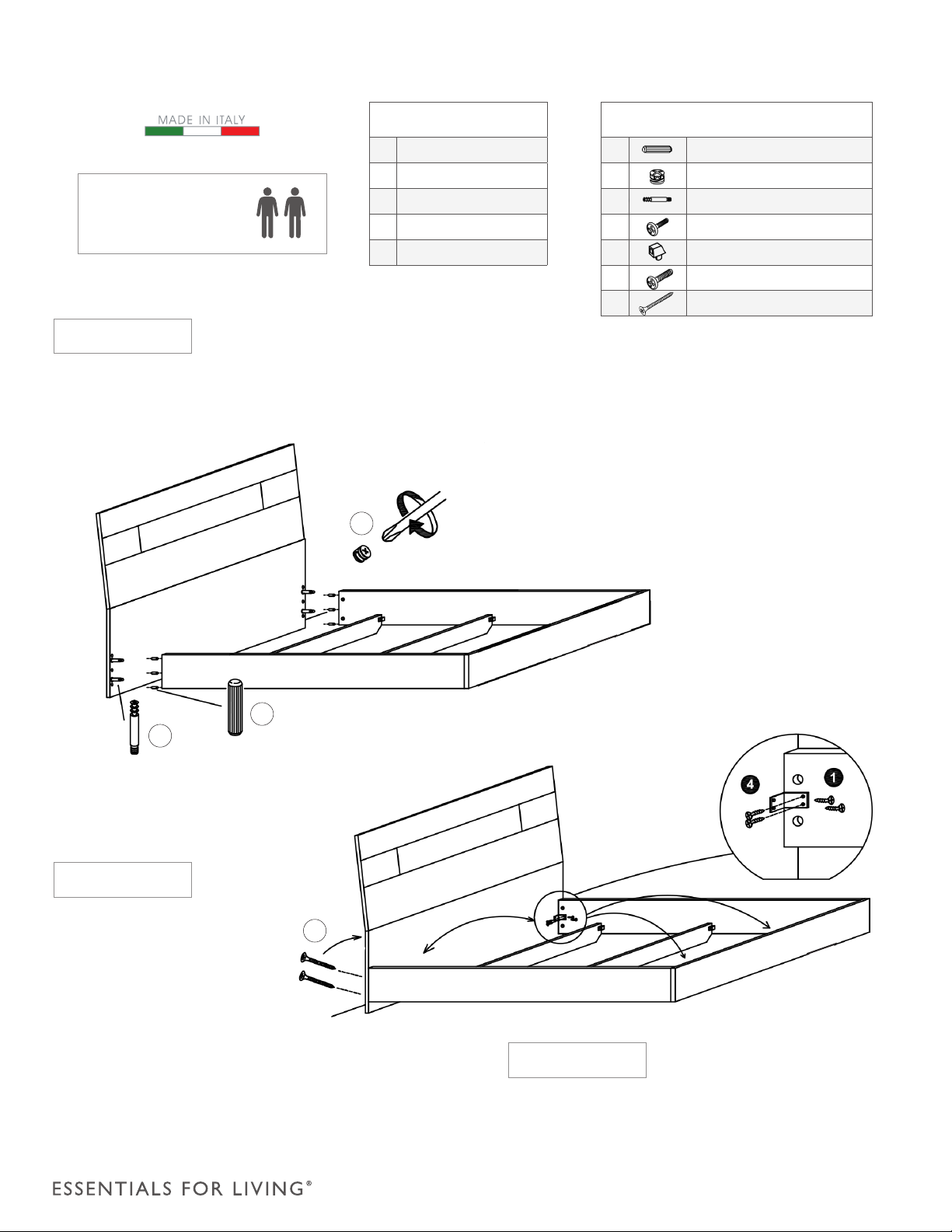

Step 4
Assemble the headboard to the side rails
using the pins, cams and wooden dowels.
B
LEGEND
PARTS CHECKLIST
A Wooden Dowels (24 pcs)
B Cams (8 pcs)
C Pins (8 pcs)
D Screws TBL 4MA (6 pcs)
E Cams for TBL 4MA (6 pcs)
F Screws TBL 6MA (18 pcs)
G Screws TBL 4x50 (4 pcs)
C
Step 5
Fix the under headboard
on the side rails using the
screws TSP 4x50
A
G
Step 6
Fit the iron corner on the side rails and to the
under headboard, using the screws TSP 4x16
19511 Pauling, Foothill Ranch, CA 92610 USA | ww w.EssentialsForLiving.com
