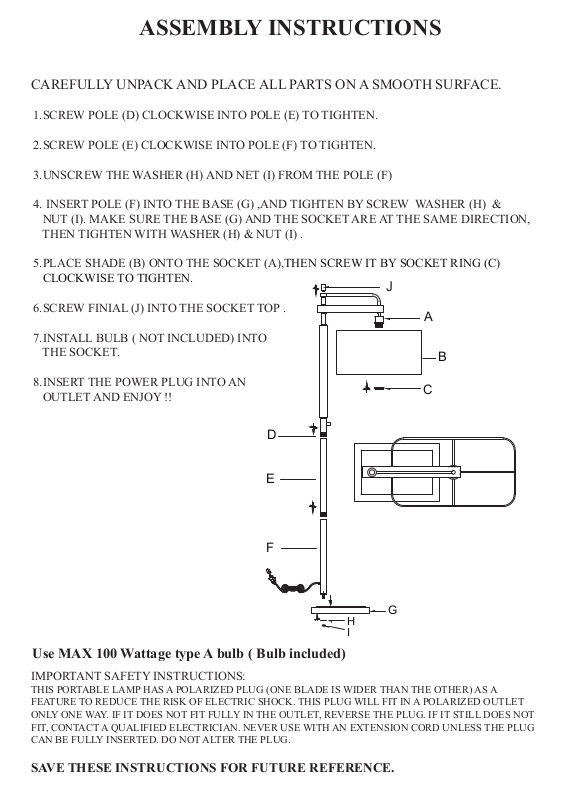

ASSEMBLY INSTRUCTIONS
CAREFULLY UNPACK AND PLACE ALL PARTS ON A SMOOTH SURFACE.
1.SCREW POLE (D) CLOCKWISE INTO POLE (E) TO TIGHTEN.
2.SCREW POLE (E) CLOCKWISE INTO POLE (F) TO TIGHTEN.
3.UNSCREW THE WASHER (H) AND NET (I) FROM THE POLE (F)
4. INSERT POLE (F) INTO THE BASE (G) ,AND TIGHTEN BY SCREW WASHER (H) &
NUT (I). MAKE SURE THE BASE (G) AND THE SOCKET ARE AT THE SAME DIRECTION,
THEN TIGHTEN WITH WASHER (H) & NUT (I) .
5.PLACE SHADE (B) ONTO THE SOCKET (A),THEN SCREW IT BY SOCKET RING (C)
CLOCKWISE TO TIGHTEN.
J
6.SCREW FINIAL (J) INTO THE SOCKET TOP .
7.INSTALL BULB ( NOT INCLUDED) INTO
THE SOCKET.
8.INSERT THE POWER PLUG INTO AN
OUTLET AND ENJOY !!
D
E
F
A
B
C
G
H
I
Use MAX 100 Wattage type A bulb ( Bulb included)
IMPORTANT SAFETY INSTRUCTIONS:
THIS PORTABLE LAMP HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER) AS A
FEATURE TO REDUCE THE RISK OF ELECTRIC SHOCK. THIS PLUG WILL FIT IN A POLARIZED OUTLET
ONLY ONE WAY. IF IT DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT
FIT, CONTACT A QUALIFIED ELECTRICIAN. NEVER USE WITH AN EXTENSION CORD UNLESS THE PLUG
CAN BE FULLY INSERTED. DO NOT ALTER THE PLUG.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
