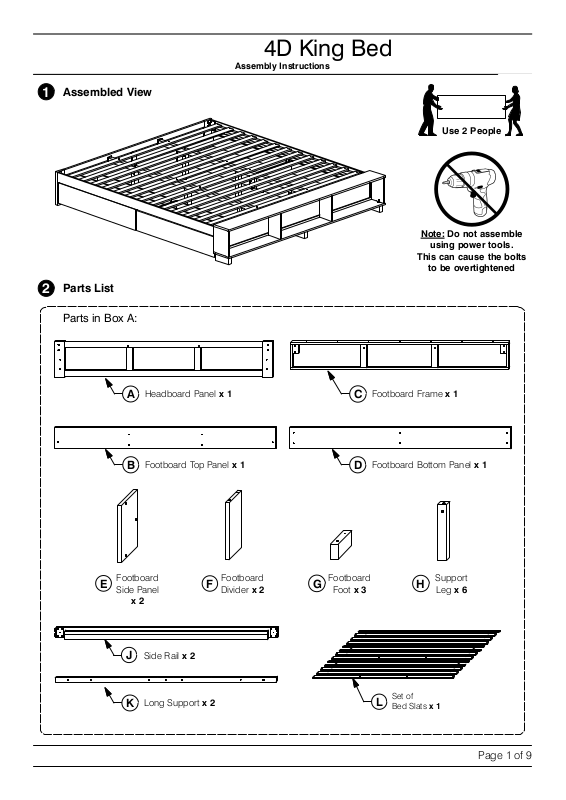

Page 1
Page 1 of 9
Assembled View
1
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
Parts List
2
Parts in Box A:
Headboard Panel x 1
Footboard
Side Panel
x 2
A
E
Footboard Top Panel x 1
B
L
Set of
Bed Slats x 1
Footboard Frame x 1
C
Footboard Bottom Panel x 1
D
Footboard
Divider x 2
F
Footboard
Foot x 3
G
Support
Leg x 6
H
Side Rail x 2
J
Long Support x 2
K
4D King Bed
Assembly Instructions
Page 2
Parts List
2
Hardware List
3
M
Drawer Face x 4
Parts in Box B:
N
Drawer Bottom x 4
O
Drawer Back x 4
P
Drawer
Side x 8
Q
Drawer
Rail x 12
Extra holes
Wheel
x 16
1
M4 Allen Key
x 1
6
2
Center Rail
Bracket x 4
3
'L' Bracket
x 4
4
Adjustable
Foot x 6
5
Barrel
Nut x 6
Wood Screw
(M4 x 32mm) x 88
9
Wood Dowel
(M8 x 30mm) x 56
7
Spring
Washer x 12
10
Flat Washer
x 12
11 12
M6 x 15mm JCB
x 16
13
M6 x 20mm JCB
x 8
14
M6 x 30mm JCB
x 2
15
M6 x 40mm JCB
x 20
16
M6 x 60mm JCB
x 6
17
M6 x 90mm JCB
x 6
Wood Screw
(M4 x 16mm) x 64
8
Page 2 of 9
4D King Bed
Assembly Instructions
Page 3
Assemble the Drawer Side (P) and Drawer Rail (Q)
to the Drawer Back (O).
4
O
P
9
7
7
Q
7
Q
7
Q
7
Note:
Extra Holes
underneath
Note:
Extra Holes
underneath
9
P
Note:
Extra Holes
underneath
Slide the Drawer Bottom (N) into the groove on the Drawer Sides (P).
5
O
P
P
N
Groove
x4
Page 3 of 9
4D King Bed
Assembly Instructions
Page 4
O
M
P
9
9
9
Q
Q
Q
Assemble the Drawer Face (M) to the Drawer Sides (P).
6
Fit the Wheels (6) to the Drawer Side Rail (Q).
8
x4
O
M
Q
P
Q
Q
8
6
8
6
8
6
Turn the Drawer over to fit angled 32mm Wood Screws (9)
to the Drawer Rails (Q).
7
O
P
P
M
9
9
Page 4 of 9
4D King Bed
Assembly Instructions
Page 5
Assemble the Support Leg (H) to
the Long Support (K).
A
2
12
Short Tab of
Metal Bracket (2)
12
9
17
17
4
5
Note: Extra
holes on top
K
4
H
17
454
H
454
H
Fit the Center Rail Bracket to the
Footboard Frame (C).
Fit the Center Rail Bracket to the
Headboard Panel (A).
10
11
Page 5 of 9
4D King Bed
Assembly Instructions
C
12
2
Page 6
D
G
16
G
16
G
16
Fit 'L' Bracket to the Footboard Side Panel (E).
Assembly the Footboard Side Panel (E) to the
Footboard Frame (C).
Fit the Footboard Foot (G) to the Footboard Bottom Panel (D).
C
E
E
14
14
12
3
12
13
Page 6 of 9
4D King Bed
Assembly Instructions
Page 7
Fit the Footboard Divider (F) to the Footboard Top &
Bottom Panel (B & D) and tighten
the 'L' Bracket with
M6 x 15mm JCB.
14
12
7
B
F
D
E
C
E
F
Fit the Footboard Top & Bottom Panel (B & D)
with M4 x 32mm Wood Screw.
15
Back
Page 7 of 9
4D King Bed
Assembly Instructions
B
D
9
9
9
9
Page 8
13
10
11
J
Head/
Footboard
Assemble the Side Rail (J) to the Head / Footboard.
Bolt the Long Support (K) to the
Center Rail Brackets on the Head / Footboard.
17
J
Footboard
J
A
K
2
12
Head /
Footboard
16
Page 8 of 9
4D King Bed
Assembly Instructions
J
Footboard
J
K
A
K
Page 9
4D King Bed
Assembly Instructions
Finally fit the assembled
Drawers.
Bolt & screw the Bed Slats (L)
to the Side Rail (J).
18
19
Assembled
Drawer
Assembled
Drawer
Page 9 of 9
15
9
15
9
15
9
15
15
15
15
L
J
15
15
15
15
9
15
