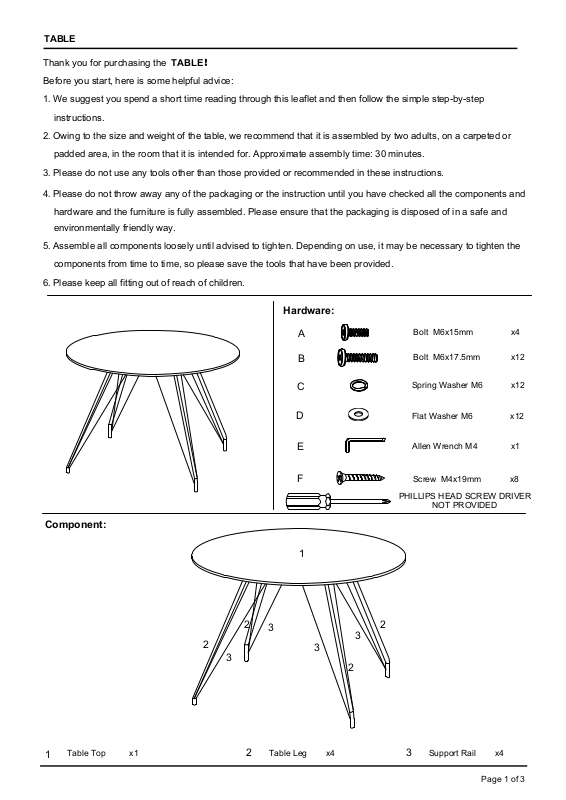

TABLE
Thank you for purchasing the TABLE！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the table, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
Hardware:
A
B
C
D
E
F
1
Bolt M6x15mm x4
Bolt M6x17.5mm x12
Spring Washer M6 x12
Flat Washer M6 x12
Allen Wrench M4 x1
Screw M4x19mm x8
PHILLIPS HEAD SCREW DRIVER
NOT PROVIDED
2
3
2
3
2
3
3
2
Table Leg x4
Table Top x1
1
Page 1 of 3
2
Support Rail x4
3
Page 2
TABLE
STEP 1:
Please put Table Legs (2) and Support Rails (3) upside down on a carpeted or padded area.
Position 1 piece of Support Rail (3) to 1 piece of Table Leg (1) as shown.
Insert 1 piece of Bolt (A) into the hole on Table Leg (2) through the hole on Support Rail (3).
Use Allen Wrench (E) to tighten Bolt (A). Do not fully tighten Bolt (A) at this step.
Repeat the same steps for the remaining Table Legs (2) and Support Rails (3).
E
A
3
Ax4
STEP 2:
Please put Table Top (1) upside down on a carpeted or padded area.
Position 1 set of assembled Table Leg (2) and Support Rail (3) to the bottom of Table Top (1) as shown.
Insert 3 pieces of Bolt (B) with 3 pieces of Spring Washer (C) and 3 pieces of Flat Washer (D) into the holes on Table Top (1)
through the holes on Table Leg (3).
Secure 2 pieces of Screw (F) to the bottom of Table Top (1) through the holes on Support Rail (3).
Repeat the same steps for the remaining assembled Table Legs (2) and Support Rails (3) to Table Top (1).
Use Allen Wrench (E) to tighten all Bolts (A&B) clockwise until secure.
Use Phillips Head Screw Driver (Not Provided) to tighten Screw (F) clockwise until secure
Ex1
2
Hardware & Tool required
3
2
3
2
3
2
2
3
E
B
C
D
F
F
B
C
D
F
D
C
B
B
C
F
D
1
Bx12
Page 2 of 3
Cx1
Dx1
Ex1
Fx8
PHILLIPS HEAD SCREW DRIVER
NOT PROVIDED
Hardware & Tool required
Page 3
TABLE
STEP 3:
Carefully turn over the assembled table.
Assembly is complete. Your table is ready to be used now!
