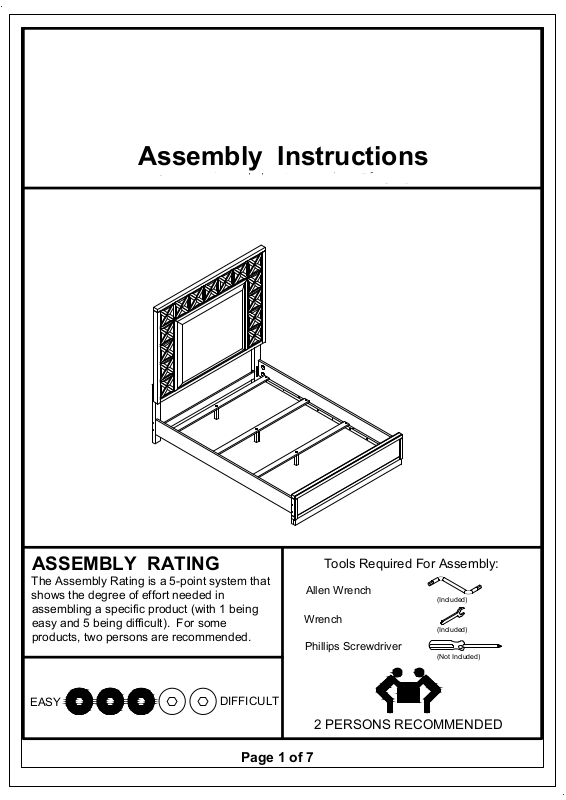

Page 1
Assembly Instructions
EASY
DIFFICULT
Page 1 of 7
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
Wrench
(Included)
(Not Included)
Page 2
Page 2 of 7

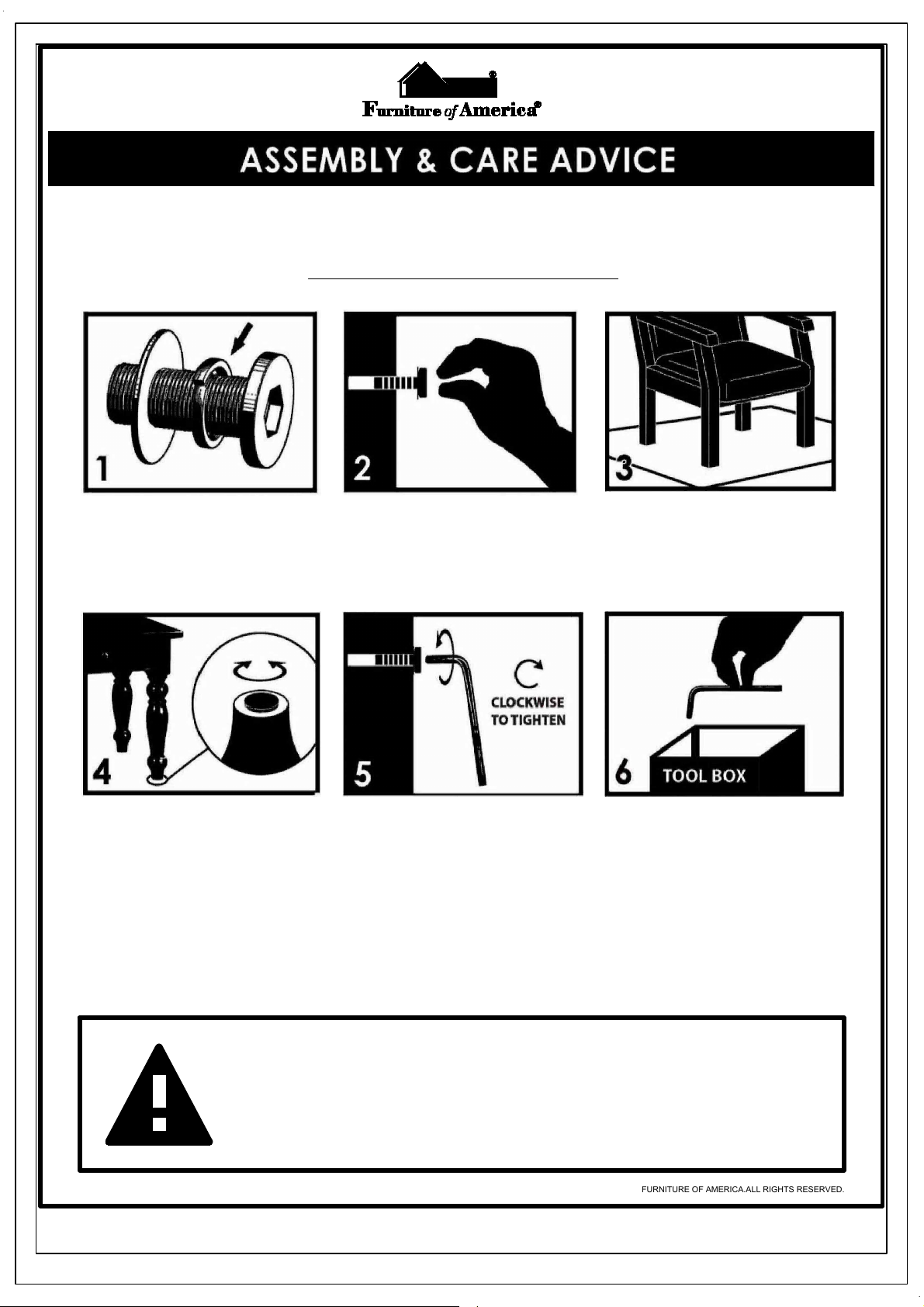

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
Page 3

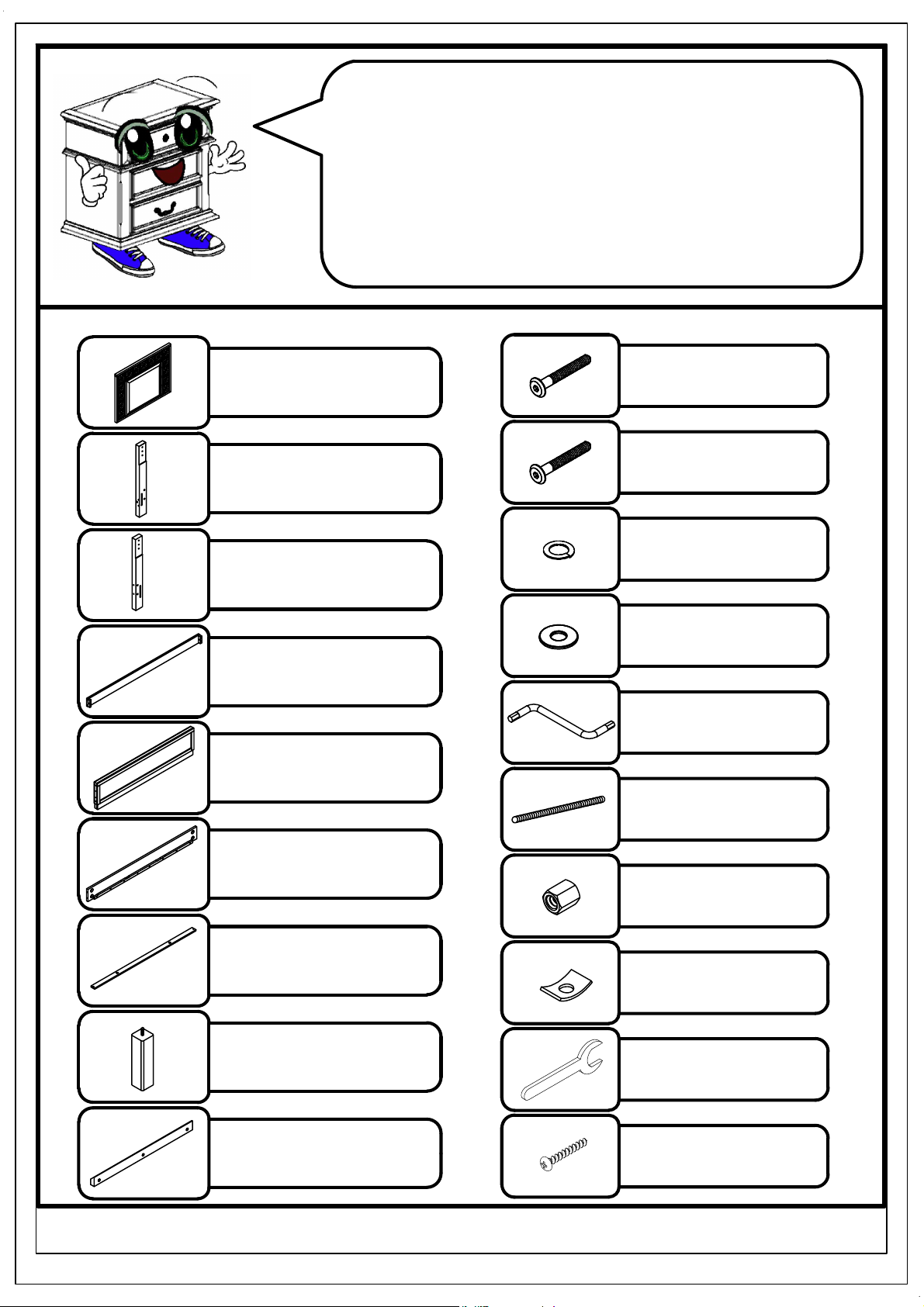

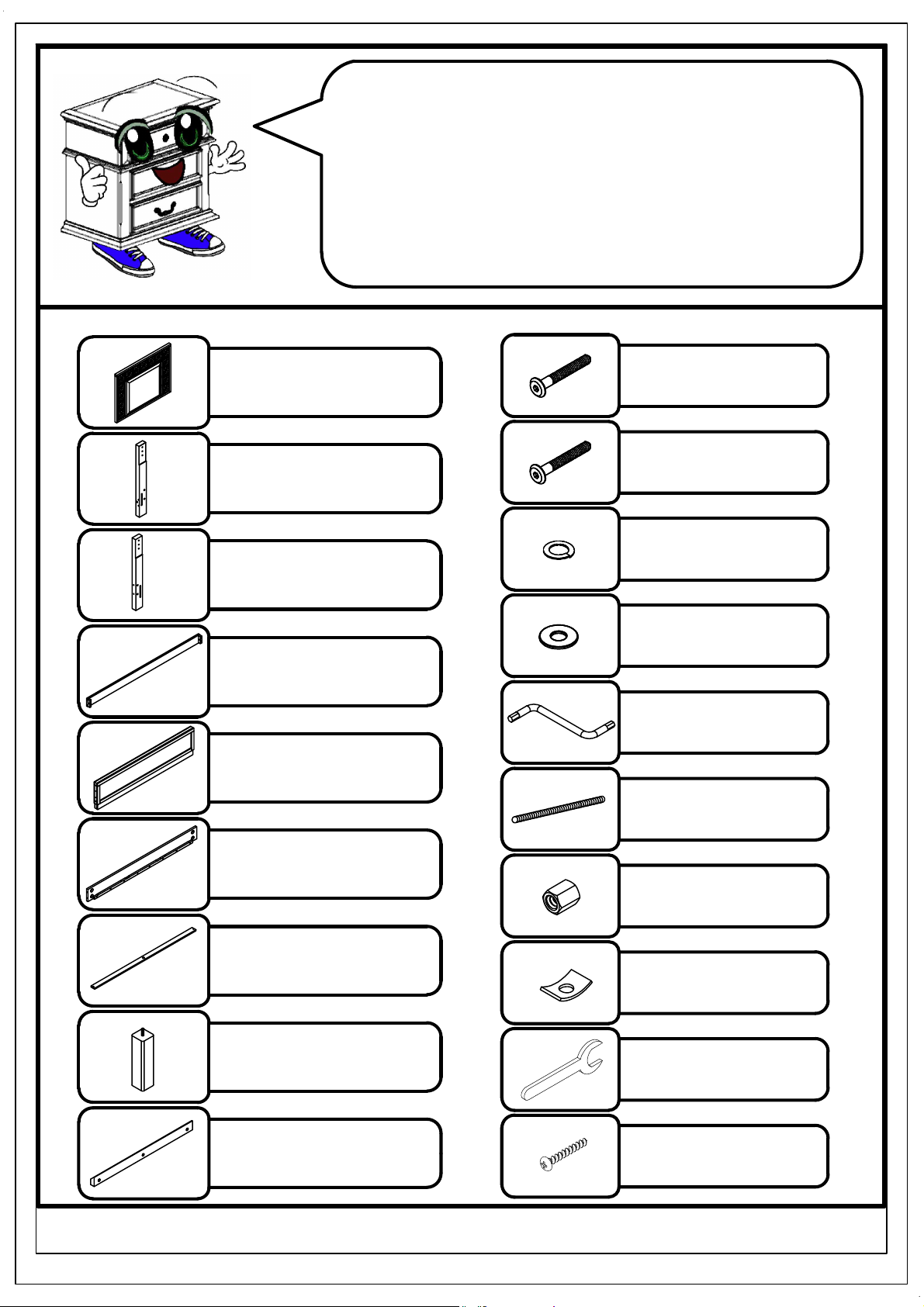

Parts List
Hardware List
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Page 3 of 7
#1 x 1 pc
Headboard
#2R x 1 pc
Right H/Board Leg
#2L x 1 pc
Left H/Board Leg
#3 x 1 pc
Leg Support
#4 x 1 pc
Footboard
#5 x 2 pcs
Side Rail
#6 x 4 pcs
Slat
#7 x 4 pcs
Slat Support Leg 40x40x148mm
#C x 8 pcs
Lock Washer Ø1/4"
#D x 8 pcs
Flat Washer Ø1/4"
#E x 1 pc
Allen Wrench
#H x 8 pcs
Beveled Washer
#I x 1 pc
Wrench
#J x 8 pcs
Screw 1-1/4"
#G x 8 pcs
Hex Nut
#8 x 2 pcs
Wall Cleat
#A x 2 pcs
Bolt Ø1/4" x 1.4"
#B x 6 pcs
Bolt Ø1/4" x 1.8"
#F x 8 pcs
Threaded Stud 5/16" x 4"
Page 4
Page 4 of 7
#1
Note : Left and right is
determined by facing the
front of the headboard
in its upright position.
#2L
#2R
#3
#K
#D
#C
#A
#E
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Hardware List
#M x 6 pcs
Fischer
#2R
#2L
#1
#3
#4
#5
#6
#7
#A x 2 pcs
#C x 2 pcs
#D x 2 pcs
#K x 4 pcs

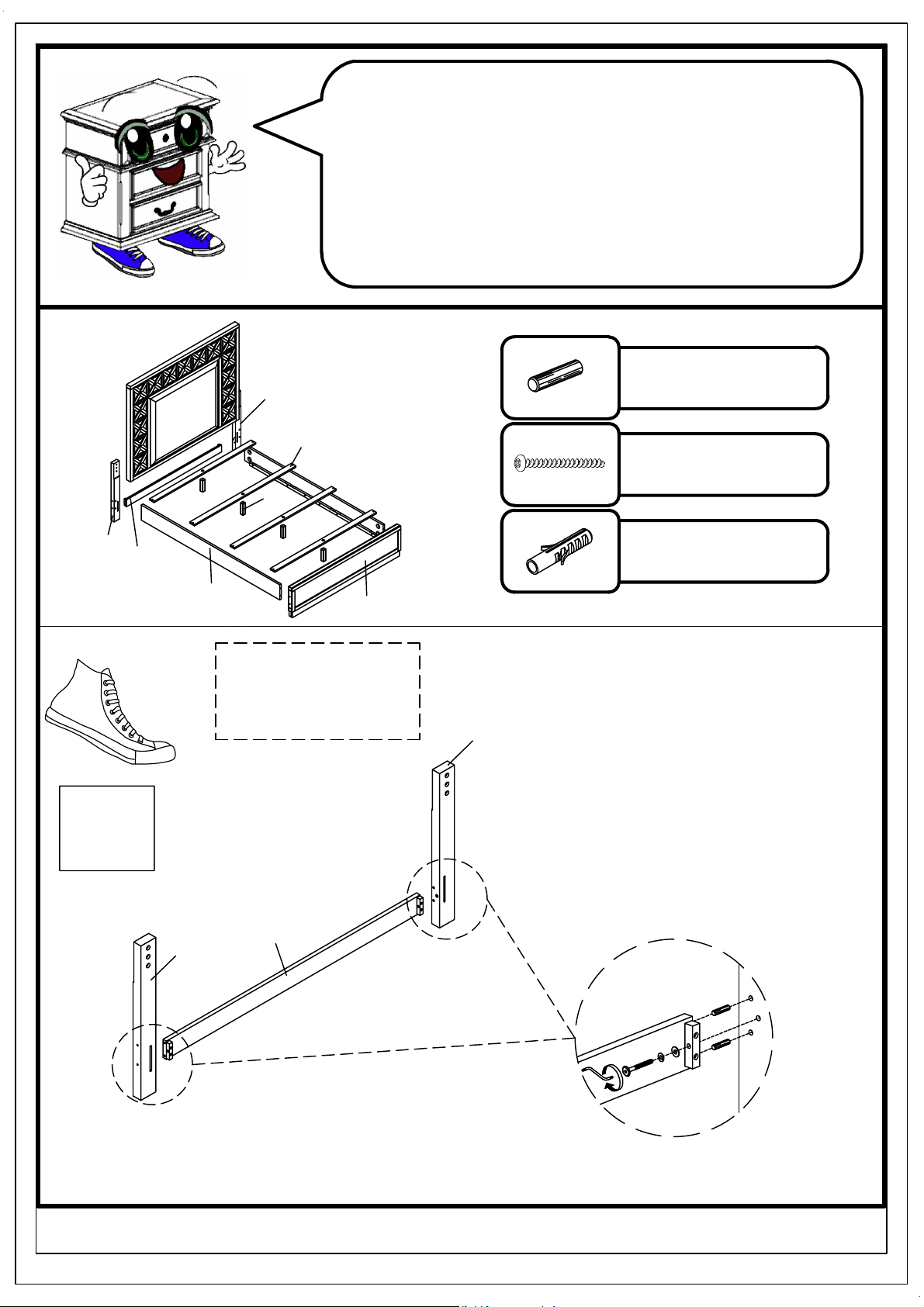

Prepare 2 bolts assembly by inserting lock washer
(#C), then flat washer (#D) onto bolts (#A). Insert
dowels (#K) to the holes of the HB legs (#2R/L).
Align and secure leg support (#3) to the HB legs
(#2R/L) by using bolts (#A).
#K x 4 pcs
Dowel 7,8 x 28mm
#L x 6 pcs
Screw #7 x 2"
Page 5
Page 5 of 7
#2
#3
#2L
#2R
WALL
WALL
WALL
WALL
#M
#8
#L
#1
#B
#C
#D
#E
#B x 6 pcs
#C x 6 pcs
#D x 6 pcs
#L x 6 pcs
#M x 6 pcs
#8

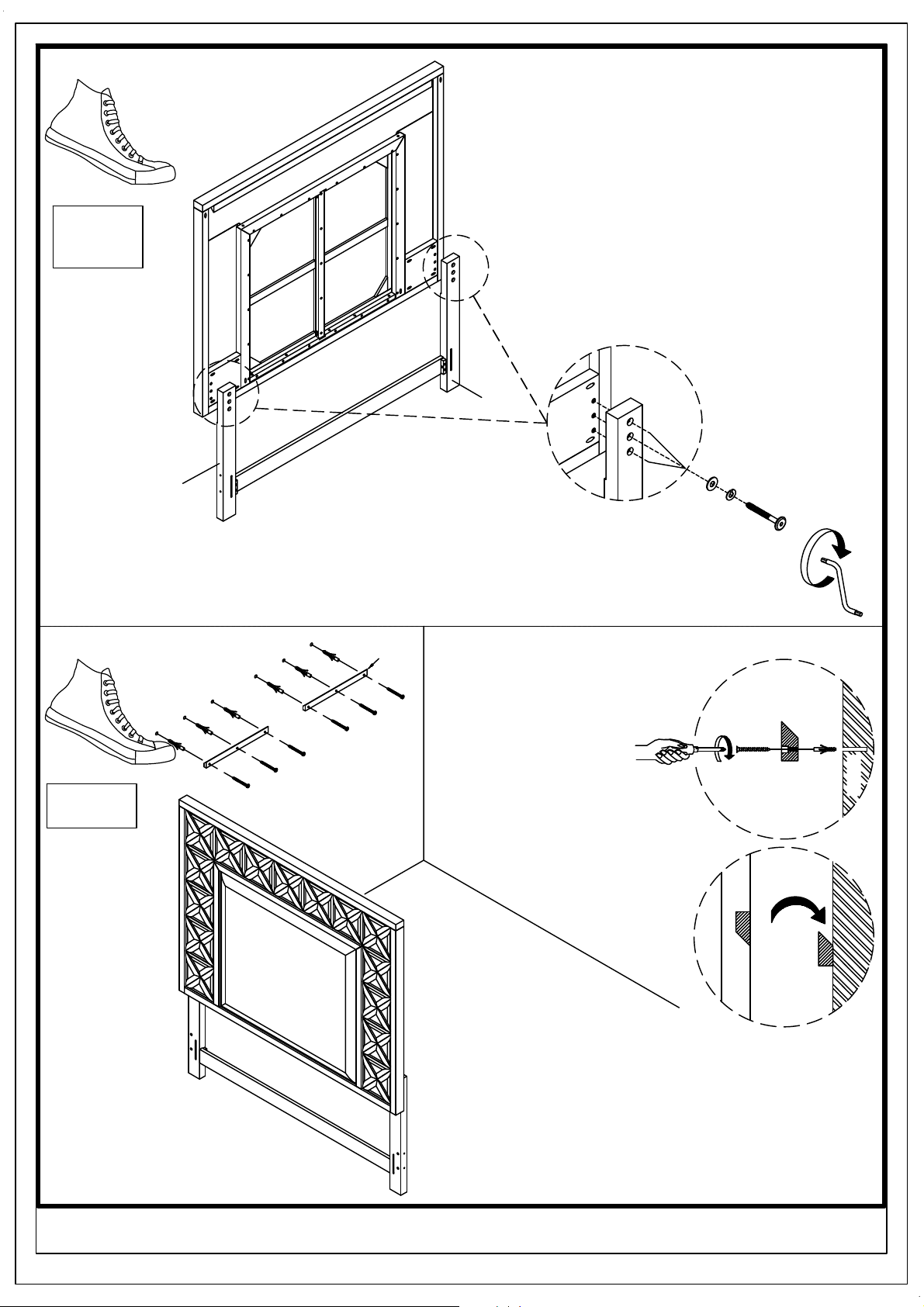

Prepare 6 bolts assembly by inserting lock
washer (#C), then flat washer (#D) onto bolts
(#B). Align HB legs (#2R/L) to the holes of the
headboard (#1), then secure by using bolts
(#B).
Measure and align HB back gaps to the wall. Drill
hole to wall and insert plastic inserts. Secure wall
cleat (#8) to wall by using screws (#L).
THIS STEP IS OPTIONAL
Page 6
Page 6 of 7
#4
#5
#F
#G
#H
#I
#2R
#2L
#4
#3
#5
X4
#6
#7
#F x 8 pcs
#G x 8 pcs
#H x 8 pcs

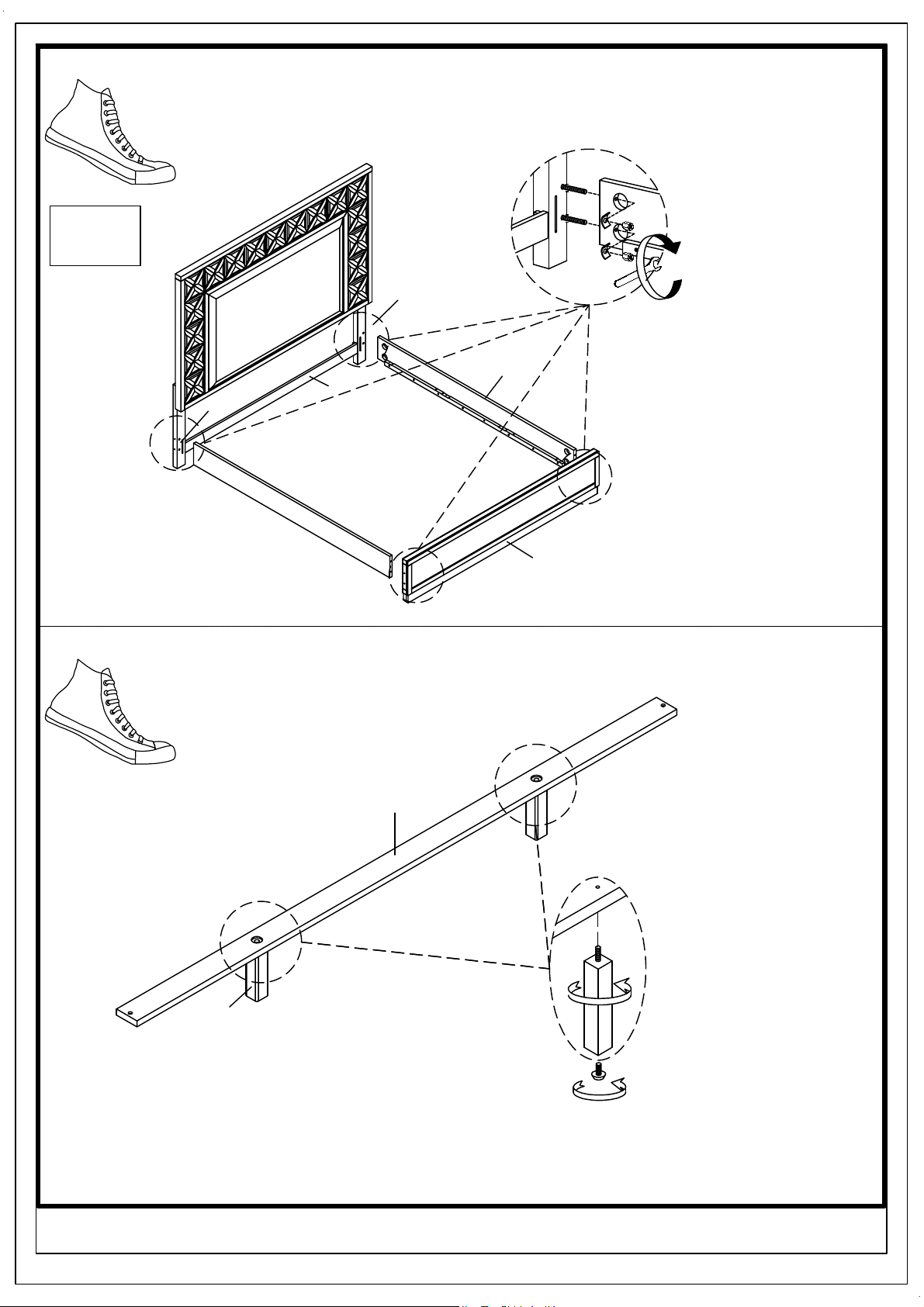

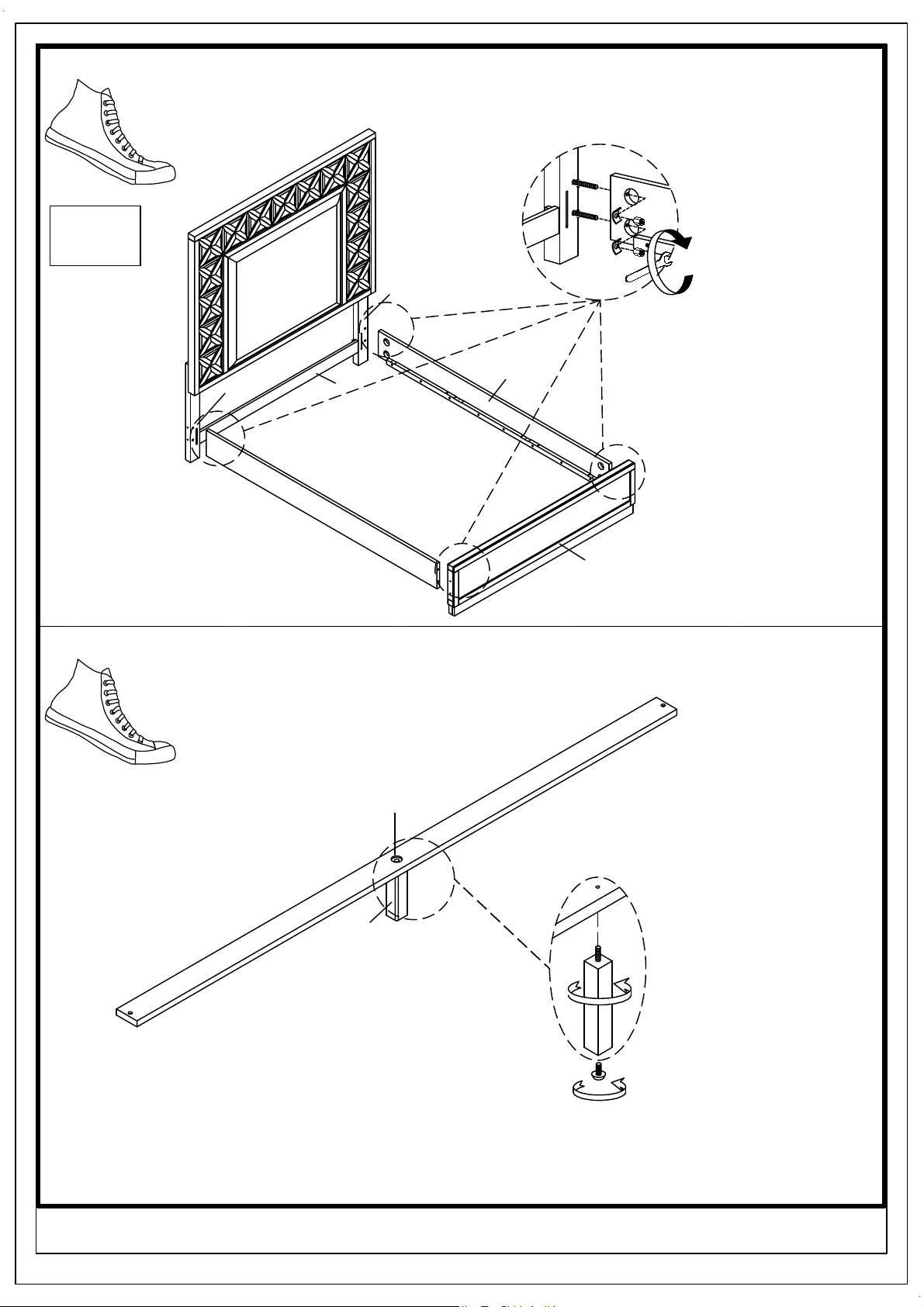

Attach threaded studs (#F) to the holes of the HB legs (#2R/L) and footboard (#4),
then align the side rails (#5) to the threaded studs (#F) of the HB legs (#2R/L) and
footboard (#4). Secure by using beveled washers (#H) and hex nuts (#G).
Attach support legs (#7) to the slats (#6), then adjust the leveler on the
support legs (#7) according to ground level.
Page 7
#J x 8 pcs
#J
#6
#5
Page 7 of 7
#6
#7
ASSEMBLY IS COMPLETED

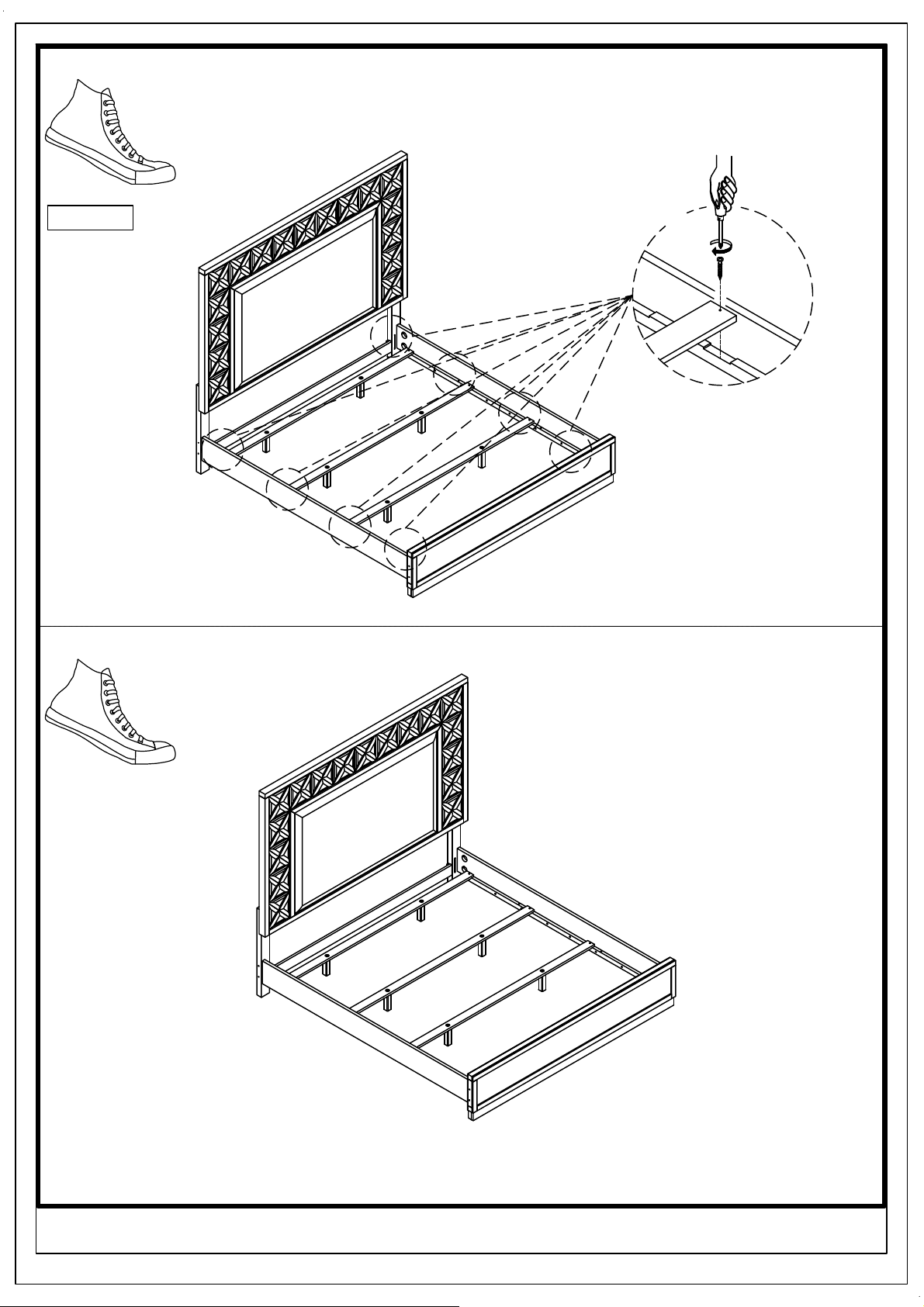

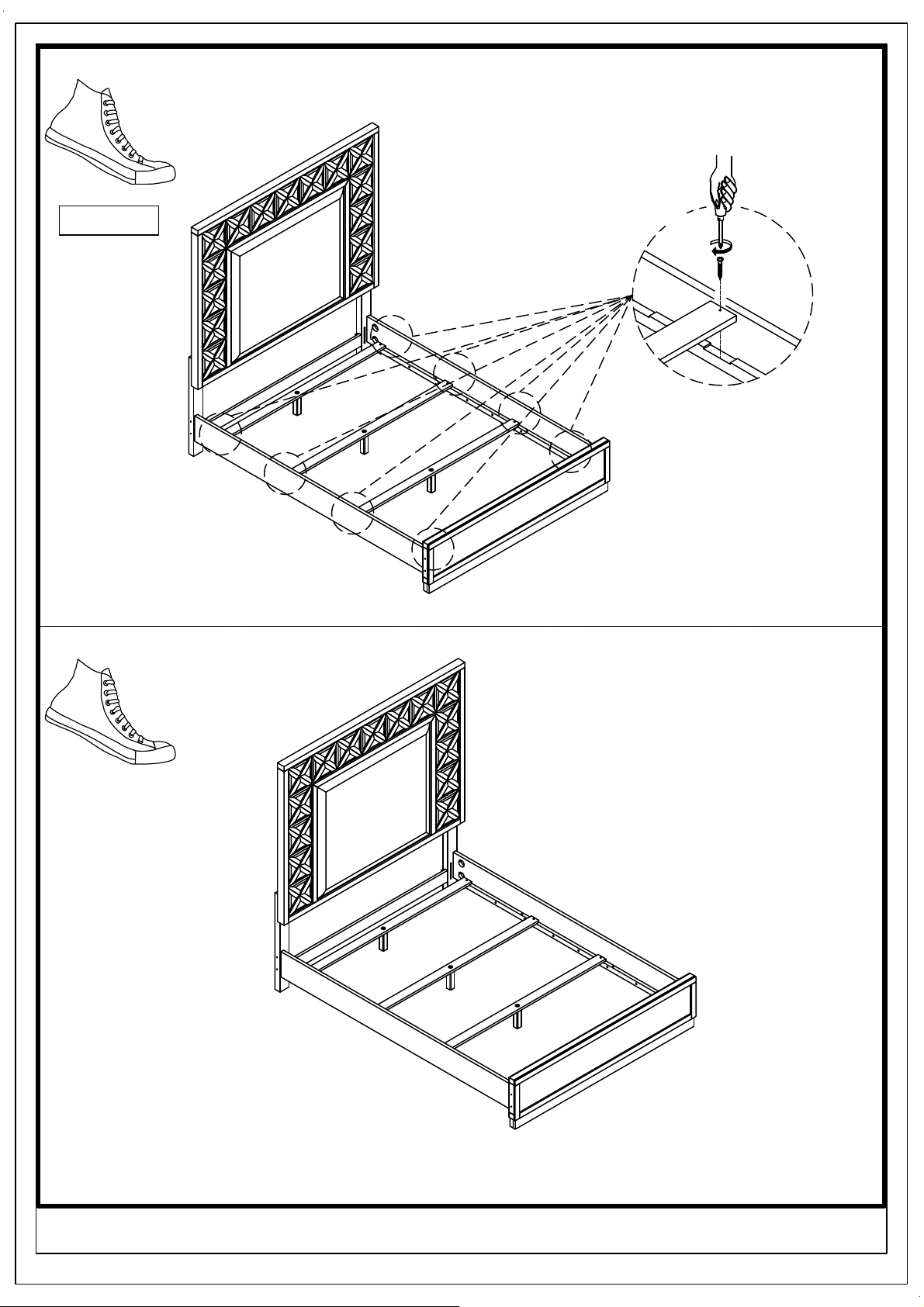

Align slats (#6) to the side rails (#5), then
secure by using screws (#J).
Page 8
Assembly Instructions
EASY
DIFFICULT
Page 1 of 7
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
Wrench
(Included)
(Not Included)
For more information contact our team: service.ec@foagroup.com
Page 9
Page 2 of 7
BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
Page 10
Parts List
Hardware List
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Page 3 of 7
#1 x 1 pc
Headboard
#2R x 1 pc
Right H/Board Leg
#2L x 1 pc
Left H/Board Leg
#3 x 1 pc
Leg Support
#4 x 1 pc
Footboard
#5 x 2 pcs
Side Rail
#6 x 4 pcs
Slat
#7 x 8 pcs
Slat Support Leg 40x40x148mm
#A x 2 pcs
Bolt Ø1/4" x 1.4"
#C x 8 pcs
Lock Washer Ø1/4"
#D x 8 pcs
Flat Washer Ø1/4"
#E x 1 pc
Allen Wrench
#B x 6 pcs
Bolt Ø1/4" x 1.8"
#H x 8 pcs
Beveled Washer
#I x 1 pc
Wrench
#J x 8 pcs
Screw 1-1/4"
#G x 8 pcs
Hex Nut
#8 x 2 pcs
Wall Cleat
#F x 8 pcs
Threaded Stud 5/16" x 4"
Page 11
Page 4 of 7
#1
Note : Left and right is
determined by facing the
front of the headboard
in its upright position.
#2L
#2R
#3
#K
#D
#C
#A
#E
Before you begin, please read Page 2
of "Assembly and Care Advice".
And remember, do not tighten until
each step is completed or instructed.
Hardware List
#M x 6 pcs
Fischer
#2R
#2L
#1
#3
#4
#5
#6
#7
#A x 2 pcs
#C x 2 pcs
#D x 2 pcs
#K x 4 pcs

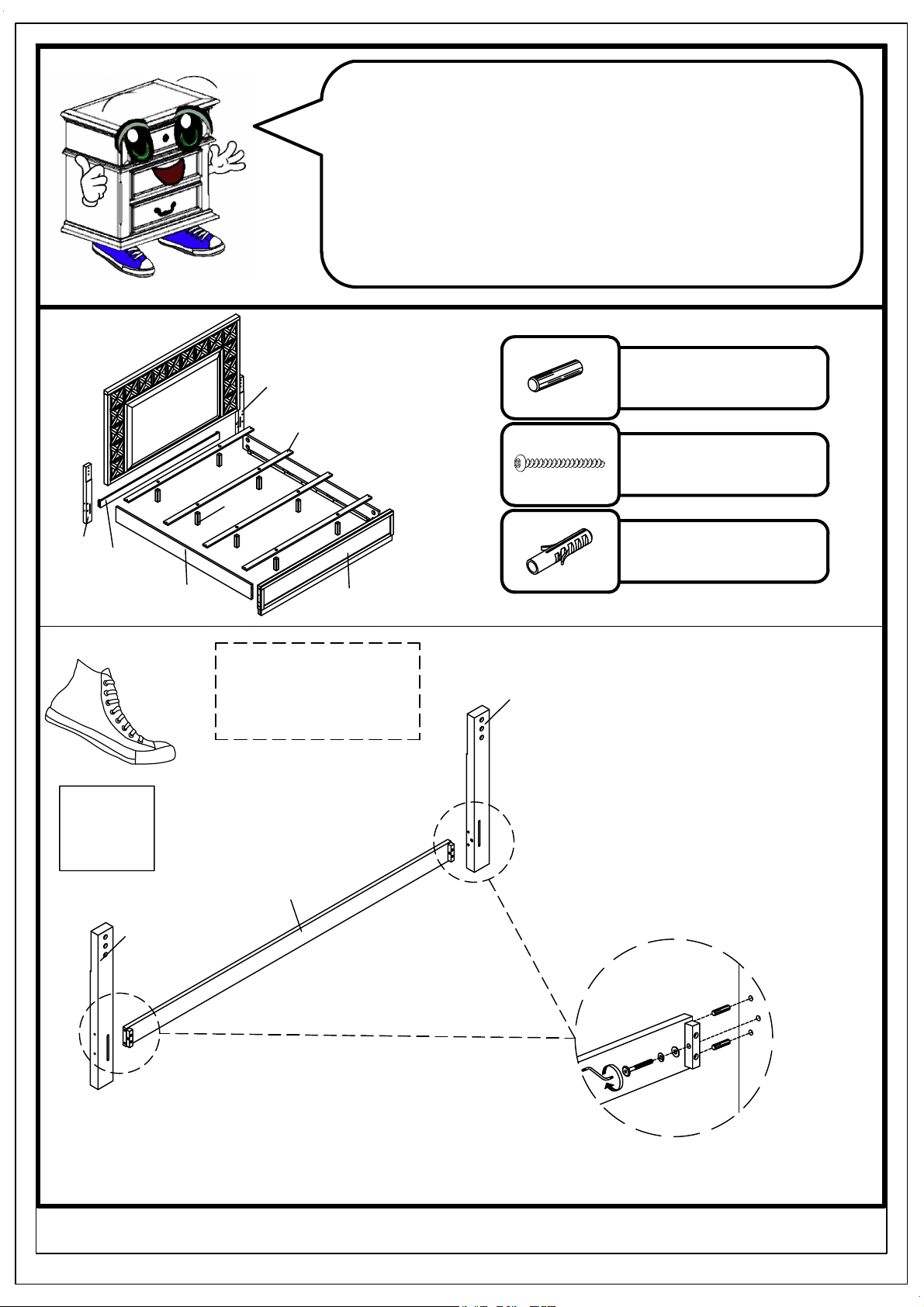

Prepare 2 bolts assembly by inserting lock
washer (#C), then flat washer (#D) onto bolts
(#A). Insert dowels (#K) to the holes of the HB
legs (#2R/L). Align and secure leg support (#3)
to the HB legs (#2R/L) by using bolts (#A).
#K x 4 pcs
Dowel 7,8 x 28mm
#L x 6 pcs
Screw #7 x 2"
Page 12
Page 5 of 7
#2
#3
#B
#C
#D
#2L
#2R
#E
WALL
WALL
WALL
WALL
#M
#8
#L
#1
#B x 6 pcs
#C x 6 pcs
#D x 6 pcs
#L x 6 pcs
#M x 6 pcs

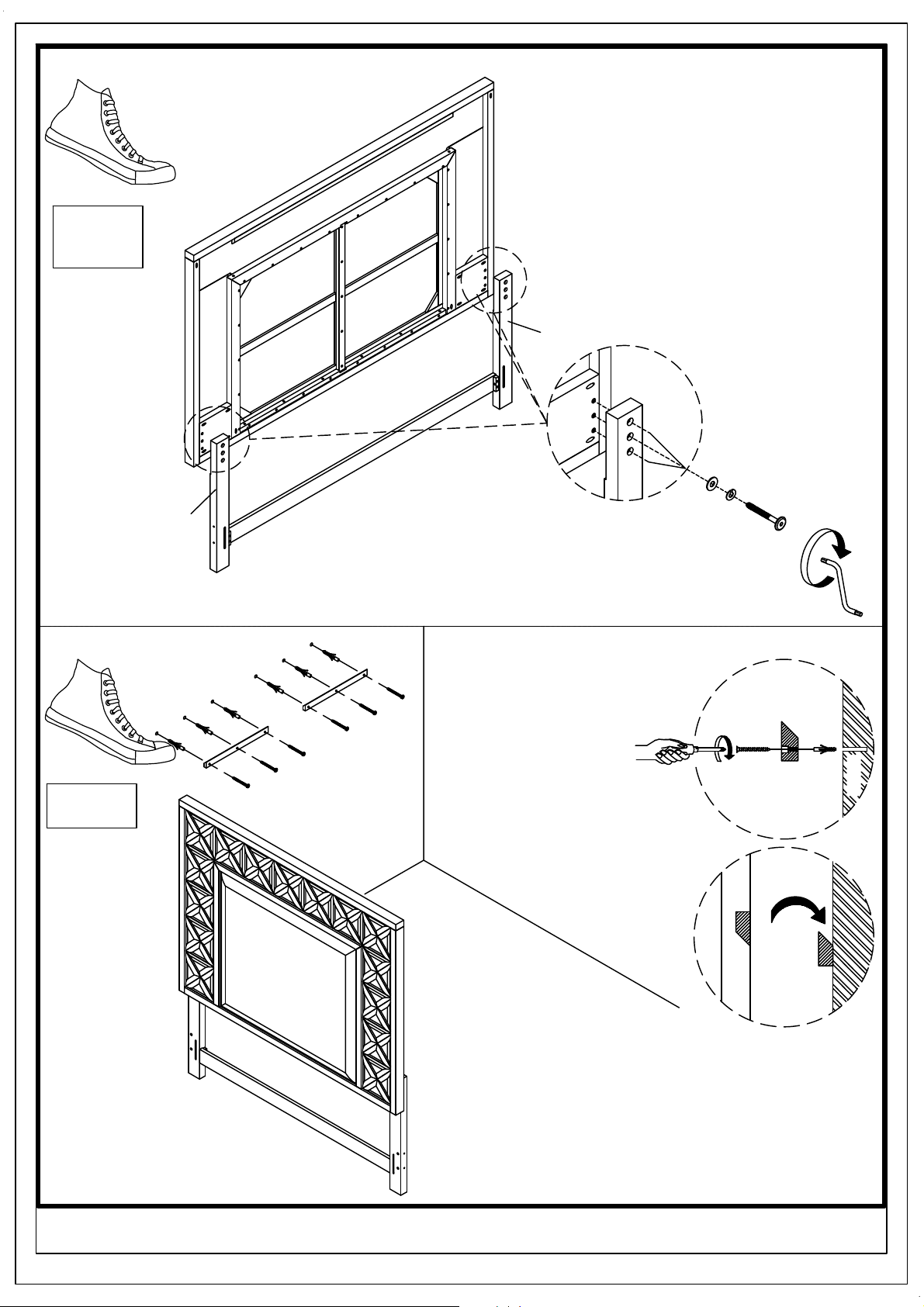

Prepare 6 bolts assembly by inserting lock
washer (#C), then flat washer (#D) onto
bolts (#B). Align HB legs (#2R/L) to the
holes of the headboard (#1), then secure
by using bolts (#B).
THIS STEP IS OPTIONAL
Measure and align HB back gaps to the wall. Drill
hole to wall and insert plastic inserts. Secure wall cleat
(#8) to wall by using screws (#L).
Page 13
Page 6 of 7
#4
#5
#F
#G
#H
#I
#2R
#2L
#4
#3
#5
X4
#6
#7
#F x 8 pcs
#G x 8 pcs
#H x 8 pcs
Attach threaded studs (#F) to the holes of the HB legs (#2R/L) and footboard (#4),
then align the side rails (#5) to the threaded studs (#F) of the HB legs (#2R/L) and
footboard (#4). Secure by using beveled washers (#H) and hex nuts (#G).
Attach support legs (#7) to the slats (#6), then adjust the leveler on the support
legs (#7) according to ground level.
Page 14
#J x 8 pcs
#J
#6
#5
Page 7 of 7
#6
#7
ASSEMBLY IS COMPLETED
Align slats (#6) to the side rails (#5), then secure
by using screws (#J).
