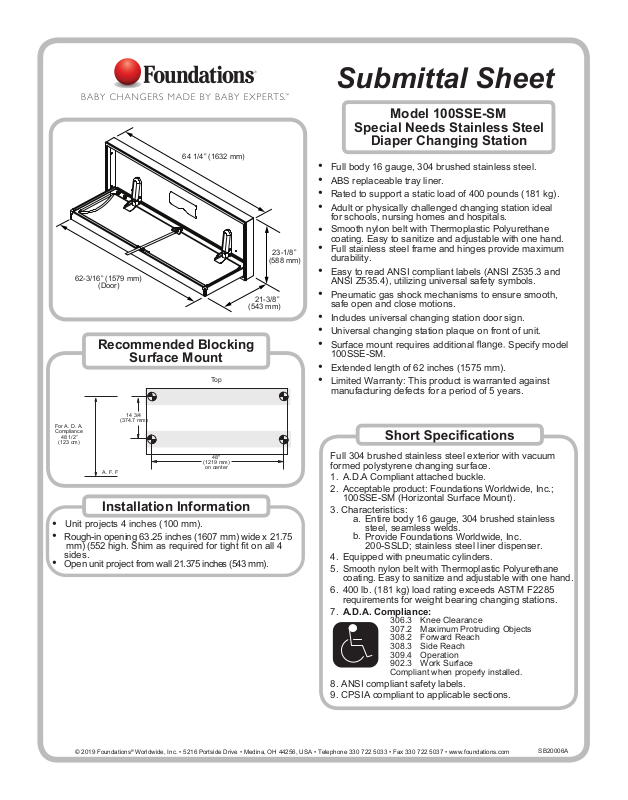

Submittal Sheet
Model 100SSE-SM
Special Needs Stainless Steel
Diaper Changing Station
• Full body 16 gauge, 304 brushed stainless steel.
• ABS replaceable tray liner.
• Rated to support a static load of 400 pounds (181 kg).
• Adult or physically challenged changing station ideal
for schools, nursing homes and hospitals.
Smooth nylon belt with Thermoplastic Polyurethane
•
coating. Easy to sanitize and adjustable with one hand.
Full stainless steel frame and hinges provide maximum
•
durability.
Easy to read ANSI compliant labels (ANSI Z535.3 and
•
ANSI Z535.4), utilizing universal safety symbols.
Pneumatic gas shock mechanisms to ensure smooth,
•
safe open and close motions.
Includes universal changing station door sign.
•
Universal changing station plaque on front of unit.
•
• Surface mount requires additional Specify model
100SSE-SM.
Extended length of 62 inches (1575 mm).
•
Limited Warranty: This product is warranted against
•
manufacturing defects for a period of 5 years.
Full 304 brushed stainless steel exterior with vacuum
formed polystyrene changing surface.
1. A.D.A Compliant attached buckle.
2. Acceptable product: Foundations Worldwide , Inc.;
100SSE-SM (Horizontal Surface Mount).
Installation Information
Unit projects 4 inches (100 mm).
•
• Rough-in opening 63.25 inches (1607 mm) wide x 21.75
(552
mm)
sides.
• Open unit project from wall
© 2019 Foundations® Worldwide, Inc. • 5216 Portside Drive • Medina, OH 44256, USA • Telephone 330 722 5033 • Fax 330 722 5037 • www.foundations.com
high. Shim as required for tight on all 4
21.375 inches (543 mm).
3. Characteristics:
a. Entire body 16 gauge, 304 brushed stainless
steel, seamless welds.
b.
Provide Foundations Worldwide , Inc.
200-SSLD; stainless steel liner dispenser.
4. Equipped with pneumatic cylinders.
5.
Smooth nylon belt with Thermoplastic Polyurethane
coating. Easy to sanitize and adjustable with one hand.
6. 400 lb. (181 kg) load rating exceeds ASTM F2285
requirements for weight bearing changing stations.
7. A.D.A. Compliance:
306.3 Knee Clearance
307.2 Maximum Protruding Objects
308.2 Forward Reach
308.3 Side Reach
309.4 Operation
902.3 Work Surface
Compliant when properly installed.
8. ANSI compliant safety labels.
9. CPSIA compliant to applicable sections.
