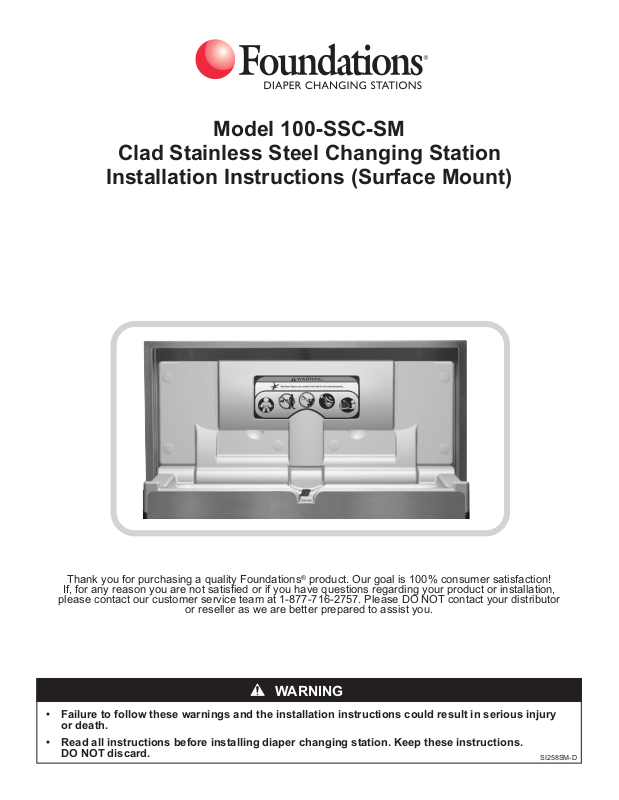

Model 100-SSC-SM
Clad Stainless Steel Changing Station
Installation Instructions (Surface Mount)
Thank you for purchasing a quality Foundations®product. Our goal is 100% consumer satisfaction!
If, for any reason you are not satisfied or if you have questions regarding your product or installation,
please contact our customer service team at 1-877-716-2757. Please DO NOT contact your distributor
or reseller as we are better prepared to assist you.
WARNING
• Failure to follow these warnings and the installation instructions could result in serious injury
or death.
• Read all instructions before installing diaper changing station. Keep these instructions.
DO NOT discard.
SI258SM-D
Page 2
INSTALLATION INSTRUCTIONS
18"
(457 mm)
ADULT INSTALLATION REQUIRED.
A
B
TOOLS REQUIRED:
Level (A)
Measuring tape (B)
ower drill with 3/16”, 1/2” and 1/8” masonry bit (C)
P
Power screwdriver with bull nose phillips bit (D)
Truss head spanner bit (E)
C
D
E
• READ ALL INSTRUCTIONS BEFORE ASSEMBLY OF DIAPER CHANGING STATION.
• Unpack carton and identify all parts.
WARNING
This changer has six (6) recess mounting holes.
•
The diaper changing station is no stronger than the anchors or walls to which they are attached and, therefore,
•
MUST be firmly secured in order to support the weight they are intended to support. Contact an architect or building
contractor if any questions.
A stud MUST be located and used for at least one side of the diaper changing station.
•
PARTS LIST
Parts Description Quantity
Hardware for installation:
3” x 1/4” Wood Screws 4
3/4” Finishing Washers 4
3” x 1/4” Machine Screws 2
3/4” Flat Washers 4
Toggle Anchors 2
Door / Wall Plate 1
3” Wood Screws
Toggle Anchors
21-3/8”
542 mm
For Wood Studs:
3/4” Finishing Washers
A.D.A. Compliance:
3/4” Flat Washers
4.4.1 Maximum Protruding Objects
4.2.5 Forward Reach
4.2.6 Parallel Approach
4.27.4 Operation
Compliant when properly installed.
3” Machine Screws
17-3/16”
(436 mm)
For Use With Toggle Anchors:
3/4” Flat Washers
Door / wall plate to be
mounted on outside of
restroom door.
34-3/4” (883 mm)
(Door)
1
Page 3
INSTALLATION
8
1
/
4
(
2
1
0
m
m
)
o
n
c
e
n
t
e
r
3
2"
(813 mm)
o
n center
T
o p
F
or A. D. A.
C
ompliance
45”
(114 cm)
A
. F. F
Recommended Blocking:
Wood double stud blocking is necessary. Contact an architect
and building official to make sure the blocking is adequate and
complies with building codes (Fig. a).
Fig. a

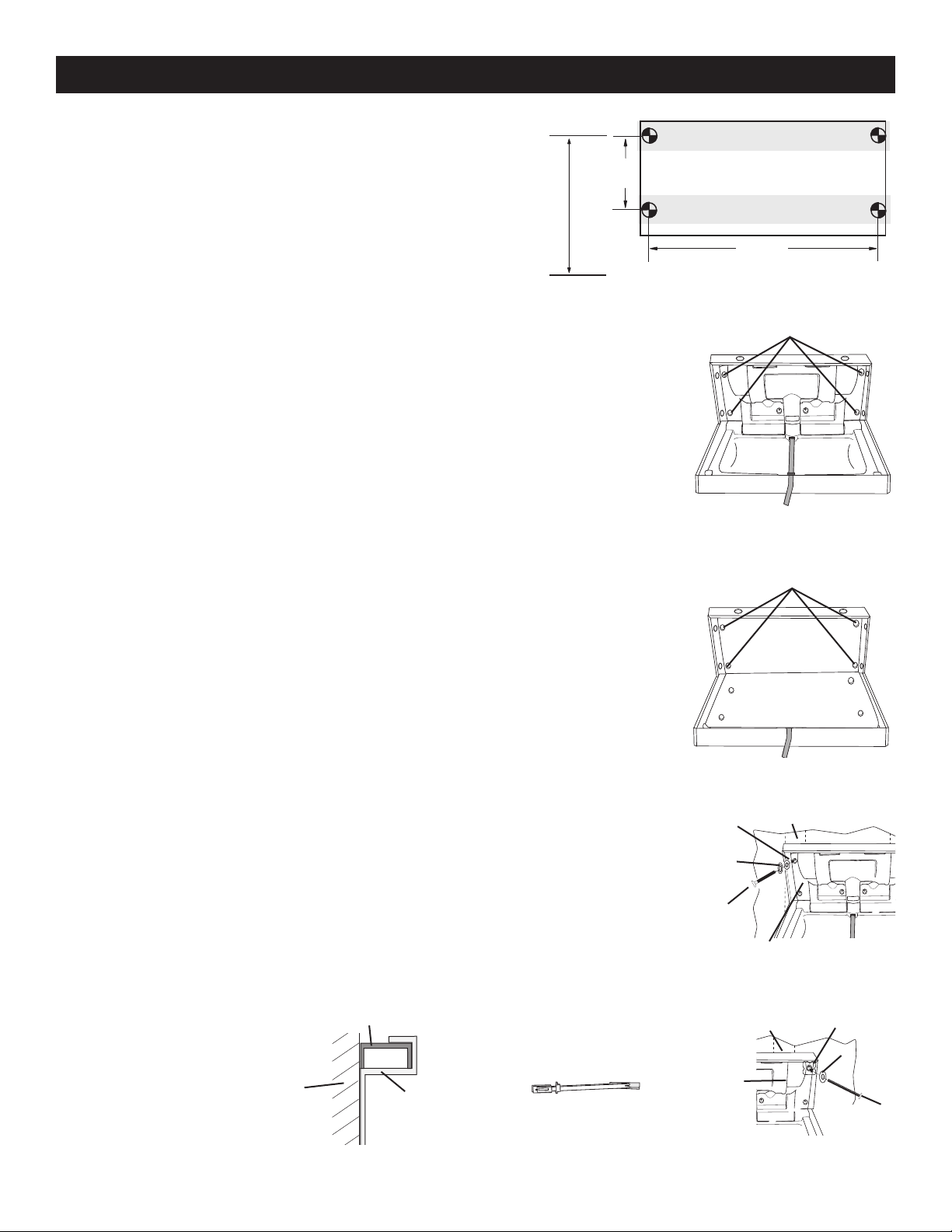

1. Remove and discard Truss Head Spanner screws from unit back (Fig. b).
2. Locate wood stud where left side of changing station will be mounted to
the wall.
3. For A. D. A. compliance, measure up 45” (114 cm) from the floor and mark
the wall. This locates the position for the top left attachment hole.
NOTE: Mark on wall MUST be in center of wood stud.
4. Lay top section of changing station down on changing station bed (Fig. c) and
align hole in top left corner of changing station with mark on wall and hold in place.
5. Using a level and measuring tape, mark the remaining three (3) holes. After marking
holes, set changing station down on ground.
6. Use a power drill and appropriate bit to drill four (4) holes in the wall. This may require
2 people.
NOTE 1: For wood studs:
- If finished wall surface is tile or masonry over wood studs, use
a 7/32” masonry bit for the pilot hole until you hit the wood
stud, then change to 1/8” bit.
- Use wood screws, finishing washers and flat washers (Fig. d).
NOTE 2: For use with toggle anchors:
- If finished wall surface has wood studs that are not 16” on center,
has metal studs, or has an underlying surface of concrete block,
use 1/2” bit.
- Use machine screws and flat washers (Fig. e).
- For holes NOT located in a wood stud, toggle anchors MUST be
used (Fig. f). See “Using Toggle Anchors” section.
7. Rotate plastic top section back up so that mounting hardware goes through
the plastic as well as the metal back (Fig. b).
NOTE: This unit incorporates a finishing collar that seats behind the changer’s
outside flange. Center the collar as the unit is being tightened against the wall
(Fig. g).
8. Align holes in changing station with drilled holes and secure top left corner of changing
station to wall stud using the appropriate screw and washer. Continue to secure the
three (3) remaining corners using the appropriate screws and washers as described
in Note 1 or Note 2.
Flat
Washer
Finishing
Washer
Wood
Screw
Changing
Truss Head
Spanner Screws
Fig. b
Surface-Mount
Holes
Fig. c
Wood Stud
Fig. d
Station
Collar
Wood Stud
Toggle
Anchor
Flat
Wall
Unit
Fig. f
Changing
Station
Fig. g
Washer
Machine
Screw
Fig. e
2
Page 4

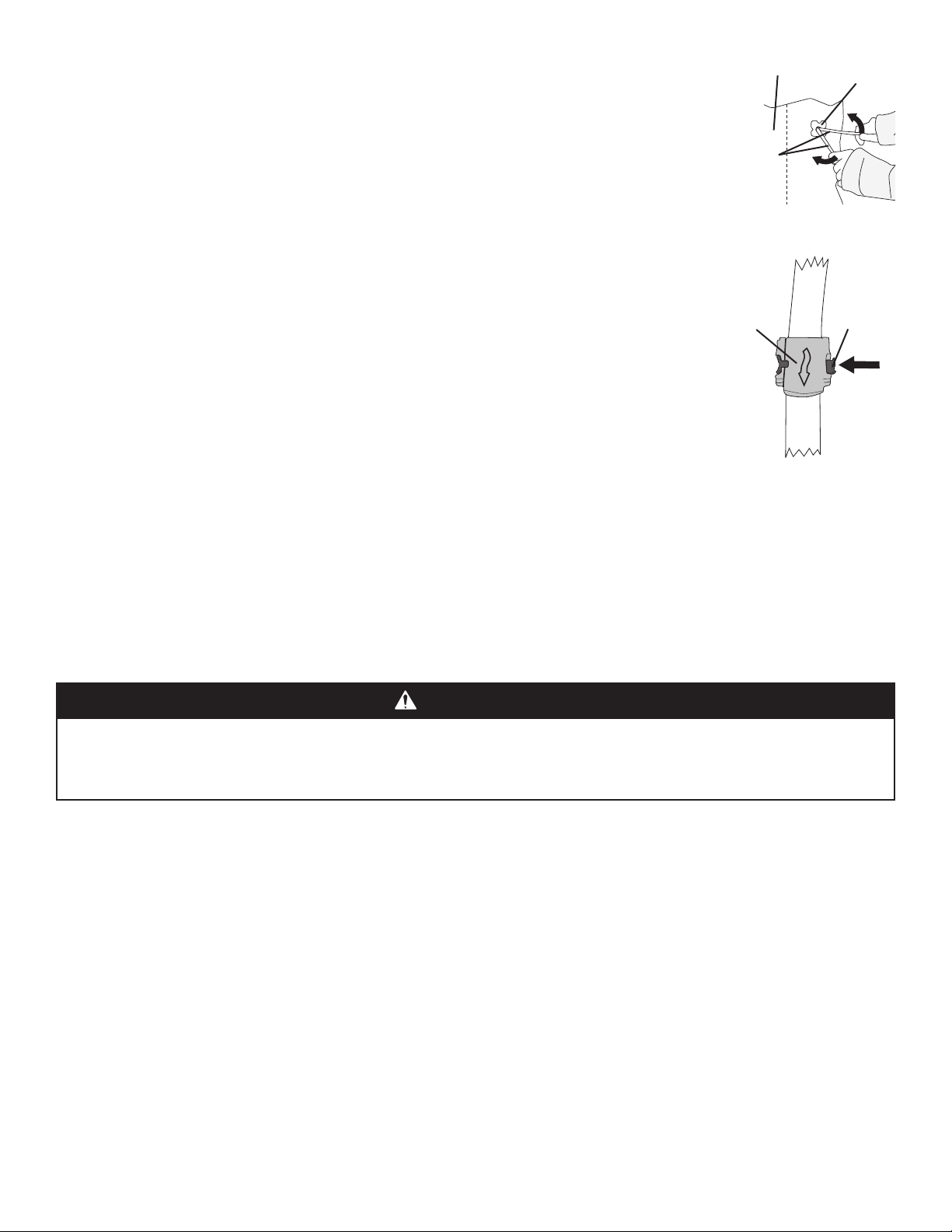

Using Toggle Anchors (Fig. f):
1. Insert metal end of toggle anchor into 1/2” hole.
2. Slide zip strip down snugly against wall.
3. Snap off break-away pieces of toggle anchor (Fig. h).
4. Align holes in changing station with toggle anchors and secure top left corner of
changing station to wall using machine screws and flat washers. Continue to
secure the three (3) remaining corners using machine screws and flat washers.
5. Ensure all four (4) screws are tight and snap caps over screw heads.
OPERATION:
Wood Stud
Break-Away
Toggle
Anchor
Fig. h
Rotate base downward. Place infant on top of the changing surface. Use restraint
system as described below. After child has been changed, remove restraint system
and rotate base back up against the wall.
Top Of
Buckle
USE OF RESTRAINT SYSTEM:
Place child so restraint strap is located at abdomen. Rotate top of buckle upward and insert strap
in buckle. Pull strap through buckle until snug against infant. Rotate top of buckle downward to lock
the strap into place. Slide red locking tab over top of buckle (Fig. i). Reverse steps to loosen strap.
MAINTENANCE AND CLEANING:
Check all hardware and components monthly or as required to ensure hardware is tight and there
are no missing or damaged components. Take unit out of service if any component is missing or
damaged and contact customer service to order replacement parts. Do not substitute parts.
For replacement parts, contact customer service at 1-877-716-2757.
Clean by using a damp cloth with mild soap or mild multi-purpose cleaner. Do not use any strong
chemical cleaners or cleaning agents that may be hazardous to children.
WARNING
Child should never be left unattended.
•
Avoid serious injury from falling or sliding out. Always use restraint system.
•
Adding excessive weight such as parcels, packages, or accessories to the unit or to the bag hooks that exceed the total
•
weight limit of 50 pounds (22.7 kg) may cause the unit to be unstable or may cause a hazardous unstable condition to
exist.
Locking
Tab
Fig. i
3
