Foundations Four Passenger Assembly & Use Instructions
ASSEMBLY & USE INSTRUCTIONS
Four PassengerFour Passenger
Four PassengerFour Passenger
StrollerStroller
StrollerStroller
®
Read all instructions BEFORE assembly and USE of product
KEEP INSTRUCTIONS FOR FUTURE USE.
For use with children whose:
Weight is
:
40 lbs. (18.1 kg) or less.
Height is:
40 inches (102 cm) or less.
© 2006 Shamrock Industries, Inc. SI071A
Keep this instruction manual for future use.
Division of Shamrock Industries, Inc.
7001 Wooster Pike
Medina, OH 44256
1-877-716-2757 (U.S. Only)
or 1-330-722-5033
1
WARNING
Failure to follow these warnings and assembly instructions
could result in serious injury or death.
Avoid Serious Injury To Children From Falling Or Sliding Out:
• ALWAYS use a harness to restrain each child.
• Snugly adjust harness around each child.
• NEVER leave children unattended, even when sleeping.
Always keep children in view.
• DO NOT allow children to climb on stroller or stand in seat.
Avoid Serious Injury To Children:
• DO NOT allow children to sit or stand in storage baskets.
• DO NOT place any child weighing more than 40 lbs.
(18.1 kg) or taller than 40 inches (102 cm) in this stroller.
• Use caution when pushing stroller near traffic or in highly
congested areas.
• DO NOT use stroller on stairs or escalators with children in it.
• DO NOT lift stroller by arm bar.
Avoid Loss Of Control Of Stroller:
• ALWAYS use front wheel swivel locks when pushing stroller
on uneven terrain.
• Use caution when pushing stroller on uneven terrain or hills.
• ALWAYS set parking brake when the stroller is stopped.
• NEVER leave stroller unattended on a hill or incline even
when parking brake is set.
Avoid Injury From Stroller Tipping Over:
• DO NOT allow children to climb into stroller unassisted, or
to play or hang onto stroller.
• DO NOT overload stroller as it can become unstable.
• DO NOT carry more than 4 children, one per seat, or place
extra parcels or goods in or on the stroller.
• DO NOT add package carrying accessories or hang items
from stroller
• DO NOT place more than 15 lbs. (6.7kg) in each storage
basket.
• ALWAYS distribute weight as evenly as possible on each
side of the stroller.
Avoid Pinch Injury:
• Keep fingers clear of hinged joints when folding and
unfolding stroller.
•
When making adjustments, always ensure all children’s
body parts are clear of any moving parts.
Assembly Assistance
Foundations®strives for the highest quality in our products but occasionally a missing
part or problem can occur during assembly.
If any parts are missing or broken or you need assistance with assembly, DO NOT
return the product to your dealer. Call
Foundations®for assistance at 1-877-716-2757
(U.S. Only) or 1-330-722-5033 (Monday through Friday, 9:00 a.m.– 4:00 p.m. Eastern
Time). Please have the Stroller model number and manufacture date located on the
stroller frame, near the handle underneath the rear canopy of the stroller available
when you call
or write us at:
Foundations®,
7001 Wooster Pike, Medina, OH
44256.
Parts List
Part Description Quantity
A. Stroller Frame 1
B. Rear Wheel Assembly 1
C. Front Wheel Assembly 3
D. Arm Bar 1
E. Front Canopy 1
PARTS LIST
Assembly Instructions
•
Adult assembly required. No tools required.
• Read all instructions before ASSEMBLY and USE of Stroller.
• Unpack carton, remove packing materials, including polybag. Identify and check
all parts. If parts are missing or damaged, call Foundations®Consumer Services
at 1-877-716-2757 (U.S. Only) or 1-330-722-5033.
A
B
C
D
E
• Plastic bags can cause suffocation. Keep plastic bag away
from children. Remove and discard plastic bag.
WARNING
2
3
STEP 1 - Basket Assembly
1. Place folded stroller down on the floor with the footrests facing down.
2. From the back of the stroller, locate the rear basket tube
inside the stroller basket. Lift rear basket tube with the
basket fabric out of the basket.
3. Line up open ends of Rear Basket Tube with ends
of Basket Tube and slide onto Basket Tube
(Fig. 1).
4. Depress Metal Spring Buttons on both sides
of the Basket Tube and slide Rear Basket Tube
in until metal spring button snaps though the hole
on the Rear Basket Tube (Fig. 2).
5. Pull out on rear basket tube to check that
snaps are locked in place.
STEP 2 - Rear Wheel Assembly
1. Turn stroller over on its back so that the footrests are facing
up.
2. Align and slide center rear wheel assembly sleeve onto
center leg tube, then slide outside sleeves onto outside
tubes (Fig. 1).
3. After all (3) rear wheel assembly sleeves are started
onto the rear leg tubes, move parking brake lever
down into the locked position.
4. Slide all (3) rear wheel assembly sleeves up rear legs
until spring button snaps into hole in rear wheel assembly
sleeve.
Pull out on Rear Wheel Axle to be sure Rear Wheel
Assembly are securely snapped to each rear leg.
Rear Wheel
Assembly Sleeves
Fig. 1
Fig. 2
Fig. 1
Metal Spring
Button
Center Rear
Wheel Assembly
Sleeve
Rear Wheel
Assembly
1
2
1
2
Basket
Tube
Rear Basket
Tube
4

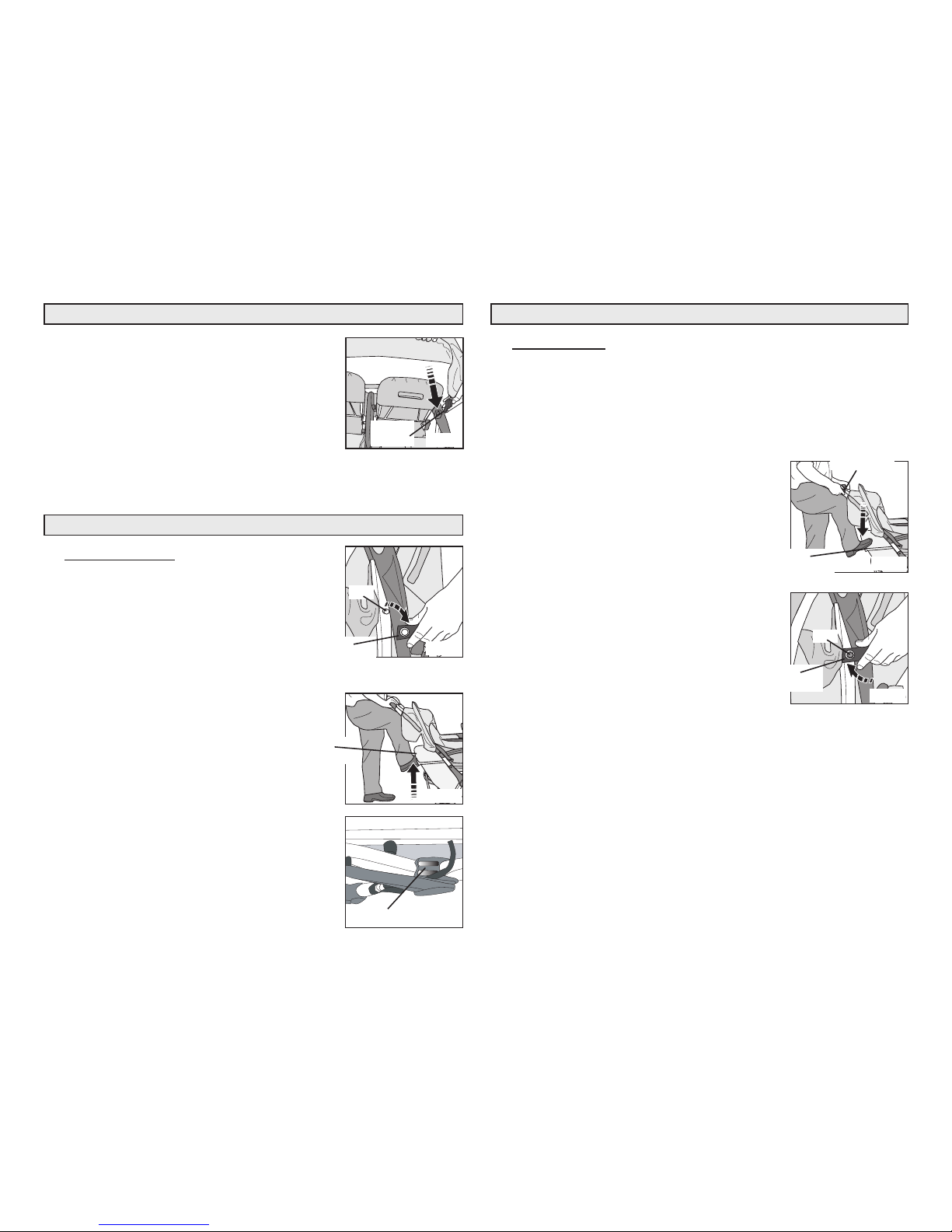

1. Unfold stroller (see Folding and Unfolding Stroller
section).
2. With Foundations
®
logo up, position Arm Bar
Assembly onto front leg tubes between arm
rest stop and stroller seat bottom and
snap onto front leg on both sides (Fig. 1).
3. Lock Arm Bar to stroller frame by pushing
Arm Bar Clamp in toward stroller to (Fig. 2).
4. Repeat step 3 for opposite end of Arm Bar.
5. Place Passive Crotch Strap in center of both
seats over Arm Bar and secure snaps (Fig. 3).
STEP 3 - Front Wheel Assembly
1. Position front wheel assembly with larger opening
and swivel lock toward the front leg sleeve.
2. Slide Front Wheel Assembly onto one of the
front leg sleeves (Fig. 1).
Pull out on Front Wheel Assembly to be sure
it is securely snapped to the front leg.
3. Repeat for other Front Wheel Assemblies.
STEP 4 - Arm Bar Assembly
Front Wheel
Assembly
Arm Bar
Assembly
Arm Bar
Clamp
Fig. 1
Fig. 1
Fig. 2
Front Leg
Sleeve
Larger
Opening
Arm Bar
Stop
Passive
Crotch
Strap
Fig. 3
