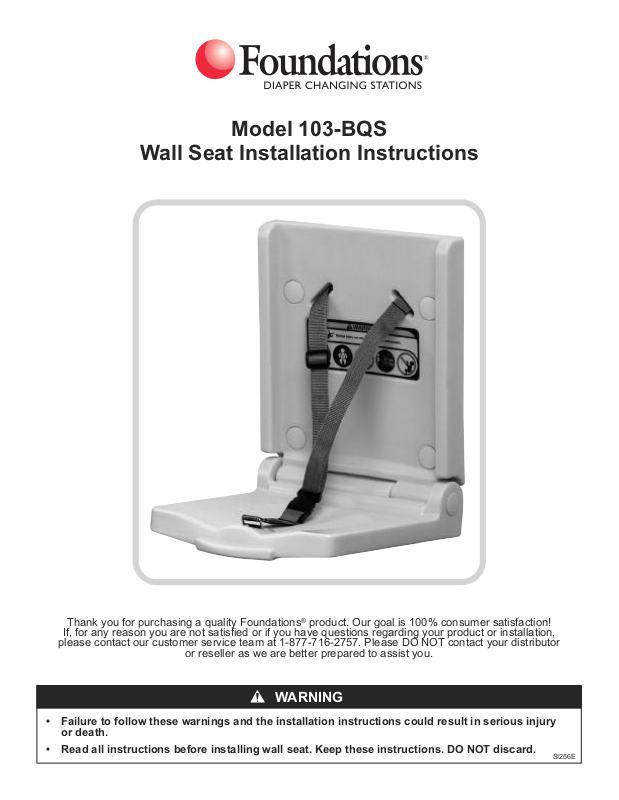

Foundations SI256E, 103-BQS User Manual

Model 103-BQS

Wall Seat Installation Instructions

Thank you for purchasing a quality Foundations®product. Our goal is 100% consumer satisfaction!

If, for any reason you are not satisfied or if you have questions regarding your product or installation,

please contact our customer service team at 1-877-716-2757. Please DO NOT contact your distributor

or reseller as we are better prepared to assist you.

WARNING

• Failure to follow these warnings and the installation instructions could result in serious injury
or death.

• Read all instructions before installing wall seat. Keep these instructions. DO NOT discard.

SI256E

ASSEMBLY INSTRUCTIONS

ADULT INSTALLATION REQUIRED.

TOOLS REQUIRED:

A

B

Level (A)
Measuring tape (B)

ower drill with 3/8” bit (C)

P

C

D

Power screwdriver with bull nose phillips bit (D)

• READ ALL INSTRUCTIONS BEFORE ASSEMBLY OF WALL SEAT.

• Unpack carton and identify all parts.

PARTS LIST

Parts Description Quantity

Hardware for installation:

1/4 - 20 x 1-1/4” Machine Screws 4
1/4” Flat Washers 4
1/2 -20 x 9/16” T-Nuts 4
1” Caps 4

1/4 - 20 x 1-1/4” Machine Screws

IMPORTANT:

- The enclosed hardware is for through-bolt mounting on a 1” thick steel partition only. If mounting unit on a partition
of different thickness or on a wall, provide the appropriate backing and hardware.

1/4” Flat Washers

1/2 -20 x 9/16” T-Nuts

1” Caps

- Wall seat MUST be mounted in a convenient location at or near the same height as the toilet tissue dispenser.

If mounting in a changing room, mount so bottom of wall seat is approximately 20-1/2” from the floor. Make
sure there is adequate clearance in front of the seat for safe operation.

WARNING

The wall seat is no stronger than the anchors or walls to which they are attached and, therefore, MUST be firmly secured

•

in order to support the weight they are intended to support. Contact an architect or building contractor if any questions.

Check mounting hardware at least once a month to ensure screws are tightly fastened.

•

Always secure child with restraint system. NEVER leave child unattended.

•

DO NOT mount to a door.

•

1
