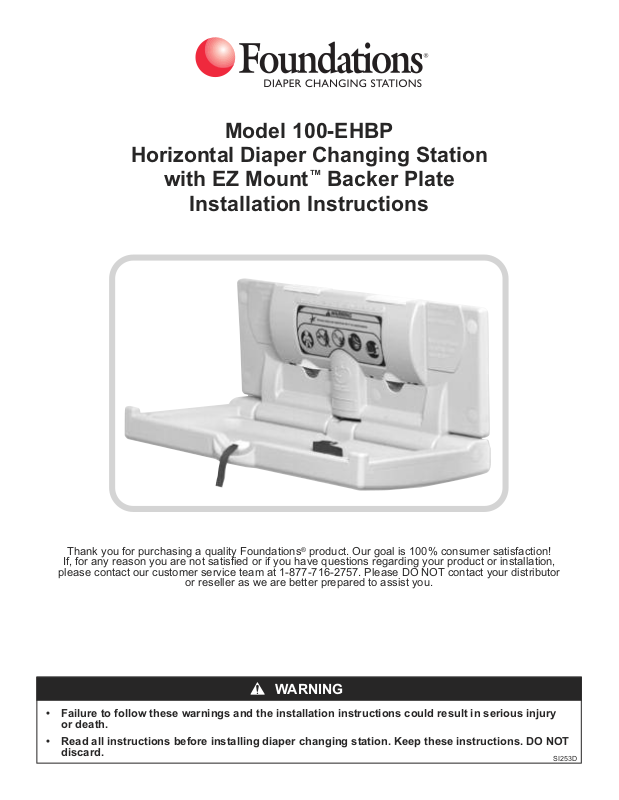

Foundations 100-EHBP User Manual
Model 100-EHBP
Horizontal Diaper Changing Station
™
with EZ Mount
Backer Plate
Installation Instructions
Thank you for purchasing a quality Foundations®product. Our goal is 100% consumer satisfaction!
If, for any reason you are not satisfied or if you have questions regarding your product or installation,
please contact our customer service team at 1-877-716-2757. Please DO NOT contact your distributor
or reseller as we are better prepared to assist you.
WARNING
• Failure to follow these warnings and the installation instructions could result in serious injury
or death.
• Read all instructions before installing diaper changing station. Keep these instructions. DO NOT
discard.
SI253D
ASSEMBLY INSTRUCTIONS
ADULT INSTALLATION REQUIRED.
TOOLS REQUIRED:
evel (A)
L
A
B
Measuring tape (B)
Power drill with 7/32”, 1/8” and 1/2” masonry bits (C)
Power screwdriver with bull nose phillips bit (D)
C
D
• READ ALL INSTRUCTIONS BEFORE ASSEMBLY OF Diaper Changing Station.
npack carton and identify all parts.
• U
IMPORTANT NOTE:
The EZ Mount™Backer Plate may or may not be included with the model you purchased. The backer
plate is intended to reduce installation time and costs as well ensure connection to two studs. Safe
installation can also be achieved without the use of the backer late by following the instructions
provided.
If your model did not include an EZ Mount
™
Backer Plate and you have determined that you would
like to purchase one, please contact us at 1-877-716-2757 if you have any questions. The part
number is A100-BPEH.
PARTS LIST
Parts Description Quantity
Hardware for installation:
3” Wood Screws 4
3/4” Finishing Washers 4
3” Machine Screws 2
3/4” Flat Washers 4
Toggle Anchors 2
1-1/4” Caps 6
Door / Wall Plate 1
3” Wood Screws
For Wood Studs:
3/4” Finishing Washers
Toggle Anchors
3/4” Flat Washers
1-1/4” Caps
3” Machine Screws
For Use With Toggle Anchors:
3/4” Flat Washers
Door / wall plate to be
mounted on outside of
restroom door.
34-1/4”
(870 mm)
17-1/2”
(445 mm)
15-3/8”
(390 mm)
1
A.D.A. Compliance:
4.4.1 Maximum Protruding Objects
4.2.5 Forward Reach
4.2.6 Parallel Approach
4.27.4 Operation
Compliant when properly installed.
