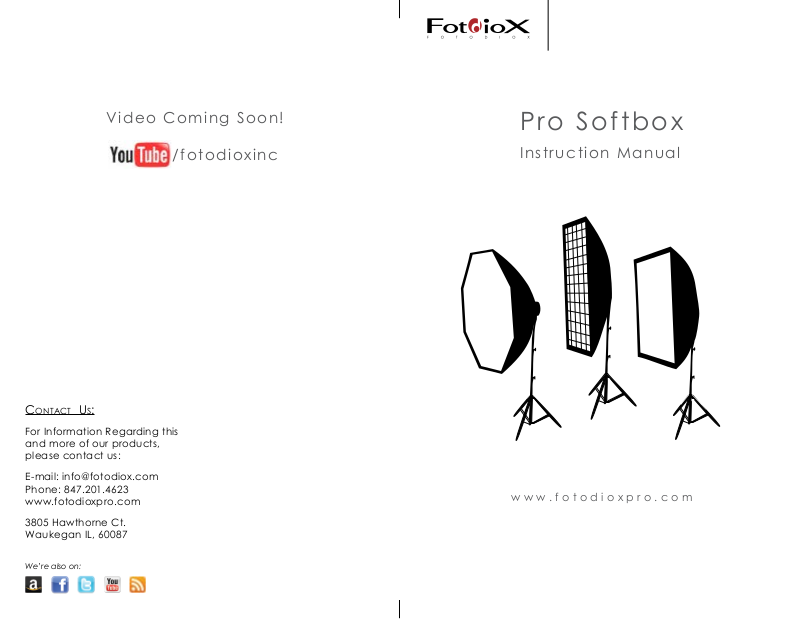

Page 1
Video Coming Soon!
Pro Softbox
/fotodioxinc
Con taC t Us:
For Information Regarding this
and more of our products,
please contact us:
Instruction Manual
E-mail: [email protected]
Phone: 847.201.4623
www.fotodioxpro.com
3805 Hawthorne Ct.
Waukegan IL, 60087
We’re also on:
www.fotodioxpro.com
Page 2
Pro softbox softbox
Specs and Features Details
Product Overview
the fotodiox Pro softbox is a sturdy and economical version of the
standard softbox designs available today and is perfect for studio and
multi-day shooting. It is made with Fotodiox high quality reective and
diffusive materials. The dome of the softbox is made of durable Pro-
grade omni-bounce silver reective fabric with black backing. It also
features a neutral diffusive bafe inside the dome to provide softer
lighting, if needed. An outer diffusive cover closes the front of the
softbox and is attached by Velcro making varied lighting options quick
and easy.
The dedicated speedring is specically designed for your strobe light to
t standard softboxes, rectangular octagon and strip boxes. The speed
ring allows rotation of softbox while on light xture.
Product Features
• Pro Grade, Heat Resistant Reective Fabric
• Heavy Duty Construction with Premium Grade Materials
• Features Inner Bafe and Outer Diffusive Cover for Even Light Throw
• Sealable Venting for use with Modeling Lamp or Continuous Lighting
• Rotating Speedring with Thumb Screw Lock
• 24 Month Manufacturer Warranty
Tips
Softbox size is usually chosen by the size of the subject and the strength
of light supply being used. Used with any tungsten (500 watts or less)
or ash light source, the softbox will direct, amplify, and soften the light
output to subject.
Some rectangular/square softbox
models have vents on two of the
sides for easy access.
These vents, when kept open, help
the Softbox cool off.
other softboxes
And Accessories
Fotodiox, carries a variety of complementary products for
your new Softbox.
Softboxes and
Eggcrate Grids
Softbox Type Sizes
Rectangular 24x24
24x36
32x48
48x72
Octagon 36
48
60
70
Stripbox 12x56
12x80
12x80
Speedring Inserts
Allien Bees Flash Hotshoe
Speedring
Balcar Hensel
Bowens Multiblitz
Broncolor Impact Multiblitz P-Type
Broncolor Pulso Norman Allure
Calumet Genesis Norman Monolight
Calumet Travelite Norman 900 Series
Comet Novatron
Einstein ProPhoto
Elinchrome Speedotron
Excalibur Universal
1
6
Page 3
2
Square Softbox
Study the different
holes of the
Speedring. Insert the
large tip of the Rods
in the holes that
correspond to your
softbox model.
(Examples Below)
Rectangle/
Large
Stripbox Octagon Box
Small
Insert rod into
4
closed pocket.
Using both hands,
grab the Rod
with one and
push toward the
speedring.
assembling the softbox
Attaching the inner diffusers
Rectangular Softboxes: You may insert the
rods in any order.
Octagon Softboxes: Insert rods into holes
2 and 3 (see diagram in step 3) into the
closed pockets rst. Then insert rods into
holes 6 and 7 (see diagram in step 3) on
the speedring. Then insert remaining 4
rods in any order desired. This procedure
allows for easy installation. Otherwise, the
rods will be difcult to insert.
Insert the large tip
of the Rods in four
opposite holes on
the speedring to
form a perfect “X”
Place Speedring in the
3
center of the Softbox
Shell as illustrated here.
Start inserting the small
tip of the rods into the
corresponding closed
pockets in the sequence
that corresponds to your
Softbox model.
Insert the large tip
of the Rods in four
opposite holes on
the speedring to
form a “Tall X”
1
Small Tip
3
Insert the large tip
of the Rods in eight
of the holes on the
speedring that form
an Octagon
6
5
1
2
WARNING: DO NOT insert the rods underneath the pockets,
Be sure to insert them inside the pockets, NOT under.
3
Locate the 4 elastic
5
bands inside the
Softbox at midperimeter on each
corner.
4x Elastic Bands
4
Locate 8 elastic
bands if your model is
an Octagon Softbox.
2
7
8
4
3
Connect all 4 corners
6
of the Inner Diffuser to
the 4 elastic bands.
Connect 8 corners of
the Inner Diffuser to
the 8 elastic bands
if your model is an
Octagon Softbox.
Inner Diffuser
4
Page 4
7
Grab the Outer Diffuser
and attach the Velcro
to the entire perimeter of
the Softbox. Press rmly
around the perimeter to
close any gaps between
the Shell and the Diffuser.
Be sure to attach the
Diffuser on the inner side
of the Softbox, leaving a
good amount of Velcro to
attach a Grid if desired.
Contents
Stripbox and Rectangular/Square Softboxes include
1x Carrying Case
1x Dedicated
Speedring
1x Softbox Shell
1x Outer Diffuser
1x Inner Diffuser
4x Softbox
Rods
8
Flip the softbox over and secure the Velcro aps together
around the Speedring Insert.
For Octagon Softboxes, secure the back cover to velcro
around the softbox shell. Make sure it covers the Speedring
Insert.
Octagon Softboxes Include
1x Carrying Case
1x Dedicated
Speedring
1x Softbox Shell
1x Inner Diffuser
1x Back Cover
1x Outer Diffuser
8x Softbox
Rods
assembling the softbox
Mount the Softbox on a stand (Not Included) and You’re done!
Inserting the Softbox Rods
9
1
Fotodiox carries a variety of products to complement
your new Softbox. See page 6 for a list of complementary
products such as the Grid illustrated above. (Not included)
5
Find a large open area
and spread the Softbox
Shell on the oor, silver
side up.
Study the pockets at
the corners and locate
the closed velcro
pockets.
2
