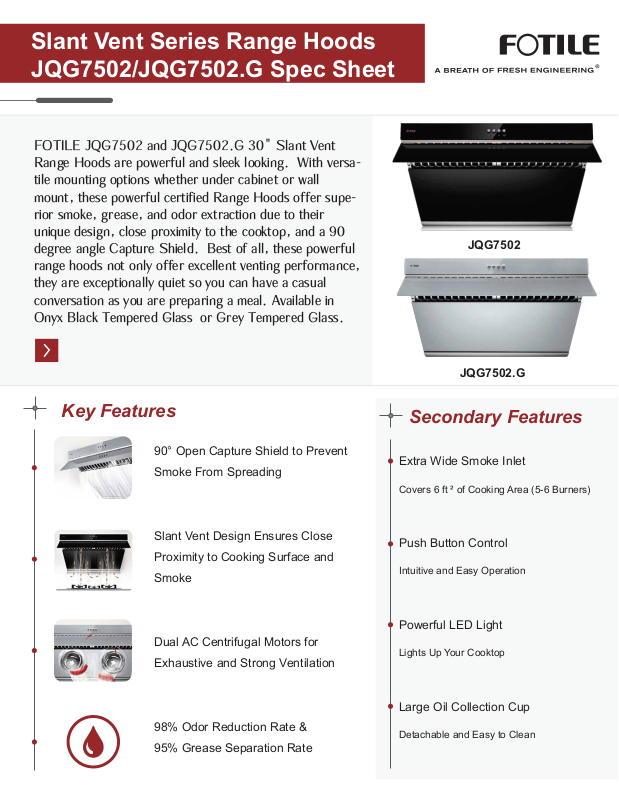

Page 1
Slant Vent Series Range Hoods
JQG7502/JQG7502.G Spec Sheet
FOTILE JQG7502 and JQG7502.G 30" Slant Vent
Range Hoods are powerful and sleek looking. With versatile mounting options whether under cabinet or wall
mount, these powerful certified Range Hoods offer superior smoke, grease, and odor extraction due to their
unique design, close proximity to the cooktop, and a 90
degree angle Capture Shield. Best of all, these powerful
range hoods not only offer excellent venting performance,
they are exceptionally quiet so you can have a casual
conversation as you are preparing a meal. Available in
Onyx Black Tempered Glass or Grey Tempered Glass.
JQG7502
Key Features
90° Open Capture Shield to Prevent
Smoke From Spreading
Slant Vent Design Ensures Close
Proximity to Cooking Surface and
Smoke
Dual AC Centrifugal Motors for
Exhaustive and Strong Ventilation
JQG7502.G
Secondary Features
Extra Wide Smoke Inlet
Covers 6 ft ² of Cooking Area (5-6 Burners)
Push Button Control
Intuitive and Easy Operation
Powerful LED Light
Lights Up Your Cooktop
98% Odor Reduction Rate &
95% Grease Separation Rate
Large Oil Collection Cup
Detachable and Easy to Clean
Page 2
Slant Vent Series Range Hoods
JQG7502/JQG7502.G Spec Sheet
Specifications Table
Model
Certification
Width(inch)
Installation
Max. EQUIV.CFM
Max Static Pressure(Pa)
Power Supply(V/Hz)
Speed Setting
Min. Noise Level(dB)
Illumination(W)
Motor
Operation Type
Delay Shutoff
Screen Lock
Grease Filtration Rate
Odor Reduction Rate
Warranty
JQG7502 / JQG7502.G
ETL，HVI
29 7/8
Under Cabinet/Wall Mount(Optional Decorative Cover Required)
850
400
120/60
3
39
3W × 2 （LED)
Dual AC Motors
Push Button
N
N
95%
98%
Labor: 2 Years
Parts: 5 Years(Limited)
Motors: Lifetime Limited Warranty
Installation Dimensions
Installation Examples
