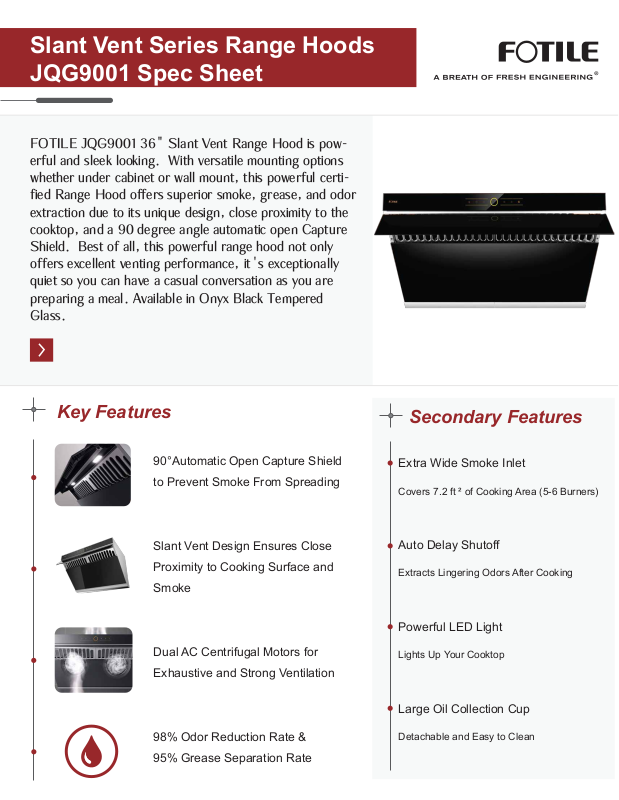

Slant Vent Series Range Hoods
JQG9001 Spec Sheet
FOTILE JQG9001 36" Slant Vent Range Hood is powerful and sleek looking. With versatile mounting options
whether under cabinet or wall mount, this powerful certified Range Hood offers superior smoke, grease, and odor
extraction due to its unique design, close proximity to the
cooktop, and a 90 degree angle automatic open Capture
Shield. Best of all, this powerful range hood not only
offers excellent venting performance, it's exceptionally
quiet so you can have a casual conversation as you are
preparing a meal. Available in Onyx Black Tempered
Glass.
Key Features
90°Automatic Open Capture Shield
to Prevent Smoke From Spreading
Slant Vent Design Ensures Close
Proximity to Cooking Surface and
Smoke
Dual AC Centrifugal Motors for
Exhaustive and Strong Ventilation
Secondary Features
Extra Wide Smoke Inlet
Covers 7.2 ft ² of Cooking Area (5-6 Burners)
Auto Delay Shutoff
Extracts Lingering Odors After Cooking
Powerful LED Light
Lights Up Your Cooktop
98% Odor Reduction Rate &
95% Grease Separation Rate
Large Oil Collection Cup
Detachable and Easy to Clean
Page 2
Slant Vent Series Range Hoods
JQG9001 Spec Sheet
Specifications Table
Model
Certification
Width(inch)
Installation
Max. EQUIV.CFM
Max Static Pressure(Pa)
Power Supply(V/Hz)
Speed Setting
Min. Noise Level(dB)
Illumination(W)
Motor
Operation Type
Delay Shutoff
Screen Lock
Grease Filtration Rate
Odor Reduction Rate
Warranty
JQG9001
ETL，HVI
35 7/8
Under Cabinet/Wall Mount(Optional Decorative Cover Required)
850
400
120/60
3
39
3W × 2 （LED)
Dual AC Motors
Touch
2min
Y
95%
98%
Labor: 2 Years
Parts: 5 Years(Limited)
Motors: Lifetime Limited Warranty
Installation Dimensions
Installation Examples
