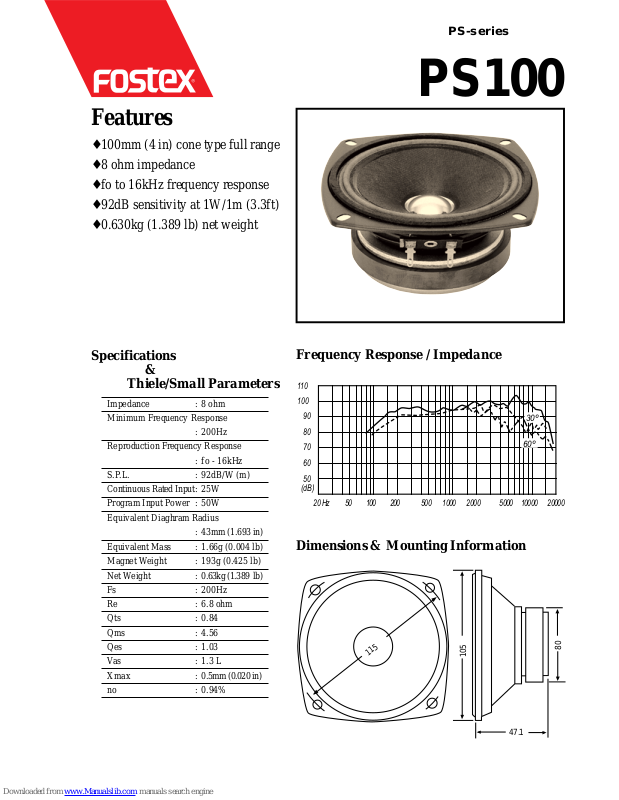

Fostex PS-SERIES PS100 Specifications

Features

♦100mm (4 in) cone type full range
♦8 ohm impedance
♦fo to 16kHz frequency response
♦92dB sensitivity at 1W/1m (3.3ft)
♦0.630kg (1.389 lb) net weight

Frequency Response / Impedance

Specifications

&

Thiele/Small Parameters

Impedance : 8 ohm
Minimum Frequency Response

: 200Hz

S.P.L. : 92dB/W (m)
Continuous Rated Input: 25W
Program Input Power : 50W
Equivalent Diaghram Radius

: 43mm (1.693 in)

Reproduction Frequency Response

: fo - 16kHz

Equivalent Mass : 1.66g (0.004 lb)
Magnet Weight : 193g (0.425 lb)

Net W eight : 0.63kg (1.389 lb)
Fs : 200Hz
Re : 6.8 ohm

Qes : 1.03

Qts : 0.84

Vas : 1.3 L
Xmax : 0.5mm (0.020 in)

Dimensions & Mounting Information

PS-series

no : 0.94%

Qms : 4.56

PS100

20 50 100 200 500

1000

2000 5000

10000

20000

50

60

70

80

90

100

110

(dB)

Hz

60

º

30

º

115

80

47.1

105
