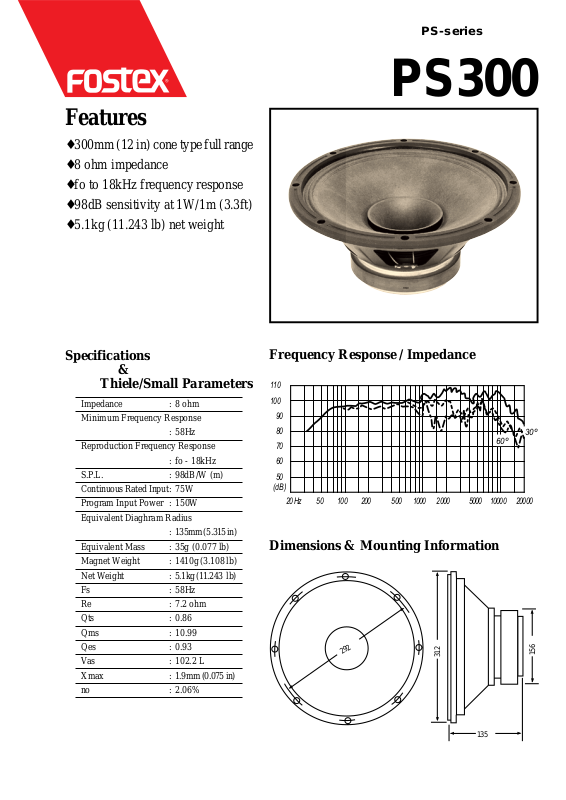

Page 1
Features
♦300mm (12 in) cone type full range
♦8 ohm impedance
♦fo to 18kHz frequency response
♦98dB sensitivity at 1W/1m (3.3ft)
♦5.1kg (11.243 lb) net weight
PS-series
PS300
Specifications
&
Thiele/Small Parameters
Impedance : 8 ohm
Minimum Frequency Response
: 58Hz
Reproduction Frequency Response
: fo - 18kHz
S.P.L. : 98dB/W (m)
Continuous Rated Input: 75W
Program Input Power : 150W
Equivalent Diaghram Radius
: 135mm (5.315 in)
Equivalent Mass : 35g (0.077 lb)
Magnet W eight : 1410g (3.108 lb)
Net Weight : 5.1kg (11.243 lb)
Fs : 58Hz
Re : 7.2 ohm
Qts : 0.86
Qms : 10.99
Qes : 0.93
Vas : 102.2 L
Xmax : 1.9mm (0.075 in)
no : 2.06%
Frequency Response / Impedance
110
100
90
80
70
60
50
(dB)
20 50 100 200 500
Hz
1000
2000 5000
Dimensions & Mounting Information
292
312
60
10000
º
30
20000
º
156
135
