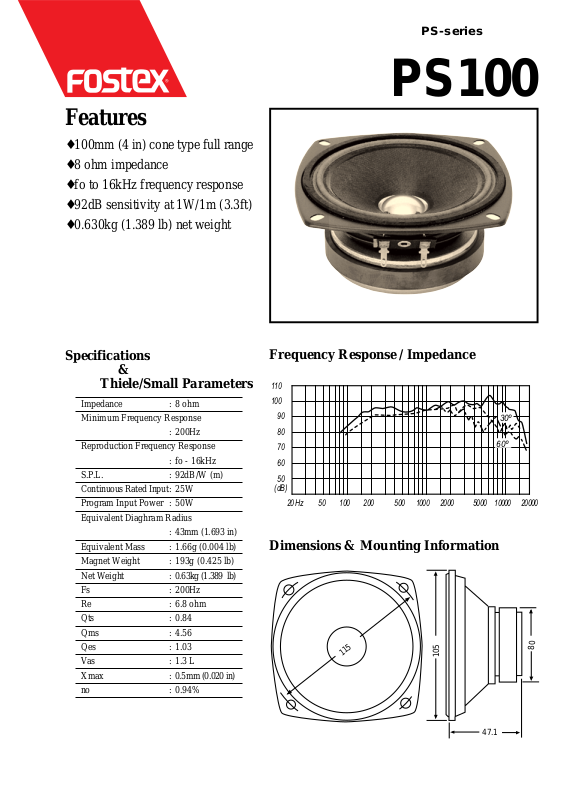

Page 1
Features
♦100mm (4 in) cone type full range
♦8 ohm impedance
♦fo to 16kHz frequency response
♦92dB sensitivity at 1W/1m (3.3ft)
♦0.630kg (1.389 lb) net weight
PS-series
PS100
Specifications
&
Thiele/Small Parameters
Impedance : 8 ohm
Minimum Frequency Response
: 200Hz
Reproduction Frequency Response
: fo - 16kHz
S.P.L. : 92dB/W (m)
Continuous Rated Input: 25W
Program Input Power : 50W
Equivalent Diaghram Radius
: 43mm (1.693 in)
Equivalent Mass : 1.66g (0.004 lb)
Magnet Weight : 193g (0.425 lb)
Net Weight : 0.63kg (1.389 lb)
Fs : 200Hz
Re : 6.8 ohm
Qts : 0.84
Qms : 4.56
Qes : 1.03
Vas : 1.3 L
Xmax : 0.5mm (0.020 in)
no : 0.94%
Frequency Response / Impedance
110
100
90
80
70
60
50
(dB)
20 50 100 200 500
Hz
1000
2000 5000
Dimensions & Mounting Information
115
105
30
º
60
º
10000
20000
80
47.1
