Fostex 6301DT User guide

Active Speaker

Owner's Manual

6301DT

Thank you for purchasing this Fostex product.
This manual provides instructions for basic use of the unit.
Read this before using the unit for the  rst time.

English

© FOSTEX COMPANY All Right Reserved

WARNINGS and PRECAUTIONS



• CAUTION: The symbol To prevent electric shock hazard, do not connect to

mains power supply while grille is removed.

• WARNING: An apparatus with CLASS I construction shall be connected to a

MAINS socket outlet with a protective earthing connection.

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

• WARNING: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

• CAUTION: Use of any controls or adjustments or performance of procedures

other than those herein specified may result in hazardous radiation exposure.

• WARNING: Changes or modifications to this unit not expressly approved

by the party responsible for compliance could void the user’s authority to
operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive

surfaces to avoid damaging the surface. Use a protective barrier between the
unit and surface to protect the surface.

• WARNING: Use of this unit near fluorescent lighting may cause interference

regarding use of the remote. If the unit is displaying erratic behavior move
away from any fluorescent lighting, as it may be the cause.

• WARNING: Do not install this equipment in a confined space such as a book

case or similar unit.

SAFETY INSTRUCTIONS



1. Read Instructions - All the safety and operating instructions should be read
before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be
retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water - for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, and the like.

6. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.

The appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination
to overturn.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or
ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or
position does not obstruct proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar surface that may
block the ventilation openings; or, placed in a built-in installation, such as a
bookcase or cabinet that may impede the flow of air through the ventilation
openings.

9. Heat - The appliance should be situated away from heat sources such as
radiators, heat registers, stoves, or other appliances (including amplifiers)
that produce heat.

10. Power Sources - The appliance should be connected to a power supply only
of the type described in the operating instructions or as marked on the
appliance.

11. Grounding or Polarization - The precautions that should be taken so that
the grounding or polarization means of the appliance is not compromised.

12. Power Cord Protection - Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the appliance.

• WARNING: Mains plug is used as disconnect device and it should remain

readily operable during intended use. In order to disconnect the apparatus
from the mains completely, the mains plug should be disconnected from the
mains socket outlet completely.

CAUTION

The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

13. Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.

14. Nonuse Periods - The power cord of the appliance should be unplugged
from the outlet when left unused for a long period of time.

15. Object and Liquid Entry - Care should be taken so that objects do not fall
and liquids are not spilled into the enclosure through openings.

16. Damage Requiring Service - The appliance should be serviced by qualified
service personnel when:

A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked

change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Servicing - The user should not attempt to service the appliance beyond
that described in the operating instructions.

All other servicing should be referred to qualified service personnel.

18. The appliance should be situated away from drops of water or spraying
water.

19. Objects containing liquid such as vases must not be put on the appliance.

20. The appliance is not completely isolated from the power supply even if the
power switch is in the off position.

21. Appliance shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the appliance.

22. Only use attachments/accessories specified by the manufacturer.

23. Appliances with a protective earth terminal should be connected to a mains
outlet with a protective earth connection.

24. The appliance should be placed in a position where an AC plug / inlet can
be easily pulled out by hand.

25. The main plug is used as the disconnection device. It shall remain readily
operable and should not be obstructed during intended use. To completely
disconnect the appliance from supply mains, the mains plug of the
appliance shall be disconnected from the mains socket outlet completely.

WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK).
NO USERSERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

FCC (U.S.A.) & ICES-003 (Canada) INFORMATION



1. IMPORTANT NOTICE
This product, when installed as indicated in the instructions contained

in this manual, meets FCC and ICES-003 requirements. Changes or
modifications not expressly approved by Fostex Company for compliance
could void the user’ s authority to operate the equipment. DO NOT MODIFY
THIS PRODUCT.

2. IMPORTANT
In order to comply with FCC and ICES-003 requirements, use high quality

shielded cables for connection to accessories and / or another products. If
any cables are supplied with this product, they MUST be used. Follow all
installation instructions. Failure to do so could void your FCC / ICES-003
authorization to use this product in the USA / Canada.

3. NOTE
This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to correct the interference by
one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

4. Compliance with Part 15 of FCC Rules and Canadian ICES-003.
This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil

numérique de la classe B est conforme à la norme NMB-003 du Canada.

2

Introduction

6301DT is a compact monitor with built-in amplier equipped with Dante function and
performs various types of monitoring.

Features



• The cone–shaped, full-range speaker produces stable sound.

• As the speaker is compact and consists of a single unit, it can be placed anywhere.

• The speaker uses a tough, aluminum die cast enclosure.

• Switches and knobs do not protrude from the panel to prevent damage caused if the speaker falls
over.

• Equipped with a switching power circuit compatible with 100 V to 240 V AC power supplies.

• 6301DT is designed to output either or both of any two-channel digital signals out of Dante network
signals.
Supported sampling frequencies: 44.1/48/88.2/96 kHz

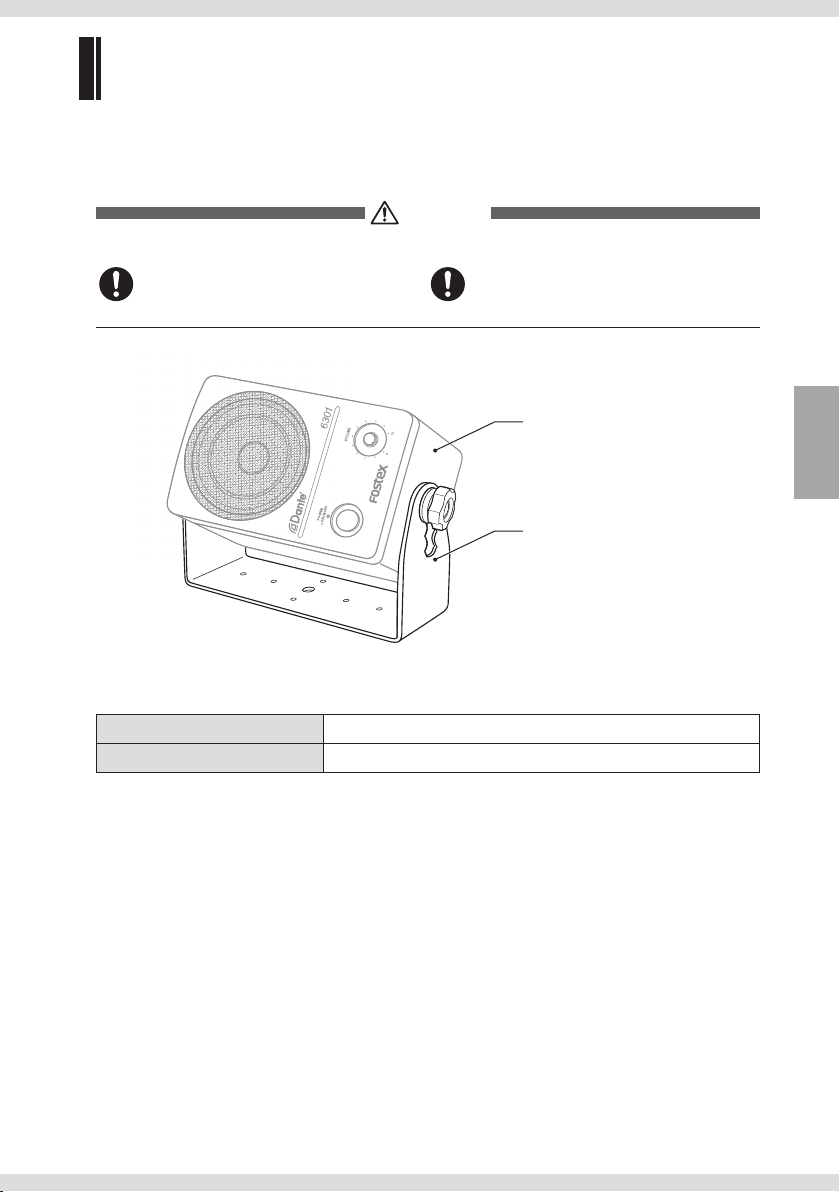

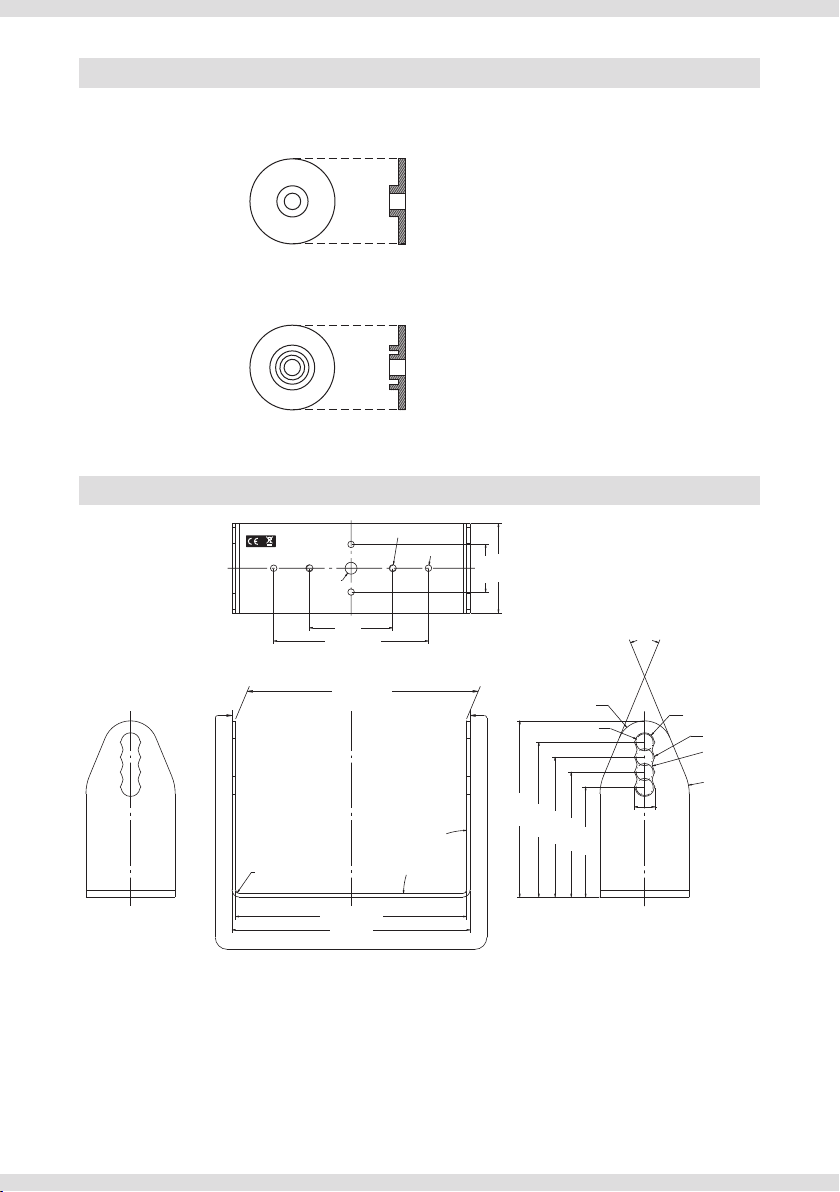

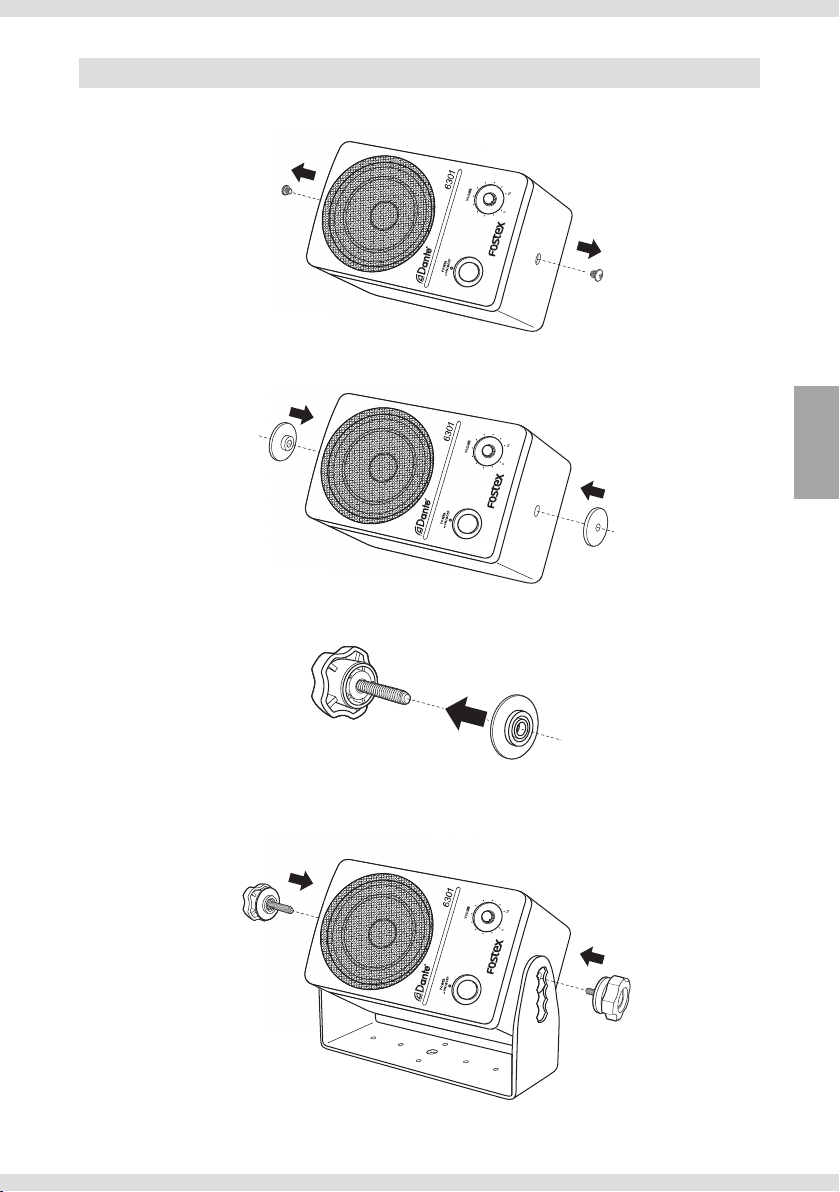

• By attaching wall mounting bracket EB-6301 (sold separately) to the unit, you can both adjust the
angle of the unit and x it to walls.

Dante Network and System



Dante® is a network-audio protocol developed by Audinate.
Dante network system transmits multiple uncompressed digital audio signals over IP networks
compatible with Gigabit Ethernet.
For more information on Dante, visit the website below.
www.audinate.com

English

Accessories



• Power cord × 1

• Owner's Manual (this manual) × 1

• Safety Instruction × 1

3

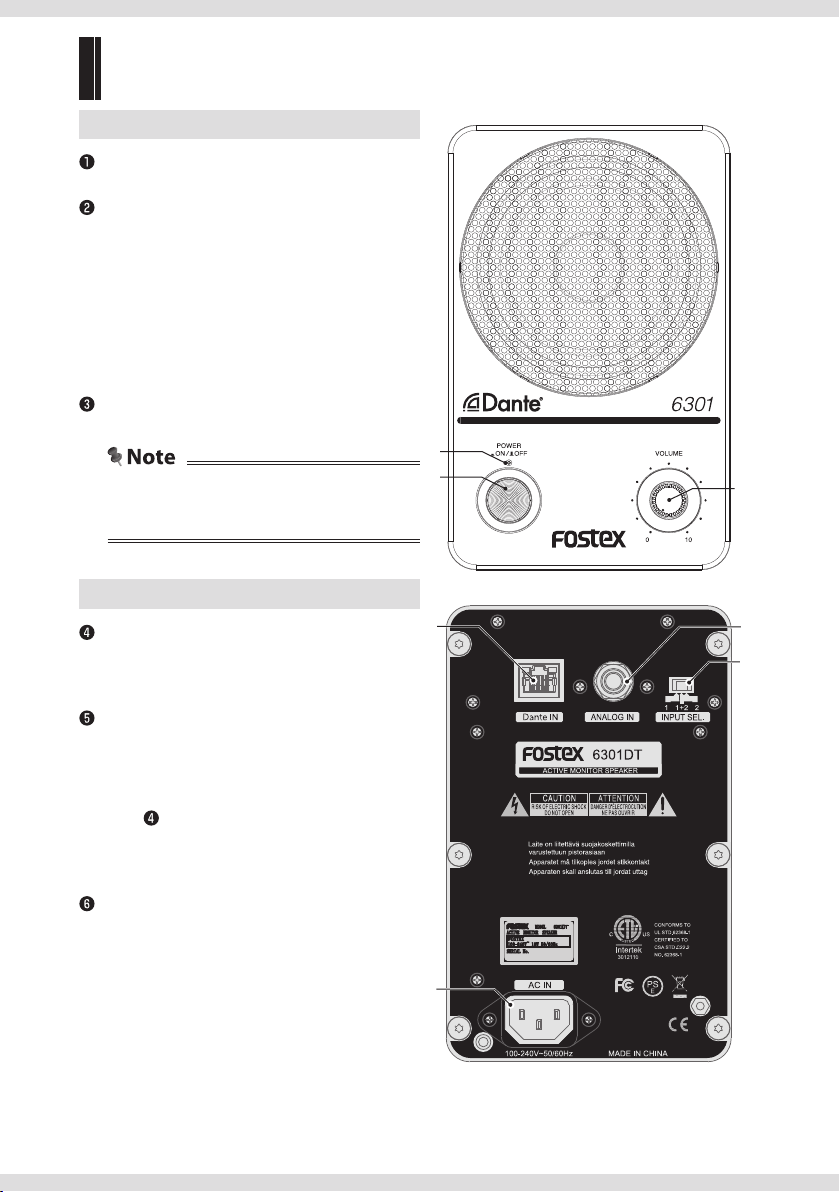

Part names and functions

Front



[VOLUME]

Adjusts the volume.

[POWER] indicator

Turns on and o to indicate the status of the unit.
O: Power o
Lit up in red: The power is on but there is no input

signal or the input signal is not locked.
Lit up in green: A device is connected to the [Dante
IN] terminal and locked for the input signals.
Flashing in green: A device is connected to the
[Dante IN] terminal and the unit is locked as clock
master.

[ON/OFF] button

Turns the unit on/o.

Ÿ

• Use a standard AC outlet.

• Disconnect the plug from the outlet when the
unit will not be used for a long time.

Back



[Dante IN] terminal

Inputs Dante signals.
Connects a LAN cable (RJ45 type). Use an
Ethernet cable with CAT5e or higher.

[ANALOG IN] terminal

Ф6.3 mm (1/4") TS phone unbalanced analog
input terminal.
The input signal to the [ANALOG IN] terminal is
given priority over the input signal connected
to the [Dante IN] terminal. When input plugs
are connected to both input terminals at the
same time, the input signal to the [ANALOG IN]
terminal is output from 6301DT.

[INPUT SEL] switch

Selects the audio channel output from 6301DT
when Dante is being input.
Selects 1ch only (1), 1ch+2ch (1+2), and 2ch only
(2).

!

⁄ @

#

~

¤

4

[AC IN] terminal

Used to connect to a power outlet using the supplied power cord.
A grounding type plug has a third grounding prong. The third prong are provided for your safety.
If the provided plug does not t into your AC outlet, consult an electrician for replacement of the
obsolete outlet.

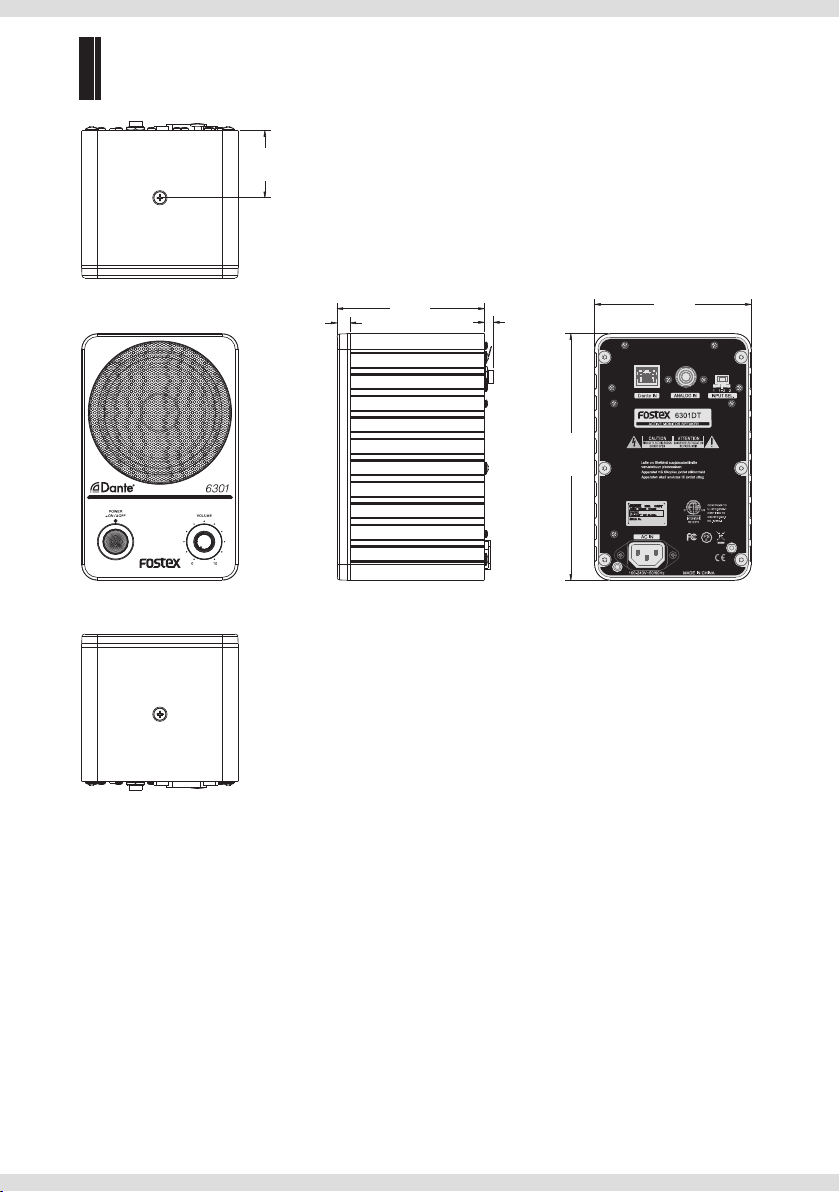

Specications

6301DT

Type Sealed powered speaker system

Speaker 100 mm cone-shaped, full-range speaker × 1

Frequency band 70 Hz to 15 kHz

Output sound pressure level 85 dB/W (1 m)

Maximum output sound pressure level 98 dB

Rated output 20 W

T. H. D. 0.05% (at 1 kHz 1 W output)

Input terminal

Input impedance Analog input (unbalanced) 10 kΩ or more

Input sensitivity Analog (unbalanced): -14 dBV (0.2 Vrms)

Residual noise −65 dBV

Enclosure material Aluminum die-casting

Power consumption 10 W

External dimensions (mm) 120 (W ) × 189 (H) × 120 (D)

Weight Approx. 2.3 kg

Power AC 100 V to 240 V, 50/60 Hz

Length of the power cord Approx. 2 m

Analog unbalanced/ф6.3 mm (1/4") TS phone

Dante/RJ45 (CAT5e or higher)

English

5

Dimensional drawings

51.5

10.0

113.0

7.0

120.0

189.0

6

Optional accessory

By attaching a wall tting angle (sold separately) to the unit, you can adjust the angle of the unit and x
the unit to walls.

Wall tting angle EB-6301

CAUTION

Ask a professional to x the unit to a wall using
the bracket.
Fostex is not responsible for accidents and
casualties caused by using the bracket.

Specications

External dimensions (mm) 200 (W ) × 75 (H) × 148 (D)

Weight 850 g

When you attach the unit to the bracket, attach it
rmly using the screws supplied with EB-6301.
Otherwise the unit may fall and cause accidents
leading to injuries and damage.

6301DT

Wall tting angle EB-6301

English

7

Accessories of EB-6301

2x R40.0



• Mounting screw × 2

• Rubber washer (with no grooves) × 2

• Rubber washer (with grooves) × 2

Dimensional drawings of EB-6301



2x M6(Pitch=1.0)

4x Ø5.5

Ø10.0

40.0

75.0

2x R3.0

70.0

130.0±0.2

+0.40

194.0

-0.25

194.0±0.25
(200.0)

+0.2°

-0.0°

(90° )

148.0

130.0

R23.0

Ø14.4

117.5

105.0

92.5

45°

(17.4)

14x R8.0

8x R1.5
6x R4.5

8

Attaching EB-6301



1 Remove the screws on the top and bottom of the 6301DT.

2 Attach the rubber washers (with no grooves) to the top and bottom of the unit.

3 Fit the rubber washers (with grooves) onto the mounting screws.

English

4 Adjust the unit to your preferred position in the bracket, then attach and tighten

the mounting screws prepared in step 3.

9

Declaration of EC Directive

This equipment is compatible with the EMC Directive (2014/30/EU) - Directive on approximation of member nation's ordinance
concerning the electromagnetic compatibility and with the Low Voltage Directive (2014/35/EU) - Directive on approximation of
member nation's ordinance concerning electric equipment designed to be used within the specified voltage range.
The full text of the EU declaration of conformity is available at the following internet address:
https://www.fostexinternational.com/docs/tech_support/declaration-conformity.shtml

The Affect of Immunity on This Equipment

The affect of the European Specification EN61000-6-1 (coexistence of electromagnetic waves - common immunity specification) on
this equipment are as shown below.

In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency
magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by
generation of noise in some cases.

FOSTEX DISTRIBUTORS LIST IN EUROPE

Albania

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Austria

NAME: Mega Audio GmbH
ADD: Feldborn 3, in 55444 Waldlaubersheim, Germany
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.megaaudio.de

Baltic states

NAME: Mafico Pro
ADD: Weg en Bos 2, 2661 DH Bergschenkoek, The Netherlands
TEL: +31 (0)10 - 414 8426
FAX: +31 (0)10 - 404 8863
Email: [e-mail]
Website: http://www.mafico.com

Belgium

NAME: XLR sprl/bvba
ADD: Pierre Strauwenstraat 24, 1020 Brussels, Belgium
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.xlrpro.be

Bosnia and Hezegovina

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Croatia

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Czecho

NAME: Praha Music Center spol s.r.o.
ADD: Ocelarska 937/39, Praha 9, 190 00, Czecho
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.pmc.cz

Denmark

NAME: Nordic Pro Audio Aps
ADD: Bjerringbrovej 143, DK-2610 Rødovre
TEL: +45 - 31 20 70 21
Email: [e-mail]
Website: https://nordicproaudio.com/

Estonia

NAME: Mafico BV
ADD: Weg en Bos 2, 2661 DH Bergschenkoek, The Netherlands
TEL: +31 (0)10 - 414 8426
FAX: +31 (0)10 - 404 8863
Email: [e-mail]
Website: http://www.mafico.com

Finland

NAME: Hifitalo
ADD: Salitunkatu 3, 24100 Salo, Finland
TEL: [phone]
Email: [e-mail]
Website: http://www.hifitalo.fi

* Including non-EU countries (as of Nov. 2020)

France

NAME: Hamy Sound (Headphones and USB DAC Only)
ADD: 28 Rue Edith Cavell, 92400 Courvevoie, France
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.hamysound.com

France

NAME: Mega Audio GmbH
ADD: Feldborn 3, in 55444 Waldlaubersheim, Germany
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.megaaudio.de

France

NAME: TLHP/Son Lumiere Concept (Speaker Component Only)
ADD: 10 rue du Passavent, Zone du Val d’Orson, 35770 Vern sur

Seiche
TEL: [phone]
Email: [e-mail]
Website: http://www.toutlehautparleur.com/marque-tlhp.

html

Germany

NAME: Mega Audio GmbH
ADD: Feldborn 3, in 55444 Waldlaubersheim, Germany
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.megaaudio.de

Greece

NAME: Bon Studio S.A
ADD: 6 Zaimi Street, Exarchia, 106.83 Athens, Greece
TEL: [phone], 606, 607, 608
FAX: [phone]
Email: [e-mail]
Website: http://www.bonstudio.gr

Hungary

NAME: Mega Audio GmbH
ADD: Feldborn 3, in 55444 Waldlaubersheim, Germany
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.megaaudio.de

Italy

NAME: Ar t of Music sas (Hi-Fi system and Speaker

Components)
ADD: Via Dal Lino 23/2, 40134 Bologna, Italy
TEL: [phone]
Email: [e-mail]
Website: http://www.artofmusic.it

Italy

NAME: Backline S.u.r.l.
ADD: Via dell’Aprica, 16 - 20158 Milano, Italy
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.backline.it

Kosovo

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Latvia

NAME: Mafico BV
ADD: Weg en Bos 2 2661 DH Bergschenhoek Nederland
TEL: +31 (0)10 - 414 8426
FAX: +31 (0)10 - 404 8863
Email: [e-mail]
Website: http://www.mafico.com

Lithuania

NAME: Mafico BV
ADD: Weg en Bos 2 2661 DH Bergschenhoek Nederland
TEL: +31 (0)10 - 414 8426
FAX: +31 (0)10 - 404 8863
Email: [e-mail]
Website: http://www.mafico.com

Macedonia

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Montenegro

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Netherlands, The

NAME: Mafico BV
ADD: Weg en Bos 2 2661 DH Bergschenhoek Nederland
TEL: +31 (0)10 - 414 8426
FAX: +31 (0)10 - 404 8863
Email: [e-mail]
Website: http://www.mafico.com

Norway

NAME: Nordic Pro Audio Aps
ADD: Bjerringbrovej 143, DK-2610 Rødovre
TEL: +45 - 31 20 70 21
Email: [e-mail]
Website: https://nordicproaudio.com/

Poland

NAME: MIP sp.z.o.o
ADD: Dziatdowska 12, Warsawa, Poland
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.mip.bz

Romania

NAME: DVD Planet Buying Srl
ADD: Sfantul Elefterie Street, No 3a District 5, 050523

Bucuresti, Romania
TEL: [phone]
Email: [e-mail]
Website: http://www.DVDPLANET.ro

Russia

NAME: Audio Mania LLC (Speaker Component Only)
ADD: 107023 Barabanniy Lane 4/4, Moscow Russia
TEL: [phone]
Email: [e-mail]
Website: http://www.audiomania.ru

Russia

NAME: BLADE Group of Companies
ADD: 1st Krasnoselskiy lane, 7/9A, bld. 11, 3rd floor, Moscow

Russia 107140
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.blade.ru/

Serbia

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Slovakia

NAME: Rockcentrum
ADD: Ambra Pietra 40, 036 01 Martin, Slovakia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.rockcentrum.sk

Slovenia

NAME: Player Plus d.o.o.
ADD: St. Sestara Strain 1/13, 11080 Belgrade, Serbia
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.player.rs

Spain & Portugal

NAME: ATCONSUMER
ADD: Club Nautico Premiá. Local 3, 08330 Premiá de Mar
TEL: [phone]
Email: [e-mail]
Website: https://www.atconsumer.es/

Sweden

NAME: Nordic Pro Audio Aps
ADD: Bjerringbrovej 143, DK-2610 Rødovre
TEL: +45 - 31 20 70 21
Email: [e-mail]
Website: https://nordicproaudio.com/

Sweeden, Norway, Finland & Denmark

NAME: Supersonic Svenska AB (Speaker Components Only)
ADD: PO BOX 42043, 126 12 Stockholm, Sweden
TEL: [phone]
Email: [e-mail]

Switzerland

NAME: Audio Bauer Pro AG
ADD: Bernerstrasse-Nord 182, CH-8064 Zurich, Switzerland
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.audio-bauerpro.ch

Turkey

NAME: Extreme Audio
ADD: Sheraton Istanbul Maslak Kat B2 Buykdere Cad. Nr:233

Ucyol Mevkii 34398 Maslak Istanbuul Turkey
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.extreme-audio.com

UK

NAME: SCV Distribution
ADD: Unit C1 B elcon Industrial Estate, Geddings Road,

Hoddesdon, Hertfordshire, EN11 0NT, UK
TEL: [phone]
FAX: [phone]
Email: [e-mail]
Website: http://www.scvdistribution.co.uk

Ukraine

NAME: A & T Trade Petroshop
ADD: 29, Obolonskaya Str., Kiev, Ukraine 04071
TEL: [phone]

Ukraine

NAME: Era in Ear (Comsumer Products Only)

Fostex Company, a division of Foster Electric Company, Limited
1-1-109, Tsutsujigaoka, Akishima City, Tokyo, 196-8550, Japan
TEL: [phone]

© PRINTED IN CHINA DEC. 2020
