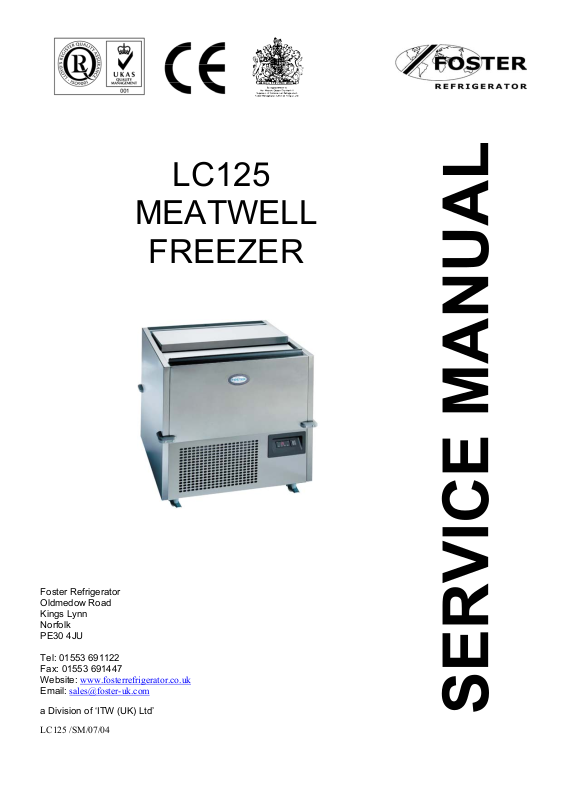

LC125
MEATWELL
FREEZER
Foster Refrigerator
Oldmedow Road
Kings Lynn
Norfolk
PE30 4JU
Tel: 01553 691122
Fax: 01553 691447
Website: www.fosterrefrigerator.co.uk
Email: sales@foster-uk.com
a Division of ‘ITW (UK) Ltd’
LC125 /SM/07/04
DISPOSAL REQUIREMENTS
x
If not disposed of properly all refrigerators have components that can be harmful to the environment. All old
refrigerators must be disposed of by appropriately registered and licensed waste contractors, and in accordance
with UK laws and regulations.
Contents
Introduction 1
Technical Information 1
Temperature Controller 1
Controller Parameters 2
Alarms and Warnings 2
Electrical Connections 2
Wiring Diagram 3
Page
Introduction
Top loading meatwell for the storage of frozen
products
One piece foam shell with skin evaporator and
bottom
mount condensing system.
R 134A refrigerant
Fitted with corner bumpers to each side.
Front smash bar as an option, fitted as standard for
Burger King.
Fitted with 4 x 60mm castors.
Technical Information
Temperature Set Point -21°C
Refrigerant R134A
Refrigerant Charge 180 gms
Capillary 4.5mts x 042
Power supply 230/50/1
Temperature Controller
When the controller is switched on a single line appears on the display for 3 seconds to indicate the autotest
period.
After this period the air temperature measured by the T1 probe is displayed.
It is strongly advised that before adjusting any Service Parameters a thorough understanding of the
following instructions should be obtained.
LDU 15 Controller
au
lae
Check temperature set point.
Check set point by pressing the button
To increase set point press +
To decrease set point press +
Factory Temperature Set Point -21°C.
Exit from set up occurs after 10 seconds if no button is pressed.
Controller Set Up.
The parameters are accessed by pressing the following keys in succession + +
and keeping them pressed for 3 seconds.
Access to the parameters has been achieved with the first parameter SCL being displayed.
To pass from one parameter to the next press either the or key.
To display the value press.
To change the value press + to increase, or + to decrease.
1
Controller Parameters
Display Parameter
SCL
SPL
SPH
SP
HYS
CRT
CDC
DFR
DTO
DDY
ATL
ATH
ATD
ACC
OAU
BAU
OS1
SIM
ADR
Alarms and Warnings
HI
LO
E1
DF
CLN
Readout Scale 2°C 2°C
Minimum Temperature Set Point 05 -25
Maximum Temperature Set Point 01 -15
Effective Temperature Set Point 03 -21
Hysteresis 3 +3
Compressor Rest Time (minutes) 10 0
Compressor Regulation with T1 Fail 20 7
Defrosting Frequency (/24 hours) 4 0
Defrosting Duration (minutes) 20 20
Defrost Display Control 1 1
Low Alarm Differential -5 -10
High Alarm Differential 5 10
Temperature Alarm Delay (minutes) 60 90
Condenser Clean Interval 05 0
Auxiliary Output Mode of Operation 30 NON
Auxiliary Button Mode of Operation 05 NON
T1 Offset 00 00
Display Slowdown 00 00
Address 01 01
High Temperature Alarm
Low Temperature Alarm
T1 Probe Failure
Defrosting in Progress
Condenser
LDU151E-B
Default Values
LC 125
LDU 151E-BG Electrical Connections
DATA
AUX
T1
1 2 3 4 5 6 7 8 9 10 11
PWR
PARTS LIST ITEM Description Part Number
Temperature Controller LDU 151E-BG 00-555357
Air Probe T1 POA
Rocker Switch 15243562
Rocker Switch Cover 15243609
Capillary 4.5 mts X 042"
Compressor GL60AA 15427002
Drier 1/4 DBL ENT1/4 OUT R134 15480908
Condenser 15432001
Condenser Fan Motor Grid Mount 5W 15470032
Corner Bumpers 15260653
Front Smash Bar 00-744880-01
Castor 60mm Swivel 00-555335
Castor 60mm Swivel Braked 00-555336
16010654 (sold in 5m lengths)
1
Wiring Diagram
