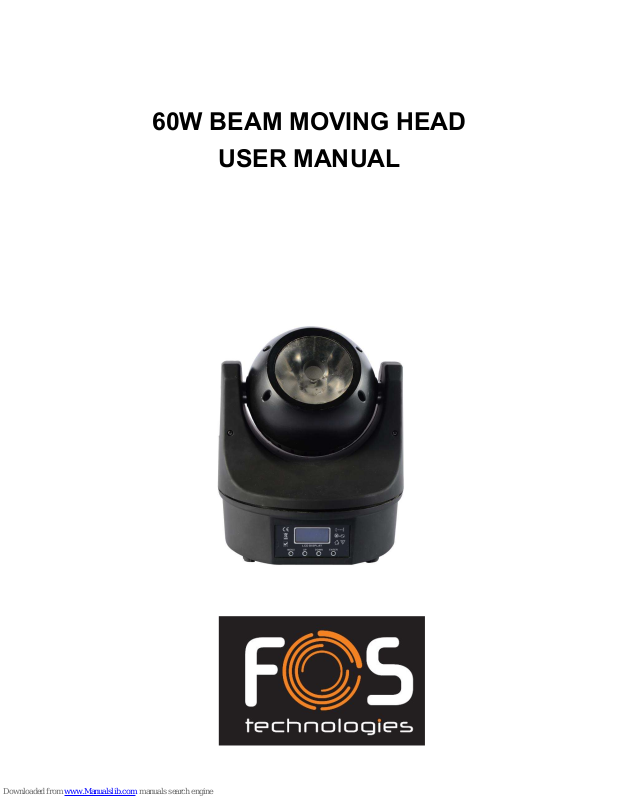

60W BEAM MOVING HEAD
USER MANUAL
Congratulations on purchasing this 60w led beam light
Thank you for extending your trust in our technology
Specifications
Voltage :AC90-240v, 50-60Hz
Power Consumption: 130w
LED: Single Osram 60W 4in1 LED
Channels: 18CH
Dimmer: 0%~100% Linear Dimming
Control mode: DMX512 /Master-slave mode /Sound control
Pan and Tilt movement: Continuous rotation, 16bit fine adjustable
Strobe: 1-25/s or Random strobe
Display: LCD display
Net weight: 6kg.
Carton size: 30*31*35cm（1in1）
Menu display
1. DMX Address Set
Press "Enter" and press the "UP" key to increase address, "DOWN" key to decrease, then press "Enter"
to save.
2. Run Mode
DMX512: Use controller
Slow: Slow auto movement
Fast: Fast auto movement
Sound : Sound control
Slave: Master-slave mode
3. Invert PAN
4. Invert TILT
5. Display Set (display backlight setting)
Select "Yes", the LCD always on, select "NO", after 20 seconds will shut off when NO operation.
After choose press “Enter” to save.
6. Sound sensitivity
Press "Enter" button to Enter the Settings, press the "UP" and “DOWN” will adjust from 0~100.
7. Factory Default
8. Reset
9. XY-initial position fine adjust
Hold “MENU”to 5 seconds，choose “UP” and “DOWN” to adjust, then press “Enter” to save.
10. White Balance
Hold “MENU”to 5 seconds，choose “UP” and “DOWN” to adjust RGBW four colors. The options
are“SET_R”, “SET_G” “SET_B” “SET_W”, then press“Enter”to save.
DMX channel Values(18 channel)
18 Channel
Function Value Description
1 Pan Movement
0~255 0~540 degree
2
Pan Motor
continuous
rotation
0~55 No rotation
56~155 Forwards Pan rotation from slow to fast
156~255 Backwards Pan rotation from slow to fast
3
Fine control
of Pan
movement
0~255
Pan Fine 16bit
4 Tilt Movement 0~255 0~360 degree
5
Tilt Motor
continuous
0~55 No rotation
56~155 Forwards Pan rotation from slow to fast
rotation 156~255 Backwards Pan rotation from slow to fast
6
Fine control
of Tilt
movement
0~255
Tilt Fine 16bit
7
Speed Pan/Tilt
movement
0~255
max to min speed
8 Dimmer 0~255 linear dimming from dark to bright
9 Strobe
0~55 No function
56~155 Strobe effect slow to fast（1HZ~25HZ）
156~205 Random strobe
206~255 Pulse strobe
10 Red dimmer 0~255 From dark to bright
11 Green dimmer
0~255 From dark to bright
12 Blue dimmer 0~255 From dark to bright
13 White dimmer
0~255 From dark to bright
14
Effect of
static display
0~24 Effect 1
25~49 Effect 2
50~74 Effect 3
75~99 Effect 4
100~124 Effect 5
125~149 Effect 6
150~174 Effect 7
175~199 Effect 8
200~224 Effect 9
225~249 Effect 10
250~255 Color water flowing effect
15
Effect of
dynamic
display
0~24 Effect 1
25~49 Effect 2
50~74 Effect 3
75~99 Effect 4
100~124 Effect 5
125~149 Effect 6
150~174 Effect 7
175~199 Effect 8
200~224 Effect 9
225~255 Effect 10
16
Colours Cross
fading
0~255
From fast to slow
17 Macro function
0~49 No function
50~99 Internal program 1,used with 14, 8 channels
100~149 Internal program 2,used with 15,16,8 channels
150~199 Auto function
200~255 Sound control
18
Reset
0~250 No function
251~255 Reset, keep in 3 seconds
Precautions
1.In order to ensure the life of this fixture,please don't place this fixture where is moisture or leakage,and
don't operate the fixture at temperatures higher than 40°please!
2.Don't place the fixture where is easy to loose or vibration-prone
3.To avoid risk of electric shock,please ask the professionals to maintain this fixture.
4.When connect the fixture to power, the changes of power voltage should be at-10% ~+10%,if higher,
will reduce the life of the fixture, but if lower,will effect the lightness.
5.Should need 20 Min. to fulling cool the light before re-use.
6.In order to ensure the normal use of this product, please read this manual carefully. Thank you very
much for your cooperation.
Maintaining
1.The fixture should be kept dry to avoid working in wet conditions.
2.Intermittent use will effectively prolong the life of this fixture.
3.For a good ventilation and lighting effects,please clean the fans ,fan nets and lens usually .
4.To avoid damage this fixture, please don't use alcohol or other organic solvents to clean the fixture
shell.
