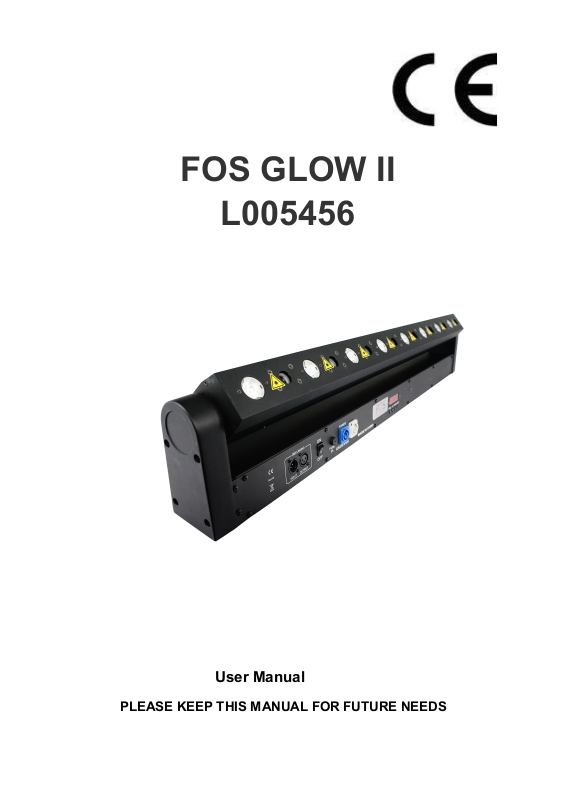

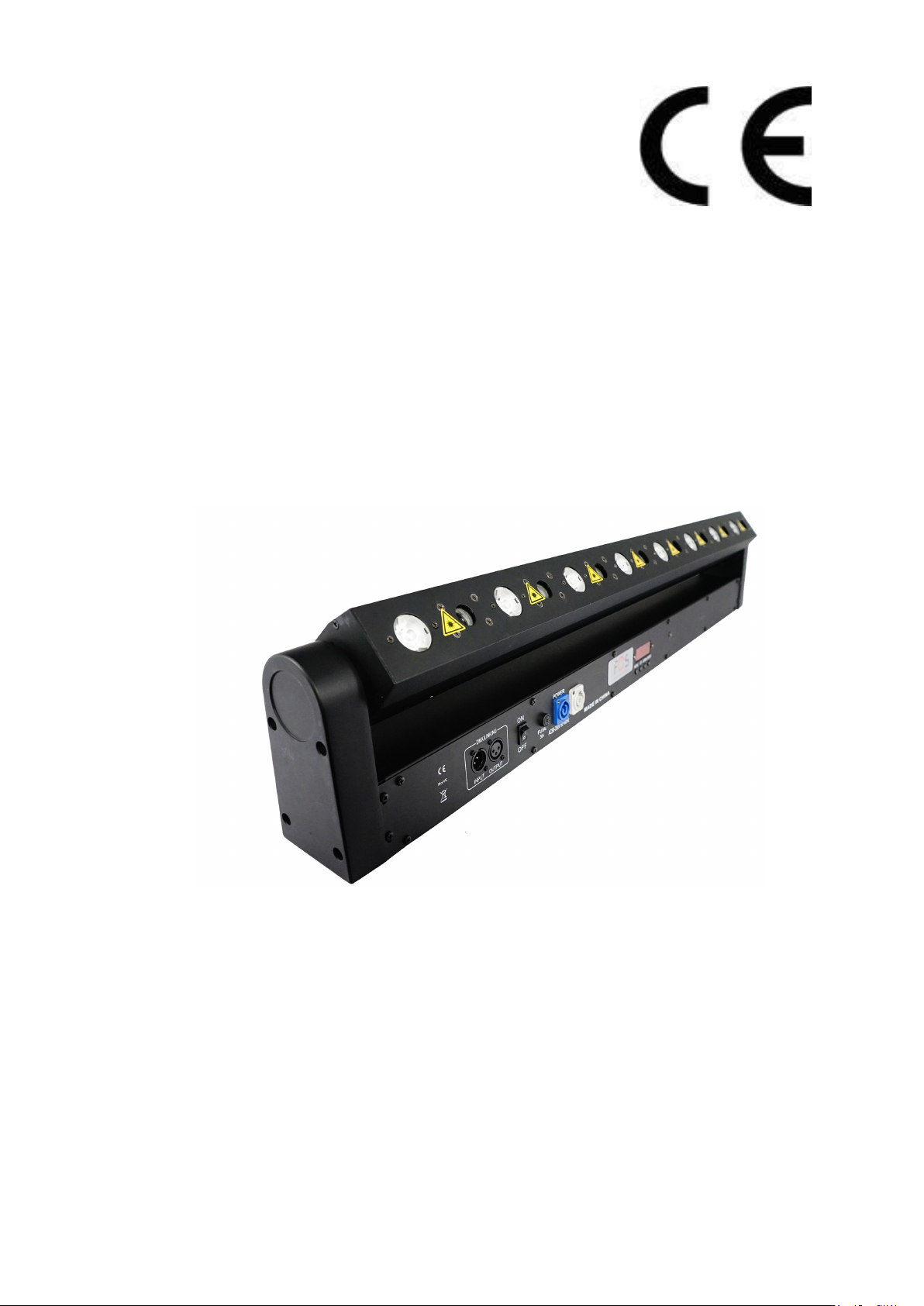

FOS GLOW II
L005456
User Manual
PLEASE KEEP THIS MANUAL FOR FUTURE NEEDS
Page 2
1. Unpacking
Thank you for choosing our products. For your own safety, please
read this manual before installing the device. This manual covers
the important information on installation and applications. Please
install and operate the fixture with following instructions, make sure
the power is off before opening the light or repairing. Meanwhile,
please keep this manual well for future needs.
It is made of a new type of high temperature strength of
engineering plastics and cast aluminum casing with nice outlook.
The fixture is designed and manufactured strictly following CE
standards, complying with international standard DMX512 protocol.
It’s available independently controlled and linkable with each other
for operation. And it is applicable for large-scale live performances,
theater, studio, nightclubs and discos.
8+8 led red laser light which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check
whether it is damaged during the transportation. And please check
whether the following items are included inside the box:
Moving head--------One DMX signal cable-------One
Power cable--------One User manual---------------One
Omega bracket----Two Safety cable-------------One
Page 3

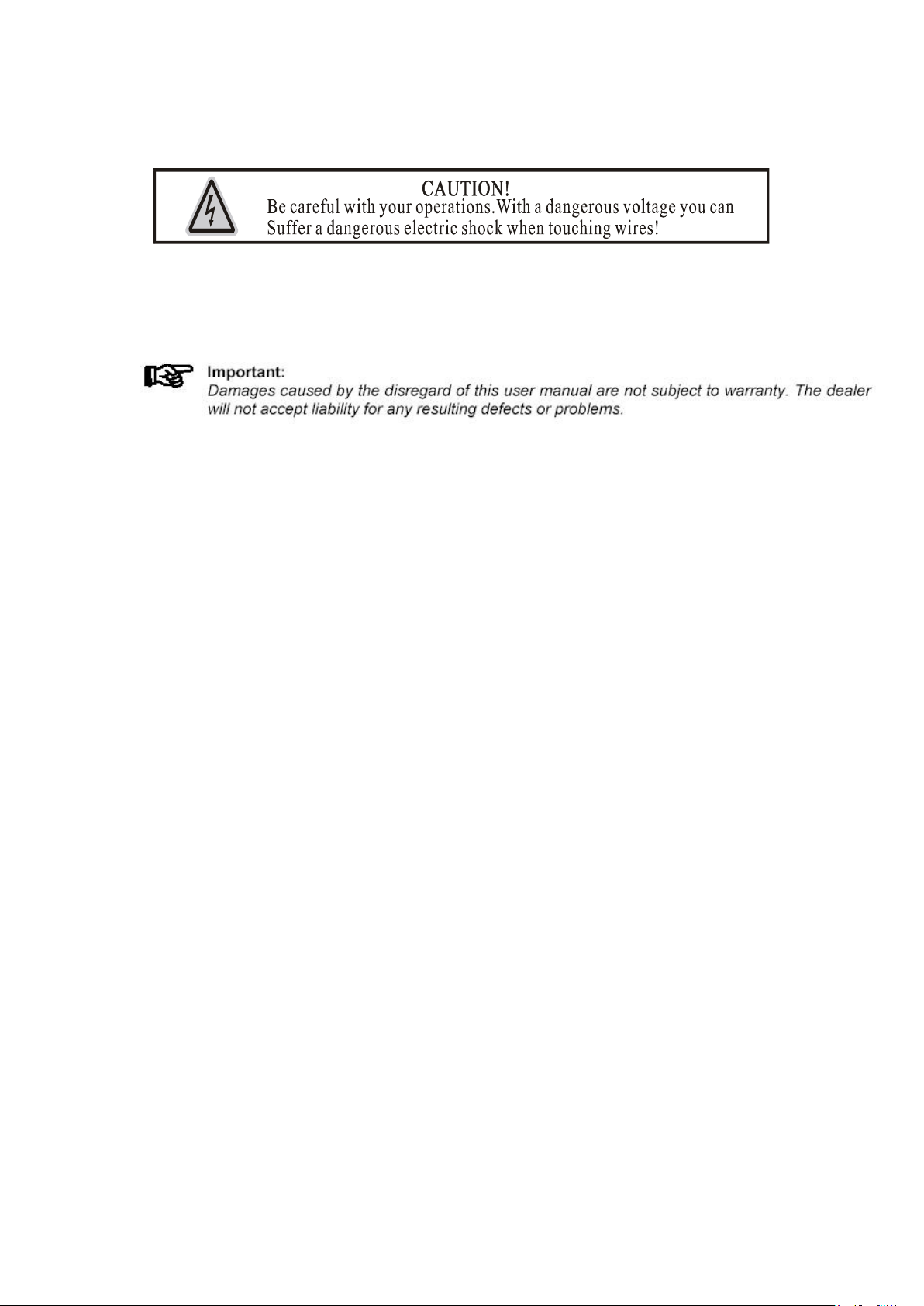

2. Safety Instructions
This device has left the factory in perfect condition. In order to
maintain this condition and to ensure a safe operation, it is
absolutely necessary for the user to follow the safety instructions
and warning notes written in this user manual.
If the device has been exposed to temperature changes due to
environmental changes, do not switch it on immediately. The
arising condensation could damage the device. Leave the device
switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential
that the device be earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the
end of this manual.
Make sure the power cord is never crimped or damaged by sharp
edges. If this would be the case, replacement of the cable must be
done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or
before cleaning it. Only handle the power cord by the plug. Never
pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a
normal process and does not necessarily mean that the device is
defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more
than 50cm distance with wall for smooth air flow, so there should be
no shelter for fans and ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or his service
agent or a similar qualified person in order to avoid a hazard.
Page 4
3. Key Features
Voltage: AC110-240V 50/60Hz
Max Power: 80w
Source: 8x3w led warm white, 8x3w led red laser,638nm_500mw
LED working lifetime:50000 hours
Color temperature: 3200k
Channel: 23 channels
Laser Pattern: Various Thick Beam Effect Patterns
Control mode: DMX-512 signal control, self-propelled mode, sound
control mode.
Working environment: indoor
Fixture size: 107*8*6.8CM
Packing size(1in1） : 110*15*21cm
N.W: 9.5kg G W: 10.2kg
Packing size（2in1） : 113*34*25cm
G W: 21kg
Page 5
4. Operation Instructions
-The moving head is for laser purpose.
-Don’t turn on the fixture if it’s been through severe temperature
difference like after transportation because it might damage the
light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any
transportation or movement.
-Don’t pull up the light by only the head, or it might cause damages
to the mechanical parts.
-Don’t expose the fixture in overheat, moisture or environment with
too much dust when installing it. And don’t lay any power cables
on the floor. Or it might cause electronic shock to the people.
-Make sure the installation place is in good safety condition before
installing the fixture.
-Make sure to put the safety chain and check whether the screws
are screwed properly when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to
replace the units if there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who
knows the fixture before using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the
manufacturer or the appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not
following the user manual to operate or any illegal operation, like
shock short circuit, electronic shock, lamp broke, etc.
Page 6
5. Display menu control
CH
Function
DMX Value
Details
1
Tilt Motor
0-255
0---540°
2
Tilt Motor
speed
0-255
From fast to slow
3
Dimmer
0-127
close
128-255
open
4
Strobe
0-15
on
16-255
From slow to fast
5
LED1
0-127
close
128-255
open
6
LED2
0-127
close
128-255
open
7
LED3
0-127
close
128-255
open
8
LED4
0-127
close
128-255
open
9
LED5
0-127
close
128-255
open
10
LED6
0-127
close
ADDR A001-A512 address code
SLND MAST, SLAV
SHND SOUD, AUTO voice control, selections
MANU LASER1-LASER8,STROBE, manual test
SENS voice control sensitivity (0 off, 100 most sensitive)
LED ON, OFF background light switch
TEST automatic test
VER V100 software version number
6.DMX Channels
23Channel Mode
Page 7
128-255
open
11
LED7
0-127
close
128-255
open
12
LED8
0-127
close
128-255
open
13
laser1
0-127
close
128-255
open
14
Laser2
0-127
close
128-255
open
15
Laser3
0-127
close
128-255
open
16
Laser4
0-127
close
128-255
open
17
Laser5
0-127
close
128-255
open
18
Laser6
0-127
close
128-255
open
19
Laser7
0-127
close
128-255
open
20
Laser8
0-127
close
128-255
open
21
Built-in effect
0-15
No function
16-255
Auto
effect(128---255Motor
controlled by CH1 and
CH2)
22
Speed of effect
0-255
From slow to fast
23
Reset
0-249
No function
250---255
250---255Whole
machine
reset(Numerical
retention 5 seconds)
Page 8

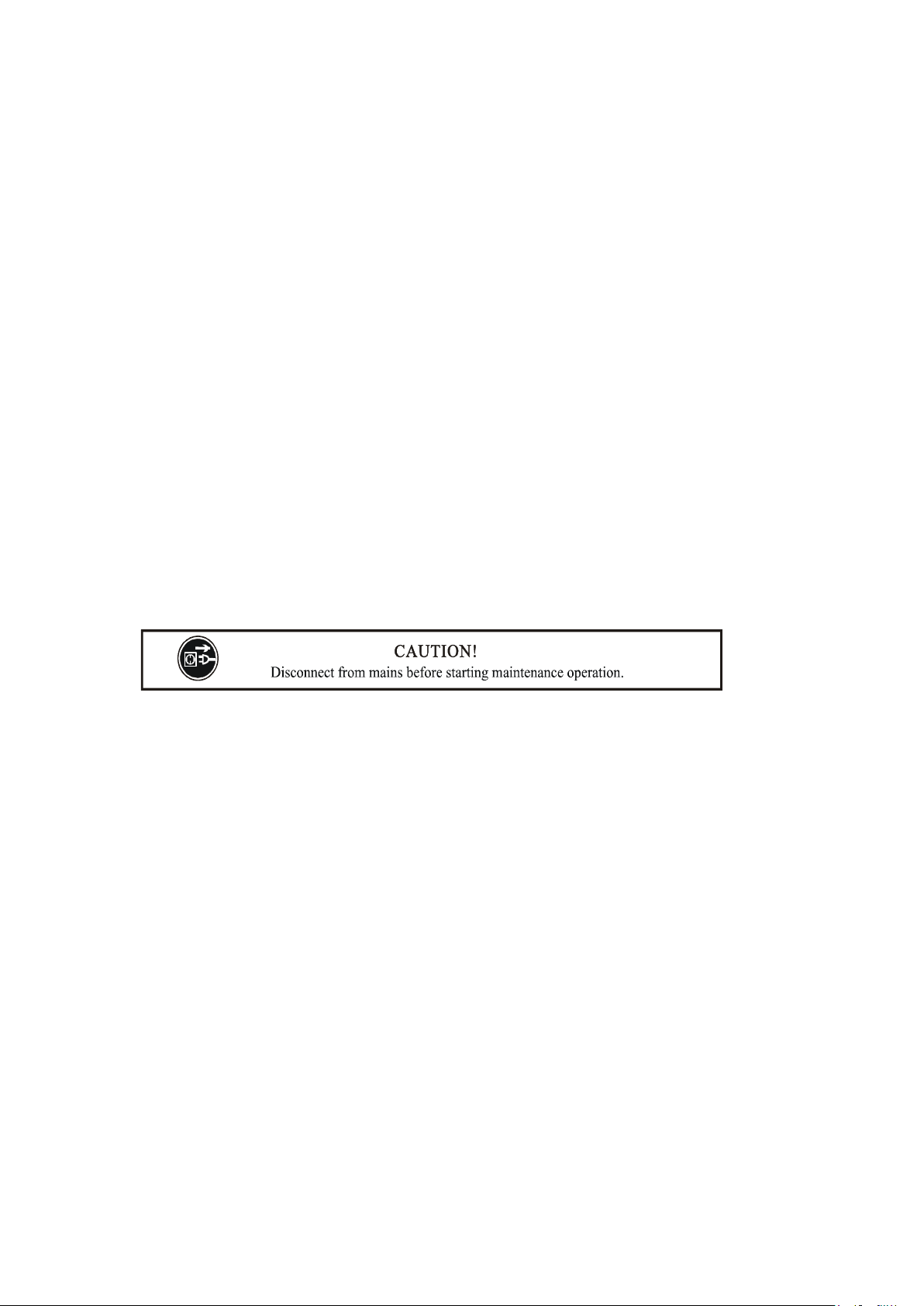

7. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to
be tightly connected and must not be corroded.
2. There must not be any deformations on the housing, color lenses,
fixations and installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing
and must not rotate with unbalances.
4. The electric power supply cables must not show any damage,
material fatigue or sediments.
Further instructions depending on the installation spot and usage
have to be adhered by a skilled installer and any safety problems
have to be removed.
In order to make the lights in good condition and extend the life time,
we suggest a regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the
weakneness of the lights due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each
three month, make sure that the circuit contacts are in good
condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a
moist, lint- free cloth. Never use alcohol or solvents.There are no
serviceable parts inside the device. Please refer to the instructions
under “Installation instructions”.
