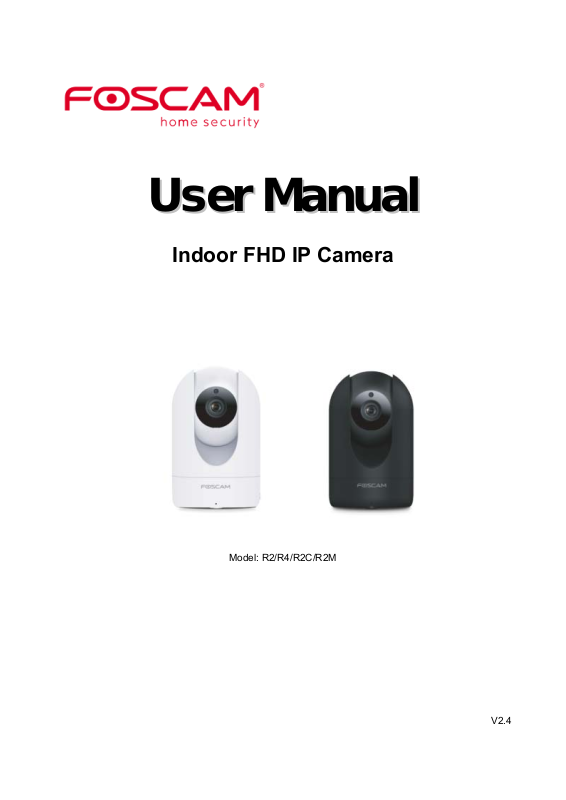

Foscam R2M User Manual

err

Indoor FHD IP Camera

all

Model: R2/R4/R2C/R2M

V2.4

Table of Contents

Security Warning .........................................................................................................................................1

1 Overview ...................................................................................................................................................1

1.1 Key Features ..................................................................................................................................1

1.2 Read Before Use ...........................................................................................................................2

1.3 Package Contents ..........................................................................................................................2

1.4 Physical Description .......................................................................................................................2

1.5 Micro-SD Card ...............................................................................................................................3

2 Access the IP Camera ..............................................................................................................................4

2.1 Wired Connection ..........................................................................................................................4

2.2 Wireless Connection ......................................................................................................................5

2.3 Access the Camera in WAN ...........................................................................................................6

2.4 Using the VLC player .....................................................................................................................9

2.5 IP camera connection to the server ............................................................................................ 12

3 Surveillance Software GUI .................................................................................................................... 13

3.1 login Window ............................................................................................................................... 13

3.2 Setup Wizard ............................................................................................................................... 14

3.3 Surveillance Window ................................................................................................................... 14

4 Advanced Camera Settings ................................................................................................................... 21

4.1 Setup Wizard ............................................................................................................................... 21

4.2 Status .......................................................................................................................................... 21

4.3 Basic Settings ............................................................................................................................. 23

4.4 Network ....................................................................................................................................... 32

4.5 Video ........................................................................................................................................... 45

4.6 Detector ....................................................................................................................................... 49

4.7 Record ......................................................................................................................................... 52

4.8 PTZ .............................................................................................................................................. 56

4.9 Firewall ........................................................................................................................................ 60

4.10 System ...................................................................................................................................... 61

5 Playback ................................................................................................................................................ 65

6 Appendix ................................................................................................................................................ 67

6.1 Frequently Asked Questions ....................................................................................................... 67

6.2 Default Parameters ........................................

6.3 Specifications .............................................................................................................................. 75

6.4 CE & FCC ................................................................................................................................... 78

6.5 Warranty ...................................................................................................................................... 79

6.6 Statement .................................................................................................................................... 81

7 Obtaining Technical Support ................................................................................................................. 83

............................................................................. 75

Security Warning

1. Please change the password of your camera regularly, using a combination of numbers, letters and

special characters.

2. We recommend that you regularly update your camera to the latest available software and firmware

versions to help ensure the best experience for your camera.

1 Overview

FOSCAM Indoor FHD IP Camera is an integrated wireless IP Camera with a color CMOS sensor which enable to view in High Definition resolution. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop and mobile devices no matter where by your local network or over the Internet.

These cameras support P2P function. Thanks to the P2P easy access technology, you don’t need to do complicated Port Forwarding and DDNS settings, you just need to scan the QR code on the bottom of the camera to connect it to smart phone, or input the UID on CMS software to realize remote access.

FOSCAM IP Camera provides users with more comprehensive controls over a monitored site. The camera supports H.264 video compression technology, dramatically reduces file size and saves network bandwidth.

The camera is based on the TCP/IP standard. A built-in WEB server inside which could support Internet Explorer simplifies the management and maintenance of your device is simplified by accessing the website of your camera through network.

The camera is designed for indoor surveillance with wide applications such as at home, in retail store and in office. Controlling the camera and managing images are simplified by using the provided web interface across the network in either wired or wireless way.

FOSCAM provides Smart Phone APP for Android and iPhone users, please search and install Foscam App named Foscam on App Store and Google Play for iOS and Android devices, then you can view your camera anywhere, anytime on your smart mobile devices.

1.1 Key Features

 Standard H.264 video compression algorithm to satisfy the transmission of high definition video in

narrow bandwidth network

 P2P feature for easy access  2.0 Mega-Pixel(R2)/4.0 Mega-Pixel(R4)  Supports IE/Firefox/Google/Safari browser or any other standard browsers  Support WEP,WPA-PSK and WPA2-PSK Encryption  Wireless connection is compliant with IEEE 802.11b/g/n WI-FI, up to 150Mbps  IR Range up to 8m(26ft)

 Support image snapshot  Support dual-stream  Support SD Card storage up to 128GB  Support IR-Cut auto switch  Embedded free FOSCAM DDNS(dynamic domain name service) Service  Supporting the Third Party Domain Name Service  Support two-way audio  Support ONVIF protocols  Multi-level users management with password protection  Motion detection alert via email or upload image to FTP  Provide free Android and iPhone APP for viewing live video provide free Central Management

Software to manage and monitor multiple cameras

 Support record schedule  Supports Wide Dynamic Range  Supports Magic zoom  Supports voice prompt

1.2 Read Before Use

Please first verify that all contents received are complete according to the Package Contents listed below. Before the IP Camera is installed, please carefully read and follow the instructions in the Quick Setup Guide to avoid damage due to faulty assembly and installation. It also ensures the product is used properly as intended.

1.3 Package Contents

● IP Camera × 1 ● Power Supply × 1

● Quick Setup Guide × 1 ● Warranty Card × 1

● Mounting bracket×1 ● Wi-Fi Antenna×1

1.4 Physical Description

Front panel Rear panel

Front panel:

 LENS: Fixed focus lens.  Infrared LED: Infrared LEDs for night vision.  Microphone: Built-in microphone.  Micro SD Card slot: Supports up to 64GB SD card for storing the video.  WPS/Reset

 WPS: Push both WPS/Reset button on the camera and wireless router within 1 minute, the

camera will connect to the wireless router automatically, in WPS process, the Network light will blink every 0.4 seconds;

 Reset: Push and hold the WPS/Reset button for more than 10 seconds to set the camera to

factory default, the Power light will blink every 0.4 seconds;

Rear panel:

 LAN: 10/100 Mbps RJ-45 port for wired connection  Power: DC 5V/2A Power supply.  Speaker: Built-in speaker  Antenna: Used to connect external wireless antenna

The flashing status of the Power light and Network light are shown in the following table.

Light Flashing Status Description Power light off The power don't work properly.

on The power supply works fine. Flashing every 0.4 seconds Reset to take effect

Network light off No Wireless connection

Constant Flash Wired connection Slow Flash every 1.0 second Wi-Fi connected Flashing every 0.4 seconds WPS is connecting Flashing every 0.2 seconds EZLink takes effect

1.5 Micro-SD Card

This camera supports SD Card. When you plug in the SD card during the camera work process, please reboot the camera again, or else the SD Card may be cannot work well. Go to the SettingsDevice StatusDevice Status page, you can see the SD card status.

2 Access the IP Camera

2.1 Wired Connection

1. Mount the antenna and make it stand vertically.

2. Connect the camera to the LAN network (Router or Switch) via network cable.

3. Connect the power adapter to the camera.

4. Visit Foscam official website http://www.foscam.com Software Tools”, then you can find the “Equipment Search Tool”, download the tool to your computer, the icon shows as below:

, select “Support > Download Center >

The camera supports HTTP and HTTPS protocols, you can access the camera in two ways.

(1) http:// LAN IP + HTTP Port NO.

The default HTTP port NO. is 88. Double click the Equipment Search Tool icon to run, and it should find the camera’s IP address automatically after you plug in the network cable.

Double click the IP address of the camera; the camera login page should be open in your default browser.

(2) https:// LAN IP + HTTPS Port NO.

The default HTTPS port NO. is 443. You can use the URL to access the camera: https:// LAN IP + HTTPS port NO. Go to Settings - Network - Port panel, you can see and change the HTTP and HTTPS port NO.

NOTE： When logging in for the first time, you will need to download and install the add-on.

2.2 Wireless Connection

There are some ways of wireless connection: EZLink connection, soft AP connection and WPS connection.  EZLink connection: Use the mobile phones or other mobile devices to download APP, then

connect the camera and the wireless router by the APP. The procedure of the EZLink connection, please refer to the Quick Setup Guide.

 WPS connection: WI-FI Protected Set-up, Press and hold the WPS button on your wireless router

and your camera within 60 seconds. So that your camera and wireless router connect successfully.

WPS (WI-FI Protected Set-up)

Before using WPS wireless connection, you need to:

 Make sure that your wireless router has the WPS function, and has been properly connected to the

Internet.

 WPS button on the wireless router is typically located on the front panel or rear panel.TP-LINK

router's WPS button is called QSS (Quick Security Setup).

 Make sure that the ethernet cable and the camera is disconnected.

(1) Press and hold the WPS button for three seconds. The Network light of the camera begins to twinkle

at high frequency. (every 0.4 seconds)

(2) Press and hold the WPS button for three seconds on your wireless router within 60 seconds. Then

the camera will automatically create a secure wireless connection to your router in about 60 seconds.

(3) The Equipment Search Tool will search the camera’s LAN IP. Make sure the PC and the camera

share the same subnet.

WPS Button

NOTE :

The security mode of router cannot be WEP, or else the WPS settings may be failed.

2.3 Access the Camera in WAN

2.3.1 Static IP Addresses

Users with static IP addresses do not need to set DDNS service settings for remote access. After you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from Internet using the WAN IP address and port number.

How to Obtain the WAN IP address from a public website ？

To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com. Your current WAN IP will be shown on the webpage.

2.3.2 Remote Access

If you want to access your camera by web browser outside of your LAN, you need to configure following configurations.

1. Choose “Settings” on the top of the camera web page, then go to the “Network > IP Configuration” section on the left side of the screen, then uncheck the Obtain IP DHCP.

IP Address: Set this in the same subnet as your computer , or keep it as default. Subnet Mask: Keep it as default. Gateway and DNS Server: Set it to the IP address of your router.

2. Enable UPnP and DDNS in the camera’s settings page. We recommend you to use the DDNS by factory default.

Select Yes and click Save.

Click Enable DDNS and click Save. The content in the Manufacture’s DDNS column is the domain name of your camera.

3. You can see the port of your camera here. If you want to set Remote Access for several cameras on the same network, you will need to change the HTTPS port for each camera.

4. If the UPnP of the router has been enable, you do not need to perform following steps. Otherwise, you need to select one of the following methods to configure port forwarding on your router. For these steps, we will be using the TP-LINK brand wireless router as an example.

 If there is a UPnP function in your router： Choose “Forwarding > UPnP”, make sure that the Current UPnP Status is Enabled.

 If there is no UPnP function in your router： You need to manually add port forwarding, refer to the following steps. You need go to the “Forwarding > Virtual Servers” panel for setup.

Click Add New.

Input the port and IP address of your camera and click Save.

Here you have finished the Port Forwarding setup.

5. Now you can access your IP camera by https://domain name: HTTPS port via the Internet.

2.4 Using the VLC player

The camera supports RTSP streaming, here you can view the camera by VLC player.

RTSP URL rtsp:// [user name][:password]@IP:Port number/videostream

The part in the square brackets can be omitted.

user name & password: The user name and password to access the camera. This part can be

omitted.

IP: WAN or LAN IP address. Port NO. : If there is the RTSP port number on the Port page, you must only use RTSP port number.

otherwise, you must only use http port number. Video stream: Three modes are supported: video Main, video Sub and audio. Video Sub is a better choice in bad network condition. If you select audio, you can only hear sound without seeing picture.

For example:

IP: 192.168.1.11 RTSP Port number: 554 User name: admin Password: 123

Enter either one of the following four URLs in the VLC 1．rtsp://admin:123@192.168.1.11:554/videoMain 2．rtsp:// @192.168.1.11:554/videoMain 3．rtsp://:123@192.168.1.11:554/videoMain 4．rtsp://admin@192.168.1.11:554/videoMain

Open the VLC, and go to “Media”--”Open Network Stream” option, then enter the URL in VLC.

Sometimes you may need to enter the user name and password for another time. Click OK and you can see the real-time preview.

If you cannot play the video in the VLC player, please check the port mapping.

NOTE:

If you modify the camera’s username or password, you had better reboot the camera to apply the new username and password in authentication in the VLC.

2.5 IP camera connection to the server

Device supports ONVIF 2.2.1 protocol, You can easily access NVR with ONVIF or server with ONVIF.

3 Surveillance Software GUI

Please refer to the section 2.1 if you install the camera for the first time. You can start to learn about software operation in the computer.

3.1 login Window

Section1 Enter the Username and password

The default administrator username is “admin” with no password, please change the password the first time you use and prevent unauthorized users login the camera.

Section2 Stream

The camera supports two stream modes: Main stream and sub stream. Select Main stream if you want to access the camera from LAN and sub stream will be better if you want to access the camera from Internet. Note: Select sub stream to ensure a more fluent video under narrow network bandwidth.

Section3 Select the language

You click on the language dropdown list to select language.

Section4 login the camera

Click “Login” button.

NOTE：

When setting up your camera for the first time, it will request that you modify the default username and/or password if both are still set to default. Input the new username and password, click "Modify" to complete the modification. You will now use the new username and password to login to the camera in the future.

3.2 Setup Wizard

You will go to “Setup Wizard”automatically after your first-login, where you can set the basic

parameters of camera, such as camera name, camera time, wireless settings, IP configuration.

3.3 Surveillance Window

Section 1 FOSCAM Logo/ Live Video / Settings/Playback

: FOSCAM LOGO

: Path to surveillance window. Click this button to go back to the surveillance window

: Path to Administrator Control Panel, Click it, to go to Administrator Control Panel and do

advanced settings.

: Click this button to go back to the Playback panel to view the stored audio files

stored in the SD Card.

Section 2 Multi-Device Window

The firmware inside the camera supports up to 9 cameras being monitored at the same time. You can add other cameras in multi-device setting.

Section 3 Mode/ Stream / WDR / NAA / Mirror/ Flip buttons / Zoom

 Mode

1) 50HZ ---------Indoor surveillance (Region: Europe, China)

2) 60HZ ---------Indoor surveillance (Region: USA, Canada)

3) Outdoor------Outdoor surveillance

 Stream The default stream supports multiple modes, For example: HD Mode/720P/23fps/2M meanings: Stream type / Resolution / Maximum frame rate/ Bit rate. (Different models support different specific mode. )

Stream type : It is used to identify the stream type.

Resolution

The bigger the resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution VGA.

Maximum frame rate

You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video. The maximum frame rate for each model is different, please see the “Specifications”.

Bit rate

Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video can not play well.

You can reset the stream type on Settings-> Video-> Video Settings panel. After changing, please reboot the camera and you can see the modification.

 WDR

In surveillance, WDR (Wide Dynamic Range) is intended to provide clear images even under back lighting, where the intensity of illumination varies a lot—namely when there are very bright and very dark areas simultaneously in the camera's field of view.

 NAA NAA(Network Auto-Adaptability) can make IP camera change the real-time rate to adapt different network conditions. It can supply better preview experience. The default NAA setting is off.

 “Zoom in” or ”Zoom out” Device Support zoom feature.

Click

or ,The focal length of the camera lens will be larger or shrink, you can adjust the focus

distance to the target object size, access to high-definition screen.

 Pan/Tilt Control

1----- Up control button, 2-----Down control button, 3------Left control button, 4------Right control button, 5----- Up-Left control button 6----- Up-Right control button 7----- Down-Left control button 8----- Down-Right control button

Click this button and go to center

Section 4 Cruise / Preset settings

Cruise Settings

The default cruise tracks have two types: Vertical and Horizontal.

Vertical: The camera will rotate from up to down.

Horizontal: The camera will rotate from left to right.

: Start cruise. : Stop cruise.

If you want to define or change the cruise trace, please go to Settings PTZ Preset Settings panel.

How to do cruise?

Firstly: Select one track in the track dropdown list.

Select one of these.

Secondly: Click Start cruise button, the camera will cruise following the predefined path. Thirdly: Click stop button and finish cruising.

Preset settings

IPCam supports 16 preset positions, which is considered enough for DIY home & small business surveillance market The default preset position is Topmost, Bottom most, Left most, right most, you can add other preset positions.

Add Click this icon to save the position you need the camera to remember

Delete Select one preset position and click this button to delete it.

GO Select one preset position in the preset drop-down list and click Go to make the camera

move the preset position

How to do preset position?

Firstly, move the camera and stop at a desired place where you want make preset position.

Secondly, click

cannot contain special characters. Then click OK to save it. If you want to reset the preset position, click Cancel. After that, you can move the camera and stop at another place, and set another preset position. You can do all the 16 preset positions with this method.

button and enter a descriptive name for the preset position. The preset position

If you want to see one preset position you have set, only select the preset position name from the preset

drop-down list, and click go

button, the camera will go to the preset position.

Section 5 IR LED Lights / Color Adjustment

Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule.

Auto: Select it and the camera will adjust the infra led (on or off) automatically. Manual: Select it and you can turn on or turn off the infra led manually. Schedule: Select it and the IR led light will be off at the schedule period. If you want to define or change the IR led lights schedule time, please go to Settings--->Video---> IR LED Schedule page.

Color Adjustment

In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.

Section 6 OSD

If you have added time and camera name in the video, you can see it in the live window. Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The default device name is anonymous. Go to Settings ---Basic settings---Camera time panel and adjust the device time. Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.

Section 7 Play/ Stop/ Talk/ Audio/ Adjusting the sound/ Snap/ Record/ Full screen

button

1----- Play Click it to play the video of the camera 2----- Stop Click it to stop the video of the camera

3----- Talk Click the button and the icon will become to

connected with PC, people around the camera can here your voice. Click the icon again and stop talking.

, then talk to the microphone that

4----- Audio Click this icon, the icon will become to you can hear the sound around the camera

by the earphone or speakers that connected with PC.

5----- Adjusting the sound Click this icon, the icon will become to

,you

can change the sound of the camera.

6----- Snapshot Click it to make snapshot and it pop-up a window which picture you snapshot, right click in the window and save the picture to anywhere you want.

7----- Record Click the icon

and the camera start recording, you can see a green dot in the live window. Click again and stop recording. The default storage path is C:\IPCamRecord. You can change the storage path: Go to Settings- >Record->Storage Location panel.

8----- Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen. Double click again and exit full-screen.

Onscreen Mouse Control

Right click the mouse and you can adjust the screen ration, full screen and Zoom up.

Keep ration: Select it and the camera will adjust the size of live window based on the the computer monitor automatically. Sometimes there is a black border around the video, please select Keep ration to get a better visual quality .

Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen. Zoom up: Select it and you can see a bigger screen than before. First Method: Here is a convenient and fast solution to Zoom up/down screen by Clicking Video Screen

and adjusting Mouse pulley, or by press the CTRL key and click the mouse left button. Second Method: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size.

When you select the Full Screen, then click right mouse, there is a Screen PTZ button.

Click the Screen PTZ button and put the mouse on the screen to indicate the camera move direction you prefer, press the left mouse, the camera will move to the corresponding direction. Loosen the mouse and stop moving. Press Esc button or double click right mouse and cancel the function.

NOTE: For Mac OS, the plugin cannot support Onscreen Mouse Control, so you cannot allow to use it.

4 Advanced Camera Settings

Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings.

4.1 Setup Wizard

Please go to section 3.2 to find the way to set it.

4.2 Status

Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera.

4.2.1 Device Information

Camera Model: The camera model NO.

Camera Name: The Device Name is a unique name that you can give to your device to help you identify

it. Click Basic Settings and go to Camera name panel where you can change your camera name. The default device name is anonymous.

Camera ID: Display the wired MAC address of your camera. For example Device ID is 000C5D00008, the same MAC ID sticker is found at the bottom of the camera.

Camera Time: The system time of the device. Click Basic Settings and go to Camera time panel and adjust the time.

System Firmware Version: Display the System Firmware version of your camera. Application Firmware Version: Display the application firmware version of your camera. Plug-In Version: Display the plug-in version of your camera.

4.2.2 Device Status

On this page you can see device status such as Alarm status/ Record Status ,DDNS status ,WIFI status

and so on.

4.2.3 Session Status

Session status will display who and which IP is visiting the camera now.

4.2.4 Log

The log record shows who and which IP address accessed or logout the camera.

Reboot the camera and clear the log records.

4.3 Basic Settings

This section allows you to configure your camera’s Name, Time, Mail, User account and Multi-Device.

4.3.1 Camera Name

You can define a name for your camera here such as apple. Click Save to save your changes. The alias name cannot contain special characters.

4.3.2 Camera Time

This section allows you to configure the settings of the internal system clocks for your camera.

Time Zone: Select the time zone for your region from the dropdown menu. Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server.

Choose the one that is closest to your camera. Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer.

Manually: The administrator can enter the date and time manually. Note select the date and time format. use DST: Select the daylight saving time from the dropdown list.

Click Save button and submit your settings.

NOTE: If the power supply of camera is disconnect, you need set the camera’s time again.

4.3.3 User Accounts

Here you can create users and set privilege, visitor, operator or administrator. The default user account is admin, with a blank password. You can enter the users accounts of visitor, operator and administrator Manually.

+ 59 hidden pages

Foscam R2M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
