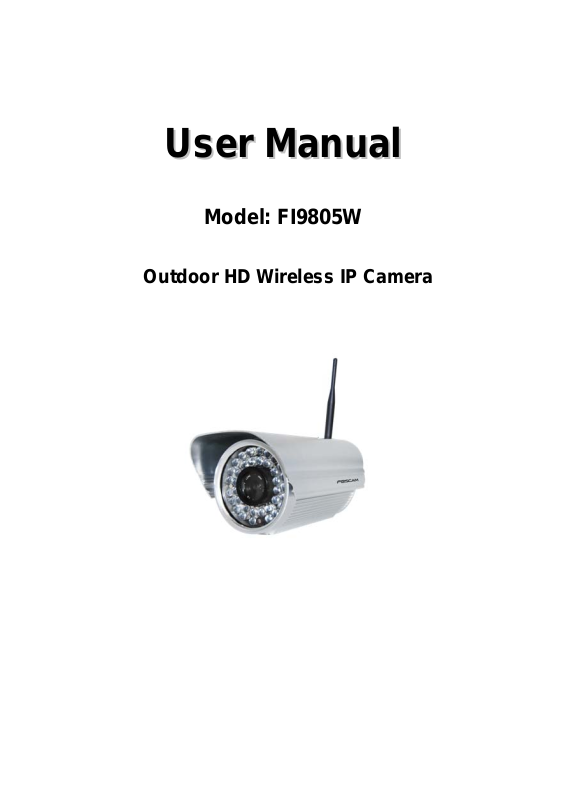

Outdoor HD Wireless IP Camera

Manual

m

y

Table of Contents

www

.foscam.comm

.foscam.co

1 Overviews

1.1 Key Features

1.2 Read Before Use

1.3 Packing Contents

1.4 Physical Description

...............................................................................................................................................................

.......................................................................................................................................................................

................................................................................................................................................................

...............................................................................................................................................................

..........................................................................................................................................................

2 Accessing the Network Camera

2.1 Access the Camera in LAN

2.2 Access the Camera in WAN

2.3 Using the VLC player

3 Surveillance Software GUI

3.1 Login Window

3.2 Surveillance Window

...................................................................................................................................................................

4 Advanced Camera Settings

...............................................................................................................................................

...........................................................................................................................................

......................................................................................................................................................

...............................................................................................................................

.......................................................................................................................................................

..............................................................................................................................

........................................................................................................................

3

3 4 4 4

6

6 10 16

19

19 21

26

4.1 Device Status

4.2 Basic Settings

4.2.1 Camera Name

4.3 Network

4.4 Video

4.5 Alarm

4.6 Record

4.7 Path Settings

4.8 Firewall

4.9 System

5 Playback

..................................................................................................................................................................................

................................................................................................................................................................

6 Phone APPs

6.1 APP for Android cell phones

....................................................................................................................................................................

...................................................................................................................................................................

...............................................................................................................................................................

..............................................................................................................................................................................

...............................................................................................................................................................................

....................................................................................................................................................................

..............................................................................................................................................................................

...............................................................................................................................................................................

..........................................................................................................................................................

...........................................................................................................................................

26 29 29 41 56 58 62 62 64 64

68

69

6.2 APP for iPhones

7 APPENDIX

7.1 Frequently Asked Questions

7.2 Default Parameters

Shenzhen

Tel:8686

Tel:

755

.............................................................................................................................................................

Fosca

Foscam

2674

Intelligent

5668

...............................................................................................................................................................

..........................................................................................................................................

..........................................................................................................................................................

Fax:8686

Fax:

Technolog

Technology

755

2674

755

2674

Co.,

5168

Limited

78

85

85 91

1

www

m

y

www

.foscam.comm

.foscam.co

7.3 Specification

7.4 CE & FCC

7.5 WARRANTY

......................................................................................................................................................................

..........................................................................................................................................................................

......................................................................................................................................................................

8 OBTAINING TECHNICAL SUPPORT

...............................................................................................................

91 92 93

96

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

2

www

m

y

www

.foscam.comm

.foscam.co

1 Overviews

FOSCAM FI9805W is an integrated wireless IP Camera with a color CMOS sensor enabling viewing resolution 1280*720. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet.

FI9805W supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.

The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet Explore. Therefore the management and maintenance of your device is simplified by using the network to achieve the remote configuration and start-up.

The camera is designed for outdoor surveillance applications such as courtyards, supermarket, and school. Controlling the IPCAM and managing images are simplified by using the provided web interface across the network utilizing wireless connectivity.

FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam ip cam viewer” and install it through APP Store, then you can view your camera directly as a computer.

1.1 Key Features

 Standard H.264 video compression algorithm to satisfy the transmission of high definition

video in narrow bandwidth network

 1.0 Mega-Pixel  Supports IE/Firefox/Google/Safari browser or any other standard browsers  Supports WEP,WPAand WPA2 Encryption  Wi-Fi compliant with wireless standards IEEE 802.11b/g/n  IR night vision (Range:30m)  Supports image snapshot  Supports dual-stream  Supports IR-Cut and the filter change automatically  Embedded FOSCAM DDNS(dynamic domain name service) Service  Supports remote viewing & record from anywhere anytime  Multi-level users management with password protection  Motion detection alert via email or upload image to FTP  Supporting Third Party Domain name  Providing Phone APPs for Android and iPhone users  Supports multiple network protocols: HTTP /HTTPS/ RTSP/ TCP /IP /UDP /FTP /DHCP

/DDNS / UPNP

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

3

www

m

y

www

.foscam.comm

.foscam.co

 Providing Central Management Software to manage or monitor multi-cameras

1.2 Read Before Use

Please first verify that all contents received are complete according to the Package Contents listed below. Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

1.3 Packing Contents

● IPCAM×1 ● CD×1

● Wi-Fi Antenna×1 ●Quick Installation Guide ×1

● DC Power Supply×1 ● Warranty Card×1

● Mounting bracket×1(option)

● Network Cable×1

1.4 Physical Description

Front Panel

1

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 1.1

Limited

2

3

4

m

y

1 WIFI Antenna: Wireless Antenna 2 Infrared LED: 36 IR LEDs 3LENS:CMOS sensor with fixed focus lens 4 Induction IC

Interface

www

1

2

.foscam.comm

.foscam.co

3

4 5

Figure 1.2

1）Reset button : Press and hold on the reset button for 5 seconds. Releasing the reset

button, the password will back to the factory default administrator password. The default administrator user is admin with no password.

2）Audio input interface: The jack is used to plug external microphone. 3）Audio output interface: The jack is used to plug external speakers.

4）LAN: 10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected

with various network devices, such as hub, router, etc.

5）Power Interface: Connect the external power adapter, request for 12V/2Apower.

Bottom View

There are up to three labels located at the bottom of the camera; this is an important feature of original Foscam cameras. If your camera does not have labels as shown in Figure 1.3, it may be a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

5

m

y

FOSCAM DDNS Service

www

MAC address of wireless connection

MAC address of wired connection

.foscam.comm

.foscam.co

S/N Sticker of FOSCAM

Figure 1.3

2 Accessing the Network Camera

This chapter explains how to access the network camera through web browsers and RTSP players.

2.1 Access the Camera in LAN

This camera support HTTP and HTTPS protocols, so here will allow you to use HTTP and HTTPS port no.

(1) Http:// LAN IP + Http Port no.

Double click the IP Camera Tool icon and it should find the camera’s IP address automatically after you plug in the network cable.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

6

www

m

y

www

.foscam.comm

.foscam.co

Figure 2.1

Double click the IP address of the camera; your default browser will open to the camera login page.

(2) Https:// LAN IP + Https Port no.

The default Https port no. is 443. You can use the url to access the camera: https:// LAN IP + HTTPS port.

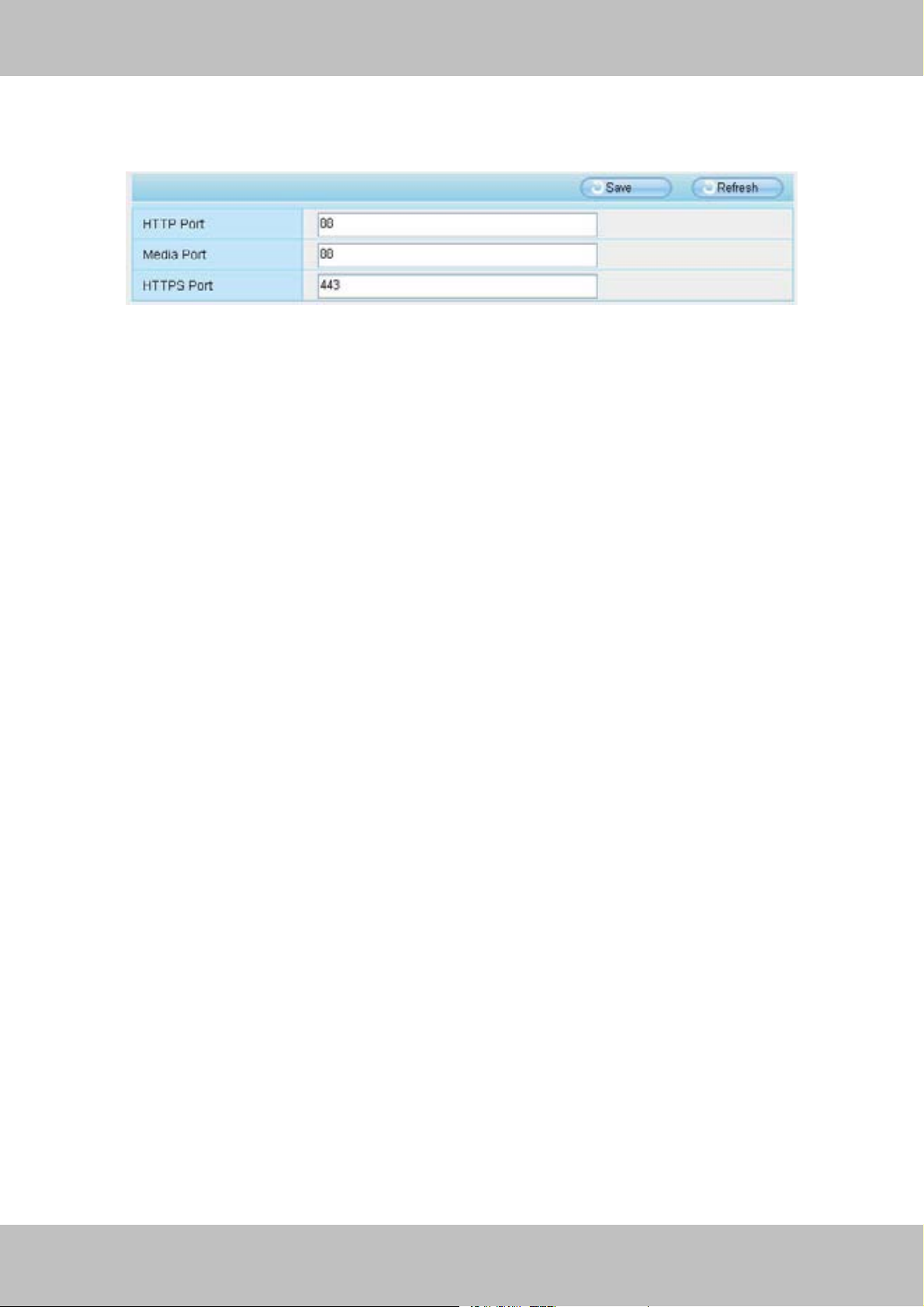

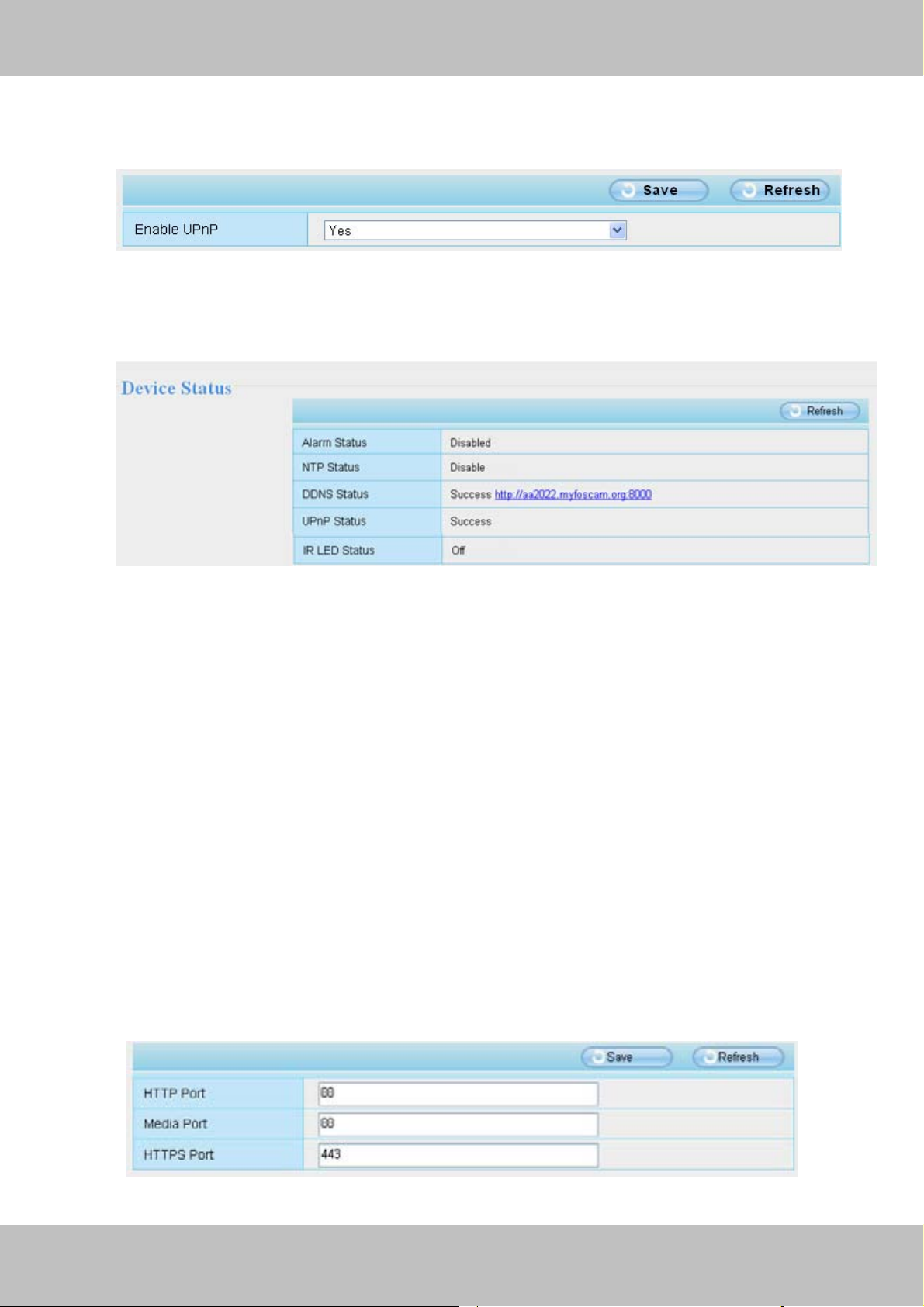

Go to Settings - Network - Port panel , you can see and change the https port no.

Figure 2.2

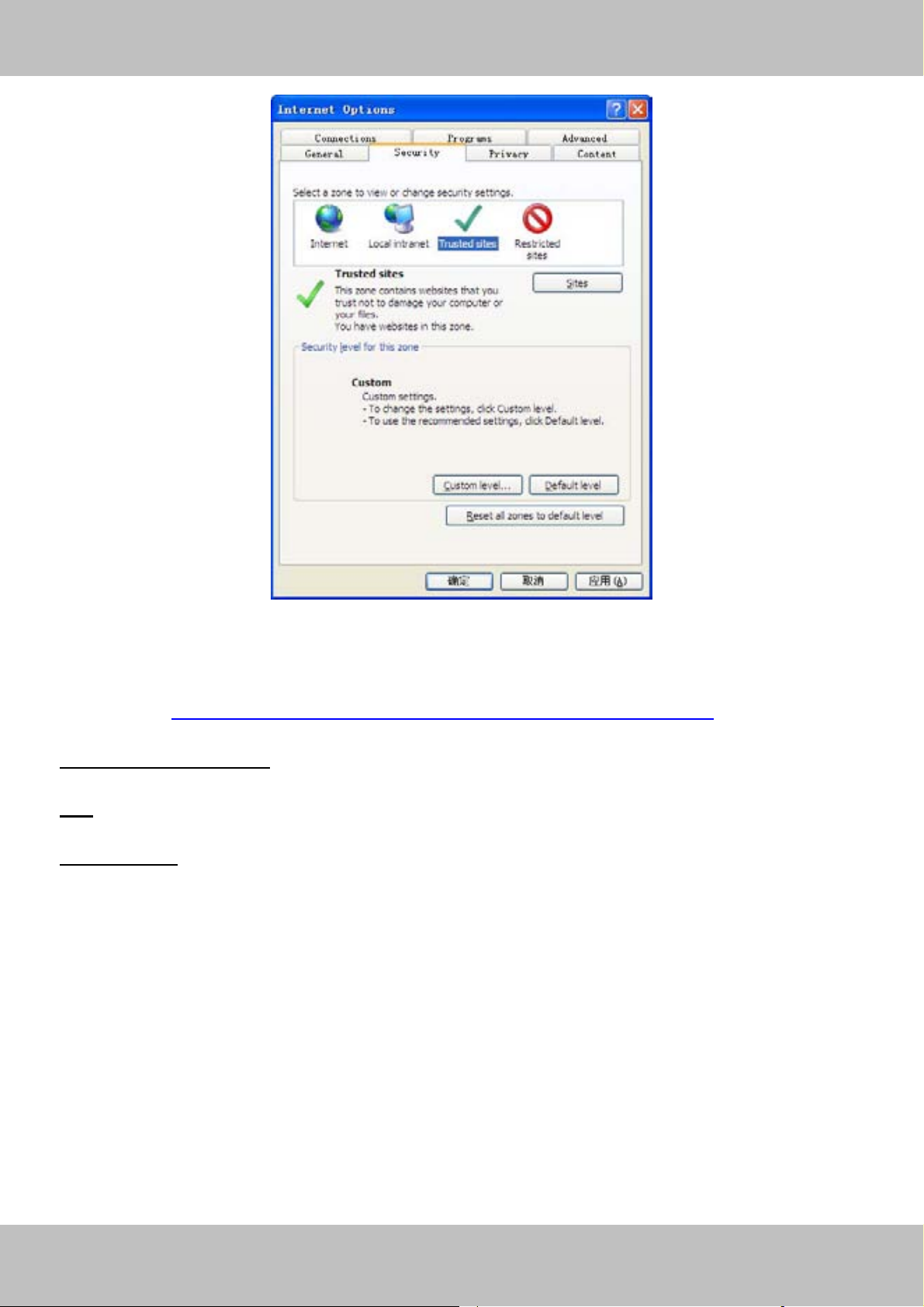

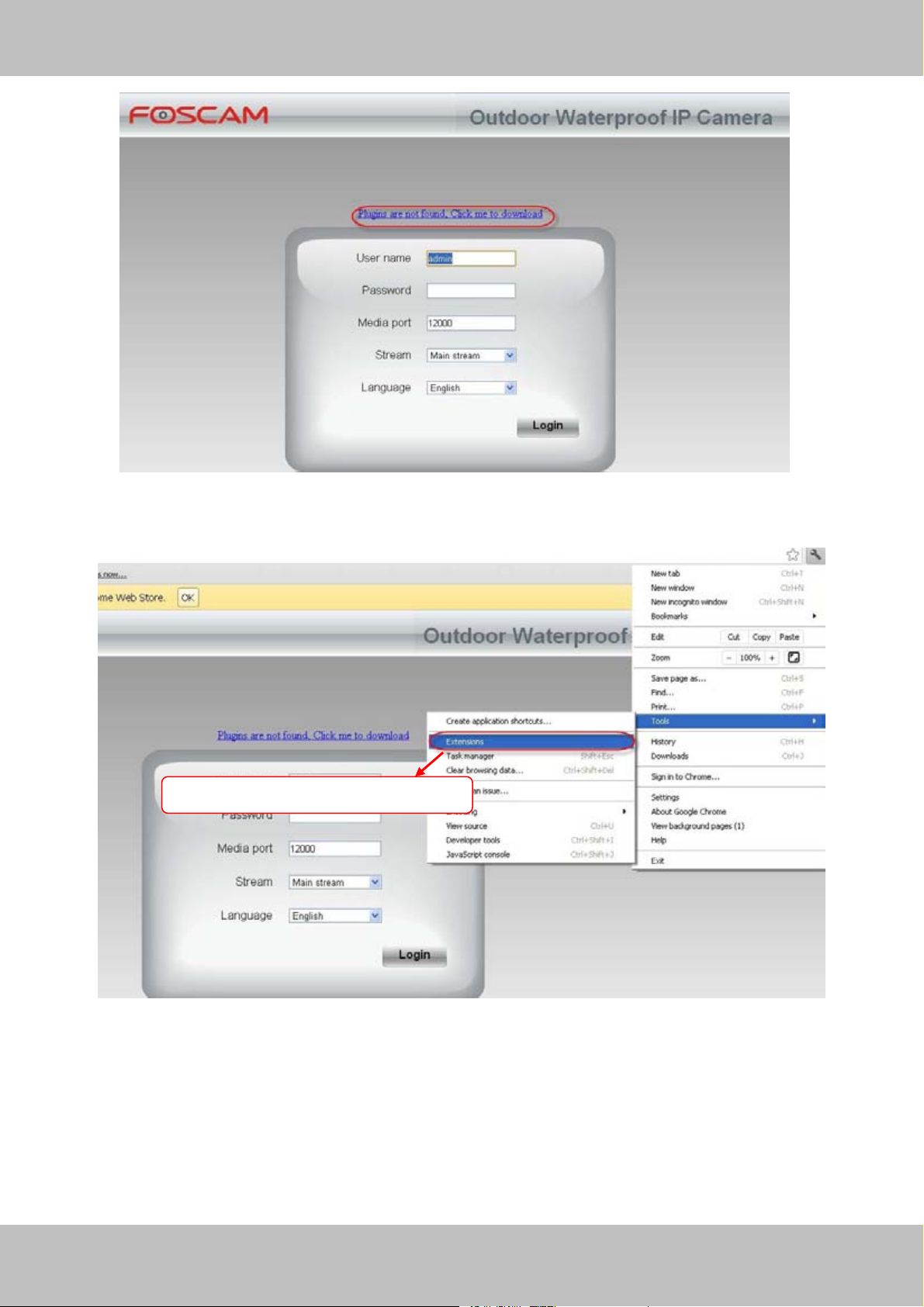

Sometimes you need to add the url to the Trusted Sites,

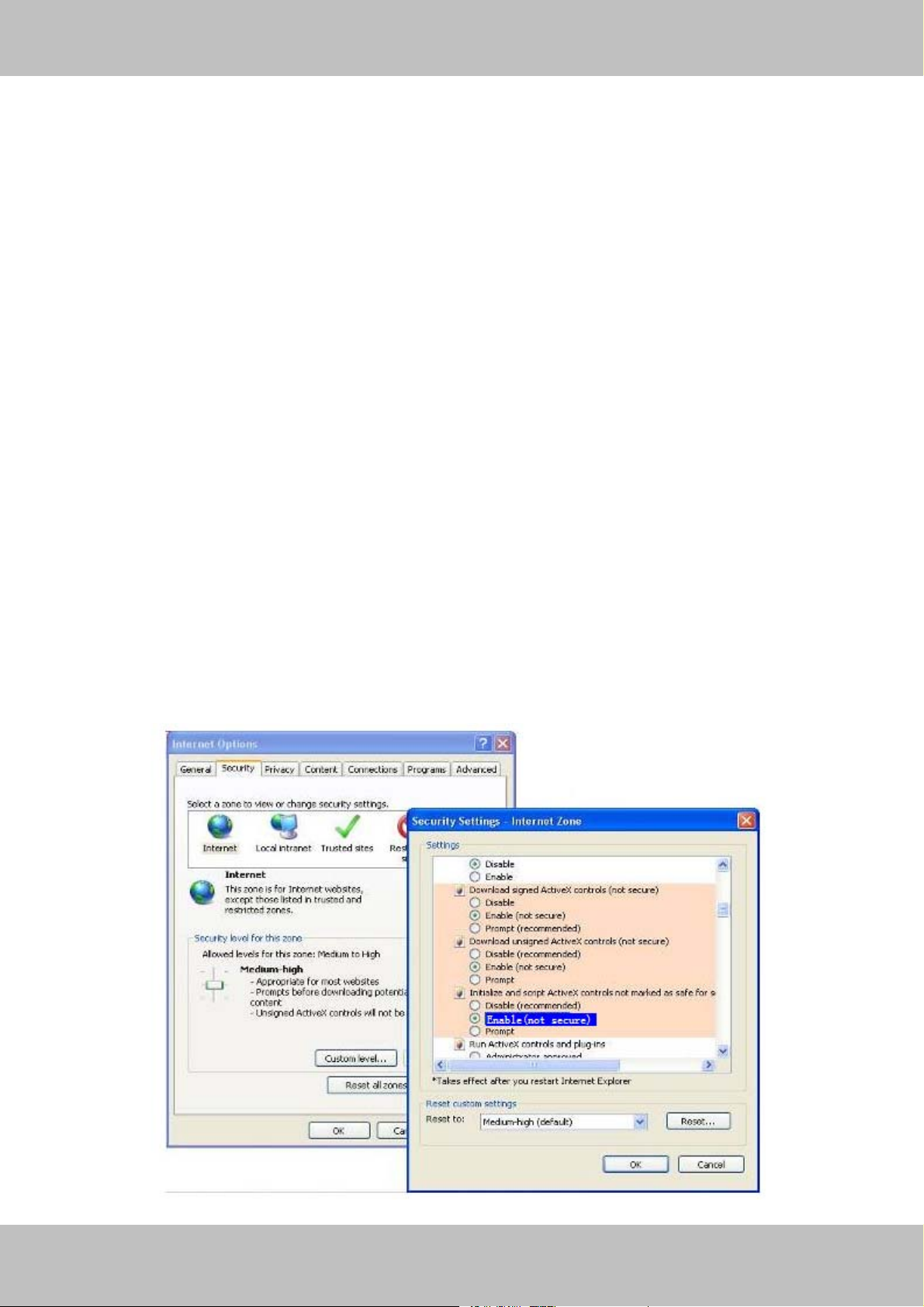

Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options. Next, click the Security tab, then click the Trusted sites button.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

7

www

m

y

www

.foscam.comm

.foscam.co

Figure 2.3

For Firefox, you can add the trusted as the following way:

Tools ---- Options ----Advanced --- View Certificates --- Servers

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

8

www

m

y

www

.foscam.comm

.foscam.co

Figure 2.4

Click View Certificates, and go to Servers option.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 2.5

Limited

9

m

y

Go to Add Exception panel.

www

Enter the camera’s url , here take https://192.168.8.129:443 for example

.foscam.comm

.foscam.co

Click this button to add it

Figure 2.6

2.2 Access the Camera in WAN

2.2.1 Static IPAddresses

Users who have static IP addresses do not need to set DDNS service settings for remote access. When you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from the Internet using the WAN IP address and port number.

How to Obtain the WAN IP address from a public website

To obtain your WAN IP address, enter the following URL in your browser:

http://www.whatismyip.com.The webpage at this address will show you the current WAN IP.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

10

m

y

Figure 2.7

www

.foscam.comm

.foscam.co

Access your IP Camera from the Internet

You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in your standard browser. For example, you would enter http://

183.37.28.254:85

Note

Make sure port forwarding is successful. You can do port forwarding two ways.

1) Login to your router to enable the “UPNP” function.You can then login to the camera as administrator, choose Network, and then choose UPnP to enable UPnP. Make sure that the status of UPnP reads “UPnP Successful” on the Device Status page.

2) Do port (HTTP port and Media port) forwarding manually. (See Figure 2.11 for further details)

If your router has a Virtual Server, it can do port forwarding. Add the camera’s LAN IP and port

which you had set earlier to your router’s port forwarding settings.

Note: If you plug the camera into a router, it will have a dynamic IP address and you need to set

DDNS service settings to view it remotely.

2.2.2 Dynamic IPAddresses

DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name. This means that even though your WAN IP address is constantly changing, you will have a fixed hostname you can use to access your cameras at all times. You can access the camera directly from the Internet using the hostname and port number.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

11

www

m

y

p

www

.foscam.comm

.foscam.co

What is the HTTP Port no.?

1) Default HTTP Port is 88

All cameras have the default HTTP port of 88. For example, if the LAN IP link of the camera is http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change port 88 to another port if you’d like such as 2000 or 8090, which will not be conflict with other existing ports like 25, 21,10000.Here you can set the port no. between 1 and 65535.

2) Change the default http no.88 to another one.

How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera Tool

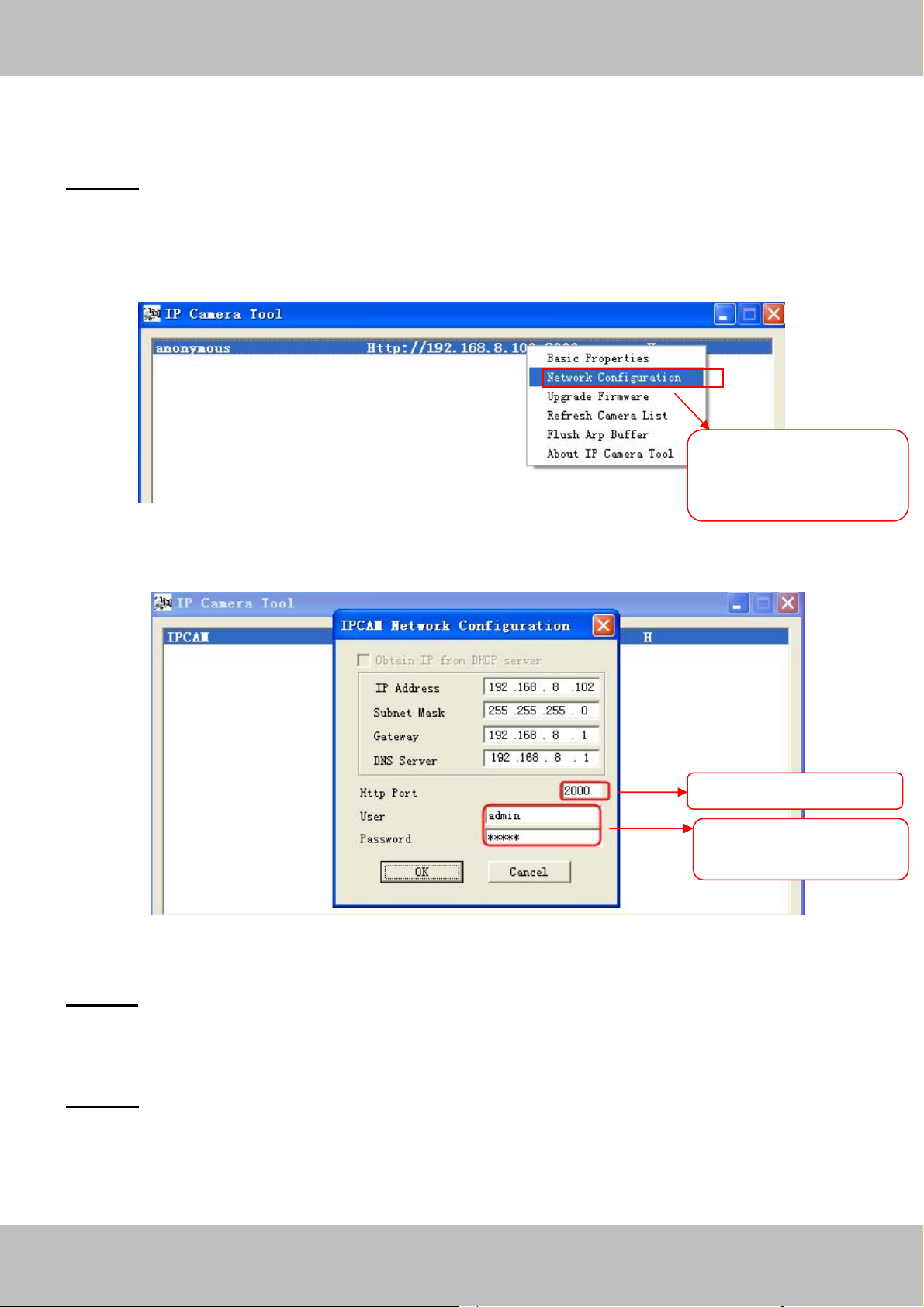

Step 1:

？

Open the IP Camera Tool, select the camera you would like to change the port of, right

click on the IP address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure 2.8 and 2.9.

Select which camera you’d like to change the port for, and right click

Figure 2.8

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

Modify the Http Port.

Enter the Username and

assword,click OK.

12

m

y

Figure 2.9

www

.foscam.comm

.foscam.co

Step 2:

Enter the username and password of the Administrator (default username is admin with

a blank password), and click “OK” to apply changes.

Step 3:

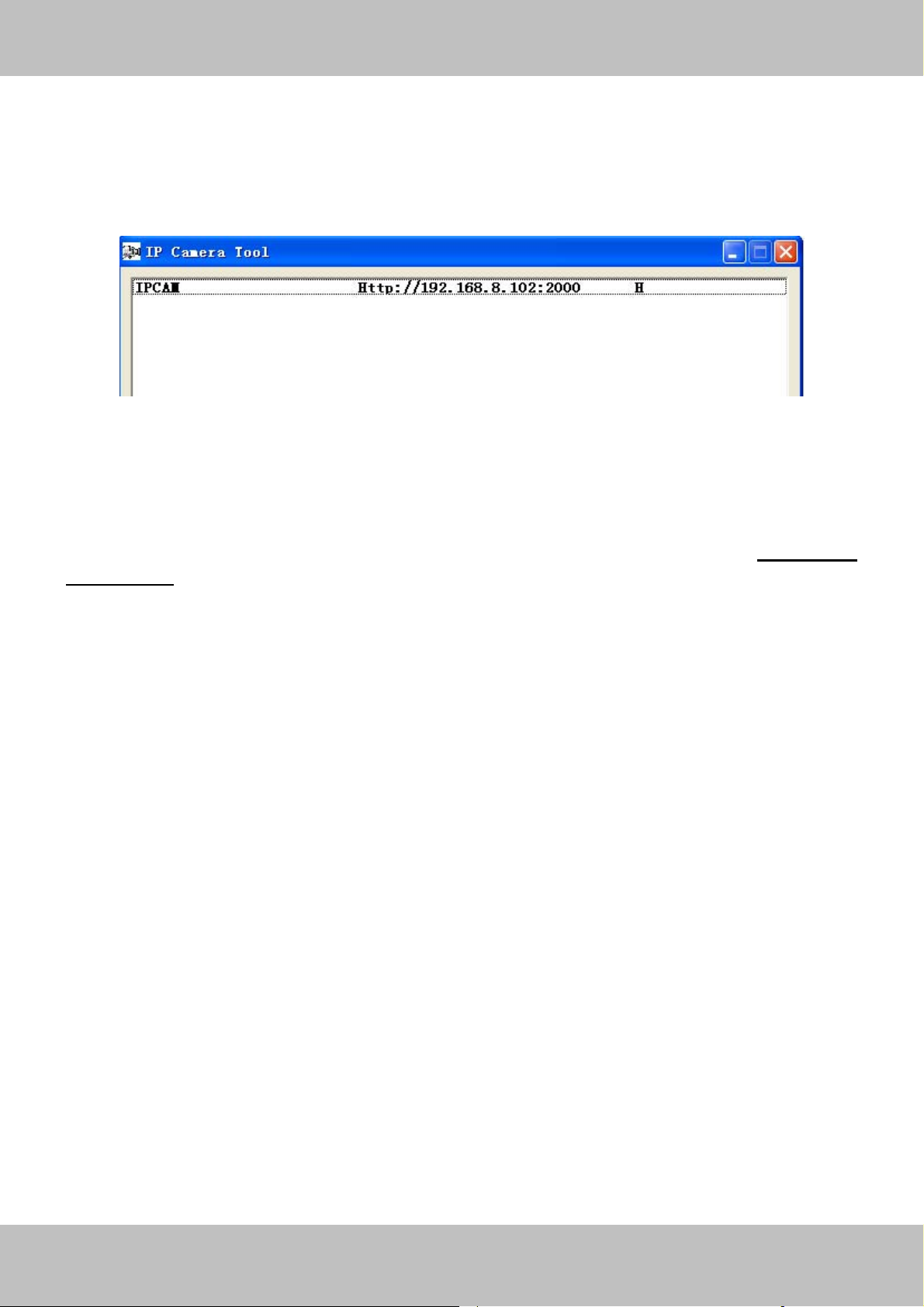

Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In

our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!

Figure 2.10

What is Port forwarding?

If you have never done port forwarding before, you can open and view the following link to understand the basic concept. Port forwarding allows for outside connections to access a specific device on your network from anywhere in the world. Every router automatically blocks any incoming connections for safety purposes. Using port forwarding, you are telling your router to allow a connection through a certain port (you can think of it as a gateway) into your router. You set this port to a specific device, in our case an IP Camera, so it can be accessed from anywhere in the world.

Click this link to learn more about port forwarding: http://portforward.com/help/portforwarding.htm

How do we configure Port Forwarding?

For this section, we will be using an example:

Let’s say the camera’s LAN IP address is http://192.168.8.100:2000

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

13

www

m

y

www

.foscam.comm

.foscam.co

Step 1: Login to the router, and go to your router’s port forwarding or port triggering menu. Sometimes this is also under the name of Virtual Server or NAT.

Using the Linksys brand router as an example, we would log into the router, and go to the Applications & Gaming menu. We would then click on the “Single Port Forwarding” sub-menu.

Step 2: Create a new column using the LAN IP address & HTTP Port of the camera within the

router as shown below, then push OK or Submit to save your settings:

Fill the HTTP Port of the camera in the columns of External Port and Internal Port. Example: 2000

Fill in this section with the LAN IP of the camera; we would enter “100” for our

Assign a name for the port forward setting here

example.

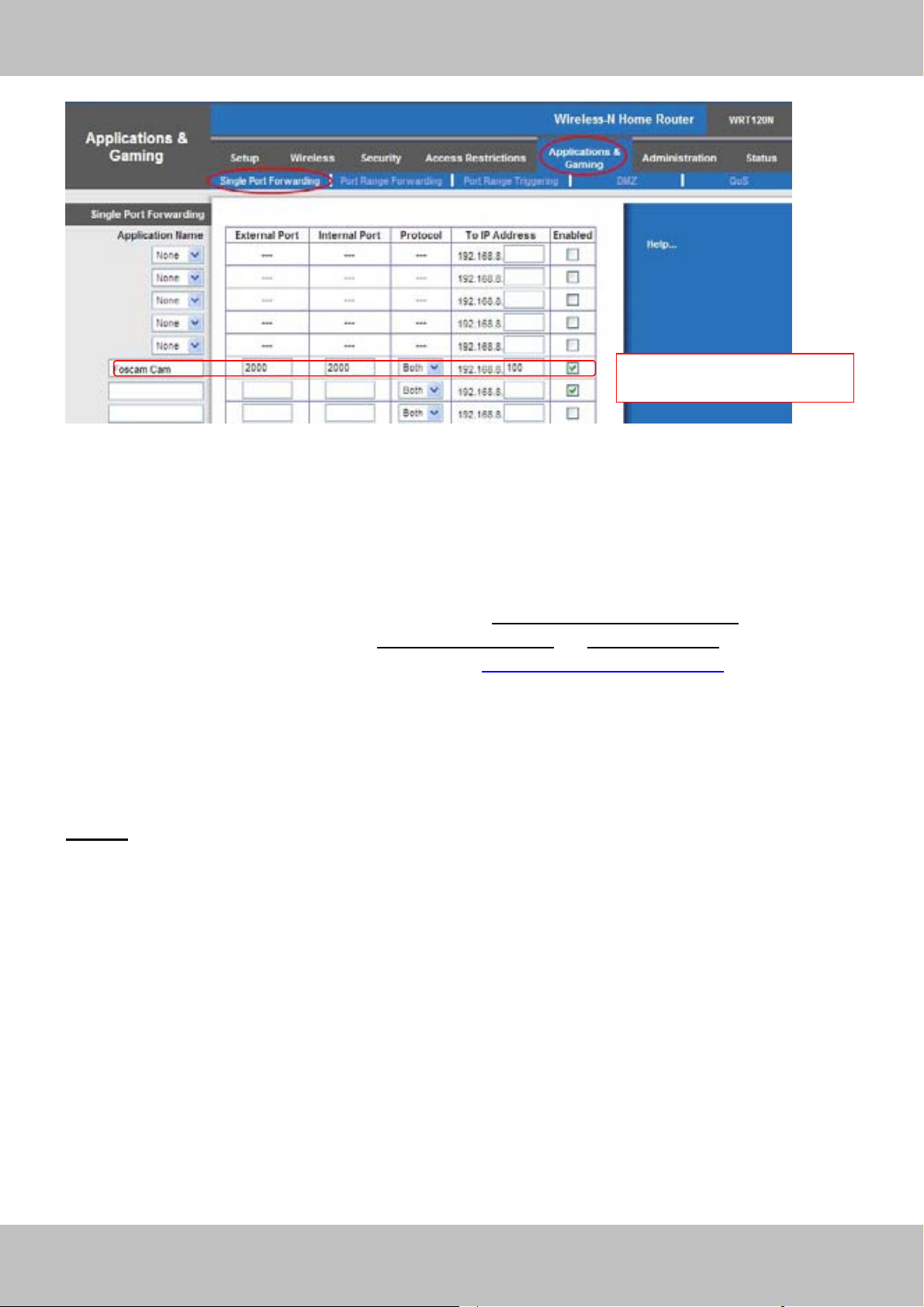

Figure 2.11

First method : Use the embedded DDNS to access the camera via the Internet

Each Foscam camera has an embedded unique DDNS domain name, the format of this domain name is xxxxxx.myfoscam.org. On the bottom of the camera, you can see the domain name sticker with this information on it.

For example, we can use test09.myfoscam.org. In the camera, click Settings at the top, click “Network” on the left, then click “DDNS” to get to the DDNS settings page. Here you can see the unique domain name of your camera.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

14

www

m

y

www

.foscam.comm

.foscam.co

Figure 2.12

Now you can use “http://Domain name + HTTP Port” to access the camera via the Internet. Take hostname test09.myfoscam.org and HTTP Port of 2000 for example, the URL link to access the camera via the Internet would be http:// test09.myfoscam.org:2000.

Second method :

Use the Third party DDNS to access the camera via the Internet

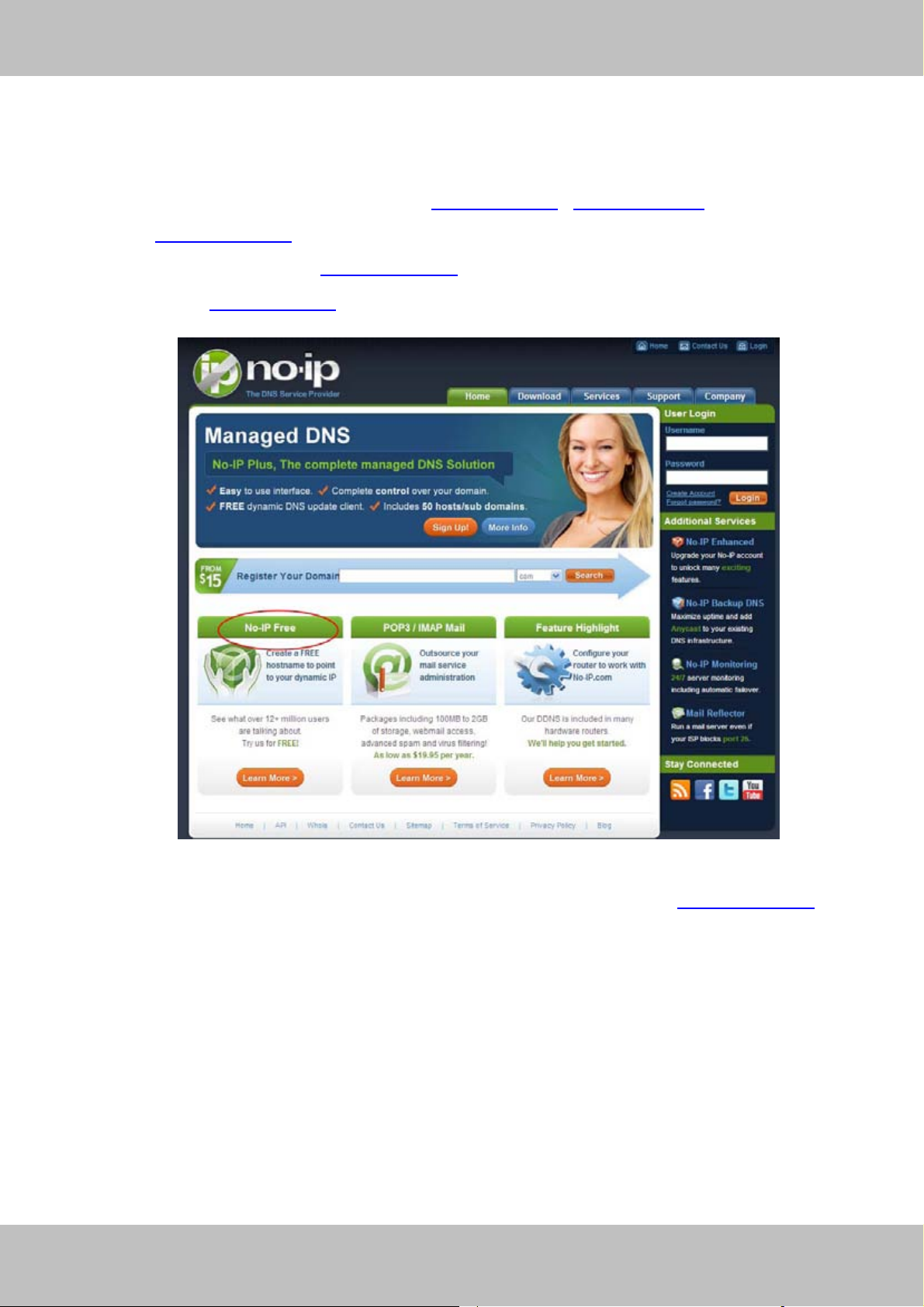

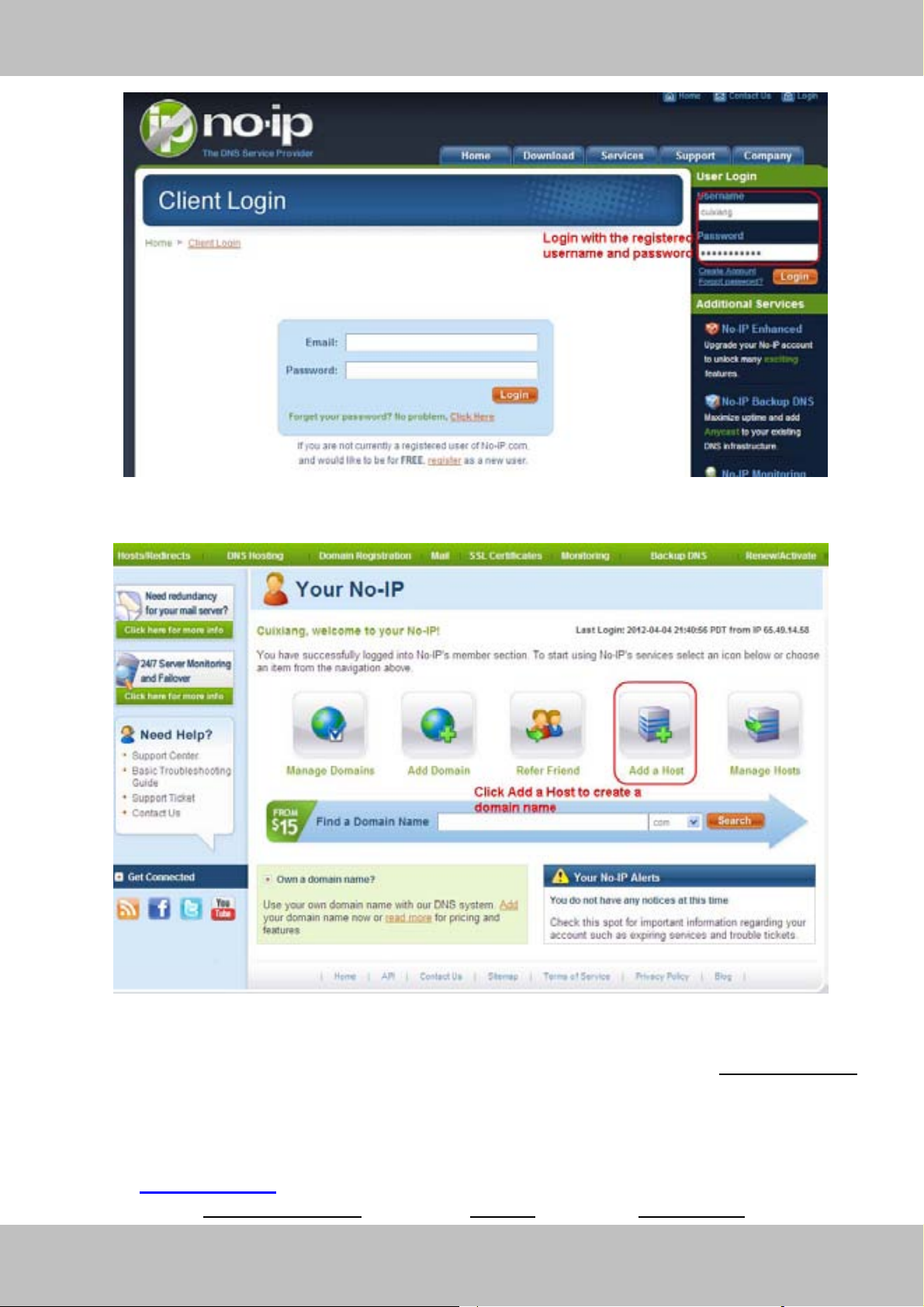

Step 1, Please go to the third party DDNS website(such as www.no-ip.com) to create a free hostname.

Step 2, DO DDNS Service Settings within the Camera

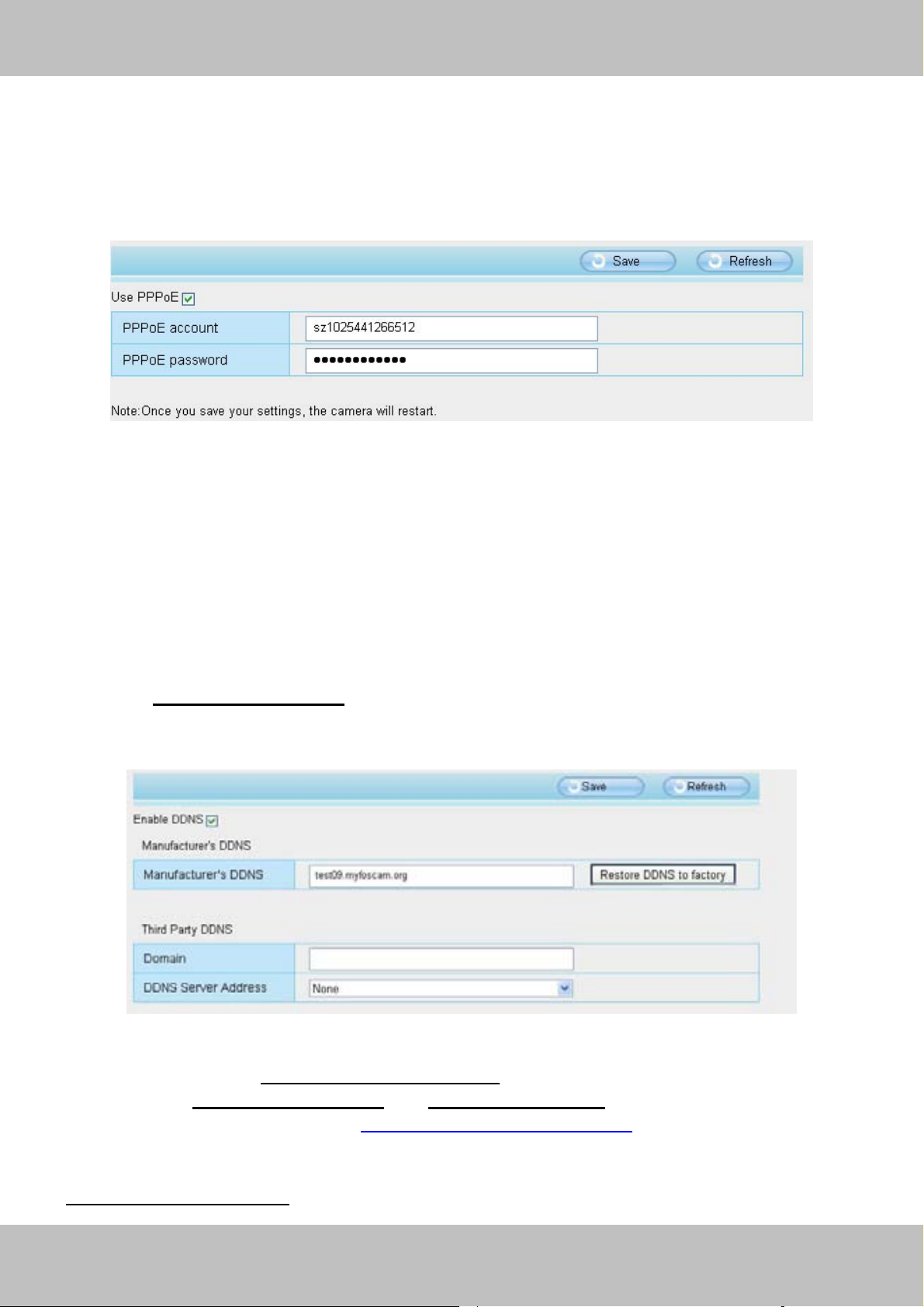

Please set DDNS Settings within the camera by hostname,auser name and password you’ve got from www.no-ip.com Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly Secondly

Thirdly ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The

camera will restart and to take the DDNS settings effective.

, goes to option of DDNS Settings on the administrator panel.

, select No-Ip as a server.

, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill

Fourthly, after the restart, login the camera, and go to option of Device Status on the

administrator panel, and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

5668

Intelligent

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

15

www

m

y

www

.foscam.comm

.foscam.co

Note

If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.

2.3 Using the VLC player

This

camera

This

camera

RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream

The part in the square brackets may be omitted.

user name & password:

The user name and password to access the camera. This part can be omitted.

IP:

WAN or LAN IP address.

Videostream:

Here support three mode: videoMain, videoSub and audio. When the network speed is bad, here

you had better select videoSub. If you select audio, you can only hear the sound but cannot see the video.

supports

RTSP

streaming,

here

you

can

view

the

camera

using

VLC

player.

For example:

IP: 192.168.1.11

HTTP Port number: 88 User name: admin

Password: 123

Here I can enter one of the following URLs in the VLC.

1) rtsp://admin:[email protected]:88/videoMain

2) rtsp:// @192.168.1.11:88/videoMain

3) rtsp://:[email protected]:88/videoMain

4) rtsp://[email protected]:88/videoMain

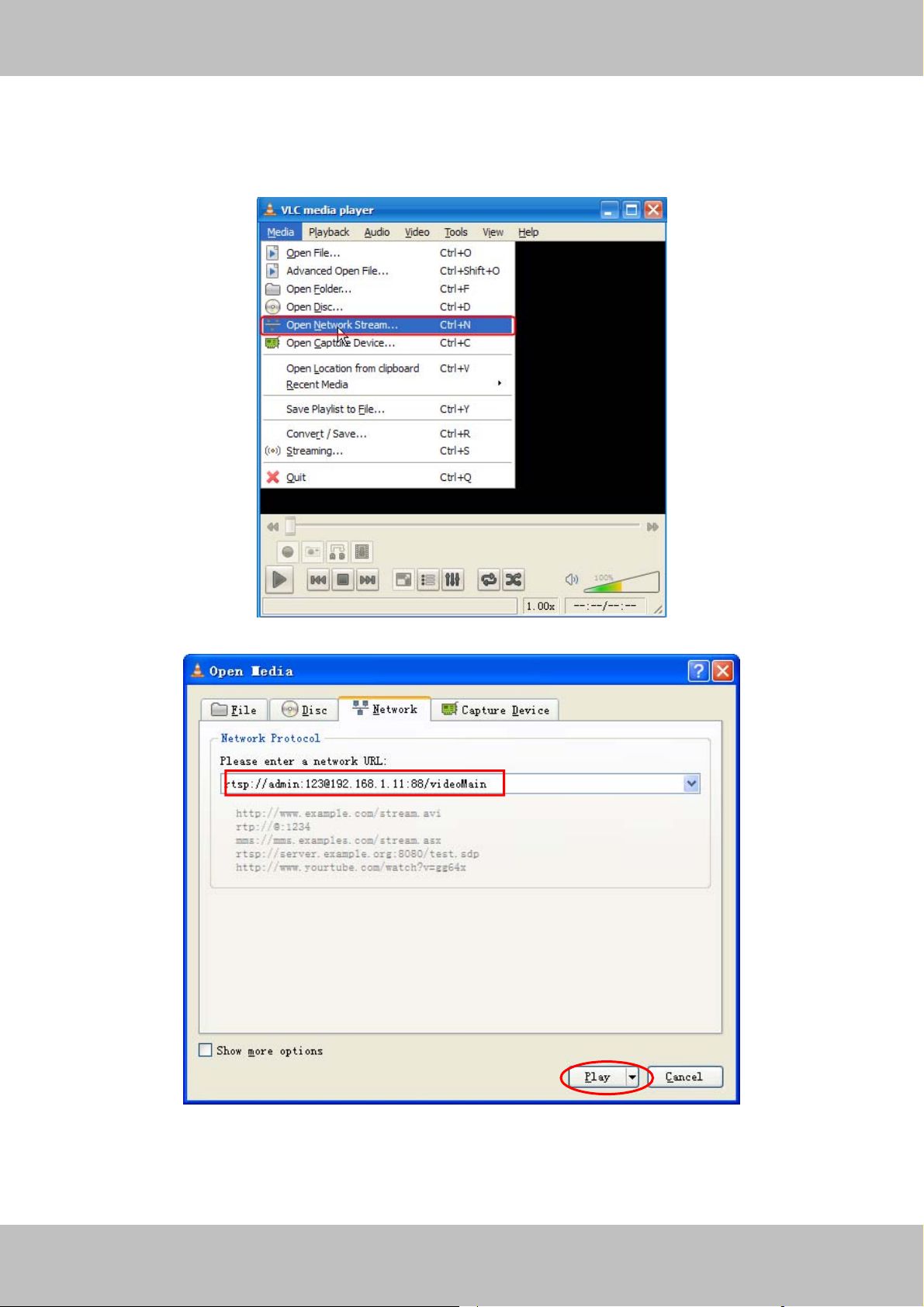

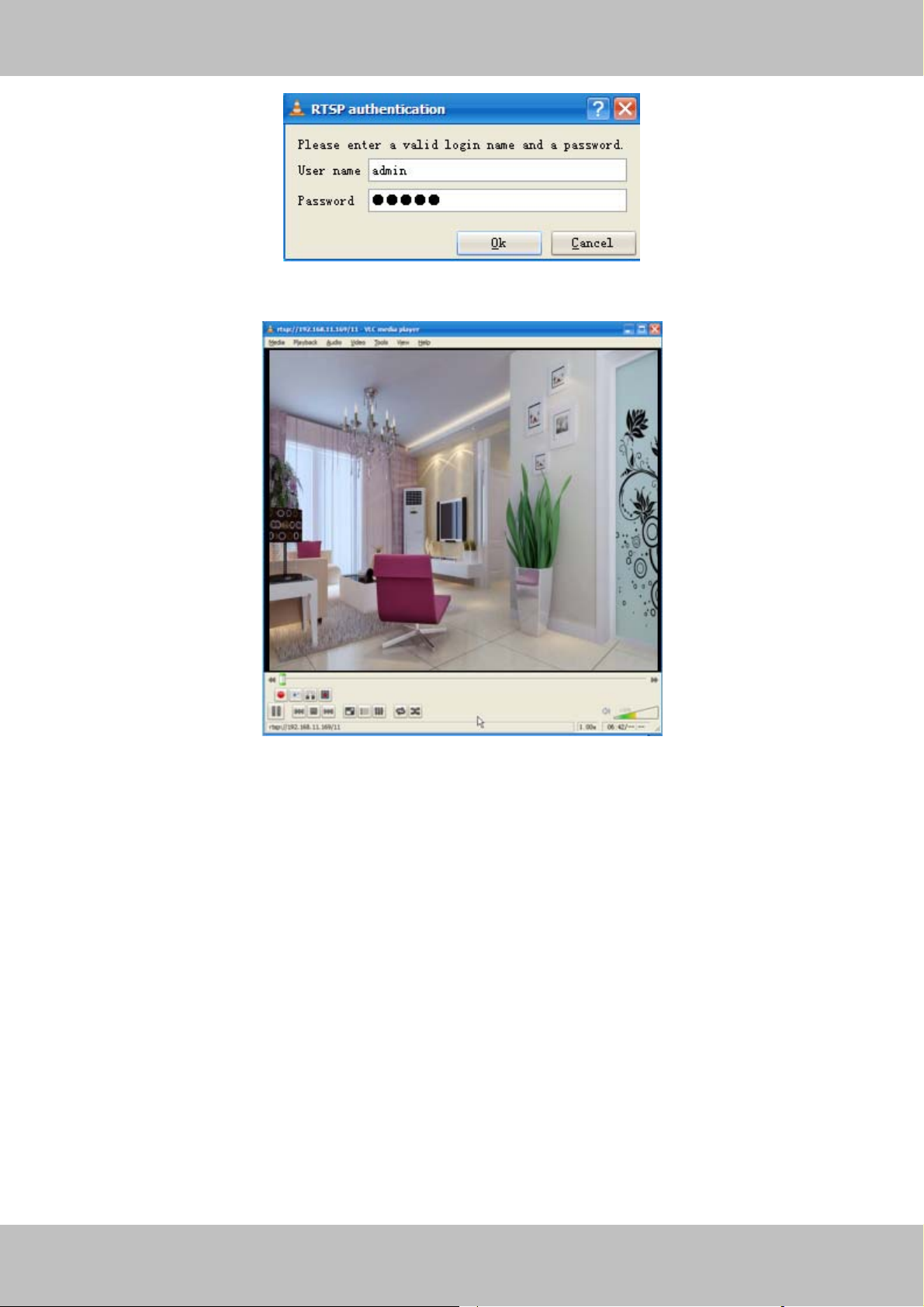

Open the VLC, and go to MediaÆOpen Network Stream option, then enter the URL into VLC.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

16

www

m

y

www

.foscam.comm

.foscam.co

Figure 2.13

Figure 2.14

Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

17

m

y

Figure 2.15

www

.foscam.comm

.foscam.co

Figure 2.16

If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding.

NOTE:

If you modify the camera’s username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

18

www

m

y

www

.foscam.comm

.foscam.co

3 Surveillance Software GUI

Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software.

3.1 Login Window

1

2

3

4

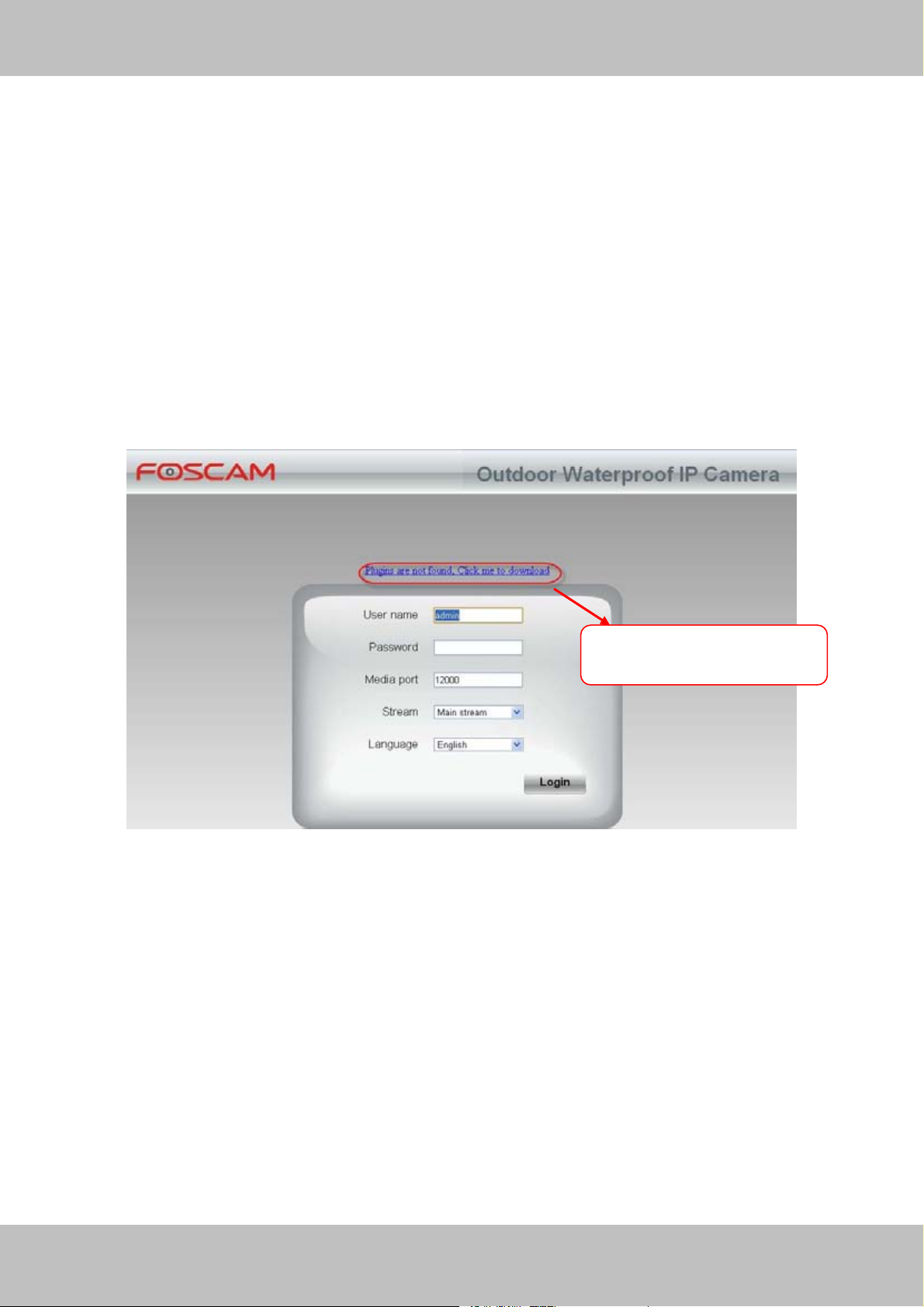

Figure 3.1

Please check the login window above, it was divided to 4 sections from no. 1 to 4.

Section1 Enter the User name and password

The default administrator username is admin with no password, please reset the password at first using and prevent unauthorized users login the camera (read chapter 3.2.4 about how to

change).

Section2 Stream

The camera supports two stream modes: Main stream and sub stream. If you want to access the camera form LAN, here you can select Main stream. If you want to access the camera from Internet, here we recommend sub stream.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

19

www

m

y

www

.foscam.comm

.foscam.co

Note: When the network bandwidth is badly you’d better select Sub Stream and the video will be more fluency.

Section3 Select the language

You can select the language you need via click on the language dropdown list to switch.

Section4 Login the camera

Click Login button and you will see the surveillance windows.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 3.2

Limited

20

m

y

3.2 Surveillance Window

1

www

.foscam.comm

.foscam.co

2 3

4 5

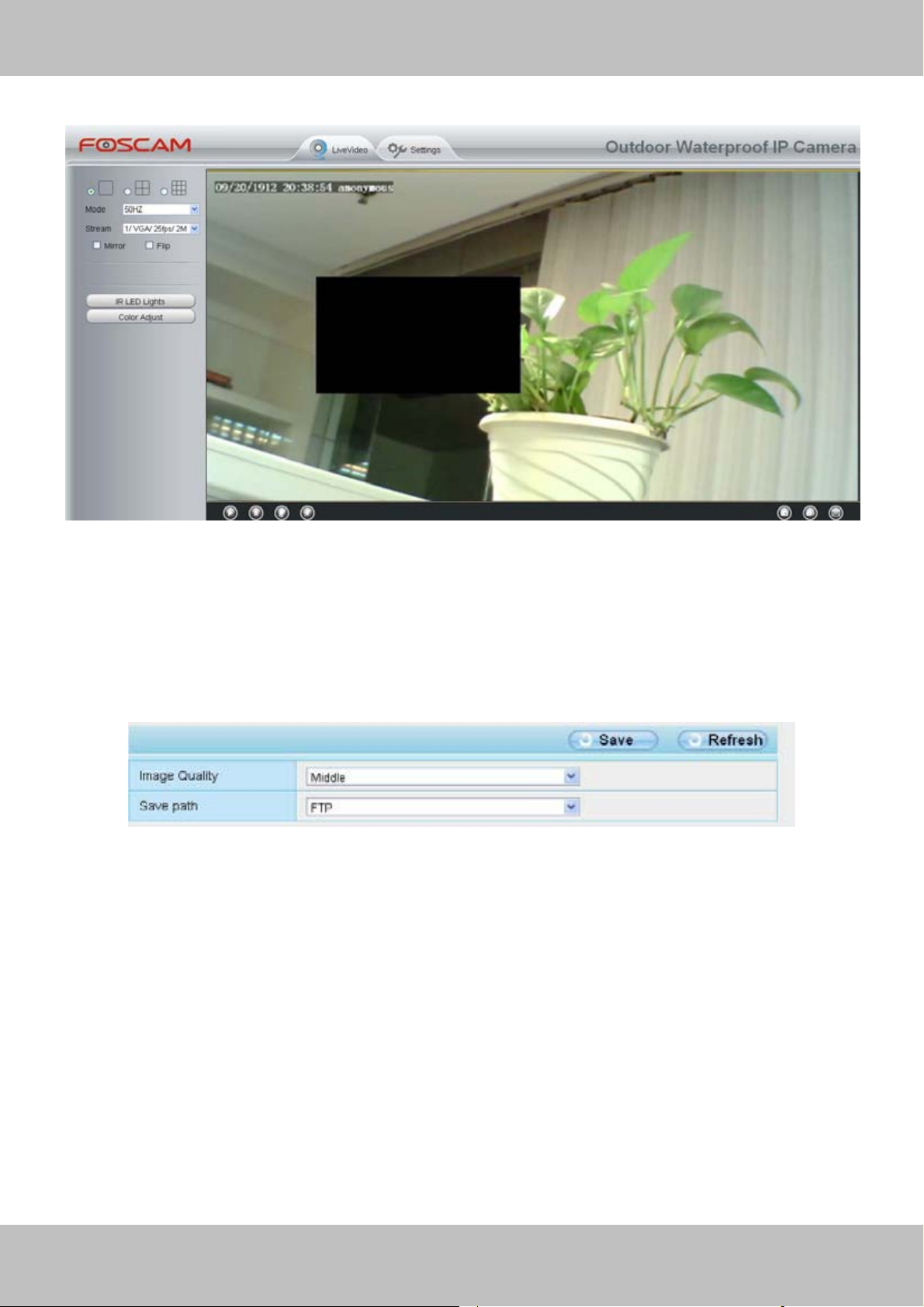

Figure 3.3

Section1 FOSCAM Logo/ LiveVideo / Settings buttons

6

7

: FOSCAM LOGO

: Path to surveillance window. Click this button and back to the surveillance window

: Path toAdministrator Control Panel, Click it, and it will lead to Administrator

Control Panel and do advanced settings.

Section2

Multi-Device Window

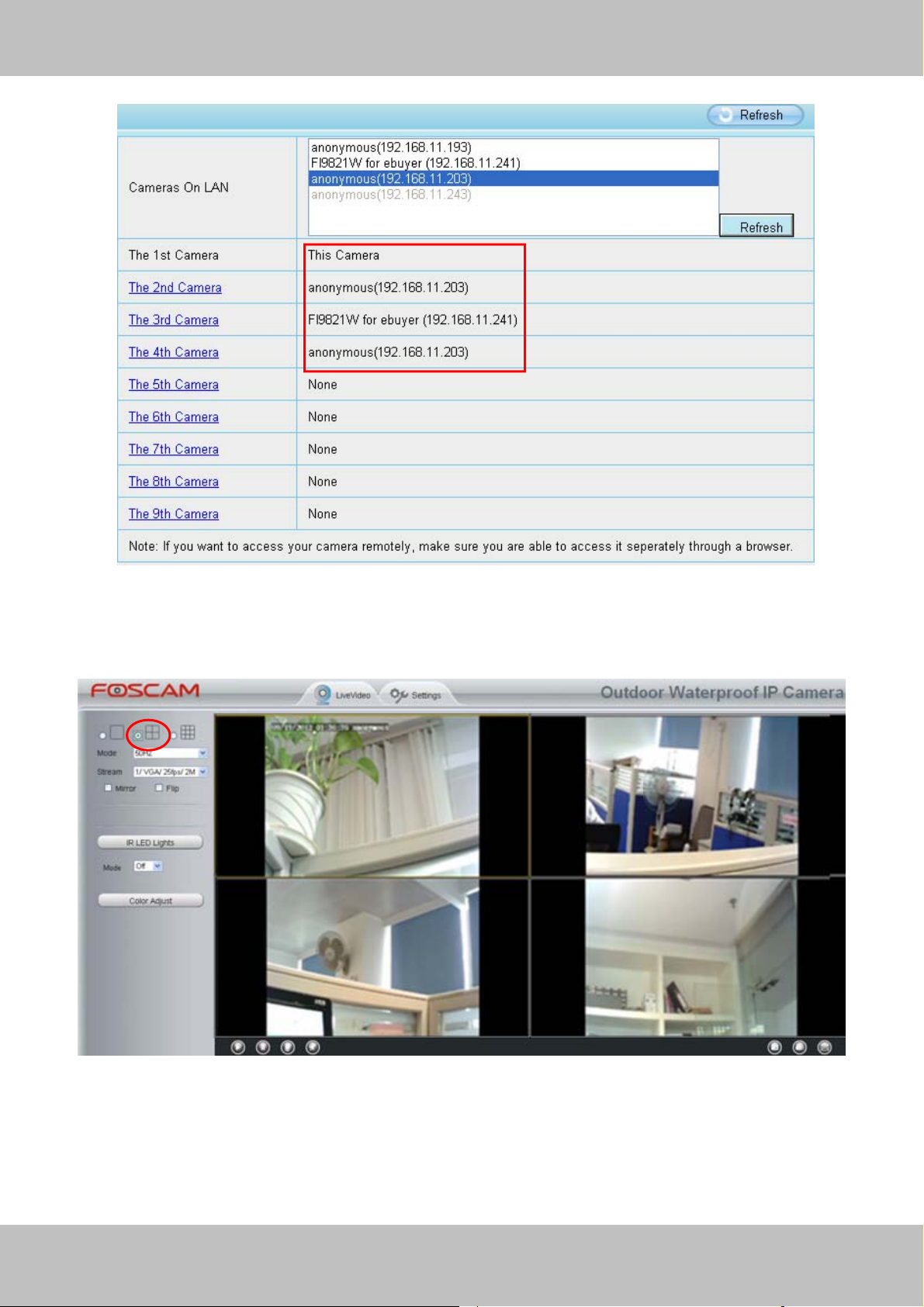

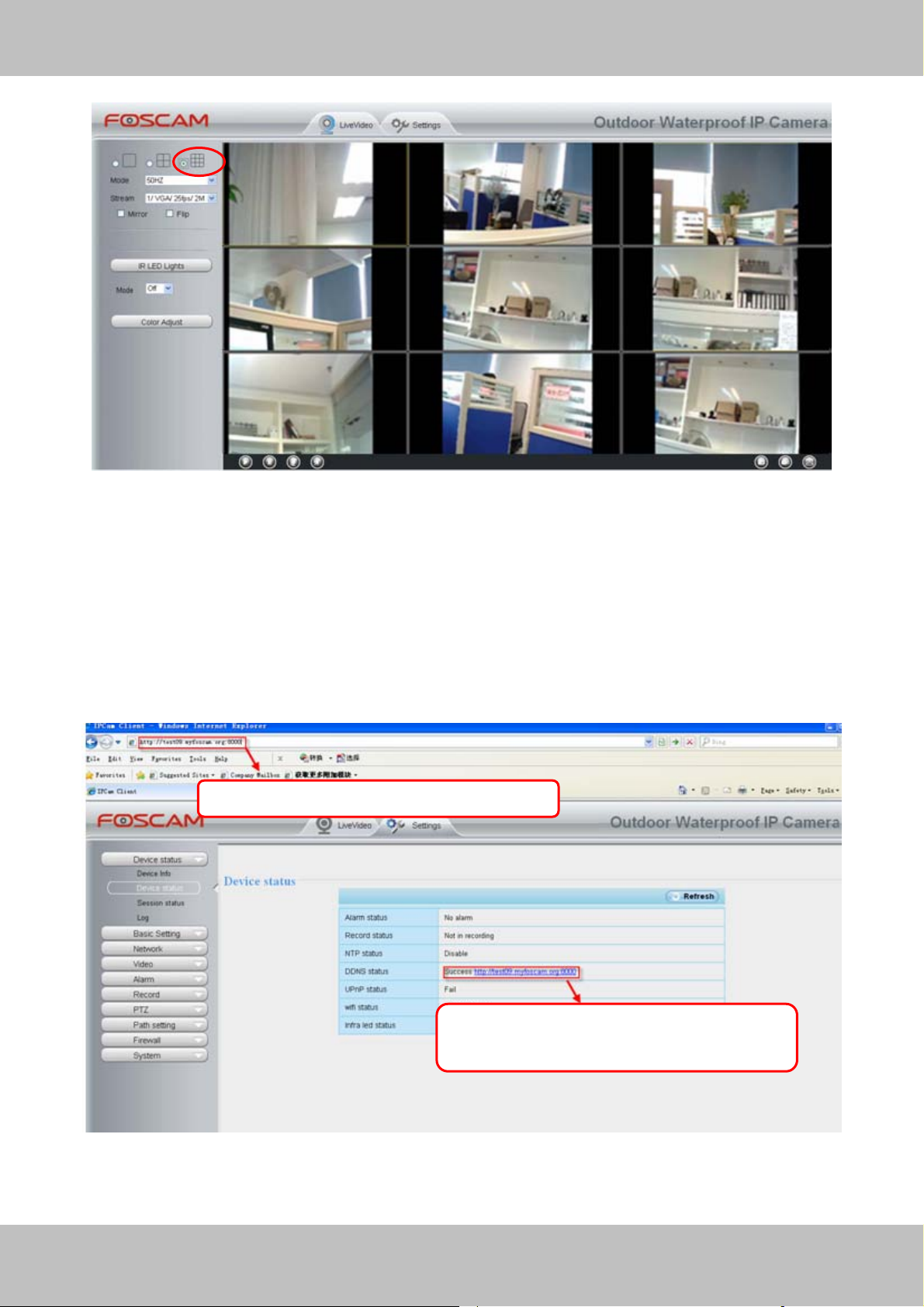

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You can add other cameras in multi-camera panel (read chapter 4.2.5).

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

21

www

m

y

www

.foscam.comm

.foscam.co

Figure 3.4

Section3 Mode/ Stream / Mirror/ Flip buttons

Mode

1) 50HZ ---------Indoor surveillance (Region: Europe, China)

2) 60HZ ---------Indoor surveillance (Region: USA, Canada)

Stream

The default Stream supports four modes: 0/720P/30fps/2M, 1/VGA/25fps/4M, 2/VGA/ 15fps/ 1M and 3/ VGA/10fps/200 The format of the stream type is Stream type no. / Resolution /

Maximum frame rate/ Bit rate

1) Stream type no. : The number is used to identify the stream type.

2) 720P/ VGA

There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels. The bigger the resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution VGA.

3) Maximum frame rate

When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video.

4) Bit rate

Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

22

www

m

y

www

.foscam.comm

.foscam.co

narrow, and bit rate is large, that will lead to video cannot play well.

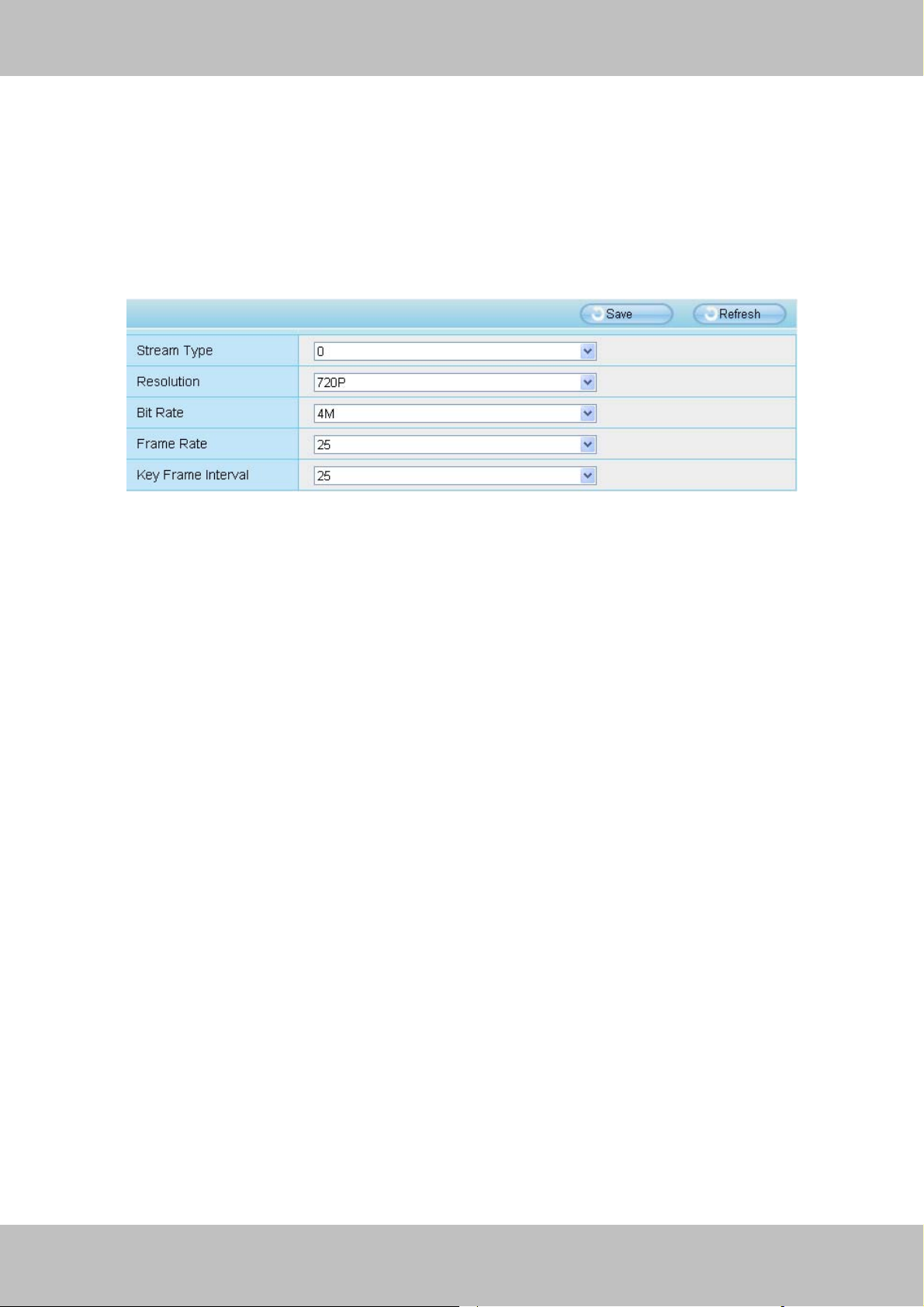

You can reset the stream type on Settings-> Video-> Settings panel( chapter 4.4.1). After changing, please re-login the camera and you can see the modification.

Section4 IR LED Lights

Click IR LED Lights and there are two modes to adjust the infrared led: Auto and Off . The default mode is Auto.

Auto: Select it and the camera will adjust the infra led (on or off) automatically.

Off: Select it and turn off the infra led manually.

Section5 Image quality settings

In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.

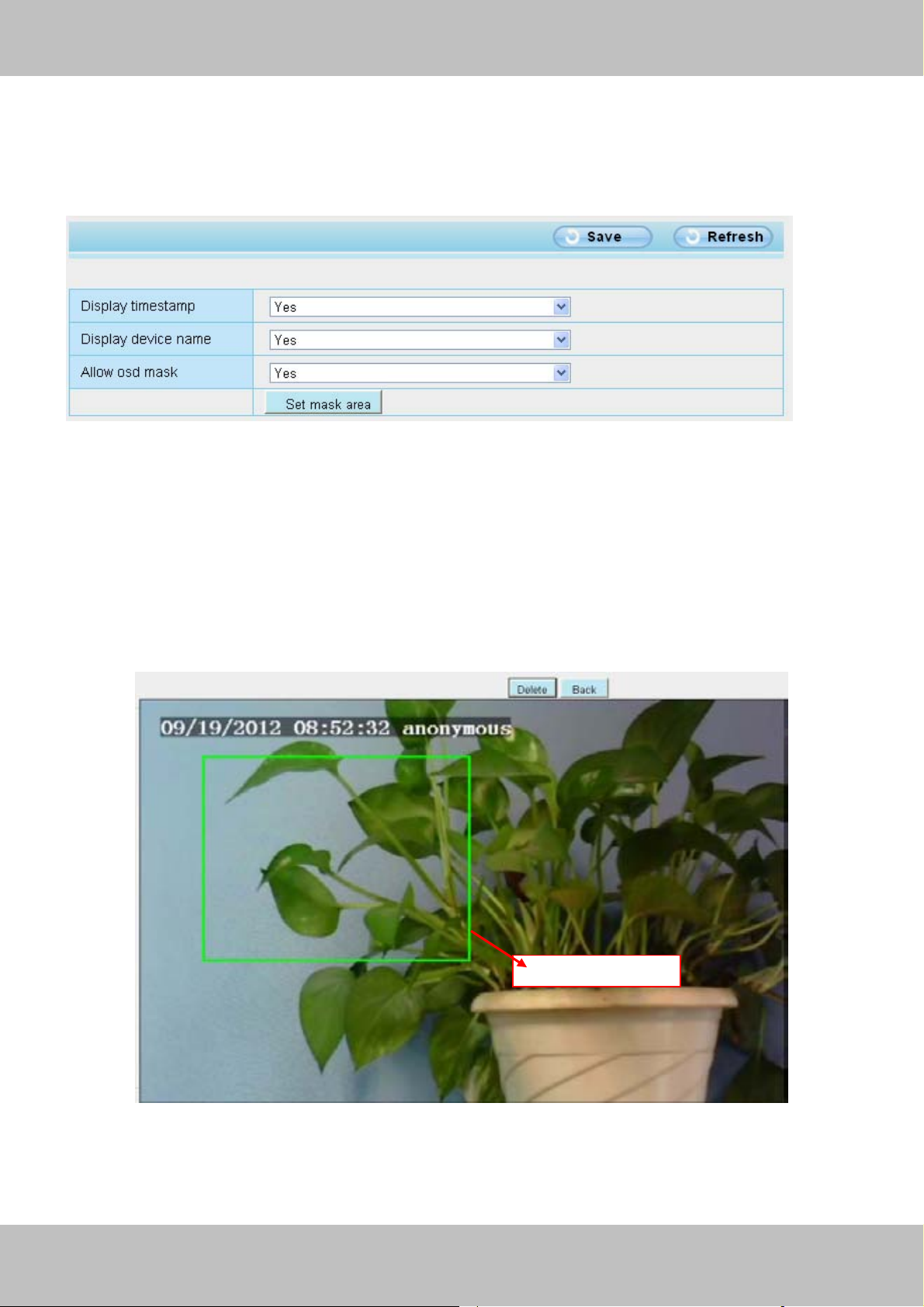

Section6 OSD

If you have added time and camera name in the video, you can see it in the live window. Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The default device name is anonymous. Go to Settings ---Basic settings---Camera time panel and adjust the device time. Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

23

m

y

Section7 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button

www

.foscam.comm

.foscam.co

123

4

567

1------Play Click it to play the video of the camera 2------Stop Click it to stop the video of the camera

3------ Talk: Click the button and the icon will become to , then talk to the microphone that

connected with PC, people around the camera can hear your voice if the camera has connected with audio output device. Click the icon again and stop talking.

4------ Audio Click the button and the icon will become to , you can hear the sound around

the camera if the camera has connected with other audio input device through the Audio Input port of the camera, Click the icon again and stop audio.

5----- Snap: Click it to make snapshot and it pop up a window which picture you snapshot, right click in the window and save the picture to anywhere you want.

6----- Record: Click the icon and the camera start recording, you can see a green dot in the live window. Click again and stop recording. The default storage path is C:\IPCamRecord. You

can change the storage path: Go to Settings- >Record-> Storage Location panel. 7------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen. Double click again and exit full-screen.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

24

www

m

y

www

.foscam.comm

.foscam.co

Onscreen Mouse Control

Right click the mouse and you can adjust the screen ration, full screen and Zoom up.

Figure 3.6 Keep ration: Select it and the camera will adjust the size of live window based on the computer monitor automatically.

Sometimes there is a black border around the video (Figure 3.7), please select Keep ration to get a better visual quality (Figure3.3).

Figure 3.7

Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

25

www

m

y

www

.foscam.comm

.foscam.co

Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size.

Figure 3.8

NOTE: 1 This camera don’t support Pan/Tilt function, so here cannot allow to use Screen PTZ. 2 For Mac OS, the plugin cannot support Onscreen Mouse function, so you cannot allow to use

it.

4 Advanced Camera Settings

Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings.

4.1 Device Status

Device Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

26

m

y

4.1.1 Device Information

Figure 4.1

www

.foscam.comm

.foscam.co

Camera Name: The Device Name is a unique name that you can give to your device to help you identify it. Click Basic Settings and go to Device Name panel where you can change your camera name. The default device name is anonymous.

Camera ID: Display the MAC address of your camera. For example Device ID is 008414350787, the same MAC ID sticker is found at the bottom of the camera.

Camera Time: The system time of the device. Click Basic Settings and go to Camera Time panel and adjust the time.

System Firmware version: Display the System Firmware version of your camera. App Firmware version: Display the application firmware version of your camera. Web version: Display the web UI version of your camera Plug-in version: Display the plug-in version of your camera

4.1.2 Device Status

On this page you can see device status such as Alarm status, NTP/DDNS status, WIFI status and so on.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

27

m

y

4.1.3 Session status

Figure 4.2

www

.foscam.comm

.foscam.co

Session status will display who and which IP is visiting the camera now.

Figure 4.3

4.1.4 Log

The log record shows who and which IP address accessed or logout the camera and when.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

28

m

y

Click the page number and go to the

p

g

pag

g

pag

corres

ondin

e to see more logs

Fill in one page number, click Go button and

o to the correspondin

www

e

.foscam.comm

.foscam.co

Figure 4.4

4.2 Basic Settings

This section allows you to configure your Camera Name, Camera Time, Mail, User Accounts and Multi-Device.

4.2.1 Camera Name

Default alias is Anonymous. You can define a name for your camera here such as apple. Click

Save to save your changes. The alias name cannot contain special characters.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 4.5

Limited

29

www

m

y

www

.foscam.comm

.foscam.co

4.2.2 Camera Time

This section allows you to configure the settings of the internal system clocks for your camera.

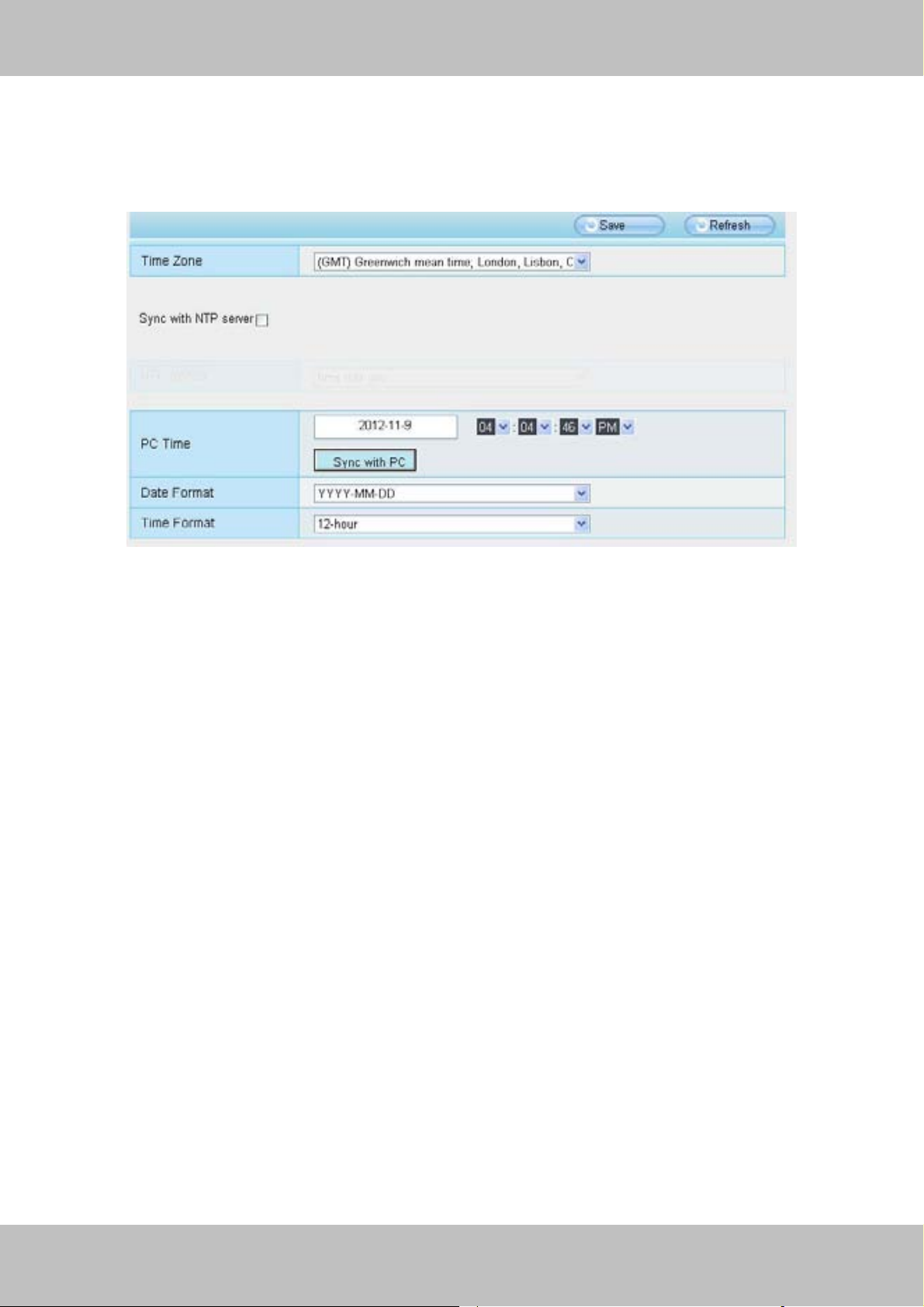

Figure 4.6

Time Zone: Select the time zone for your region from the dropdown menu.

Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet

time server. Choose the one that is closest to your camera.

Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer.

Manually: The administrator can enter the date and time manually. Please select the date and time format.

Click Save button to submit your settings.

4.2.3 Mail Settings

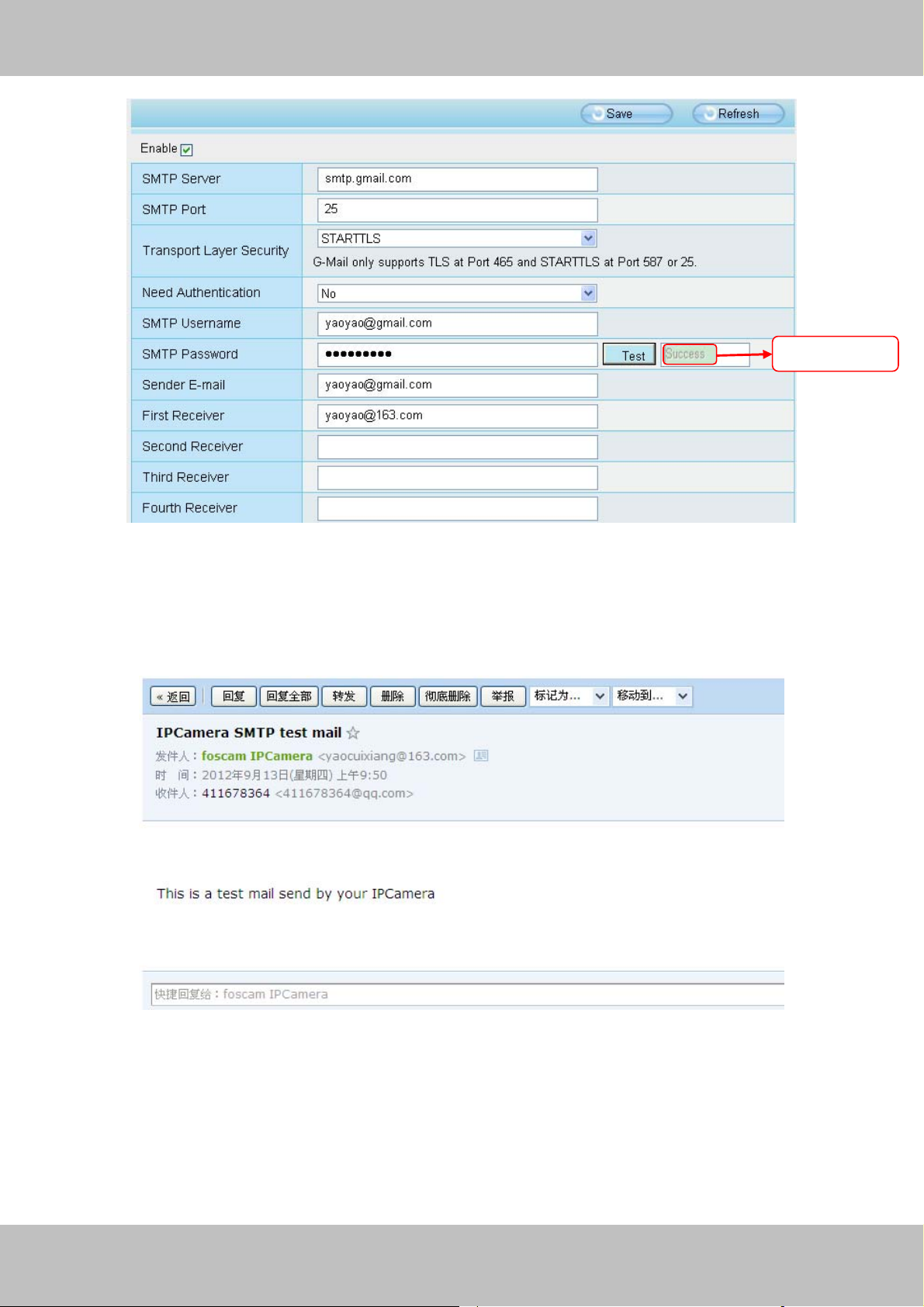

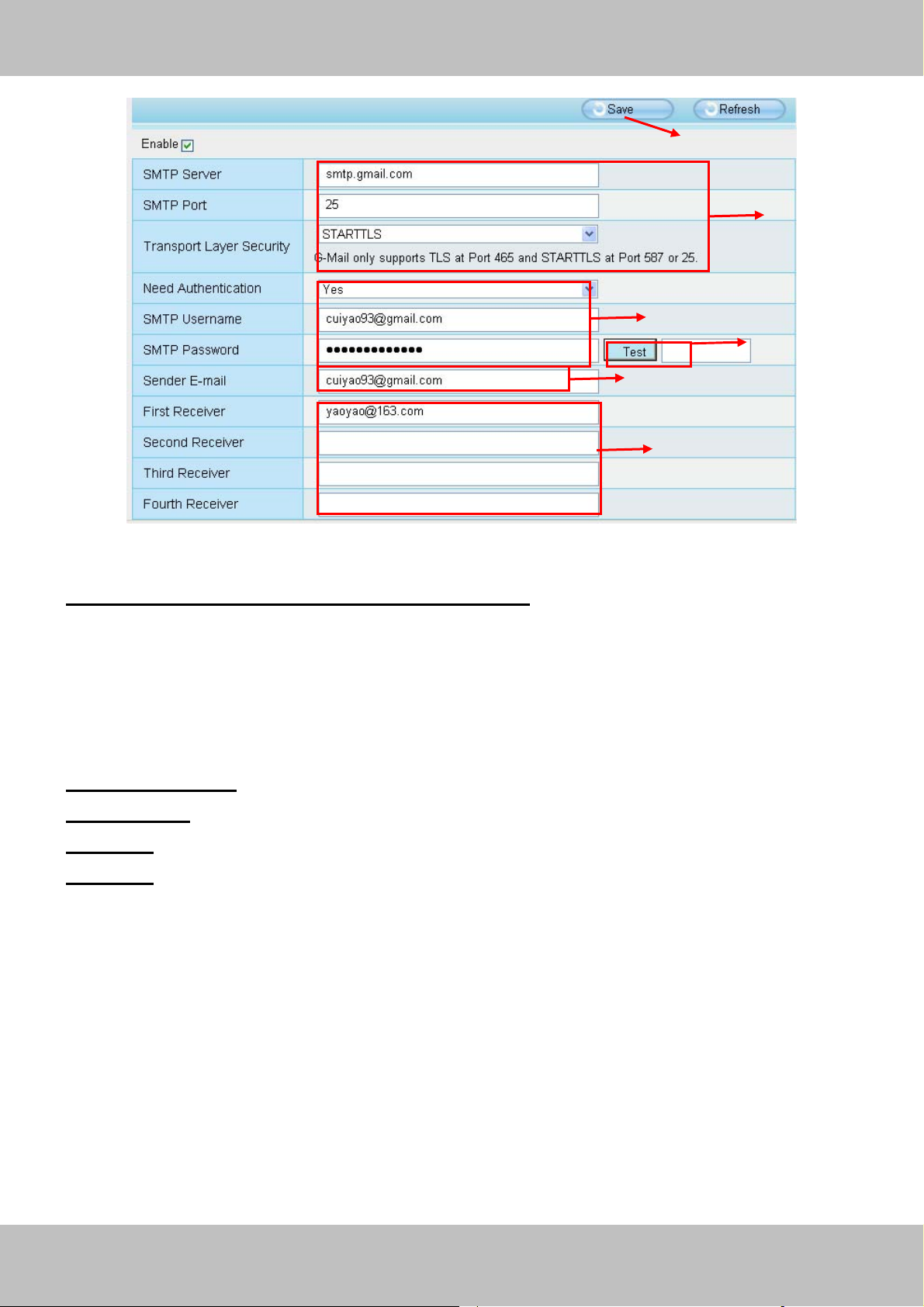

If you want the camera to send emails when motion has been detected, here Mail will need to be configured.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

30

www

m

y

www

5

.foscam.comm

.foscam.co

1

2

6

3

4

Figure 4.7

1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and

Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.

2-----SMTP Username/ password: ID account and password of the sender email address 3----- Sender E-mail Mailbox for sender must support SMTP 4----- Receiver

Mailbox for receiver need not support SMTP, you can set 4 receivers

5----Save Click Save to take effect 6----Te st

Click Test to see if Mail has been successfully configured.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

31

www

m

y

www

.foscam.comm

.foscam.co

Test result

Figure 4.8

If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail.

Figure 4.9

If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test .

1) Cannot connect to the server

2) Network Error. Please try later

3) Server Error

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

32

www

m

y

www

.foscam.comm

.foscam.co

4) Incorrect user or password

5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try again

6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server

7) The message is denied by the server. Maybe because of the anti-spam privacy of the server

8) The server does not support the authentication mode used by the device

4.2.4 UserAccounts

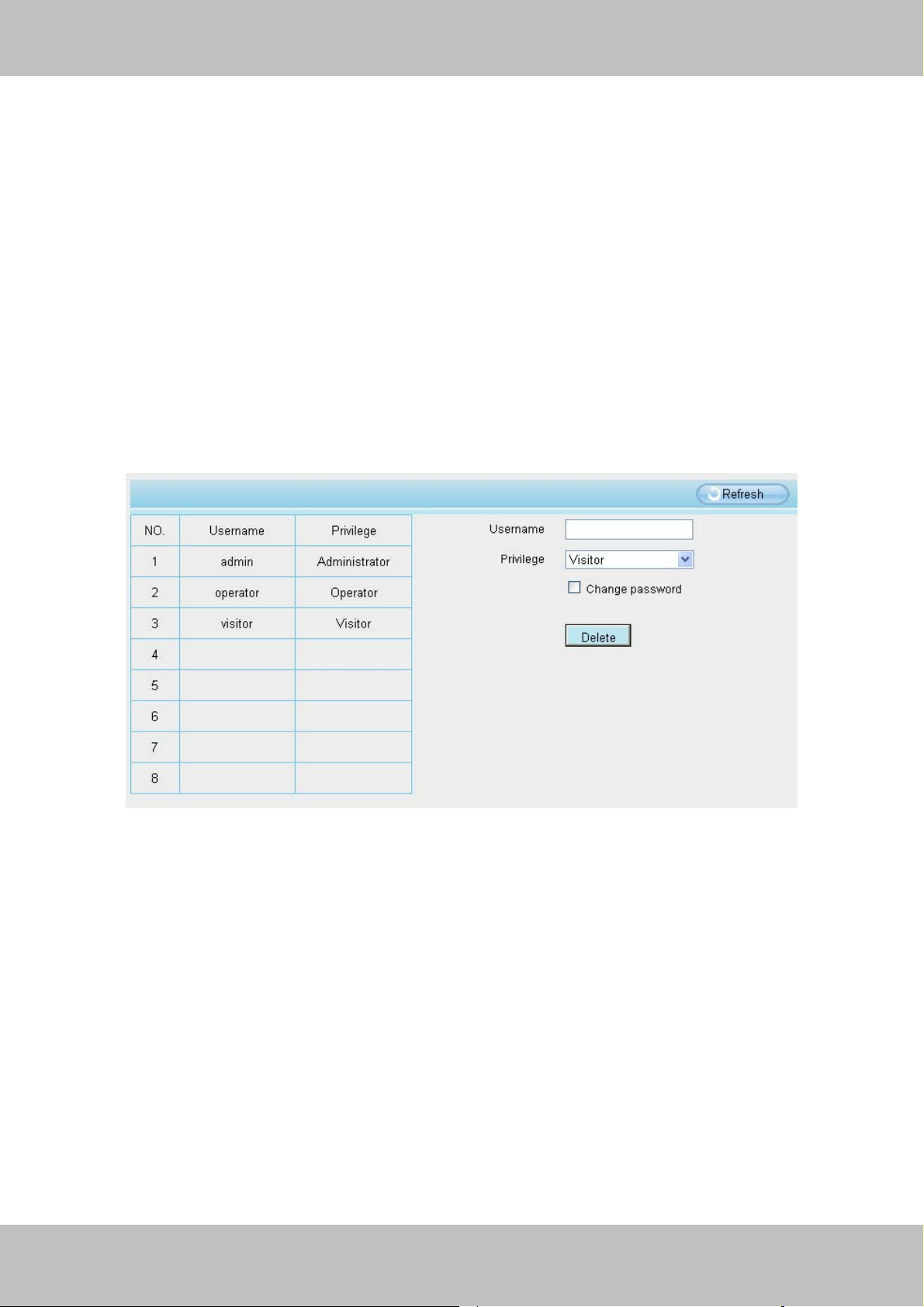

Here you can create users and set privilege, visitor, operator or administrator. The default administrator user accounts are admin with a blank password.

Figure 4.10

How to change the password?

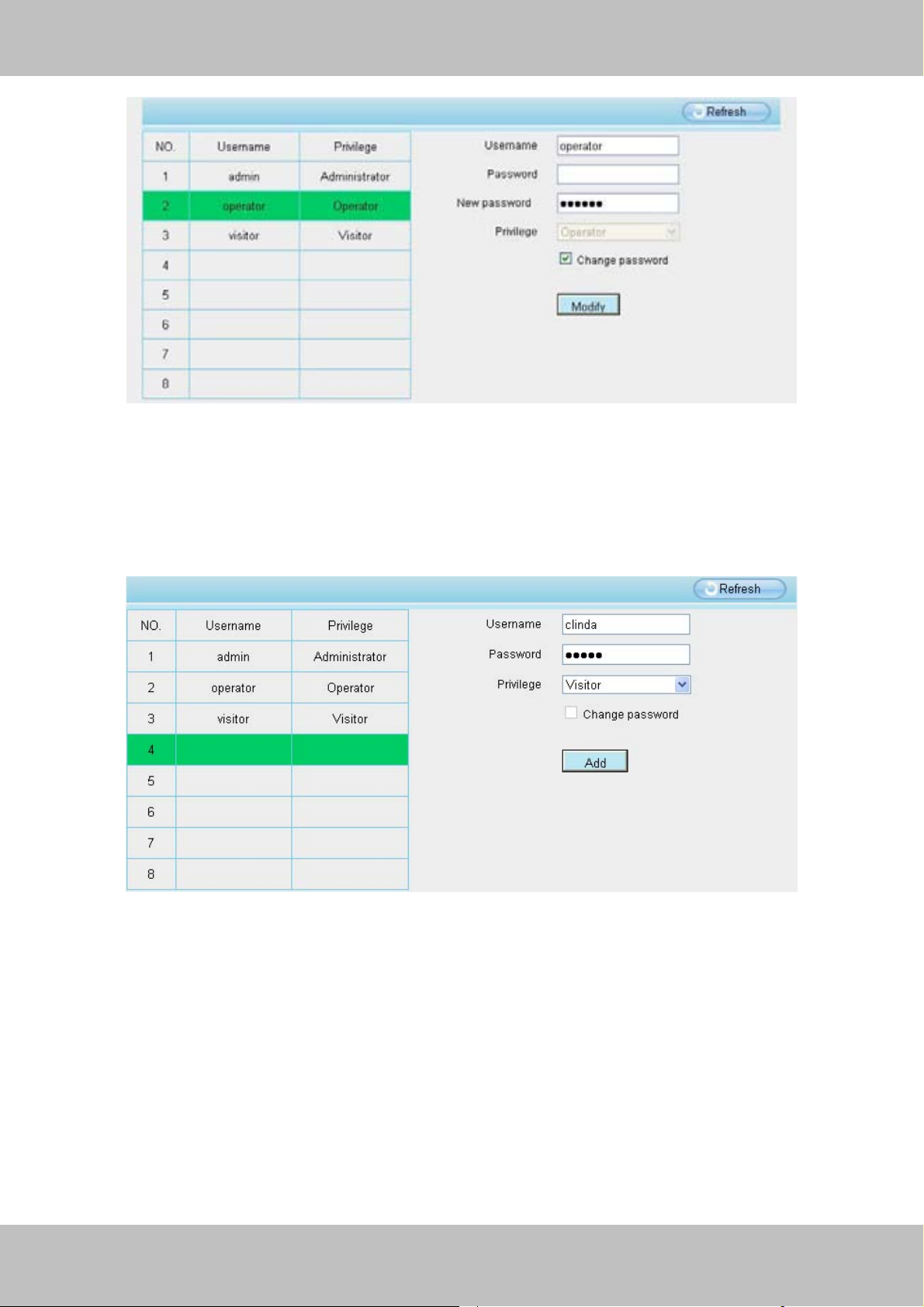

Firstly, select the account which you want to change the password, then select “Change password”, enter the old password and the new password, lastly click modify to take effect.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

33

m

y

How to add account ?

Figure 4.11

www

.foscam.comm

.foscam.co

Select one blank column, then enter the new user name, password and privilege, last click Add to take effect. You can see the new added account on the Account list.

Figure 4.12

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

34

m

y

Figure 4.13

www

.foscam.comm

.foscam.co

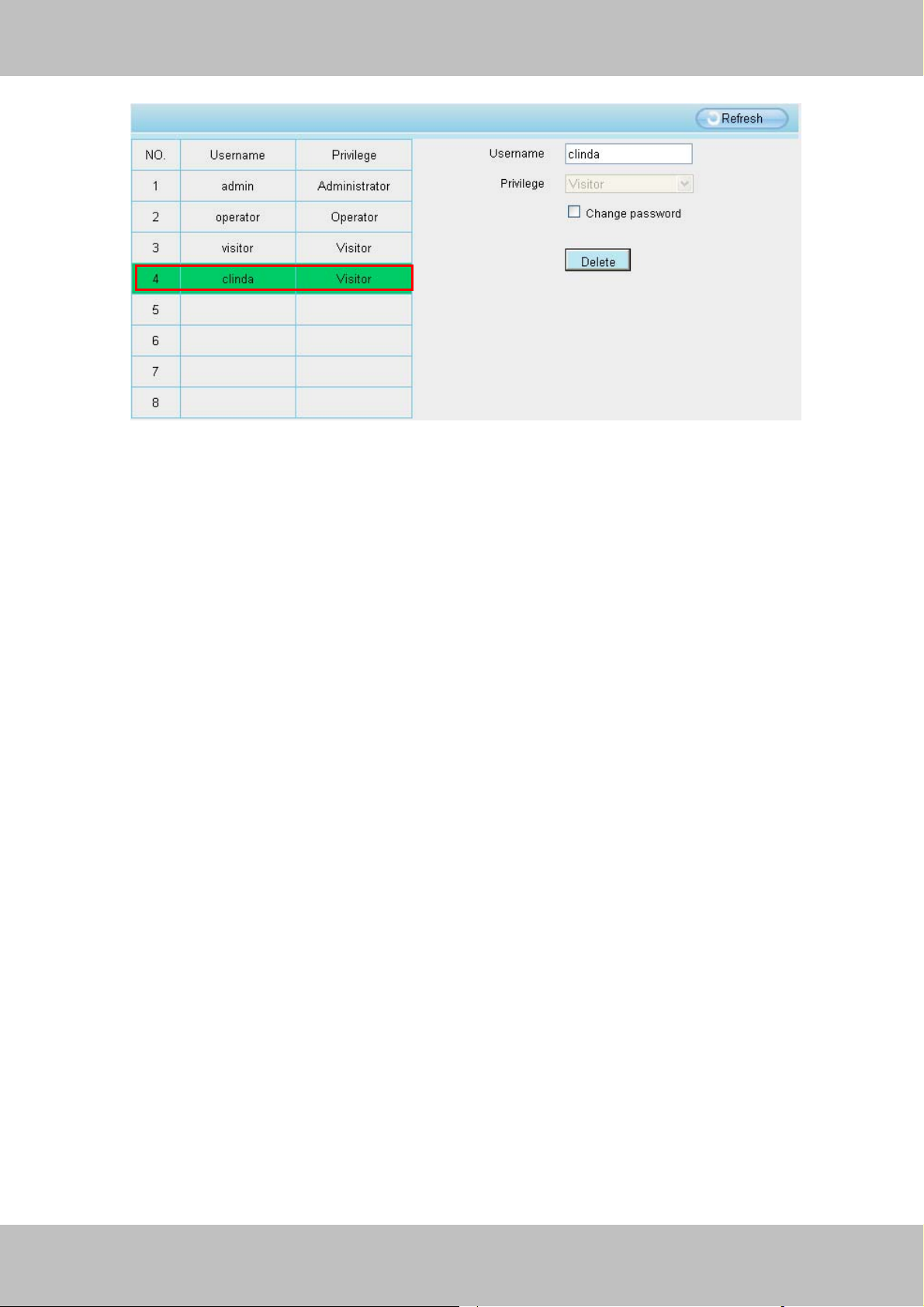

Delete Select the account which you want to delete, then click Delete button to take effect.

Note: The default administrator account cannot be deleted, but you can add other administrator

users.

4.2.5 Multi-Camera

If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if there is 8 cams installed.

The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window.

Add cameras in LAN

In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You can add more cameras in the list in LAN for monitoring. The camera’s software supports up to 9 IP Cameras online simultaneously. Click The 2nd Device and click the item in the Device List in LAN, the Alias, Host and Http Port will be filled in the boxes below automatically. Enter the correct username and password then click Add. Add more cameras in the same way.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

35

www

m

y

www

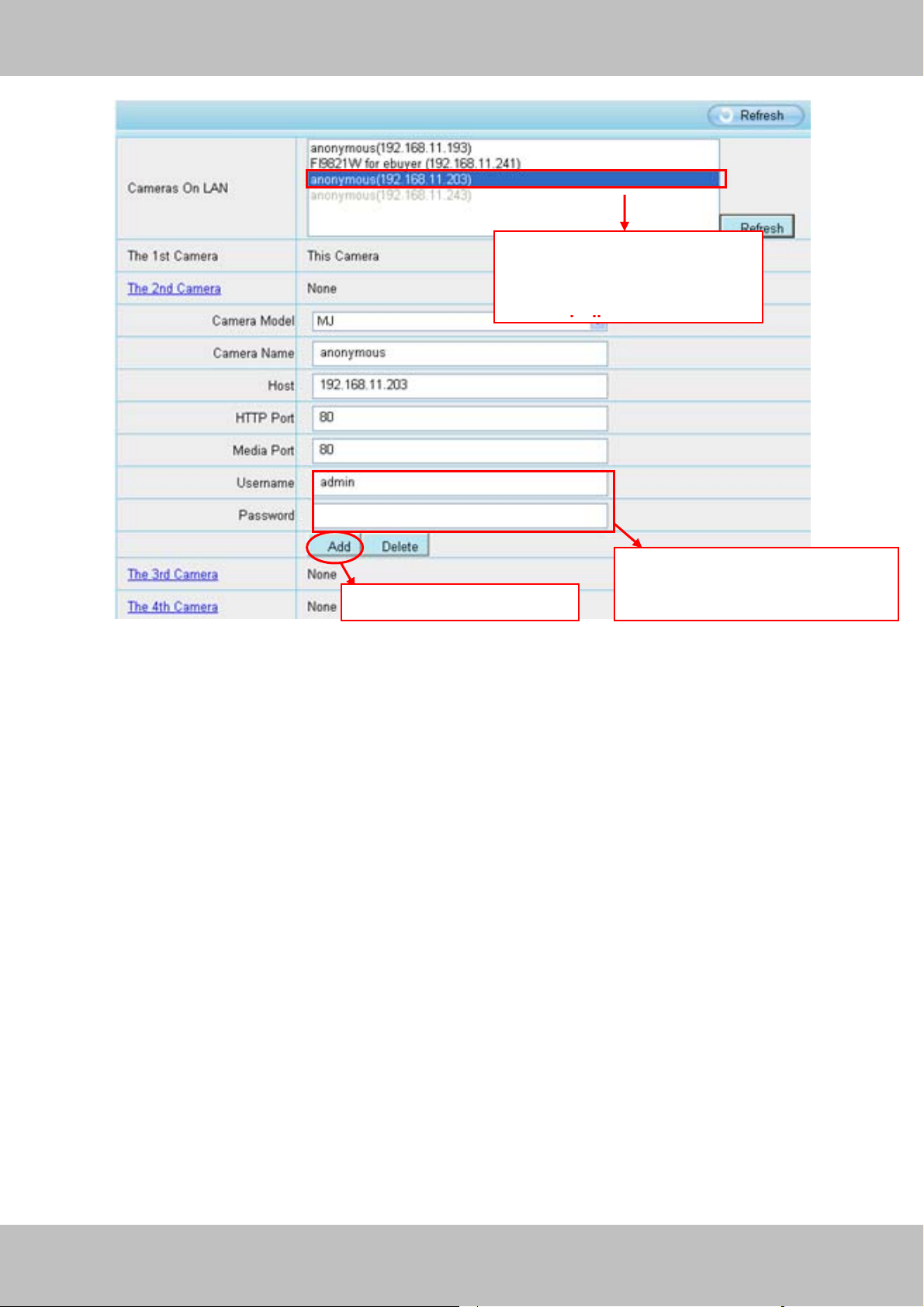

1 Click it, camera model, alias, host and HTTP Port will be filled in the following boxes

.foscam.comm

.foscam.co

2 Enter the User name and

3 Click Add to take effect

password of the 2ndcamera

Figure 4.14

Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show you which series the camera belongs to.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

36

www

m

y

www

.foscam.comm

.foscam.co

Figure 4.15 Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 4.16

Limited

37

www

m

y

www

.foscam.comm

.foscam.co

Figure 4.17

Add cameras in WAN

If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 4.3.3) Login to the first camera using a DDNS domain name and port.

Use DDNS domain name andport to login

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Make sure each camera you need add could login with DDNS name and port

Figure 4.18

Limited

38

www

m

y

www

.foscam.comm

.foscam.co

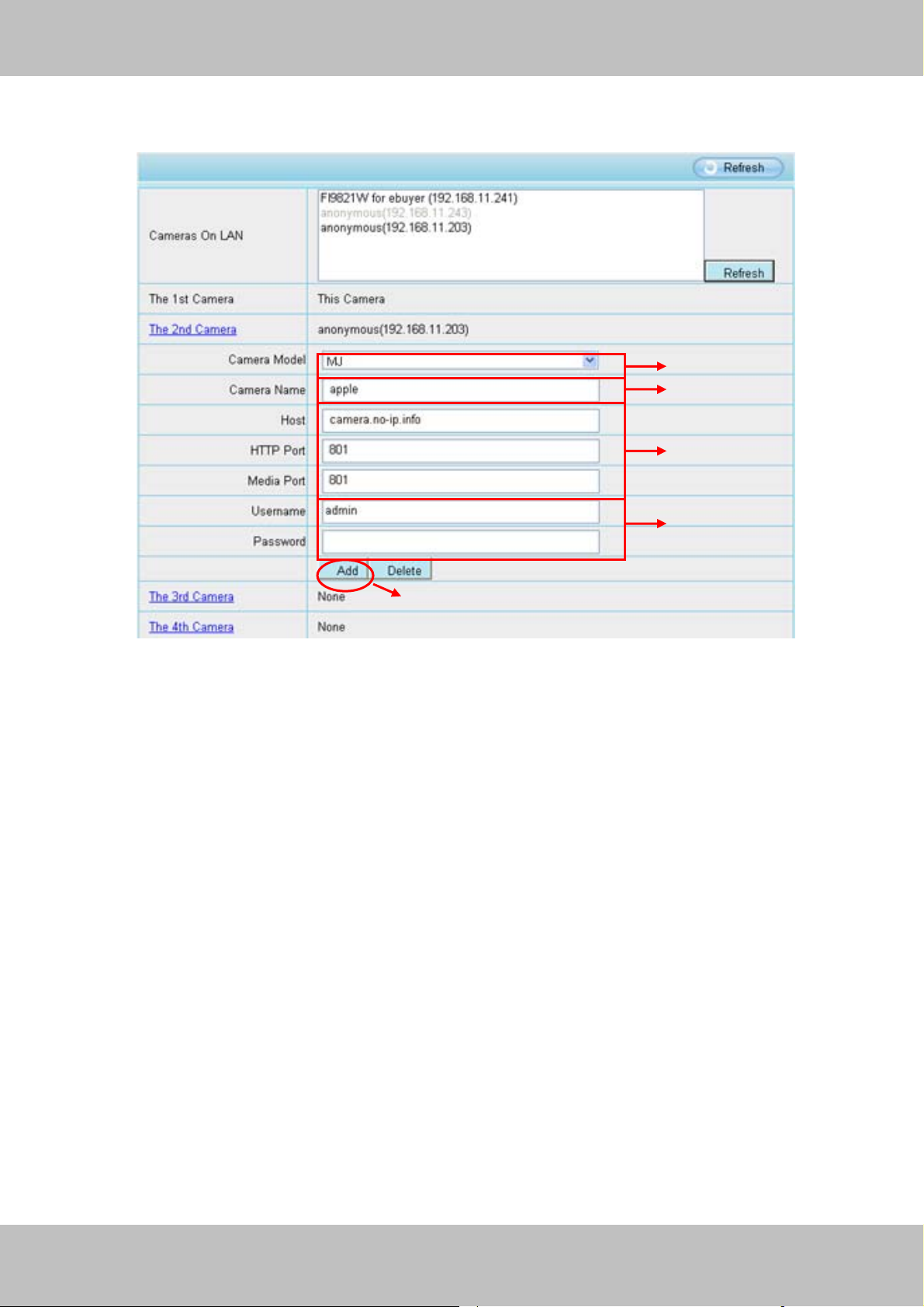

Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name, port number. Enter user name and password and then choose Add. (Figure 3.19)

1 2

3

4

5

Figure 4.19

1----- The camera model: MJ or H264. 2----- The 2nd camera’s name 3----- Fill in the 2nd camera’s DDNS host not LAN IP

NOTE: The FI89s series have the same HTTP Port no. and Media Port no.

4 ---- Enter the 2nd camera’s user name and password 5---- Click Add button and to take effect

NOTE: Here the Host must be entered as the second camera’s DDNS domain name, not its LAN IP.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

39

www

m

y

www

.foscam.comm

.foscam.co

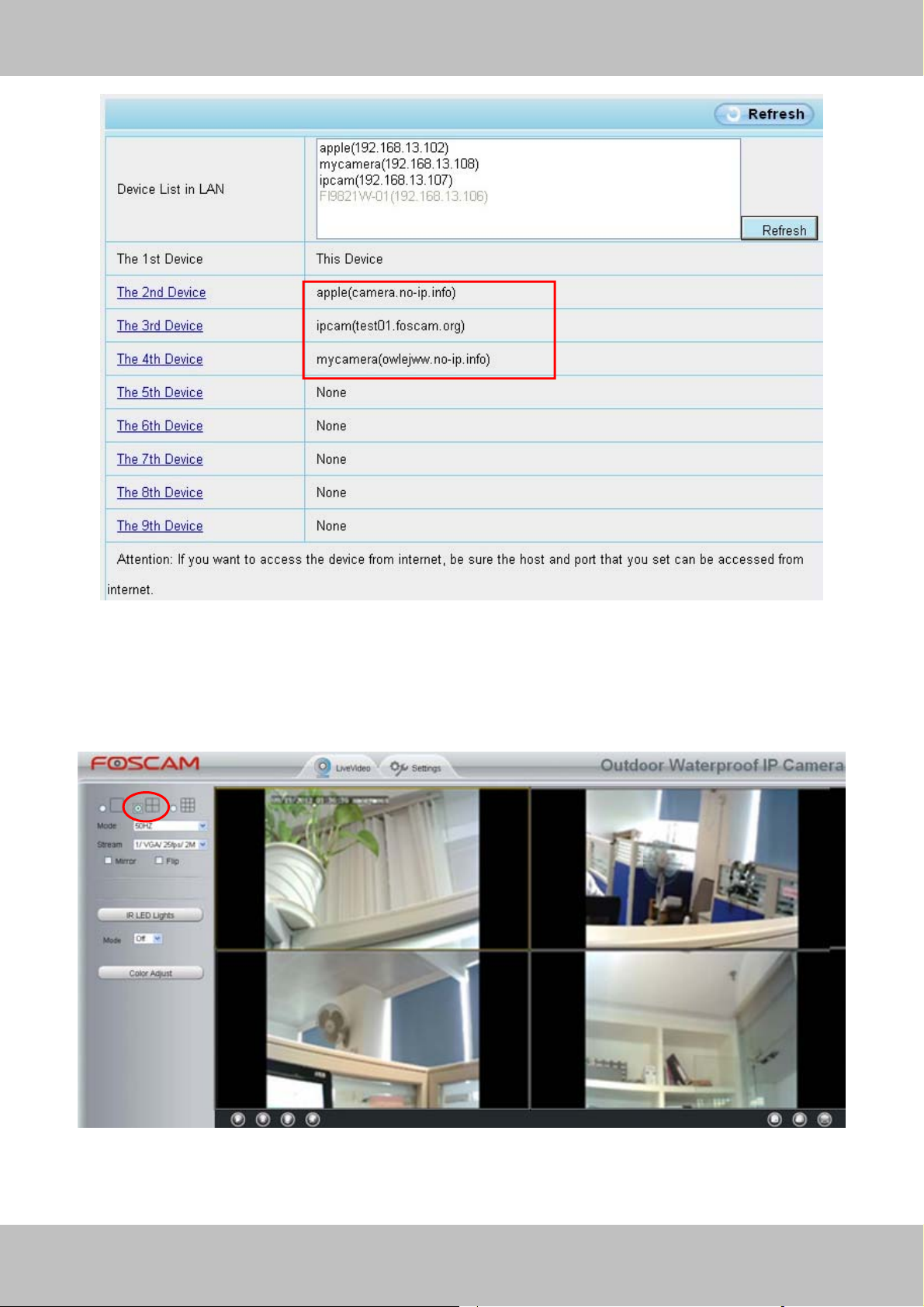

Figure 4.20

Return to video window. You will see all of the cameras accessible through the internet. When you are away from home, you can use the first camera’s DDNS domain name and port to view all the cameras via internet.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 4.21

Limited

40

www

m

y

www

.foscam.comm

.foscam.co

4.3 Network

This section will allow you to configure your camera’s IP, PPOE, DDNS, Wireless Settings, UPnP and Port.

4.3.1 IPConfiguration

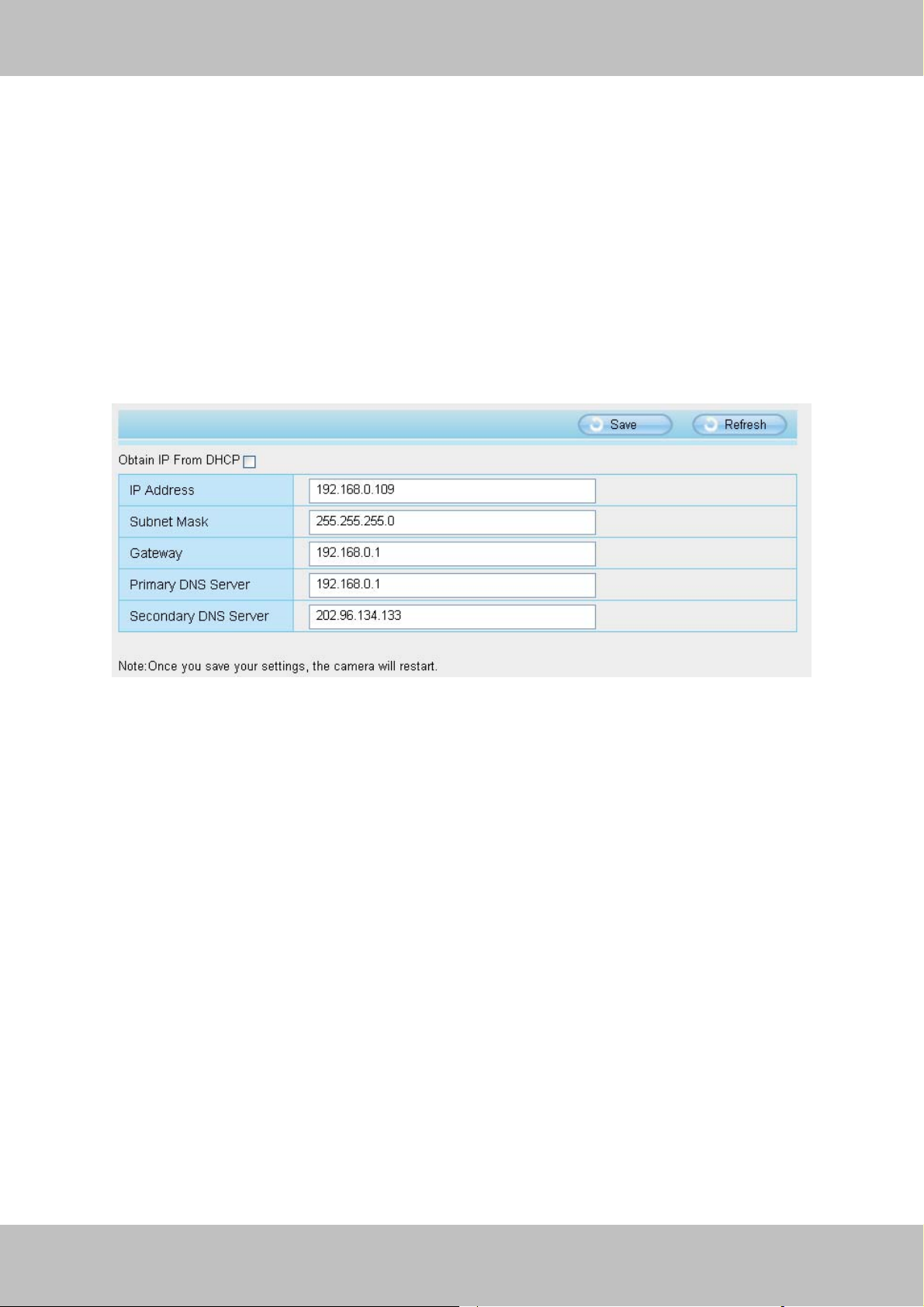

If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same subnet of your router or computer.

Figure 4.22

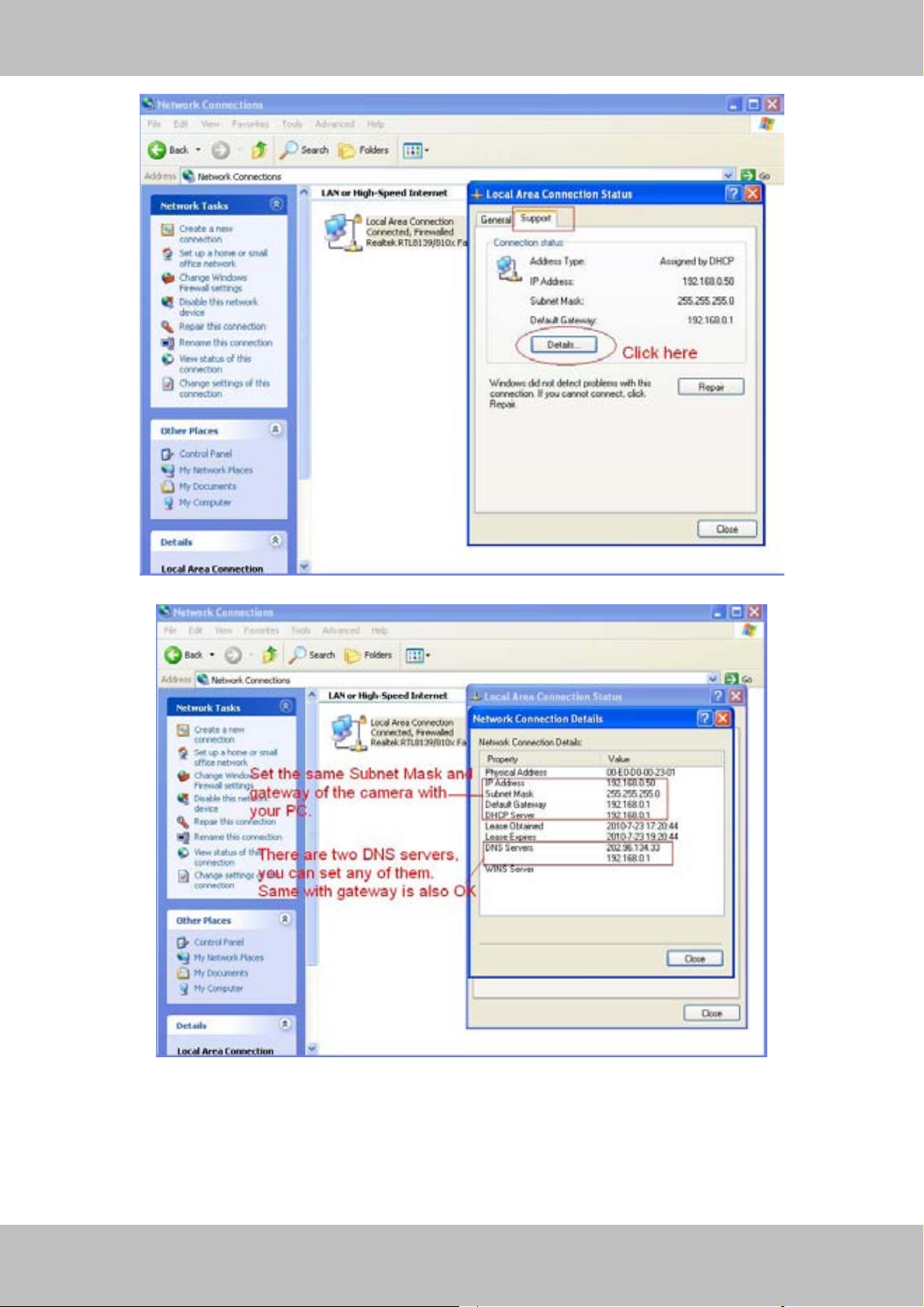

Changing settings here is the same as using the IP Camera Tool. (Figure 4.23/4.24) It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area connection as follows:

Control Panel

Æ

Network Connections

Æ

Local Area Connections

Æ

Choose

SupportÆDetails.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

41

www

m

y

www

.foscam.comm

.foscam.co

Figure 4.23

Figure 4.24 If you don’t know the DNS server, you can use the same settings as the Default Gateway.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

42

www

m

y

www

.foscam.comm

.foscam.co

4.3.2 PPPoE

If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account.

Figure 4.25

4.3.3 DDNS

FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name.

FOSCAM domain name

Here take test09.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you can see the domain name.

Figure 4.26

Now you can use http:// Domain name + HTTP Port to access the camera via internet. Take hostname test09.myfoscam.org and HTTP Port no. 8000 for example, the accessing link of the camera via internet would be http:// test09.myfoscam.org:8000

Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

43

www

m

y

www

.foscam.comm

.foscam.co

to use Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.

Third Party Domain Name Settings

User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com

Here take www.no-ip.com for example:

Step 1, Go to the website www.no-ip.com to create a free hostname

①

Firstly: Login on www.no-ip.com and click No-IP Free to register.

Click here to register

Figure 4.27

Please register an account step by step according to instructions on www.no-ip.com

After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email.

Secondly: Login the link with the registered username and password to create your domain name.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

Intelligent

5668

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

44

www

m

y

www

.foscam.comm

.foscam.co

Figure 4.28

Figure 4.29

Please create the domain name step by step according to instructions on www.no-ip.com

Step 2, DO DDNS Service Settings within the Camera

Please set DDNS Settings within the camera by hostname,auser name and password you’ve got from www.no-ip.com Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

45

www

m

y

www

.foscam.comm

.foscam.co

Firstly, goes to option of DDNS Settings on the administrator panel.

Secondly, select No-Ip as a server.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The

camera will restart and to take the DDNS settings effective.

Fourthly

, after the restart, login the camera, and go to option of Device Status on the

administrator panel, and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.

Note

If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.

② Do port forwarding within the router Example: The camera’s LAN IP address is http://192.168.8.100:2000

Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server on some brands of router). Take Linksys brand router as an example, Login the router, and goes to Applications & Gaming->Single Port Forwarding.

Secondly,

Create a new column by LAN IP address & HTTP Port No. of the camera within the

router showed as below.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

46

www

m

y

www

Fill the LAN IP of the camera here, just input the last section

.foscam.comm

.foscam.co

Figure 4.30

③ Use domain name to access the camera via internet

After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000for example, the accessing link of the camera via internet would be http:// ycxgwp.no-ip.info:2000

4.3.4WiFi

Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left side of the screen, then click “Wireless Settings.” Click the Scan button and the camera will detect all wireless networks around the area. It should

also display your router in the list (Figure 4.31).

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

47

m

y

Click the Scan button to search for wireless networks.

www

.foscam.comm

.foscam.co

Click the Page number to see other wireless networks devices if there are more than 10.

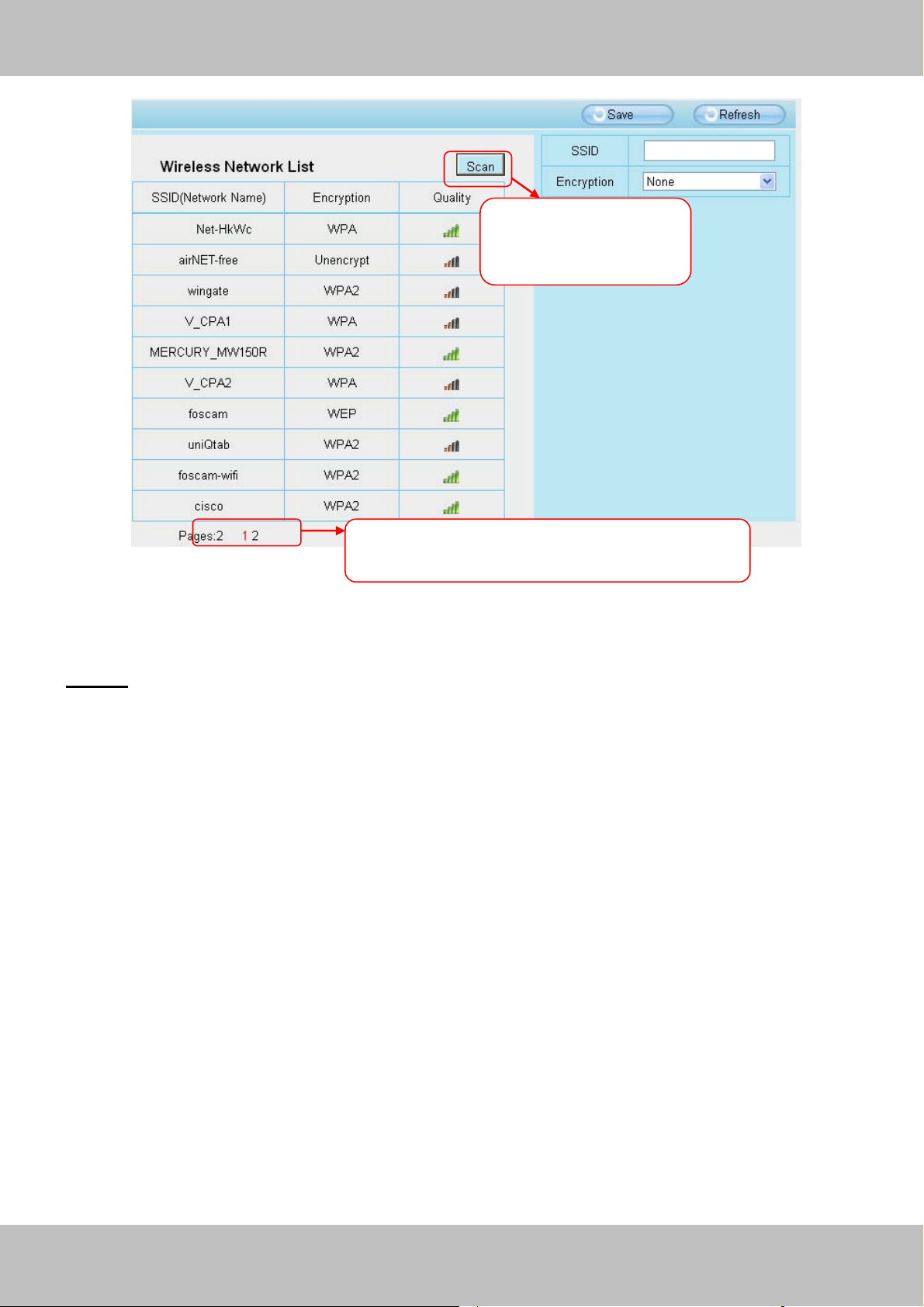

Figure 4.31

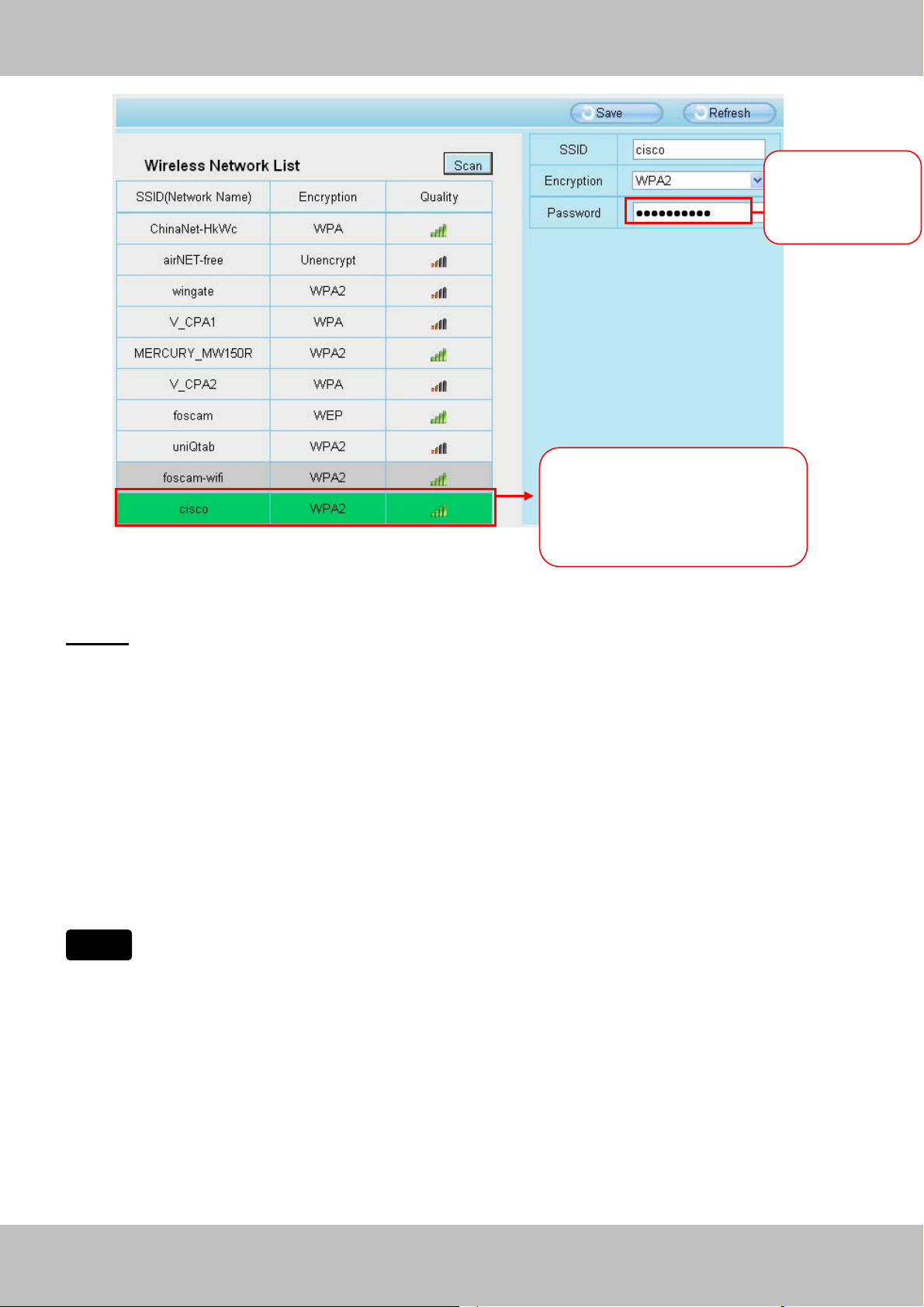

Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network, such as the name and the encryption, will be filled into the relevant fields automatically.

You will only need to fill in the password of your network. Make sure that the SSID, Encryption and the password you filled in are exactly the same for your router.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

48

www

m

y

www

1 Click the SSID of your router and the relevant information will be filled in the fields automatically.

.foscam.comm

.foscam.co

2Enterthe password of your router

Figure 4.32

Step 3: Please click on the Save button after all settings have been entered and disconnect the network cable. Never shut down the power of the camera until the IP camera is able to connect to the wireless network.

The LAN IP address will disappear on the window of IP Camera Tool when the camera is configuring a wireless connection. Wait about 1 minute, the camera should obtain a wireless connection, and the LAN IP of the camera will show again on the window of the IP Camera Tool. The IP address may have changed after the camera receives a wireless connection; we recommend setting a static local IP address if this IP address changes by right clicking the camera in IP Camera Tools, setting a static IP, and pushing OK (see Figure3.35/3.36). Congratulations! You have set up the wireless connection of the camera successfully.

Note

If you fail to make a wireless connection, please refer to your seller or contact us directly for assistance.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

49

www

m

y

www

.foscam.comm

.foscam.co

4.3.5 UPnP

The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for port forwarding. Back to the “Device Status” panel, you can see the UPnP status:

Figure 4.33 The camera’s software will be configured for port forwarding. There may be issues with your routers security settings, and sometimes may error. We recommend you configure port forwarding manually on your router (Figure 4.30).

4.3.6 Port

This camera supports HTTP Port / Media Port / HTTPS Port. The Media port is used to view the camera’s video stream, HTTP Port is used to access the camera remotely. Here HTTP and Media port share the same port.

HTTP port / Media port: By default, the HTTP and Media port is set to 88. Also, they can be assigned with another port number between 1 and 65535. But make sure they canl not be conflict with other existing ports like 25, 21.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 4.34

Limited

50

m

y

Another way to change the HTTP port no.

p

www

.foscam.comm

.foscam.co

Step 1:

Open the IP Camera Tool, select the camera you would like to change the port of, right

click on the IP address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure 4.35 and 4.36.

Select which camera you’d like to change the port for, and right click

Figure 4.35

Modify the Http Port.

Enter the Username and

assword,click OK.

Figure 4.36

Step 2:

Enter the username and password of the Administrator (default username is admin with

a blank password), and click “OK” to apply changes.

Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In

our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

51

www

m

y

www

.foscam.comm

.foscam.co

on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!

Note: 1 Http port and Media port must be different.

2 If the camera cannot be accessed, please make sure the port forwarding is succeed.

HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port.

Sometimes you need to add the url to the Trusted Sites,

Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.

Next, click the Security tab, then click the Trusted sites button.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

52

www

m

y

www

.foscam.comm

.foscam.co

RTSP function

RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream

The part in the square brackets may be omitted.

user name & password:

The user name and password to access the camera. This part can be omitted.

IP:

WAN or LAN IP address.

Videostream:

Here support three mode: videoMain, videoSub and audio. When the network speed is bad, here

you had better select videoSub. If you select audio, you can only hear the sound but cannot see the video.

For example:

IP: 192.168.1.11

HTTP Port number: 88 User name: admin

Password: 123

Here I can enter one of the following URLs in the VLC.

5) rtsp://admin:[email protected]:88/videoMain

6) rtsp:// @192.168.1.11:88/videoMain

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

53

www

m

y

www

.foscam.comm

.foscam.co

7) rtsp://:[email protected]:88/videoMain

8) rtsp://[email protected]:88/videoMain

Open the VLC, and go to MediaÆOpen Network Stream option, then enter the URL into VLC.

Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

54

www

m

y

www

.foscam.comm

.foscam.co

If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding.

NOTE:

If you modify the camera’s username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

55

www

m

y

www

.foscam.comm

.foscam.co

4.4 Video

This section allows you to configure Video stream settings, On screen display and Snapshot settings.

4.4.1 Settings

Figure 4.37

Stream type: There are four types to identify different streams you have set.

Resolution: The camera supports two types: 720P, VGA. The higher the resolution is, the

clearer video will become. But the code flux will become larger too, and it will take up more bandwidth.

Bit rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video can not play well.

Frame rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video.

Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the more likely you will get a better video quality, but at the cost of higher network bandwidth consumption.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

56

www

m

y

ea

www

.foscam.comm

.foscam.co

4.4.2 On Screen Display

This page is used to add timestamp and device name on the video.

Figure 4.38

Display timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the video,

Display device name: There are two options: Yes or NO. Select Yes and you can see the device name on the video,

Allow osd mask: There are two options: Yes or NO. Select yes and draw a mask area on the video, the mask area will be black on the video.

Themaskar

Shenzhen

Tel:8686

Tel:

Figure 4.39

Click Back button and return to the OSD page, click Save to take effect. Back to the surveillance window, you can see the mask area as the following picture:

755

Fosca

Foscam

2674

Intelligent

5668

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

57

www

m

y

www

.foscam.comm

.foscam.co

Figure 4.40

4.4.3 Snapshot Settings

On this page you can set the snapshot pictures’ image quality and the storage path.

Figure 4.41

Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer.

Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap

pictures to the FTP automatically.

4.5 Alarm

IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or upload images to FTP.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

58

www

m

y

www

.foscam.comm

.foscam.co

1

7 2 3

4

5

6

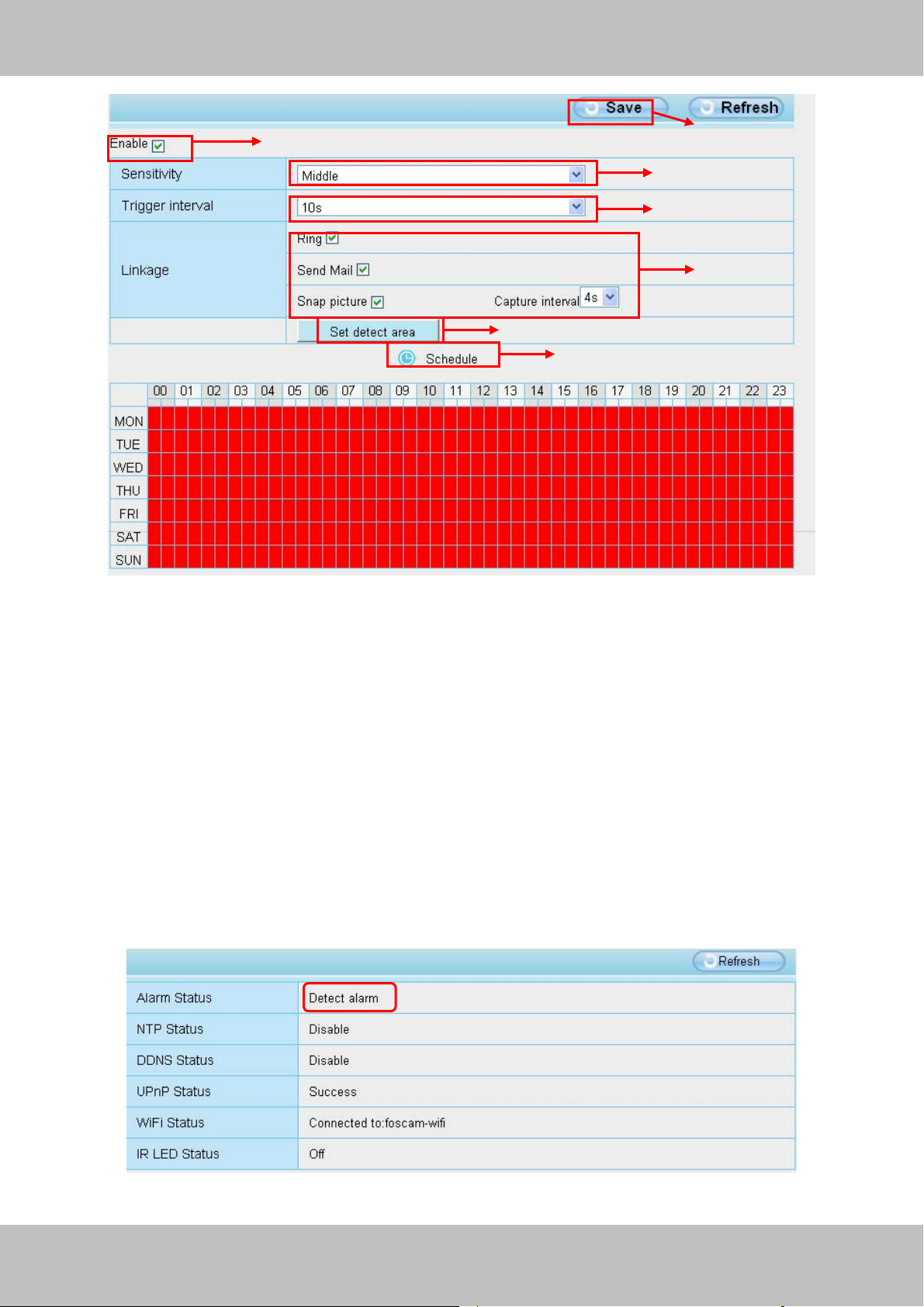

Figure 4.42

To enable motion detection, follow the steps below:

1 Enable Motion detection

2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the

camera will be more easily alarmed. Select one motion sensitivity.

3 Trigger interval--- The interval time between two motion detections. Here supports

5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.

4 Select the alarm indicators

When the motion has been detected, the alarm status will turn to Detect alarm.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

59

www

m

y

www

.foscam.comm

.foscam.co

There are three alarm indicators:

ARing

If the camera has connected with a speaker or other audio output device, if you select Ring, when the motion has been detected, the people around the camera will hear beep alarm sound.

B Send Mail

If you want to receive alarm emails when motion is detected, you must select Send Mail and set

Mail Settings first. The alarm email cannot contain the alarm picture if you have not selected Snap picture.

CSnappicture

If you select this checkbox, when the motion has been detected, the camera will snap the live view window as a still picture and load it to the FTP. If you select Send Email, at the same time the picture will be send to you as an attachment. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot Settings panel.

Capture interval: The interval time between two pictures.

5 Set detect area

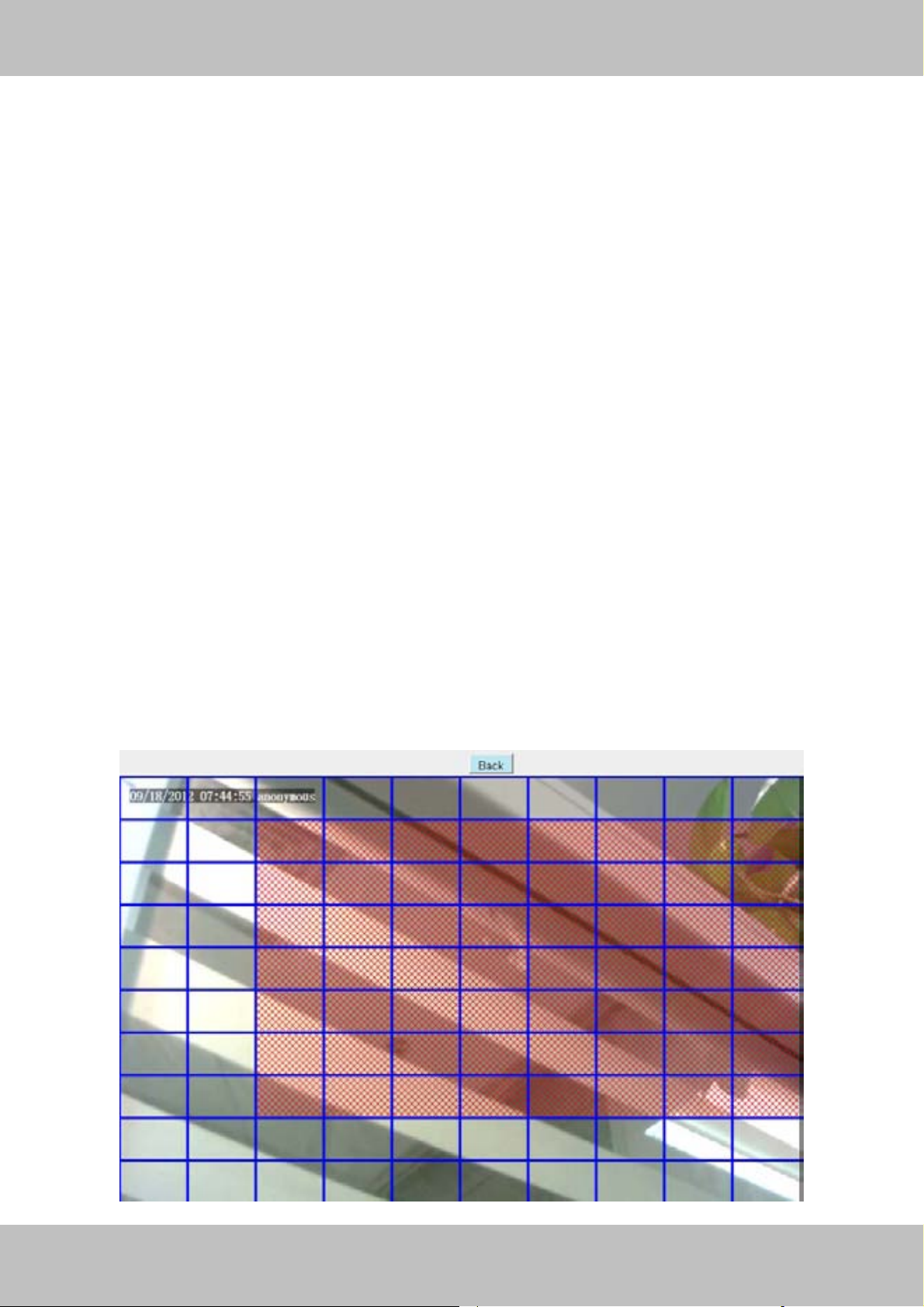

Click set detect area and it pop up a window, then you can draw the detection area. Click Back button after settings. When something moving in the detection area, the camera will alarm.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

60

www

m

y

www

.foscam.comm

.foscam.co

Figure 4.43

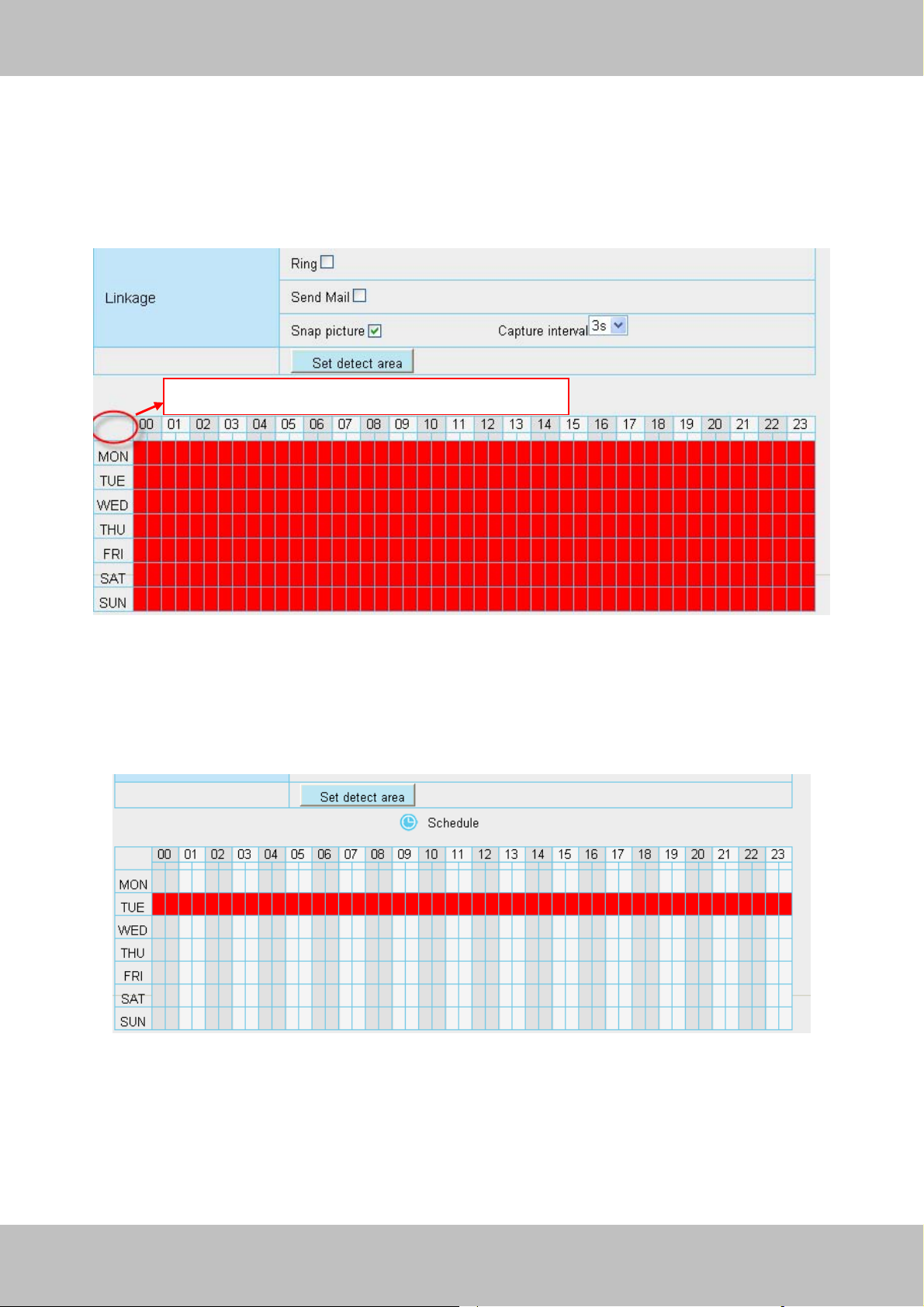

6AlarmSchedule

Alarm anytime when motion is detected

①

Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will alarm.

Click this button and select all time range

Figure 4.44

Specify an alarm schedule

②

Click the week day words, the corresponding column will be selected. For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm

.

Figure 4.45

Press the left mouse and drag it on the time boxes, you can select the serial area,

③

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

61

www

m

y

www

.foscam.comm

.foscam.co

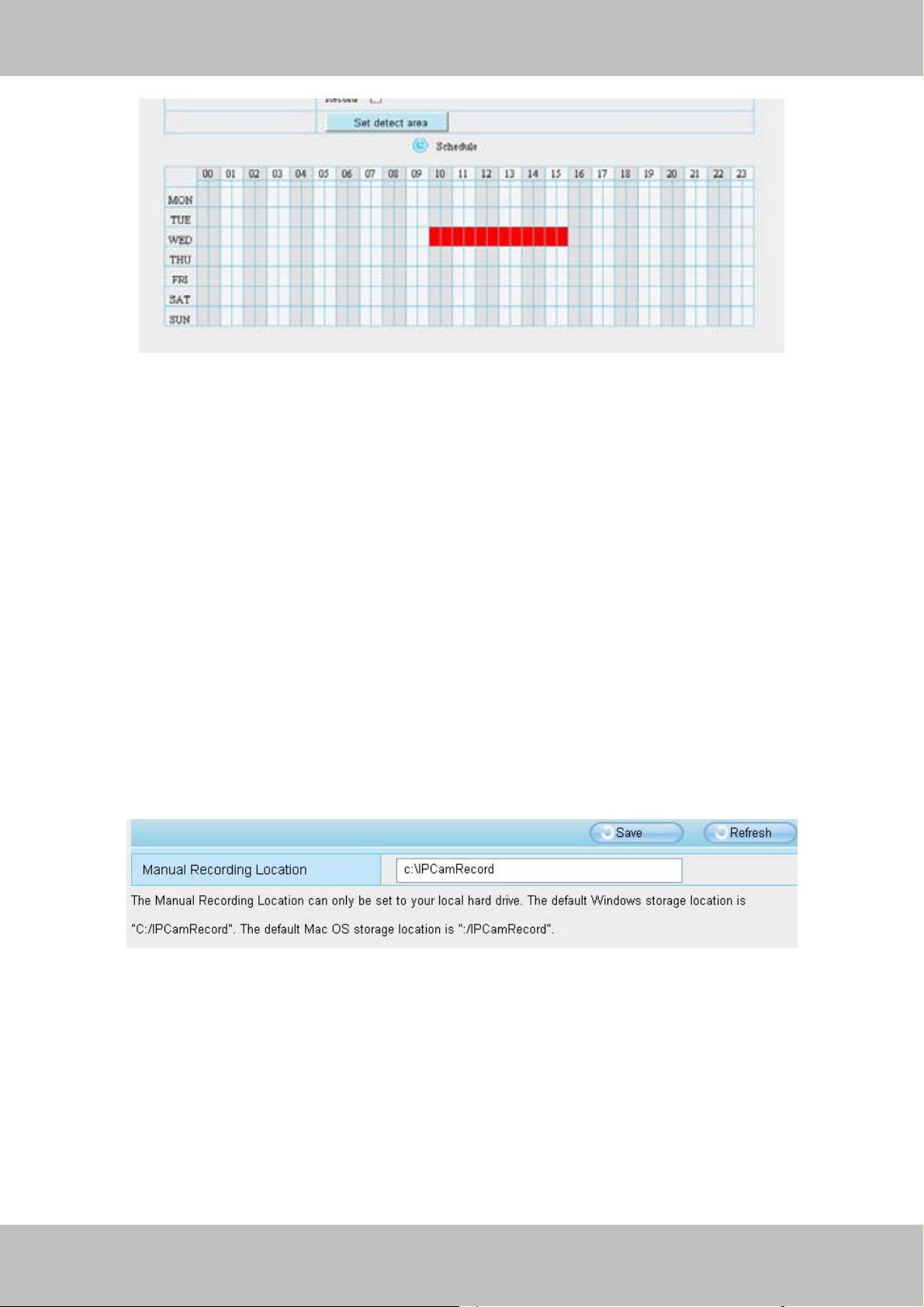

Figure 4.46

7 Click Save button to take effect. When the motion is detected during the detection time in the

detection area, the camera will alarm and adopt the corresponding alarm indicators.

NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.

4.6 Record

On this page you can change the manually recording storage path, the default storage path is C:\IPCamRecord.

Figure 4.47

4.7 Path Settings

If you want to upload record images to your FTP server，you can set FTP Settings.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

62

m

y

Figure 4.48

www

.foscam.comm

.foscam.co

Figure 4.49

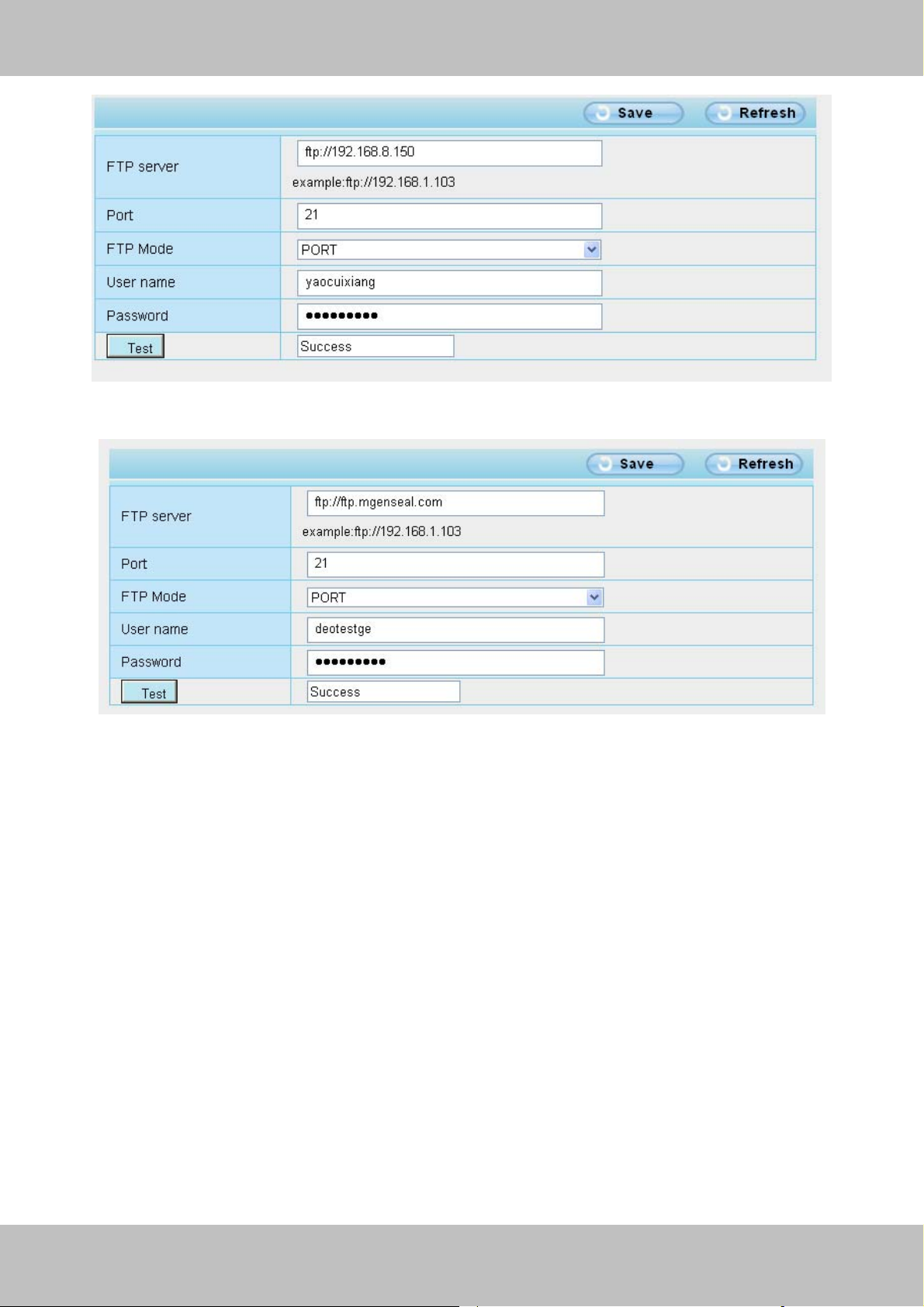

FTP server: If your FTP server is located on the LAN, you can set as Figure 4.48. If you have an FTP server which you can access on the internet, you can set as Figure 4.49.

Port: Default is port 21. If changed, external FTP client program must change the server connection port accordingly.

FTP Mode: Here supports two modes: PORT and PASV.

Username/password: The FTP account and password.

Click Save to take effect. Click Test to see if FTP has been successfully configured.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

63

www

m

y

www

.foscam.comm

.foscam.co

4.8 Firewall

This section explains how to control the access permission by checking the client PC’s IP addresses. It is composed of the following columns: Block access from these IP addresses and Only allow access from these IP addresses.

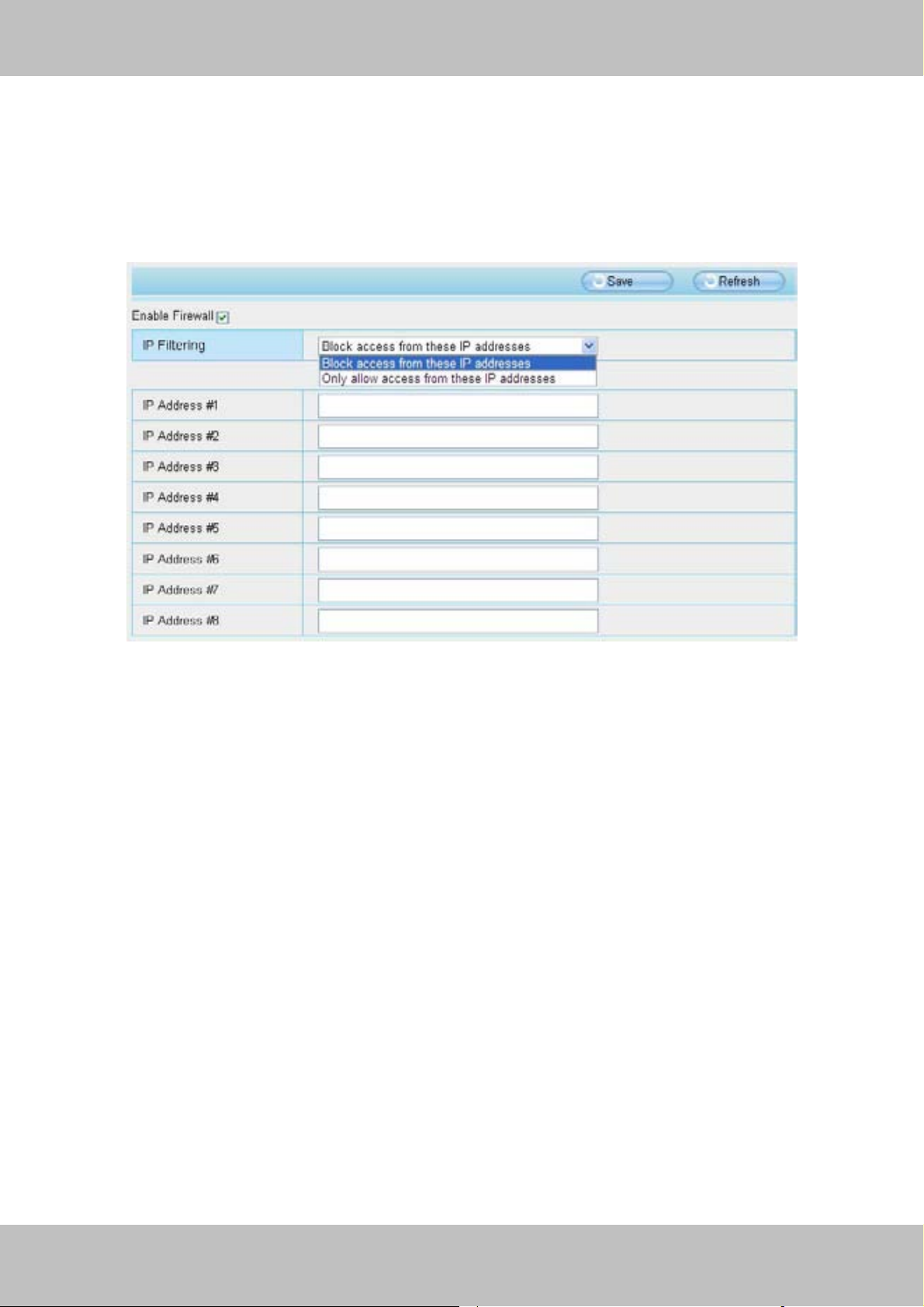

Figure 4.50

Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses at most, only those clients whose IP addresses listed in the Only allow access from these IP

addresses can access the Network Camera. If you select Block access from these IP addresses, only those clients whose IP addresses are in the IP list cannot access the Network

Camera.

Click Save to take effect.

4.9 System

In this panel, you can back up/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device.

4.9.1 Back up& Restore settings

Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future use.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

64

www

m

y

www

.foscam.comm

.foscam.co

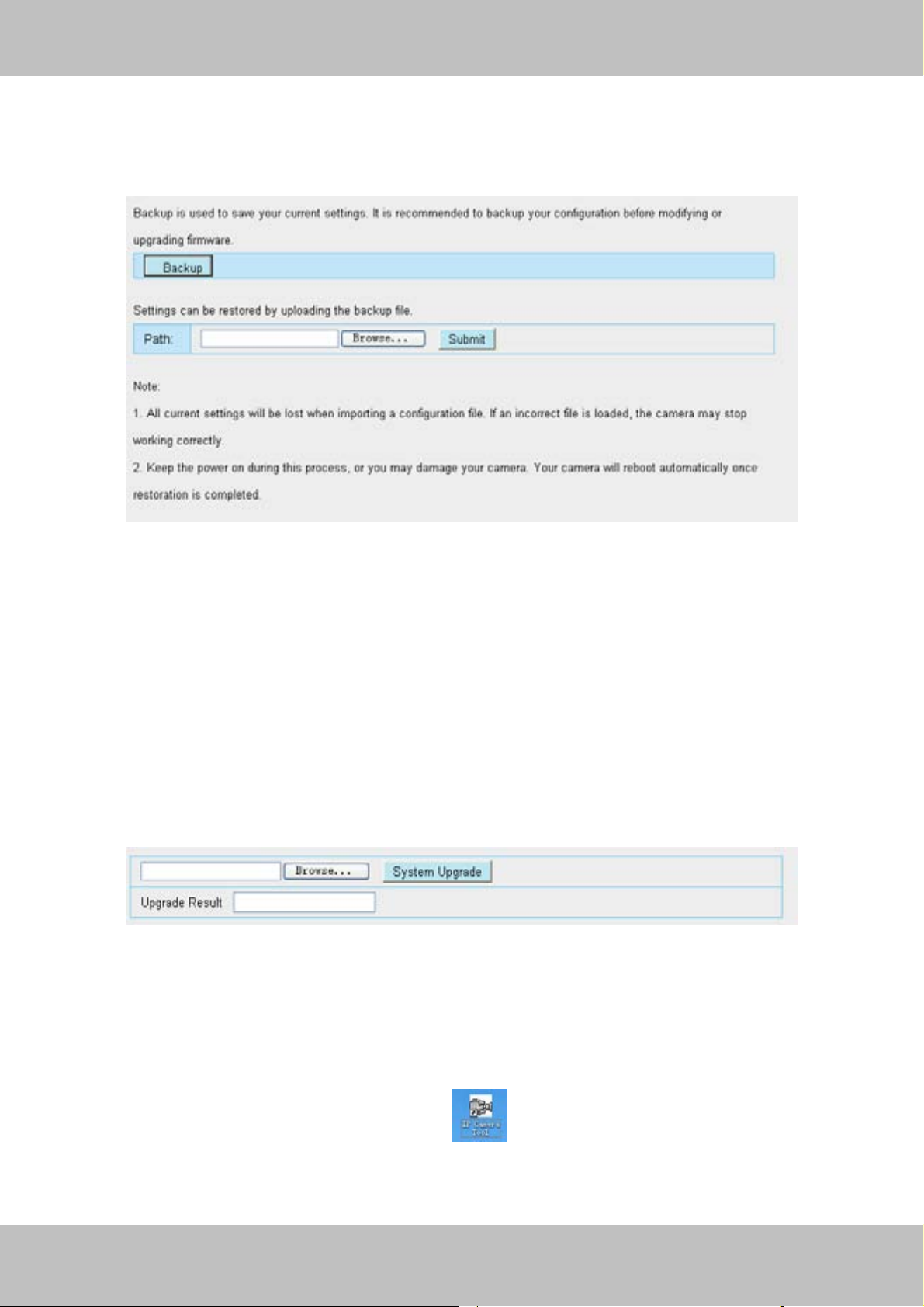

Click Browse and select the parameters file you have stored, then click Submit to restore the restore the parameters.

Figure 4.51

4.9.2 System upgrade

Click Browse, choose the correct bin file( System firmware or Web UI) and then click System upgrade.

Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result.

Figure 4.52

If you want to verify the firmware version of you camera, please go to Device Status-ÆDevice Information Page to check

Upgrade Firmware by IP Camera Tool

Double click the IP Camera Tool shot icon , select the Camera IP that you want to upgrade the firmware. Then select Upgrade Firmware and enter the username and password,

choose the firmware file, and upgrade.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

65

m

y

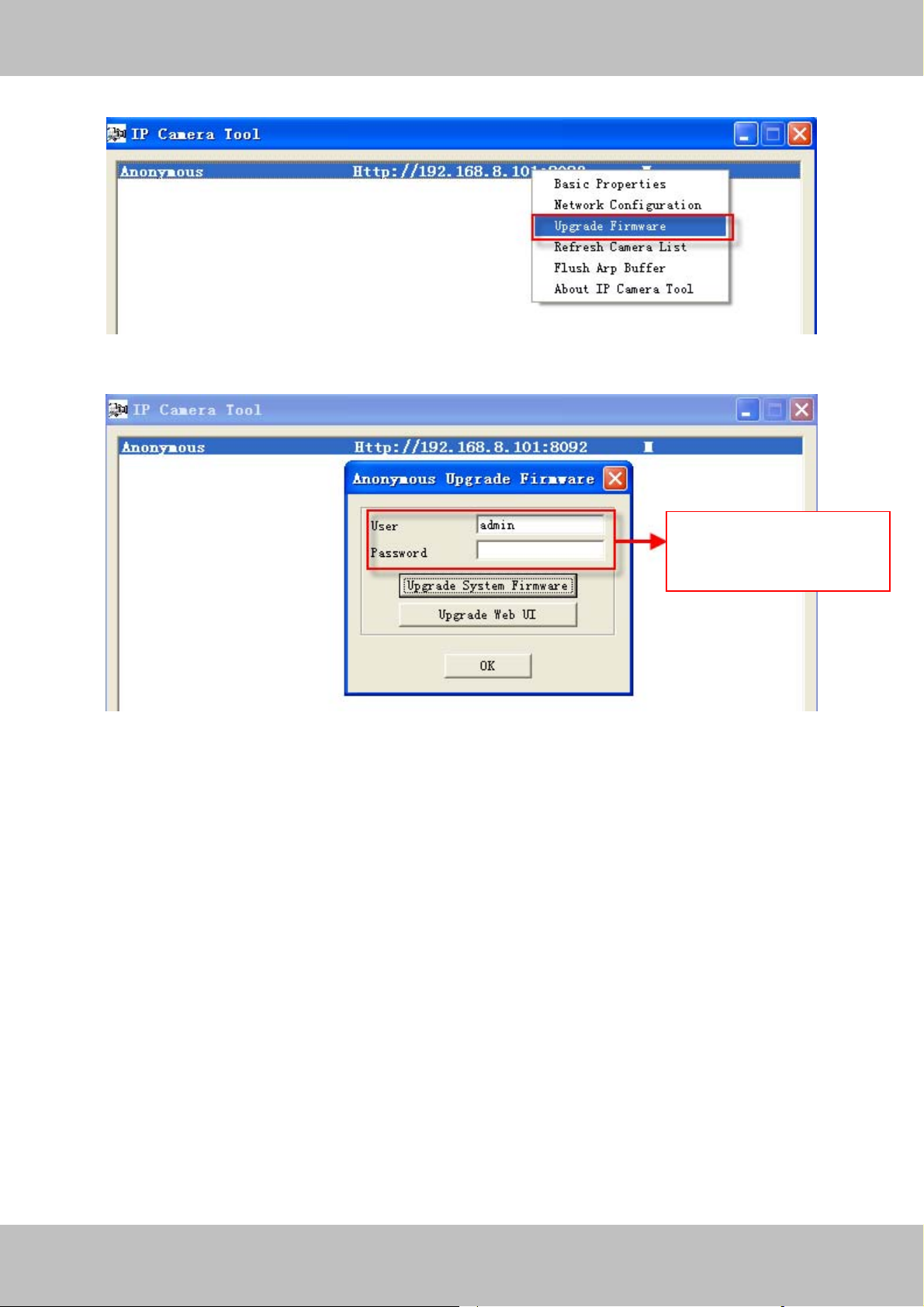

Figure 4.53

www

.foscam.comm

.foscam.co

Enter the User name and password

Figure 4.54

CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don’t upgrade the firmware unnecessarily. Your camera may be damaged if misconfigured during an upgrade.

NOTE:

1) Don’t upgrade the firmware through the web UI in WAN, or else the upgrade may be falied.

2) Please ensure you have download the correct firmware package for your camera before upgrading. Read the upgrade documentation (readme.txt file) in the upgrade package before you upgrade.

3) Upon downloading the firmware check the sizes of the .bin files. They must match the size in

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

66

www

m

y

www

.foscam.comm

.foscam.co

the readme.txt file. If not, please download the firmware again until the sizes are the same. Your camera will not function correctly if a corrupt .bin file is used.

4) Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device

Firmware.

5) Never shut down the power of the camera during upgrade until the IP camera restart and get

connected.

6) After upgrade successfully, please clear the cache of browser, uninstall the old plugin and

re-install it, then reset the camera to the default factory settings before using the camera.

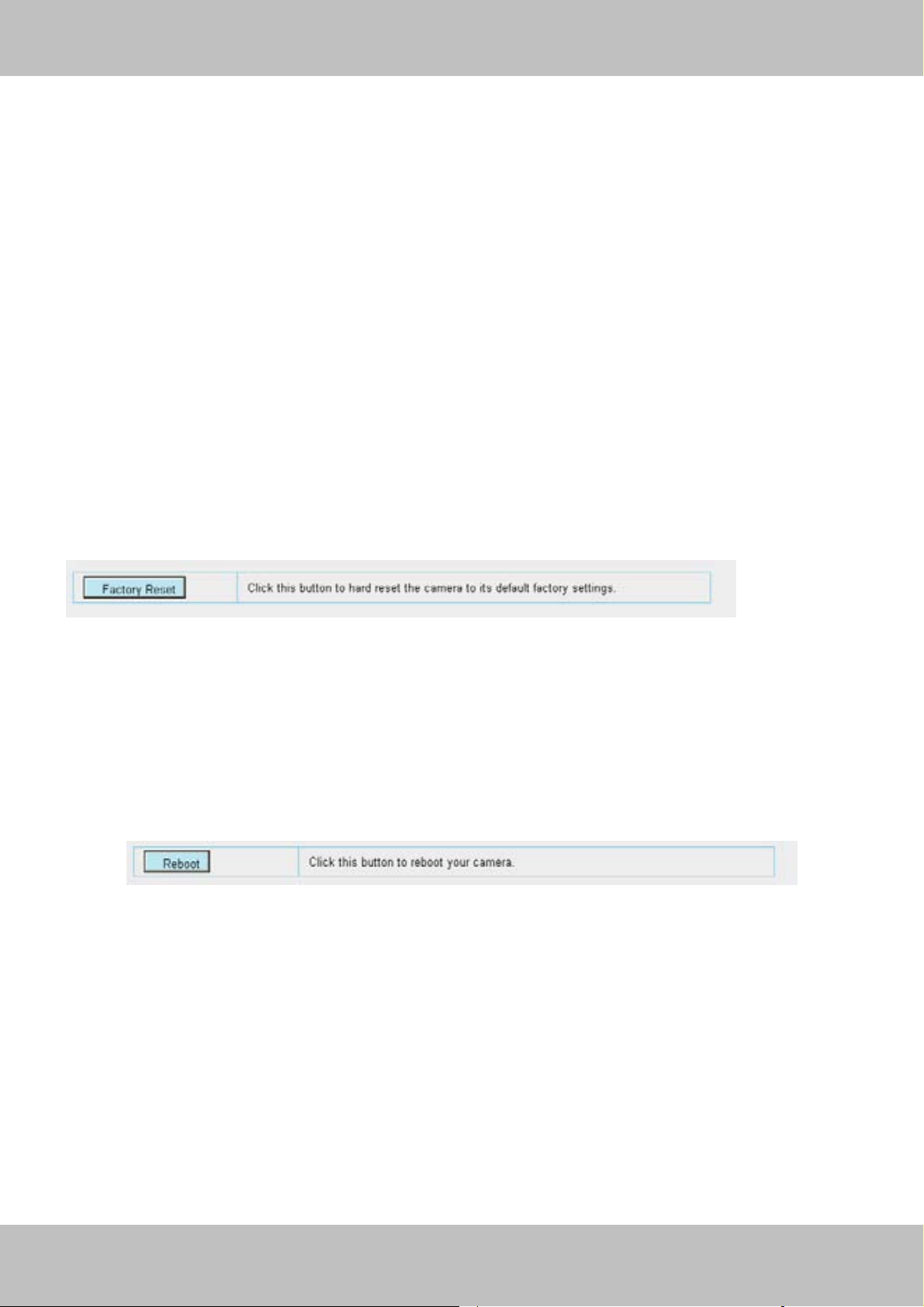

4.9.3Factory Reset

Click Factory Reset button and all parameters will return to factory settings if selected.

Figure 4.55

4.9.4 Reboot System

Click Reboot System to reboot the camera. This is similar to unplugging the power to the camera.

Figure 4.56

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

67

m

y

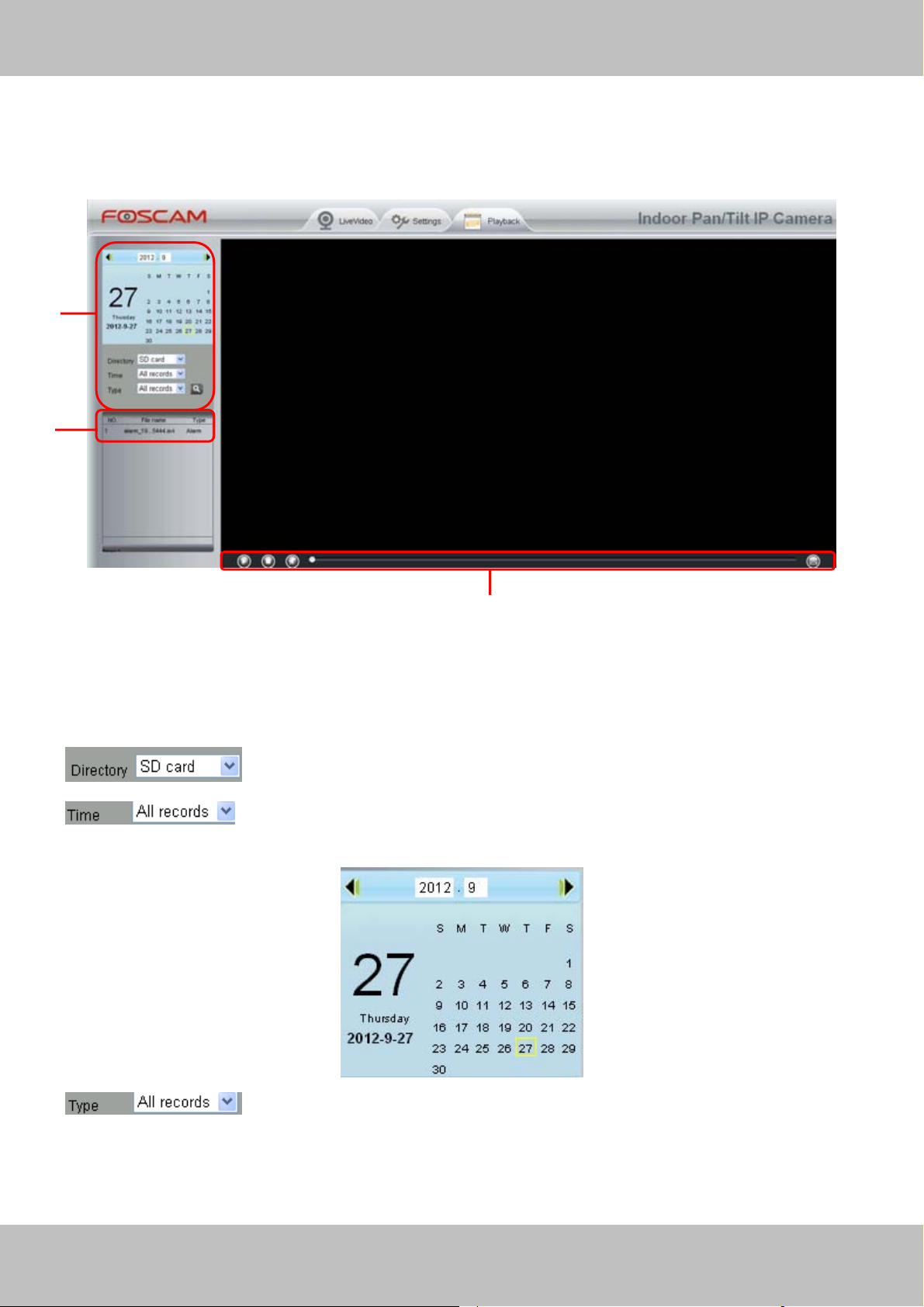

5 Playback

On this page you can view the record files stored in the SD card.

1

2

www

.foscam.comm

.foscam.co

3

Section 1 Define the Record files time and Type

: The storage path of record files

: Here supports three types: current day, current month and All records. Another way,

select the time on the time&date manually.

All records.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

: The type of records files, Here supports two typs: Normal record, Alarm record and

Technolog

Technology

755

2674

755

2674

Co.,

5168

Limited

68

m

y

: Click this button to search all record files satisfy the conditions you selected.

Section 2 Search record files

On this panel you can see all record files satisfy the conditions you set.

Section 3 Play/Stop/Audio/Full screen buttons

Please select one record file before use these buttons.

Click this button to play the record files

www

.foscam.comm

.foscam.co

Clickthisbuttontostoptherecordfiles

Open or stop audio

Click this button to make full screen, and double click left mouse to exit full screen.

6 Phone APPs

With Phone APPs , you can view your camera directly as a computer anywhere, anytime. This section shows the user how to set up the iPhone, and Android mobile phones to view Foscam cameras with Phone APPs.

6.1 APP for Android cell phones

There are two ways to install the phone App :

1) Search the APP “Foscam ip cam viewer” in the Google Play directly if your cell phone has installed Google Play.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

69

m

y

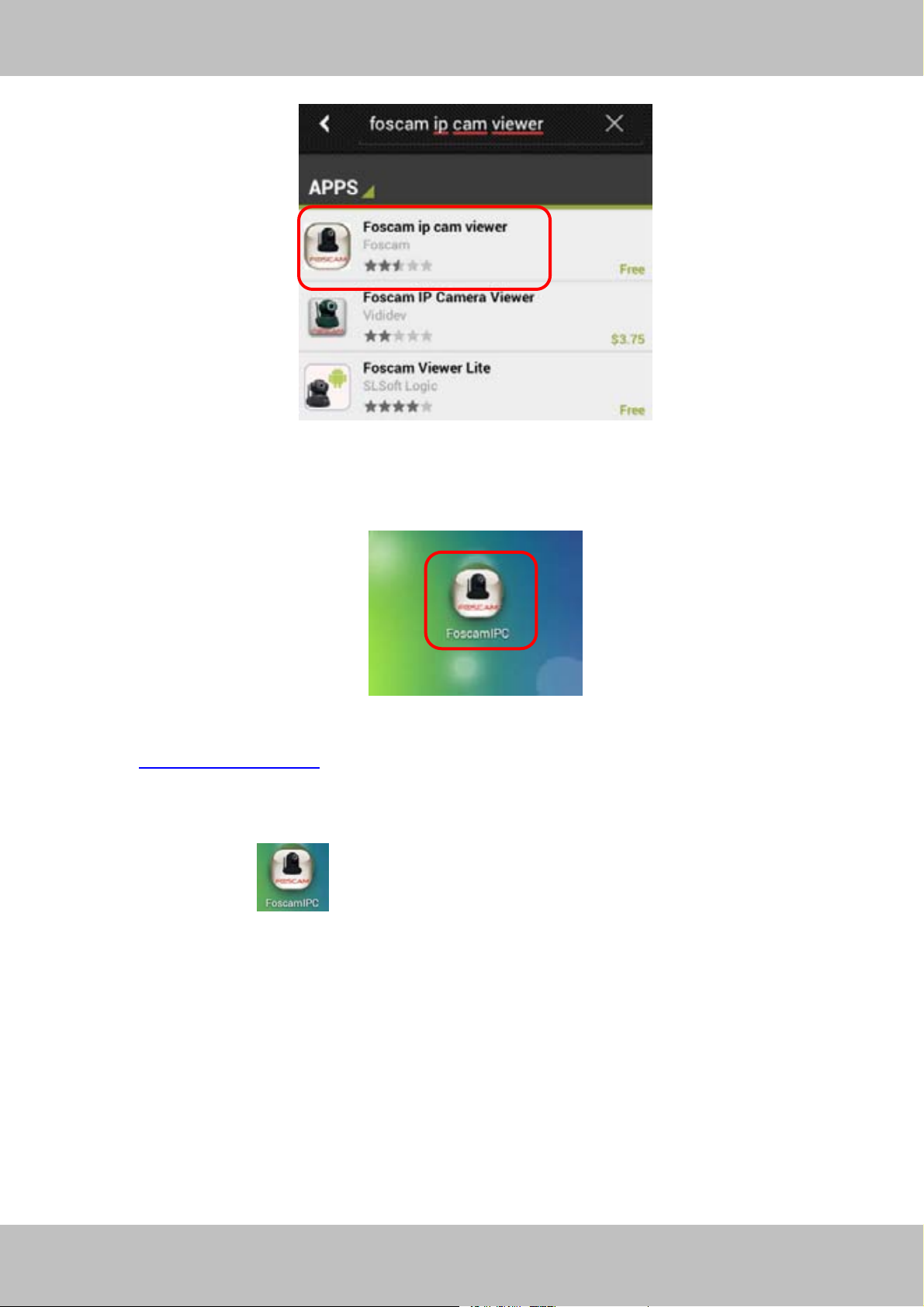

Figure 5.1

www

.foscam.comm

.foscam.co

Download and install the phone view app, then you can see the shortcut icon in your cell phone screen.

2) Enter http://play.google.com in the URL field of the browser, then search the APP “Foscam ip

cam viewer”. Download and install the APP.

Click the shortcut icon

and login Phone APP.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

70

www

m

y

a

www

Default user name is admin with

blankpassword

.foscam.comm

.foscam.co

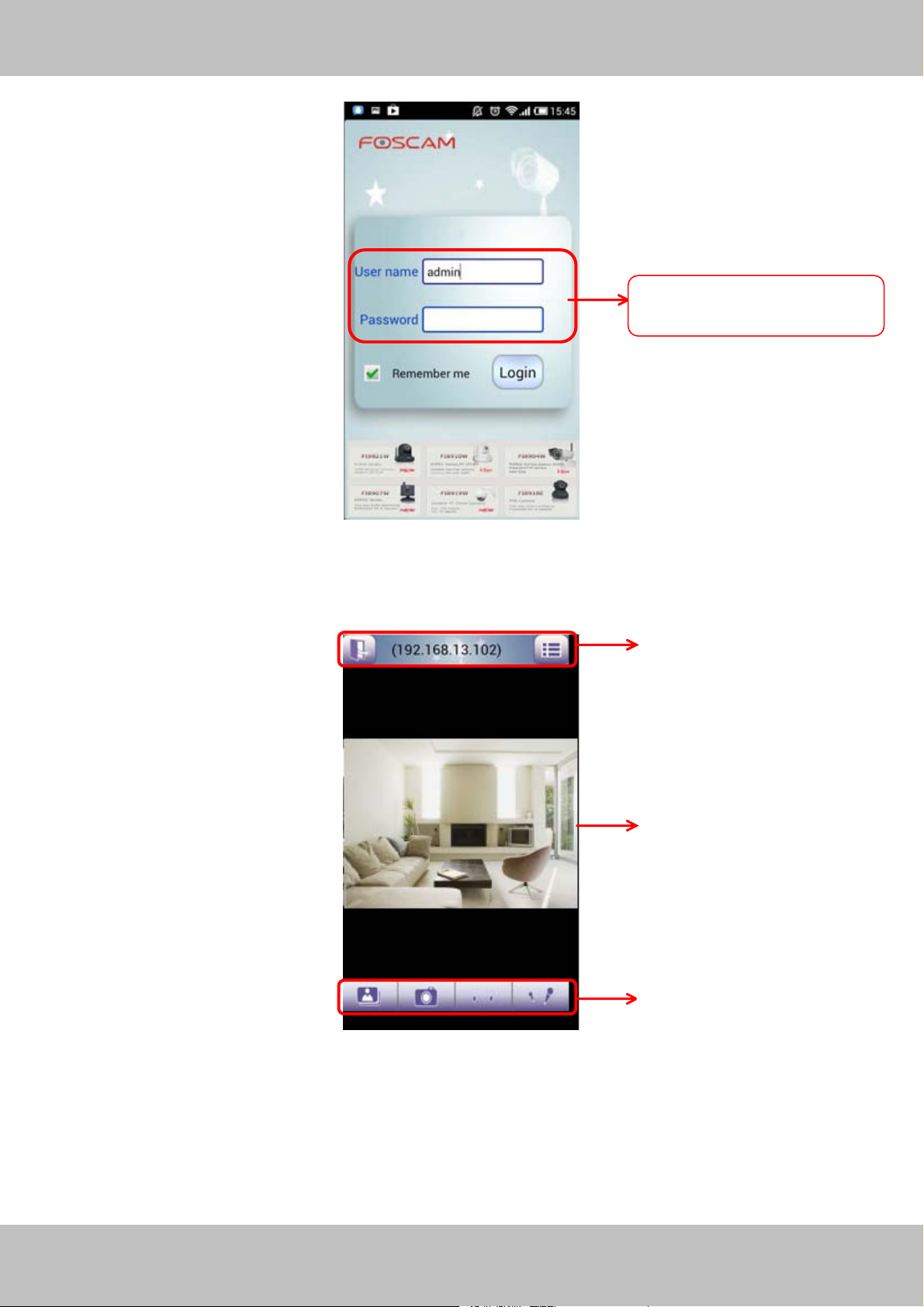

Figure 5.2

Enter the user name and password then click Login button, you can see the following

surveillance windows:

1

2

3

Figure 5.3

The default surveillance window is black, you need to add devices to it and then connect the

device.

Please check the login window above, it was divided to 3 sections from no. 1 to 3.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

71

www

m

y

www

.foscam.comm

.foscam.co

Section1 Exit / Go to Device List Buttons

Click this icon and exit Phone App

Click this icon and back to Device List page to add cameras to the software

Section2 Live view window

If the camera supports PT function, here slide on the screen with your finger, the camera will rotate follow your finger direction.

Section3 Playback/ Snapshot/Audio/Talk buttons

Playback Click this icon to play the pictures you have captured.

Snapshot Click it to make snapshot.

Audio button Click it and you will hear sound captured by the camera’s built-in

microphone. Make sure the camera supports Audio. Click the icon again and stop Audio.

Talk button Click it then talk through your cell phone’s microphone which will transmit

through the camera’s speaker. People will hear your talking through the camera’s built-in speaker. Make sure the camera supports Talk.

Click the icon again and stop talking.

How to add cameras to the Phone APP

The following steps are required before adding cameras to the APP:

1）Install the IP Camera(s) which wants to be monitored. 2）Login the IP Camera(s) by web browser and set the IP address, port, username & password

and make sure the camera can be accessed by browsers.

3）DDNS setting is a plus whenever you want to add the devices by WAN.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

72

www

m

y

www

.foscam.comm

.foscam.co

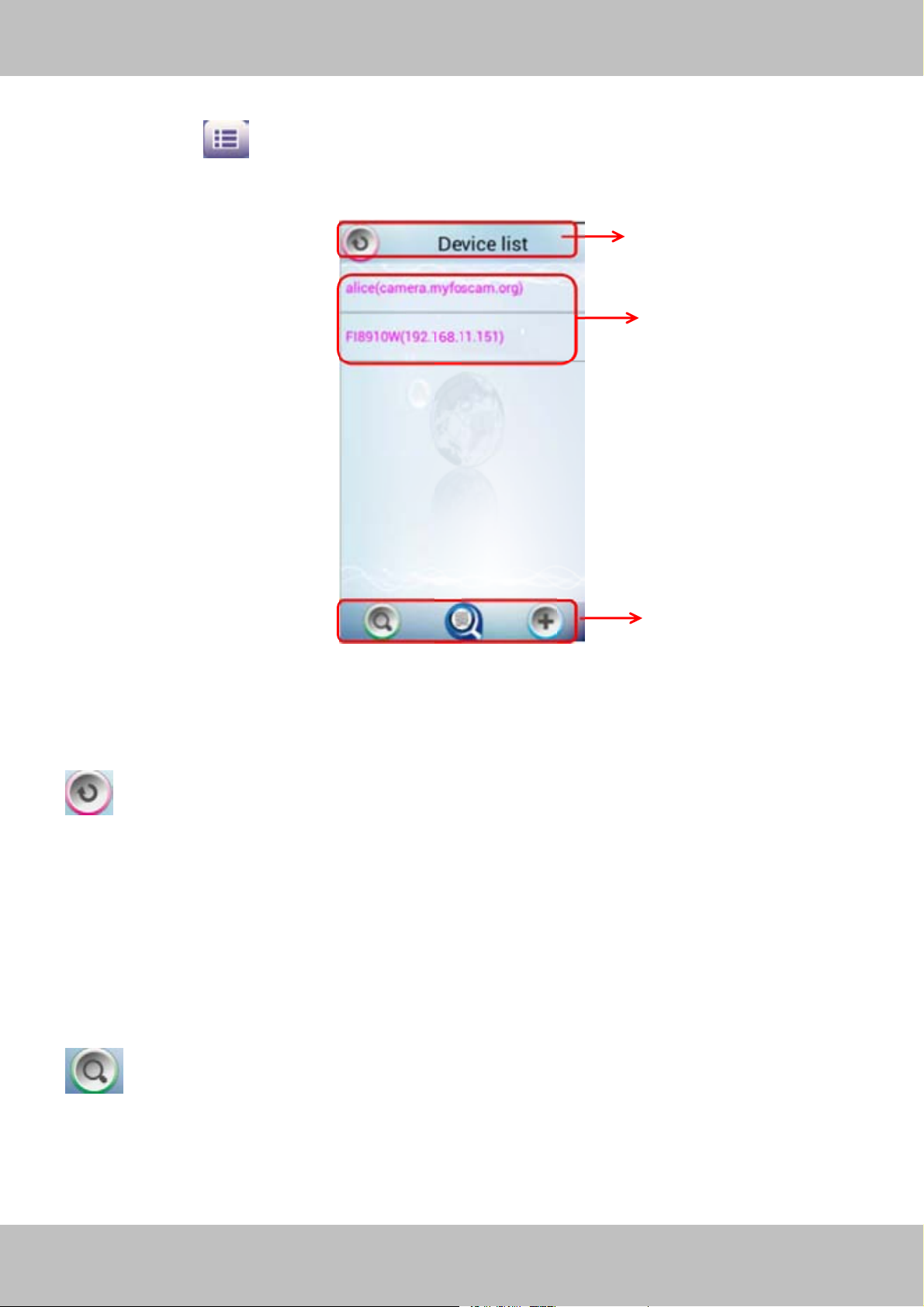

Click the button and go to Device List page, this section will show you how to add cameras in LAN or in WAN.

1

2

Figure 5.4

Section1 Back button

: Click this icon and back to the surveillance window

Section2 Device List

Here will list all cameras that added to the software.

Section3 Add device buttons

Add device in LAN

3

: Click this icon and the APP will search all cameras in LAN automatically. Such as the

following screen:

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

Intelligent

5668

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

73

www

m

y

www

.foscam.comm

.foscam.co

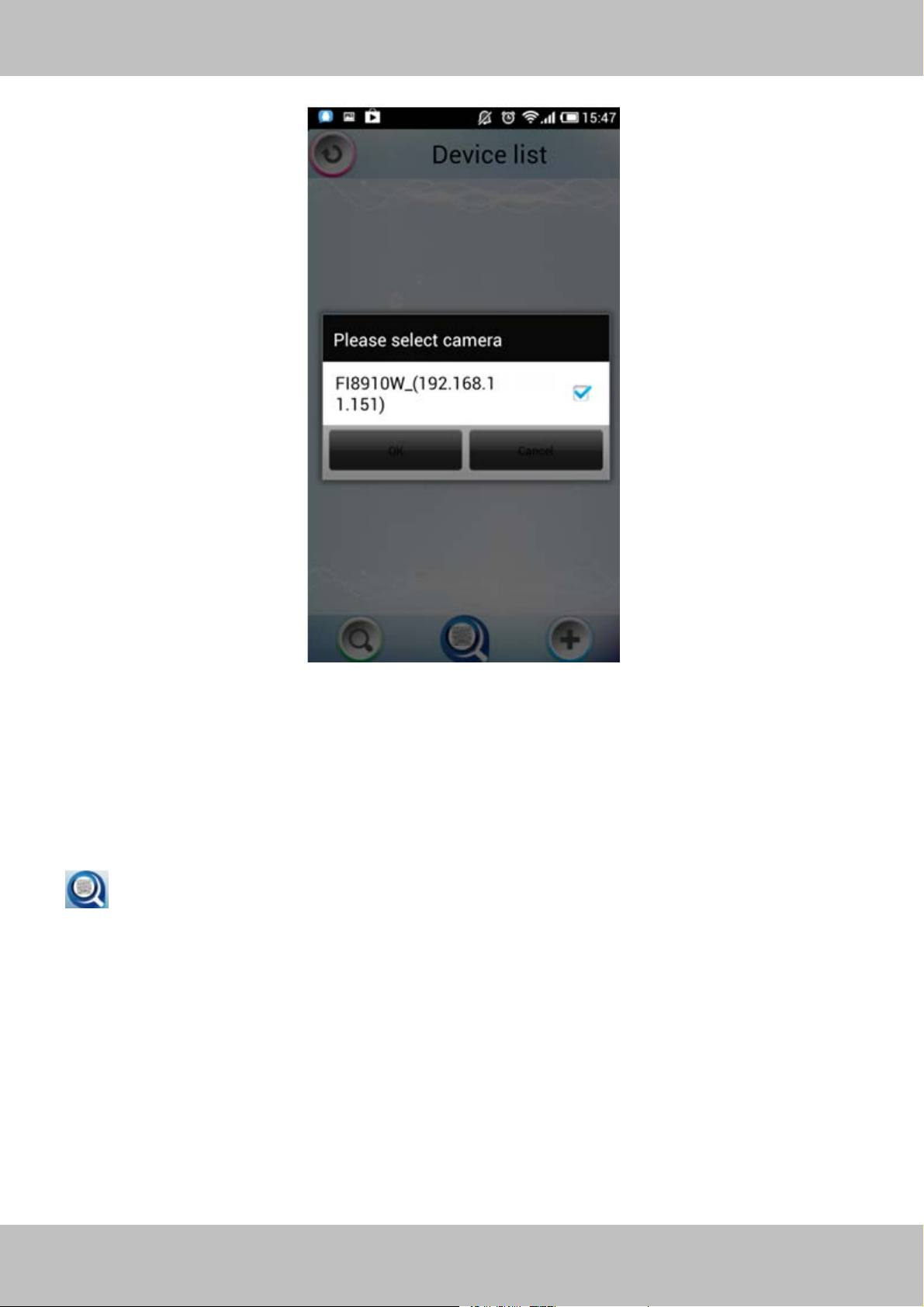

Figure 5.5

Select the camera IP and click OK to add cameras in LAN, then you can see the camera in the Device List.

Add device through scanning UID (User Identification) number

: UID Scan. Click this icon and scan the UID no. in the camera body, then the camera can

be added to the App.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

74

www

m

y

www

.foscam.comm

.foscam.co

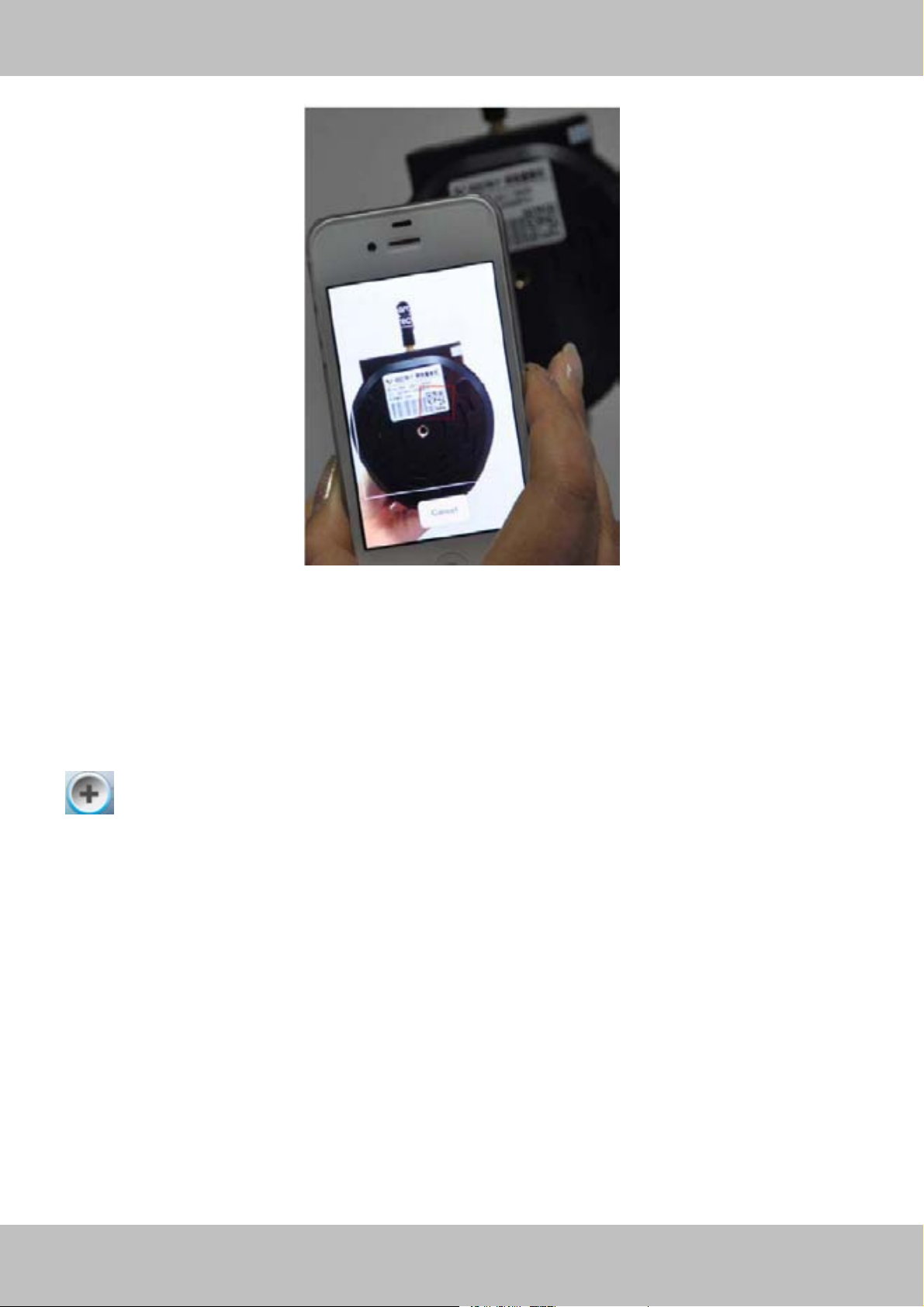

Figure 5.6

Normally each camera has one unique UID and UID is used for PnP function. Now our camera does not support UID number, so here you cannot allow to use UID to add device.

Add device in WAN

: Click this icon and you can add cameras in WAN manually.

Click this icon and it pops up the following screen, here you can add cameras manually.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

75

www

m

y

www

.foscam.comm

.foscam.co

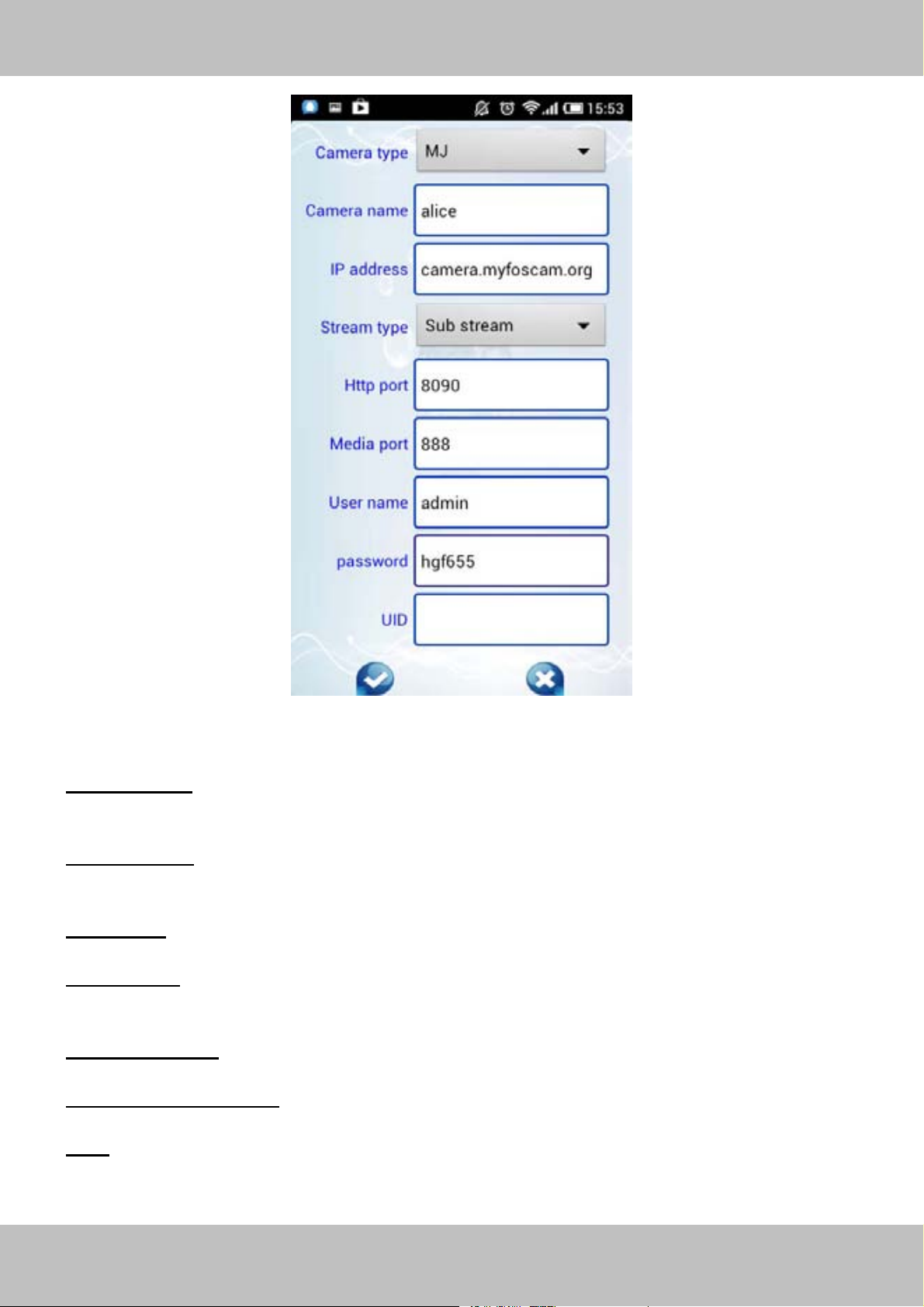

Figure 5.7

Camera Type: Our Company produces two series cameras: MJ and H.264. Here select the camera type that you want to add.

Camera name: The Camera name is a unique name that you can give to your device to help you identify it.

IP address: Fill in the camera’s DDNS host or WAN IP not LAN IP.

Stream type: It has two types: Main stream and Sub stream. For cell phones, we recommend

you to select Sub stream to get more fluent video.

Http / Media port: For MJ cameras, here share the same port.

User name &Password: The camera’s user name and password.

UID: If your camera supports UID, here you may fill in the UID no.. Now FOSCAM camera does

not support UID.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

76

www

m

y

www

.foscam.comm

.foscam.co

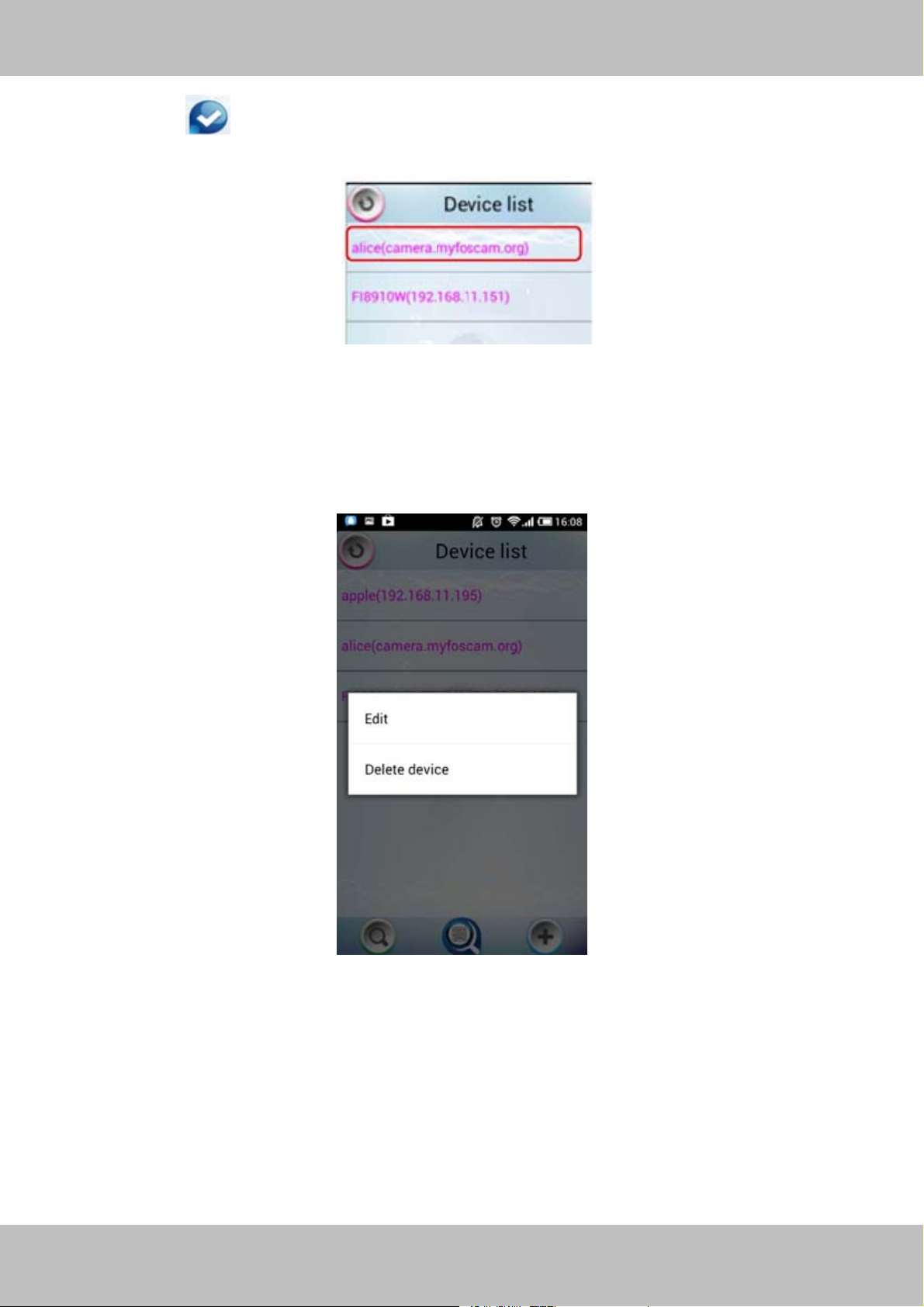

Click the icon to add camera then you can see the camera in the Device List.

.

Select one IP address and click it, then you can enter the surveillance window.

Select one IP address in the Device List and press it for a moment, it pop up the following screen:

Figure 5.8

Edit: Re- edit the camera’s information, such as the Http / Media port, user name and password, and so on. Click Edit and you can go to Add camera page (Figure 5.7).

Delete device: Delete the camera from the Device List.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

77

www

m

y

www

.foscam.comm

.foscam.co

6.2 APP for iPhones

If you use iPhone, please search the APP “Foscam ip cam viewer” and install it through APP Store, then you can see the shortcut icon in your cell phone screen.

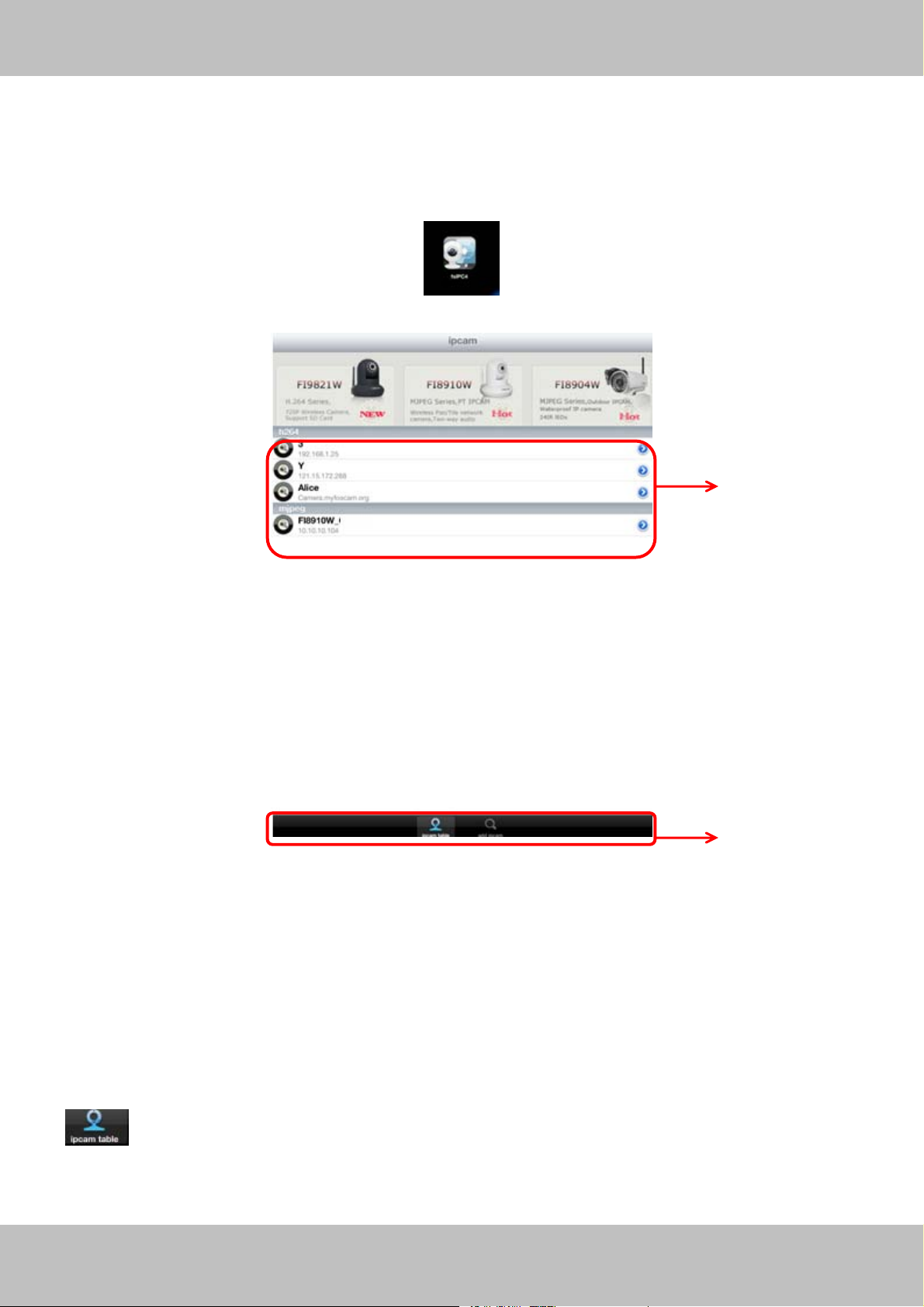

Click the icon and you can go to “ipcam table” page directly:

1

Figure 5.9

The default device list is null, you need to add cameras to it.

Section1 Camera list

Here will list all cameras that added to the software.

Section2 ipcam table/ add ipcam buttons

Click this icon and back to ipcam table page, here you can see all cameras that have

added to the software.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

2

78

www

m

y

pcam

www

.foscam.comm

.foscam.co

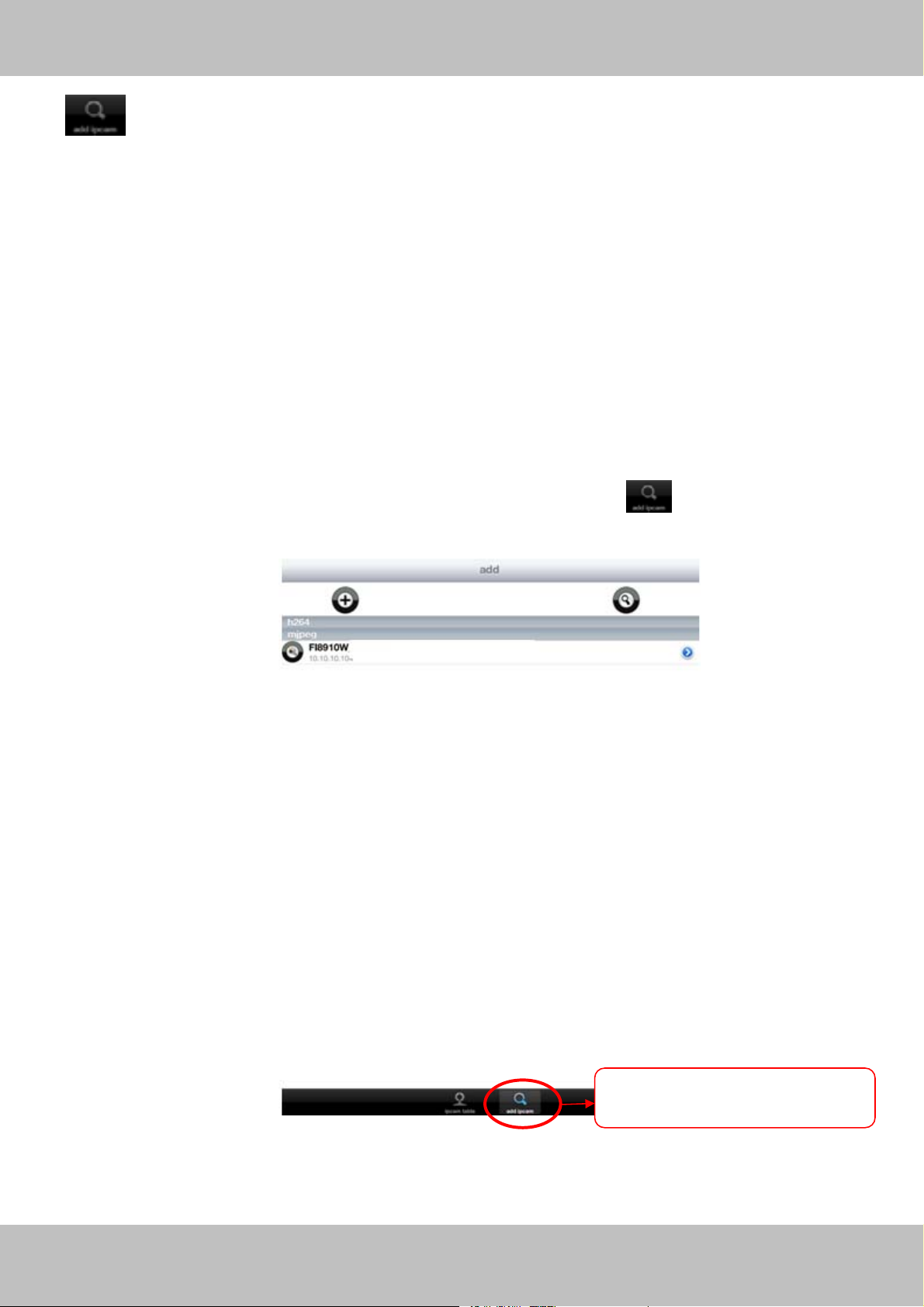

: Click this icon and back to add ipcam page, here you can add cameras in LAN or in

WAN to the software.

How to add cameras to the APP

The following steps are required before adding cameras to the App:

1) Install the IP Camera(s) which wants to be monitored.

2) Login the IP Camera(s) by web browser and set the IP address, port, username & password and make sure the camera can be accessed by browsers.

3）DDNS setting is a plus whenever you want to add the devices by WAN.

If you want to add cameras to the App, please click this icon go to “add ipcam” page(Figure 4.10).

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 5.10

Limited

Click this icon and go to “add i

”page

79

www

m

y

www

.foscam.comm

.foscam.co

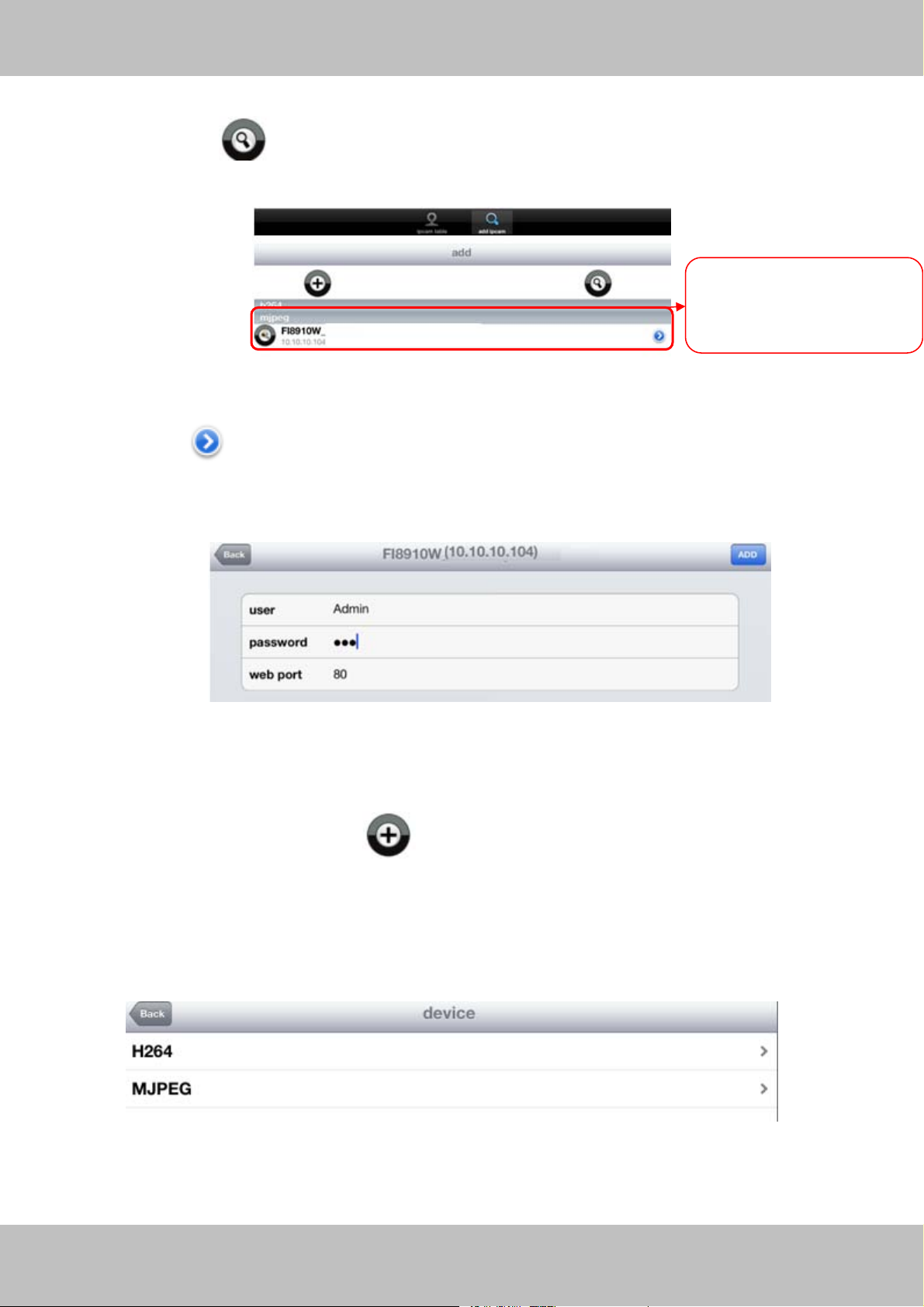

Add device in LAN

Click this button and the APP will search all cameras in LAN, then add it to APP automatically .

The cameras in LAN can be searched and added to APP automatically

Figure 5.11

There is a icon after the camera name, click it and you can enter the user name, password

and web port to login the camera.

Figure 5.12

Add device in WAN

Step 1: Click the Add Camera icon

to add cameras manually. Step 2: Select the camera type: mjpeg or h.284 (Figure 4.13), then enter the camera’s basic information like camera name , ip , http/media port, user name, password and so on(Figure

4.14).

Figure 5.13

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

80

m

y

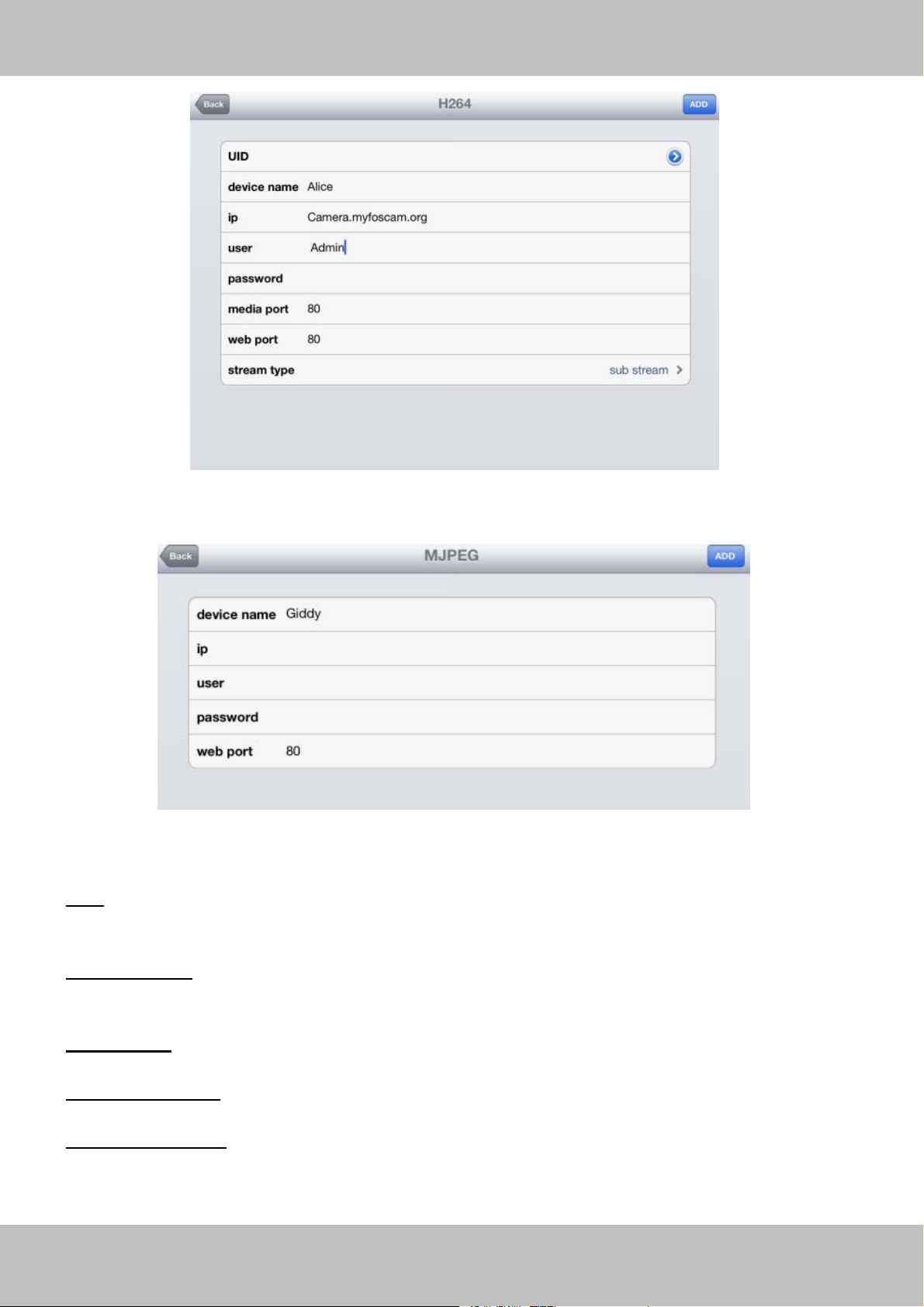

Figure 5.14a Add H.264 Device Page

www

.foscam.comm

.foscam.co

Figure 5.14b Add MJPEG Device Page

UID:

If your camera supports UID, here you scan UID number. Now FOSCAM camera does not

support UID.

Device name: The Device name is a unique name that you can give to your device to help you identify it.

IP address: Fill in the camera’s DDNS host or WAN IP not LAN IP.

User &Password: The camera’s user name and password.

Media / Web port: For MJPEG cameras, here only support web port.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

81

www

m

y

www

.foscam.comm

.foscam.co

Stream type: It has two types: Main stream and Sub stream. For cell phones, we recommend you to select Sub stream to get more fluent video.

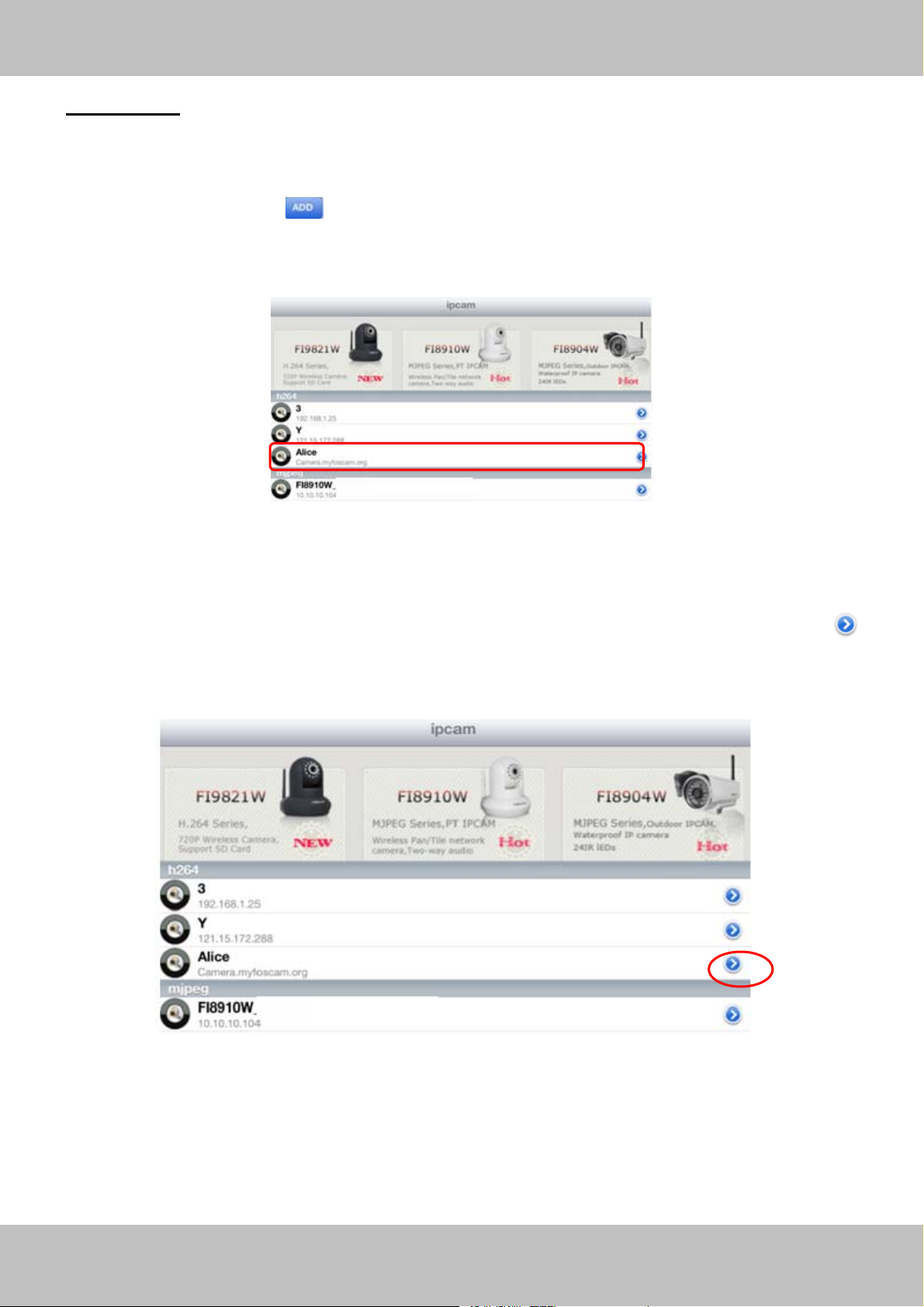

Step 3: Click Add button to add cameras, then you can see the camera name in the “ip cam table” page.

Figure 5.15

Surveillance windows

Back to “ipcam table” page and you can see all cameras that have added. There is a icon

after one camera name, click this icon and you can alter the camera’s user name, password, media port and http port.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Figure 5.16

Limited

82

m

y

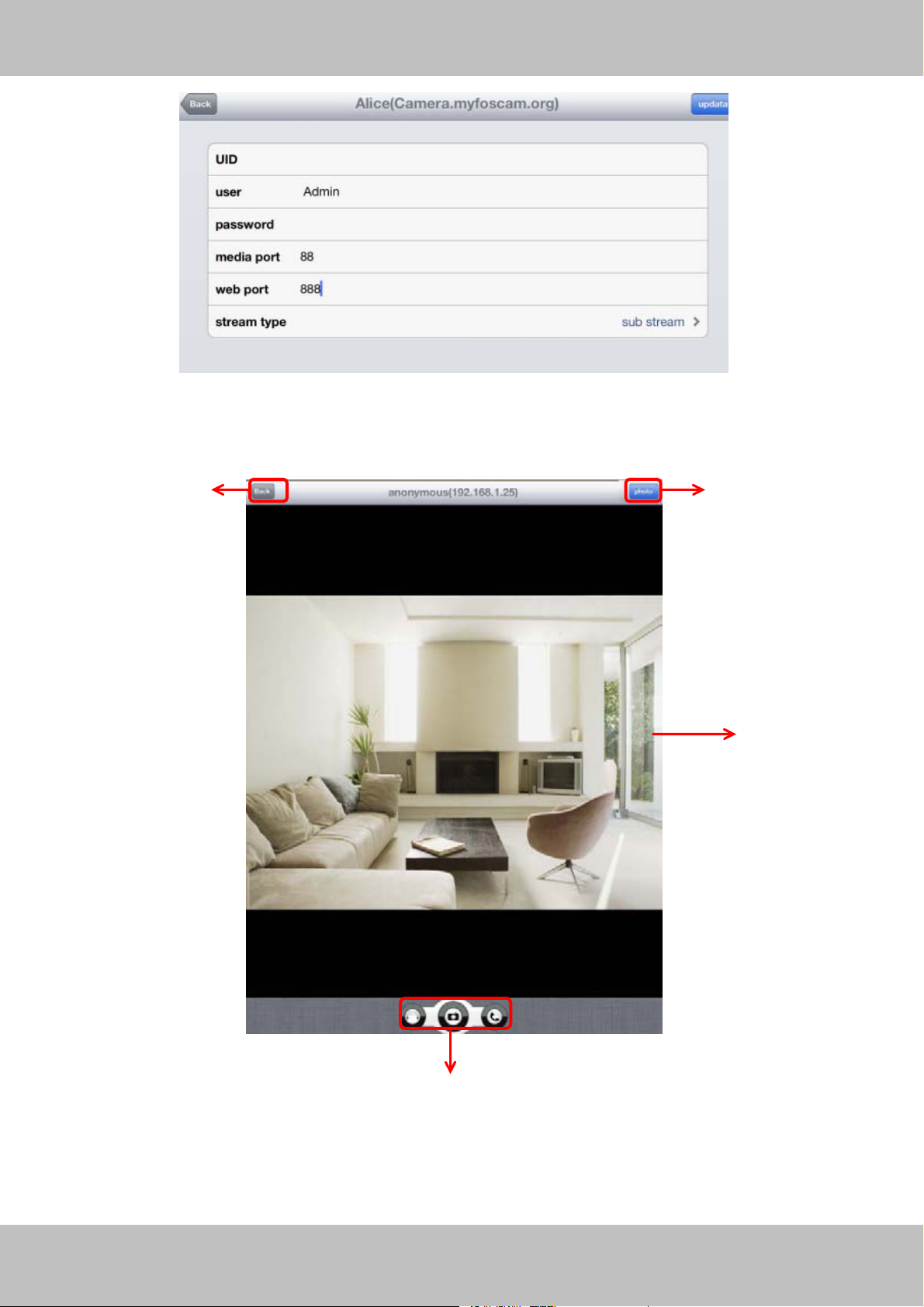

Figure 5.17

Click one camera ip and you can see the live video.

www

.foscam.comm

.foscam.co

12

3

4

Figure 5.18

Please check the login window above, it was divided to 4 sections from no. 1 to 4.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

83

m

y

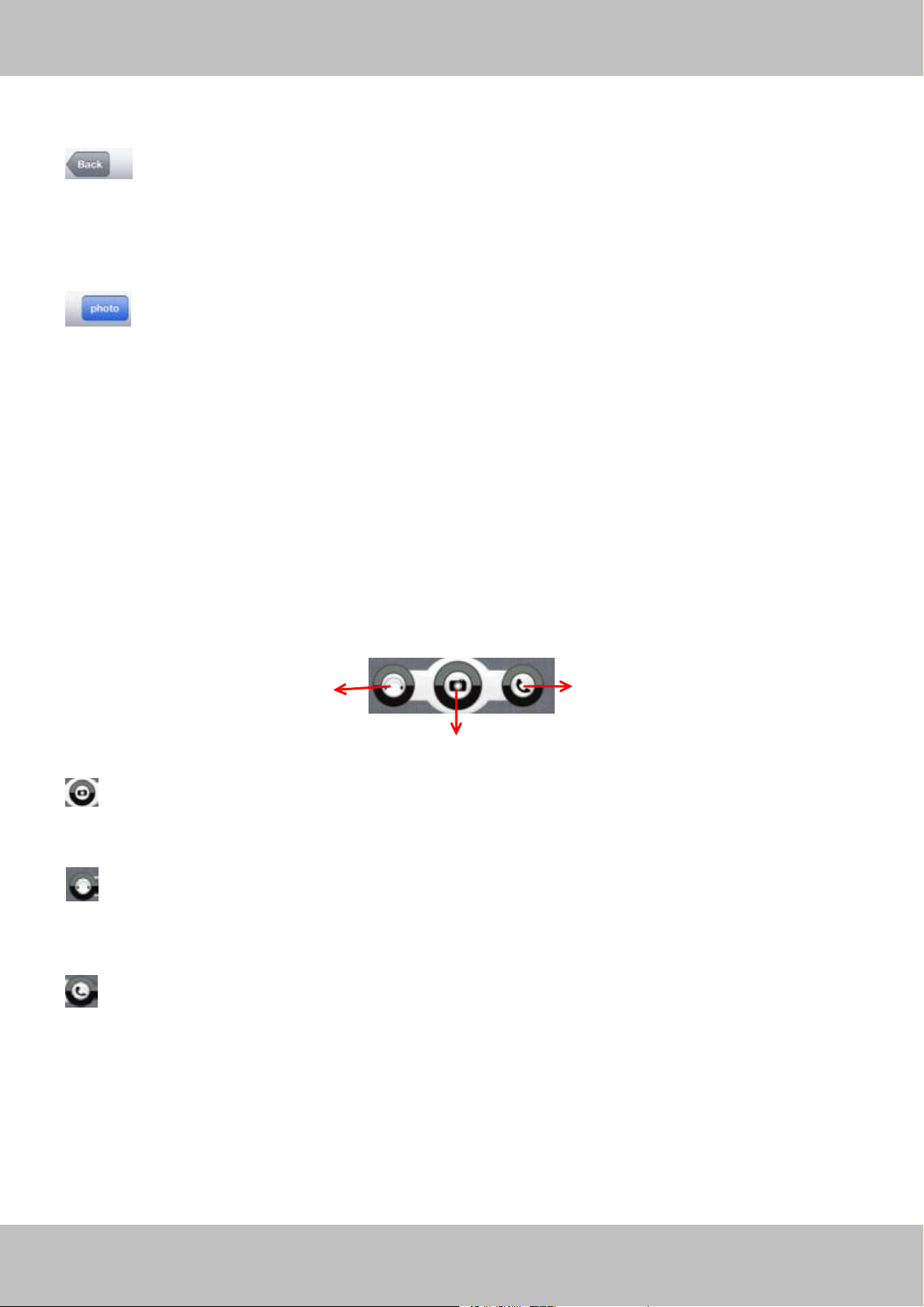

Section1 Back Button

: Click this icon and back to “ipcam table” page.

Section2 Photo Button

Click this icon and look the photos you have captured.

Section3 Live view window

www

.foscam.comm

.foscam.co

If the camera supports PT function, here slide on the screen with your finger, the camera will rotate follow your finger direction.

Section4 Snapshot/Audio/Talk buttons

Audio

Snapshot

Talk

Snapshot

Click it to make snapshot.

Audio button

Click it and you will hear sound captured by the camera’s built-in microphone. Make sure the camera supports Audio. Click the icon again and stop Audio.

Talk button

Click it then talk through your cell phone’s microphone which will transmit through the camera’s speaker. People will hear your talking through the camera’s built-in speaker. Make sure the camera supports Talk.

Click the icon again and stop talking.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

84

www

m

y

the

plug

www

.foscam.comm

.foscam.co

7 APPENDIX

7.1 Frequently Asked Questions

NOTE: Any questions you would meet, please check Network connections firstly. Check the

working status revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the network connections.

7.1.1 How to download and installl the ActiveX for Firefox users

For the first time login the camera, it may prompt you to download plugin.

Click here to download

in

Figure 6.1

Drag the download file to Firefox web page and it will prompt you to Install it.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

85

m

y

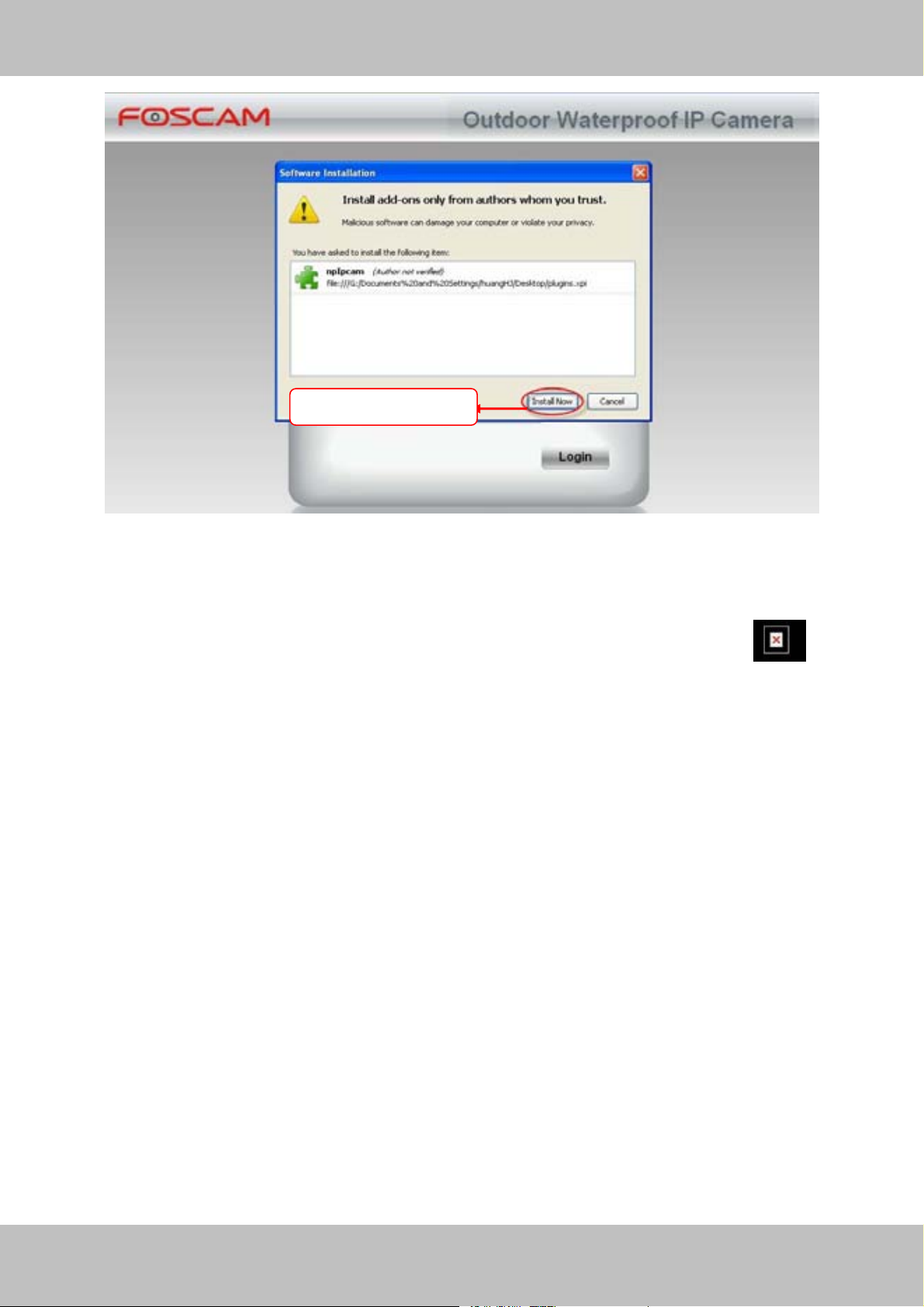

Click Install Now

www

.foscam.comm

.foscam.co

Figure 6.2

Reboot the Firefox after the plugin installation is successfully completely, then relogin the camera again, you can see the surveillance window

NOTE: If you could not view living video after running the ActiveX, only a red cross in the center of the video or just a black screen. Please change another port number to try. Make sure all firewall or antivirus software on your computer does not block the active download and installation. If you are unable to run the ActiveX control, try shutting down the firewall or antivirus program.

7.1.2 How to download and installl the ActiveX for Google Chrome users

For the first time login the camera, it will prompt you to download theActiveX..

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

86

m

y

Figure 6.3

www

.foscam.comm

.foscam.co

.

Download the plugin and drag it to the Extensions page of Google Chrome.

Click Add button to install the plugin

Click Add button to install the Plugins.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

755

2674

Co.,

5168

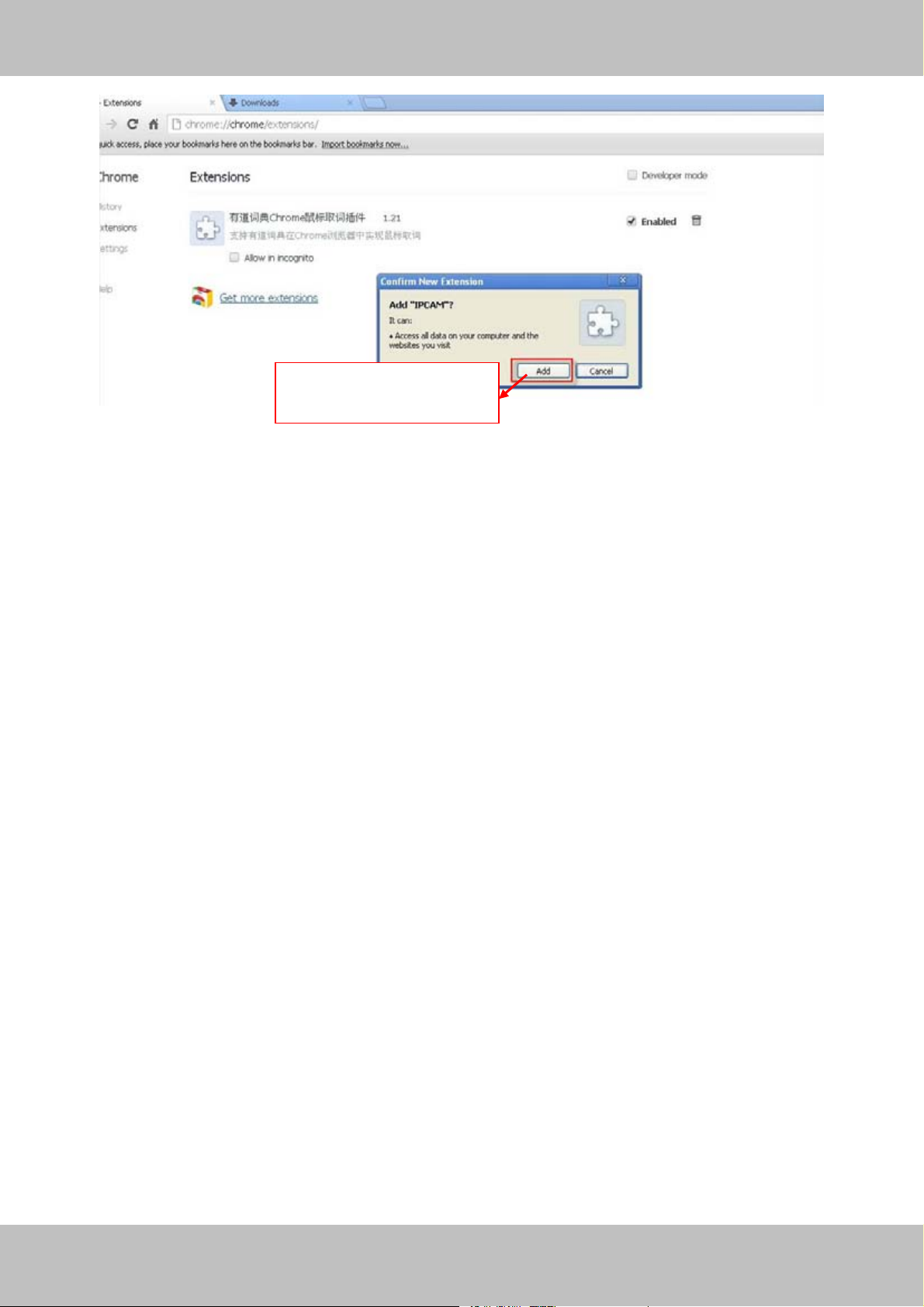

Figure6.4

Limited

87

www

m

y

www

Click Add button to install the plugin

Figure 6.5

Reboot the browser and re-login the camera, you will see the surveillance window.

.foscam.comm

.foscam.co

7.1.3 I have forgotten the administrator password

To reset the administrator password, you had better unplug the network cable firstly. After that, press and hold down the RESET BUTTON about 5 seconds. Releasing the reset button, the password will turn to the factory default.

Default administrator username/password: admin with blank password

7.1.4 Subnet doesn’t match

Check whether your ipcamera in the same subnet of your computer. The step is Control PanelÆNetwork ConnectionsÆDbclick Local Area ConnectionsÆChoose GeneralÆProperties.(Figure 4.23/4.24) Check subnet mask, IP address and gateways. When

you set IP address please make sure they are in the same subnet. Otherwise you can't access camera.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

88

www

m

y

www

.foscam.comm

.foscam.co

7.1.5 Camera can not record when I click Record button or I can’t change the manually record path

When you use Windows7 or Vista, you may be not able to do manually record or change the record path because of the security settings of computer. There are two ways to resolve this problem: (1) Please add the camera as a trusted site to resolve this issue. The steps are

IE browserÆToolÆInternet PropertiesÆSecurityÆTrusted sitesÆSitesÆAdd

(2) Open IE browser, then right click, select “Run as administrator”

7.1.6 No Pictures Problems

The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn’t installed correctly you will see no video image. You can resolve this problem by this way: Download ActiveX controller and set the safety property of IE in the PC when you view it first time: IE browserÆToolÆInternet ProperÆSecurityÆCustom LevelÆActiveX control and Plug-ins. Three options of front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. As follows:

Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plug-ins

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

89

www

m

y

www

.foscam.comm

.foscam.co

Figure 6.6 If you allow the ActiveX running, but still could not see living video. Please change another port number to try. Don’t use port 8000.

Figure6.7

NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could not see video, please shut down firewall or anti-virus software to try again.

7.1.7 Can’t access IP camera in internet

There are some reasons: 1 ActiveX controller is not installed correctly 2 The port which camera used is blocked by Firewall or Anti-virus software. Please change another port number and try again. (Figure6.7) 3 Port forwarding is not successful(Figure4.30)

Check these settings and make sure they are correct.

7.1.8 UPnPalways failed

UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port forwarding automatically because of firewall or anti-virus software. It also has much relation with router’s security settings. So we recommend you do port forwarding manually. You can view your camera in internet successfully after you do port forwarding manually in your router.

7.1.9 Camera can not connect wireless

If your camera could not connect wireless after you set wireless settings and plug out the cable. Please check whether your settings are correct or not. Normally, camera can’t connect wireless mainly because of wrong settings. Make sure broadcast your SSID; use the same encryption for router and camera.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

90

m

y

7.2 Default Parameters

Default network Parameters

IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically DDNS: Embedded FOSCAM DDNS Service

Username and password

Default admin username: admin with a blank password

7.3 Specification

www

.foscam.comm

.foscam.co

Specification FI9805W

Image Sensor

Audio

Video

Network

Image Sensor High Definition Color CMOS Sensor

f 4mm or 6mm or 8mm or choose ,

Lens Mini. Illumination 0.5Lux

Input/Output Image Compression H.264

Image Frame Rate 25fps(50Hz), 30fps(60Hz),Down adjustable Resolution

View H.264 dual streaming

Image adjust Infrared mode Off & Manually Night visibility Φ8mm 36 IR LEDs, Night visibility up to 30 meters

Ethernet One 10/100Mbps RJ-45 Supported Protocol

F=1.2

Linear Input/Output, which can realize two-way voice the intercom

720p（1280*720），VGA（640*480）

The brightness, contrast, saturation, chromaticity, is adjustable

TCP/IP、 UDP/IP、 HTTP、SMTP、FTP、DHCP、 RTSP、 HTTPS 、DDNS、UPNP

Hardware

Interface

Shenzhen

Tel:8686

Tel:

755

Alarm

Fosca

Foscam

2674

Intelligent

5668

Fax:8686

5668

Fax:

Wireless Standard Support IP address static IP address, dynamic IP address Alarm detection The motion detecting

Alarm inform

POWER Interface Audio Input/Output One audio input jack, One audio output jack.

Technolog

Technology

755

2674

755

2674

Co.,

5168

WIFI(IEEE802.11b/g/n)了

Support Email、FTP etc alarm inform way DC 12V/2.0A (EU,US,AU adapter or other types option, Power Consumption ﹤8 Watts

Limited

91

m

y

Environment

Interface Reset Buttons One Reset

Operate Temper 0° ~ 55°C (32°F ~ 131°F) Operate Humidity 10% ~ 80% non-condensing Storage Temper -10°C ~ 60° (14°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Dimension

180X98x103mm

www

.foscam.comm

.foscam.co

PC

Requirements

Software

Certification

7.4 CE & FCC

Net Weight Gross Weight CPU 2.0GHZ or above (suggested 3.0GHz) Memory Size 256MB or above (suggested 1.0GHz) Display Card 64M or above

Supported OS

Browser

Upgrade Upgrade from network CE,FCC

1300g 1546g

Microsoft Windows 2000/XP /Vista / Windows7-32bit/Windows7- 64bit/Windows8- 32 bit/ Windows8-64bit/ mac IE6 and above version or compatible browser, Firefox, Chrome, Safari or other standard browsers

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

 This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is like to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

92

www

m

y

www

.foscam.comm

.foscam.co

FCC Caution

Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

7.5 WARRANTY

ShenZhen FOSCAM Intelligent Technology Limited.("FOSCAM") values your business and always attempts to provide you the very best of service.

No limited hardware warranty is provided by FOSCAM unless your FOSCAM product ("product") was purchased from an authorized distributor or authorized reseller. Distributors may sell products to resellers who then sell products to end users. No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications.

If you purchase your FOSCAM product from online store, please contact the point-of-purchase and ask for return/replacement/repair service.

Hardware Warranty Information

• FOSCAM provide 2-year limited warranty for naked product and 6-month limited warranty

for accessories.

Limited Hardware Warranty

• FOSCAM products are warranted to be free from manufacturing defects in materials and

workmanship starting from the shipping date of FOSCAM.

This limited hardware warranty does not cover:

• Software, including the software added to the products through our factory-integration

system, software that included in the CD,etc.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

93

www

m

y

www

• Usage that is not in accordance with product instructions.

• Failure to follow the product instructions.

• Abuse firmware upgrade without the authorized technician’s guidance.

• Normal wear and tear.

.foscam.comm

.foscam.co

Return Procedures

• Please read FOSCAM warranty policy & policy of your reseller first before sending items

back to point-of-purchase.

• Customer must first contact point-of-purchase to obtain a Return Merchandise

Authorization (RMA) number before returning the product. If the product you received is

suspected to be defective and the product warranty has not expired, The RMA number will allow your reseller to track your return much easier and help them expedite processing your request.

• After receiving your RMA case number, pack the item(s) very well with the original box

and all the original accessories included such as power adapters, brackets, cables, manuals, and driver CD disks.

• Write your RMA number and the return reason (the problem of the product) on the

warranty card along with the complete package to send them back.

Replacement Services

• If customers ask for replacement service, please contact point-of-purchase and

follow their policy.

• Our technicians will inspect all items returned for replacement requests. If the retuned

product is found in working order, we will return the same item received. However customers shall be responsible for all shipping & handling charges incurred for getting the units back to customers.

• If returned products are found defective, we will replace the product and assume the

shipping cost for sending back the replacement unit to customers.

• If for any reason, we are unable to provide a replacement of the original returned item(s).

You will have a choice for a “Substitute” item at the same equal value.

• We do not provide exchange and replacement due to normal hardware upgrade

according the market after 14 days after the product is delivered.

• Our technicians will test the product before send out the replacement, any other demand

for more than two times replacement for the same product during replacement limit will be rejected.

• Replaced products are warranted from the balance of the former warranty period.

Warranty Forfeiture

• Warranty is void if purchase from unauthorized distributor or reseller.

• Warranty is void if trade-mark, serial tags, product stickers have been removed,

altered or tampered with.

• Warranty is void for mishandling, improper use, or defacing the product.

• Abuse firmware upgrade without the authorized technician’s guidance.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

5668

Fax:8686

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

94

www

m

y

www

• Warranty is void for physical damage, altered, either internally or externally, improper or

.foscam.comm

.foscam.co

inadequate packaging when returned for RMA purposes.

• Warranty is void if damage has resulted from accident, dismantle, abuse, or service or

modification by someone other than the appointed vendor, souse, fission or the spare part has been over the period of warranty.

• Warranty is void if product is damaged due to improper working environment or operation.

(For example, improper temperature, humidity, unusual physical or electrical stress or interference, failure or fluctuation of electrical power, static electricity, using wrong power adapter, etc.)

• Warranty is void if damaged by the use of parts not manufactured or sold by FOSCAM.

• Damage caused by improper installation of third-party products.

• Warranty is void if damaged for irresistible cause, such as earthquake, fire, lightning, flood,

etc.

• Product beyond limited warranty.

Shipping Fee

• If products are defective or damaged under normal use or operation in the replacement

limit, distributors or resellers are responsible for the shipping cost the product back to customers, customers should assume the shipping cost send the product to the point-of-purchase.

• During replacement limit, if customers ask for replacement due to the product does not fit

for customer’s personal expectation, customers should responsible for both shipping fee.

• Customers shall be responsible for both shipping fee if their product beyond the

replacement limit but still in warranty limit.

Repair Service Out Of Warranty

• FOSCAM provide extra repair service for product that out of warranty, it is chargeable.

The total fee contains device cost and service fee. Device cost (including accessories) is the standard uniform price provide by FOSCAM.

• Different region may have different service fee, please contact the point-of-purchase to

confirm that before you ask for this service.

• Our technicians will quote the total price after detect the product, If customers refused to

repair after the quotation, customers need pay for the test fee, $3.5/hour. If agree with the quotation, test will be free.

• Repaired product out of warranty will obtains 3-month warranty from the date of the

product back to customers.

Limitation of Liability

• FOSCAM is not responsible for other extra warranty or commitment promised by resellers,

if your reseller promised some extra commitment or warranty; please ask for written documents to protect your rights and interests.

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

95

www

m

y

www

• FOSCAM does not offer refunds under any circumstances. Please contact the

.foscam.comm

.foscam.co

point-of-purchase and follow their refund/return policy.

• FOSCAM shall not be liable under any circumstances for any consequential, incidental,

special or exemplary damages arising out of or in any connection with this agreement or the products, including but not limited to lost profits, or any claim based on indemnity or contribution, or the failure of any limited or exclusive remedy to achieve its essential purpose or otherwise. Purchaser's exclusive remedy, as against FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it without incurring any liability.

8 OBTAINING TECHNICAL SUPPORT

While we hope your experience with the IPCAM network camera is enjoyable and easy to use, you may experience some issues or have questions that this User’s Guide has not answered. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, please contact our service department: [email protected] .

Shenzhen

Tel:8686

Tel:

755

Fosca

Foscam

2674

5668

2674

Intelligent

Fax:8686

5668

Fax:

Technolog

Technology

755

2674

5168

755

Co.,

Limited

96
