ins ZN 42048, 42049 - A

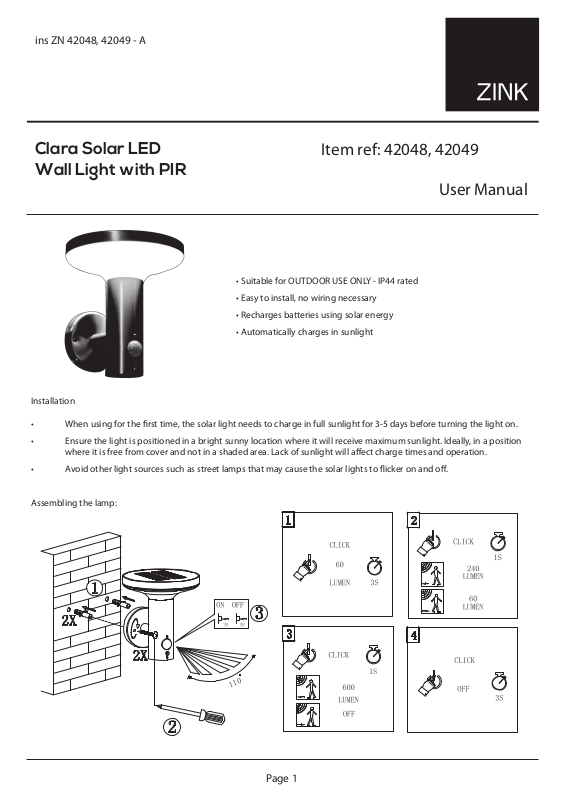

Clara Solar LED
Item ref: 42048, 42049
Wall Light with PIR
User Manual
• Suitable for OUTDOOR USE ONLY - IP44 rated
• Easy to install, no wiring necessary
• Recharges batteries using solar energy
• Automatically charges in sunlight
Installation
• When using for the rst time, the solar light needs to charge in full sunlight for 3-5 days before turning the light on.
• Ensure the light is positioned in a bright sunny location where it will receive maximum sunlight. Ideally, in a position
where it is free from cover and not in a shaded area. Lack of sunlight will aect charge times and operation.
• Avoid other light sources such as street lamps that may cause the solar lights to icker on and o.
Assembling the lamp:
Page 1
Page 2
Using your Solar Wall Light:
Turn on the light by pressing the power button for 3 seconds. (60 Lumen)
Press the power button for 1 second to activate the power saver PIR function. (240 lumen activated/60 lumen passive)
Press the power button for 1 second to activate the full power PIR function. (600 lumen activated/O)
Turn o the light by pressing the power button for 3 seconds.
Warnings
• Suitable for OUTDOOR USE ONLY
• DO NOT expose this product to direct heat, ames or immerse in water.
• Keep out of reach of children and pets.
• The LED’s are non-replaceable
• Please retain this information for future reference.
Cleaning
• If the solar panel gets dirty the charging capacity will be reduced. Clean panels occasionally with a soft damp cloth.
Troubleshooting
Night runtime is short
Solution: The battery is not fully charged. Install the solar light in an area where it can receive the maximum amount
of direct sunlight.
Light does not turn on at night
Solution: The location is too close to other light sources. Relocate the light away from other light sources.
Made in China for ZINK, Gorse Mill, Gorse Street, Oldham, OL9 9RJ, U.K.
Helpline: 0333 005 0077, Mon-Fri, 9am-5pm.
UK MANUFACTURER / IMPORTER
CASCADE HOLDINGS LTD.
GORSE MILL
GORSE STREET
OLDHAM.
UNITED KINGDOM
OL9 9RJ
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment
and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of
according to your local council guidelines.
EU AUTHORISED REPRESENTATIVE:
AUTHORISED REP COMPLIANCE
GROUND FLOOR
71 LOWER BAGGOT STREET
DUBLIN
IRELAND
D02 P593
Page 2
Errors and omissions excepted.
Copyright© 2023. Zink
