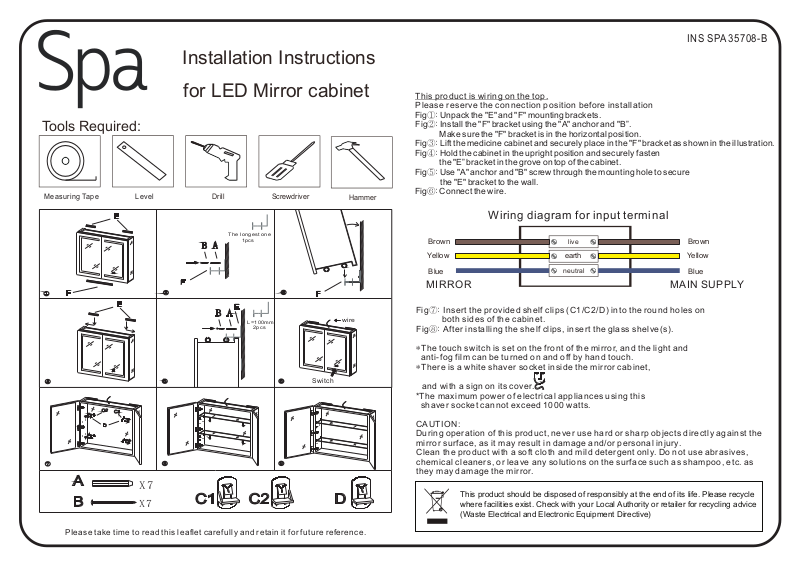

Installation Instructions
INS SPA 35708-B
for LED Mirror cabinet
Tools Required:
Measuring Tape
①
F
④
C2
D
⑦
A
B
PIea se t ak e time to read this leafl et c ar efully and retain i t fo r fu ture reference.
Level
E
F
②
E
⑤
C1
⑧
X 7
X 7
Drill Screwdriver
The l onges t one
AB
1pc s
E
AB
L=1 00mm
2pc s
C1
③
⑥
⑨
Switch
This p roduct is wir ing on the to p.
Plea se reserv e th e connect ion positio n before in stallatio n
Fig①: Unpack the "E" and "F" mounting brackets.
Fig②: Install the "F" bracket using the "A" anchor and "B”.
Make sure the "F" bracket is in the horizontal position.
Fig③: Lift the medicine cabinet and securely place in the "F" bracke
t as shown in the illustration.
Fig④: Hold the cabinet in the upright position and securely fasten
the "E” bracket in the grove on top of the cabinet.
Fig⑤: Use "A" anchor and "B" screw through the mounting hole to secure
the "E" bracket to the wall.
Fig⑥:
Hammer
Connect the wire.
Wiring diagram for input terminal
Brown
Yellow
Blue Blue
live
earth Yellow
neutral
MIRROR MAIN SUPPLY
F
wire
Fig⑦: In sert the prov ided shel f clips (C1/C 2/D) into the r ound hole s on
both s ides of the cab inet.
Fig⑧: Af ter install ing the she lf clips, ins ert the glass s helve(s ).
* The to uch switch is s et on the fro nt of the mirro r, and the light a nd
anti -fog film can b e turned on a nd off b y hand touch.
* Ther e is a white shav er socket i nside the mir ror cabinet ,
Brown
and wi th a sign on its co ver.
*The m aximum powe r of electr ical applia nces usin g this
shav er socket can not excee d 1000 watts.
CAUT ION:
Duri ng operatio n of this pro duct, never u se hard or sh arp objects d irectly aga inst the
mirr or surface, a s it may resu lt in damage an d/or person al injury.
Clea n the product w ith a soft cl oth and mild de tergent onl y. Do n ot use abrasi ves,
chem ical clea ners, or leav e any solutio ns on the sur face such as sh ampoo, etc. a s
they m ay damage the m irror.
DC2
This product should be disposed of responsibly at the end of its life. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
(Waste Electrical and Electronic Equipment Directive)
