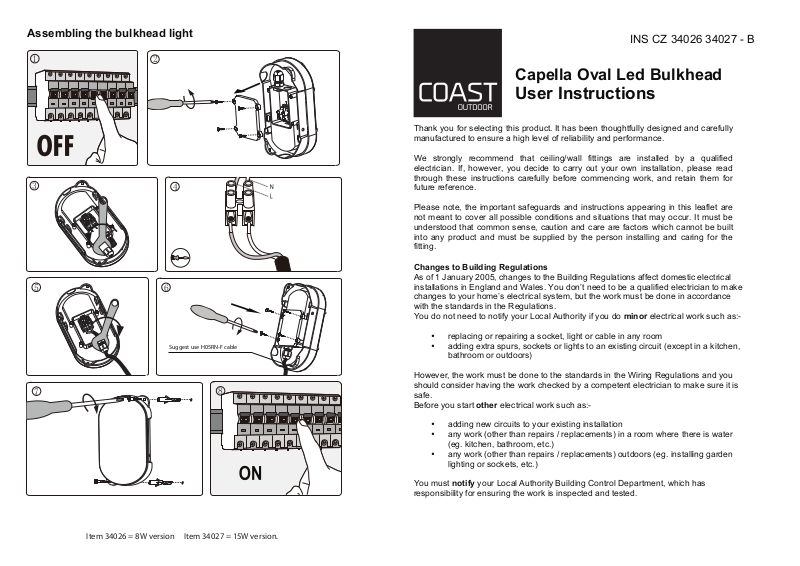

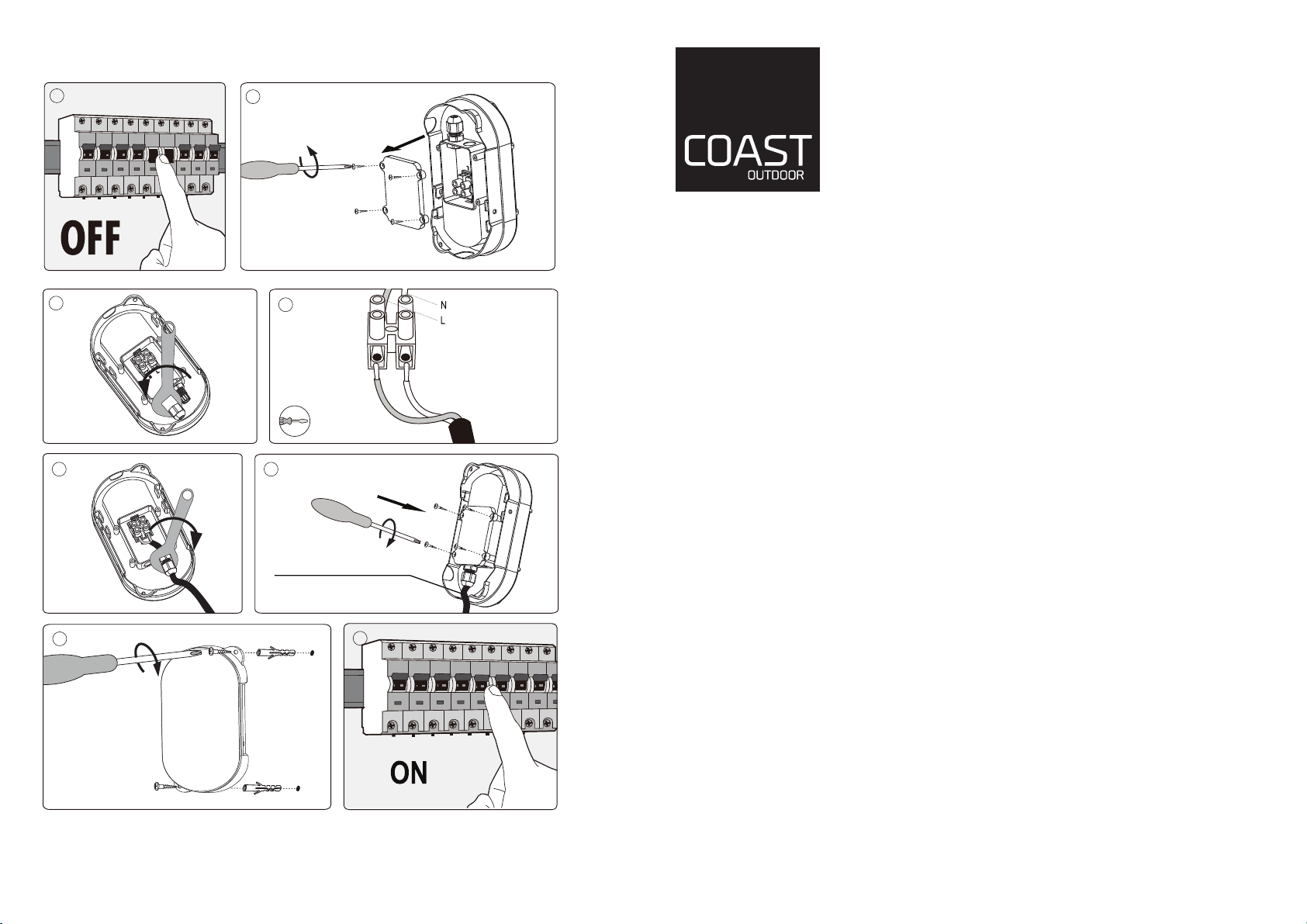

Assembling the bulkhead light
1
3
5
7
2
4
6
Suggest use H05RN-F cable
INS CZ 34026 34027 - B
Capella Oval Led Bulkhead
User Instructions
Thank you for selecting this product. It has been thoughtfully designed and carefully
manufactured to ensure a high level of reliability and performance.
We strongly recommend that ceiling/wall fittings are installed by a qualified
electrician. If, however, you decide to carry out your own installation, please read
through these instructions carefully before commencing work, and retain them for
future reference.
Please note, the important safeguards and in
not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which cannot be built
into any product and must be supplied by the person installing and caring for the
fitting.
Changes to Building Regulations
As of 1 January 2005, changes to the Building Regulations affect domestic electrical
installations in England and Wales. You don’t need to be a qualified electrician to mak
changes to your home’s electrical system, but the work must be done in accordance
with the standards in the Regulations.
You do not need to notify your Local Authority if you do minor electrical work such as:-
• replacing or repairing a socket, light or cable in any room
• adding extra spurs, sockets or lights to an existing circuit (except in a kitchen,
bathroom or outdoors)
However, the work must be done to the standards in the Wiring Regulations and you
8
should consider having the work checked by
safe.
Before you start other electrical work such as:-
• adding new circuits to your existing installation
• any work (other than repairs / replacements) in a room where there is water
(eg. kitchen, bathroom, etc.)
• any work (other than repairs / replacements) outdoors (eg. installing garden
lighting or sockets, etc.)
You must notify your Local Authority Building Control Department, which has
responsibility for ensuring the
work is inspected and tested.
structions appearing in this leaflet are
e
a competent electrician to make sure it is
Item 34026 = 8W version Item 34027 = 15W version.
Page 2
Where you have any work done by an electrician who is a member of a competent
person self-certification scheme, the electrician will be able to certify the work complies
with the Regulations and you do not need to notify your Local Authority.
We recommend that you make yourself aware of the Regulations before you undertake
any work and if you require any clarification you should contact your Local Authority
Building Control Department.

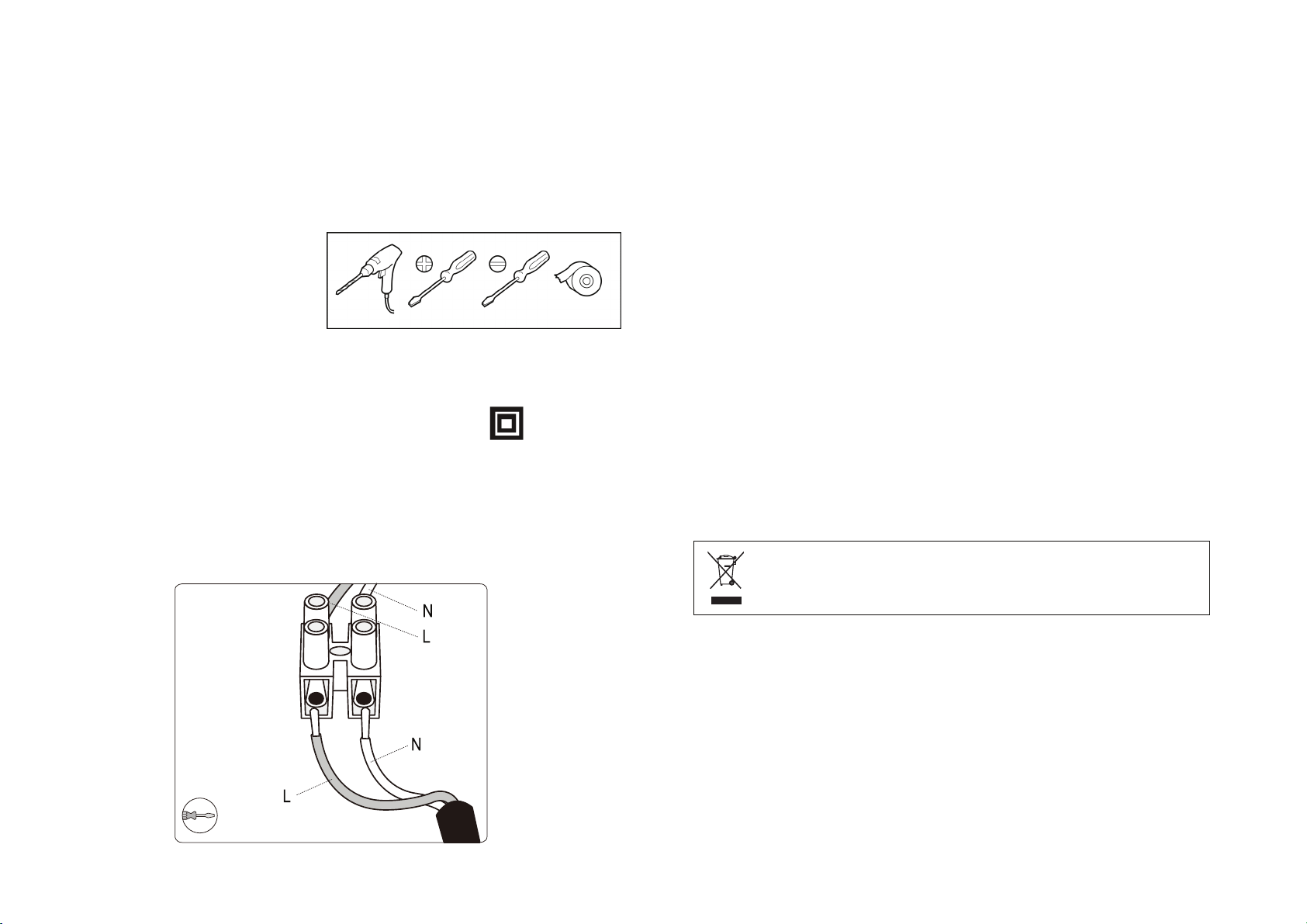

Tools which may be required:
• Drill
• Cross H
• Small Electrical Slotted Screwdriver
• Insulation Tape
ead Screwdriver
Assembling the bulkhead light
Follow the guide on the last page to assemble the bulkhead light.
Double insulated items (Class 2): Are marked with the symbol
This fitting must not be Earthed.
Do not wire this lantern into the lighting circuit - use a switched fuse spur.
Do not attach any part of it to an Earth Wire or terminal.
Please note: For new installations, check for
(gas/water) in the vicinity of the intended mounting point for this product, before
proceeding with the installation.
any electrical cables or pipe work
LED Fitting
Please note: the LED bulbs used in this fitting cannot be replaced.
Switch on!
You may now switch the electricity back on at the mains.
Cleaning care
The Plastic finish should be cleaned with a soft, dry cloth only. Do not use
polishes or abrasive cloths.
Do not immerse in water or cleaning solutions.
Safety information
For your safety, please remember the following:
Always switch off the supply before removing shades/covers or cleaning.
IP65 product: Totally protected against dust. Protected against low pressure jets of water from
all directions. Limited ingress permitted.
This bulkhead is rated IP65
pressure jets of water from all directions. Limited ingress permitted.
- Totally protected against dust. Protected against low
This product should be disposed of responsibly at the end of its life. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
(Waste Electrical and Electronic Equipment Directive)
Helpline
If you receive this item with parts broken or missing, please telephone:
0333-005-0077
Please have ready your name, address, tel. no., product reference, where purchased
and parts required. An answering service is in operation outside office hours and
during busy periods.
We regret that we are unable to give advice on internal house wiring.
