ForU MN 3, MN 4 Operation Manual

Download

OPERATING MANUAL

MN 3 and MN 4

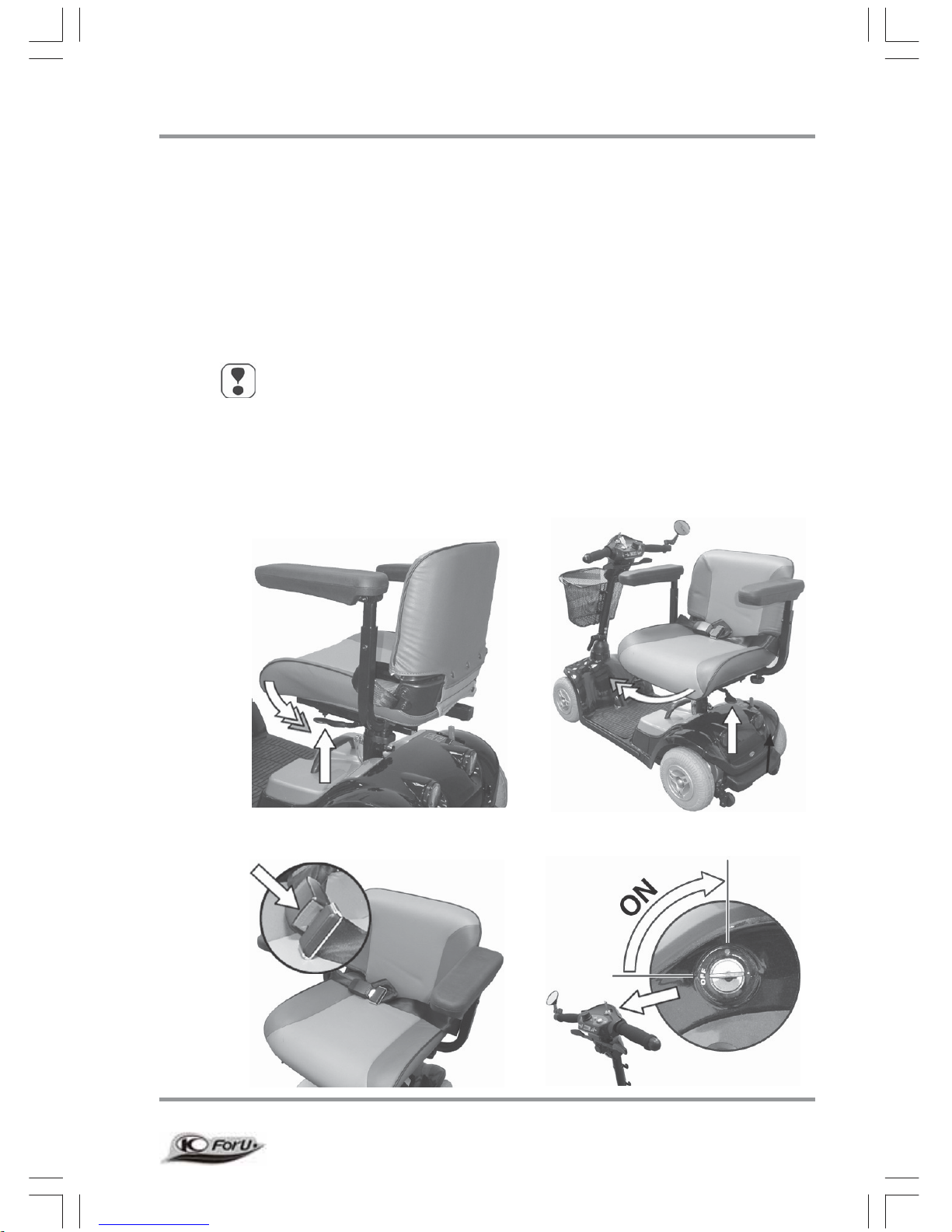

3-wheel and 4-wheel

Introduction

FOR U

MN3/4

With the FOR U MN3/4, you have now purchased a product which has

been manufactured in accordance with the newest technical capabilities and based on the highest operating comf ort. We have placed great value on the simplest possible operation and long service life in both construction and material selection. A large variety of useful acce ssories rounds off our range in addition to the FOR U.

This Operating Manual assumes that the suitability of the user for FOR U usage has been discussed with a doctor , therapist and/or dealer before operation.

The operatingmanualwillhelp you get to know the functionof our FOR U and, in addition, describes

• operation

• care and maintenance

• repair The manual has been drawn up using information available at the time

of printing with regard to construction and oper ation of the FOR U. We reserve the right to make changes due to technical improvements.

If you have any other questions about this scooter please contact your retailer or supplier .

Issued: 23.01.2008

8.5

8.6

Driving the FOR U...........................................................................

Getting on and off ......................................................................

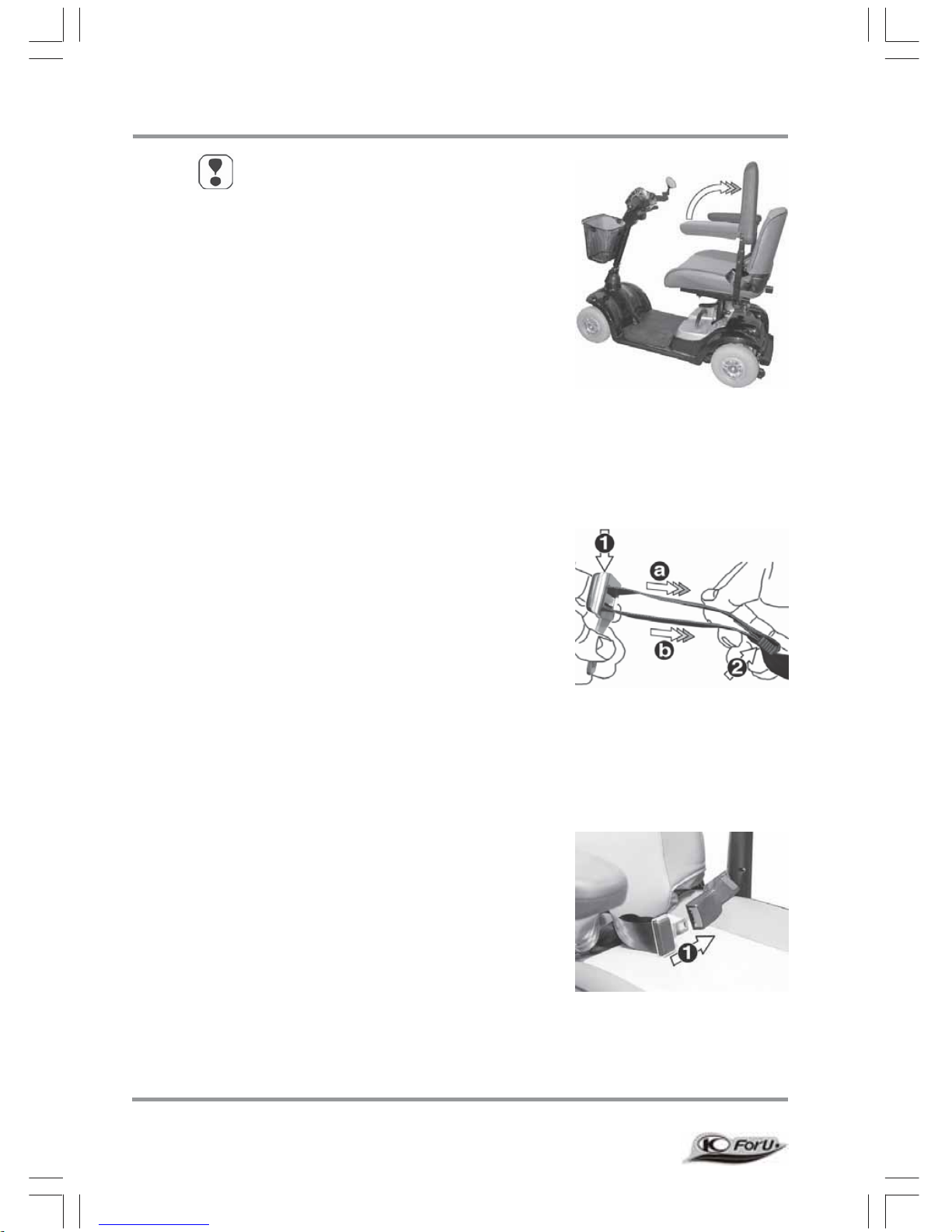

Seat belt - adjusting for length and putting on ............................ 34

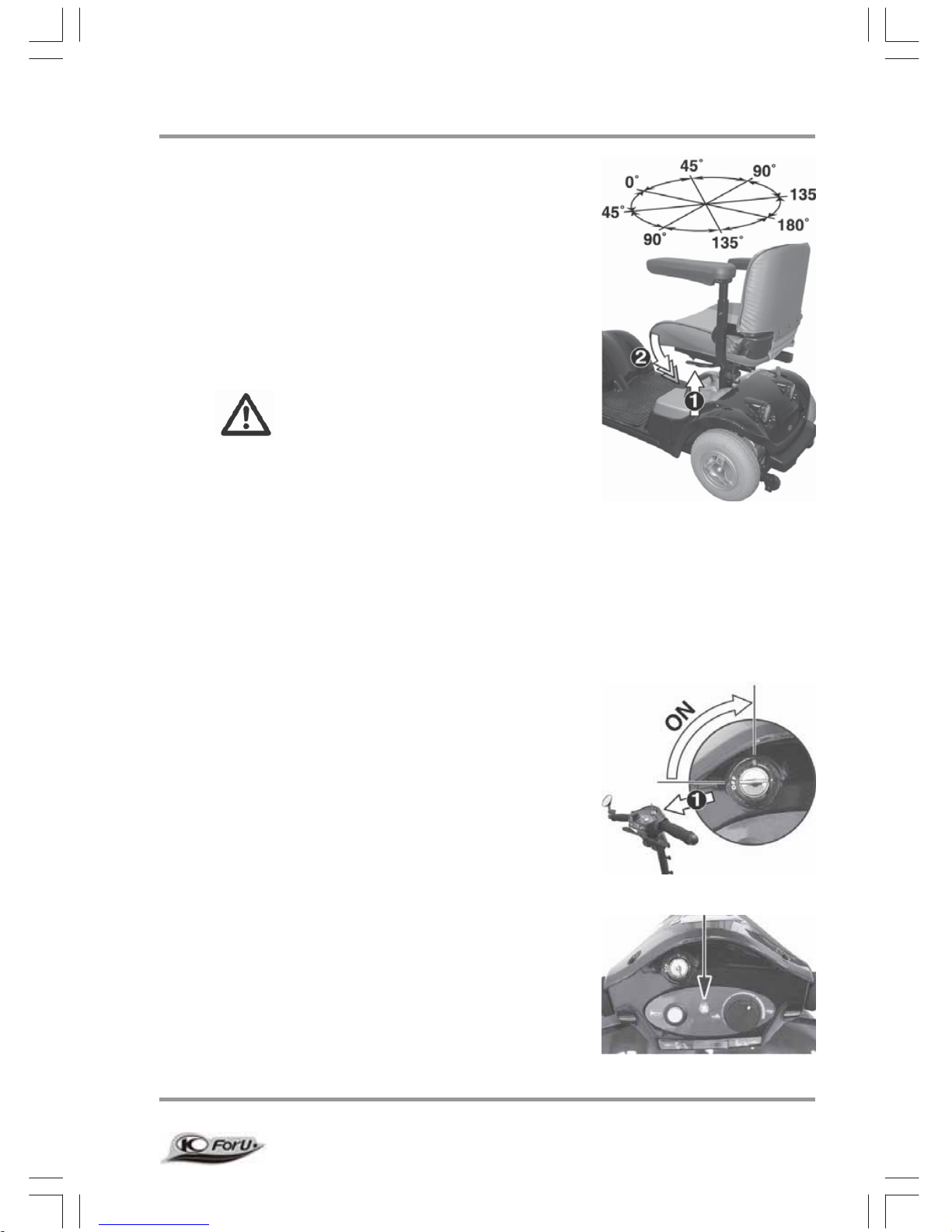

T urning the se at ......................................................................... 3 5

Switching the FOR U on ............................................................35

8.4. 1 Operation indicator and fault display ...............................35

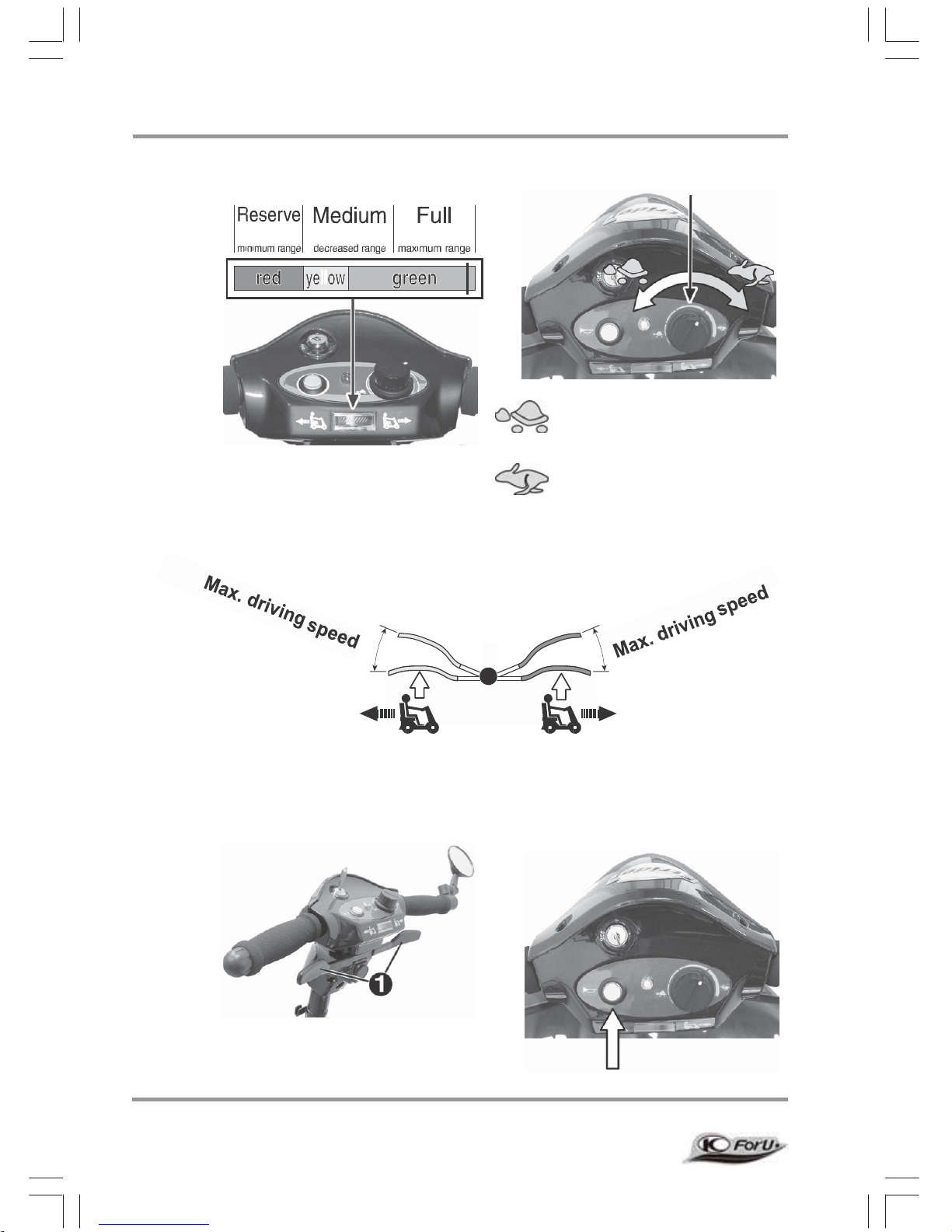

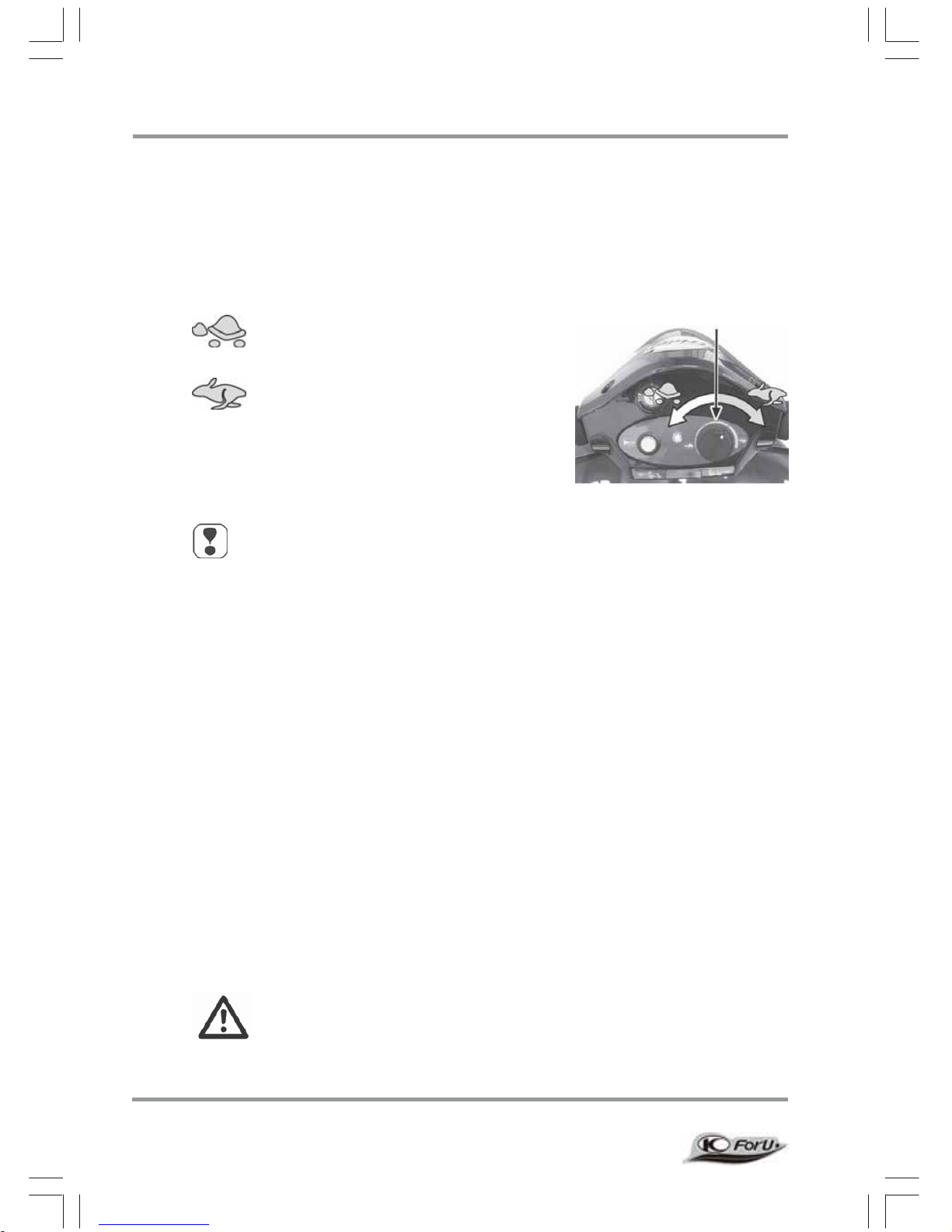

Adjusting the speed ................................................................... 36

Before dr iving ............................................................................ 3 6

8.1

8.2

8.3

8.4

8.0

7.3

7.4

Informationabout safeFOR U driving ........................................... 2 6

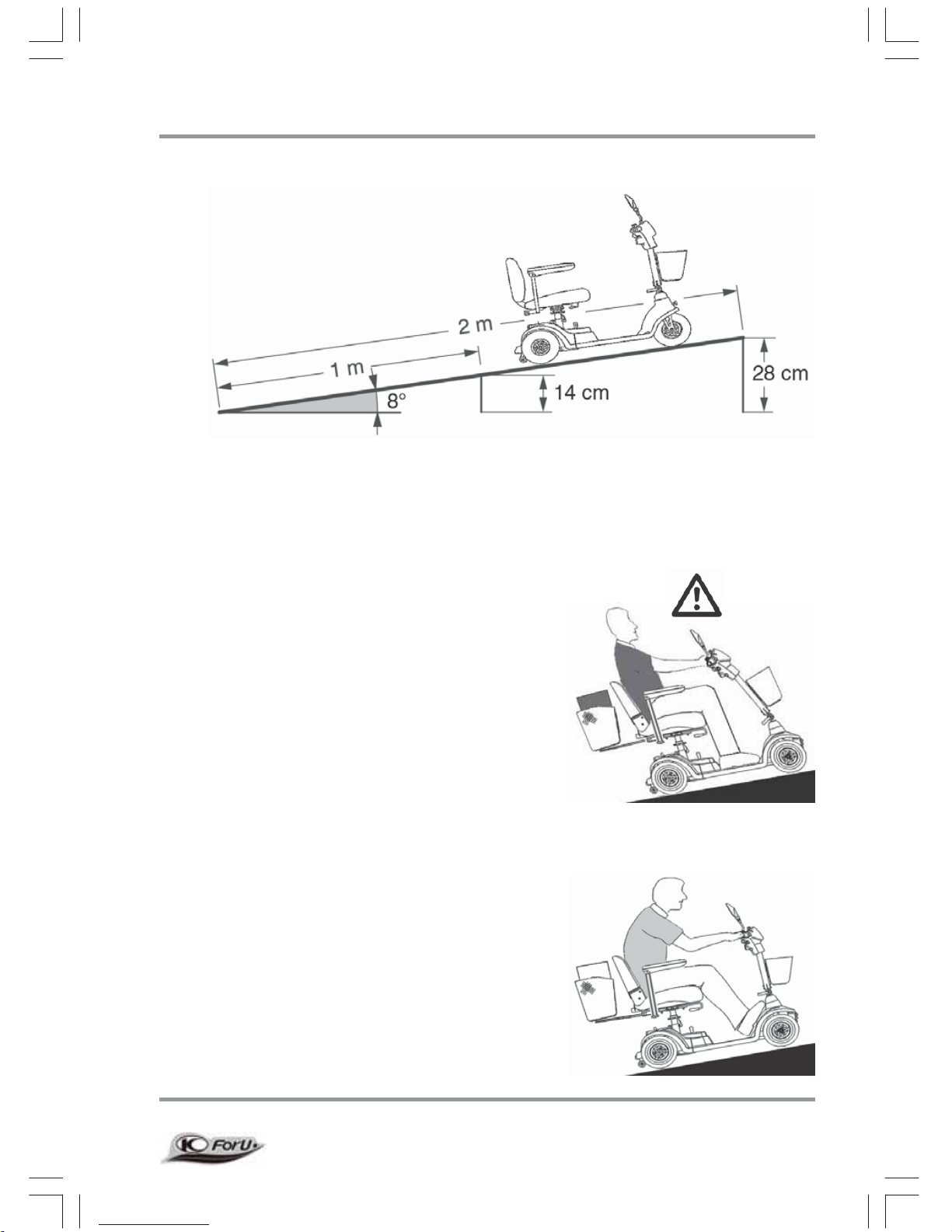

Drivingup inclines anddown slopes ..........................................

Overcoming obstacles ............................................................... 28

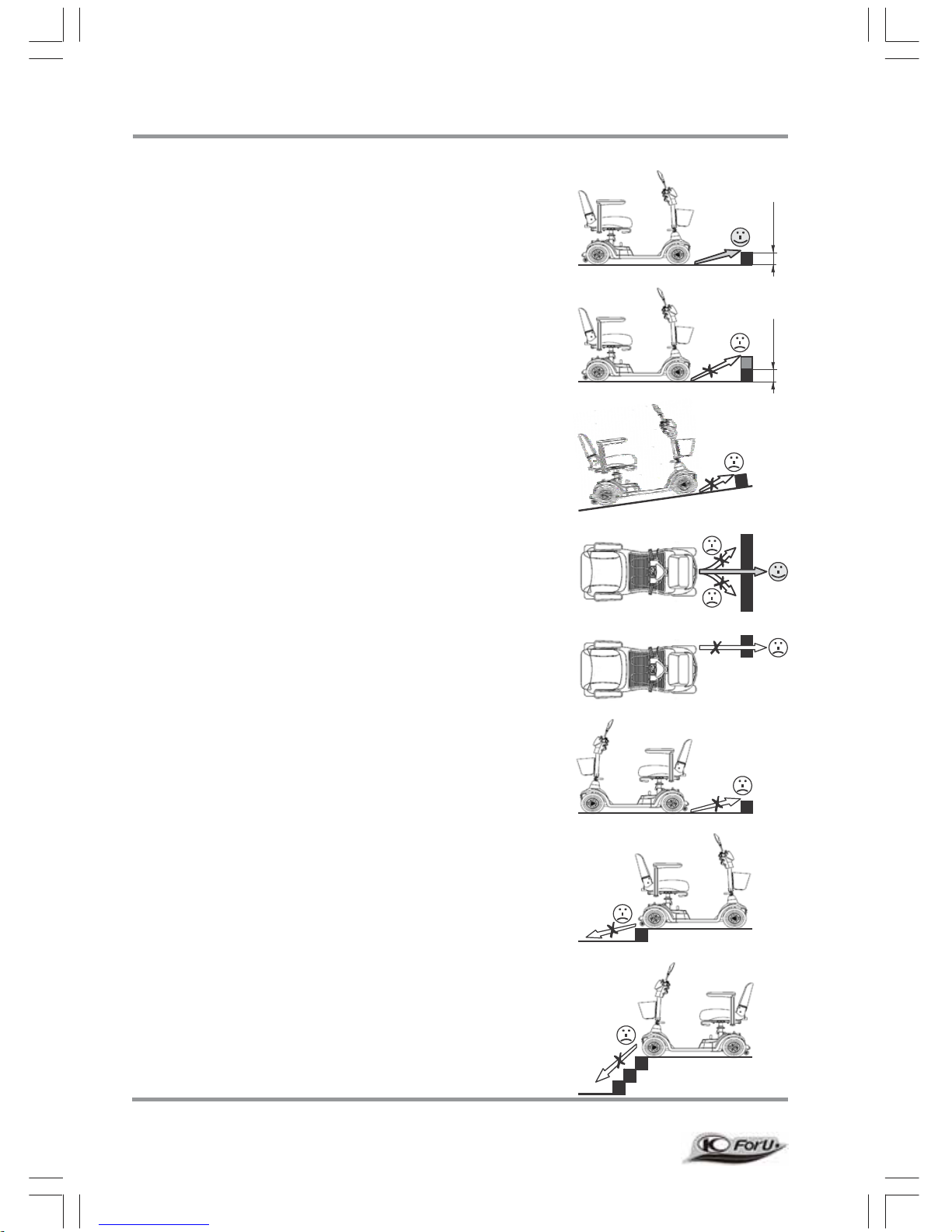

7.2.1 Driving Information – Overcoming kerbs .......................29

Overload protection - motor protection ....................................... 30

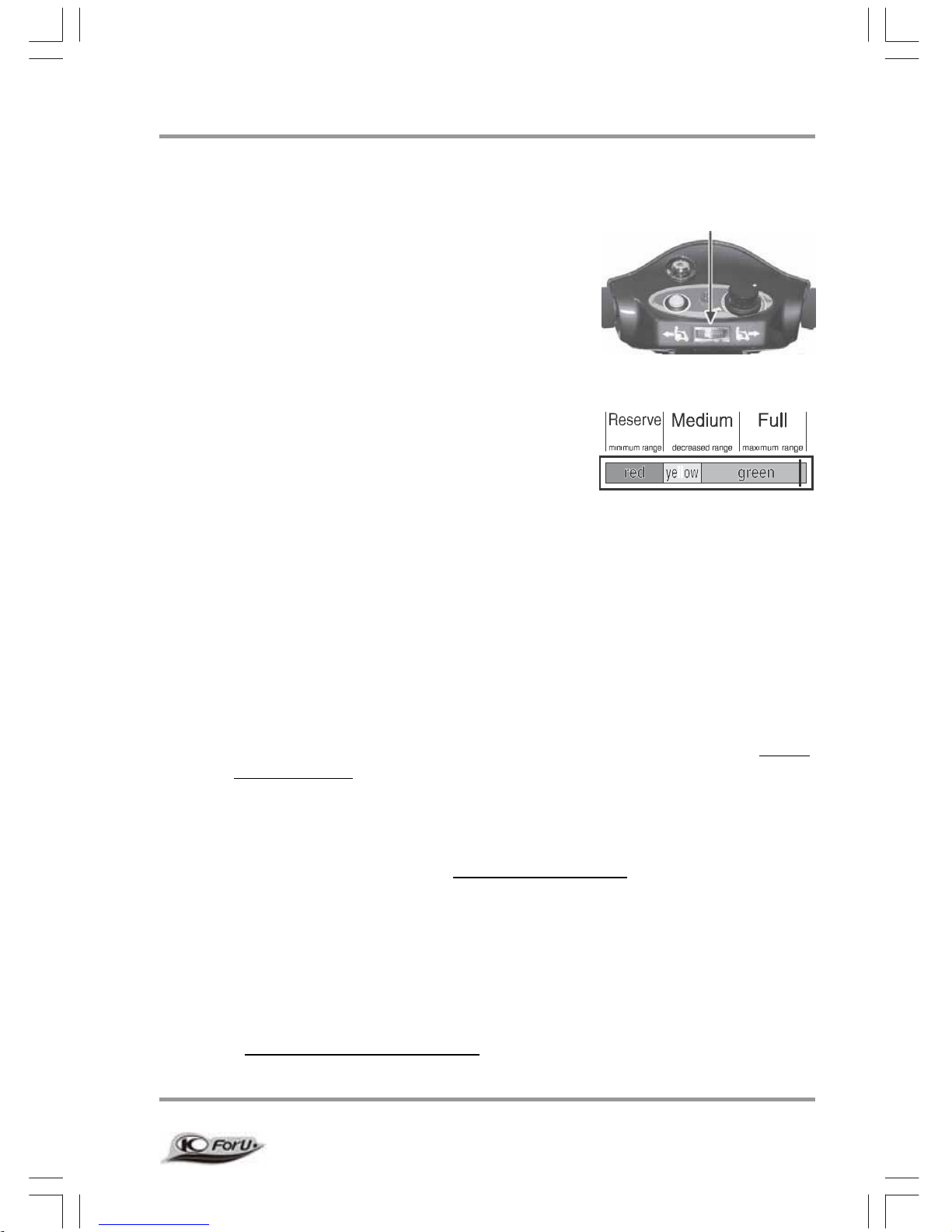

Battery charging state = driving range ........................................ 3 1

Batterycharging state ....................................................

Driv ing range .................................................................. 32

Overdischarge protection - battery protection .................. 3 2

7.4.1

7.4.2

7.4.3

7.1

7.2

7.0

6.3

6.0

5.0

Ver

sion s............................................................................................ 13

Extent of delivery ............................................................................. 13

Comp onen ts ..................................................................................... 14

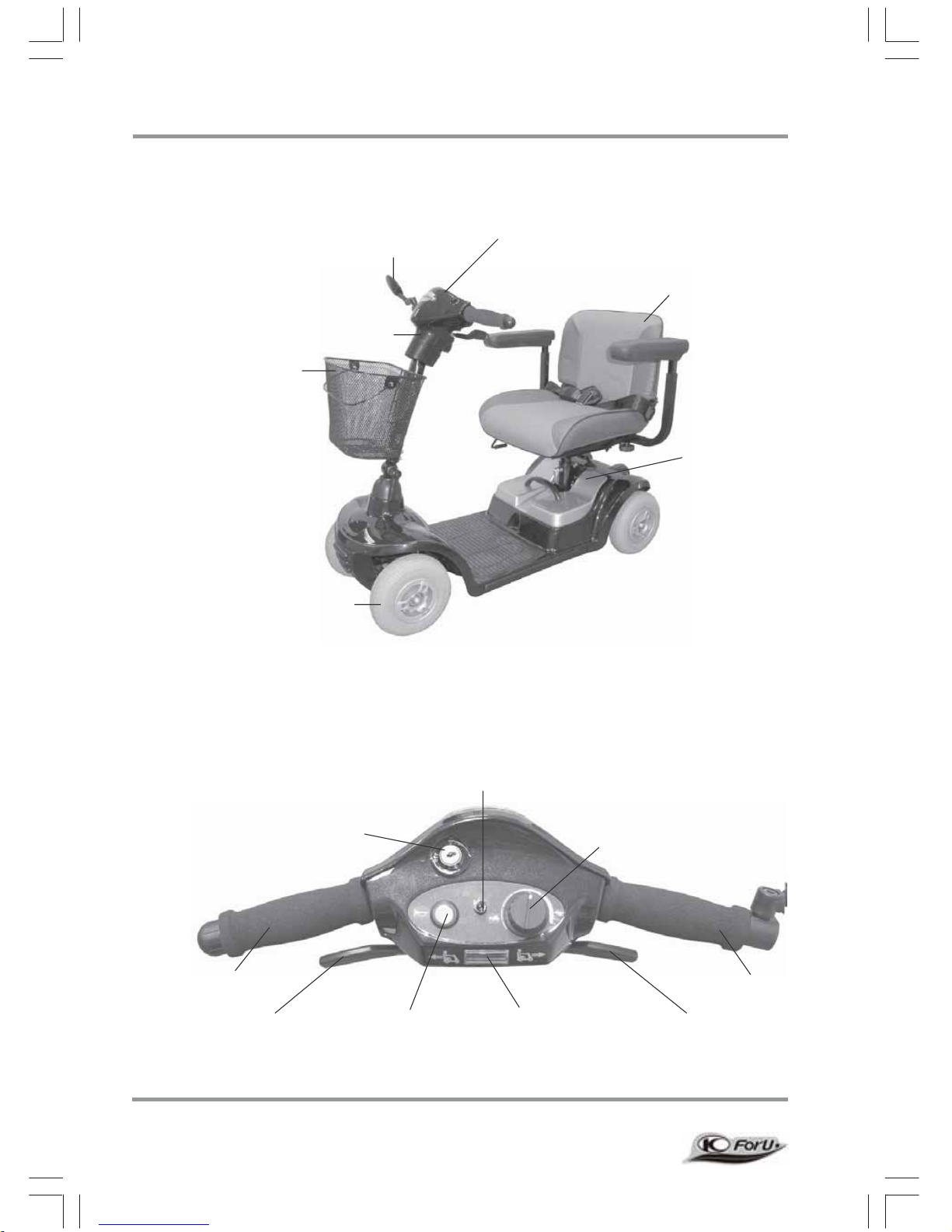

4.1 The FOR U .............................................................................. 14

4.2 The dashboard - displays and controls ..................................... 1 4

Brief in structions ............................................................................. 15

5.1 Driving the FOR U ....................................................................15

5.2 Transporting the FOR U ............................................................17

Settin

upthe FOR U ................................ ... ................................... 19

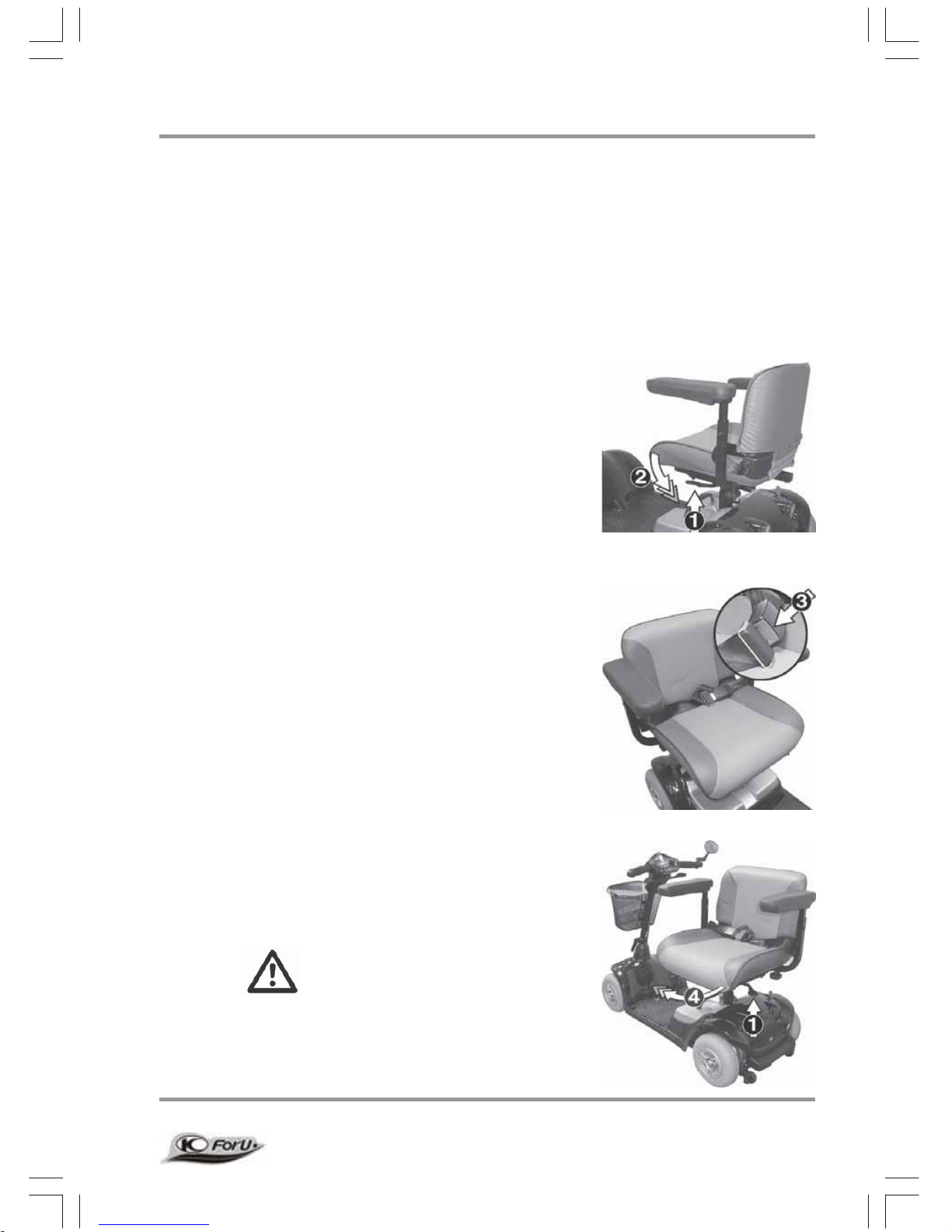

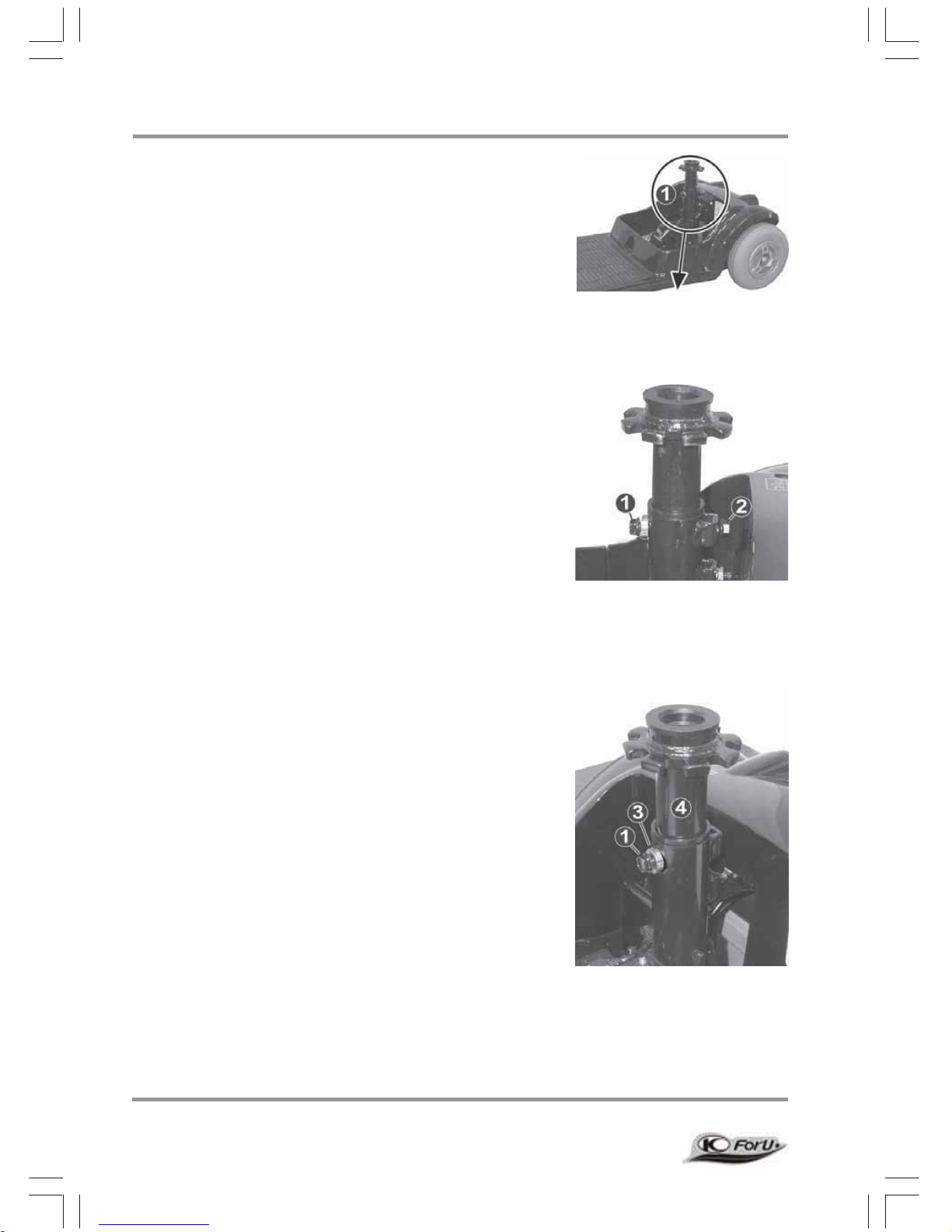

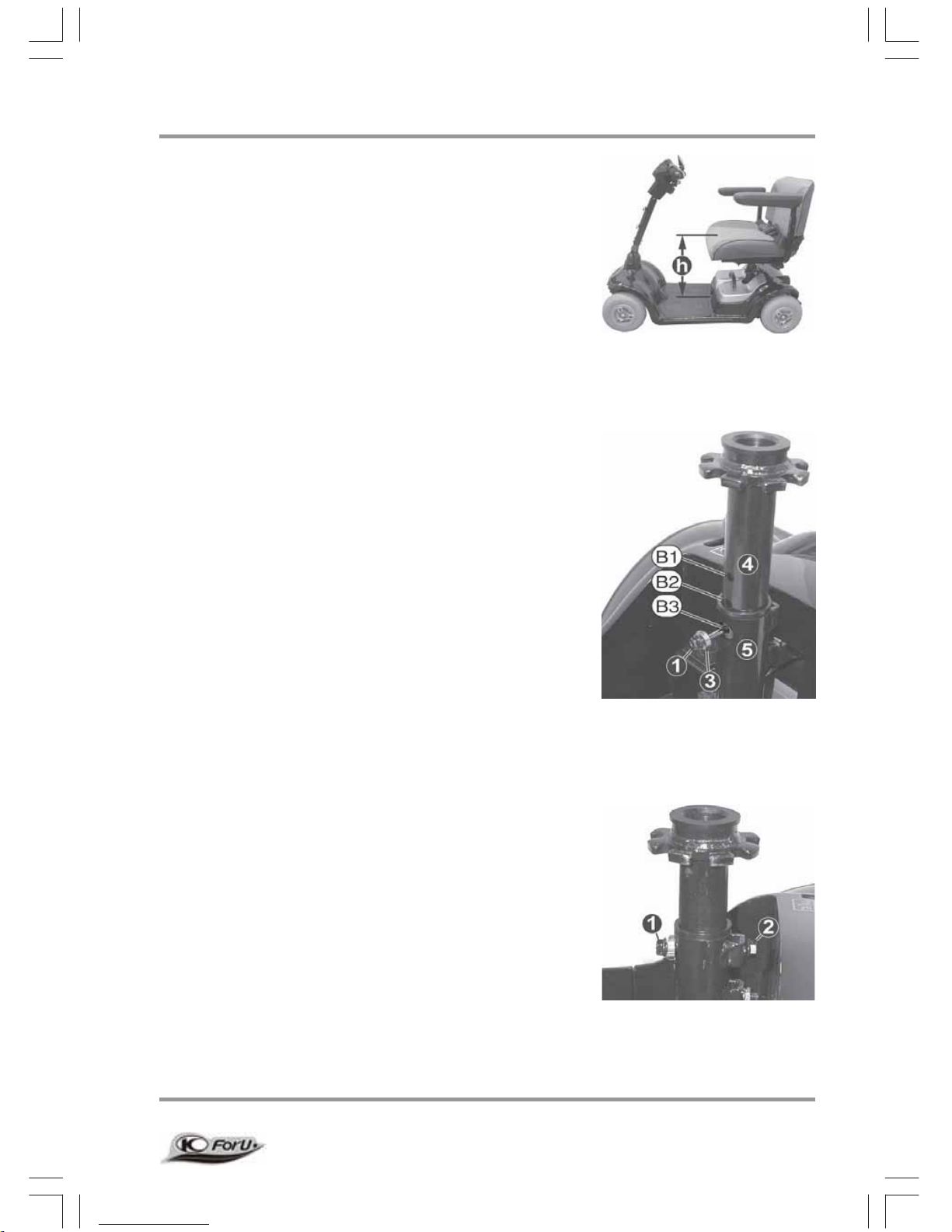

djusting the seat height ........................................................... 19

Adjusting the seat position ......................................................... 2 3

6.2.1

6.2.2

6.2.3

djusting thedistance between seat and tiller ................ 23

Adjusting the armrest width ............................................ 23

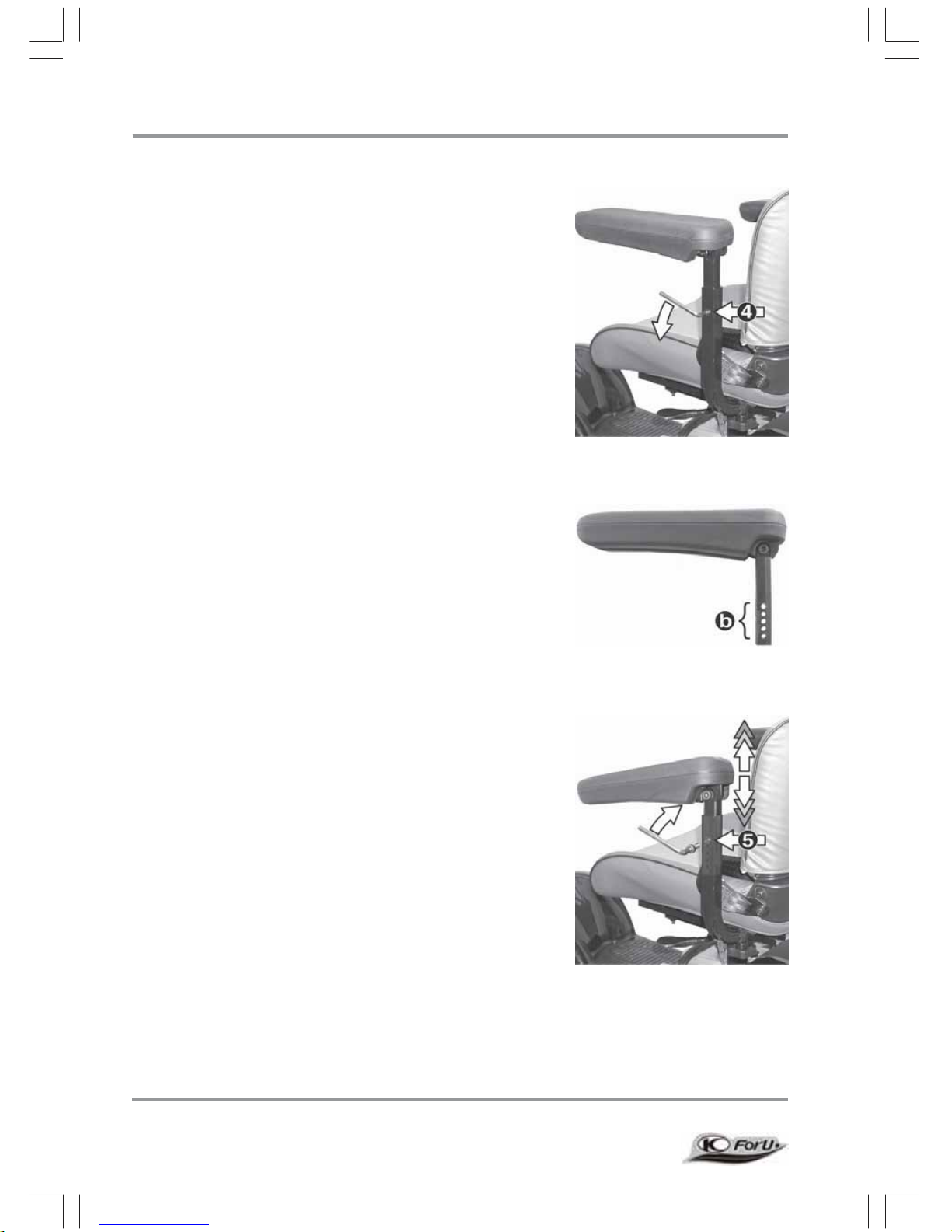

Adjusting the armrest height ........................................... 24

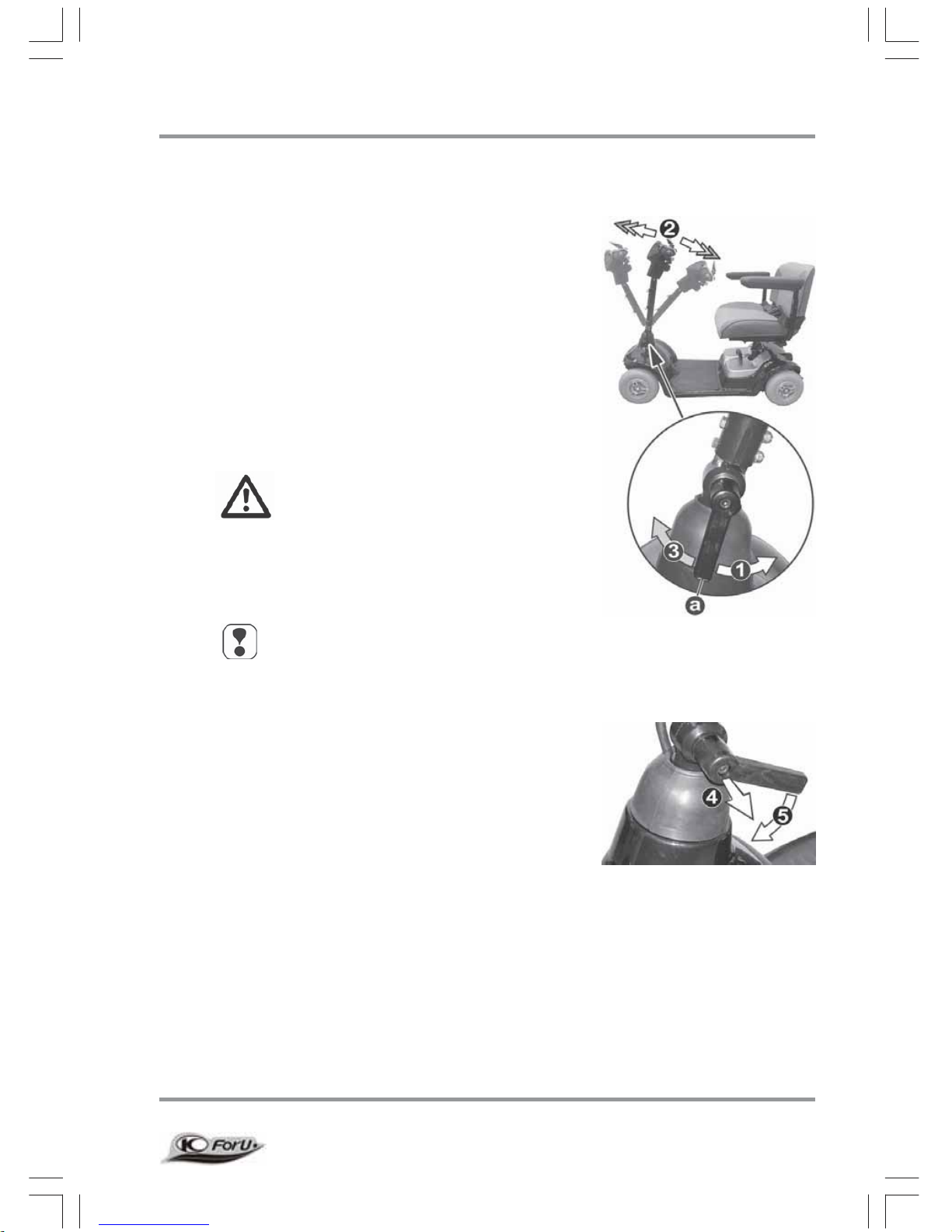

djusting the tiller angle............................................................. 25

6.1

6.2

2.0

3.0

4.0

FOR U

MN3/4

1.0 Safe ty instructio ns ................................................................................. 8

Symbols used.............................................................................. 8

Intended use ................................................................................ 8

General Information ..................................................................... 9

Safety when driving ................................................................... 1 0

Safety during transport, assembly and maintenance .................. 1 1

Safety when handling batteries .................................................. 1 2

Safety - information about electronics ........................................ 1 2

1.1

1.2

1.3

1.4

1.5

1.6

1.7

Contents

FOR U

MN3/4

8.7

8.8

8.9

Driving .......................................................................................

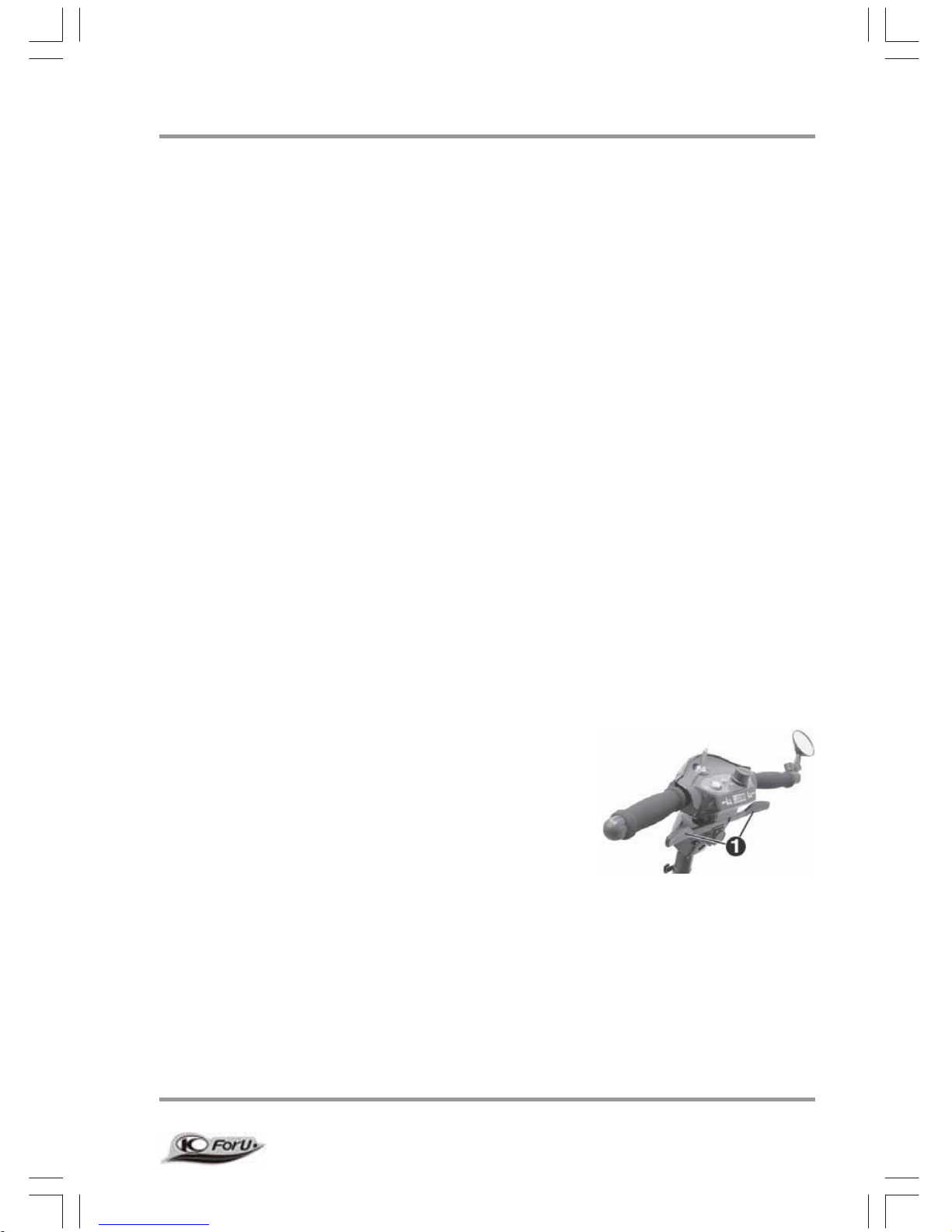

Using the motor brake ................................................................ 3 7

Using the horn ........................................................................... 3 8

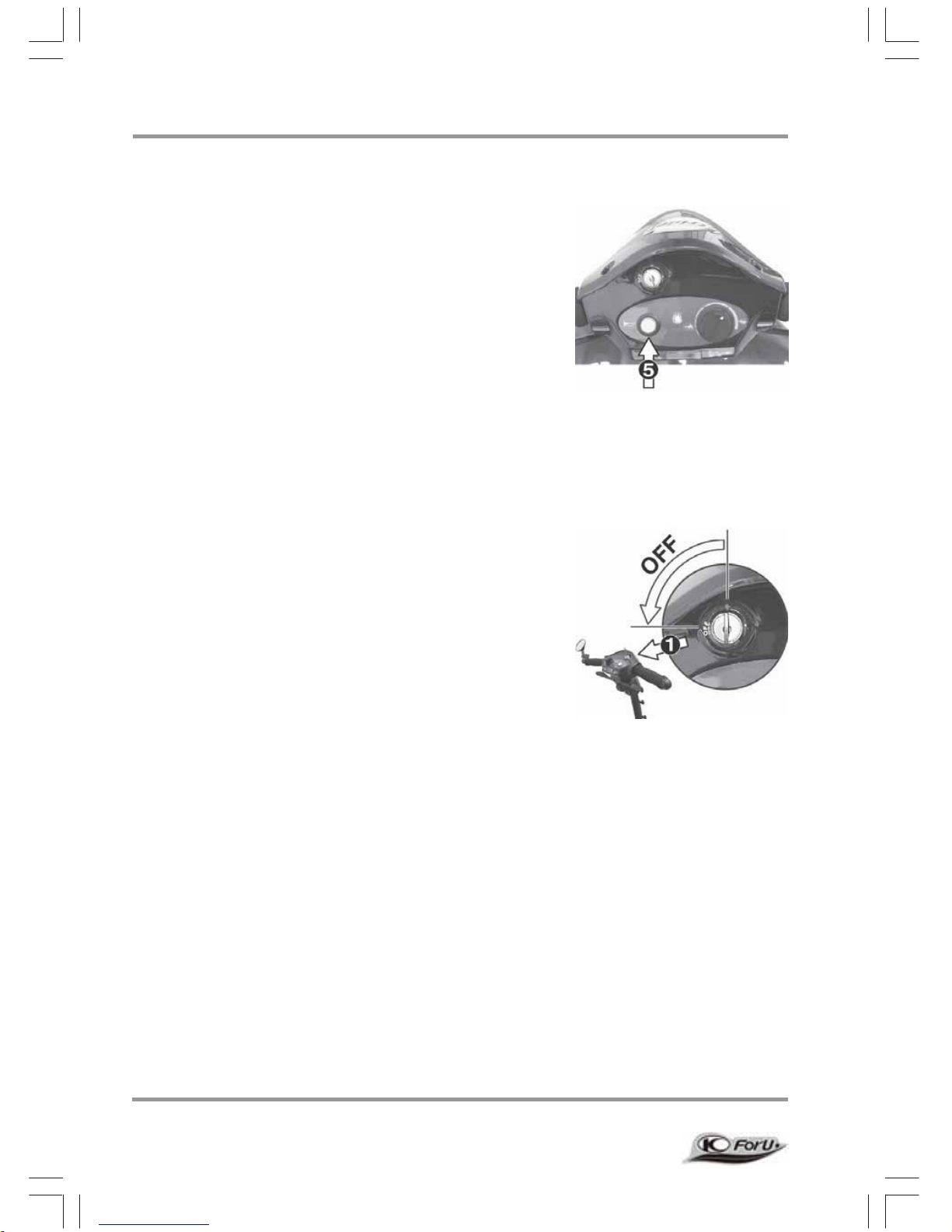

8.10 Sw itchi ng off

parking the FOR U .............................................. 38

Pushing the FOR U.......................................................................... 3 9

Attaching the shopping basket .......................................................39

Chargi ng the batteries .....................................................................4 0

11. 1 Preparing the battery charge r .....................................................40

11. 2 Chargi ng the batter ies ................................................................41

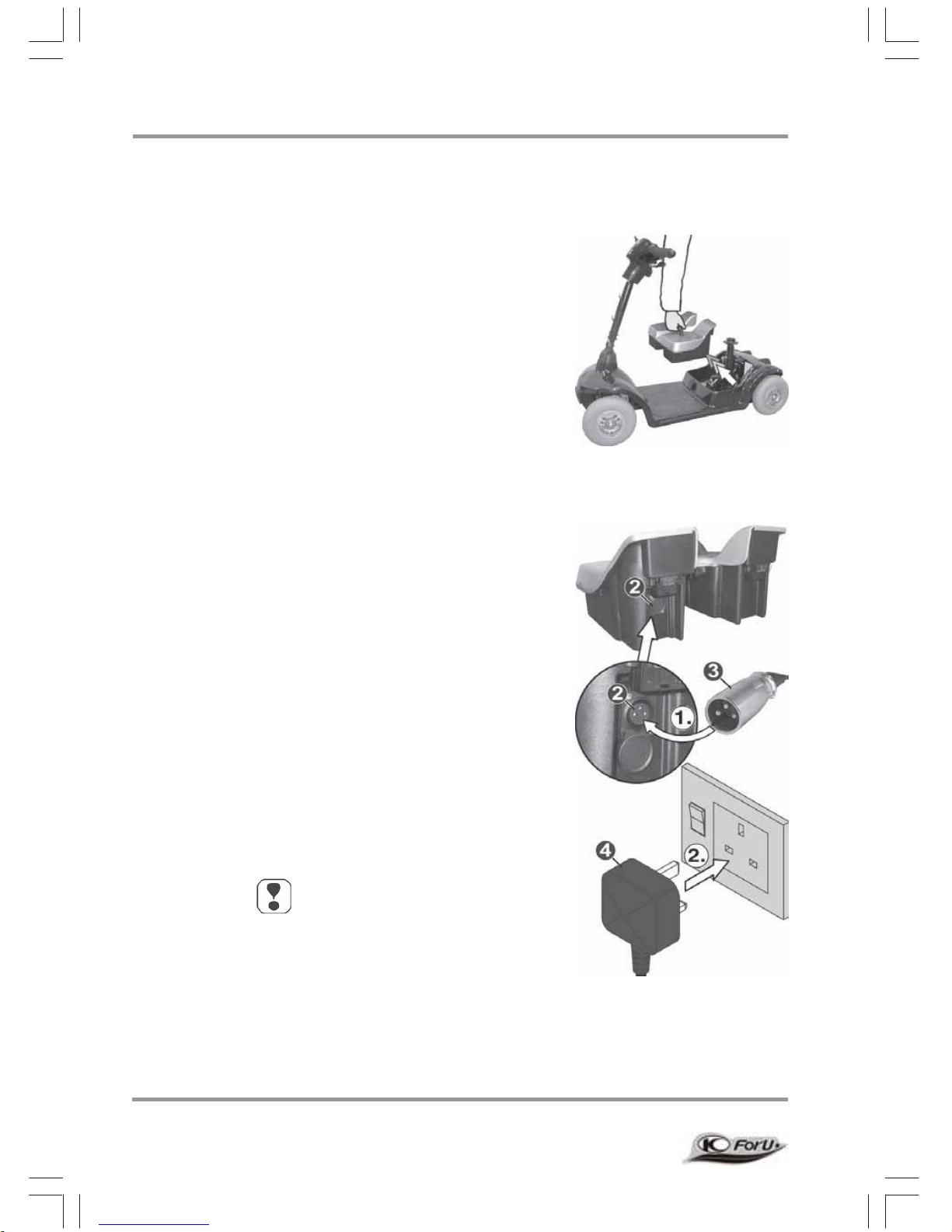

11.2 .1 Charging the batteries in the FOR U via the tiller

(12 Ah and 17 Ah batteries) ............................................41

11.2 .2 Charging the 12 Ah batteries in the battery case ............4 2

(when removed from the FOR U) ....................................42

11.2. 3 LED information at battery charger during charging ........43

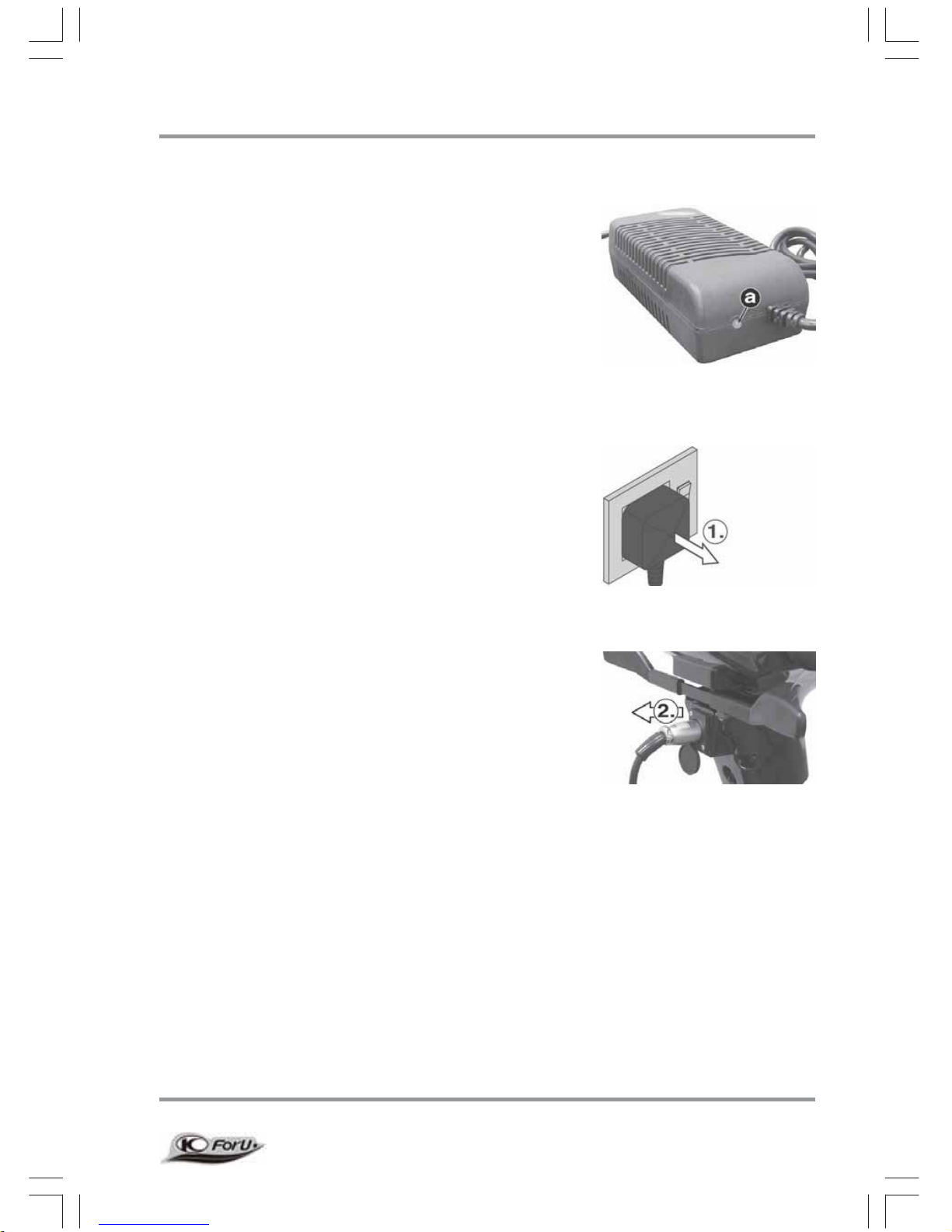

11.3 After charging ............................................................................ 43

Things to know ................................................................................ 44

12. 1 The battery charger - functioning principle ..................................44

12.2 The Batteries ............................................................................. 44

12.2 .1 What are batteries for cyclic use? ..................................45

12. 2.2 When do the batteries achieve their maximum

performance? .................................................................. 45

12. 2.3 How do I make sure the batteries achieve their

best service life? ............................................................ 45

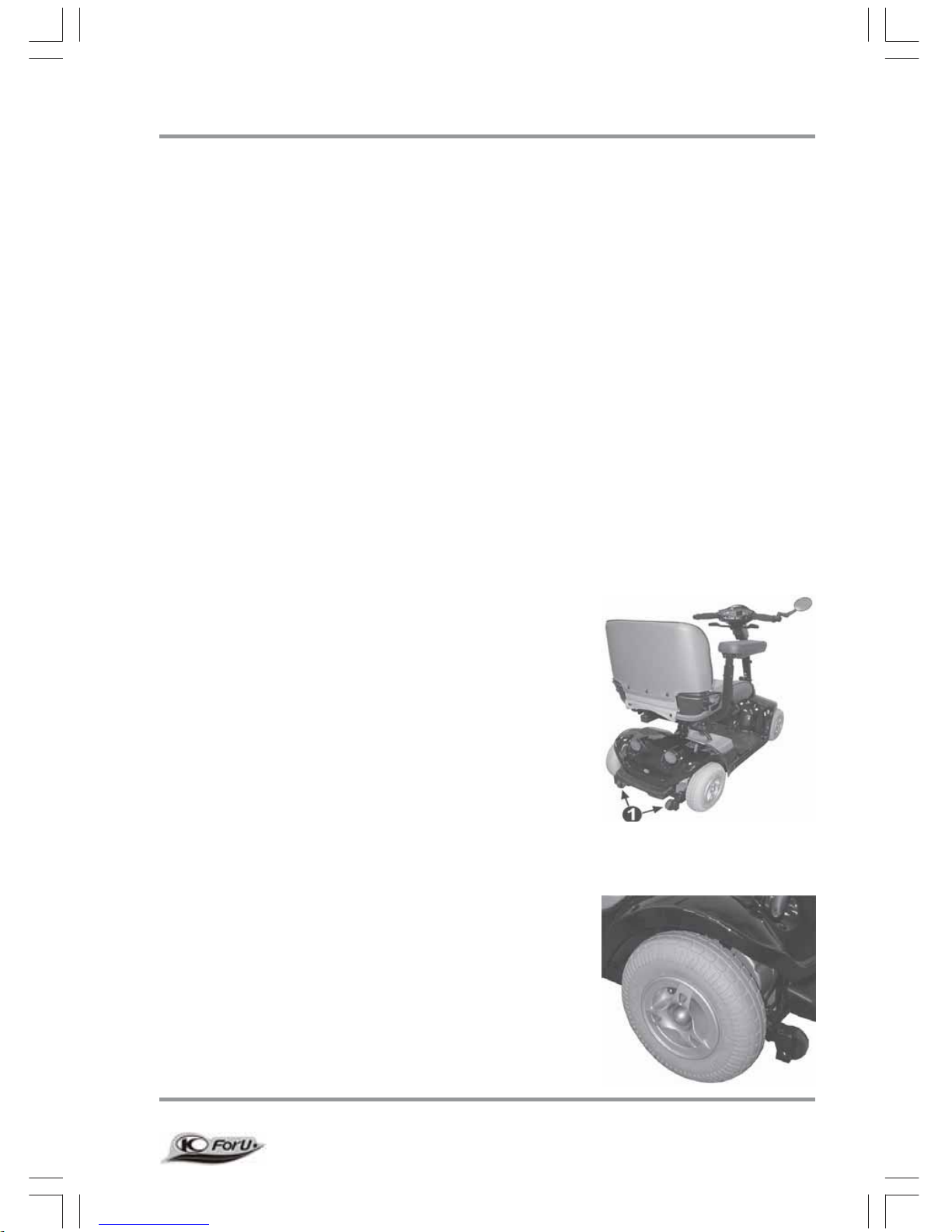

12. 3 Anti tipping wheels ..................................................................... 45

12. 4 Wheels and tyres ....................................................................... 45

12. 5 The tiller lock (only 3-wheel version) ............................. ......... .... 46

12. 6 The drive unit ............................................................................. 46

12. 7 The wor king princip le ................................................................. 46

12. 8 The control unit .......................................................................... 47

12. 9 The auto switch-off .................................................................... 4 7

12. 10 Brakes on the FOR U..............................................................47

12.11 Driver´s licence ...................................................................... 48

12.12 Insurance ................................................................................48

12. 13 Approval for road traffic use ....................................................4 8

T ransporting the FOR U .................................................................. 49

13.1 Transport information ................................................................. 49

13. 2 T ransporting the complete scooter ............................................. 49

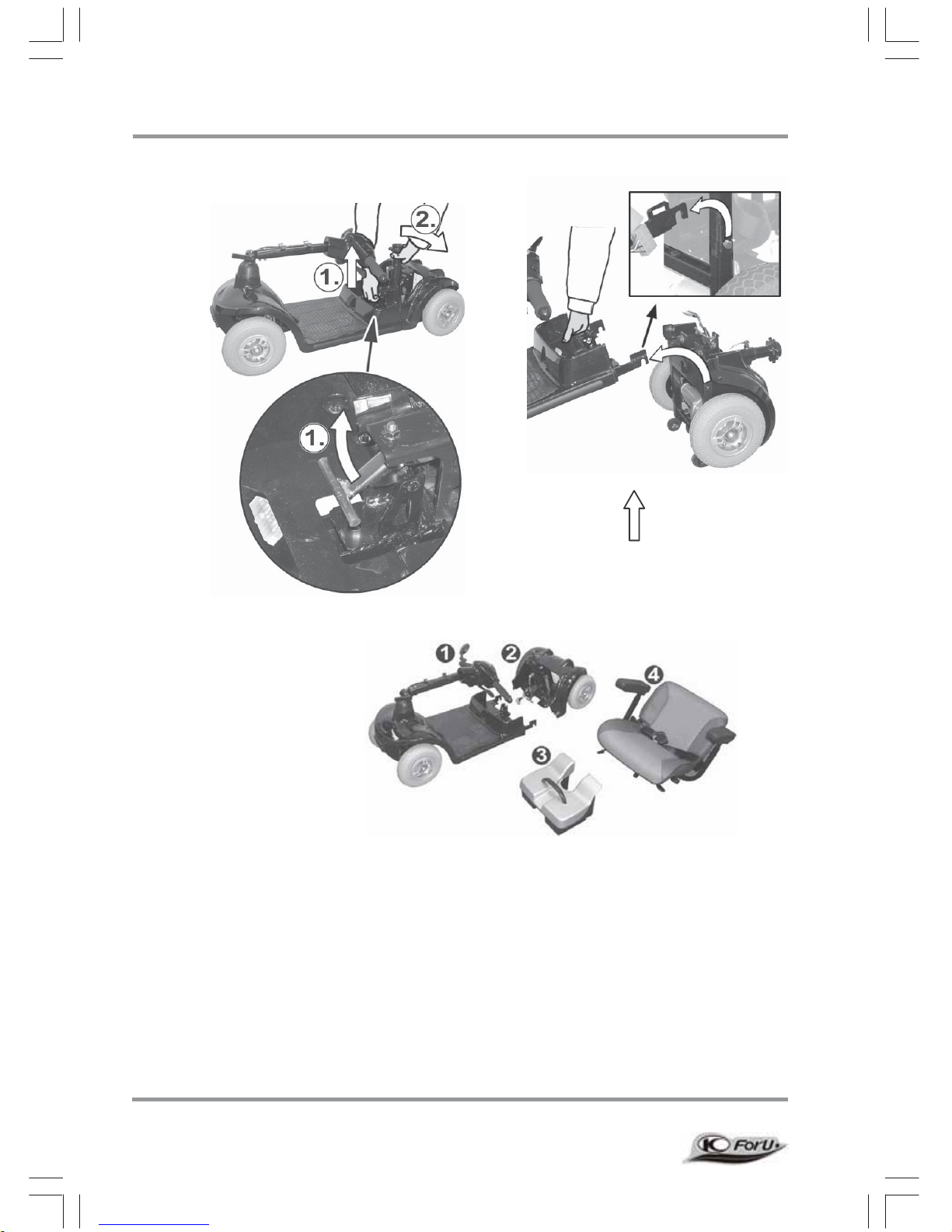

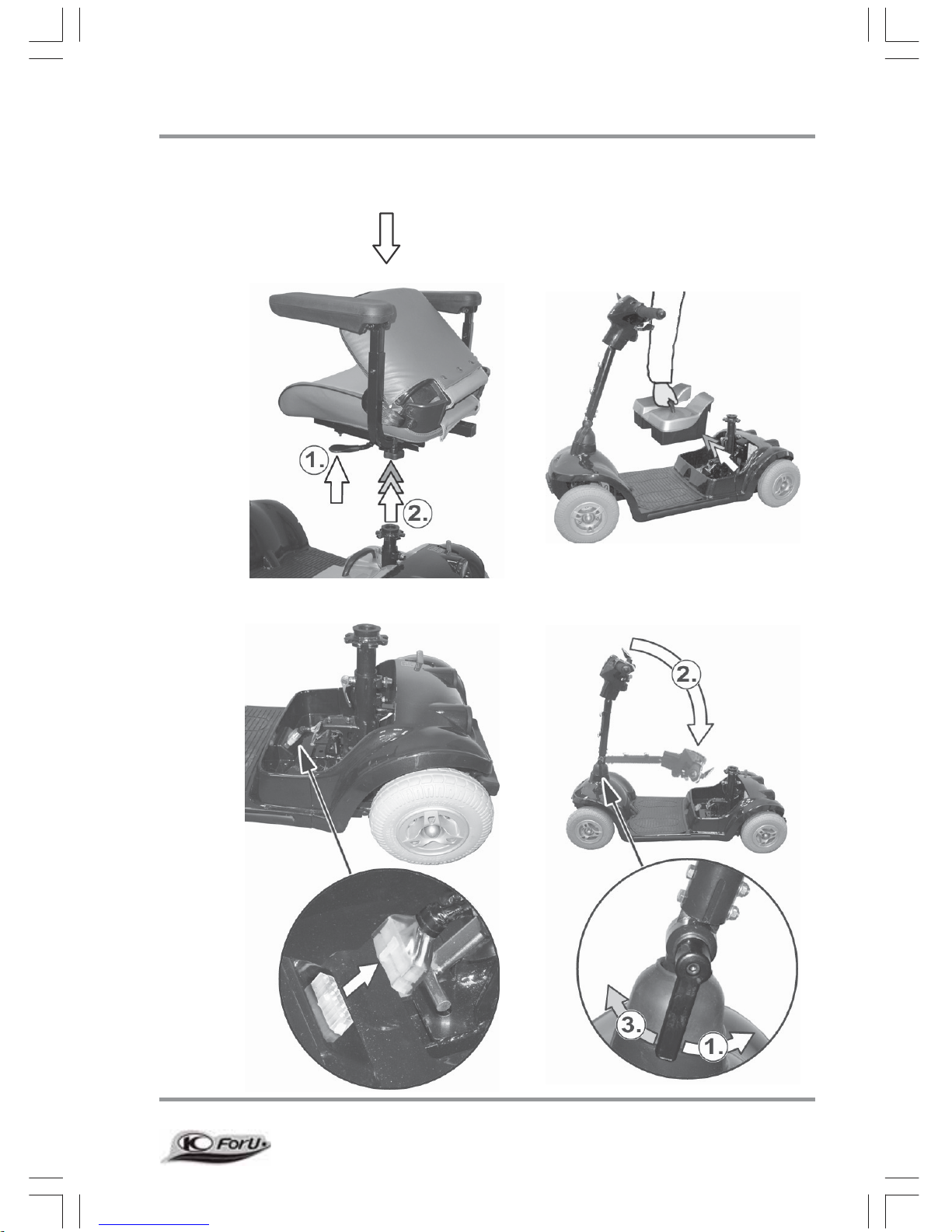

13. 3 Preparation for transport - separating components ..................... 49

13.3 .1 Working step summary ...................................................50

13.3.2 Removin

theseat..........................................................50

Contents

9.0

10.0

11.0

12.0

13.0

Issued: 23.01.2008

FOR U

MN3/4

13.3.3 Removingthe battery case ............................................. 50

13. 3.4 Locking the tiller (only 3-wheel version) ........................... 51

13.3. 5 Folding the tiller down ..................................................... 5 1

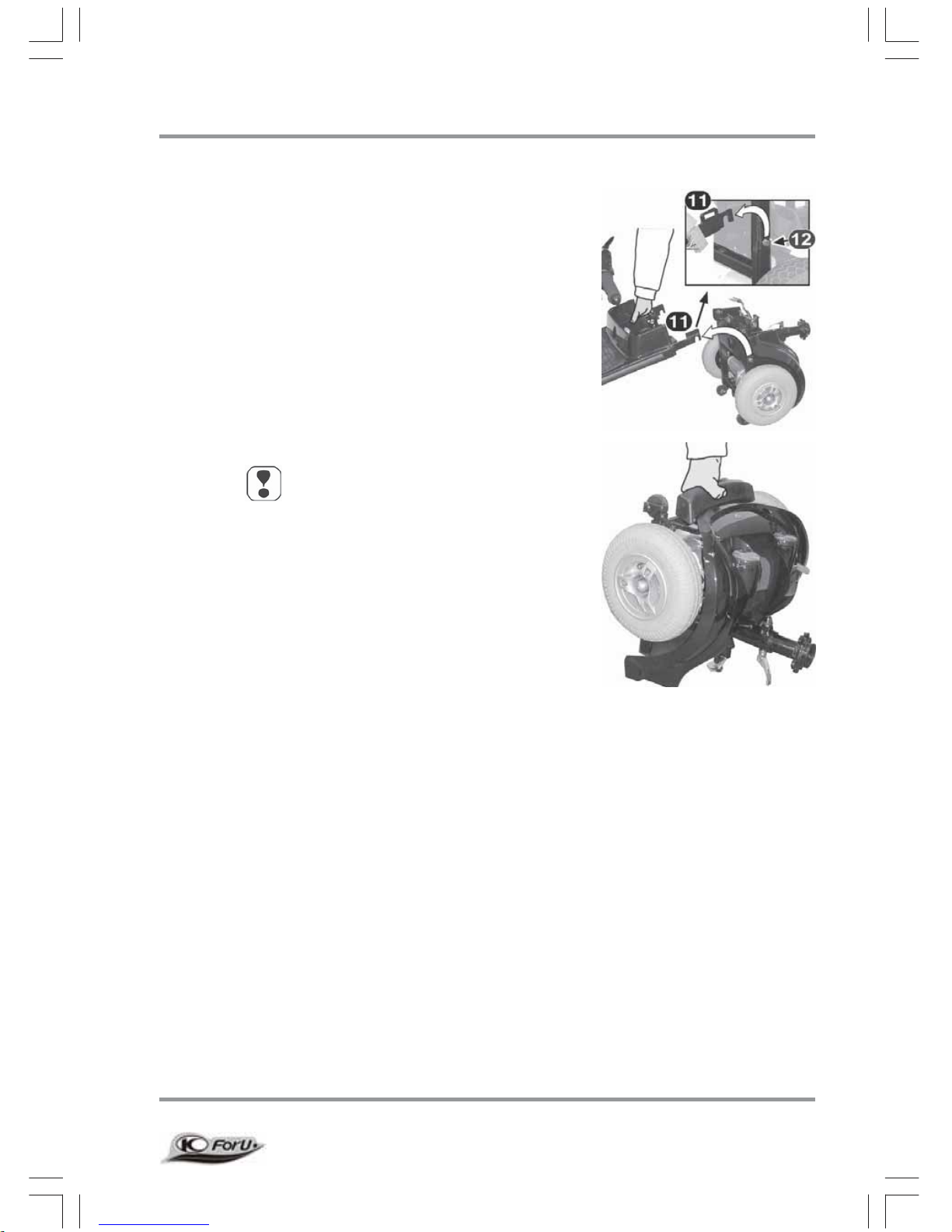

13.3 .6 Disengaging the drive unit from the chassis .................... 52

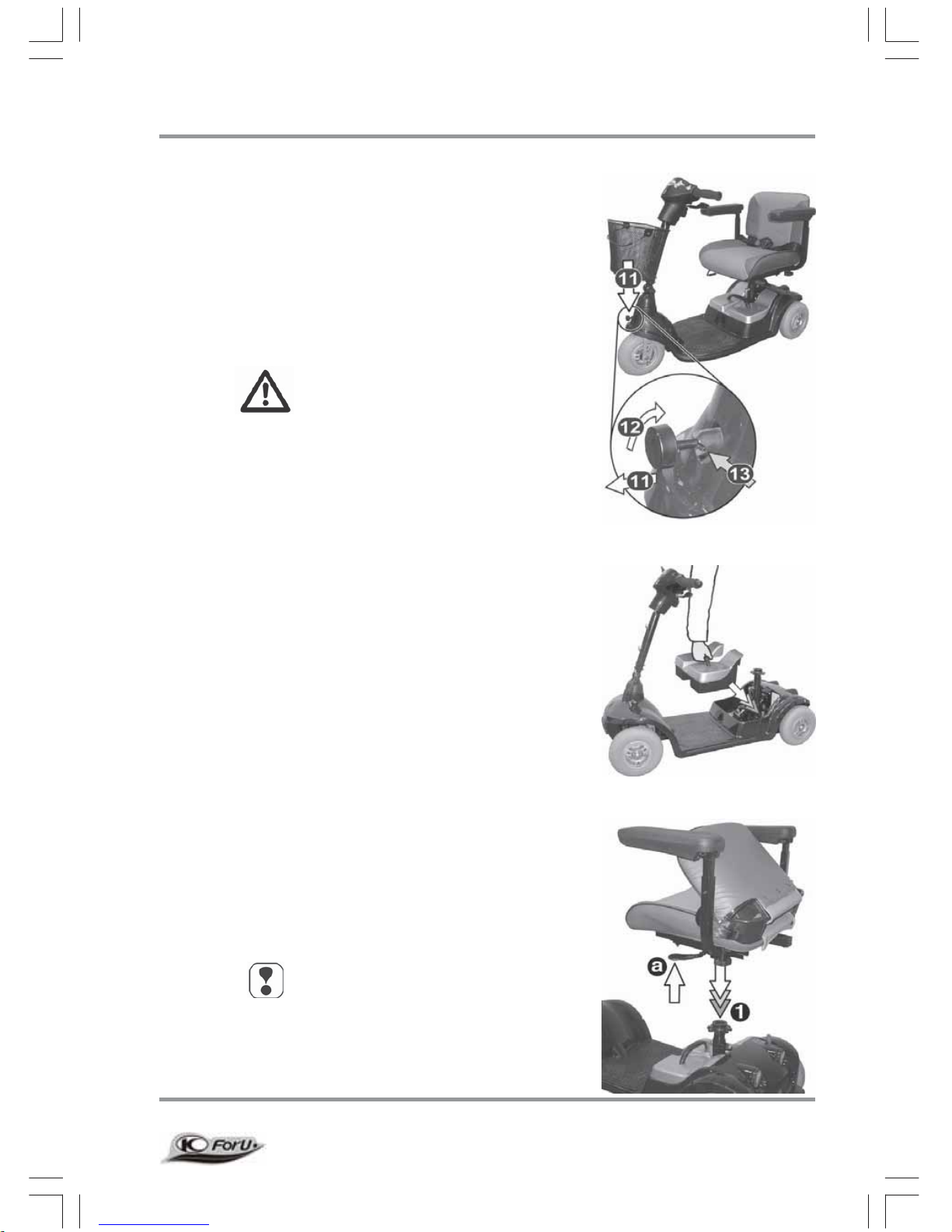

13. 4 After Transport - Reassembly ..................................................... . . 5 4

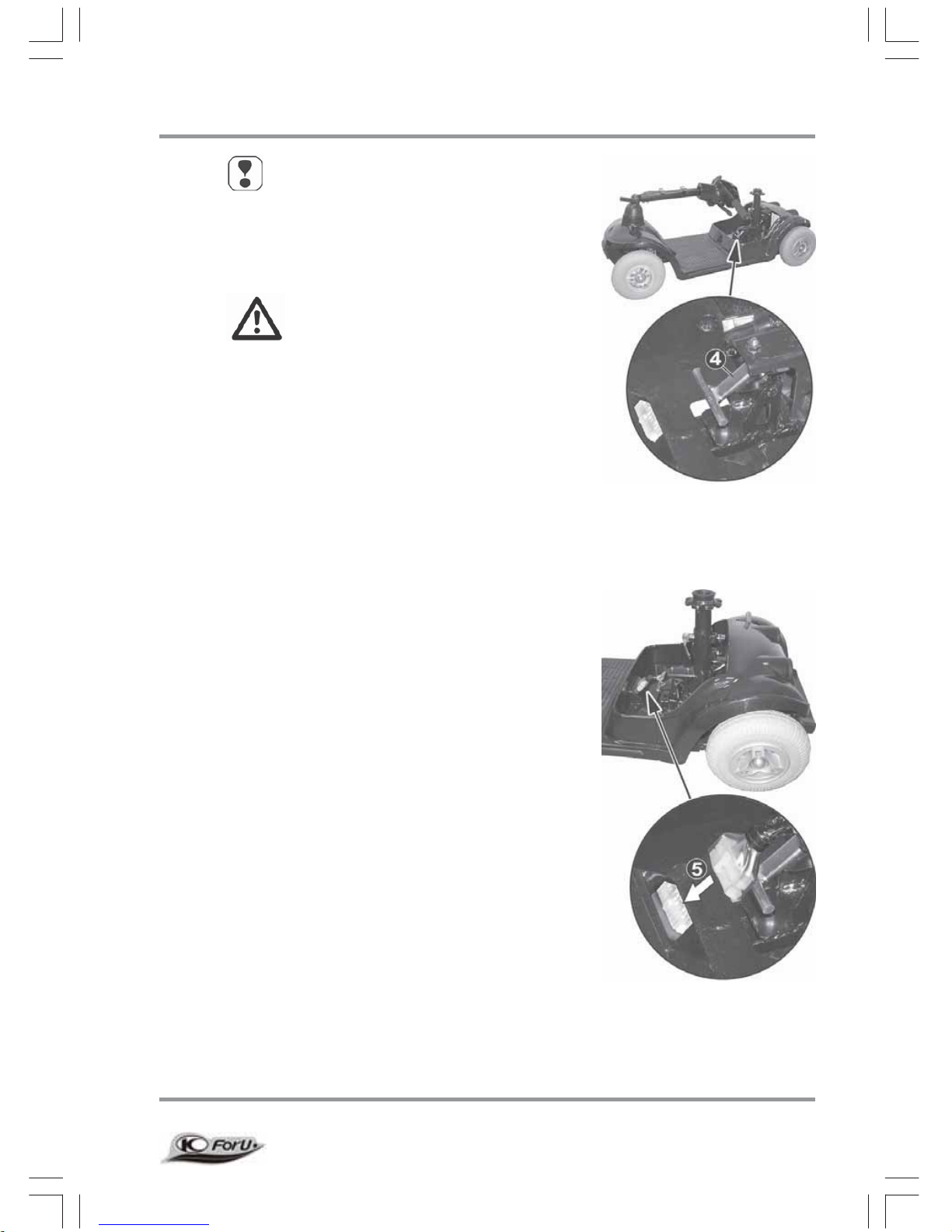

13.4 .1 Engaging the drive unit to the chassis ............................ 5 4

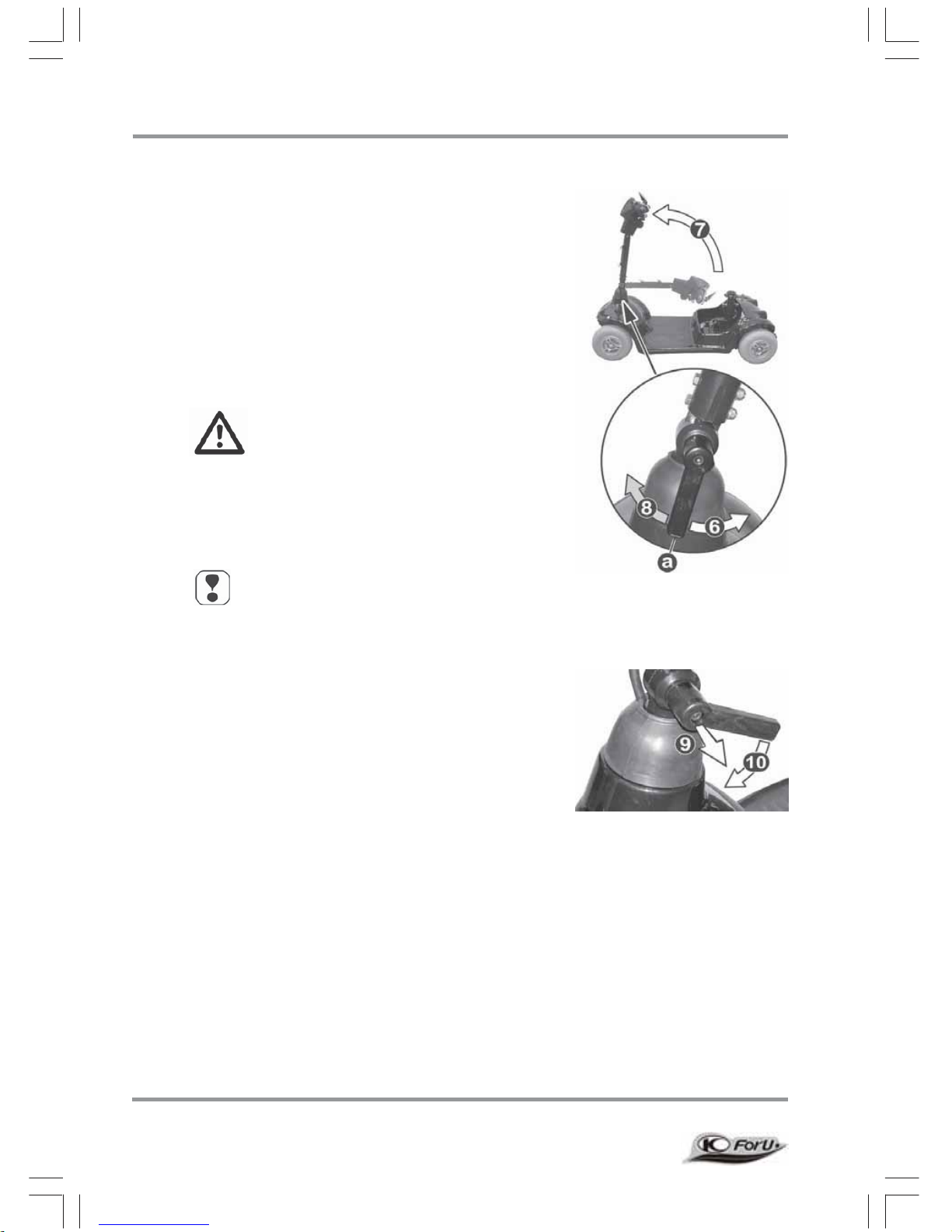

13.4 .2 Folding the tiller up ......................................................... 5 6

13.4. 3 Unlocking the tiller (only 3-wheel version) ....................... 5 7

13.4 .4 Reinserting the battery case ........................................... 57

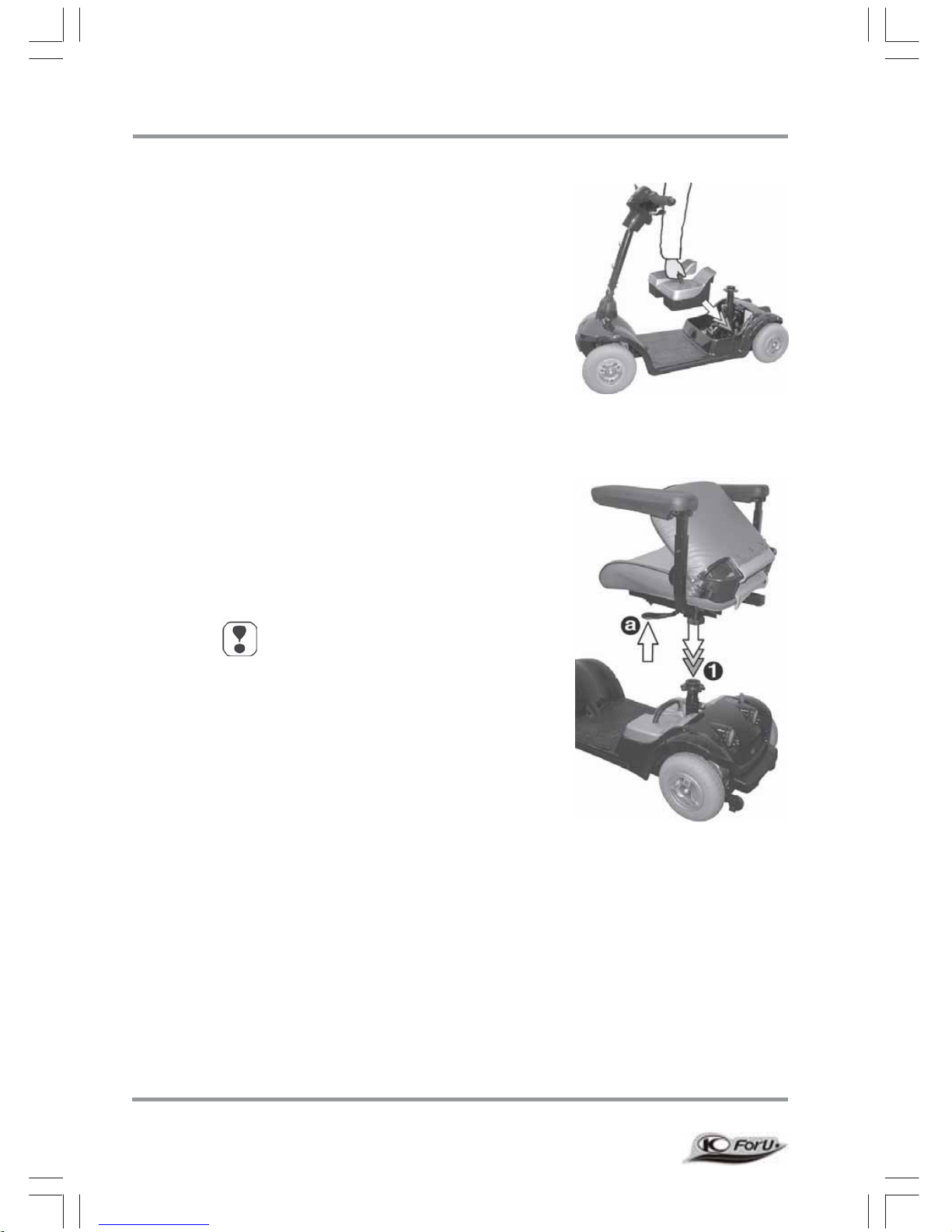

13.4 . 5 Fitting the seat ............................................................... 57

Cleaning ............................................ ......................... ...................... ..58

Mainte nance and Insp ection ........................................................... . . 59

15. 1 Daily maintenance before start of journey .................................. . 5 9

15. 2 Weekly inspections / tyre pressure ............................................ .59

15. 3 Annual inspection - inspection timetable ..................................... 60

T roubleshooting ................................................................................ 63

16.1 Before troubleshooting ................................................................ 63

16.2 Troubleshooting ............................................................................64

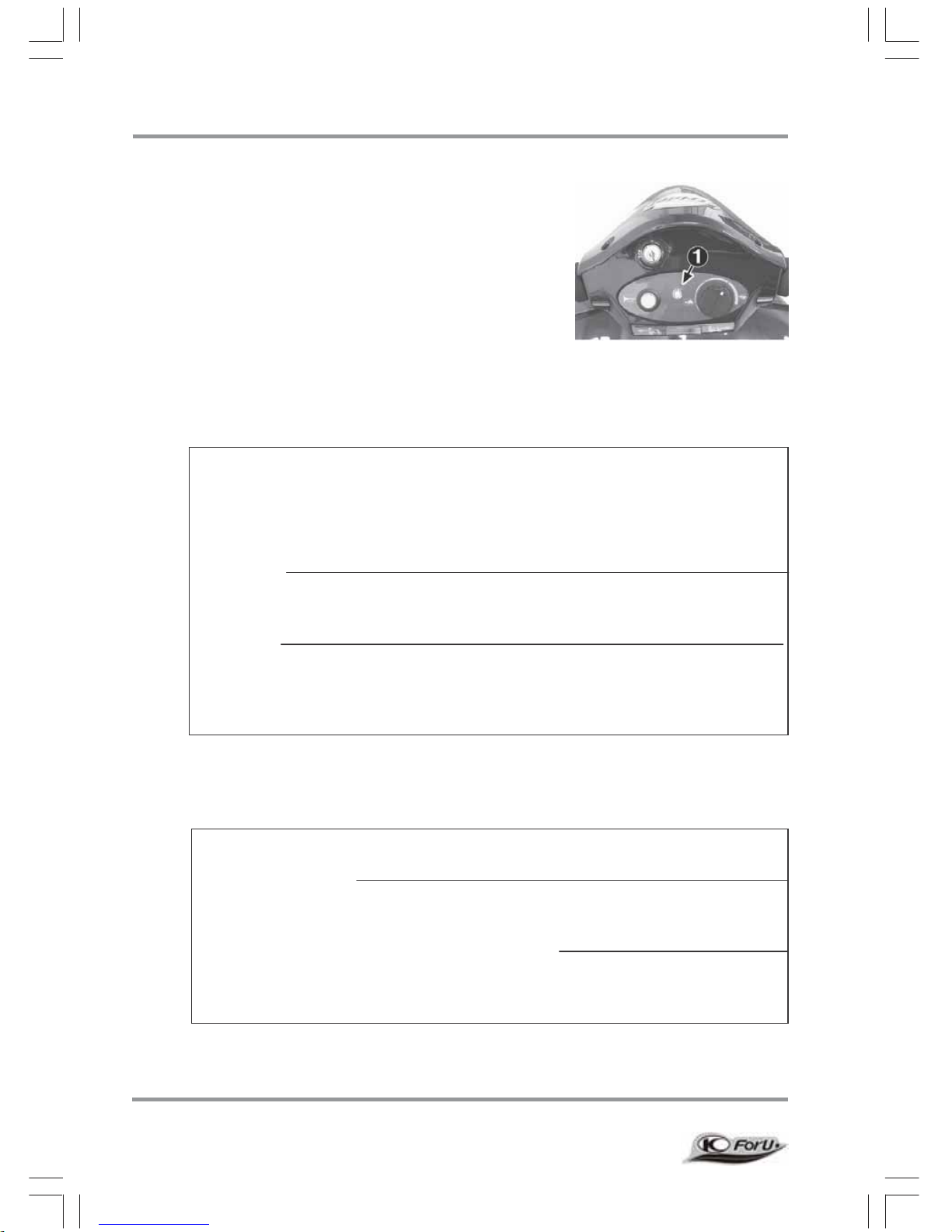

16. 3 Operation indicator blink codes ................................................... 66

16.3.1 Blink speed ..................................................................... 66

16.3 .2 Error message blink sequences ..................................... 66

Repairs .................................. ............................................ ................ 68

17. 1 Information about safety at work ................................................ 6 8

17.2 Tools .......................................................................................... 68

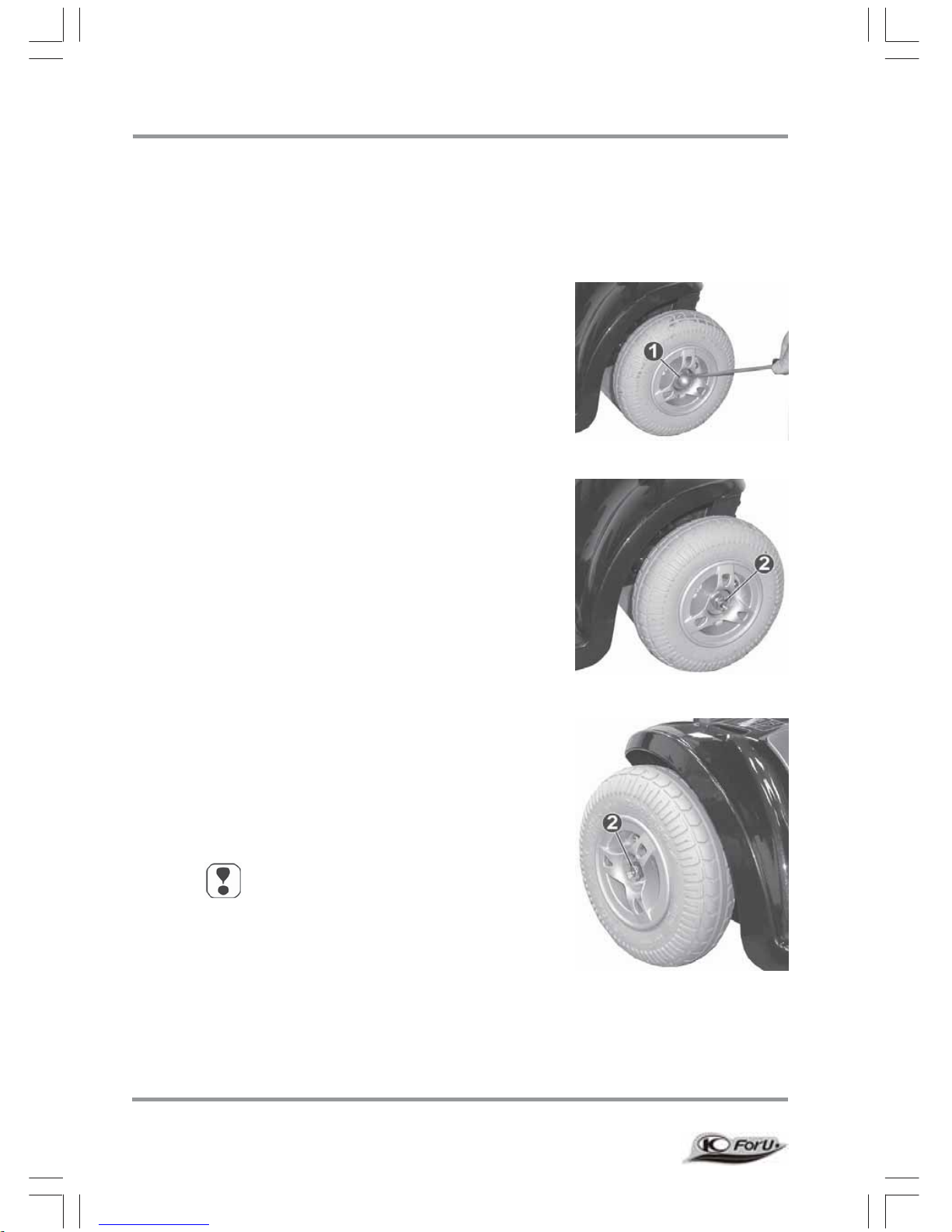

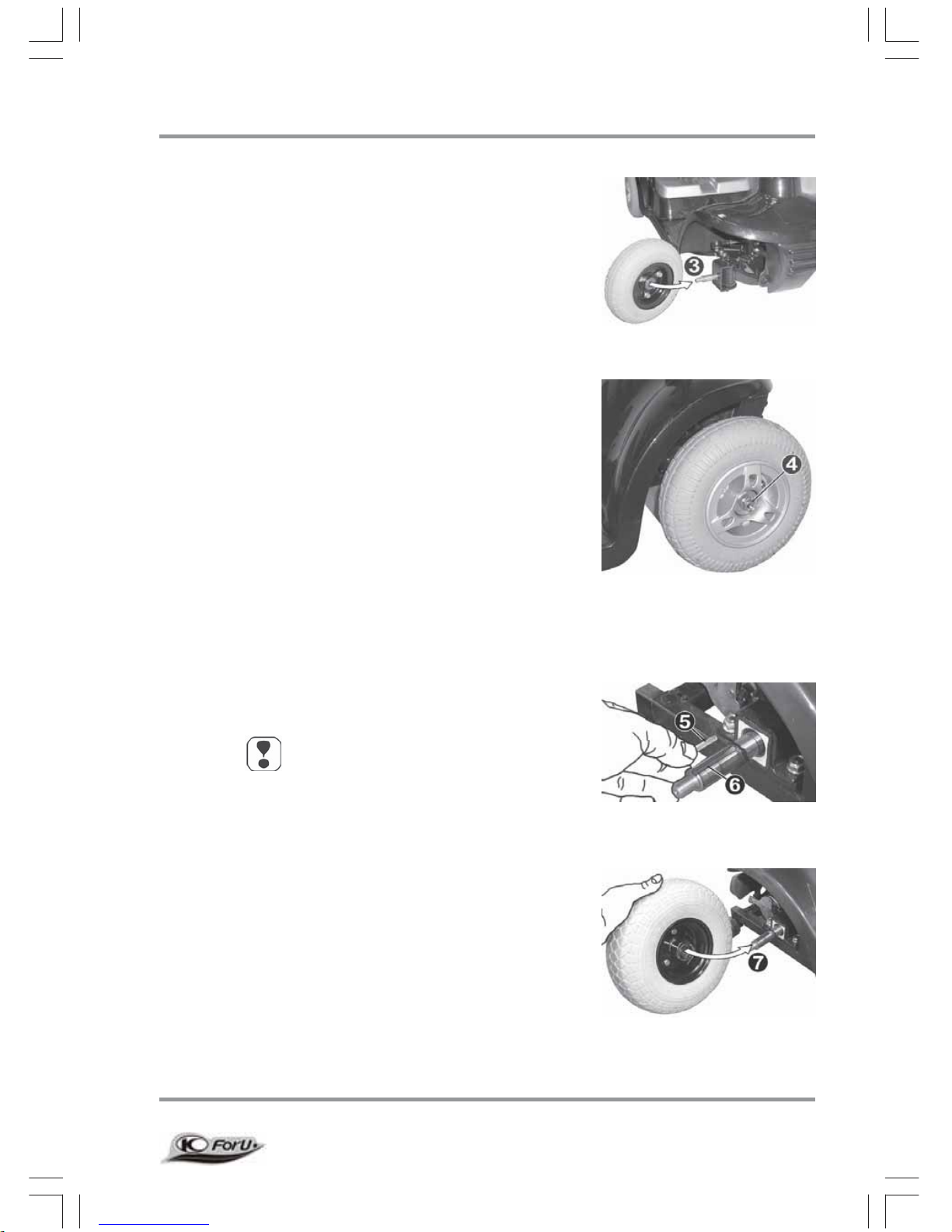

17. 3 Wheels - removal and replacement - 3-wheel version ................. 69

17. 4 Wheels - removal and replacement - 4-wheel version ................. 70

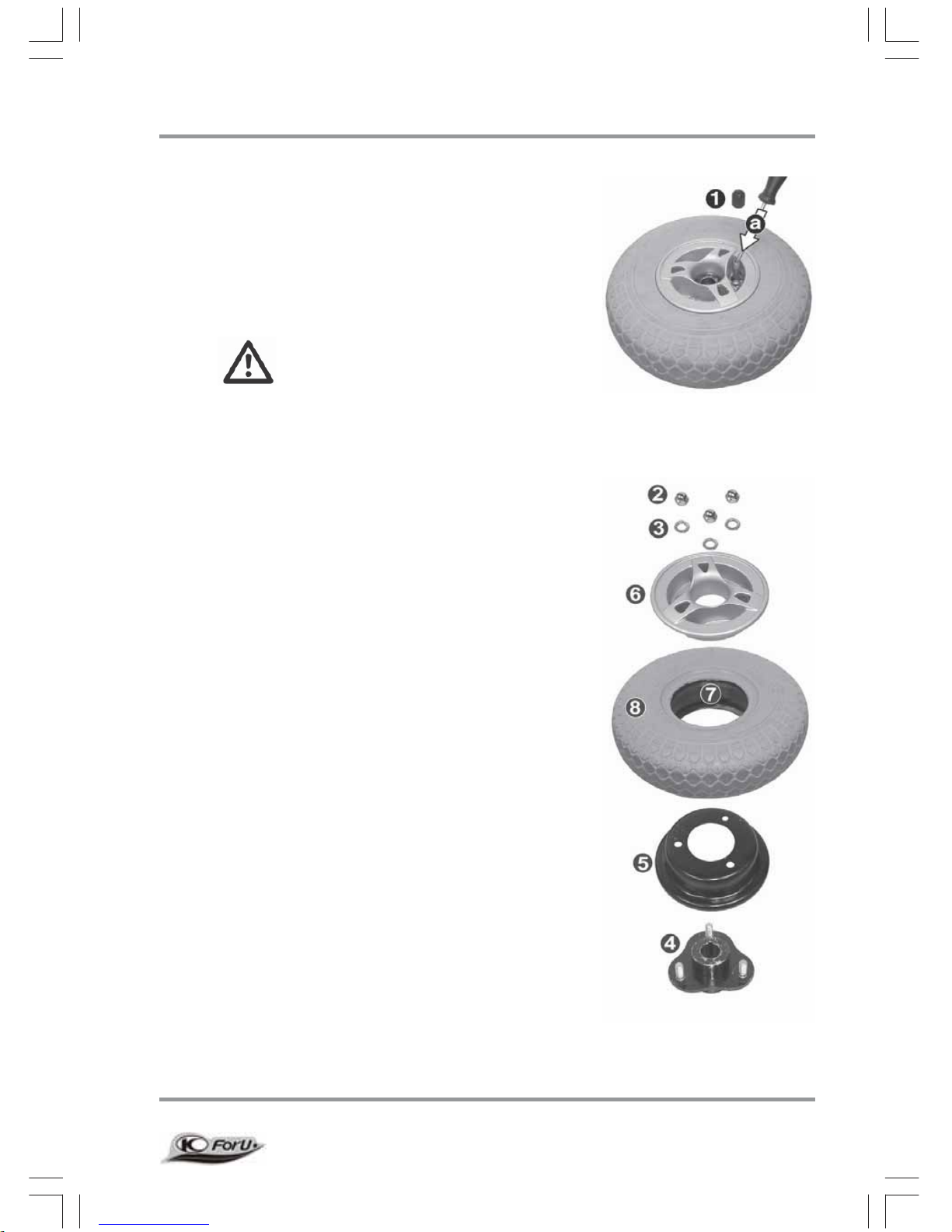

17. 5 Replacing the tyre ...................................................................... 73

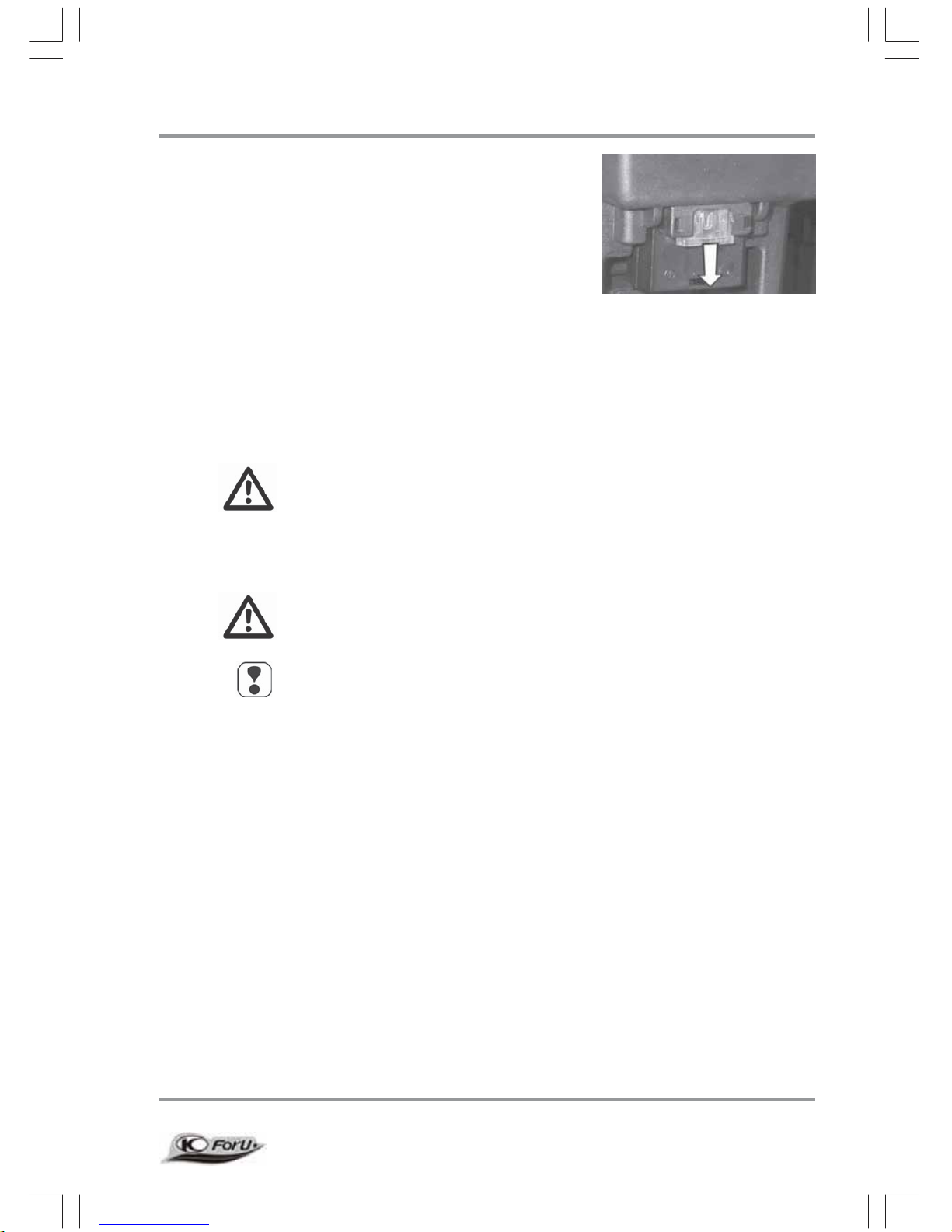

17.6 Fuses ........................................................................................ 74

17.7 Batteries .................................................................................... 75

17. 7.1 Disposal of used or damaged batteries ..........................75

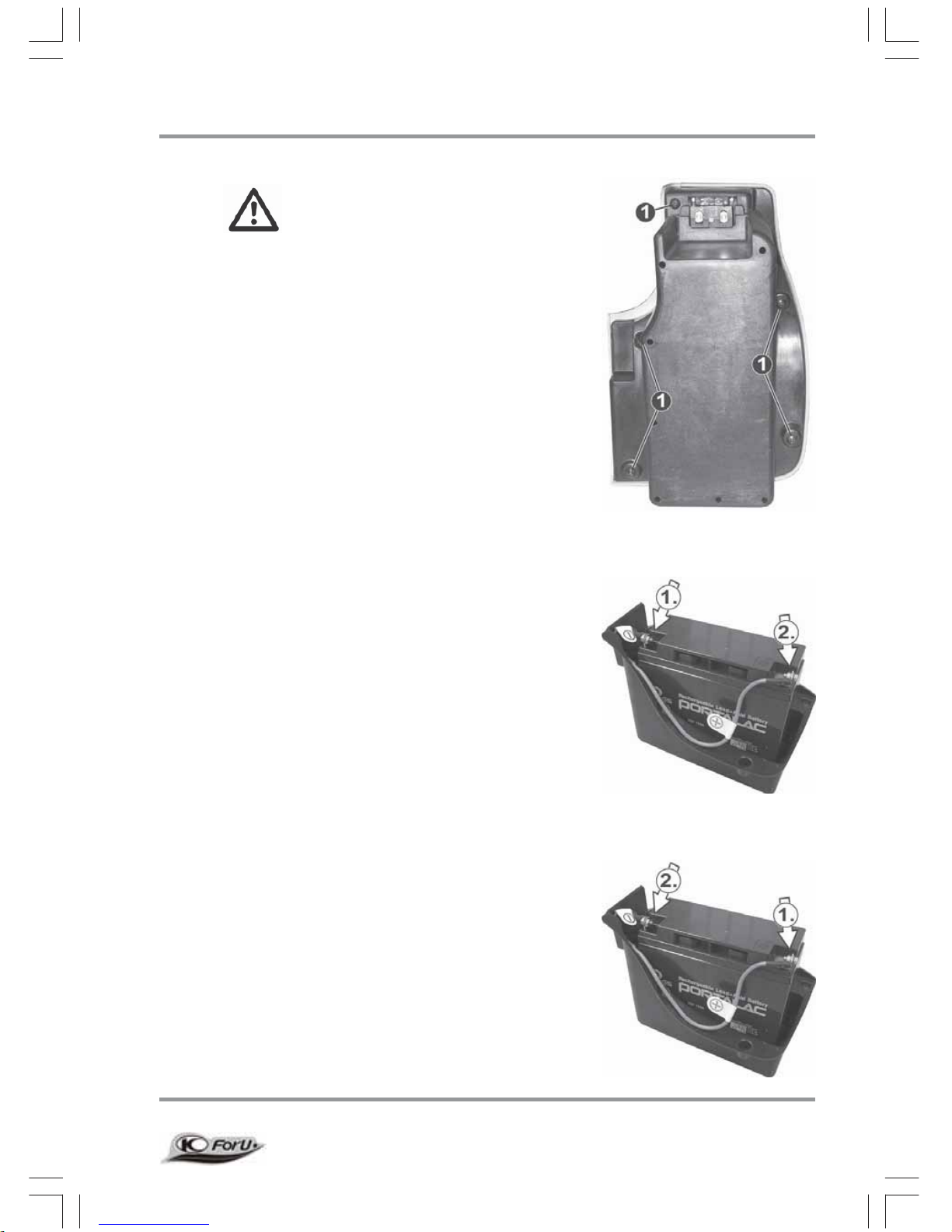

17.7 .2 Replacing the batteries - 12 Ah ......................................76

17.7 .3 Replacing the batteries - 17 Ah ......................................77

T empora ry storage ........................................................................... 78

Appendix ........................ ............. ......... ............. ............ .......... ......... 78

19.1 Nameplate ................. ................................................................ 78

19.2 Specifications ............................................................................ 79

19.2.1 General data ..................................................................79

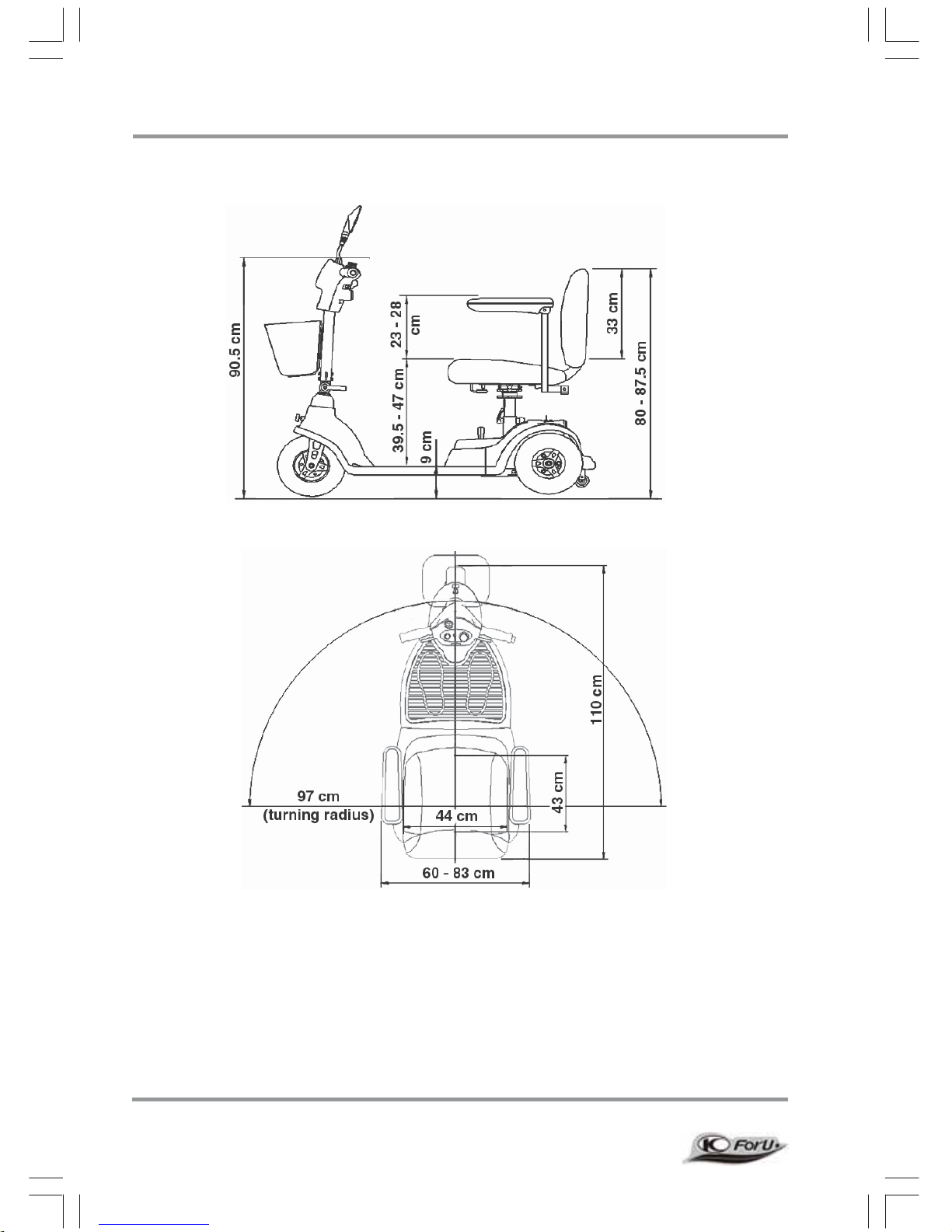

19.2 .2 Dimensio ns 3-wheel ve rsion ..........................................8 0

19.2 .3 Dimensio ns 4-wheel ve rsion ..........................................8 1

Contents

14.0

15.0

16.0

17.0

18.0

19.0

Issued: 23.01.2008

FOR U

MN3/4

19.3 Torque forfixing screws ............................................................. 82

19. 4 Disposing of the scooter ............................................................ 8 2

War ranty inf ormation ....................................................................... 83

Annual inspections carried out ....................................................... 84

Contents

20.0

21.0

Issued: 23.01.2008

The MN 3 and MN4 models are classified as an “invalid carriage” for use indoors, on pavements, fo otpaths, pedestrian zones and areas free from motor traffic. They must not be driv en on public ro ads with the exception of crossing or when no pavements are available.

It is intended to increase the mobility of persons who are both physically and mentally capable of assessing any driving situation s correctly and reacting correspondingly to them at any time.

Intended use

The KYMCO Healthcare scooter is constructed for use both indoors and outdoors (Class B, European standard EN 12 184).

1.2

You will also find inf ormation about dealing with the product under this symbol.

Safety instructions

Symbols used

This instruction manual contai ns the following symbols whic h are used to highlight special haza rds in dealing with the product or information for simplifying the handling.

Caution!

This symbol identifies safety information which notifies you of hazards when dealing with the product.

1.0

1.1

Safety information

FOR U

MN3/4

FOR U

MN3/4

General Information

Read the entire operating manual thoroughly before using the FOR U!

Ensure that:

• the operating manual is read by all people who drive, care for and service the scooter.

• all persons who drive , care f or , se rvice or repair the scooter ha v e access to the operating manual at any time.

Any damages resulting from nonobservance of this operati ng manual are excluded from the guarantee.

1.3

Safety information

Risk ofaccidents!

• Do NOT

use

the scooter if your driving capability is impaired

through consumption of

medicine

or alcohol.

• Only

use

the scooter for its correct intended use.

• Only

use

the scooter

when

it is in perfect working order .

• If

any breakdowns occur

, stop using the scooter immediately

and secure

it against unauthorized use.

• It

imperative that

you always

rectify any faults which

could

influence the function and safety of the scooter

immediatel

• Observe

maximum loading

= see Specifications

• O

nly use accessories and

spare parts authorized by

KYMCO

Healthcare.

• The scooter

is only

authorized for transport of one person.

•

not

carry

out

any

seat adjustments while driving.

Tipping hazard!

• Do not adjust the seat if the scooter is standing on an incline.

•

not

lean

out

over

the armrest to the sides or over the

bac

krest to the

rear

Issued: 23.01.2008

Tipping hazard!

• Do not carry out any seat adjustments while driving.

• Only drive over obstacles and up kerbstones at the lowest point and at right angles.

• Avoid sudden cha nges of direction and speed.

• Av oid steep gradients where there is a danger of skidding (ice, snow, wet surfaces etc.).

• Av oid loose surf aces whose characte ristics you are not able to assess (woodlands, turf, beaches, gravel etc.)

• Always drive straight u p and down gradients - do not drive in zigzags.

• Do not turn around on inclines.

• Do not drive down steps.

• Do not drive backwards down gradients, stairs or kerbstones, or over obstacles.

Safety when driving

Risk of accidents!

•

Check

correct functioning of the brakes bef ore ev ery journey .

•

Check

the tyre

air pressure regular

ly.

• Always

use

the seat belts

when

driving.

•

not switch the scooter off while driving.

•

not

drive up or down

gradients which are too steep, over

obstacles

gradients or up and down ramps.

Observe

maximum climb angle

= see Specifications

• Only

drive

through restricted widths, around bends, inclines

and ramps

with

reduced

suitable speed.

• Only

drive up or down inclines

when the backrest has been

adjusted to

ver

tical.

• Don´t

drive

too

open

waters.

1.4

Safety information

FOR U

MN3/4

FOR U

MN3/4

Danger due to unintentional movement!

• Always turn the scooter off using the keyswitch if you:

want to get on or off

intend to stop for

long periods

- are

putting the scooter away.

Safety information

1.5 Safety during transport, assembly and maintenance

If the scooter is transported in the vehicle when fully assembled:

- no persons may sit on the scooter during loading!

- no persons may sit on the scooter during transport!

Clamping and crushing hazard!

Increased hazards due to clamping or crushing result due to the high component weight (such as batteries) during preparation for transport and maintenance work.

• Always

carry

out

any work

to be done with great care.

• Always try to get

help

from a second person, especially when

sto

wing par

ts for tr

anspor

• Only

carry

out

any work described

if you are used to working

with the tools required.

• Only

carry

out

work using

suitable tools.

Injury hazard due to improper assembly!

• Ensure that

all

components in the Scooter have been

correctly assembled.

• After

assembly, check

that all locking de vices are hol ding

correctly.

ccident hazard due to incorrectly boltedconnections!

• If bolted connections

have

self-locking nuts, ensure

that these

are replaced when

reassembling.

•

not

replace

self-locking nuts with normal nuts.

• If bolted connections

have

lock washers, check lock

washers when reassemb

ling and replace if necessary .

Issued: 23.01.2008

1.7

FOR U

MN3/4

Safety when handling batteries

Fire hazard!

• Do not

cover

the battery

charger

and ventilation slot while

charging

batteries.

• Only

use

the battery

charger

in well-ventilated areas.

Risk of accidents!

• Only

use

the

original

battery charger (included in delivery).

• Let

your dealer replace your

battery .

• Only

use

batteries as detailed in the chapter entitled

“Specifications”.

• Observe

warning

information given by the battery

manu

facturer.

• Batter

ies are e

xtremely

hea

vy.

Burn hazard due to damaged batteries!

Batteries discharging acid can lead to serious burns.

•

not touch

damaged

batteries with your bare hands. Use

rubber

gloves!

• If

acid should

contact

your

skin, wash the affected area

immediately with plenty of

ater and contact a doctor .

• If

acid should come in

contact with your eyes, rinse them out

immediately with lots of

ater and visit a doctor .

• Always

change any

clothing soiled with battery acid

immediatel

Safety - information about electronics

Accident hazard due to failures!

Radio, tele vision, radio transmissi on devices and mobil e phones produce electromagnetic fields. These can negatively influence the scooter electronics functions.

•

not

drive close

to strong

radio

or television transmitters

(transmitter masts).

• Switch the scooter off if

you

are using your mobile phone.

Interference caused to other devices!

The scooter produces an electromagnetic field which can negatively affect functioning of electrical devices such as medicinal devices, radio receivers or mobile telephones within the vicinity.

1.6

Safety information

Issued: 23.01.2008

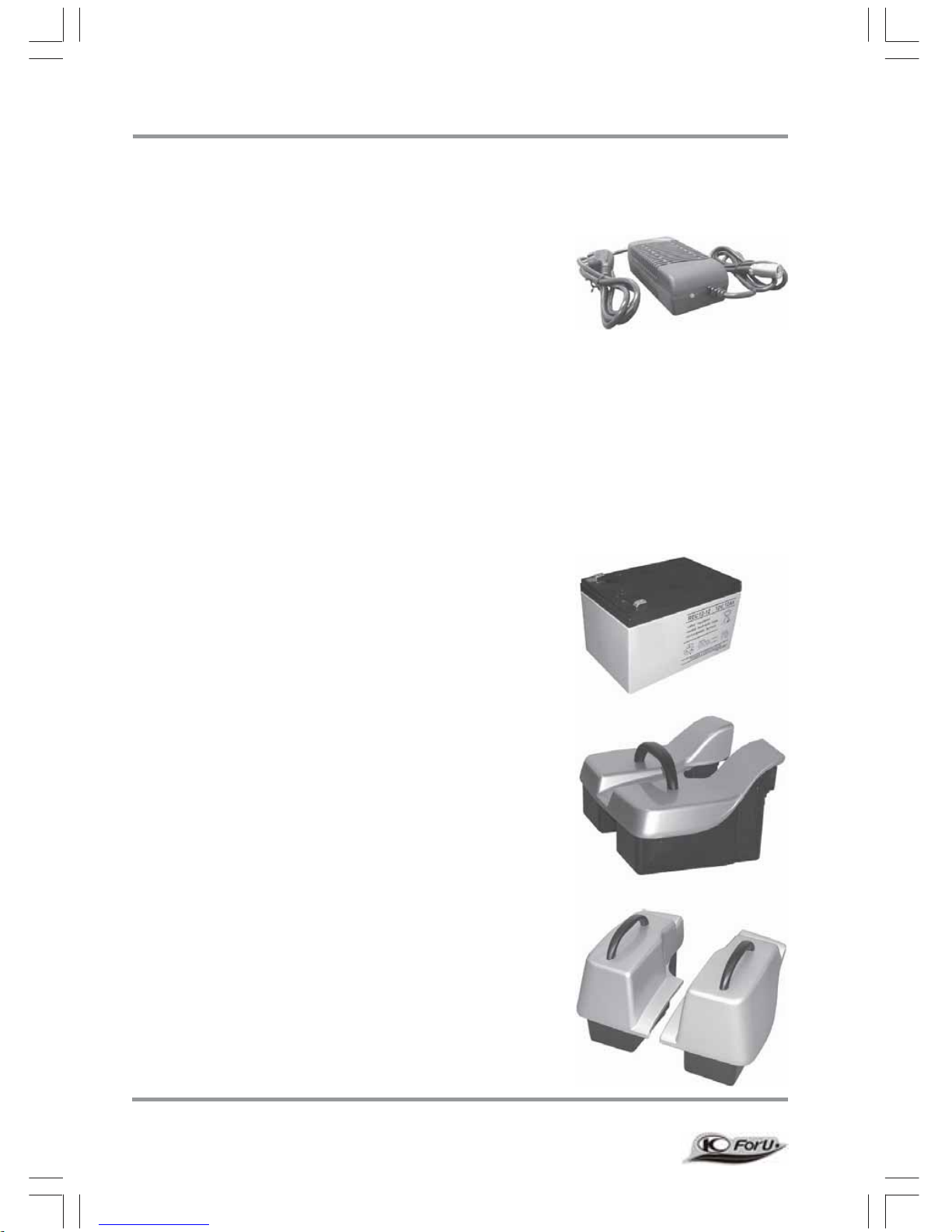

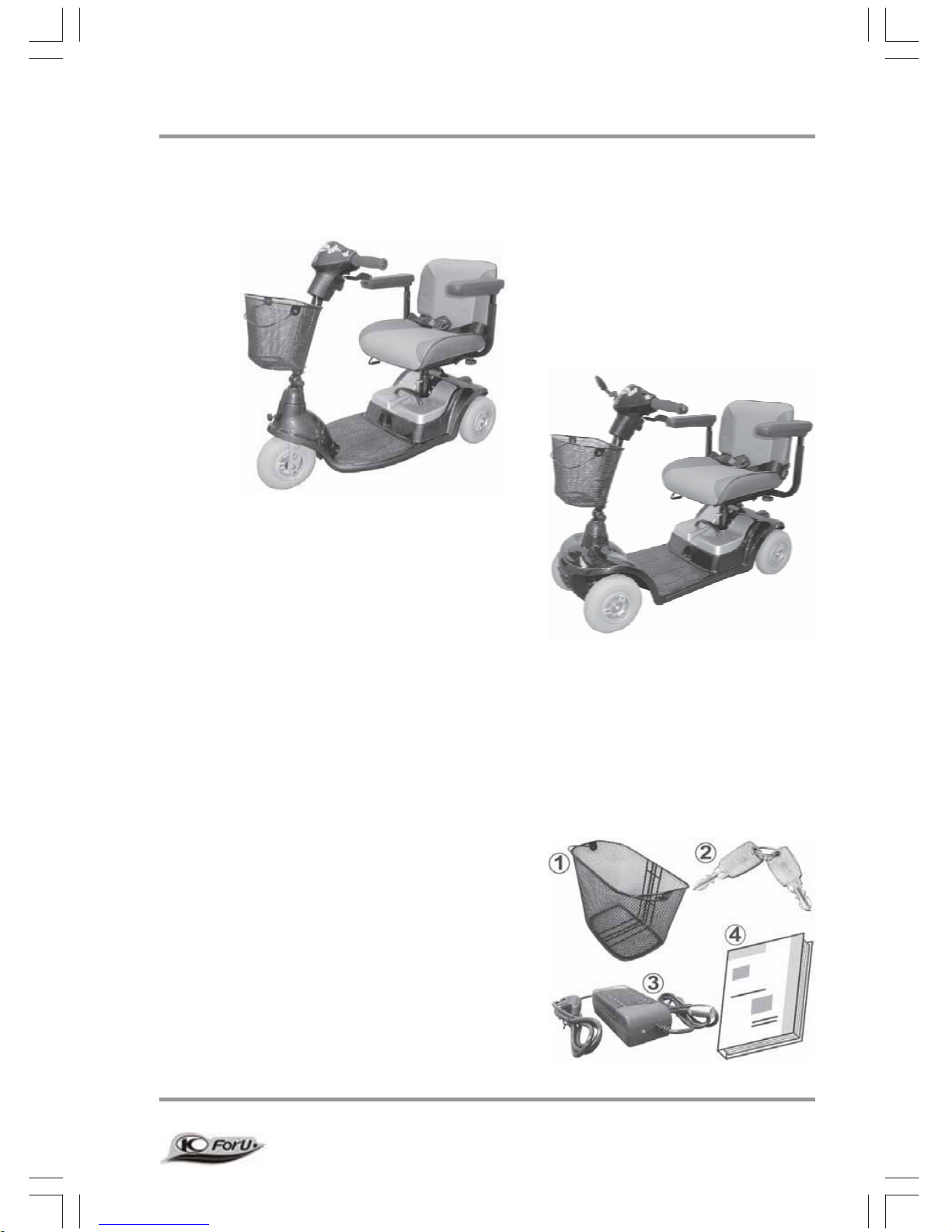

The following items are included in delivery in addition to the FOR U:

1. Shopping basket

2. Two vehicle keys for switching the FOR U on

3. Battery charger

4. Operating Manual

fter receivingyourFOR U, please

check the following:

• that the delivery is comp lete in accordance with the list below

• the delivery condition using the inspection plan (chapter 14.2)

If any faults are apparent or components are missing, ple ase contact KYMCO Healthcare or your medical supplier.

Extent ofdelivery3.0

4-wheel version

ersions

FOR U

MN3/4

ersions

3-wheel version

2.0

Components

FOR U

MN3/4

Components4.0

Dashboardwithcontrols

4.1 The FOR U

Rearview mirror

Seat unit with armrests

Tiller

Shopping basket

Battery case

Steeringwheel

4.2 The dashboard - displays and controls

Operation indicator

(fault display)

Keyswitch (ON-OFFswitch)

Speedcontoller

Handle

Batterycharge display

Drivelever Hornbutt on (reverse)

Drivelever (forwards)

Issued: 23.01.2008

4.)Switchonthe FOR U 3.) Fastenthe seat belt.

2.) Get in - turn the seat in the direction of travel

1.)

urn t he seat to the outside.

Driving the FOR U

NOTE

Before starting driving, adjust the seat height, the backrest and the armrests to a comfortable position. Your specialist dealer would be very glad to help .

5.1

FOR U

MN3/4

Brie

instructions

The following brief instructi ons should enable pe ople to quickly get used to operating the scooter after a l ong period of non-use and to refresh existing knowledge of operation.

It is imperative that you follow the instructions given in the main manual!

5.0

Brief instruction

Issued: 23.01.2008

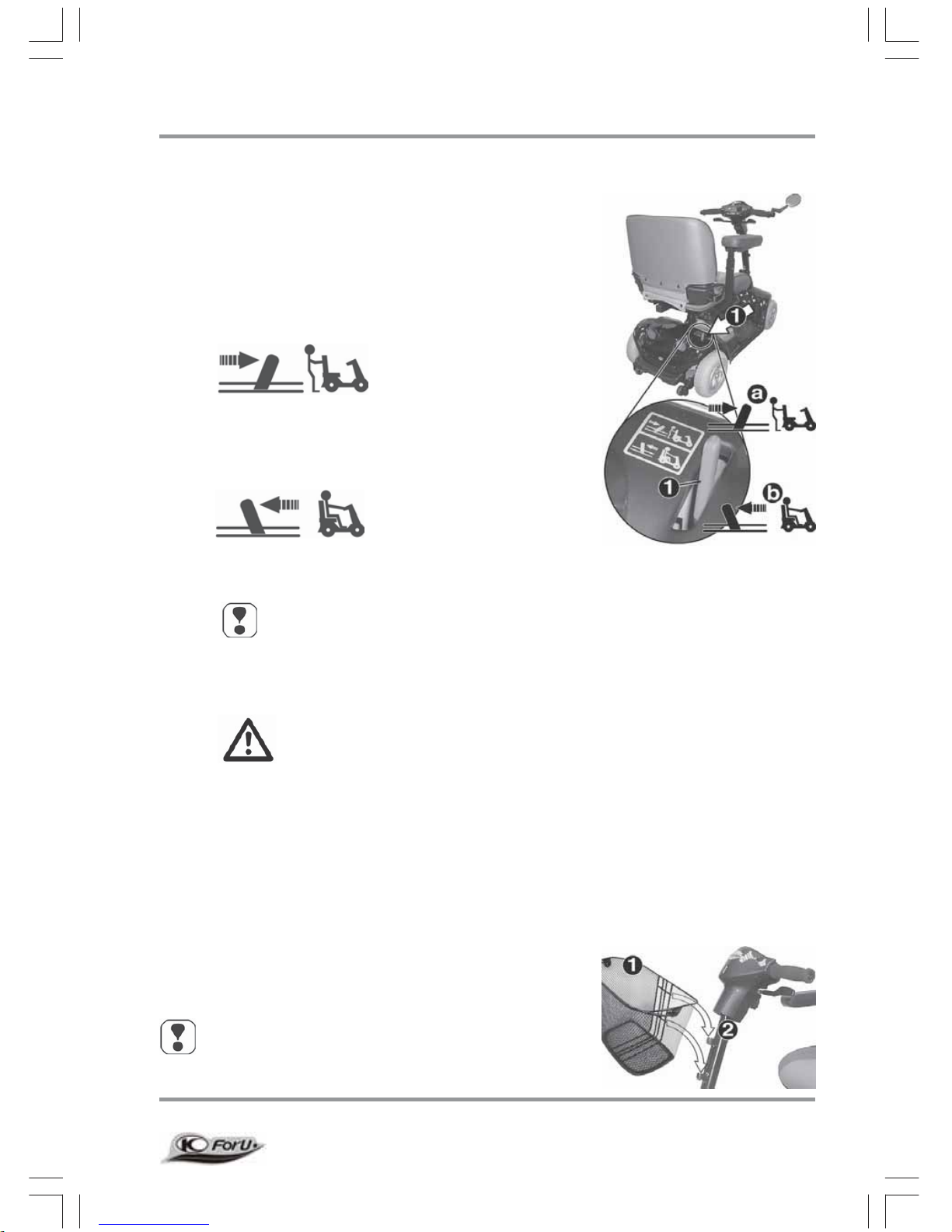

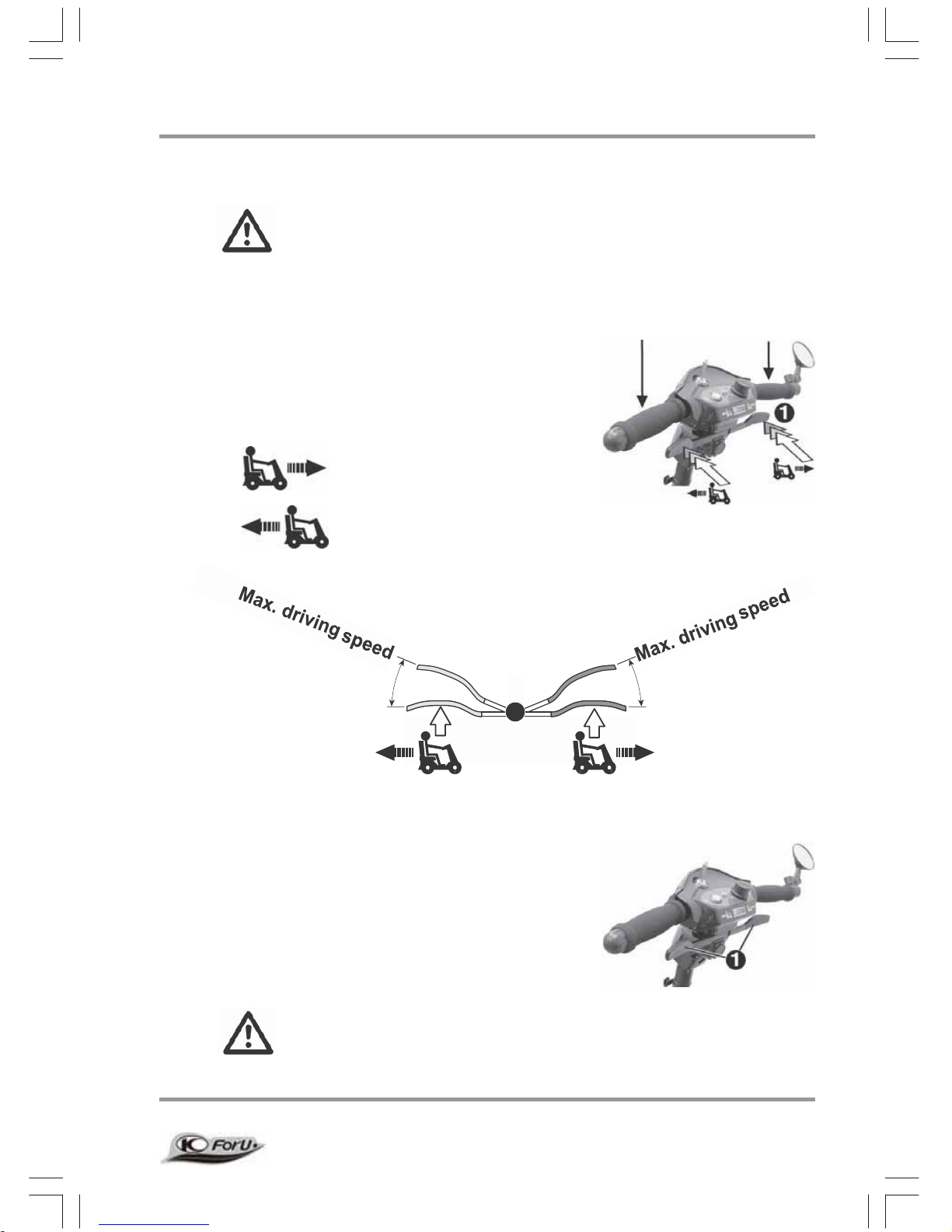

8.) Braking = release drive

lever (1)

9.) Horn

Forwards

Reverse

Standstill (brake engaged)

Standstill

(brake engaged)

The drive lever position controls the speed variably right up to maximum

driving speed.

7.) Driving

Operate the drive lever slowly until the required speed has been reached

= highest possible driving

speed (approx. 4 mph)

= lowest possible driving

speed (approx. 1.5 mph)

Brief instruction

6.) Set the maximum speed

FOR U

MN3/4

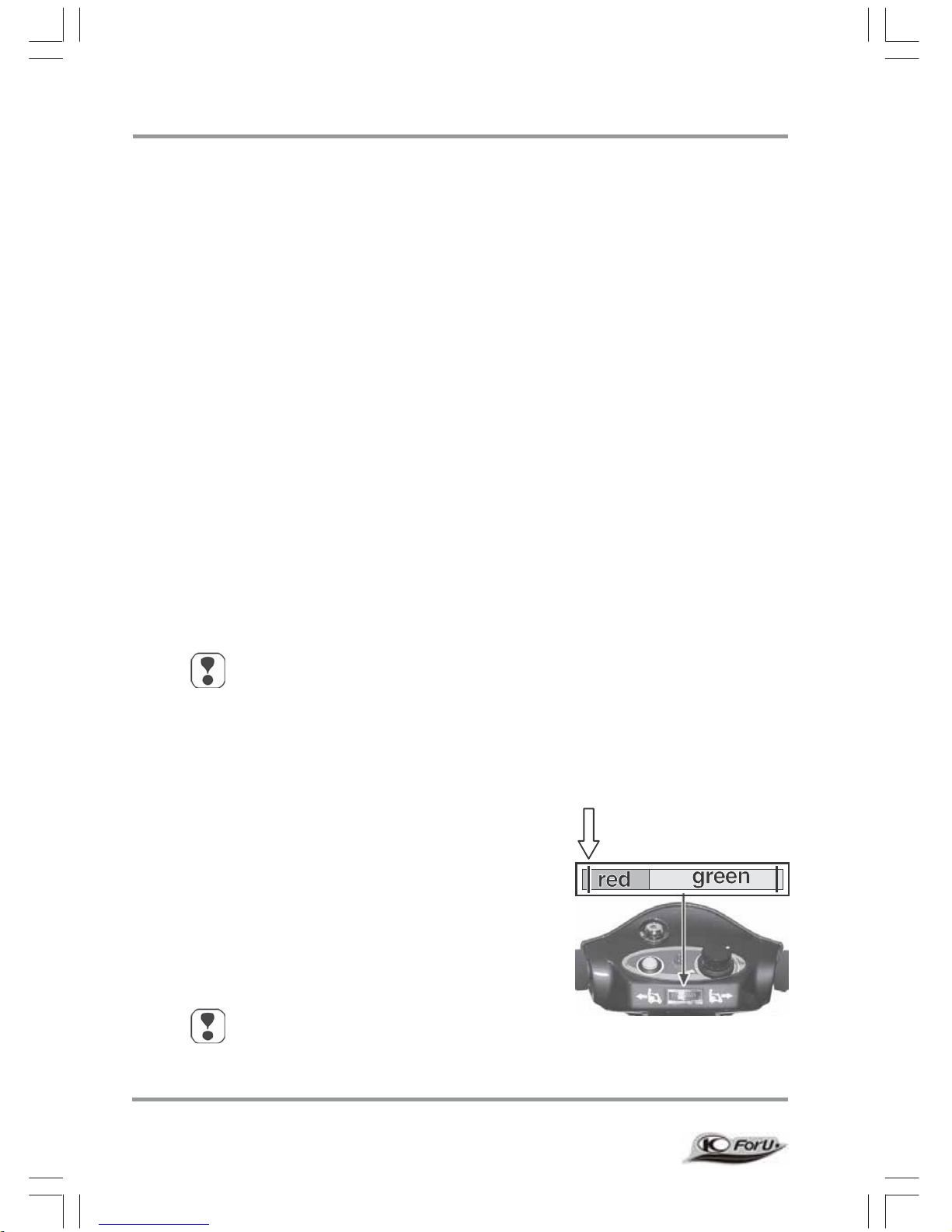

5.) Check the battery

charging state

Brief instruction

FOR U

MN3/4

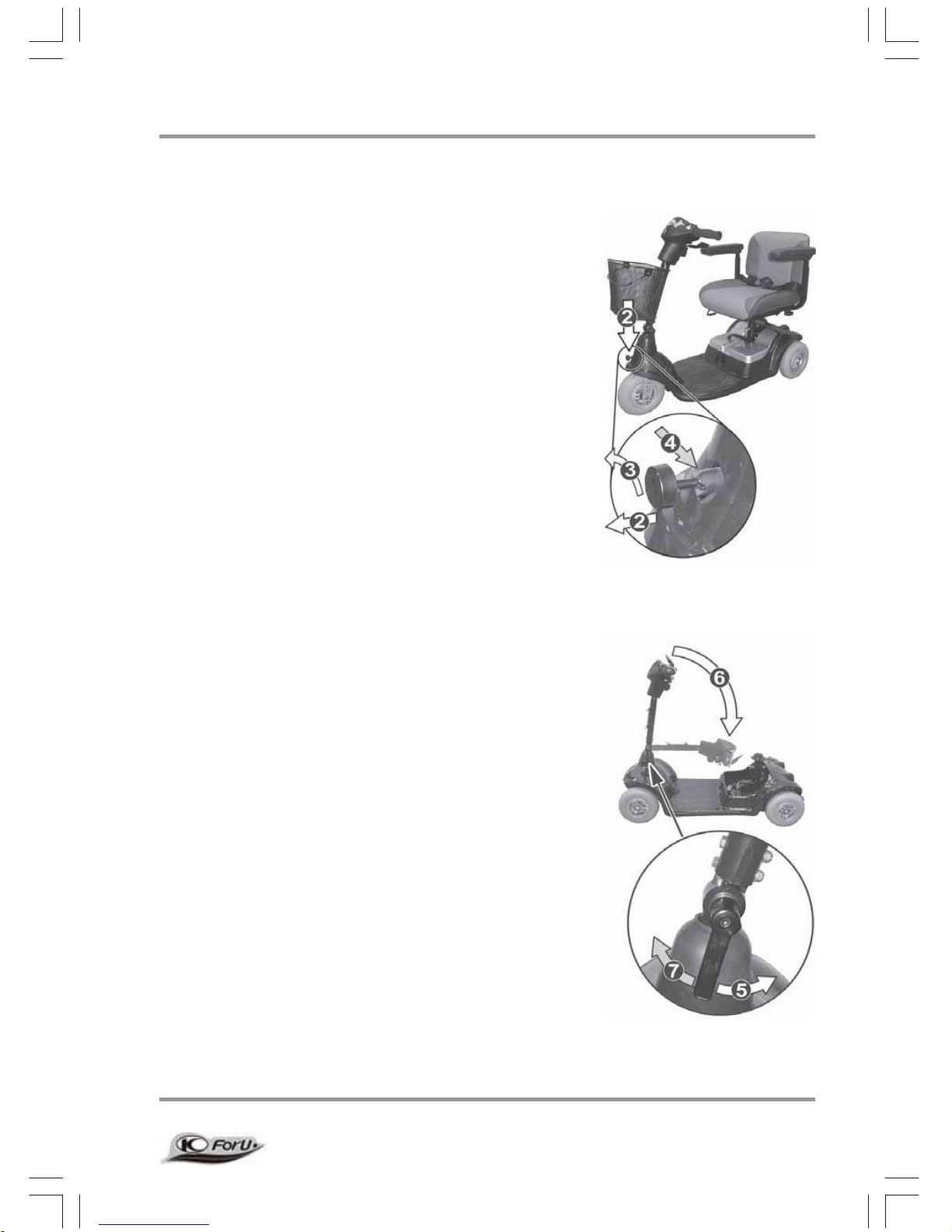

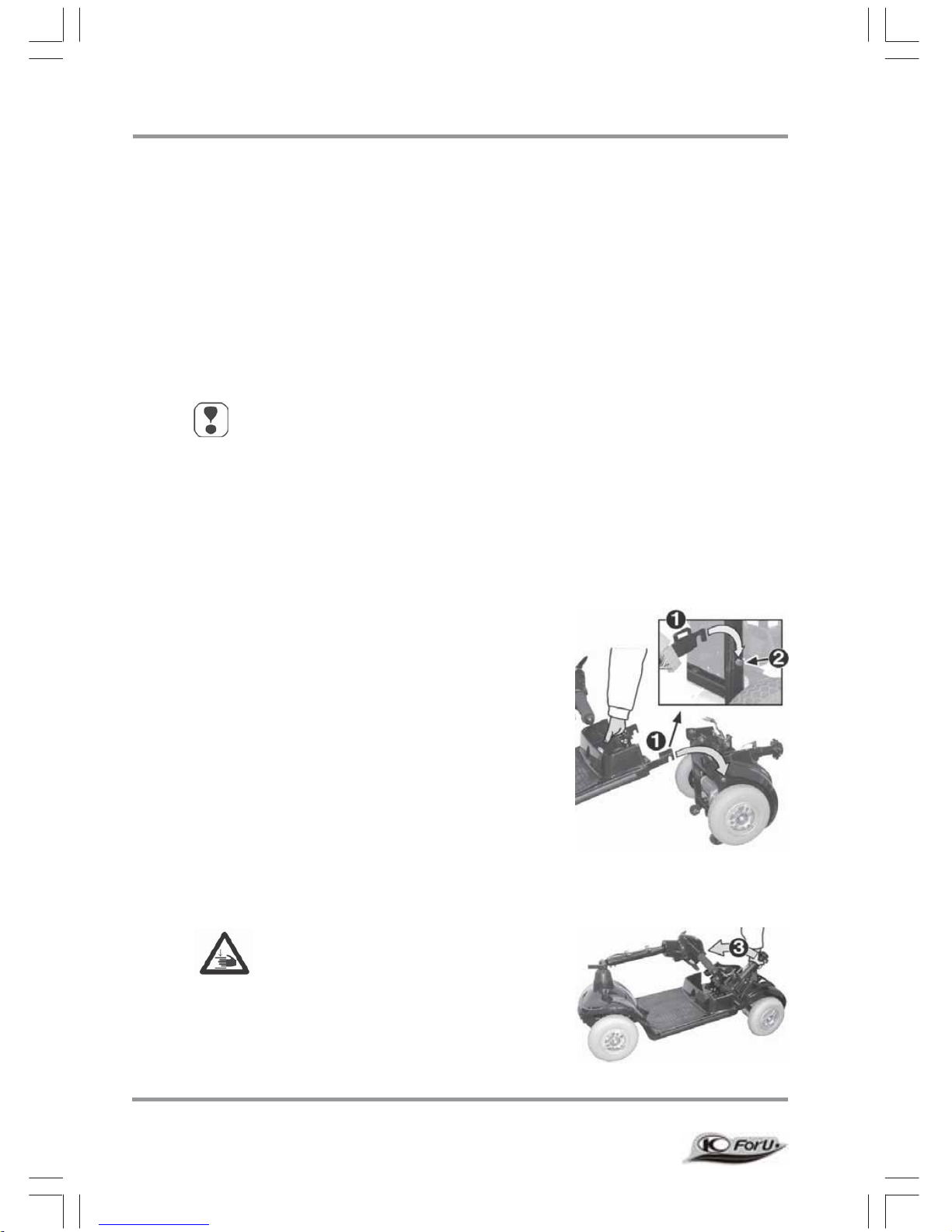

ransporting the FOR U

5.2

2.) Removing the batte

case

1.) Remo

e the seat

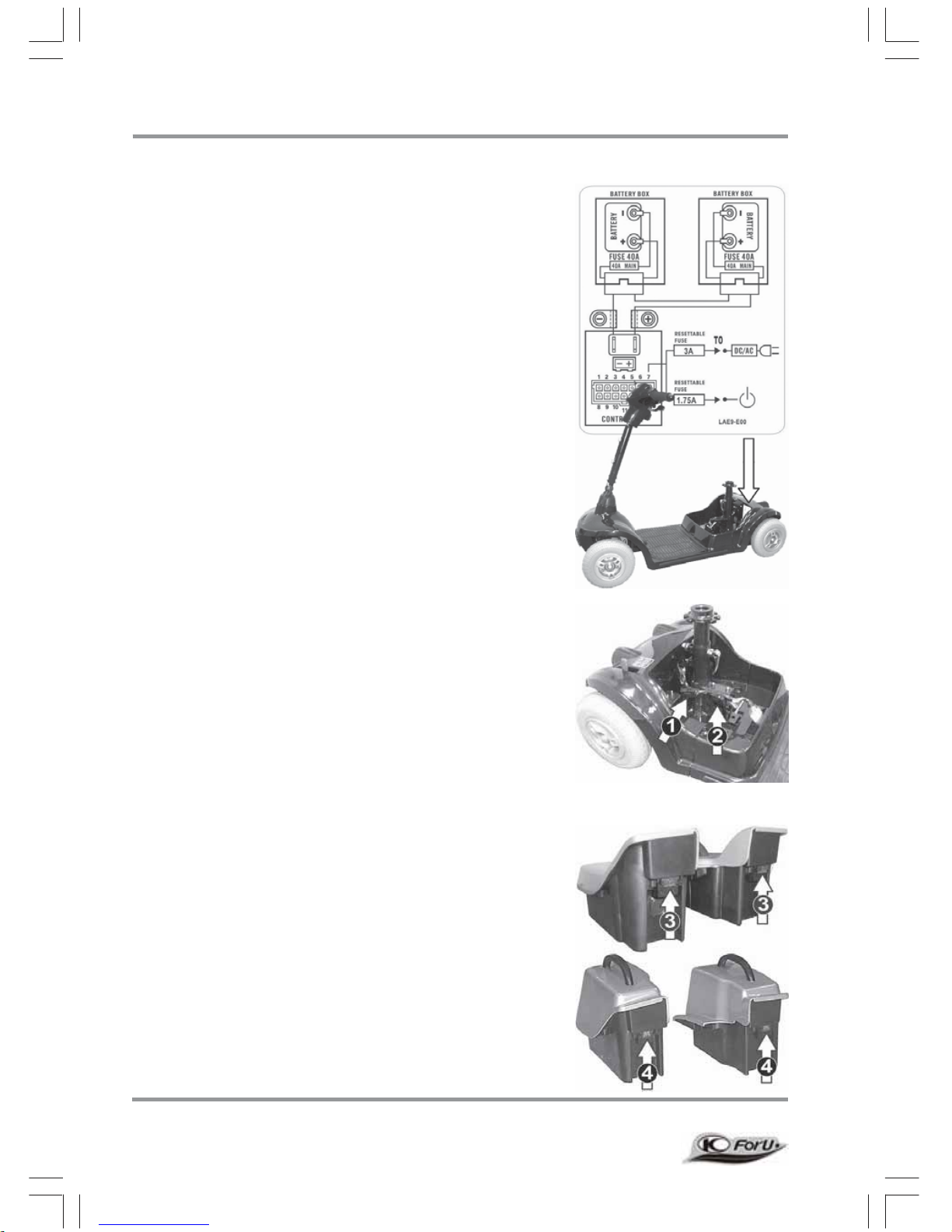

3.) Disconnectingthe main plug

4.) Fold the tille

down

Issued: 23.01.2008

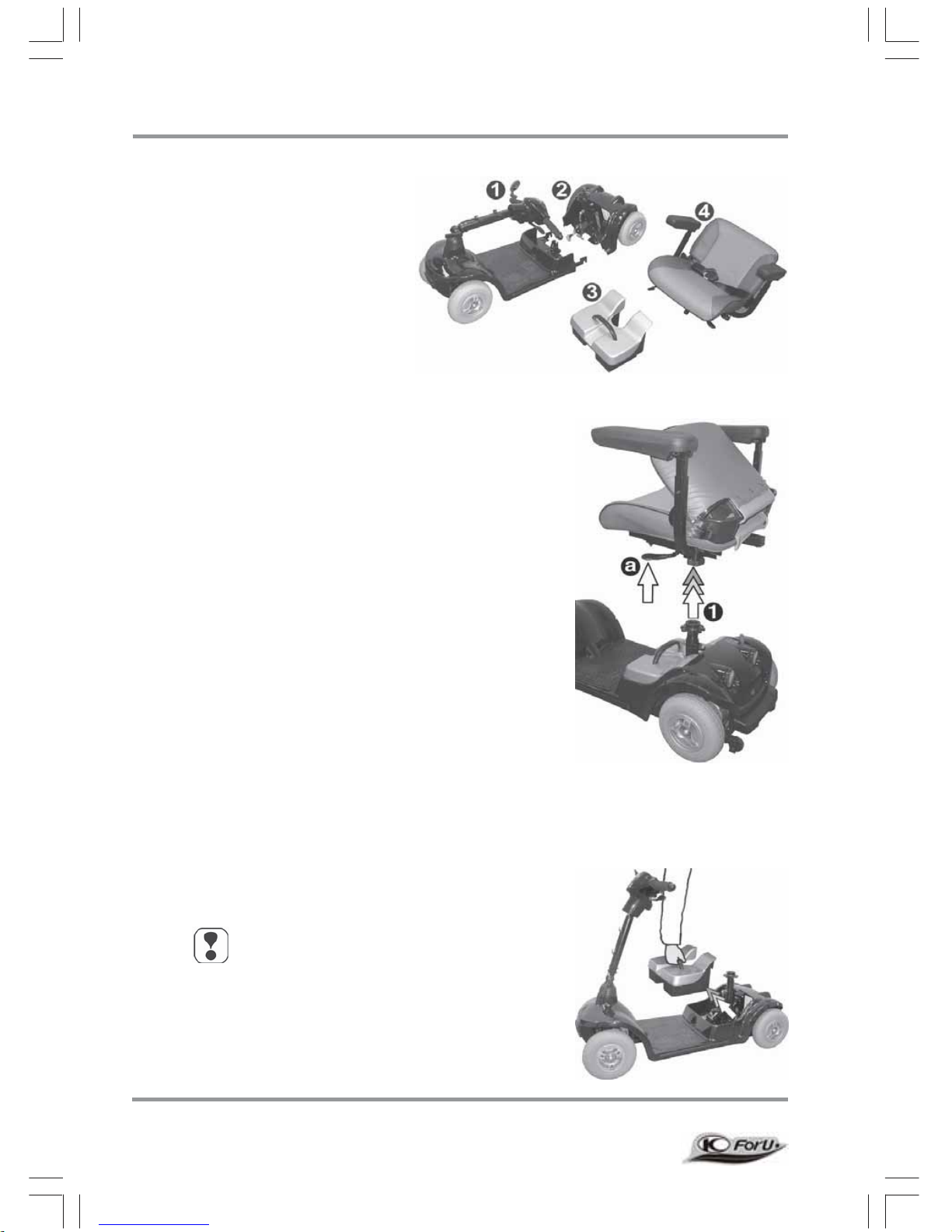

The FOR U dismantled:

1. Chassis

2. Drive unit

3. Battery case

4. Seat unit

Reassembling the FOR U

(Stages 6 to 1)

Brief instruction

6.) Remove the chassis

FOR U

MN3/4

5.) Unlock the drive unit (1.) tilt the drive unit away (2.)

FOR U

MN3/4

Setting up the FO R U

The following passage describes how to set up your

FOR U in order

to ensure that

ou have a comfortable and safe drive.

6.0

djusting the seat height

6.1 Adjusting the seat height

NOTE!

The seat must be removed from the FOR U in order to adjust the seat height. Y ou should try to get help from a second person if possible or contact your dealer .

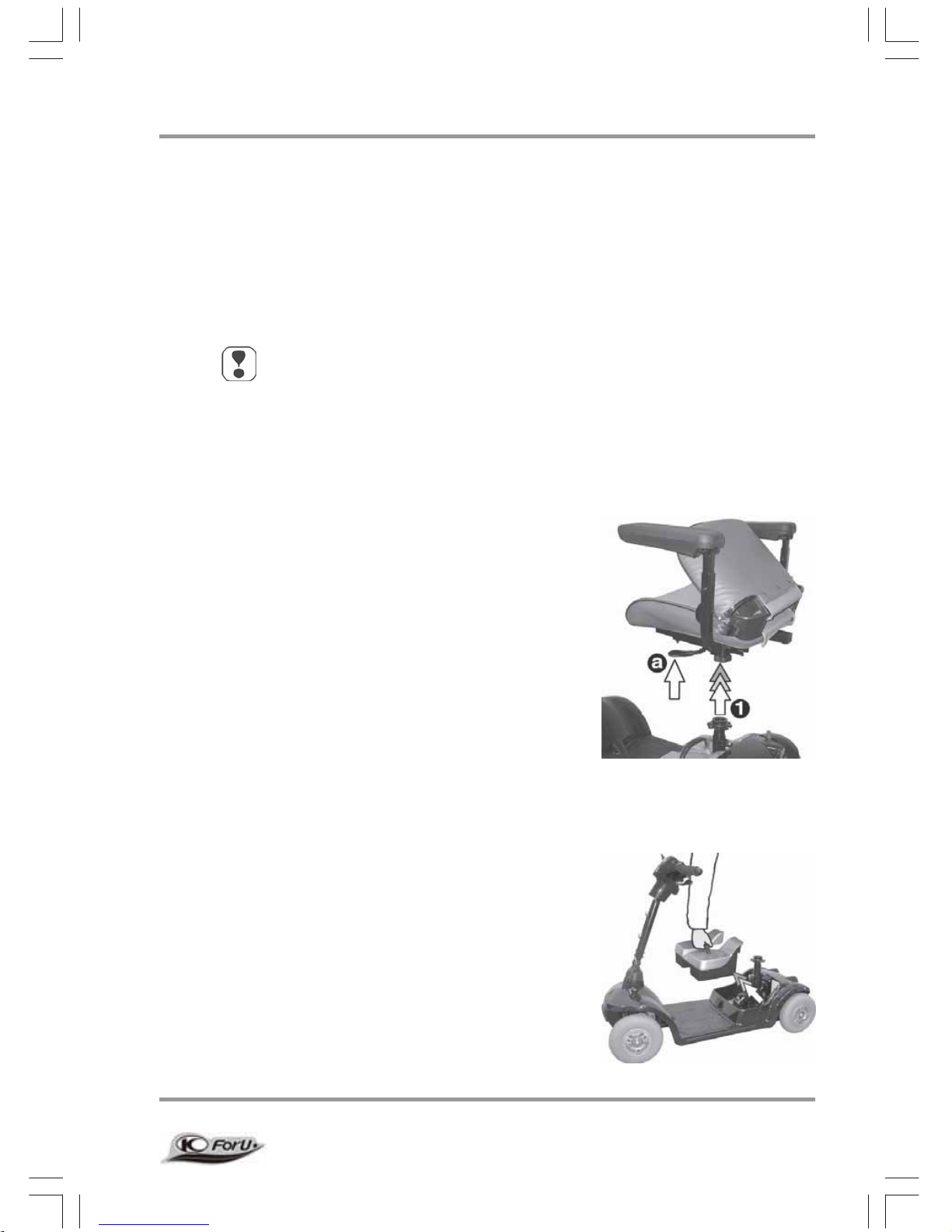

Removing the seat

Removingthe seat:



Tilt the backrest forwards.



Lift the seat while pulling the seat

lock (a) out of the seat sup port (1).

Removingthe batter

case

Removingthe batte

ycase:



Pull the battery case upwards

out of the

FOR U chassis.

Issued: 23.01.2008



Pull the clamp ing bolt (1) with the form

shim (3) out of the seat support (4).



Hold the clamping bold (1) with a ring

spanner (size 12 mm) and unscre w the self-locking nut (2) with the other ring spanner (size 12 mm).

Removingthe clamping bolt

ools required:

2 x ring spanner, size 12 mm

Adjusting the seat height:

djusting the seat height

FOR U

MN3/4

Issued: 23.01.2008



Screw the self-locking nut (6) and tighte

it (size 12 mm). Wh ile doin g this, prevent the clamping bolt (1) from turning using a second ring spanner (size 12 mm).

tightenthe clamping bolt



Pull the seat suppo rt (4) out as f ar as

the required height until the correct hole (B1-B4) appears in the se at tube hole (5).



Push the clamping bolts (1) with the

form shim (3) into the seat tube (5) from the front.

The seat height (h) is adjusted using the three holes (B1 - B4) in the seat support.

djusting the seat

support

FOR U

MN3/4

djusting the seat height

Issued: 23.01.2008

Inserting the seat

Inserting the seat:



Pull the seat lock (a) and guide the seat

into the seat support (1) from above.



Let go off the seat lock and engage the

rotational adjustment by turning the seat a little one way then the other .

NOT E If after inserting the seat it is not possible to turn the seat or to pull the seatlock, the seat is not properly locked.

Reinsertingthe batter

case

djusting the seat height

FOR U

MN3/4

Reinserting the battery case:



Insert the battery case into the FOR U

chassis.

Issued: 23.01.2008

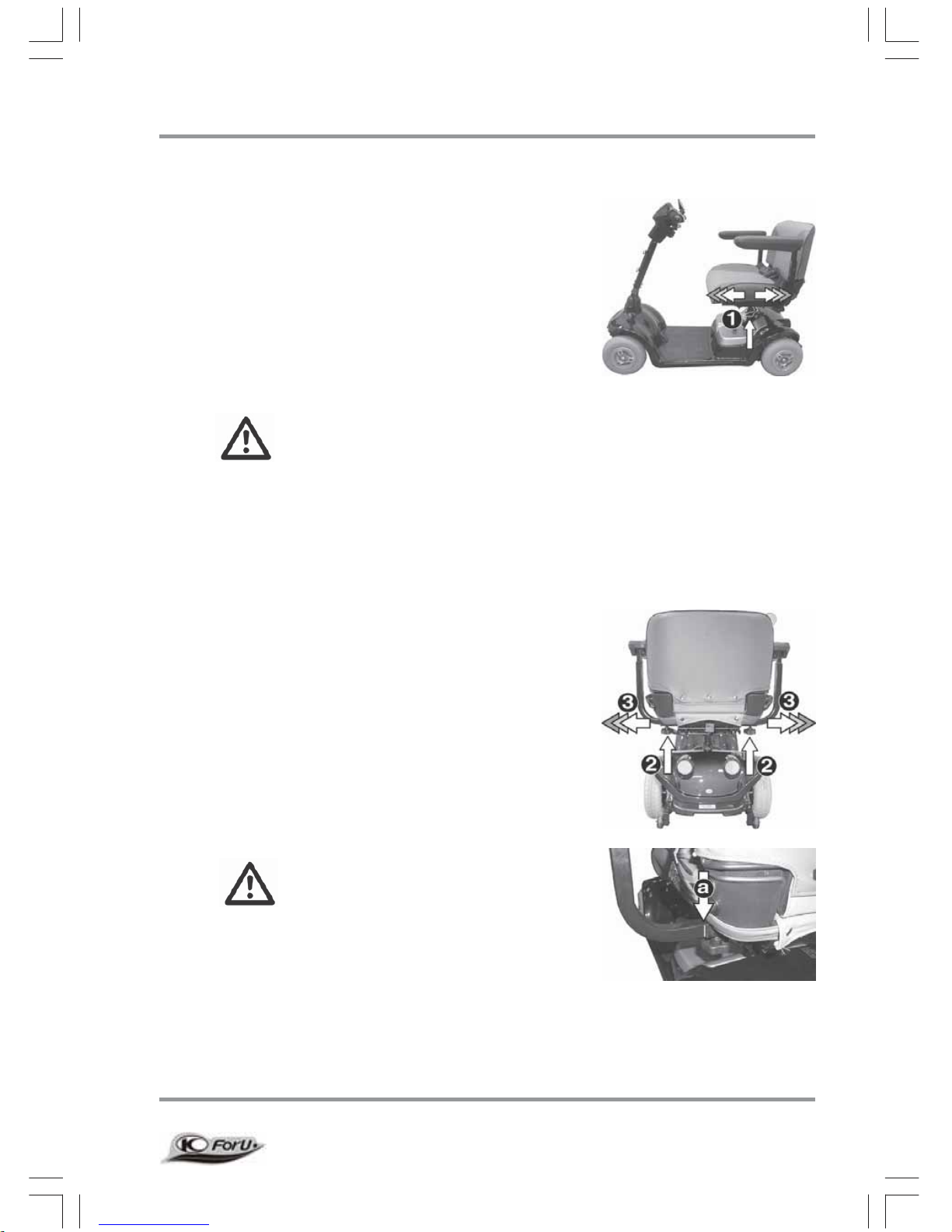

CAUTION!

• Do not

pull

the armrests further

out than the

marking (a)

for

maximum

armrest width.

Adjusting the armrestwidth



Loosen both clamping screws (2).



Pull both armrests (3) simultaneously to

the required width.



Secure the armrests by tightening the

clamping screws.

6.2.2

djusting the armrest

width

ccident hazard due to

non-engaged seat!

• Ensure that the seat is

properly

engaged

after adjustment by

pushing

the seat slightly forwards

and

then backwards.

Moving the

seat

Adjusting the seat position

Adjusting the distance between seat and tiller



Pull the locking lever (1) upwards and

move the seat forwards or backwards to the required distance.



Let go of locking lever and engage t he

locking mechanism by pu shing the seat slightly forwards and backwards.

6.2

6.2.1

the seat

djusting

FOR U

MN3/4

Issued: 23.01.2008



Pull the armrests upwards to the required

height until the hole in the armrest support appears through the hole in the seat tube (5).



Reinsert the Allen screw and tighten.

djusting the armrest

height

The armrest height is adjusted using four holes in t he armrest support (b).

The height can be adjust ed in stages of 10 mm.



Loosen the Allen screw (4) and remove.

ools required:

1 x Allen key (size 5 mm)

Looseningthe fixing

Adjustingthe armrest height6.2.3

the seat

djusting

FOR U

MN3/4

Issued: 23.01.2008

Adjustingthe handle:



Pull the handle (4) and turn into

position (5).

djusting the handle



Loosen the clamping lever (1).



Push the tiller forwards or backwards

into the required position (2).



Tighten the clamping lever (3).



Ensure that the tiller is engaged properly

by moving slightly forwards and backwards.

Accident hazard due to non-engaged tiller!

• Ensure that the tiller is

properly

engaged

after adjustment by

pushing

it slightly forwards and

then backwards.

NOTE: the clamping lever is provided with an adjustable handle. After you have tightened the clamping lever, put the handle into the position shown in the photograph (a).

adjusting the tille

the seat

FOR U

MN3/4

Adjusting the tiller angle

Always adjust the tiller so that you can reach all displays and controls easily at any time. The tiller can be variably adjusted.

6.3

djusting

Issued: 23.01.2008

•

• always match your speed to the driving situation in which you find yourself.

always reduce the speed when you are driving through:

- unclear areas

- narrow gaps

- tight curves

- inclines

- ramps take a trial run with the

FOR U in an area with no pedest rians,

or in a closed-off area always steer the

FOR U using both hands on the handlebars

alwa

skee

our feet in the foot area while drivingthe FOR U

The following information should help you to drive safely through traffic:

FOR U

MN3/4

Information about sa

eFOR Udriving

Always carry out the safety information described in chapter 1.4 “Safety when driving“!

Driving the FOR U is very simple and after a few practice sessions you will find it very easy.

7.0

Driving informatio

Issued: 23.01.2008

Increased tipping safety

You can achie

e increased tipping safety if:

• you adjust the seat in a more forward position.

• you lean your upper body slightly forwards (see sketch).

Thereisanincreaseddangerof tipping when climbing or descending gradients if:

• the FOR U is loaded at the back and additionally the seat has been adjusted to its rear position.

Tipping hazard!

•

oid driving across an incline (always try to drive in the direction of the incline / decline).

Climb angle examples:

a 1 metre long ramp should not be higher than. 14 cm a 2 metre long ramp should not be higher than. 28 cm

information

FOR U

MN3/4

Driving up inclines and down slopes

The FOR U can climb up inclines of up to 8° without dan ger.

7.1

Driving

6 cm

Issued: 23.01.2008

• DO NOT drivedownstairsorsteps.

• DO NO T dr i

e backwards down a ker

• DO NOTdri

e backwards over an obstacle.

DO NOTdri

veov

er the obstacle with just

one wheel.

•

approachthe obstacleat a right angle try to clear the obstacle in one go.

•

information

FOR U

MN3/4

Overcoming obstacles

The FOR U can climb over obstacles such as kerbstones up to height of 6 cm without any problem.

Please observe the following points to make sure that your FOR U doesn’t tip over while climbing obstacles:

• don’t try to drive over obstacles which are too high example: kerbstones rem edy : always climb up kerbstones

at lowered entry areas such as driveways.

• Do NOT try to climb an obstacle when on an incline.

7.2

Driving

Issued: 23.01.2008

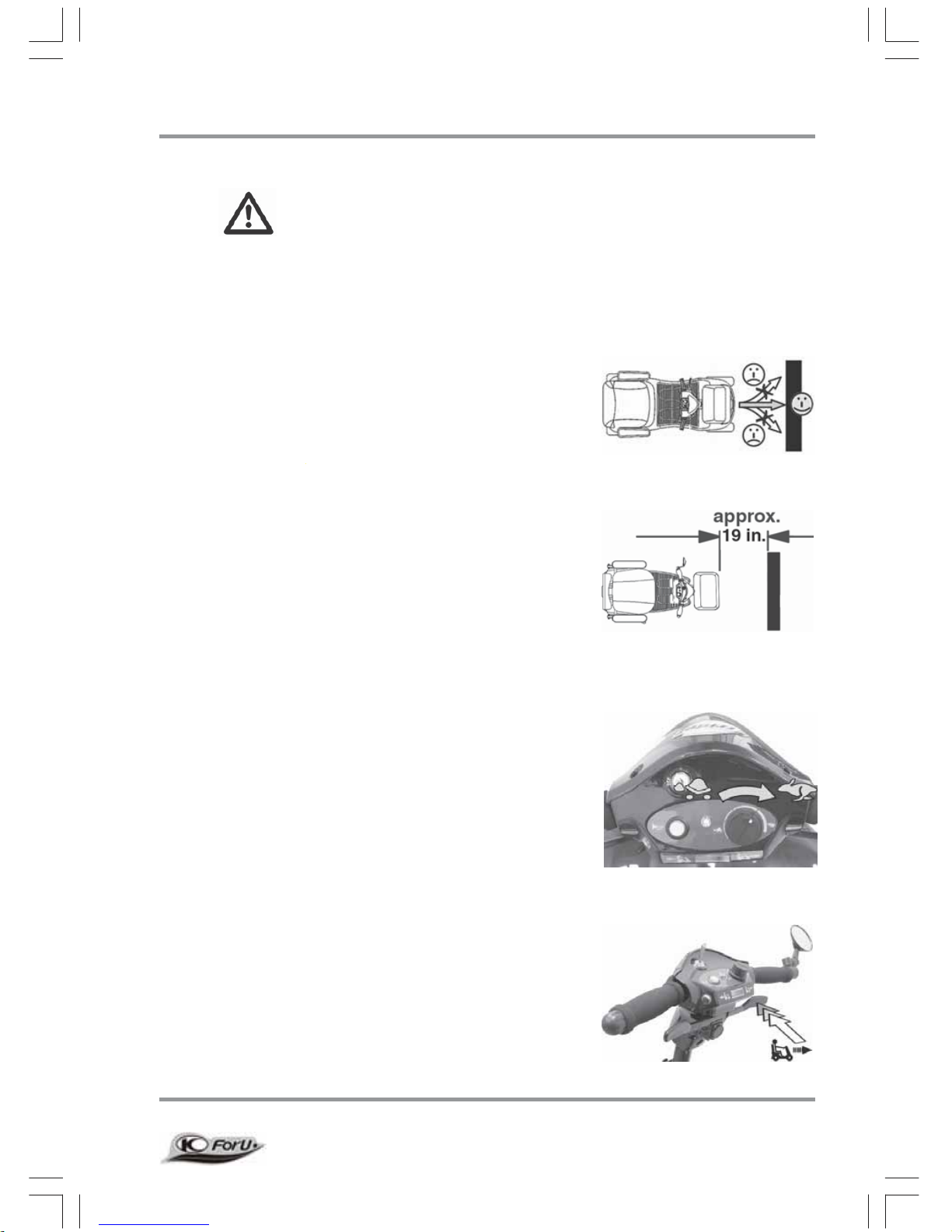

Keep the dri

elever in the fully forwards position until the rear wheel s have cleared the kerb.



Overcome kerb

Press the drive lever fully forward and try to clear the kerb in one go . The speed of the scooter should only be at 1 mph when the front wheels hit the kerb.



djust the speed controller to maximum

speed.



djust the speed-

controller

Stop approximately 0.5 Meter

19 inches in front of the k erb.



Stop in front of the kerb

pproachthe kerb at a right angle.



pproachat a right angle

FOR U

MN3/4

DrivingInformation

–

Overcoming kerbs

Risk of accidents!

Neogating kerbs needs some practice.

• Please

observe

the

maximum

obstacle hights of 6 cm.

• Please start practicing kerb climbing with small k erbs .

7.2.1

Driving informatio

Issued: 23.01.2008

Accident hazard in push mode!

If the incline is too steep, there is a danger that you will not be able to hold onto the scooter and that it will roll down the incline uncontrolled.

• T

to get

help

from a

second

person when turning your

scooter around.

Tipping hazard!

There is an increased tipping hazard if the incline is very steep.

• T

to get

help

from a

second person

when turning your

scooter around.

Switch the scooter off and allow it

o cool down for a few minutes. Switch the scooter on again and ... ... reverse away from the obstacle (such as kerbstone) and then

try again at a lower point.

... be careful turning the scooter around on inclines, and always

reve rse away very sl o w ly.

 

o rectifythis:

FOR U

MN3/4

Overload protection - motor protection

The overload protection switches the drive off if the motor becomes overloaded by trying to climb over too high an obstacle such as a kerbstone, or if you try to climb too stee p of an inclin e.

If the motor is overloaded, the following happens:

• the

FOR U becomes noticeably slower and then stops

• the control syst em switches the

FOR U off

7.3

Driving informatio

FOR U

MN3/4

Battery charging state = driving range7.4

Driving informatio

7.4.1 Batterycharging state

Batte

charge display

Batte

charge display:

The battery charger displa y on the dashboard shows the battery ch arging state.

Display ranges

Full = maximum range Medium = decreased driving range, charge

batteries after journey

Reserve = minimum driving range, end

journey as soon as possible, charge batteries

Important information about reading the batter

charge display:

If the scooter is at standstill, it is often the case that the battery charging state is shown higher than it actu ally is.

The display can vary greatly while the vehicle is travelling (depending on load).

If the vehicle is under heavier loading (for example heavy acceleration, driving up hills), the pointer can sometimes go to the red area of the displa y. This is not critical and does not indicate the

actual

charging state of the batteries. If the pointer has gone into the red area of the display after the

journey, it will often show green after the

FOR U has been turned off

for a long period. This does not indicate the

actual charging state of the batteries! If the pointer is in the red area of the display at the end of the journey, the batteries must be charged bef ore continuing the journe y . Disregarding this can lead to destructi on of the batteries!

•

Determining the actual charging state:



Drive at a constant speed for about 200 m along a straight leve

route. The value shown by the display during the journey is the actual battery

charging

state.

Issued: 23.01.2008

FOR U

MN3/4

Driving range

The

FOR U driving range is dependent on the following conditions in

addition to battery charge:

landscapeconditions ( level or steep) weight of user weather conditions (cold, rain)

driving with headlights (if fitted) For this reason, information about the driving range is only given as a guideline. The more e xperienced you are in using the

FOR U, the easie

it will be for you to determine the driving range using the battery charging state.

You will be able to achieve the best possible driving range if you:

ensure that the tyres are inflated correctly avoid steep inclines as much as possible do not carry any unne cessary luggage drive at an even speed do not accelerate or brak e unnecessarily.

•

7.4.2

Driving informatio

The driving range will be decreased if you:

• drive with headlights

• drive in cold weather

• drive in hilly regions

NOTE

please see the information about batteries in the Appendix.

Overdischarge protection - battery protection In order to protect the batterie s from over-discharging, the co ntrol unit switches the

FOR U off. This takes place when the battery voltage falls

below 17 Volts.

7.4.3

Display:

the battery charger display poi nter is pointing to the left at the end of the red area. T o rectify this:



You must not drive the FOR U any longer!



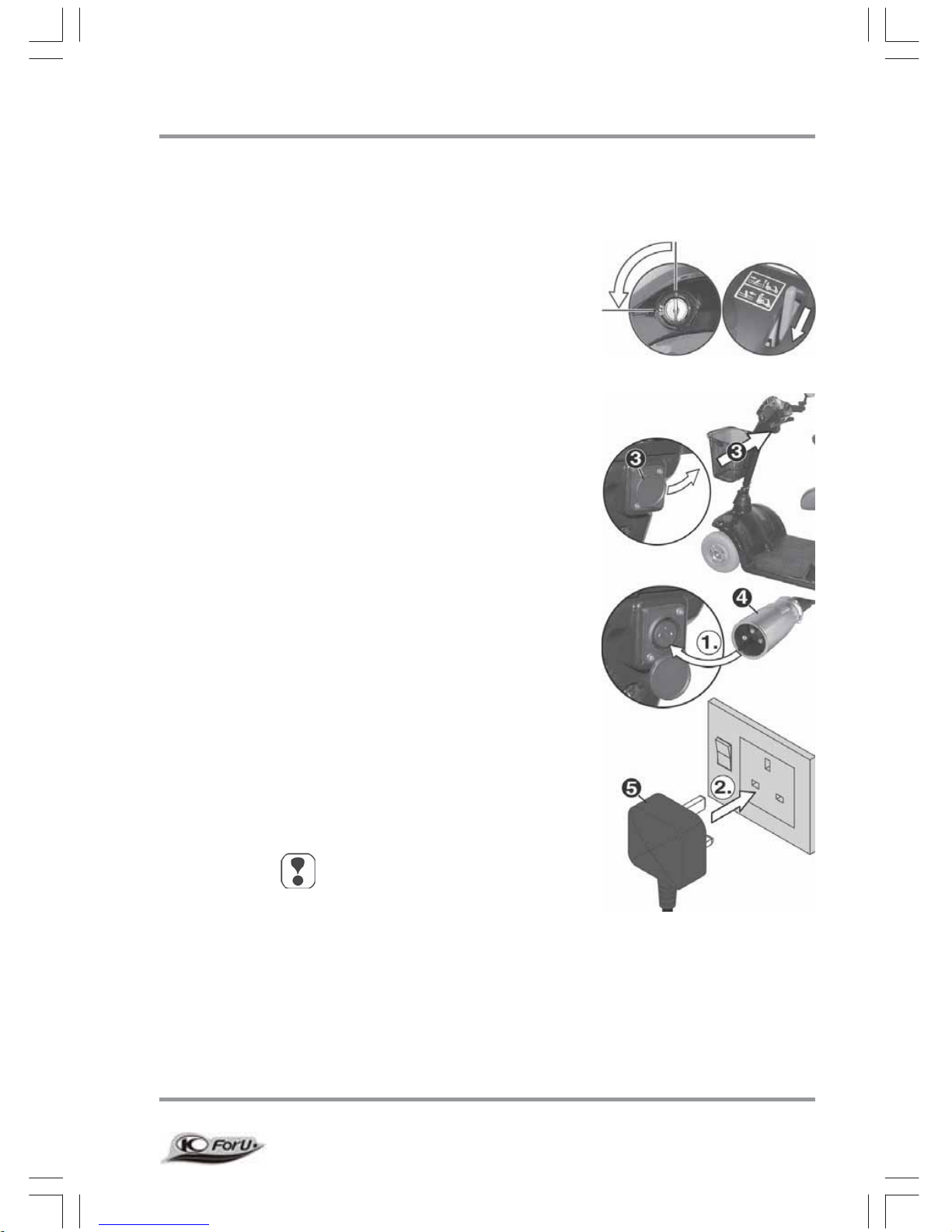

Connect the Strider to the battery charger

and charge the batteries for at least 12 hours.

If the battery

oltage falls below 16 V olts,the batteries can no

longer be charged with the battery charger supplied. In this case

Batte

charge

display

Issued: 23.01.2008

ccident hazard due to

non-engaged seat!

• Ensure that the seat

properly

engaged

after getting

on by

turning the seat slightly

left

and

right.



After you have got onto the FOR U, pull

the seat lock (1) forwards again, turn the seat to face the direction of travel (4) and engage.

getting on



Press the red unlocking button (3) to

open the seatbelt lock.

Gettingon o

off:



Pull the turning lock (1) on the seat

forwards.



T urn the seat 90° to wards you (2) an d

engage.

Opening the seat belt

•

urning the seat

The

FOR U must be standing on firm, level

and non-slippery ground. The engaging lever for push mode must be

in the drive position (see chapt. 9.0)

Turn the

FOR U off and remove the ke y.

Tilt the steering column fo rwards (see chapt. 6.3)

When getting in and out, ensure that your clothing does not get caught on the drive lever .

•

Driving the FOR U

FOR U

MN3/4

Driving the FOR U

Getting on and off

Please observe the following before getting on or off:

8.0

8.1

Issued: 23.01.2008

Closingtheseatbelt

Closing the seatbelt:



Press the closer (1) into the lock until it

audibly engages.

djusting forlength

Seat belt -adjusting for length and putting on

Adjusting for length:



Turn the seatbelt closer (1) at right

angles to the seat belt. Adjust the length by pulling the

appropriate belt side. (a) = shortening the belt length (b) = lengthening the belt le ngth Tension the loose seatbelt end b y pulling

the belt holder (2).

8.2

Driving the FOR U

FOR U

MN3/4

NOTE!

If you feel you are safe enough, you can of course get onto the

FOR U

without turning the seat round.

• You can lift up the armrest on the side where you are standing and then get on.

Issued: 23.01.2008

Operation indicato

Operationindicato

andfault display

This light shows that the FOR U is switched on and ready for driving. It also displays any errors in the FOR U electronics and electrical system. Fault display takes place using different blinking speeds or blink sequences. You can find more information in the chapter entitled “Troubleshooting”.

8.4.1

Switchi ng the FOR U on

Switching the FO R U on

The switch (1) is located on the dashboard.



Insert the key into the switch and turn

it to the right to switch the FOR U on.

8.4

urning the seat:



Pull the turning lock (1), turn the seat in

the required direction or position (2) and engage.

Accident hazard due to incorrect seat position!

• Always turn the seat to face forwards

and engage

it before

driving.

If the seat has been turned, the possibility of tipping is increased.

• Before turning the seat,

always

ensure

that the scooter is on an

even and solid

surface.

urning the seat

The seat can be turned to both side s of the angle, and firmly engaged in 8 positi ons (each position turns 45°).

8.3

the FOR U Driving

FOR U

MN3/4

Issued: 23.01.2008

Only start driving ifeverything is in working order! Get defects repaired immediately.

 in working order!

Observe chapter 13.3.4 !

• Is the tiller locking devic

unlocked (only 3-wheel)?

 in working order!

Visual check of tyr es and wheels!

•

re the tyres and wheel

undamaged and is the air pressure correct?

o check, driveslowly

and stop again!

 in working order!

•

re thebrakes working?

Check the display!  in working o rder!

Before driving

Checks before driving:

• Are the batteries charged

8.6

Use the controller to adjust the speed to suit local conditions. Select a lower speed if you are driving through narrow gaps, on inclines or through crowds.

= highest possiblemaximum driving

speed (approx. 4 mph)



Adjust the required maximum driving

speed by turning the speed controller .

FOR U

MN3/4

Driving the FOR U

Adjusting the speed

Your maximum driving speed can be variably adjusted using the speed controller .

Maximum driving speed = drive lever pressed as far as stop

Controlle

symbols:

= lowest possible maximum driving

speed (approx. 1.5 mph)

Speed controlle

8.5

Issued: 23.01.2008

Emergency braking = let go ofthe drive lever!

The drive lever automatically returns to the central position if you let go . The FOR U automatically brakes using the motor .

Moto

brake

Using the motor brake



Let go of the drive lever (1).

The drive lever stops in the central position

- the FOR U uses the motor to brake.

8.8

Reverse

Forwards

Standstill (brake engaged)

Standstill

(brake engaged)

The drive lever position controls the speed variably right up to maximum

driving speed.

= drivingin reverse

= drivingforwards

Handle Handle



Hold the tiller firmly in both hands.



Press the drive lever (1) in the direction

of travel until the required speed has been reached.

ccident hazard due to locked tiller!

• Before

driving

off, turn the tiller to check that it is not locked.

Observe chapter 13.3.4.

Driving the FOR U

FOR U

MN3/4

Driving8.7

Issued: 23.01.2008

Switching the FOR U off

Switching off/ parking the FOR U



Turn the key to the left to switch the

FOR U off.

Always turn the FOR U off using the key switch (1) if you:

• want to get on or off.

• intend to stop for long pe riods. Always remove the key from the key

switch if you:

• want to park the FOR U and get off.

8.10

Using the horn

Hazard lamps

FOR U

MN3/4

Using the horn



Press the horn button (5).

It will sound for as long as you hold the button down.

8.9

Issued: 23.01.2008

=Driving(b):



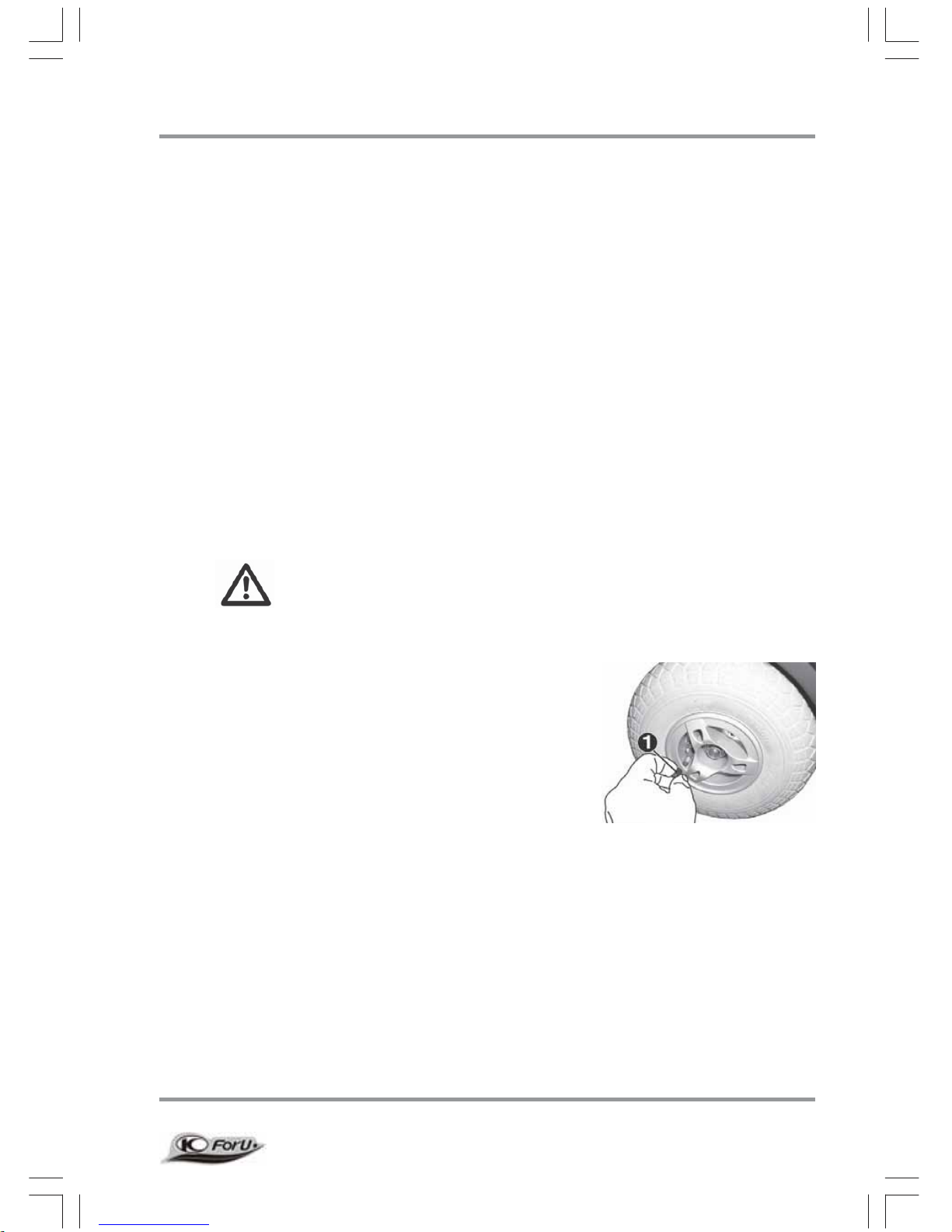

Pull the disengaging lever (1) to the rear

as far as the stop (limit position).

NOT ES

• Always switch the FOR U off to push it.

• If a pre-set speed is e xceeded while you are pushi ng the FOR U, the drive motor will swit ch on automatically and brake the FOR U.

Risk of accidents!

• Do not

pull

the

disengaging

lever while driving.

•

Never

switch the FOR U to push mode when somebody is

sitting

it.

• The

engaging lever always

needs to engage securely at the

limit position.

•

not

disengage

the motor when on an incline.

10.0 Attaching the shopping basket



Push the shopping basket (1) from

above into the basket holder receptacles (2) on the tiller.

NOTE Use the shopping basket only for small loading.

= Pushing (a):



Switch the FOR U off.



Push the disengaging lever (1) forwards

as far as the stop (limit position).

Disengaging the drive

FOR U

MN3/4

Pushing the FOR U

In order to be able to push the FOR U, you must disengage the drive motor . The disengaging lever (1) is lo cated on the right-hand side of the FOR U. No one is permitted to sit on the FOR U when it is being p ushed.

9.0

Pushing the FOR U

FOR U

MN3/4

11.0 Charging the batteries

Please also see the information given in the chapter entitled “Things to know“.

Charging information:

Charging the batteries

• The surrounding temperature shouldbe between10° and30° Celsius. The charging time will increase at lower temperatures.

Only use the original battery charger (included in delivery). Only use the battery charger in a dry and well-ventilated room. Do not cover the battery charger and ventilation slot while charging

batteries. The battery charger has an automatic switch-off device which

prevents overcharging the batteries. Do not leave the battery charger connected to the scooter for more than 24 hours.

- The batteries can be charged overnight. Switch the FOR U off before charging the batteries.

•

When is charging required?

the battery charge display is in the red area after the final journey of the day at least once per week

•

Charging times:

Between 8 and 14 hours dependi ng on current battery charge state.

NOTE The battery charger is designed to be able to charge completely discharged batteries within eight hours to 80% of their capacity.

11.1 Preparing the battery charger



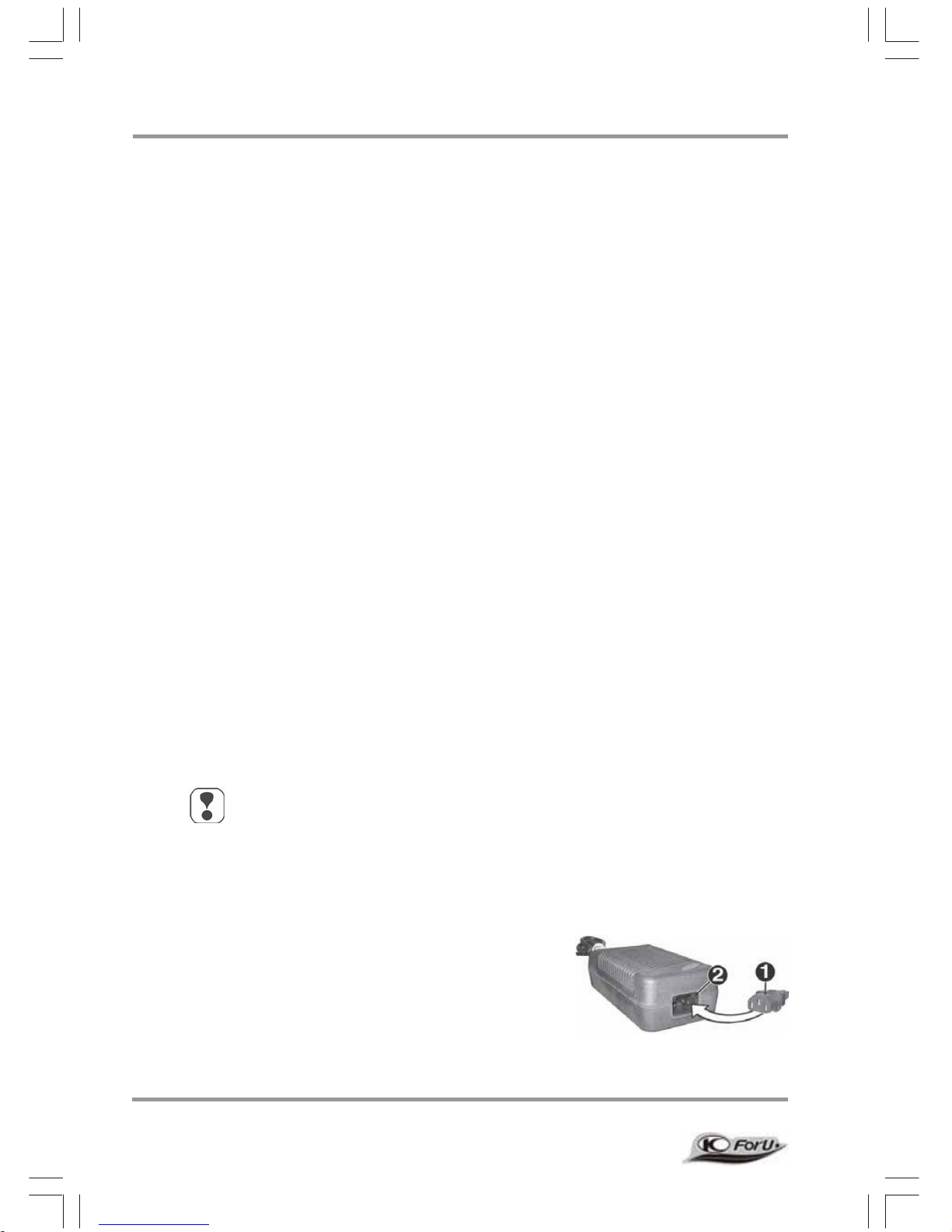

Plug the mains cable plug (1) into the

jack socket (2) on the battery charger.

Connectthe mains cable

Issued: 23.01.2008

Charging the batteries

FOR U

MN3/4

11.2 Charging the batteries

11.2.1 Charging the batteries inthe FOR U via the tiller (12 Ah and 17 Ah batteries)

Switchingoff

Engaging



Switch the FOR U off.



Engage the engaging lever for push

mode into the “drive“ position.

It is imperati

ethat you observethe

sequence for connecting and disconnecting the battery charger.

Connectingthe batter

charger

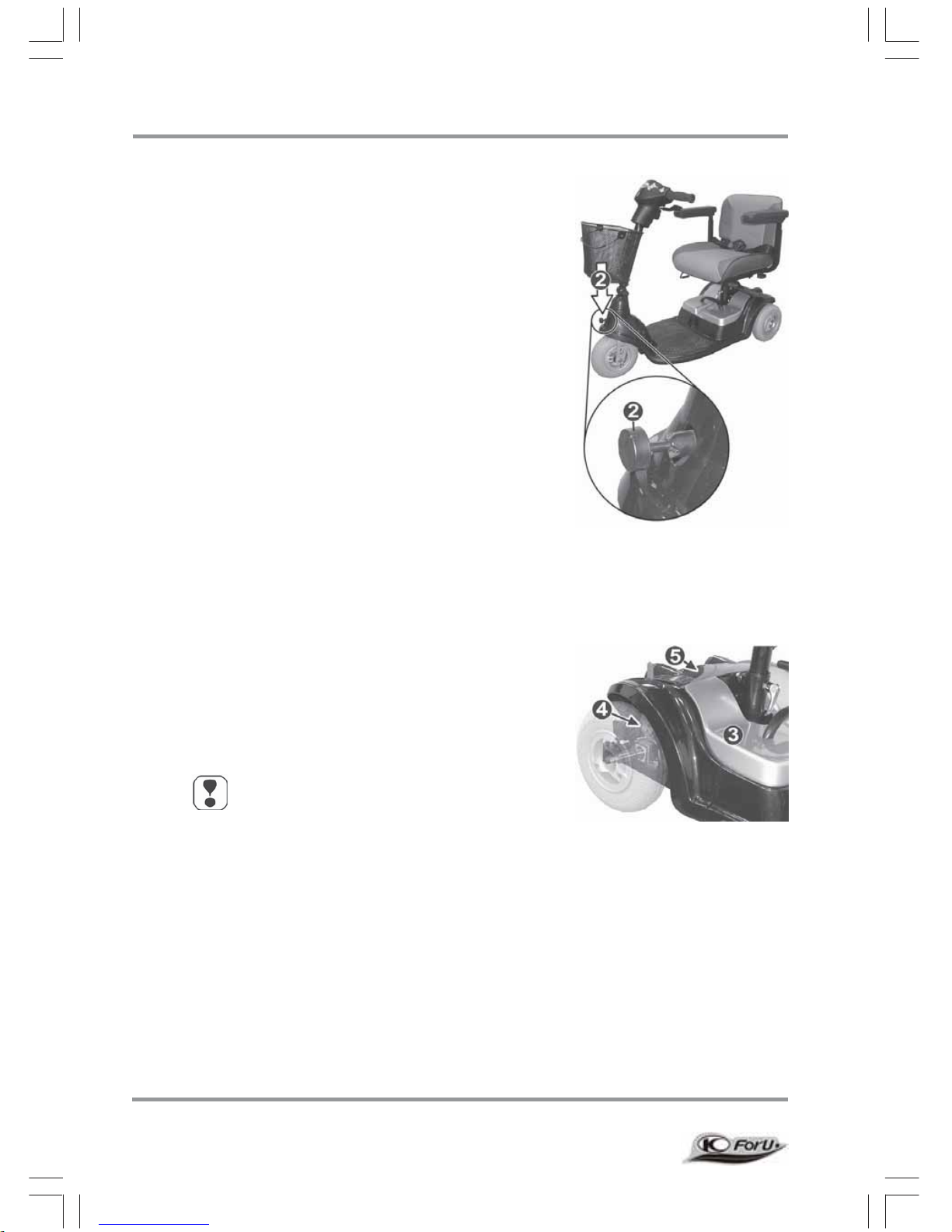

The jack socket (3) for connecting the battery charger is located on the tiller.



(1. ) Connect the battery charger plug (4)

to the FOR U charging socket.



(2. ) Connect the battery charger main

plug (5) to a mains socket and switch on.

The battery charger switches on automatically when connected to the mains.

Issued: 23.01.2008



(2.) Connect the battery charger mains

plug (4) to a mains socket and switch on.

NOTE: The battery charger switches on automatically when connected to the mains.



(1. ) Connect the battery charger plug (3)

to the battery case charging socket.

It is imperati

ethat you observethe

sequence for connecting and disconnecting the battery charger.

The jack socket (2) for connecting the battery charger is located on the rear of the battery case.

Connecting the battery charger



Remove the battery case upwards out of

the FOR Uchassis.

This section applies to the FOR U fitted with 12 Ah batteries. 12 Ah batteries can be recogni sed because the battery case (1) is a single unit.

Removingthe batter

case

FOR U

MN3/4

11.2.2 Charging the 12Ah batteries in the batterycase

(when removed from th e FOR U)

Charging the batteries

FOR U

MN3/4

11.2.3 LED information at batterychargerduring charging

Charging the batteries

LED

LED -> Colou

(a) -> Red

-> Meaning

-> battery charger

->Orange -> charging in progres

-> Green -> charging complete, battery completely

Removing the mains plug

11.3 After charging



(1.) Switch off and remove the battery

charger plug from the mains socket.

Removingthe batter

charger



(2.) Pull the battery charger jackplug ou

of the FOR U jack socket.

Issued: 23.01.2008

The battery case fitted with 12

h batteries is fitted with its own charging socket. This means that it is possible to charge the batteries when separated from the FOR U (Chapter 11.2.2).

17Ahunit

hunit

The Batteries

The entire power supply is taken over by two cycle-proof 12 V gel batteries. The FOR U can either be fitted with 12 Ah (Amp-hour) batteries or more powerful 17 Ah batteries. Only enclosed maintenance-free deep cycle batteries are used. The batteries located in the removable battery case beneath the seat. The

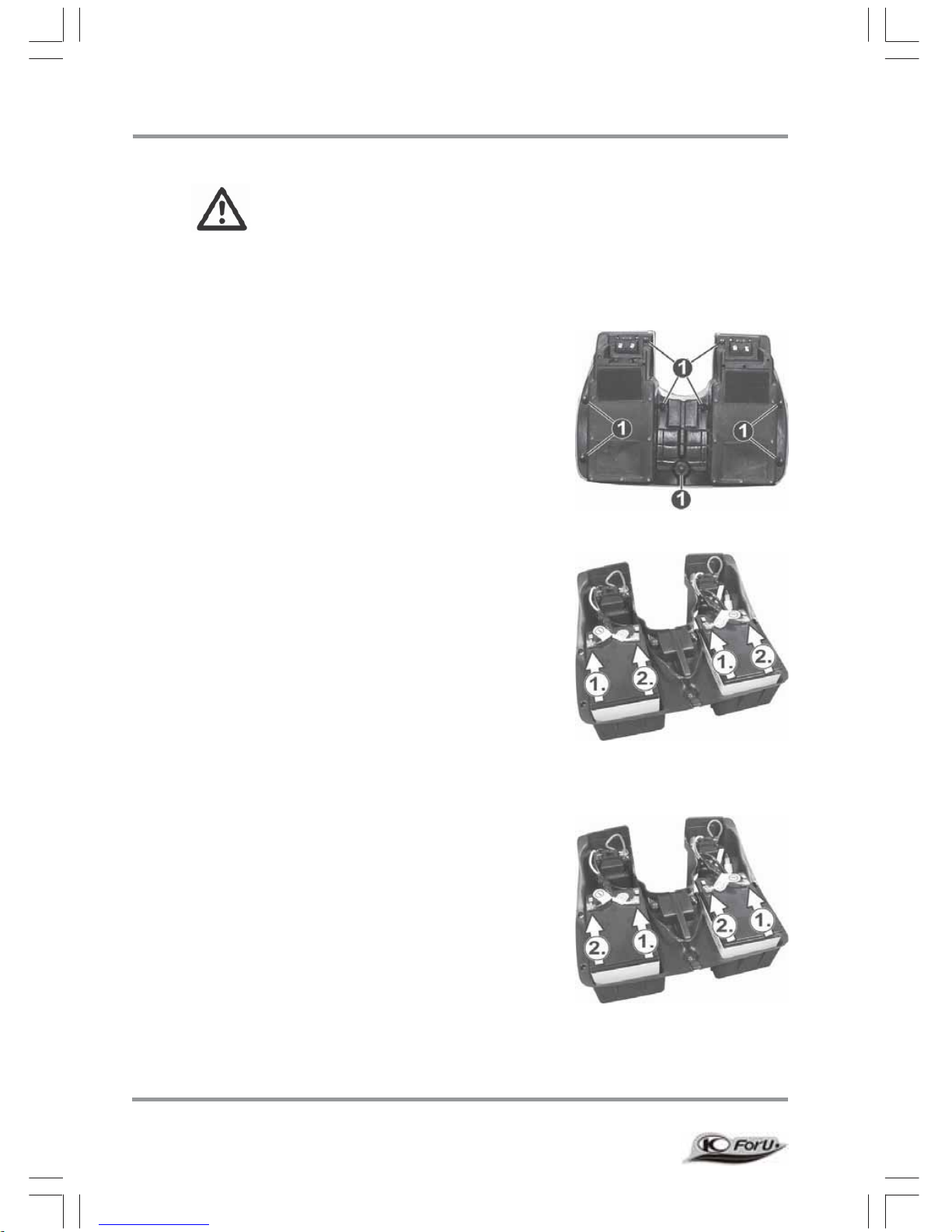

• 12 Ah batteries are located in one

battery case and the

• 17 Ah batteries are located in two

battery cases.

12.2

Since no charging current is flowing when the batteries are full, the batteries cannot be overloaded.

morecharging current decreased charging current no charging current

Batteries mostly discharged = Batteries half discharged = Batteries completely charged

The battery charger - functioning principle

The battery charger regulates the voltage (V olt) and the current (Ampere) from your mains connection down to the voltage required for charging y our batteries (24 V olt). The amount of charging current required is dependent on the chargi ng state of the discharged batteries.

12.1

know Things to

FOR U

MN3/4

12.0 Things to know

FOR U

MN3/4

12.2. 1 What are batteries for cyclic use?

Batteries for cyclic use are designed, in contrast to starter batteries as used in cars, so that they deliver continuous energy over a longer period of time and allow a considerable number of charging phases.

Things to know

12.2.2 When do the batteries achieve thei

maximum performance?

Fixed cycle batteries achieve a maximum performance after four or five charging and discharging cycle s. Only at this poi nt is their internal chemical equilibrium ach ieved so that they can produce maximum performance and service life.

12.2.3 How do I make surethe batteries achieve thei

best service life?

lways charge your batteries completelyafter use. Charge your batteries regularly . Only store completely charged batteries in the veh icle.

•

nti tipping wheels

12.3 Antitipping wheels

The anti tipping wheels (1) redu ce the danger of tipping during extreme manoeuvres when fixed to the rear of the FOR U. It is not permitted to drive the FOR U without anti tipping wheel s.

Wheelsand tyres

12.4 Wheels and tyres

The FOR U is fitted with inner tubes and tyres of size 260 x 85.

Issued: 23.01.2008

The working principle

The drive consists of the drive motor, the gearbox and the rear axle. Drive takes place from the drive motor via the gearbox and rear axle to the rear wheels .

12.7

Dri

eunit

The drive unit

The complete drive unit is located in the rear of the FOR U and consists of th e following main components:

• the battery case (3)

• the control unit and

• the drive motor with rear axle (4) NOTE

The control unit and its cabling is protected by a shroud (5).

12.6

to know

Things

Tiller lock

FOR U

MN3/4

The tiller lock (only 3-wheel version)

The handlebar on the 3-wheel version of the FOR U can be locked in the straight-ahead position using the tiller lock (2) to enable transport. This prevent s uncontrolled handlebar movement.

12.5

Things to know

FOR U

MN3/4

12.8 The control unit

The control unit is a programmable electronic regulating unit. It regulates drive characteristics such as acceleration, maximum speed and braking beha viour. The drive characteristics can be set to match the user’ s requirement s by altering the programming. Reprogramming may only be carried out by specialist dealers.

12.9 Theauto switch-of

The auto switch-off automatically switches the FOR U off after 20 minutes at a standstill. This protects the batteries from being discharged if the FOR U was inadvertently not switched off.

12.10 Brakes on the FOR U

The FOR U is automatically braked if the

drive lever (1) is in the central position. To apply the brak es, simply let go off the drive lever which is then returned to its central position by a spring. The FOR U is then braked by the drive motor. When the FOR U is at a standstill or has been switched off, it is braked by a magnetic brake.

Dri

eleve

Issued: 23.01.2008

Things to know

FOR U

MN3/4

12.11 Driver´s licence

Not required!

12.12 Insurance

As a scooter user you must be aware of the risks inv olved to both yourself and othe rs. It is recommended that you tak e out third party insurance to cover you against any possible claims. Advice and policies are available from insura nce companies or alternatively ask your scooter supplier for details.

12.13 Approval for road traffic use

Both FOR U models are not defined as motor vehicles, but are a Class 2 Type invalid carriage. This type of scooter is f or use on pa v ements and pedestrian areas with the exception of crossing roads.

Use on public roads only permi ssible when no pavem ent is available.

Issued: 23.01.2008

ransport ing the FO R U

FOR U

MN3/4

13.0

ransporting the FO R U

13.1 Transport information

Depending on the size of the transport vehicle, the FOR U can be dismantled in a few steps so that it can also be easily transported in smaller vehicles. When transporting, take particular care to ensure that the batteries are securely fastened and make sure components cannot tip over . No liability can be accepted for damage caused by transportation.

13.2 Transporting the complete scooter

No persons are permitted to sit on the scooter during loading! No persons are permitted to sit on the scooter during transport!



Drive or push the FOR U up a ramp into the vehicle.



Switch the engaging lever to drive mode.



Secure t he FOR U against tipping over by fasten ing it to the

transport vehicle with transport straps .

‘

13.3 Preparation for transport - separating components Clamping and crushing hazard!

Increased hazards due to clamping or crushing result due to the high component weight (such as batteries) during preparation for transport.

• Always

carry

out

any work

to be done with great care.

• Always try to get

help

from a second person, especially when

sto

wing par

ts for tr

anspor

Issued: 23.01.2008

Removingthe batter

case

13.3.3 Removing the batte

ycase



Remove the battery case upwards out of

the FOR U chassis.

NOTE: You need to remov e 2 battery cases if your FOR U is fitted with 17 Ah batteries.

13.3.2 Removing the seat



Tilt the seat backrest forwards.



Lift the seat while pulling the seat lock

(a) out of the seat sup port (1).

13.3.1

orkingstep summar

1. Remove the seat unit.

2. Remove the battery case.

3. Locking the tiller (only 3-wheel)

4. Fold the tiller down.

5. Disengage the drive u nit from the chas sis.

Removing the seat

ransport ing the FO R U

FOR U

MN3/4

In just a few steps you can dismantle the FOR U down to the following components to make it ready for transport:

1. Chassis

2. Drive unit

3. Battery case

4. Seat unit

Issued: 23.01.2008

13.3.5 Folding the tille

down



Loosen the clamping lever (5).



Fold the tiller down towards the

rear until it is horizontal. (6).



Tighten the clamping lever (7).



Ensure that the tiller is engaged

properly by turning slightly forwards and backwards.

Folding the tille

down



Pull the locking knob (2), turn it through

90° (3) and locate in the V-shaped recess (4).



Turn the tiller to face straight ahead.

Locking the tille

13.3.4 Locking the tiller(only3-wheel version)

ransport ing the FO R U

FOR U

MN3/4

Issued: 23.01.2008



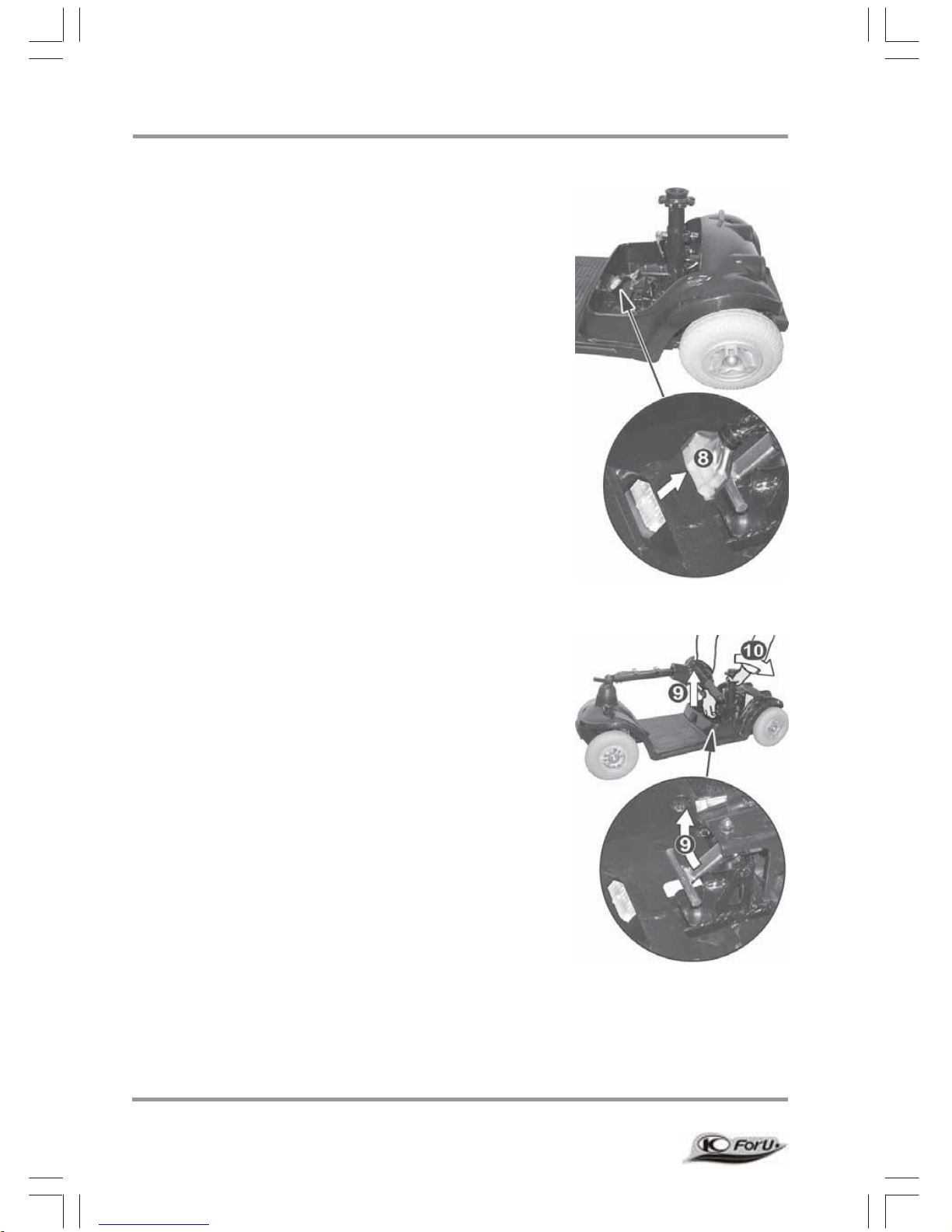

Pull the locking device (9) and tilt drive

unit to the rear onto the anti tip wheels (10).

Tilt the drive unit awa



Separate the front unit connecting

plug (8).

ransport ing the FO R U

Separating the front connector

FOR U

MN3/4

13. 3.6 Disengaging the drive unit from

the chassis

ransport ing the FO R U

Separating the chassis

FOR U

MN3/4



Remove the chassis (11) upwards from

the holding bolts (12) on the drive unit.

Use rear bumper as grip to stowe the drive unit.

Issued: 23.01.2008

Clamping and crushing hazard!

Pa y particular attention to hazards caused by trapping and crushing while carrying out this work.

Folding the drive unit in



Fold the drive unit forwards (3).



Locate the chassis (1) over the drive unit

holding bolts (2).

Connectingthechassis

13.4.1 Engaging the drive unit to the chassis

• The cable connection plug can o nly be reconnected in one position (anti-rotation protection).

• When re-connecting the plug, ensure that the lockin g device engages correctly .

FOR U

MN3/4

After Transport - Reassembly

W orking step summary:

1. Re-couple the drive unit.

2. Fold the tiller up again.

3. Unlocking the tiller (only 3-wheel)

4. Insert the battery case.

5. Fit the seat.

13.4

ransport ing the FO R U

Issued: 23.01.2008



Reconnect the front unit connecting

plug (5).

Connecting the moto

plug

ccident hazard due to

locking device not engaged!

• Ensure that the

drive

unit locking

device audibly engages

into the

chassis.

• Bef

ore inser

ting the battery case,

ensure

that the

locking device

correctly engaged.

the FOR U

FOR U

MN3/4

NOTE

The drive unit locking device (4) engages automatically and audibly into the chassis receptacle.

ransporting

Issued: 23.01.2008

Adjustingthe handle:



Pull the handle (9) and turn into

position (10).

the clamping lever is provided with an adjustable handle. After you have tightened the clumping lever, put the handle into the position shown in the photograph (a).

Accident hazard due to non-engaged tiller!

• Ensure that the tiller is

properly

engaged

after adjustment

pushing

it slightly forwards

and

then backwards.

Folding the tille

13.4.2 Folding the tillerup



Loosen the clamping lever (6).



Fold the tiller down towards the rear until

it is horizontal. (7).



Tighten the clamping lever (8).



Ensure that the tiller is engaged properly

by moving slightly forwards and backwards.

ransporting the FO R U

FOR U

MN3/4

ransporting the FO R U

Unlockingthe tiller

FOR U

MN3/4

13.4 .3 Unlocking the tiller

(only 3-wheel version)



Pull the locking knob (11), turn it through

90° (12) and locate in the V -shaped recess (13).

ccident hazard due to

locked tiller!

• Ensure that the tiller is

unlocked

before driving.

13.4.4 Reinserting the batte

ycase



Insert the battery case into the FOR U

chassis.

Reinsertingthe batter

case

Fitting the seat

13.4.5 Fitting the seat



Pull the seat lock (a) and guide the seat

into the seat support (1) from above.



Let go the se at lock and engage the

rotational adjustment by turning the seat one wa y then the other.

NOT E If after inserting the seat it is not possible to turn the seat or to pull the seatlock, the seat is not properly locked.

Issued: 23.01.2008

Cleaning

FOR U

MN3/4

14.0 Cleaning

NOTE

• Only use mild detergents without scouring agents to clean any surfaces.

• Please observe instructions for use on the detergents to avoid damage to the component surfaces.

• Do not use any sharp-edged tools such as knives, metal scrapers or aggressive solvents for cleaning.

• Do not use high-pressure clean ers to clean the scooters.

• Never direct water spray onto the fittings on the tiller or drive unit components.

Light soiling or dust is best removed using soft cloths. Heavy soiling can best be removed with dam p cloths and

slightly soap y water. Use a dry cloth to dry the scooter off after cleanin g!

All lacquered surfaces can be cleaned and preserved using car polish.

 



Issued: 23.01.2008

FOR U

MN3/4

15.0 Maintenance and Inspection

If you find any faults on your scooter d uring maintenance whi ch are not covered b y the repair inf ormation, please cont act your deal er. Always remove faulty scooters from operati on and secure them again st unauthorized use (remove key).

15.1 Daily maintenance before start o

ourney



Check the brakes by driving slowly and then braking.



Make a visual check of wheels and tyres for damage and loss o

pressure.

15.2 Weekly inspections / tyre pressure Danger of injury due to overpressurised tyres!

The tyres

will

burst if inflated with too much air pressure

•

Never

inflate the tyres

over

the specified pressure.

Only use calibrated instruments to measure the air pressure in the tyres (such as are available at filling station s).



Remove valve cap (1) - check air pressure.

Inflation pressure = 25 -28 PSI

18 - 20 hPa

1.8 - 2.0 bar



Screw the valve cap back on

Issued: 23.01.2008

Maintenance and inspection

FOR U

MN3/4

15.3 Annual inspection - inspection timetable

Take your scooter once per y ear to y our dealer f or an inspection. He will have the necessary tools and ex perien ce to servi ce you r scooter correctly.

Description (Component / inspection for)

Assessment

Defective

Component : Seat

   

Seatbelt / no damage

fixed securely can be easily adjusted closed securely



Armrest padding / no damage, fixed securely

 

Armrest, folding mechanism / no play in joint

functions easily

Armrests, width adjustment / no damage

functions easily

Backrest upholstery / no damage

fixed securely

 

Backrest adjustment / no play in joint

functions easily

 



  



Seat upholstery / no d am age

fixed securely

 

Seat and back frames / no damage Seat support - chassis connection / no damage,

no play in connection

 



Issued: 23.01.2008

Maintenance and inspection

FOR U

MN3/4

Issued: 23.01.2008

Description

Antitipper wheels / no d amag e

rollers turn easily

Tyres / no damage

tyre pressure,

Wheels / no damage

fixed securely

Steering mechanism / no da mage

no play in joint functions easily

Reflectors / no damage

Frames / no damage

no corrosion

Connections / no da mage

Component :

chassis

Tiller, foldin g mechanism / no play in joint

functions easily

Grip rubbers / no dam age

fixed securely

Panelling / no dam age

fixed securely

Component : Tiller

(Component / inspection for)

Assessment

Defective

 



 



  

 

Maintenance and inspectio

FOR U

MN3/4

Description

(Component / inspection for)

Assessment

Defective

Component :

Displays and

controls, electric system,

electronic system Drive lever/ No dama ge

Easy functioning over the entire lever movement

Returns to central position after releasing from any position

Secure blockage of magnetic brakes when lever is in central position

(FOR U can not be pushed)



 



Dashboard switches / no da mage

safe function

Dashboard displays / no dam age

safe function

Indicator lamps / no damage

safe function

 



 



 



Charger jack socket / no damage Batteries / no damage

fixed securely

 



Check battery voltage (12-14 V olt per battery)



Check battery capacity



Control unit / no damage

fixed securely

 



Cables and connecting plugs / no damag e

fixed securely

 



Issued: 23.01.2008

 



 



Engaging lever / no da mage

functions easily

lever engaged

(lever remains engaged)



Motor, magne tic brake / holding force OK

(FOR U can not be pushed with engaging lever in drive-position)



  

Motor, drive / no damage

fixed securely drive noise

Component :

Drive

Assessment

Defective

Description (Component / inspection for)

Issued: 23.01.2008

If the error should occur again, you can find information about troubleshooting and appropriate remedies in the lists in sections 16.2 and 16.3.



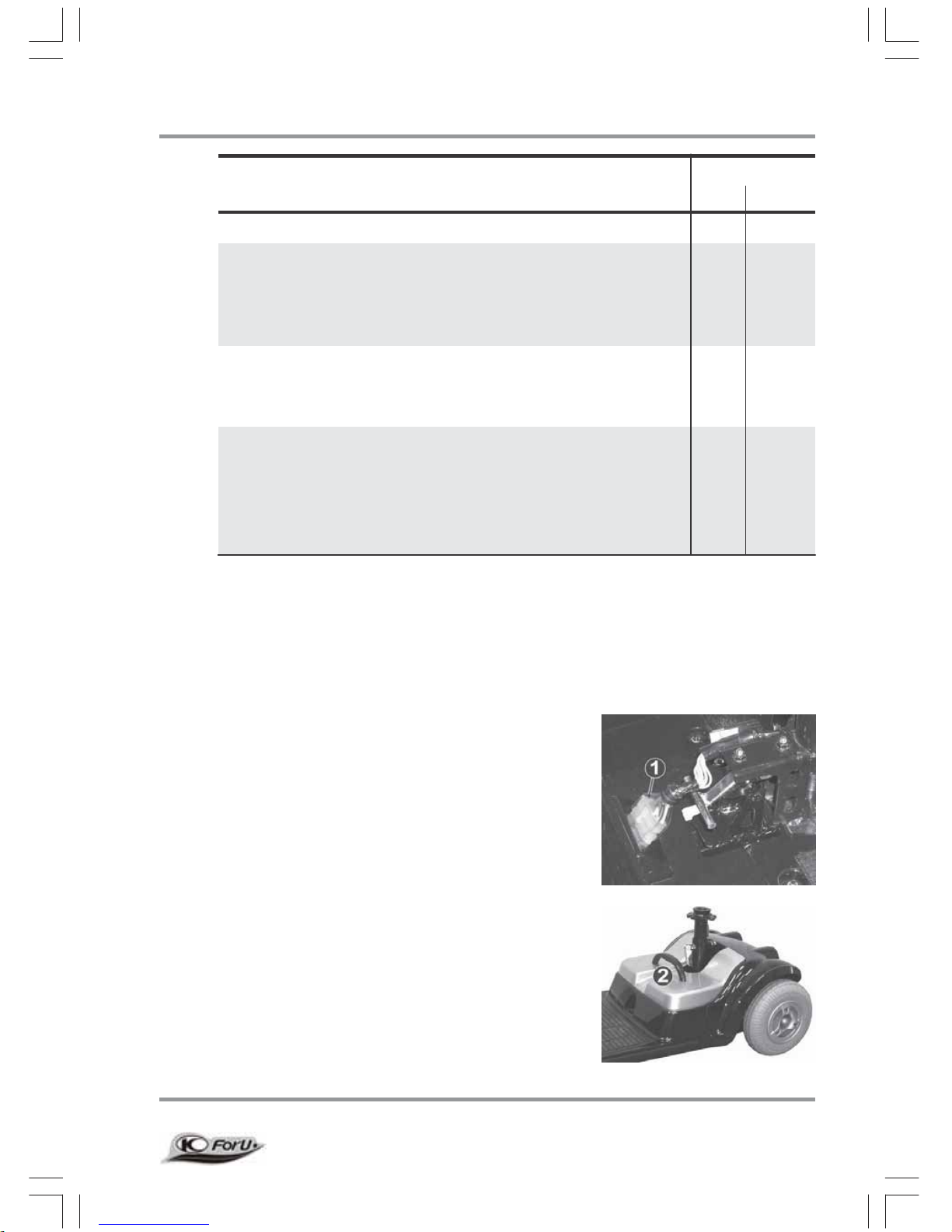

Switch the FOR U off. Ensure that the main plug (1) is

inserted tightly. Ensure that the battery case (2) is

firmly inserted in the chassis. Switch the FOR U on after waiting

about 1 minute.

 

Before troubleshooting

Before y ou start troubleshooting, please observe the following poi nts to avoid simple error sources.

16.1

16.0

roublesho ot i ng

and inspection Maintenance

FOR U

MN3/4

Opera tion Check blink co de indicator blinking (chapter 16.3)

Automatic switch- Switch the off (overload electromobile off protection) active and switch it on

again a few seconds later.

Fault on drive Visit your dealer lever

Drive lever Release drive leverpressed while switching on

FOR U switched Switch to drive

to p ush mod e mode (chapter 9 .0)

Chec k ba tt e ry Charge the batteries charge display (chapter 10.0) (battery discharged).

Scooter does not run

Batteries Replace batteries defective (dealer)

Batteries Charge the discharged batteries

(chapter 10.0)

Check fuse in power supply to tiller head (chapter 17.6)

Check the battery fuses (chapter 17.6)

Front unit connector not plugged in

Battery not pluged in

Power supply interrupted

Scooter not Switch the scooter switched on on (chapter 8.4)

Scooter does not run / no display at the dashboard

Fault Cause Remedy

Issued: 23.01.2008

roubleshooting16.2

roubleshooting

FOR U

MN3/4

roubleshooting

FOR U

MN3/4

Fault Cause Remedy

Main fuses blow frequently Batteries defective

Motor defective Fault in control

Visit your dealer

unit Short-circuit in

electrical equipment

Batteries Charge the batteries discharged (chapter 10.0)

Battery charge display moves rapidly to discharged during journey

Motor jerks during driving

Motordefective

Batteries defective

Visit your dealer

Batteries do not charge

Defective fuse in power supply to Visit your dealer tiller head

batter

cable

Defective fuse in

Visit your dealer

Front unit

Plug in front unit connector not connector plugged in (chapter 13.4.1)

Battery charger defective

Batteries

Visit your dealer completely

discharged

Issued: 23.01.2008

roubleshooting

FOR U

MN3/4

16.3 Operation indicator blink codes

The operation indicator (1) on the dashboard is also designed as a display for error messages. V arious faults in the drive electronics are displayed using blink sequence is as listed in Chapter 17.3.2.

16.3.1 Blink

Operation

indicator (fault display) ...

... bli nki ng s low ly Batt ery vo ltag e Finish your journey

too l ow as soon as possible

and charge the batteries

... blinking every Auto switch-off Switch the

FOR U

5 seconds ac tiv e off and then on

(Chapter 12.8) again

... blinking quickly Ascertain fault

using blink sequence (Chapter 16.3.2)

16.3.2 Erro

message blink sequences

1 x blink

Discharged battery Charge the batteries

(Chapt.10.0) Check battery plug

connection (Chapt. 13.4. 4)

Weak power supply from the battery

Check battery terminals for tight fit (Chapt. 17.7.2)

Issued: 23.01.2008

roubleshooting

FOR U

MN3/4

Blink codes Cause Remedy 2 x blink

Bad connection to drive motor

Check main battery plug connection (Chapt. 13.4.2 )

Have the control unit connecting plugs checked (specialist

Drive motor carbon Visit your dealer brushes worn

3 x blink Motor cable short-circuited Visit your dealer

to battery terminal

4 x blink Not in use 5 x blink Not in use 6 x blink Control unit switched off Battery charger connected

- remove batt ery charger (Chapt. 10.3)

7 x blink Drive lever pressed down Switch off the Scooter,

while s witching on releas e the drive lever and

switch on again

8 x blink Fault in control unit Have all cable

connections checked (specialist dealer).

9 x blink

Bad connection to motor Have all cable brake connections checked

(specialist dealer).

Electromobile switched to Switch to drive mode push mode (chapter 9.0)

10 x blink Electrical overload in

control unit - bad power supply from battery.

Check battery plug connection (Chapt. 13.4.4 )

Check battery terminals for tight fit (Chapt. 17.7.2)

Issued: 23.01.2008

FOR U

MN3/4

17.0 Repairs

The following repair information should enable you to carry out small repairs on your v ehicle you rself . You should, howe v er , only carry out such work if you are used to working with the tools described here since it is impossible to fully prevent injury hazards when h andli ng tool s. I f you are not sure, you should tr y to g e t help fr om a s ec ond p erson if possible or contact your de aler . In order to guarantee that all nuts and fixing screws a re fitted tightly after repairs, you should ensure that these are tightened usi ng the torque specified. You will find a list with the rele v ant torques in the Appendix.

Repairs

17.1 Informationabout safety at work Clamping and crushing hazard!

Pa y particular attention to hazards caused by clamping and crushing while carrying out any repair work. This applies particularly to all rotating and adjustable parts of the scooter such as around the steering wheels.

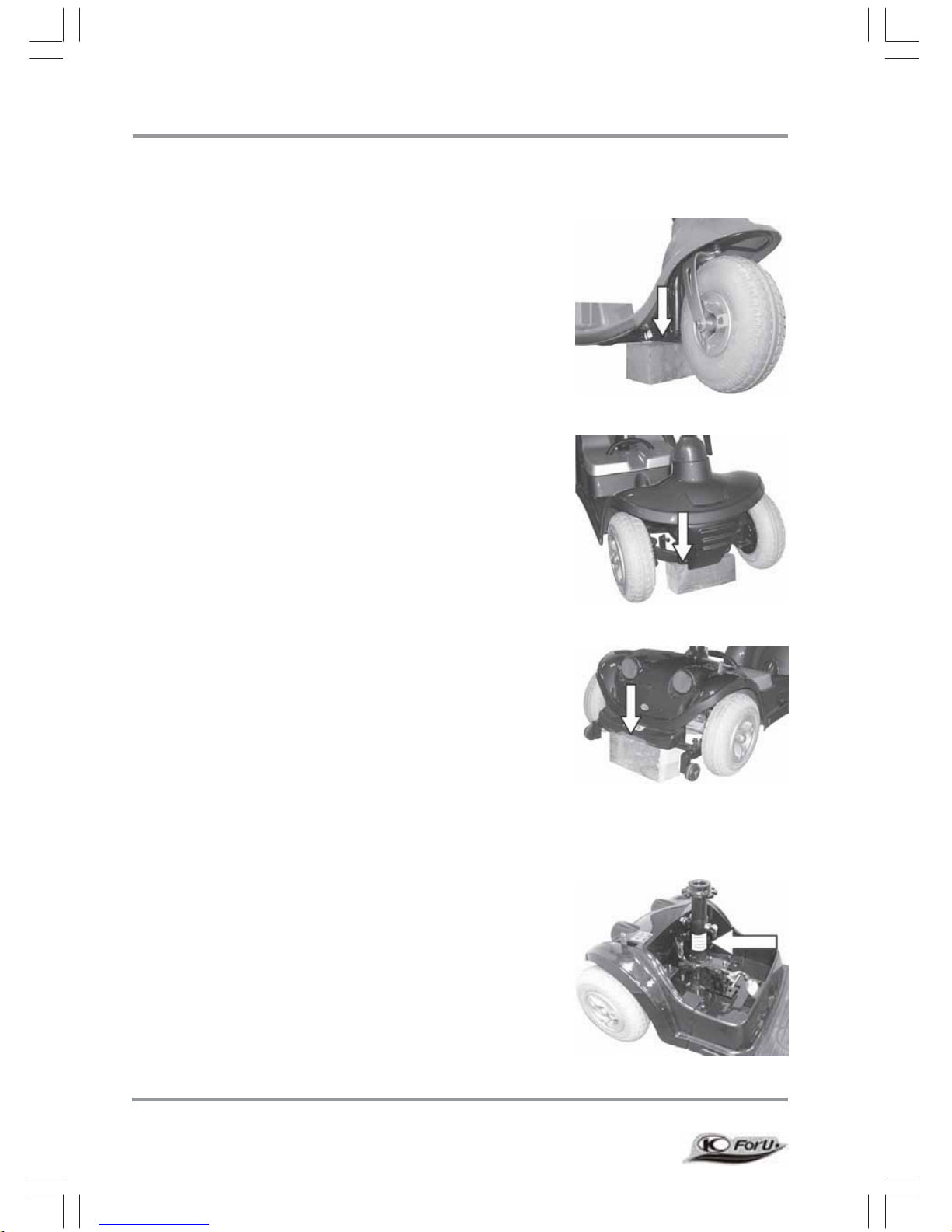

The FOR U must be lifted in order to ca rry out certain work such as removing the wheels.

Before

ou lift the FOR U, make sureyou prevent it rolling awa y b y

wedging it securely. Make sure the vehicle ca nnot fall down when raised by using

suitable supports such as wooden blocks. Always place the blocks under metal components such as frames,

drive units. Do not support the FOR U by the plastic panelling!



17.2 Tools

The following tools are necessary to carry out the repairs described:

1 x screwdriver; Phillips head No . 2 1 x screwdriver 1 x ring spanner , si ze 8 mm 1 x ring spanner; si ze 12 mm 1 x ring spanner; si ze 14 mm 1 x ring spanner; si ze 17 mm 1 x socket spanner, size 17 mm 1 x socket spanner, size 19 mm

Issued: 23.01.2008

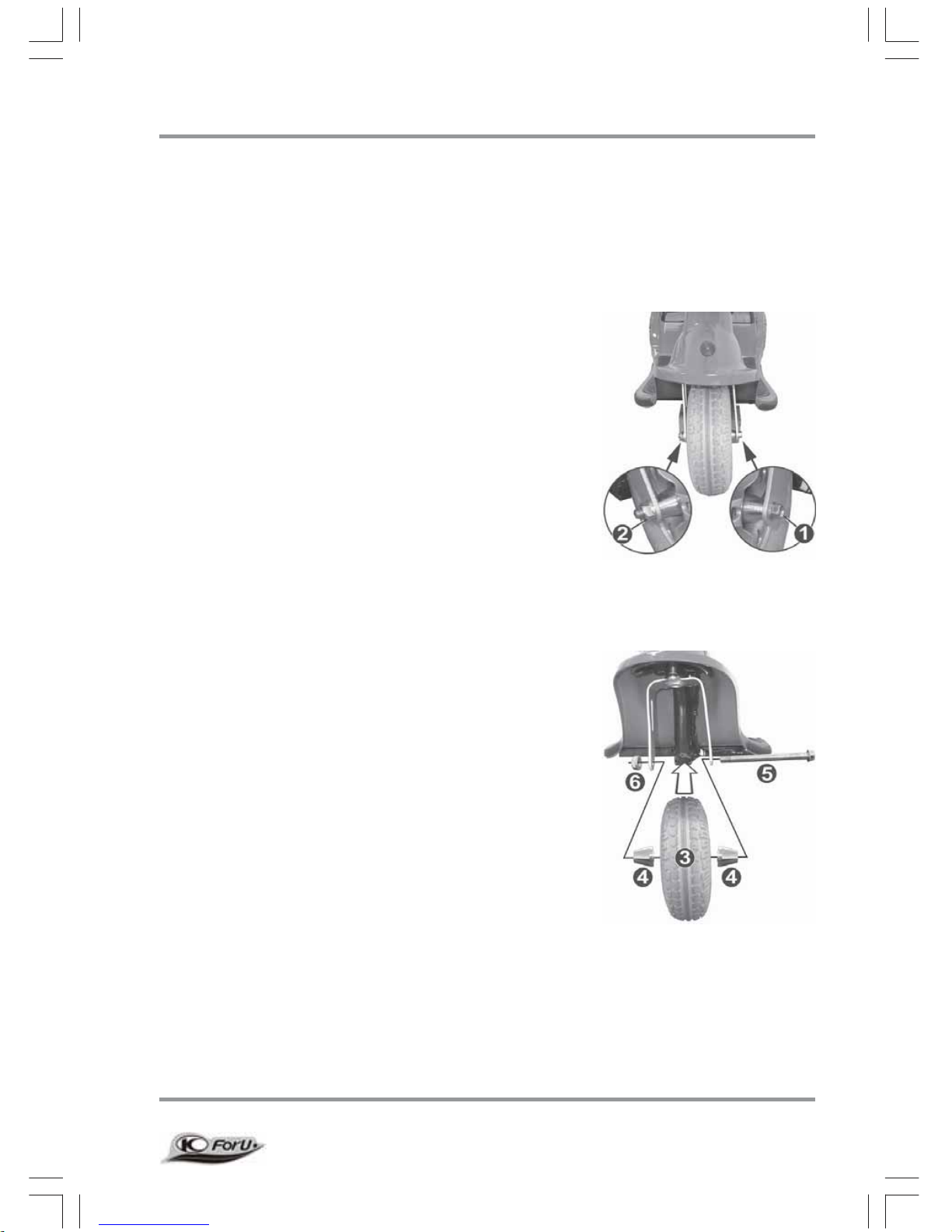

Removaland replacing the rea

wheel:

Removing and replacing the rear wheel must be carried out as describ ed in the chapter “Removing and replacing wheels 4-wheel version“.



Place the wheel and spacer bushes (3 + 4) in the steering fork.

Push the axle (5) into the steering fork and the wheel.

Screw the axle self-locking nut (6 ) and tighten it (size 17 mm). While doing this, prevent the axle from turning using a second ring spanner (size 14 mm).

Lower the FOR U.



Fitting the front wheel

Replacing the frontwheel:



Lift the front end of the FOR U and support it (see chapter 18.0).

Hold the axle (1) with a ring spanner (size 14 mm) and remove the selflocking nut (2; size 17 mm).

Pull the axle out of the steering fork and the wheel.

Remove the wheel and spacer bushes from the steering fork.

Frontwheel

Removingthe front wheel:

Secure the FOR U agains

rolling away.

 

Wheels - removal and replacement - 3-wheel version

T ools required:

1 x ring spanner, size 14 mm 1 x ring spanner, size 17 mm

17.3

Repairs

FOR U

MN3/4

Issued: 23.01.2008

Do not use force to remove the wheels from the axles. Your specialist dealer has the necessary special tools.



Realwheel

 

Loosen the self-locking nut(2) for the wheel fastening.

Secure the FOR U against rolling away. Lift the FOR U and support it

(see chapter 18.0). Remove the self-locking nut for the

wheel fastening. Pull the wheel off the stem.



Frontwheel

Removethe wheel fixingprotective cap (1) with a screwdriv er.



Removing the wheels:

FOR U

MN3/4

Wheels - removal and replacement - 4-wheel version

T ools required:

Front wheel: 1 x socket spanner, size 17 mm Rear wheel: 1 x socket spanner , size 19 mm

17.4

Repairs

Issued: 23.01.2008



Push the wheel onto the stem and align the wheel hub groove (7) with the key in the drive shaft.

Push the wheel on as far as the drive shaft stop.



Fitting the rea

whe el

Place the key (5) in the slot in the drive shaft (6).

NOT E The key is rectangular . Place it with its widest side in the axle slot.



Locating the axle ke

Fitting the rea

wheel:



 

Screw the wheel fixing self-locking nut (4) and tighten it (size 17 mm).

Low er the FOR U. Retighten the self-locki ng nut (3).

Press the protective cap onto the wheel fixing nut.



Push the wheel onto the stem (3) as far as the wheel stop.



Repairs

Fitting the front wheel

FOR U

MN3/4

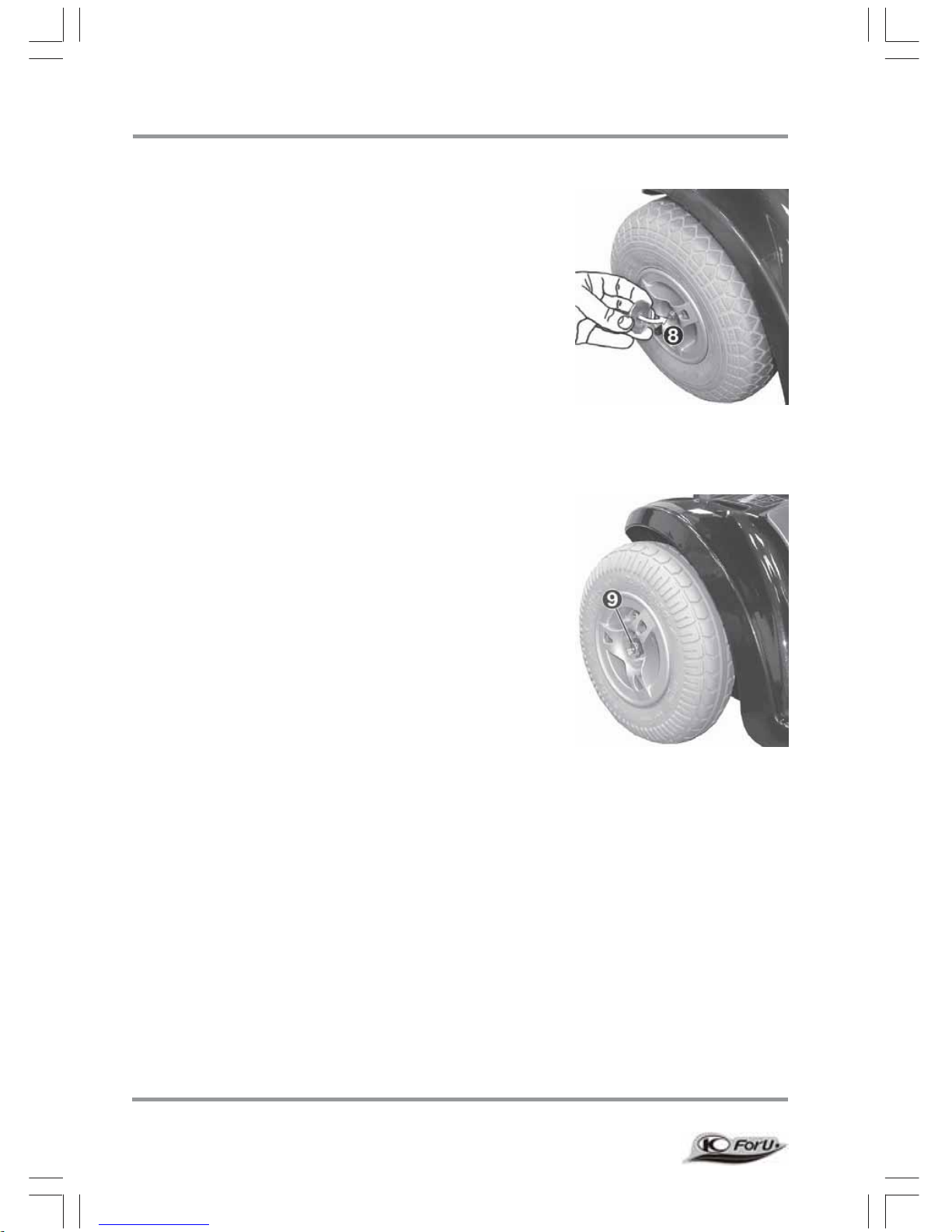

Fitting the front wheel:

Issued: 23.01.2008

Press the protective cap onto the wheel fixing nut.



 

Screw the wheel fixing self-locking nut (9) and tighten it (size 19 mm).

Lower the FOR U. Retighten the self-locki ng nut.



Securingthe rea

whe el

Place the washer (8).



Repairs

Locating the washer

FOR U

MN3/4

Issued: 23.01.2008



Reassembly:

Push the inner tube (7) into the tyre (8). Inflate the inner tube until it is unfolded. Place the outer rim (6) in the tyre, at the

same time make sure the valve cutout is above the inner tube valve.

Place the inner rim (5) in the tyre and align the fixing holes.

Place the wheel hub (4) in the inner wheel rim.

Locate the lock washer (3) screw on the nuts (2) and tighten e venly .

Inflate the time to the correct pressure (18 - 20 hP a / 1.8 - 2.0 bar / 25 - 28 PSI).

  



Dismantlingthe wheel rims:

Loosen the three nuts (2) with a socket spanner (size 12 mm) and remov e together with the lock washers (3).

Separate the wheel hub (4) from the wheel rim.

Remove the inner wheel rim (5) from the tyre.

Remove the outer wheel rim (6) from the tyre.

Pull the inner tube (7) out of the tyre (8).



components of the Strider wheel

Removethe damagedwheel. Unscrew the valve cap (1). Carefully press the valve plunger (a)

inwards with a screwdriver until the inner tube is completely deflated.

Risk of accidents!

• Dismantle the

wheel rims

only

when

the

inner

tube is completely

deflated.

  

Replacing the tyre17.5

Repairs

Deflating the tyres

FOR U

MN3/4

Issued: 23.01.2008

Batte

fuses

• 40

fusible fuse

P ositi on: in each battery positive cable (2)

External fuse position on battery case: (3) for 12 Ah batteries (4) for 17 Ah batteries

• 3

resetable fuse

P osition: in cable betweencharging so cket

and batteries (2).

• 1.35

resetable fuse

P osition: pow er supply to tiller head (1).

The FOR U is fitted with the following fuses.

Wiring diagram

Fuses17.6

Repairs - fuses

FOR U

MN3/4

Repairs - batteries

FOR U

MN3/4

o replace Fuse:



Pull out fuse and replace it.

17.7 Batteries

Only replace the batteries with the following battery types: 12 V / 12 Ah or 17 Ah, lead acid deep cycle batt eries. You may not use wet cell batteries with detachable cov er caps .

Risk ofaccidents!

• Refitting the battery

may

only be carried out by your dealer .

17.7.1 Disposal of used o

damaged batteries

Caution acid!

• Observe safety information in chapter 1.6!

TTERIESAREHAZARDOUS

STE!!

Used and defective batteries must be properly disposed of and only handed over to the correct disposal points.



Please give used or damaged batteries bac k to your dealer

He will ensure that they are properly disposed of.

Handling damaged batteries:



When handling damaged batteries or objects which

have been soiled with acid, you must always wear:

- protective goggles

- acid-proof gloves

- respiratory protection



Always wash soiled objects and tools with plenty of water.

ransportingdamaged batteries:



Always wear protective goggles and acid-proof glo ves.



Alwa ys transport and store batteries in an acid-proof container

Issued: 23.01.2008

Close the battery case, screw in all the bolts and tighten.



Insert the battery and connect the batt ery

Connectingthe batter

cablesin reverse order:

1. First connect the cable to the battery positive terminal (red cable).

2. Then connect the cable to the battery

negative terminal (black cable) .

cable

Removing the batteries, to do this:

1. First remove the cable from the battery negative terminal (black cabl e).

2. Then remove the cable from the battery positive terminal (red cable).



Loosening the batter

cable



Remove all nine bolts (1) on the bottom of the battery case.

Put the battery case down on its bottom side and open it.



Remove the battery case from the FOR U as described in chapter 13.3.3.



Opening the batter

case

Fire and burn hazard ifbattery terminal is short-circuited!

•

Never

touch the positive

and

negative battery terminals

sim

ultaneously with metal

par

ts (short-circuiting).

Repairs - batteries

FOR U

MN3/4

17.7. 2 Replacing the batteries - 12 Ah

Issued: 23.01.2008

Close the battery case, screw in all the bolts and tighten.



Insert the batter y and connect the batter y cables in reverse order:

1. First connect the cable to the battery positive terminal (red cable).

2. Then connect the cable to the battery

negative terminal (black cable) .

Connectingthe batter

cable

Removingthe battery cable:

1. First loosen the terminal on the battery negative terminal (bla ck cable) with a ring spanner size 8 mm, and remove the cable.

2. Then loosen the terminal on the battery positive terminal (red cable ) with a ring spanner size 8 mm, and remove the cable.



Loosening the batter

cable



Remove all five bolts (1) on the bottom of the battery case.

Put the battery case down on its bottom side and open it.



Remove the battery case from the Strider as described in chapter 13.3.3.



Repairs - batteries

Opening the battery case

FOR U

MN3/4

17.7. 3 Replacing the batteries - 17 Ah

Fire and burns hazard if battery terminal is shortcircuited!

• Never touch the positive and negative battery terminals sim

ultaneously with metal parts

(shor

t-circuiting).

T ools required: 1 x ring spanner , siz e 8 mm

Issued: 23.01.2008

Modelnumber date manufacture (month/year) Manufacturer Serial number maximum speed User weight

•

Nameplate

19.0 Appendix

19.1 Nameplate

The nameplate is located on the seat attachment and contains the follo wing information:

Rea

support

e during storage:



Recharge the batteries once a mont

(see chapter 10.0).

Front support, 4 wheel

version



Removesoiling anddust. Charge the batteries completely . Check the tyre pressure and adjust if

necessary. Place the FOR U on supports. Lift the

FOR U high enough so that the tyres are no longer touching the floor .

  

Front support, 3 wheel version

FOR U

MN3/4

18.0 Temporary storage

If you are not intending to use your FOR U for longer periods (e.g. over the winter , y ou should prepare it as follows:

emporary storag

FOR U

MN3/4

Appendix - specifications

19.2 Specifications

19.2.1 General data

FOR U application class ................................. internal and external use

V ers ion ........................................................... 3 or 4-wheel version

Turning radius .............. .... ....... ...... ... ...... ....... . 97 cm / MN 3

................................................ 125 cm / MN 4

Speed ............................................................. 6.4 kph (4 mph)

Maximum range*

12 Ah batteries ............................................... approx. 10 Miles

17 Ah batteries ............................................... approx. 13 Miles

Maximum climable incline ............................... 8 °

Maximum climable obstacle ........................... 60 mm

Total weight (ready f or driving incl. batteries)

12 Ah batteries .............................................. 57.0 kg / MN 3

.............................................. 62.0 kg / MN 4

17 Ah batteries .............................................. 61.4 kg / MN 3

.............................................. 66.4 kg / MN 4

weight heaviest part ....................................... 19 kg

Maximum working load (user weight) .............. 130 kg (20.4 stone)

Tyre size ......................................................... 2.80/2.50 - 4

Working voltage (battery voltage) ................... 24 Volt

Batteries ......................................................... see chapter 17.7

Main fuse ....................................................... 2 x 40 A

Stor age t em pera tur e ....................................... - 40°C to + 65°C

Ambient t emperature ...................................... - 25°C to + 50°C

* Theoretical range is calculated undertest conditionsin accordance

with European standards. Actual range in normal use will depend on many factor s, including the condition of the vehi cle and its batterie s, the wei ght of the driver, correct tyre pressure, ambient temperature, and the gradient and surface of the road or pavement.

Issued: 23.01.2008

Appendix

FOR U

MN3/4

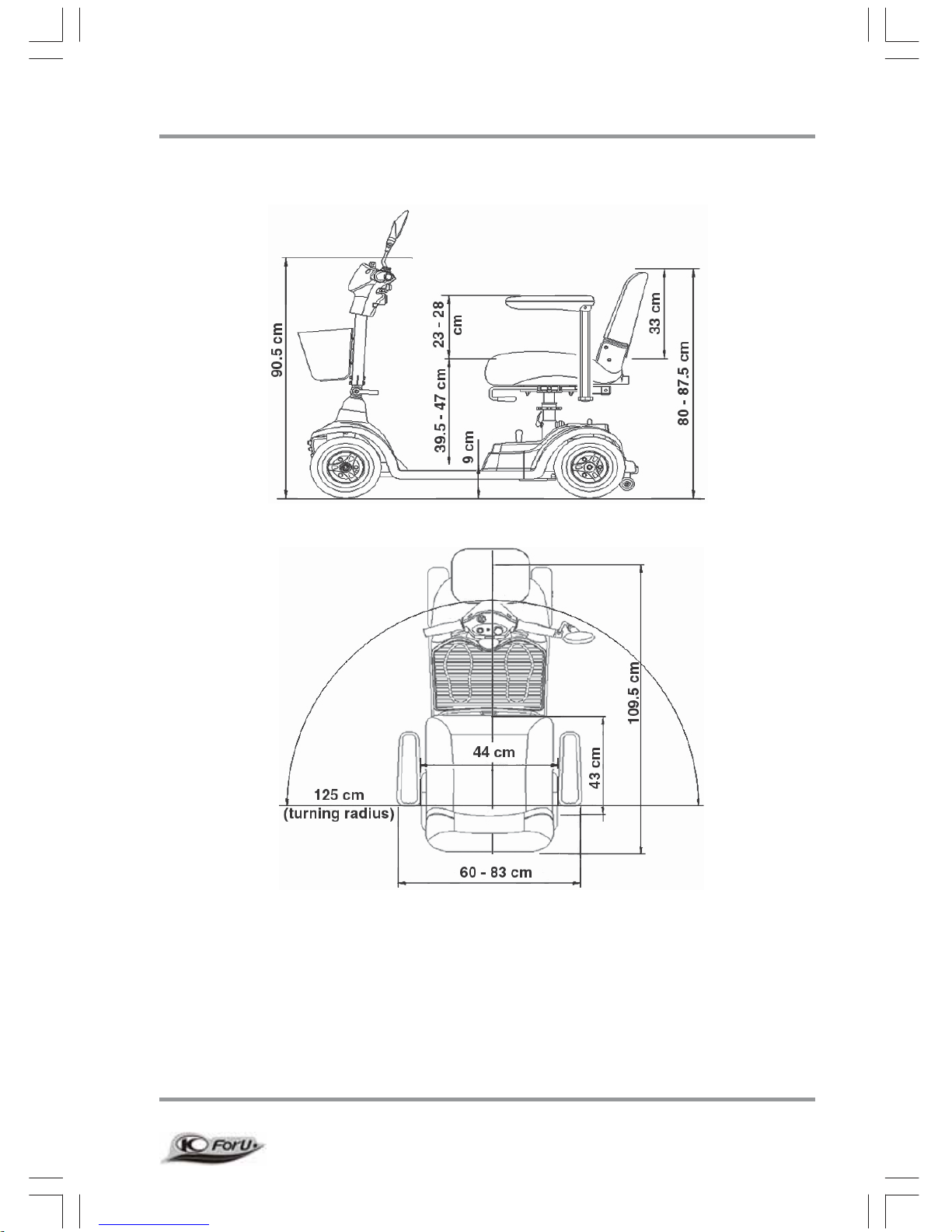

19.2.2 Dimensions 3-wheel version

ppendix - dimensions

FOR U

MN3/4

19.2.3 Dimensions 4-wheel version

Issued: 23.01.2008

Disposing ofthe scooter

The scooter consists of metal and plastic component s, elect ronic components, electrical ca bles and batteries. Disposal of the individual m aterials must be carried out in accordance with environmental a nd disposal regulation s in the rele vant country, and may only take place after the scoot er has been dismantled. To dismantle the electromobile and to separate and dispose of the materials, you would be advised to hand it over to your specialist dealer.

Batteries may not be disposed of in do mestic waste, and must be disposed of according to national regulations

19.4

= 4.5to6Nm = 8 to 12 Nm = 18 to 25 Nm = 30 to 40 Nm = 50 to 60 Nm

M5 M6 M8 M10 M12

=50Nm = 60 Nm = 33 Nm

FOR U

MN3/4

orquefor fixing screws

Front wheel central self-lo cking Nut (M10*p1.25) Rear wheel central self-locking Nut (M12*p1.25) Front / rear wheel rim, 3 nuts (M8*p1.25)

General torque for nuts and bolts:

19.3

ppendix - tightening torques

Warranty

FOR U

MN3/4

20.0 W ar ran ty in

ormation

The FOR U Model MN 3 and MN 4 scooters are warranted for 18 months from date of purchase exce pt for the batteries wh ich carry 12 mont hs warranty period.

Important!

• During the warranty period any parts tha

thav

e become defective due to faulty workmanship or material will be repaired or replaced without charge by KY M CO HEALTHCARE supplier / dealer .

The warranty excludes tyres an d all items that have been su bject to undue wear and items subjected to m isuse.

Unauthorized changes or modificatio ns will forf eit your warranty. If a defect or fault is discovered, KYMCO Healthcare supplier / dealer

from whom the scooter w as purchased should be notified immediately.

•

Limitation of liability

The warranty does not extend to the consequenti al costs resulting from fault cleare nc e, in particular freight and travel costs, lo ss of earnings, expenses, etc . The manufacturer will not accept responsibility for any damage or injury caused by misuse or non-observanc e of the instructions s et out in this user manual.

Issued: 23.01.2008

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Date:

Dealer´s stamp

(Signature)

Issued: 23.01.2008

carried

inspections21.0 Annual

FOR U

MN3/4

(Dealer´s stamp)

KWANG YANG MOTOR CO., LTD

No.35 Wan Hsing Street,San Min Distrist

Kaohsiung Taiwan, Republic of PROC

Telephone:886-7-3822526

FAX : 886-7-3950021

ForU MN 3, MN 4 Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
