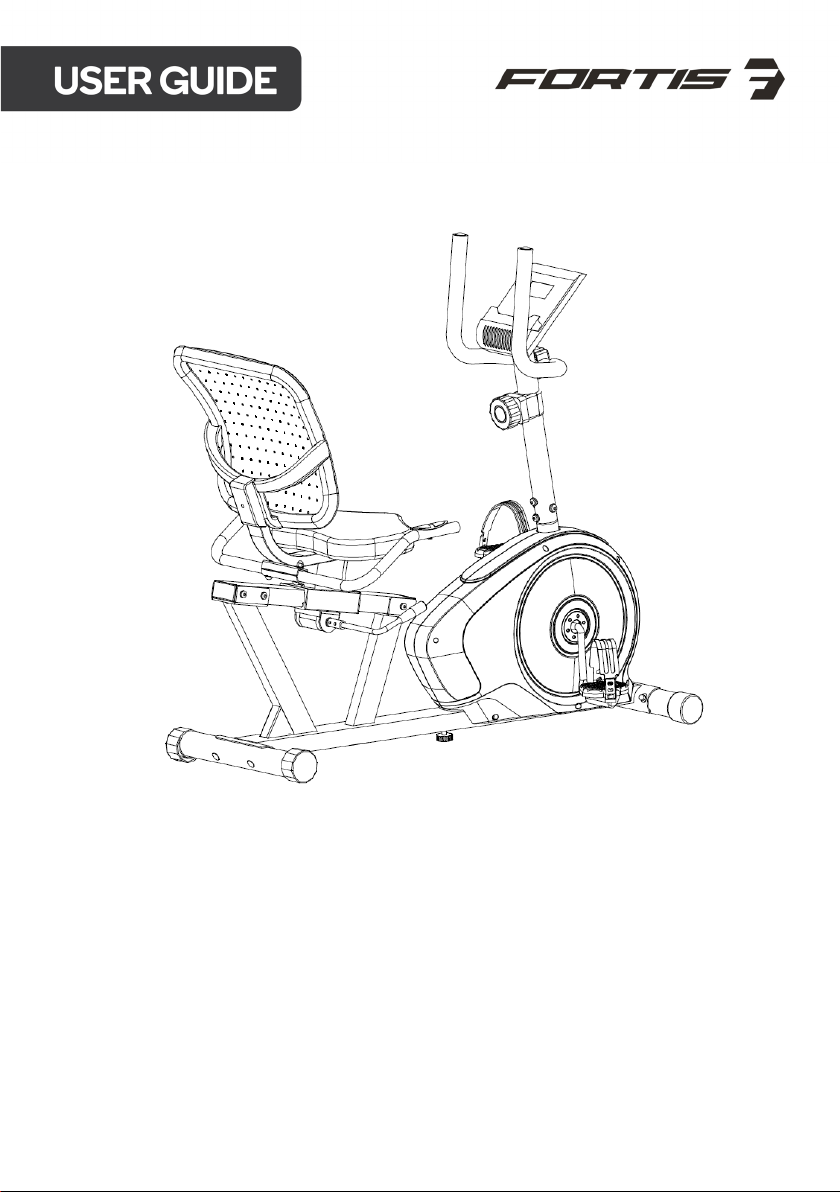

MAGNETIC FLYWHEEL
RECUMBENT BIKE
(RC-50)
FSMFRCMBK2A
SAFETY & WARNINGS
• Ensure that the bike is in a safe usable condition. Check all the screws, nuts, and
other connections before using the machine for the first time.
• Set up the machine in a dry and level place. Keep it away from moisture and
water.
• When assembling the machine, place a suitable base (e.g. rubber mat, wooden
board etc.) beneath the machine to avoid dirt.
• Before using the bike, remove all objects within a radius of 2 metres from the
machine.
• Before starting this or any other exercise program, consult your physician. Your
physician should assist you in determining the target heart rate zone appropriate
for your age and physical condition. If you are taking medication which may affect
your heart rate, a physician’s advice is essential.
• Incorrect or excessive training can affect your health. Consult a doctor before
beginning a training program.
• This machine can be used by only one person at a time.
• Wear appropriate clothing when using this machine. Do not wear loose clothing
which could get caught in the bike’s mechanical components.
• If you have a feeling of dizziness, sickness, or other abnormal symptoms, stop
training, and consult a doctor.
• Children and people with disability should use the machine only in the presence of
another person who can give aid and advice.
• Do not use aggressive cleaning products to clean the machine. Remove drops of
sweat from the machine immediately after training.
• The maximum weight the bike can support is 100kg.

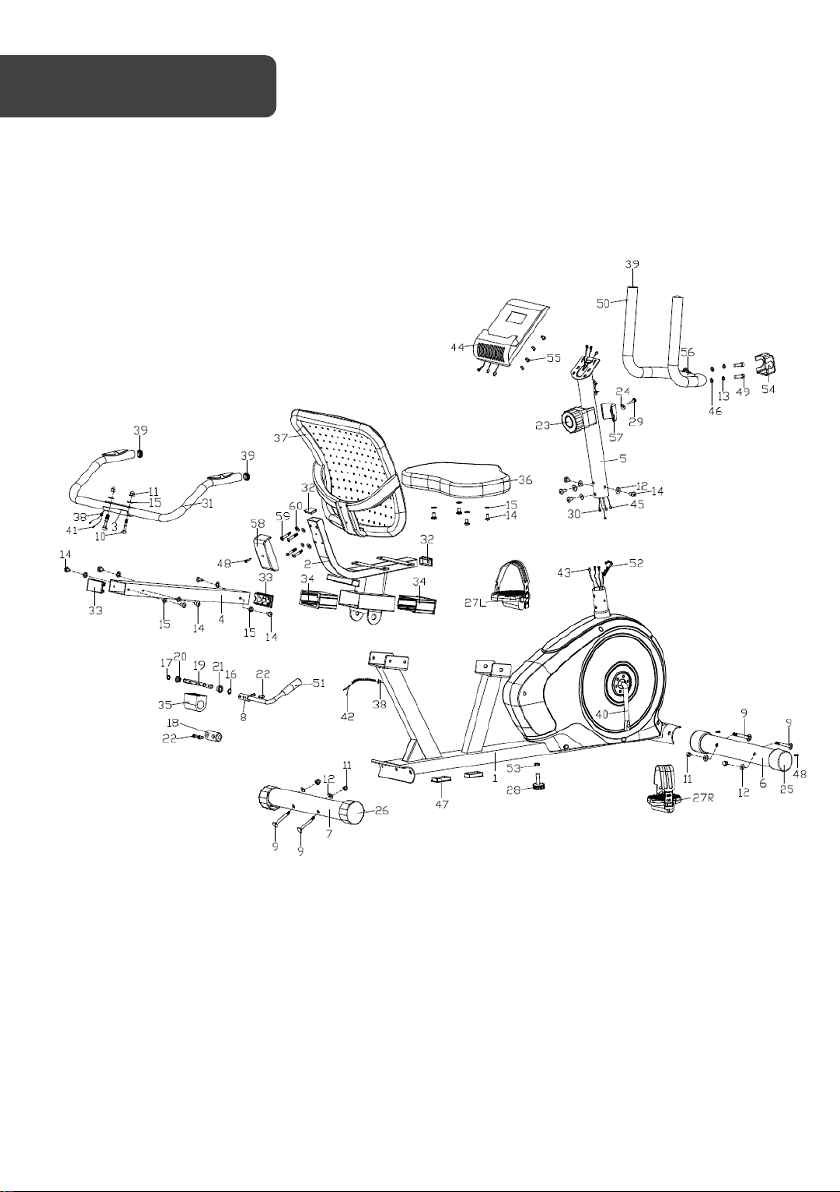

OVERVIEW
Parts
Description
Specification
Qty.
1
Main Frame
x1
2
Seat Frame
x1
3
Handlebar
x1
4
Guide Rail
x1
5
Handlebar Post
x1
6
Front Stabiliser
x1
7
Rear Stabiliser
x1
8
Handle x1
9
Carriage Bolt
M8xl74
x4
10
Carriage Bolt
M8xl45
x2
11
Acorn Nut
M8
x6
12
Arc Washer
Φ25 X 8.5 X R33.5
x8
13
Spring Washer
D8
x2
14
Allen Screw
M8x16
x14
15
Washer
D8 X 1.5 X Φ16
x12
16
Axle Spring Washer
D12
x1
17
Axle Spring Washer
D10
x1
18
Eccentric Gear
x1
19
Eccentric Shaft
x1
20
Small Alloy Bushing
x1
21
Big Alloy Bushing
x1
22
Allen Bolt
M6x10
x4
23
Tension Controller
x1
24
Arc Washer
x1
25
Front End Cap
x2
26
Rear End Cap
x2
27L/R
Pedals
1 pair
28
Adjusting Pad
x1
29
Cross Screw
x1
30
Extension Sensor Wire
x1
Parts
Description
Specification
Qty.
31
Foam Grip
x2
32
Square End Cap
x2
33
Square End Cap
x2
34
Bushing x2
35
Bracket x1
36
Saddle x1
37
Backrest
x1
38
Plug x2
39
Round End Cap
x4
40
Crank x1
41
Pulse Wire
x2
42
Extension Pulse Wire 1
x1
43
Sensor Wire
x1
44
Computer
x1
45
Extension Pulse Wire 2
x2
46
Washer x2
47
Square End Cap
x2
48
Cross Tapping Screw
ST4.2x18
x3
49
Allen Screw
M8x30
x2
50
Foam Grip
x2
51
Lifting Handle Foam
x1
52
Tension Wire
x1
53
Nut
M10
x1
54
Handlebar Cover
x1
55
Cross Tapping Screw
x4
56
Handrail
x1
57
Controller Cover
x1
58
Backrest Cover
x1
59
Allen Bolt
M6x40
x4
60
Flat Washer
D6xΦ12
x4
ASSEMBLY

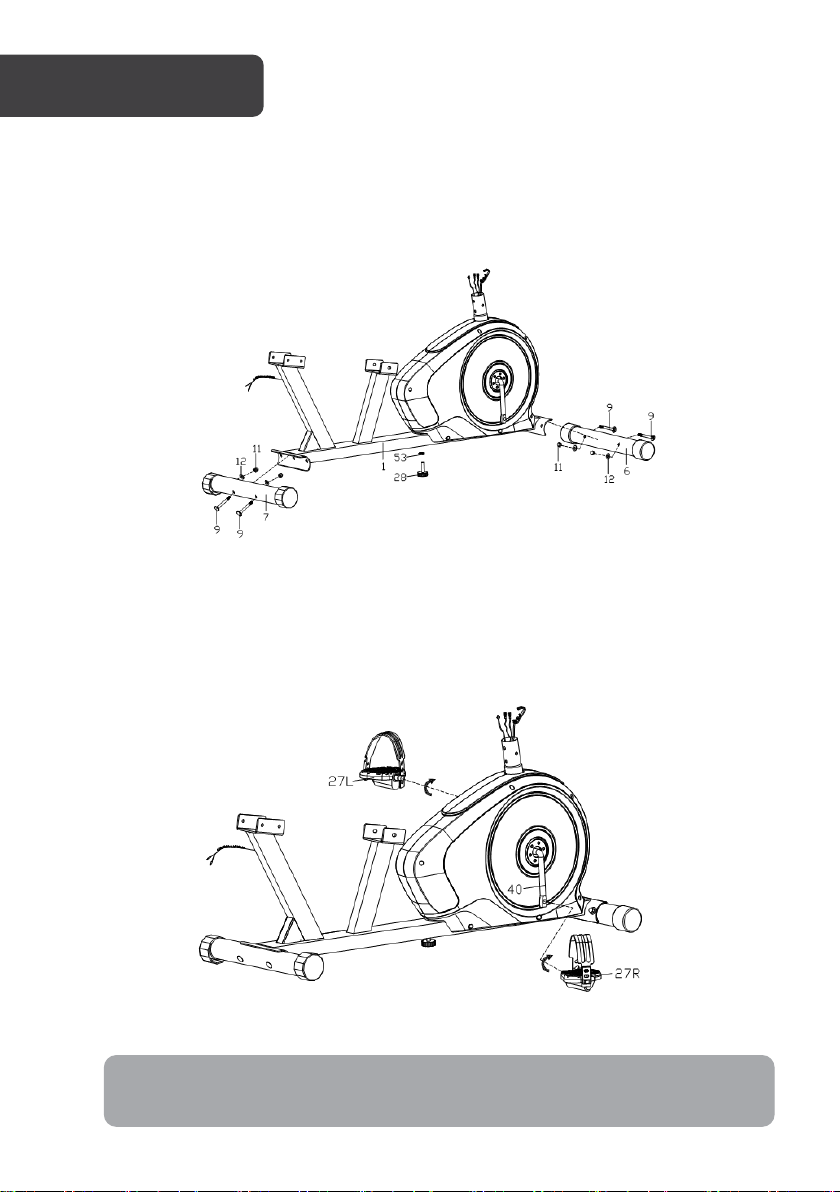

Step 1:
A. Lock the Front Stabiliser (6) and Rear Stabiliser (7) to the Main Frame (1) with
Carriage Bolts (9), Arc Washers (12) and Acorn Nut (11).
B. Fix the Adjusting Pad (28) and Nut (53) to the Main frame (1).
Step 2:
A. Lock the Pedals (27L and 27R) to the Crank (40) using a wrench.
B. Tighten the Left Pedal (27L) in a counterclockwise direction and tighten the Right
Pedal (27R) in a clockwise direction as shown.
Note: Ensure the Pedals (27L/R) are locked tightly during the use, otherwise the
pedal thread can get damaged.

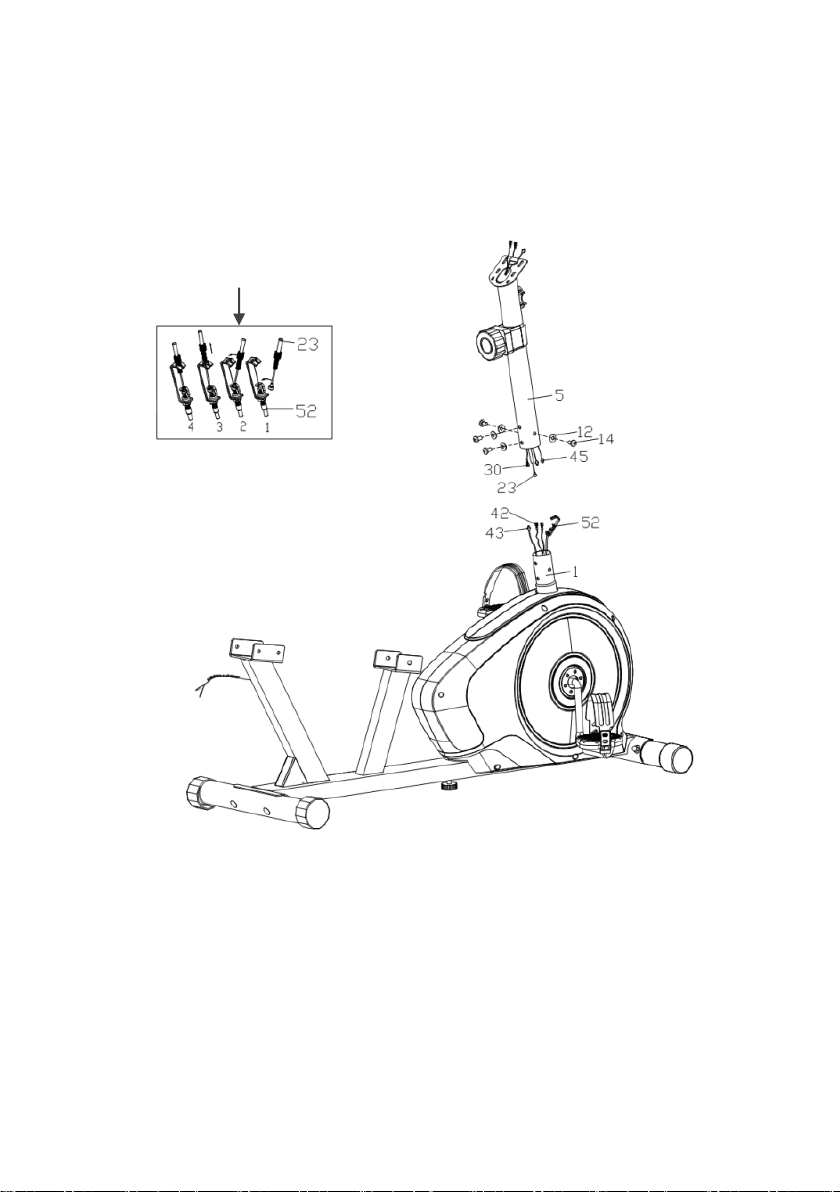

Step 3:
C
A. Connect Extension Pulse Wire 2 (45) with Extension Pulse Wire 1 (42).
B. Connect Extension Sensor Wire (30) with Sensor wire (43).
C. Connect the Tension Wire (52) with Tension Controller (23) as shown.
D. Lock the Handlebar Post (5) on the Main Frame (1) with Allen Screw (14) and Arc
Washers (12).

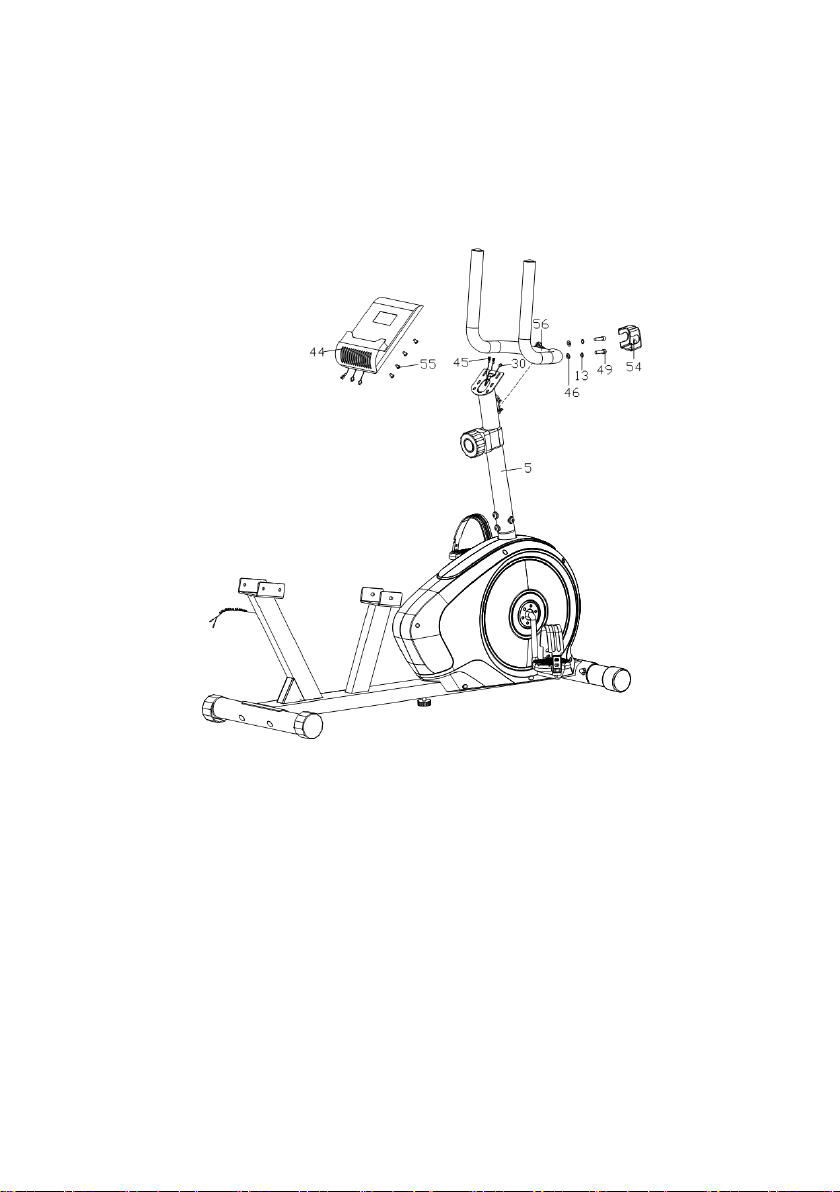

Step 4:
A. Attach the Handlebar (56) to the Handlebar Post (5) with the Allen Screw (49)
Spring Washer (13) and Washer (46).
B. Insert the Handlebar Cover (54).
C. Connect the Extension Pulse Wire 2 (45) and Extension Sensor Wire (30) with the
wire of Computer (44).
D. Fix the Computer (44) to Handlebar Post (5) with Cross Screw (55).
Step 5:
A. Fix the Guide Rail (4) to the Main Frame (1) with Allen Screw (14) and Washer (15).

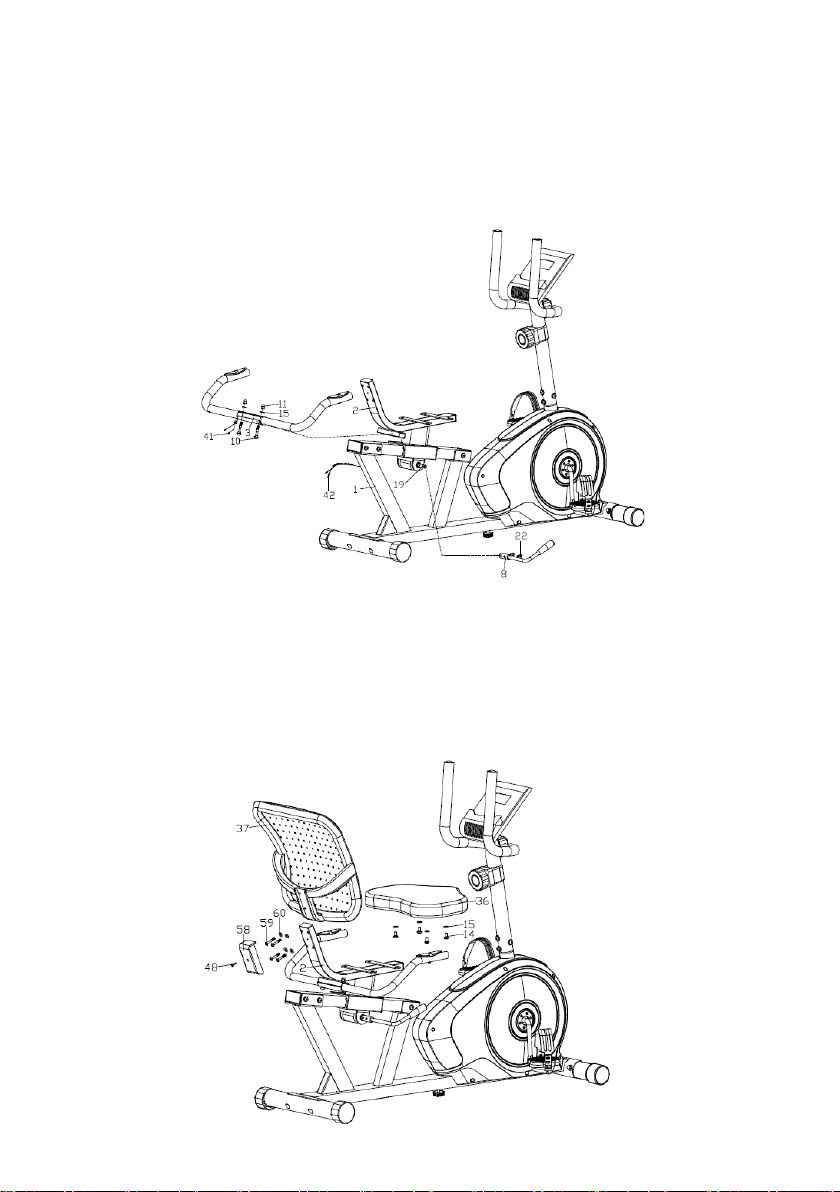

Step 6:
A. Insert the Handle (8) into the Eccentric Shaft (19) and lock it with Hex Bolt (22).
B. Insert the Handlebar (3) into Seat Frame (2) and lock it to Seat frame (2) with the
Carriage Bolt (10), Washer (15) and Acorn Nut (11).
C. Connect the Pulse Wire (41) with the Extension Pulse Wire 1 (42) at last.
Step 7:
A. Lock the Saddle (36) on the Seat frame (2) with Allen Screws (14) and Washer (15).
B. Lock the Backrest (37) on the Seat frame (2) with Allen Screws (59) and Flat
Washer (60).
C. Fasten the Backrest Cover (58) to the Seat Frame (2) with the Screw (48).

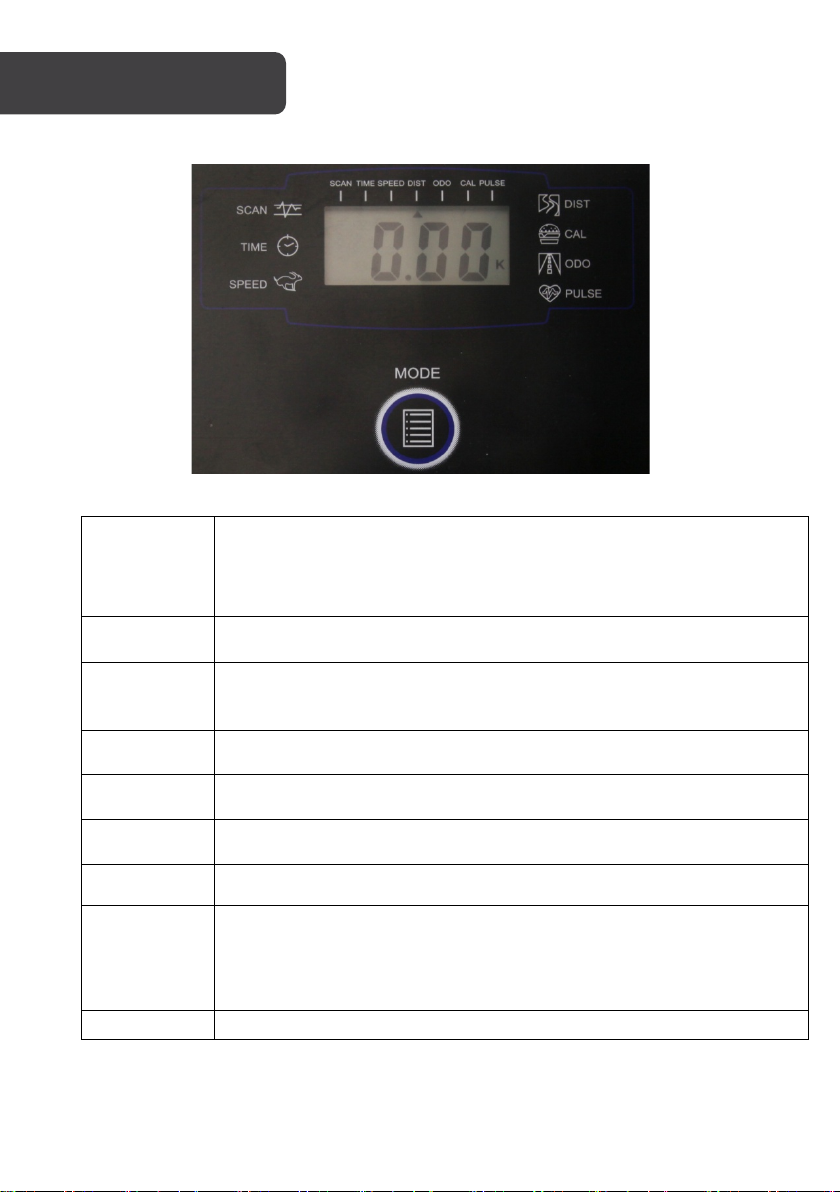

Reset
The bike can be reset by either changing battery or pressing and holding
Press the MODE key until the pointer on the display advances to DIST.
Press the MODE key until the pointer on the display advances to CAL.
Press the MODE key until the pointer on the display advances to ODO.
• Press the MODE key until the pointer on the display advances to
most accurate reading.
Auto On/Off
Time
Speed
Distance
Calorie
Odometer
Pulse
Scan Automatically display changes between functions every 4 seconds.
• The system turns on when any key is pressed or when it receives
input from the speed sensor.
• The system turns off automatically when the speed has no signal
input or is inactive for approximately 4 minutes.
the MODE key for 3 seconds.
Press the MODE key until the pointer on the display advances to TIME.
The total working time will be shown from the moment you start
exercising.
Press the MODE key until the pointer on the display advances to
SPEED. The current speed will be shown.
The distance of your workout will be shown.
The calories burned during your workout will be shown.
The total accumulated distance of your workout will be shown.
PULSE.
• Your current heart rate will be displayed in beats per minute.
• Place the palms on both the pads and wait for 30 seconds for the
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
