Page 1
ELECTRIC MAGNETIC ELLIPTICAL
CROSS TRAINER (FXT-500A)
FSAEXT500AA
Page 2
Read all of the instructions in this guide before using this product. Retain this guide for
future reference. Do not skip, substitute or modify any steps or procedures in this guide, as
doing so could result in personal injury or product damage.
• Before starting any exercise program, consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking any medication that may affect your heart rate, blood pressure or
cholesterol level.
• Incorrect or excessive exercise can damage your health. Stop exercising if you
experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, light headedness, dizziness or feelings of nausea. If you
experience any of these conditions, you should consult your physician before continuing
with your exercise program.
• This equipment is intended for adult use only. Keep children and pets away from the
machine.
DO NOT
leave children unattended in the same room with the equipment.
• This appliance is designed for consumer use. Follow directions and use only as
described.
• Once fully assembled, inspect to ensure all hardware parts such as bolts, nuts and
washers are positioned correctly and tightly secured.
• Always inspect the safety chain guard that protects the moving parts of the bike to be
in safe and good order.
• Always inspect the seat, seat slider and grips to make sure they are in safe and stable
position before using the rower.
• It is recommended to lubricate all moving parts on a monthly basis.
• Do not wear loose clothing while rowing.
• Dry after each use to remove moisture. Wipe regularly with a mild, non-abrasive cleaner
and water solution. To avoid damaging the finish, never use a petroleum-based
solvent.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (approximately 60
cm) of free space on each side.
• Prior to assembly, ensure you have all the components and tools listed. Some
components are pre-assembled to help with the assembly process.
• Always use the equipment as intended. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, cease use immediately and contact help.kogan.com for
assistance. Do not use until resolved.
• Do not place fingers or any other objects into moving parts of the exercise equipment.
• Do not exceed the maximum user weight of 150 KG.
Page 3
• Be careful when lifting and moving the equipment. Always use proper lifting technique
and seek assistance if necessary.
• Your equipment is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related
problems.
• Operating temperature: 0 - 40 °C
• Storage temperature: -10 - 60°C
• This appliance contains no user-serviceable parts. If it suffers any failure or damage,
cease use immediately and contact help.kogan.com
• This equipment is designed and intended for indoor use only.
Page 4

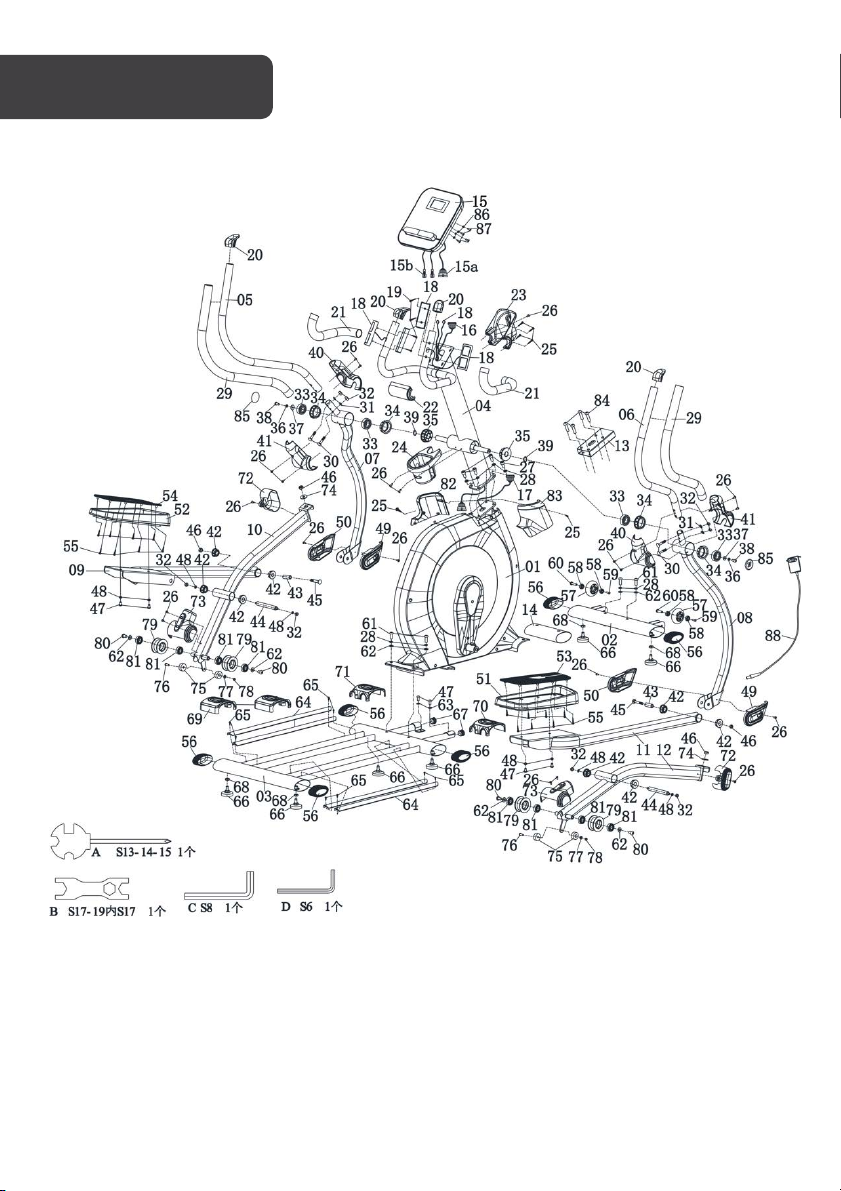

Page 5
Part
Description
Qty.
Part
Description
Qty.
1
Main frame
1
26
Screw M5 x 10 x Φ9
21
2
Front stabilizer
1
27
Bolt M10 x 20 x S8
4
3
Rear stabilizer
1
28
Spring washer d10
8
4
Handlebar post
1
29
Foam grip
2
5
Handlebar L
1
30
Bolt M8 x 43 x 20 x H5
4
6
Handlebar R
1
31
Arc washer d8 x Φ20 x 2 x
R16
4
7
Swing rod L
1
32
Nut M8 x H7.5 x S13
8
8
Swing rod R
1
33
Bearing 6204-2RS
4
9
Pedal Support
1
34
Bushing Φ60 x Φ47 x 18
4
10
Connecting rod L
1
35
Bushing 1 Φ60 x Φ20.2 x 18
2
11
Pedal Support
1
36
Spring washer d8
2
12
Connecting rod R
1
37
Washer d8 x Φ32 x 2
2
13
Protected tube
1
38
Screw M8 x 20 x S6
2
14
Protected tube
1
39
C ring d20
2
15
Console
1
40
Cover
2
16
Trunk wire
1
41
Cover
2
17
Sensor wire
1
42
Bushing 2 Φ38 x Φ16.2 x 15
8
18
Handle pulse
2
43
Bushing Φ16 x Φ10.1 x 39.5
2
19
Screw ST3.5 x 25 x Φ7
4
44
Axle Φ16 x 139.5 x M8 x 10
2
20
End cap
4
45
Bolt M10 x 55 x 15 x S6
2
21
Foam grip
2
46
Nut M10 x H9.5 x S17
4
22
Cover
1
47
Bolt M8 x 16 x S6
6
23
Cover
1
48
Washer d8 x Φ20 x 1.5
8
24
Bottle holder
1
49
Cover
2
25
Screw ST4.2 x 19 x Φ8
6
50
Cover
2
Page 6
Part
Description
Qty.
Part
Description
Qty.
51
Pedal (Right)
1
72
Cover
2
52
Pedal (Left)
1
73
Cover
2
53
Pedal pad (Right)
1
74
Washer d10 x Φ30 x 2.5
2
54
Pedal pad (Left)
1
75
Foot pad Φ33 x Φ8 x 13
4
55
Screw ST4.8 x 13 x Φ8
16
76
Bolt M6 x 20 x S5
2
56
End cap
6
77
Washer d6*Φ12*1.2
2
57
Roller Φ71 x Φ19 x 24
2
78
Nut M6*H6*S10
1
58
Bearing 608ZZ
4
79
Roller Φ66*34*Φ35
4
59
Bolt M6 x 12 x S5
2
80
Bolt M10*16*S6
4
60
BoltΦ7.8 x 30 x M6 x S5
2
81
Bearing 6003－2RS
8
61
Bolt M10 x 25 x S6
4
82
Cover
1
62
Washer d10 x Φ20 x 1.5
8
83
Cover
1
63
Washer d8 x Φ16 x 1.5
2
84
Bolt M10*40*15*S6
4
64
Aluminium rail
4
85
Decal
2
65
Screw ST4.2 x 13 x Φ8
8
86
Washer d4*Φ10*1.0
4
66
Foot pad Φ52 x 43 x
M10
6
87
Screw M4*10
4
67
End cap Φ28 x 16
2
88
Adaptor
1
68
Nut M10 x S17 x 6.0
4 A Spanner S13-14-15*180
1
69
Cover
2 B Spanner S17-19 S17
1
70
Cover
1 C Spanner S8
1
71
Cover
1 D Spanner S6
1
Page 7

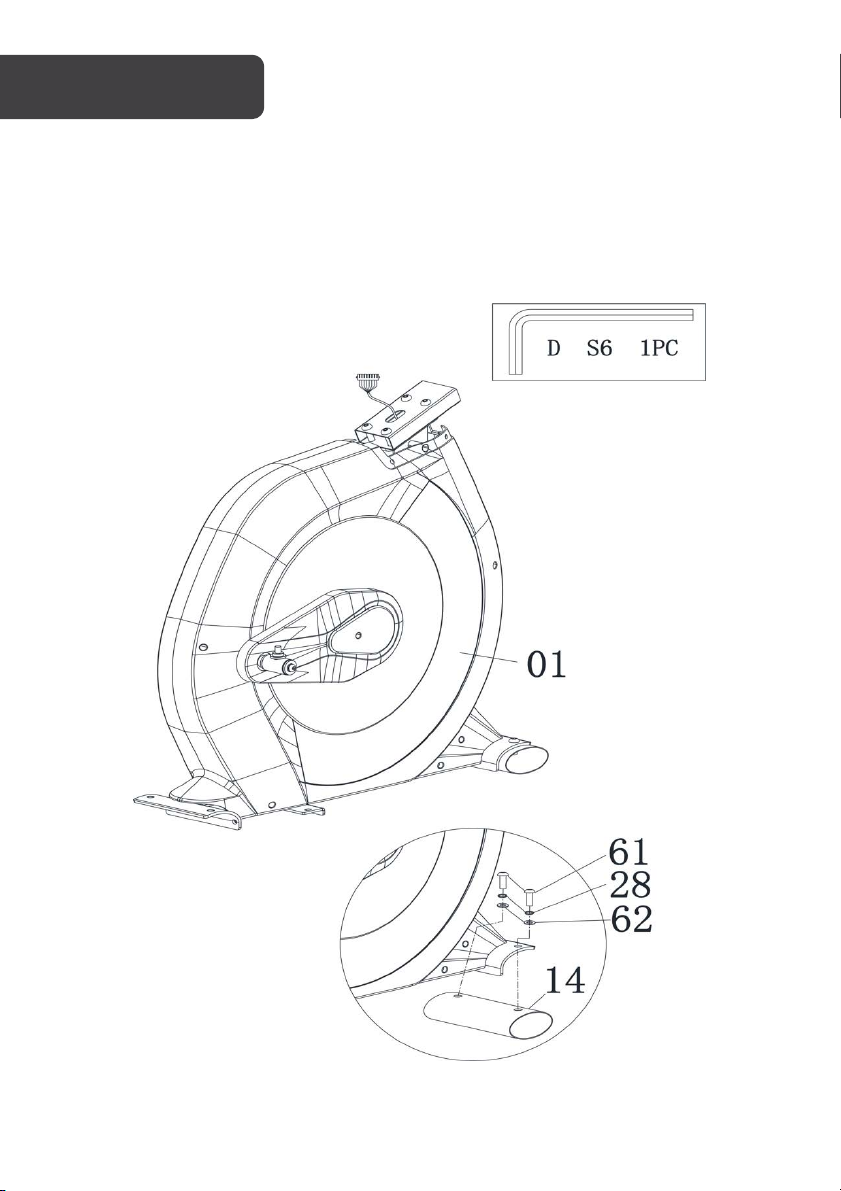

Step 1:
61
Remove the bolt (
from the main frame (
), washer (62) and spring washer (28) and remove protected tube (14)
01
) with spanner (D).
Discard the protected tube (
61
Reserve the bolt (
), washer (62) and spring washer (28) for the assembly of the rower.
14
) which is not needed for the assembly of the rower.
Page 8

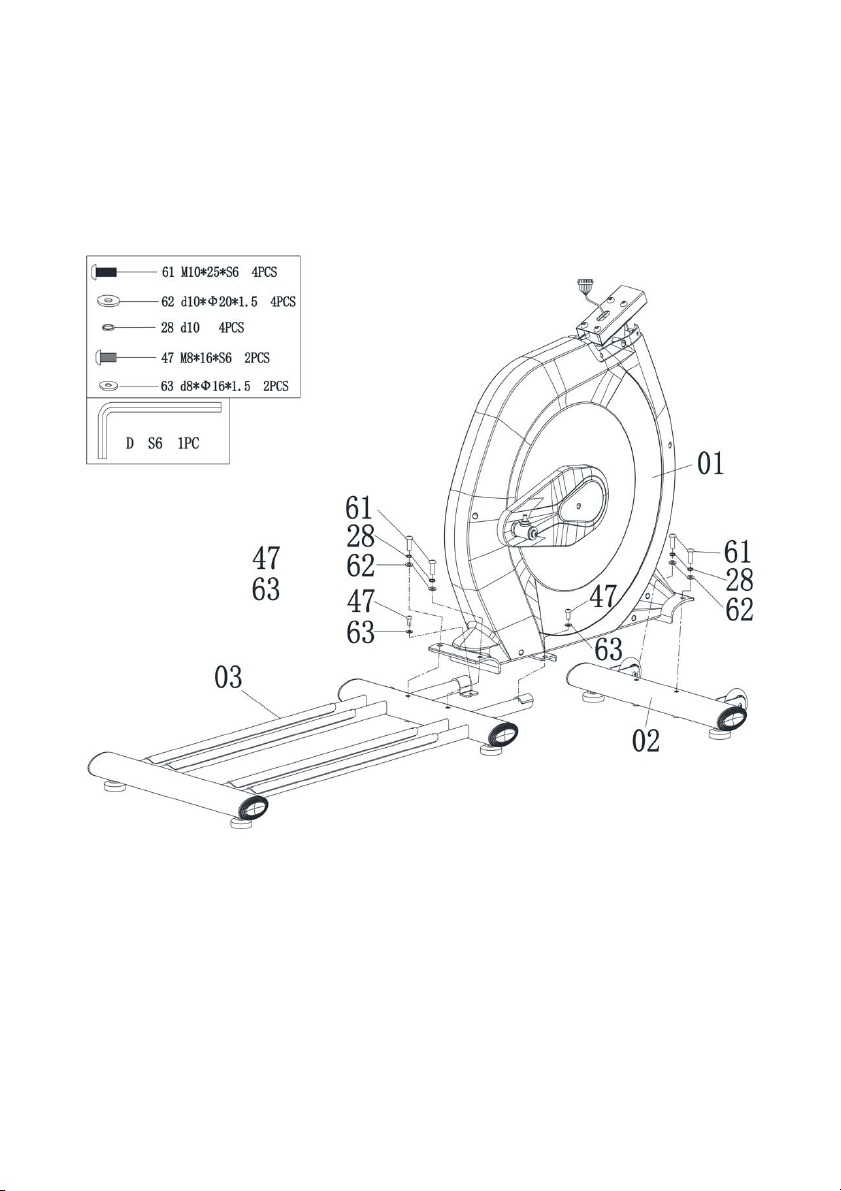

Step 2:
02
Secure front stabilizer (
28
washers (
) by spanner (D).
Secure rear stabilizer (
28
).
(
) to main frame (01) with bolts (61), washers (62) and spring
03
) to main frame (01) with bolts (61), washers (62) and spring washers
Secure the metal plate in front of the rear stabilizer (
63
washer (
).
03
) to main frame (01) with bolt (47) and
Page 9

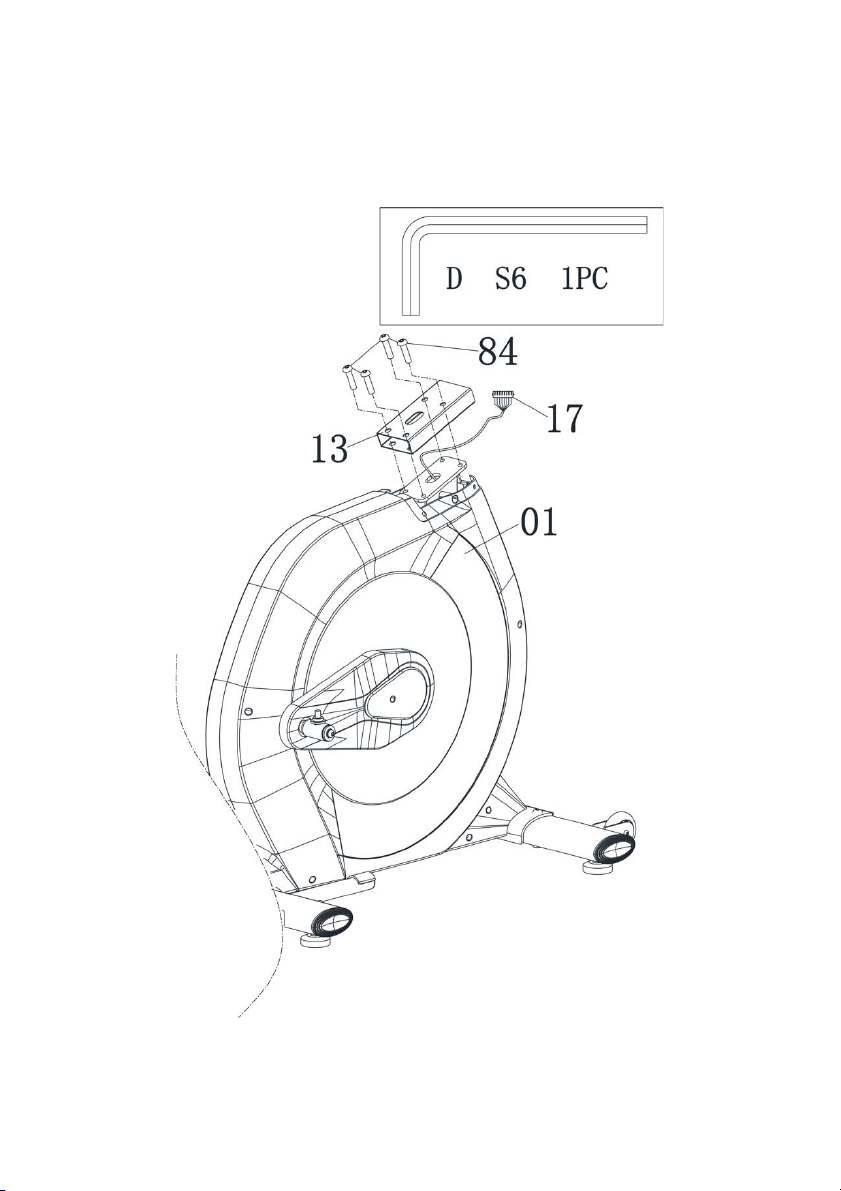

Step 3:
Ta k e o u t t h e p r o t e c t e d t u b e (
17
break the sensor wire (
Discard the bolt (
).
84
) and protected tube (13) which are not needed for the assembly of the
rower.
13
) from main frame (01) with spanner (D). Be careful not to
Page 10

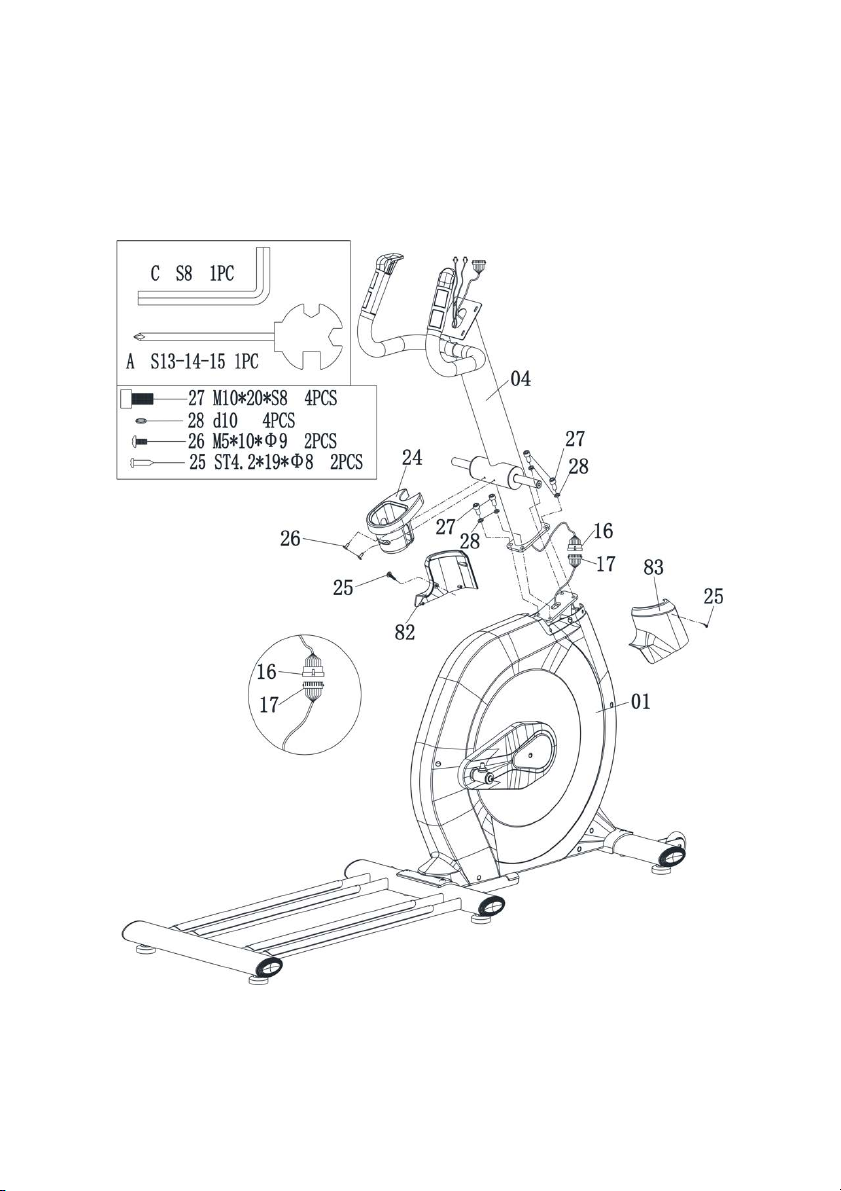

Step 4:
Connect trunk wire (
16
) with sensor wire (17). Fast en t he ha ndleb ar post (04) to main frame
(01) with spanner (C), bolt (27) and spring washer (28).
Secure the cover (
82 & 83
Secure the bottle holder (
) to main frame (01) with spanner (A) and screw (25).
24
) to handlebar post (04) with spanner (A) and screw (26).
Page 11

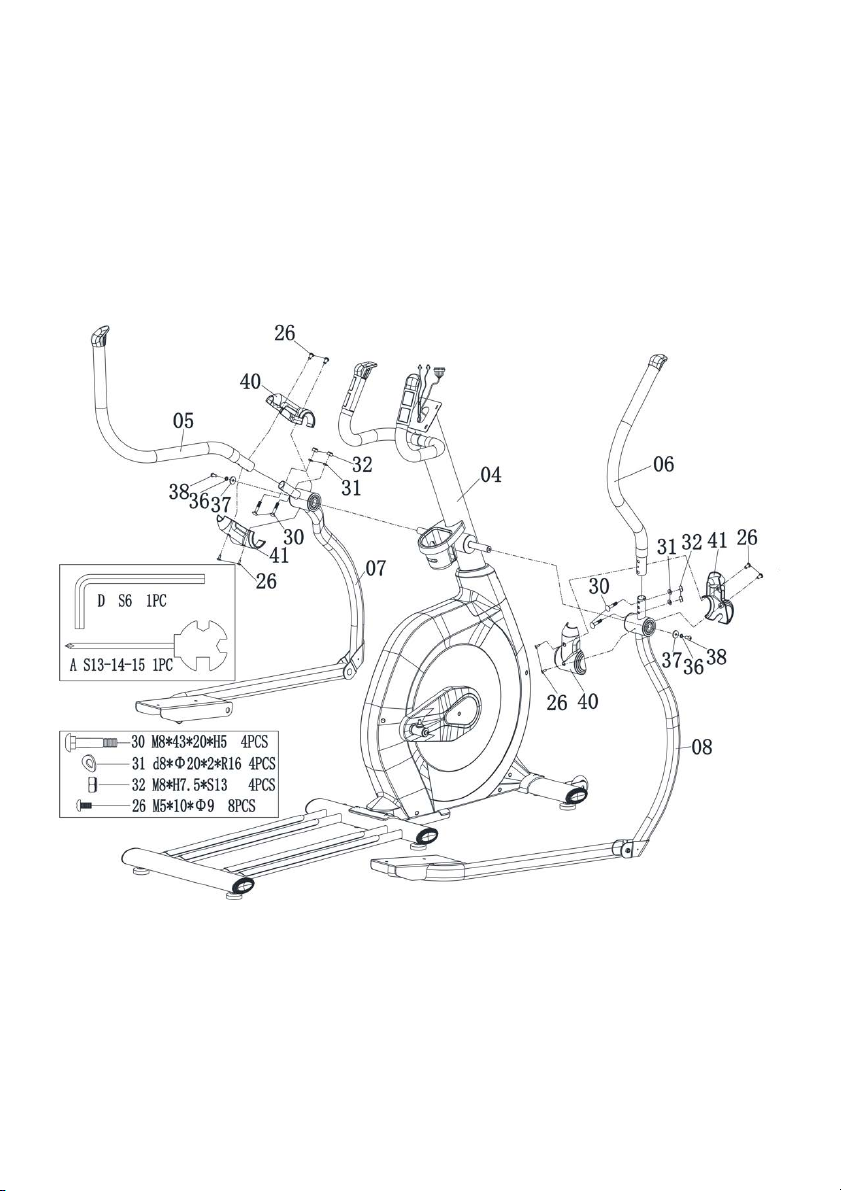

Step 5:
38
Remove the bolt (
D
spanner (
).
), washer (37) and spring washer (36) from handlebar post (04) with
Fas ten the handl ebar L (
separately with bolt (
30
left and right directions.
Secure the cover (
40, 41
(26) by spanner (A).
05
) and handlebar R (06) to swing rod L (07) and swing rod R (08)
), arc washer (31) and nut (32) by spanner (A). Pay attention to the
) to handlebar (L) (05) and handlebar(R) (06) separately with screw
Page 12

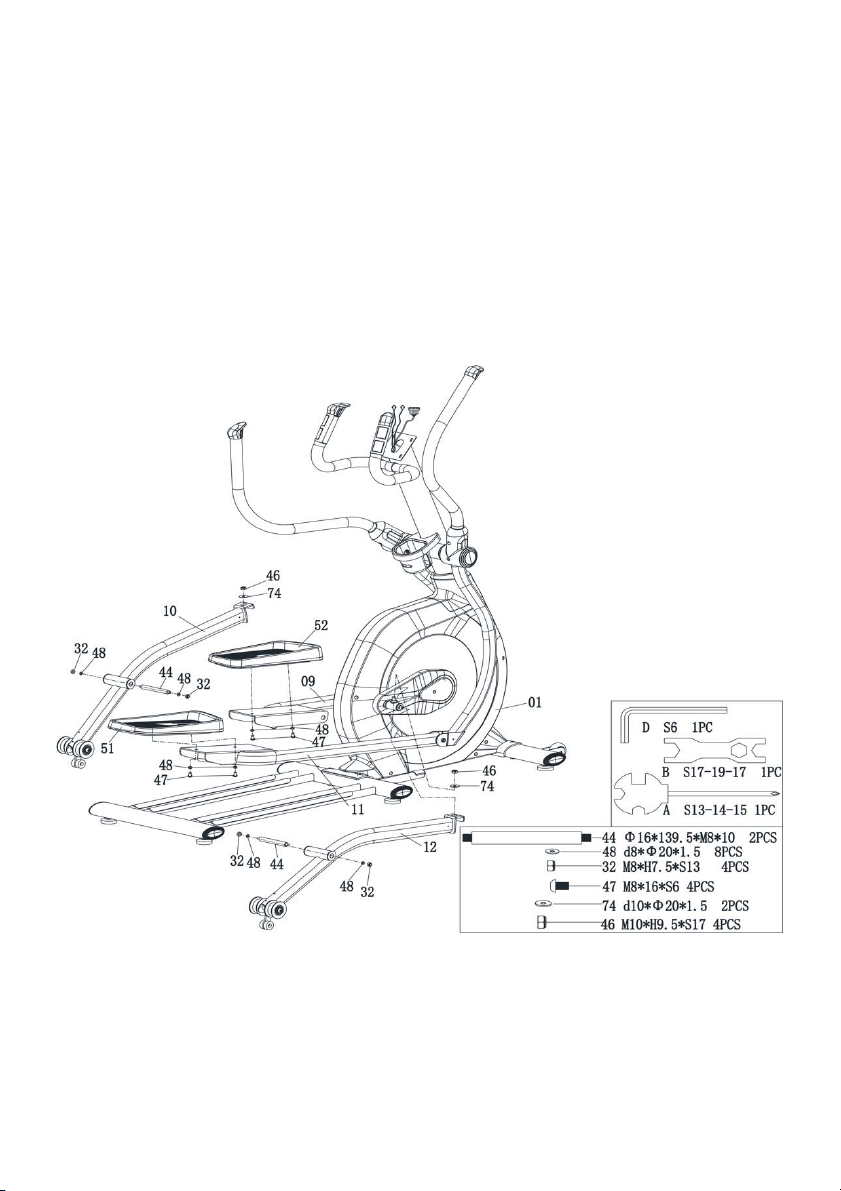

Step 6:
44
Put axle (
10
). Note: D groove is fitted to U bracket. Then fasten it with washer (48), nut (32) by
(
) through the U bracket of pedal support (09) and bushing of connecting rod L
spanner (A).
44
Put axle (
) through the U plate of pedal support (11) and bushing of connecting rod R (12).
Note: D groove is fitted to U bracket. Then fasten it with washer (48), nut (32) by spanner (A).
74
Remove the pre-assembled washer (
) and nut (46) from main frame (1) using spanner (B).
Secure the connecting rod L (10) and connecting rod R (12) to the both sides of main frame
01
) separately. Then fix it with washer (74) and nut (46) using spanner (B).
(
Secure the pedal (Left) (
48
with washer (
) and bolt (47) by spanner (D).
52
) and pedal (Right) (51) to the pedal support (
09 & 11
) separately
Page 13

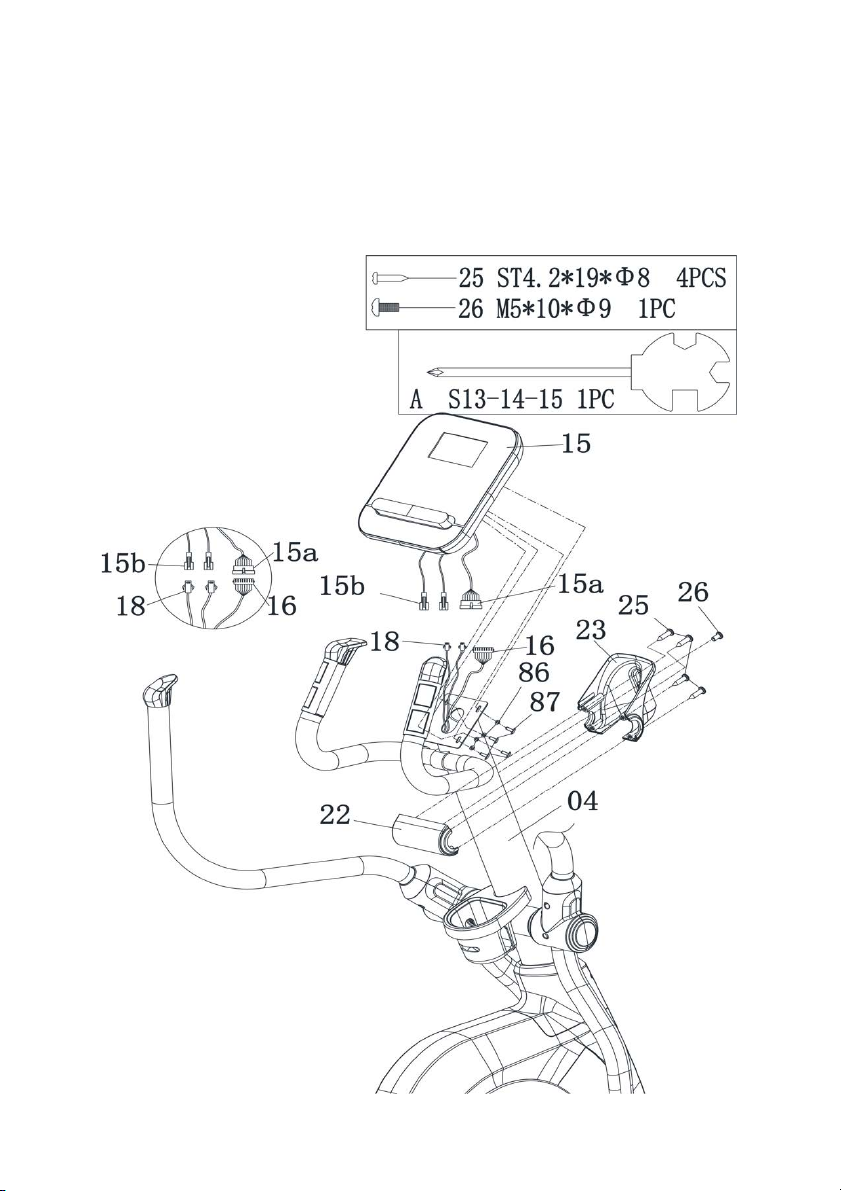

Step 7:
Connect the console wire (
18
handle pulse wire (
Remove the washer (
the console (
15
Secure the cover (
A
spanner (
).
).
86
) and screw (87) on the back of console (15) by spanner (A). Attach
) to the handlebar post (04), then fix it with washer (86) and screw (87).
22, 23
) to the handlebar post (04). Fix it with screw (26) and screw (25) by
15a
) with trunk wire (16) and connect console wire (
15b
) with
Page 14

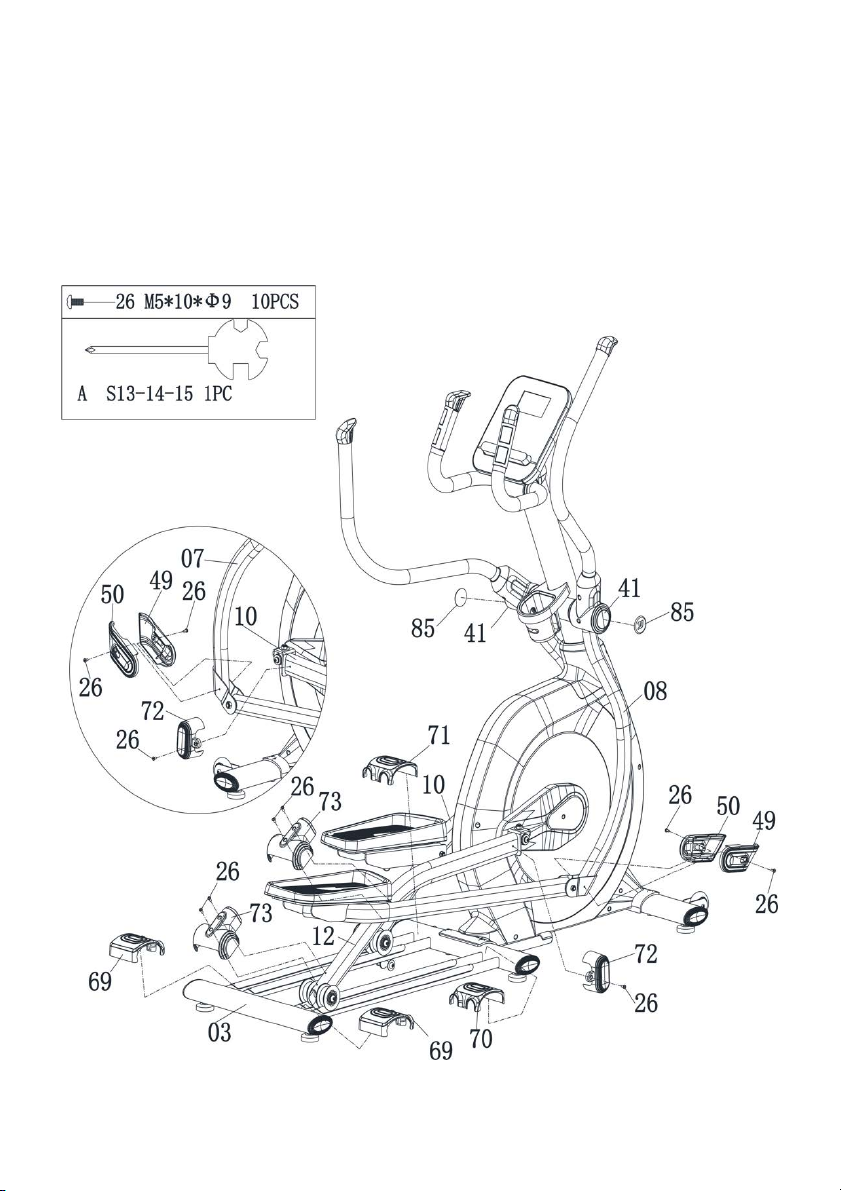

Step 8:
Secure the cover (
26
with screw (
) by spanner (A).
Secure the cover (
26
) by spanner (A).
(
Attach the cover (
70
cover (
Paste decal (
) and (71) to front left and front right of the rear stabilizer (03).
85
) to the both cover (41).
72
) and cover (73) to the connecting rod L (10) and connecting rod R (12)
50
) and the cover (49) to swing rod L (07) and swing rod R (08) with screw
69
) to the rear left and rear right sides of the rear stabilizer (03). Attach the
Page 15

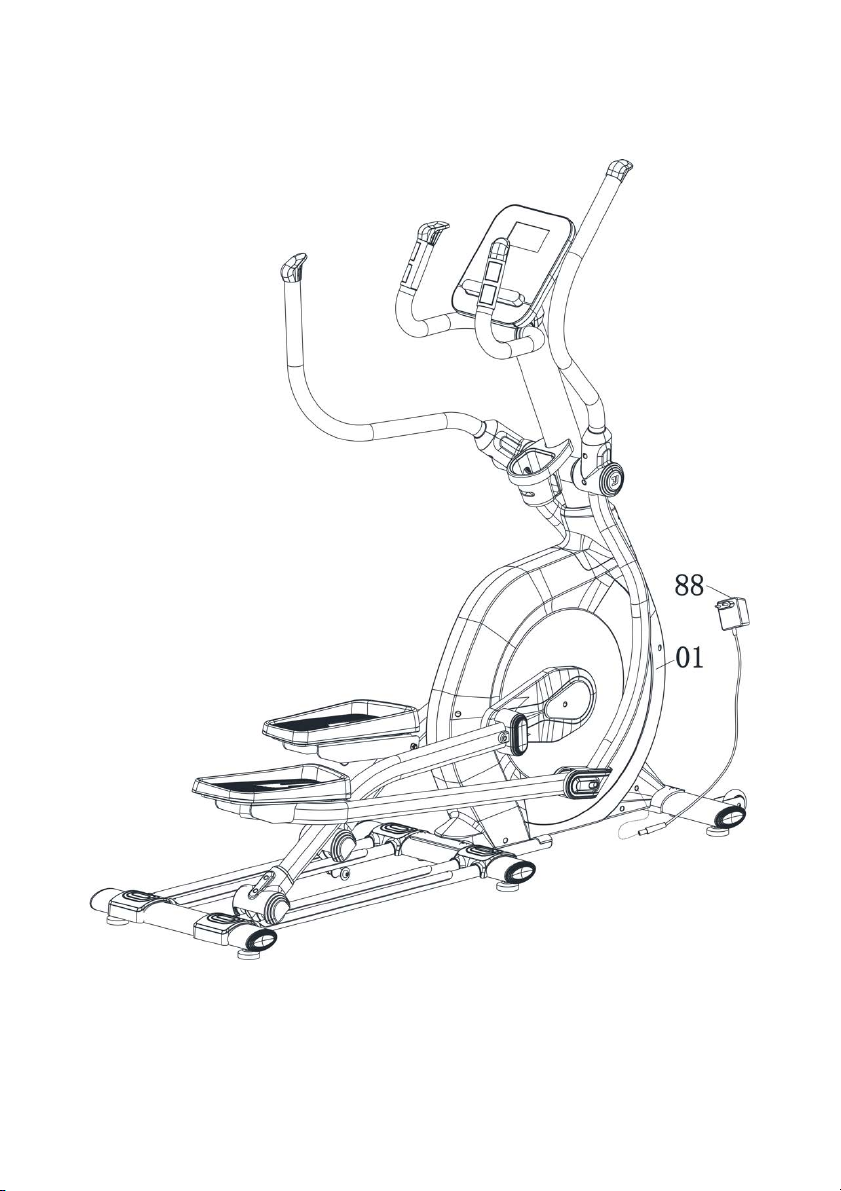

Step 9:
88
Plug the adaptor (
88
) to the power supply. Reserve the adaptor (88) for recycle use.
(
) wire to the front hole of main frame (01), then connect the adaptor
Page 16

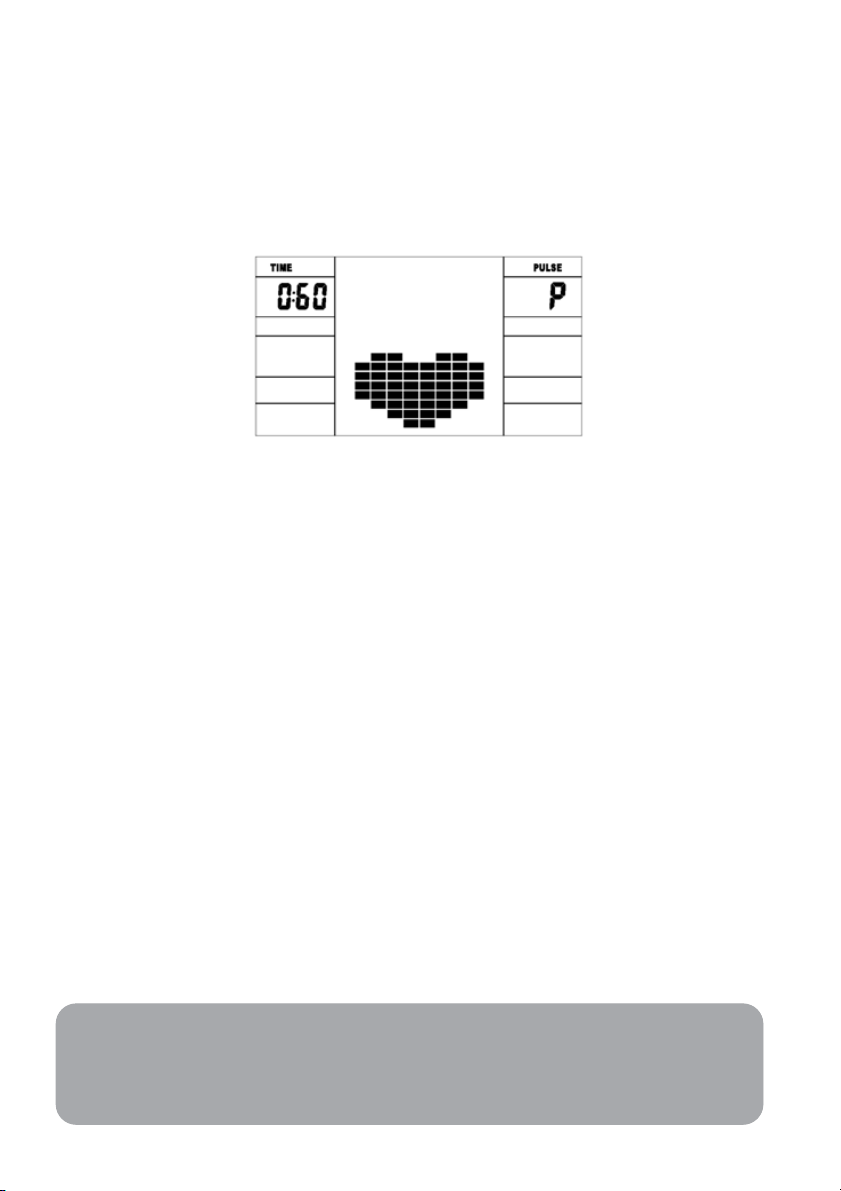

1.
Tu r n o n t h e c o m p u t e r
Plug in one end of the adaptor to the AC electrical source and connect the other end to the
computer.
The computer will beep and enter into initial mode.
2. Program select and value setting

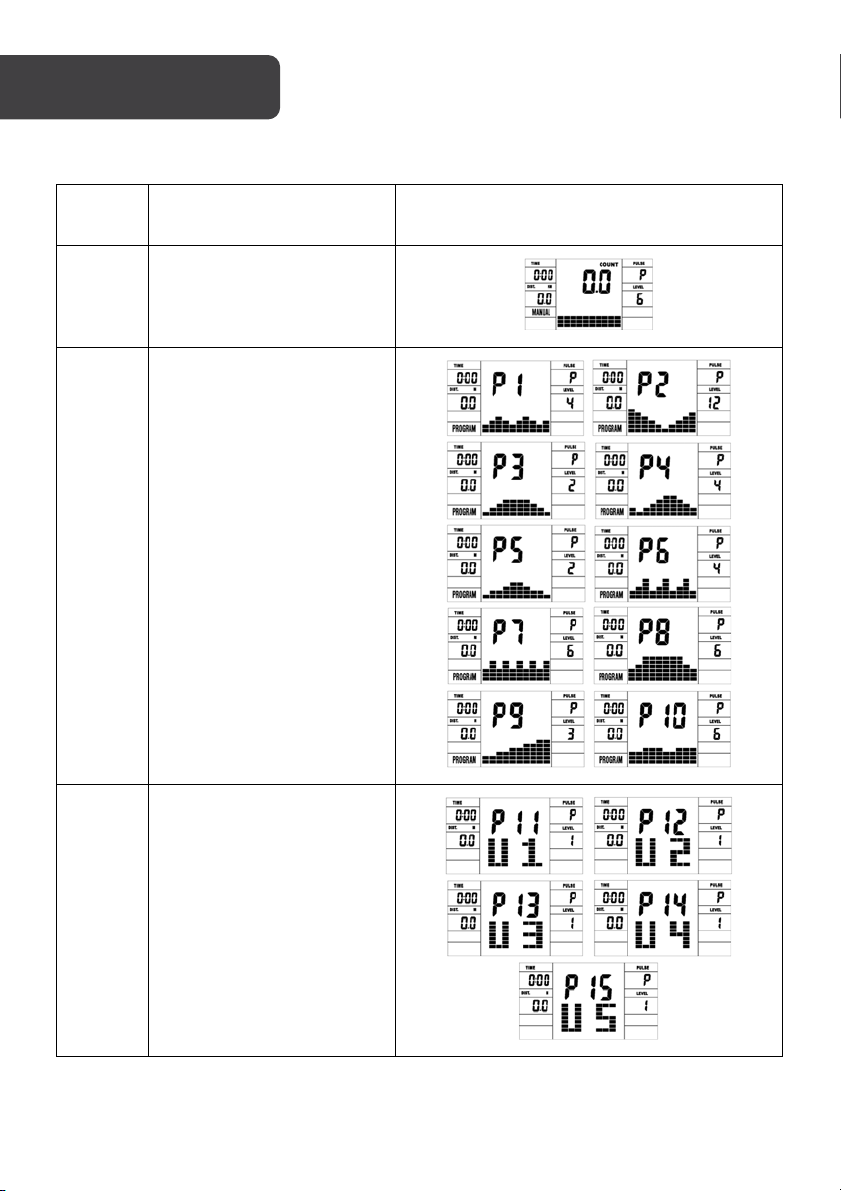

Manual Program and Preset Program P1～P10
• Press UP, DOWN button to select the program that you like.
• Press ENTER button to confirm the selected program and enter time setting
window.
• The time will flash and then press UP, DOWN button to set up your desired time.
Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN to set up the desired calories.
Press ENTER to confirm the value.
• Press START/ STOP to begin exercise.
User Profile Programs: CUSTOM1～CUSTOM5(P11-P15)
• Press UP, DOWN button to select the user.
• Press ENTER to confirm your choice and enter into time setting window.
• The time display will flash and then press UP, DOWN button to set up the desired
time to do the exercise. Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The first resistance level will flash and then press UP, DOWN button to set the
desired load resistance. Press ENTER to confirm. Then repeat above operation to
set the resistance from 2 to 10.
• Press START/ STOP to begin exercise.
Page 17

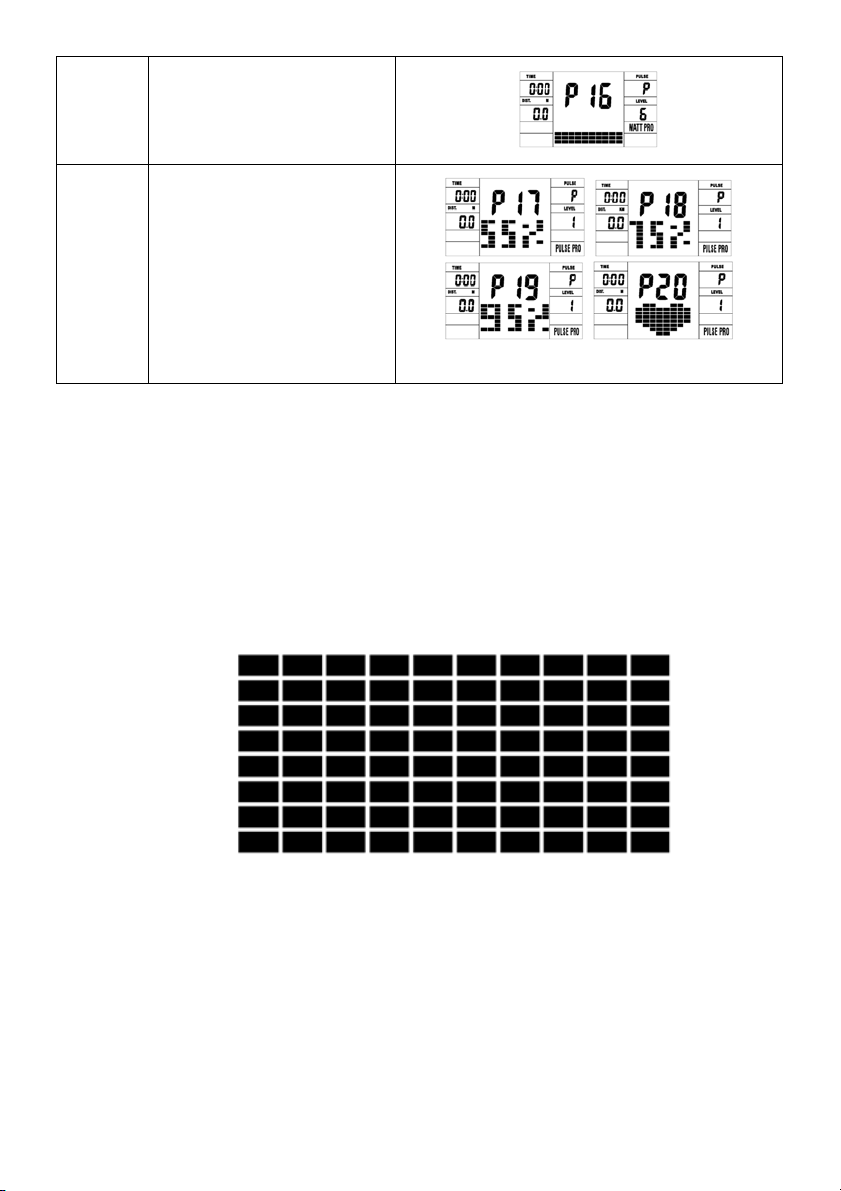

Watt Control Program (WATT PRO: P16)
Note:
The WATT value is decided by the TORQUE and RPM. In this program, the WATT
value will keep at constant value. It means that if you peddle quickly, the load
resistance will decrease and if you peddle slowly, the load resistance will increase to
ensure you at the same watt value.
• Press UP, DOWN to select the watt control program.
• Press ENTER to confirm the selected watt control program and enter into time
setting window.
• The time will flash and then press UP, DOWN button to set up the desired time,
Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The watt display will flash and then press UP, DOWN button to set up the watt to
do the exercise. Press ENTER to confirm the value.
• Press START/ STOP to begin exercise.
HEART RATE CONTROL PROGRAM: 55% H.R, 75% H.R and 95% H.R(PULSE PRO:
P17-P19)
The maximum heart rate depends on users age and this program will ensure you
are exercise within maximum heart rate.
• Press UP, DOWN button to choose the heart rate control program.

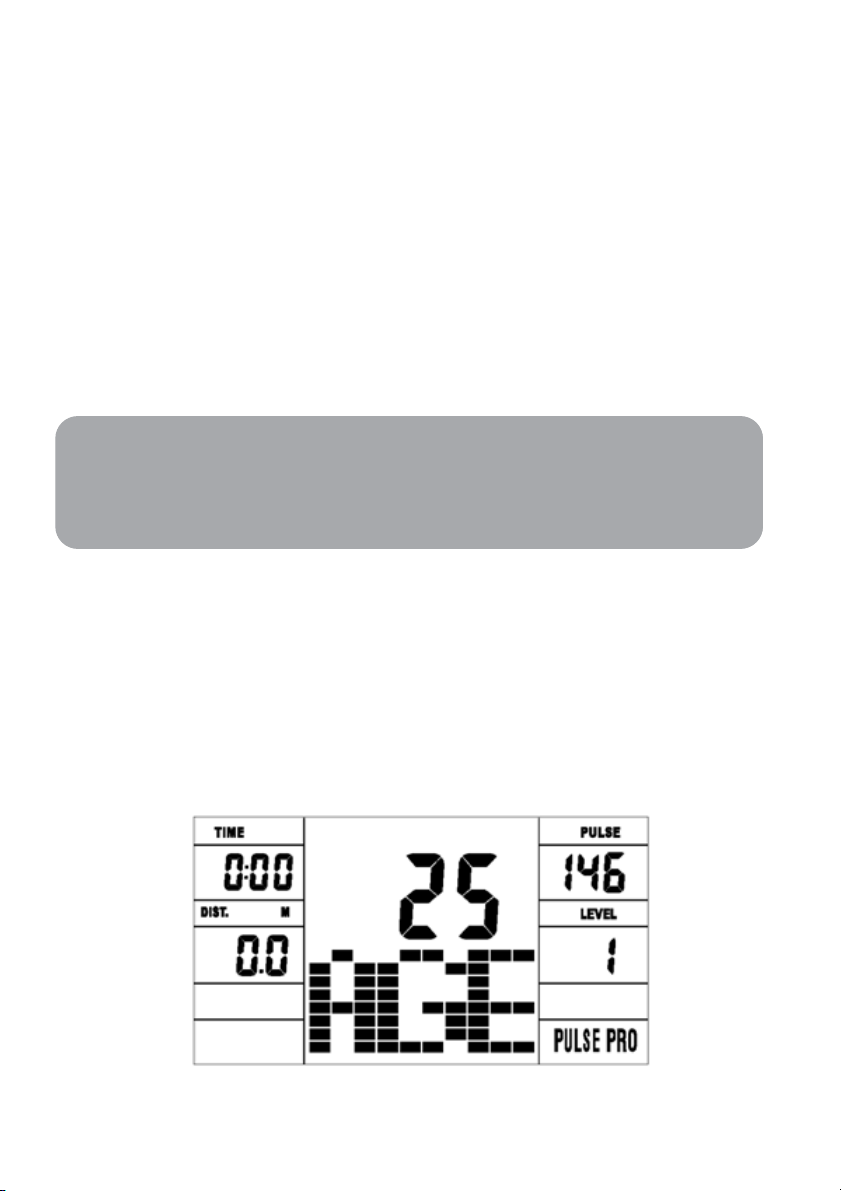

• Press ENTER to confirm the heart rate control program and enter into AGE setting
window.
Page 18
Note:
During exercise, the user's heart rate value depends on resistance level and speed.
The heart rate control program is to ensure your heart rate within the preset value.
When the computer detects your current heart rate is higher than preset, it will
decrease the resistance level automatically or you may slow down exercise. If your
current heart rate is lower than preset, it will increase resistance and you may speed
up.
• The time will flash and then press UP, DOWN button to set up the desired time.
Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The age will flash and then press UP, DOWN button to set the user's age. Press
ENTER to confirm the value.
• When the target heart rate control program flash, the computer will display the
user's target heart rate according to user's age.
• Press START/ STOP to begin exercise.
HEART RATE CONTROL PROGRAM: TARGET HEART RATE (PULSE PRO: P20)
The user can set any target heart rate to do the exercise.
• Press UP, DOWN button to select TARGET HEART RATE program.
• Press ENTER to confirm your choice and enter time setting window.
• The time display will flash and then press UP, DOWN button to set the desired time
to do the exercise. Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The target heart rate will flash and then press UP, DOWN button to set up your
target heart rate. Press ENTER to confirm the value.
• Press START/ STOP to begin exercise.
Page 19
Note:
If the computer is also equipped with wireless heart rate measuring via the
transmitter belt and with hand pulse function, the hand-measurement-signaldetecting is preferred.
The pulse recovery test is to compare your heart rate before and after exercise. It is
targeted to determine your heart strength via the measuring. Please do the test as
below:
• Both your hands hold the pulse sensor or via wireless transmitter belt to test the
pulse (if applicable), the computer will display your current pulse value.
• Press RECOVERY to enter the pulse recovery test and the computer program will
enter the stop status.
• Keep pulse detecting.
• Time will count down from 60 seconds to 0 second.
• When time reaches 0, the test result (F1-F6) appears on the display.
F1= Excellent
F2= Good
F3= Fair
F4= Below average
F5= No Good
F6= Poor
• If the computer does not detect your current heart rate first, pressing RECOVERY
will not enter into pulse recovery test. During the pulse recovery test, press
RECOVERY to exit the test and return to the stop status.
• Pulse Measurement
Please place both your palms on the contact pads and the computer will show your current
heartbeat rate in beats per minute (BPM) on the LCD after 3~4 seconds. During the
measurement, heart icon will flash with simulative ECG showing.
Remark: During the process of pulse measurement, because of the contact jamming, the
measurement value may not be stable when start, then it will return to normal level. The
measurement value cannot be regarded as the basis of medical treatment.
Page 20
Program
No.
Description
Display
A
1 Manual Program
B
10 Preset Program Profile
(PROGRAM：P1-P10)
• P1: ROLLING
• P2: VALLEY
• P3: FATBURN
• P4: RAMP
• P5: MOUNTAIN
• P6: INTERVAL
• P7: CARDIO
• P8: ENDURANCE
• P9: SLOPE
• P10: RALLY
C
5 User Setting Programs:
CUSTOM 1 to CUSTOM 5
(P11 ~ P15)
Page 21
D
Watt Control Program
(WATT PRO：P16)
E
4 Heart Rate Control
Program:
(PULSE PRO: P17-P20)
• 55% H.R,
• 75% H.R,
• 95% H.R
• TA RG ET H .R .
1. Record the user's data of 5 User Setting Programs.
2. Display Speed (RPM), TIME and WATT, CAL and DIST, at the same time.
3. The computer will turn off automatically if there is no operation, speed signal and
pulse signal over 4 minutes. Meanwhile, it will store your current exercise data and
run the loading resistance to the minimum. Once you press any button or in
motion, the computer will turn on automatically.
4. There are 10 columns of loading bars and 8 bars in each column. Each column
represents 1 minute’s workout (without the change of TIME value) and each bar
represent 2 levels of loading.
Page 22
1. ENTER
• In "stop" mode, press ENTER button to enter into program selection and setting
value which flash in related window.
A: When you choose the program, press Enter to confirm the one you like.
B: When in setting, press ENTER to confirm the value that you would like to preset.
• During the start mode, press ENTER to choose to display the speed or RPM or
switch automatically.
2. START/STOP
• Press START/STOP button to start or stop the programs.
• During any mode, hold down this button for 2 seconds to fully reset the computer.
3. UP
• In stop mode the dot matrix character will flash, press this button to select the
program up. If the related window value flashes, press this button to increase the
value.
• During the start mode, press this button to increase the training resistance.
4. DOWN
• In stop mode and the dot matrix character will flash, press this button to select the
program down. If the related window value flashes, press this button to decrease
the value.
• During the start mode, press this button to decrease the training resistance.
5. RECOVERY
• First test your current heart rate and show your heart rate value, press this button to
enter into pulse recovery testing.
• When you are in pulse recovery mode, press this button to exit.
Page 23
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For th e mo st up -to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
Loading...
