FORM ELECTRONICS FM0190 Users manual

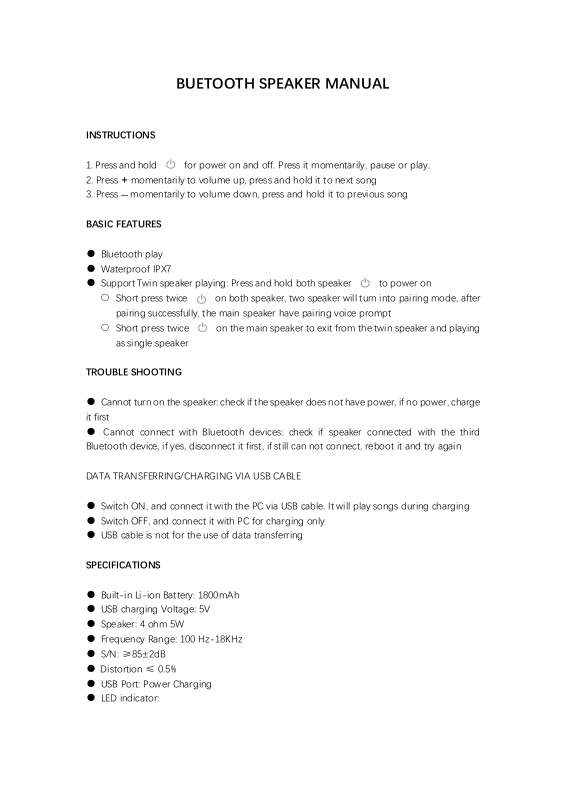

BUETOOTH SPEAKER MANUAL

INSTRUCTIONS

1. Press and hold for power on and off. Press it momentarily, pause or play.

2. Press + momentarily to volume up, press and hold it to next song

3. Press — momentarily to volume down, press and hold it to previous song

BASIC FEATURES

● Bluetooth play

● Waterproof IPX7

● Support Twin speaker playing: Press and hold both speaker to power on
○ Short press twice on both speaker, two speaker will turn into pairing mode, after

pairing successfully, the main speaker have pairing voice prompt

○ Short press twice on the main speaker to exit from the twin speaker and playing

as single speaker

TROUBLE SHOOTING

● Cannot turn on the speaker: check if the speaker does not have power, if no power, charge

it first

● Cannot connect with Bluetooth devices: check if speaker connected with the third

Bluetooth device, if yes, disconnect it first, if still can not connect, reboot it and try again

DATA TRANSFERRING/CHARGING VIA USB CABLE

● Switch ON, and connect it with the PC via USB cable. It will play songs during charging

● Switch OFF, and connect it with PC for charging only

● USB cable is not for the use of data transferring

SPECIFICATIONS

● Built-in Li-ion Battery: 1800mAh

● USB charging Voltage: 5V

● Speaker: 4 ohm 5W

● Frequency Range: 100 Hz-18KHz

● S/N: ≥85±2dB

● Distortion ≤ 0.5%

● USB Port: Power Charging

● LED indicator:

○ Blue flash: Power On
○ Red:charging status (red indicator off when Fully charged)

CAUTIONS

● Keep out of reach of children

● Never knock the speaker

● Keep it away from fire, water, high and low temperature

● Never block speakers nets

● Never open it by yourserlf

● Don't not charge it for too long time in case of damage to the battery, 3hours is the best

charging time

FCC Warning Statement

Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

‐‐ Consult the dealer or an experienced radio/TV technician for help.
