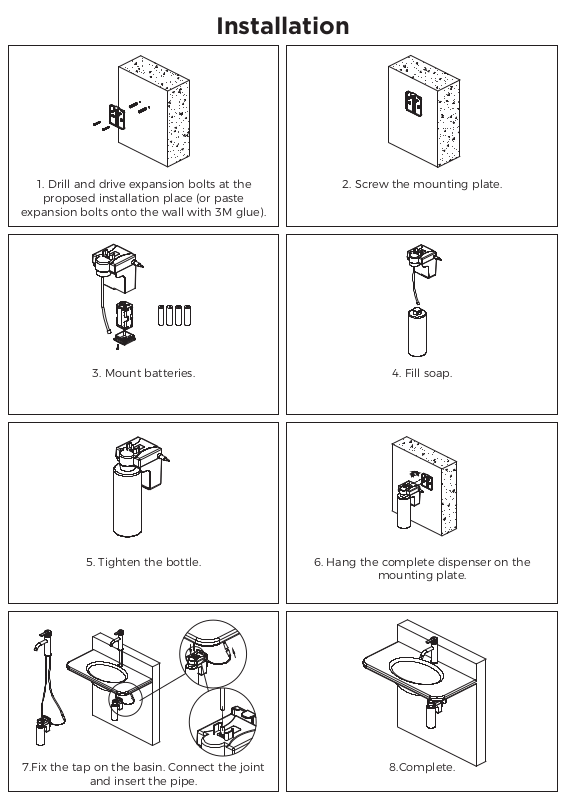

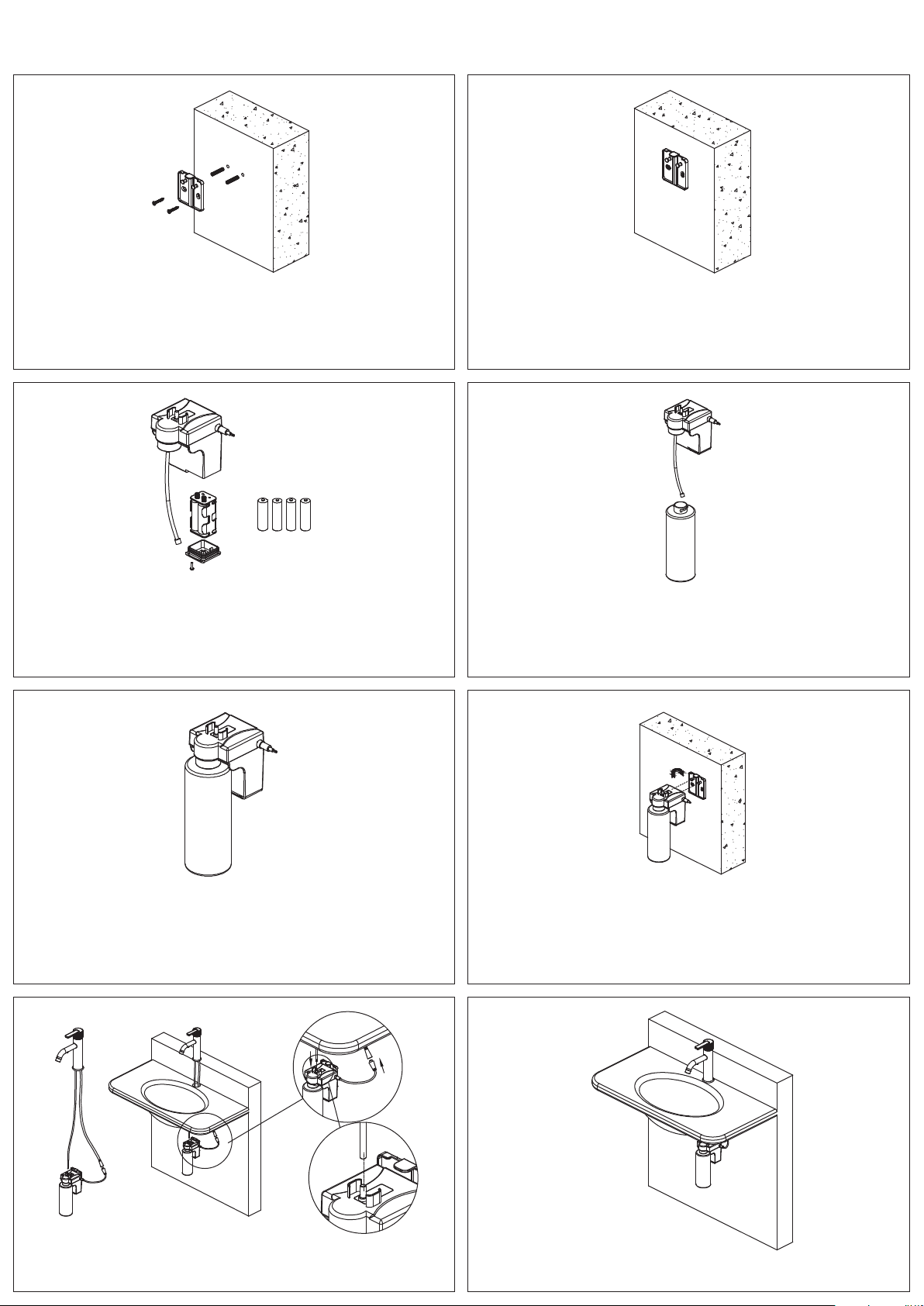

Installation
1. Drill and drive expansion bolts at the
proposed installation place (or paste
expansion bolts onto the wall with 3M glue).
3. Mount batteries.
2. Screw the mounting plate.
4. Fill soap.
5. Tighten the bottle.
7.Fix the tap on the basin. Connect the joint
and insert the pipe.
6. Hang the complete dispenser on the
mounting plate.
8.Complete.
Page 2
Product Specifications
Main Technical Parameters
Description of Technical Parameters
Working voltage: DC 4.5-6V (4 AA alkaline batteries)
Rated power: 1.2w.
Shape: foam-like liquid
Foaming time: 0.5s-10s (adjustable by remote control)
Liquid: hand sanitizer
Induction distance and range at delivery
(1) Delivered lateral-induction distance: 50mm±10; range: 10mm-60mm (refer to
hand induction). (The actual measurements at delivery are based on the
converted data of the white standard plate.)
Low-voltage alarm:
(1) Level 1 low-voltage alarm is triggered when the working voltage is ≦4.8±0.1V.
The LED indicator flashes 5 times slowly at induction, it indicates almost low
battery and charging reminder but the soap outflow works normally.
(2) Level 2 low-volta ge alarm is triggered when the working voltage is ≦4.6±0.1V.
The LED indicator flashes quickly at induction and continues 10 times of quick flash
without induction, it indicates low battery and charging reminder but the soap outflow stops.
Distance stability: The distance change does not exceed ±5% when the supply voltage drops from 6.5V
to 4.6V, and not exceed ±10% when the temperature goes up from -10℃ to +55℃.
Service life: The cycles are ≧200,000.
Environmental worthiness:
(1) Working temperature: 5℃~40℃
(2) Storage temperature: 1℃-50℃
(3) Relative humidity: 0%-85% RH
Anti-interference performance
(1) No malfunctions occur when several complete dispensers are energized and working at the
same time.
(2) No malfunctions occur with the interference of common electrical appliances.
(3) The distance change shall be controlled below ±10% when incandescent bulbs/T5/fluorescent
tubes/LED lamps throw slanting rays to the dispenser beyond 1m at 45°.
Vibration resistance: At the amplitude of 0.35mm and the frequency of 10~55Hz, frequency sweeping is
repeated 10 times at three directions which are perpendicular to each other. The results
show the appearance and performance meet requirements.za
Shock resistance: No impact or knocking is allowed.
Installation environment: The induction window of the dispenser shall be avoided from direct bright
lights and specular reflection.
Function Description
At the very beginning of energization, the dispenser goes into the standby mode for use in 3s.
At induction, the soap flows 0.5s-10s (based on the value set). Repeat the above steps after induction is
removed.
Adjust foaming time: Adjust the time by pressing and holding for 3s. Adjust one shift by one press,
with 3 shifts in total. The specific forming time is 0.5s at Shift 1, 1.0s at shift 2,
and 1.5s at shift 3.
Low-battery state: The red lamp flashes 5 times (one time every 0.5s) at induction when the battery
is less than 4.6V.
