07/2016 WDOC Diamond remote www.forestgroup.nl v1.4

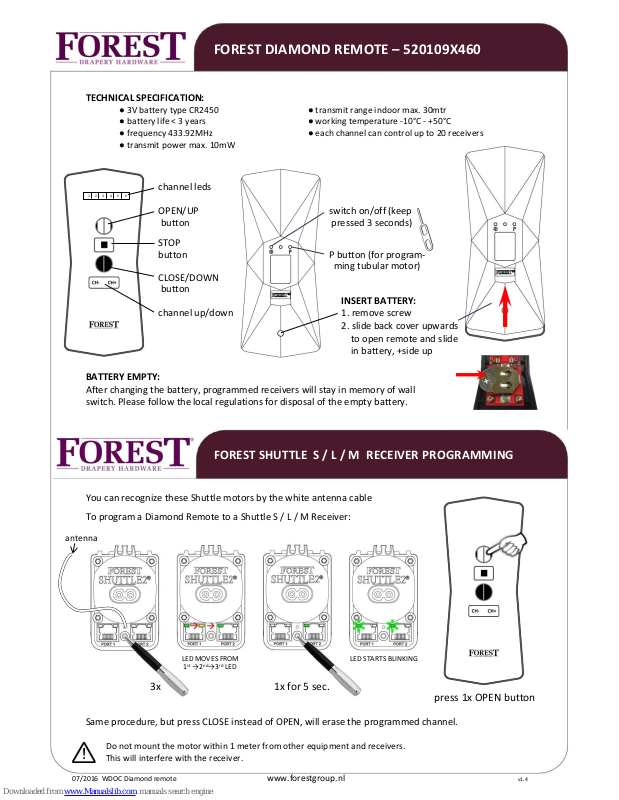

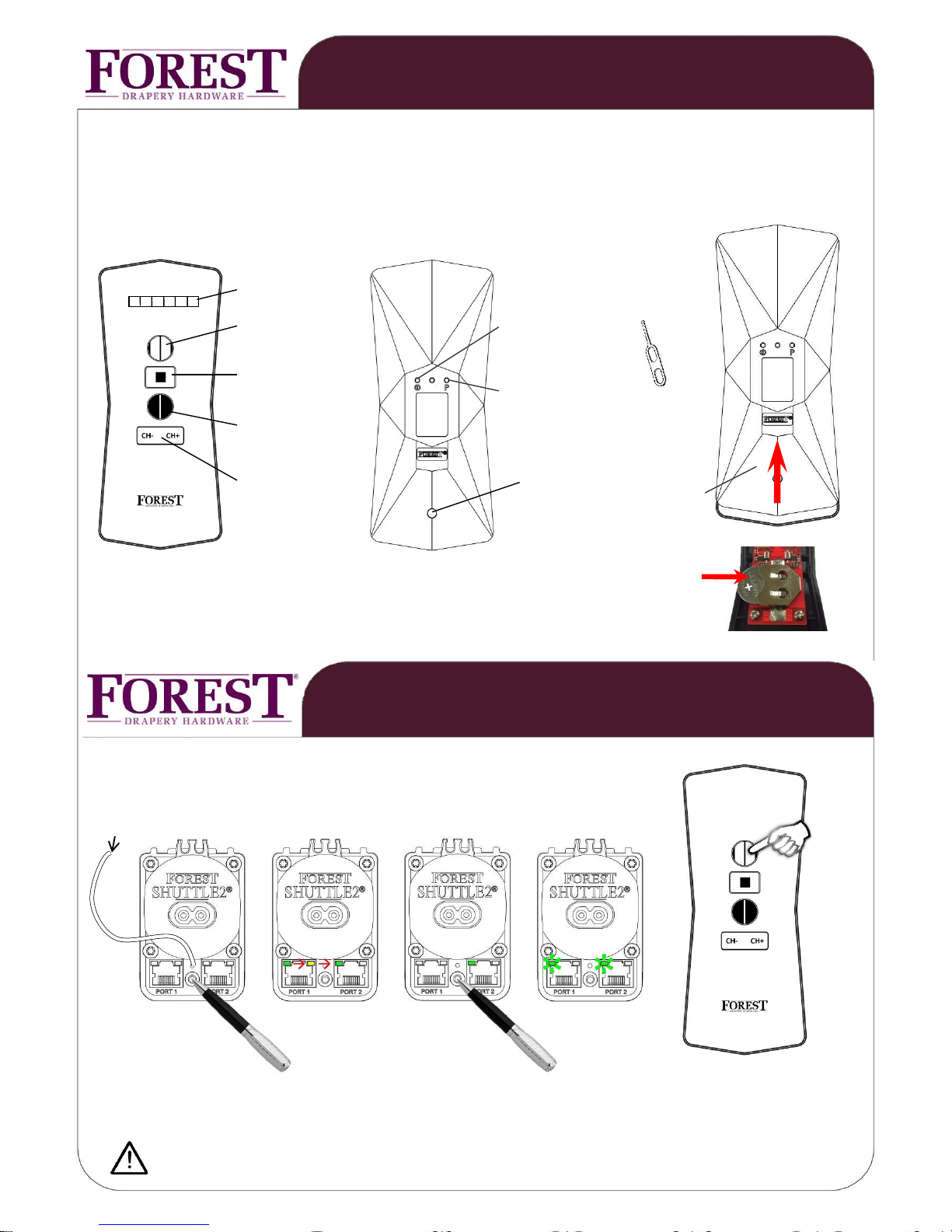

FOREST DIAMOND REMOTE – 520109X460
TECHNICAL SPECIFICATION:
● 3V battery type CR2450 ● transmit range indoor max. 30mtr
● battery life < 3 years ● working temperature -10°C - +50°C
● frequency 433.92MHz ● each channel can control up to 20 receivers
● transmit power max. 10mW
channel leds
1 2 3 4 5 6
OPEN/UP switch on/off (keep
button pressed 3 seconds)
STOP
button P button (for program ming tubular motor)
CLOSE/DOWN
button
INSERT BATTERY:
channel up/down 1. remove screw
2. slide back cover upwards
to open remote and slide
in battery, +side up
BATTERY EMPTY:
After changing the battery, programmed receivers will stay in memory of wall
switch. Please follow the local regulations for disposal of the empty battery.
FOREST SHUTTLE S / L / M RECEIVER PROGRAMMING
You can recognize these Shuttle motors by the white antenna cable
To program a Diamond Remote to a Shuttle S / L / M Receiver:
antenna
LED MOVES FROM LED STARTS BLINKING
1st →2nd→3
rd
LED
3x 1x for 5 sec.
press 1x OPEN button
Same procedure, but press CLOSE instead of OPEN, will erase the programmed channel.
Do not mount the motor within 1 meter from other equipment and receivers.
This will interfere with the receiver.
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4

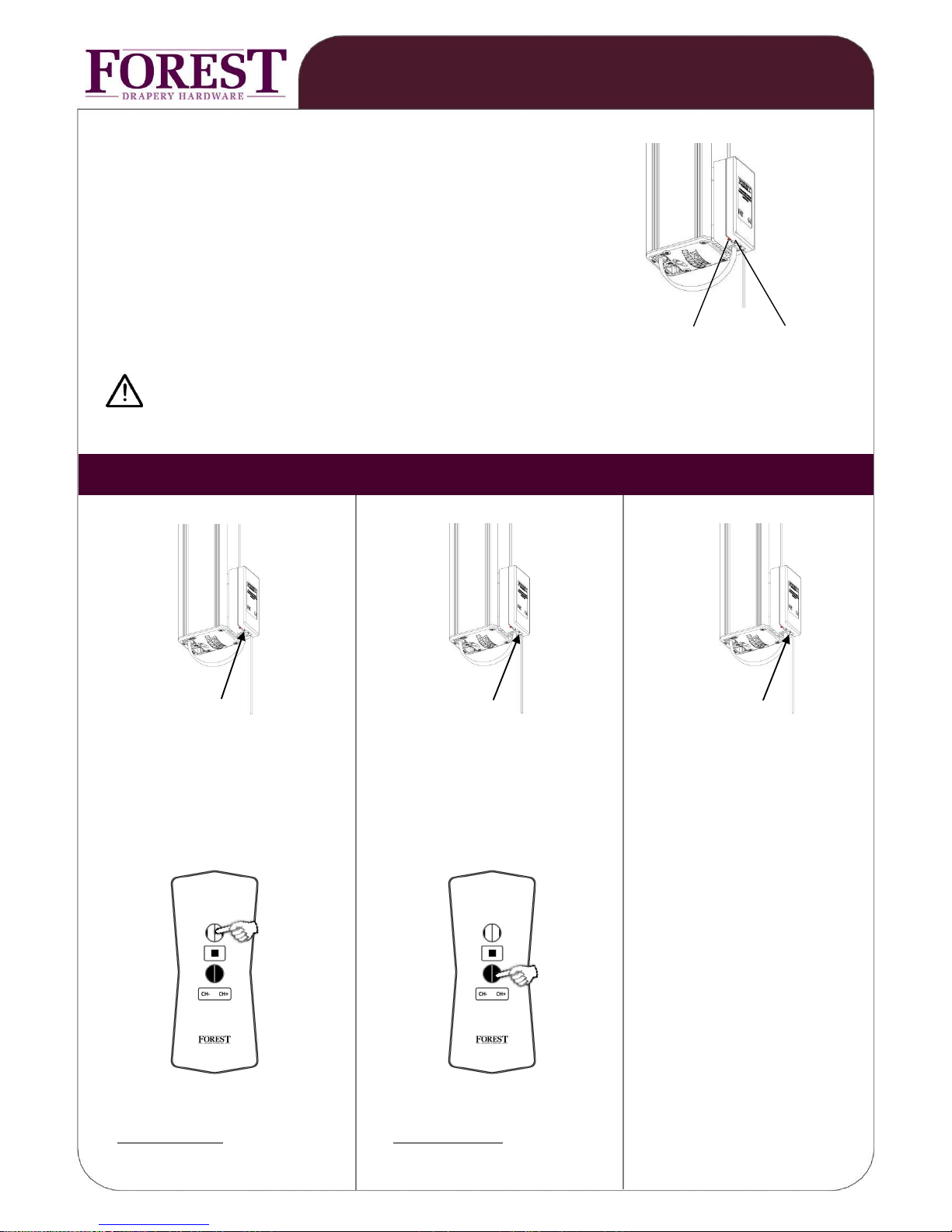

FOREST MULTI RECEIVER CLICK ON – 5201001362
TECHNICAL SPECIFICATION:
powered by Shuttle M
connect to port 1 of the Forest Shuttle M
working temperature -10°C - +50°C
controlled by Forest Multi Remote and Forest Multi Wall Switch RF
control led program button
Do not mount within 1 meter from other equipment and receivers.
This will interfere with the receiver.
press program button, press program button, press and hold the program
led will light up led will light up button for 10 seconds until
control led starts blinking
hold the wall switch within 2 mtr select (to be cancelled) channel
from receiver. Select channel and press CLOSE button
and press OPEN button
1x OPEN
1x CLOSE
on receiver: on receiver:
led blinks 3 times and will go off led will blink once and will go off
PROGRAMMING WALL SWITCH REMOVE PROGRAMMED CHANNEL: DELETE ALL PREVIOUS
TO CLICK-ON RECEIVER: PROGRAMMED CHANNELS:
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4

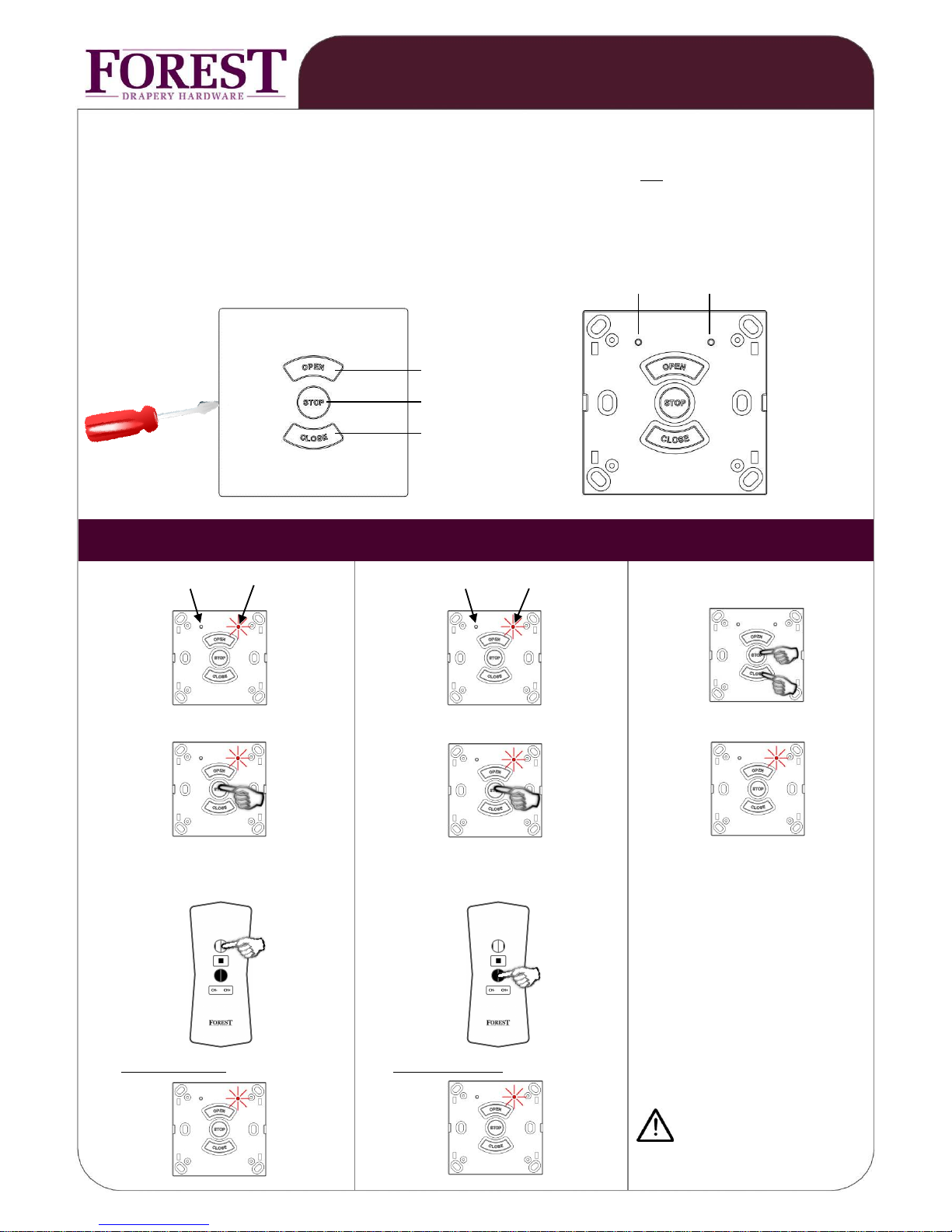

FOREST MULTI RECEIVER / WALL SWITCH 5201001360 / 1361
FOREST FMS/BCS MULTI RECEIVER 5104011500
TECHNICAL SPECIFICATION SHUTTLE M RECEIVER: TECHNICAL SPECIFICATION FMS/BCS RECEIVER:
● powered by Shuttle M ● power 230Vac – 500W
● can also be used as wall switch ● controls one tubular or FMS motor
● cable 0,5mtr → 5201001360 ● can also be used as wall switch
● cable 3,5mtr → 5201001361 ● terminal max 2,5mm²
● connect to port 1 of the Forest Shuttle M ● working temperature -10°C - +50°C
● working temperature -10°C - +50°C
● controlled by Forest Multi Remote and
Forest Multi Wall Switch RF program button control led
OPEN/UP button
STOP button
CLOSE/DOWN button
use screwdriver
to take of cover
press program button, led will blink press program button, led will blink press STOP and CLOSE button of
receiver for ~6 sec.
press STOP button press STOP button led will blink and will go off
hold the remote within 2 mtr
from receiver. Select channel select (to be removed) channel
and press OPEN button: and press CLOSE button:
led blinks 3 times and will go off: led will blink once and will go off:
Do not mount within 1 meter
from other equipment and
receivers. This will interfere with
the receiver.
PROGRAMMING REMOTE REMOVE PROGRAMMED CHANNEL: DELETE ALL PREVIOUS
TO RECEIVER: PROGRAMMED CHANNELS:
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4

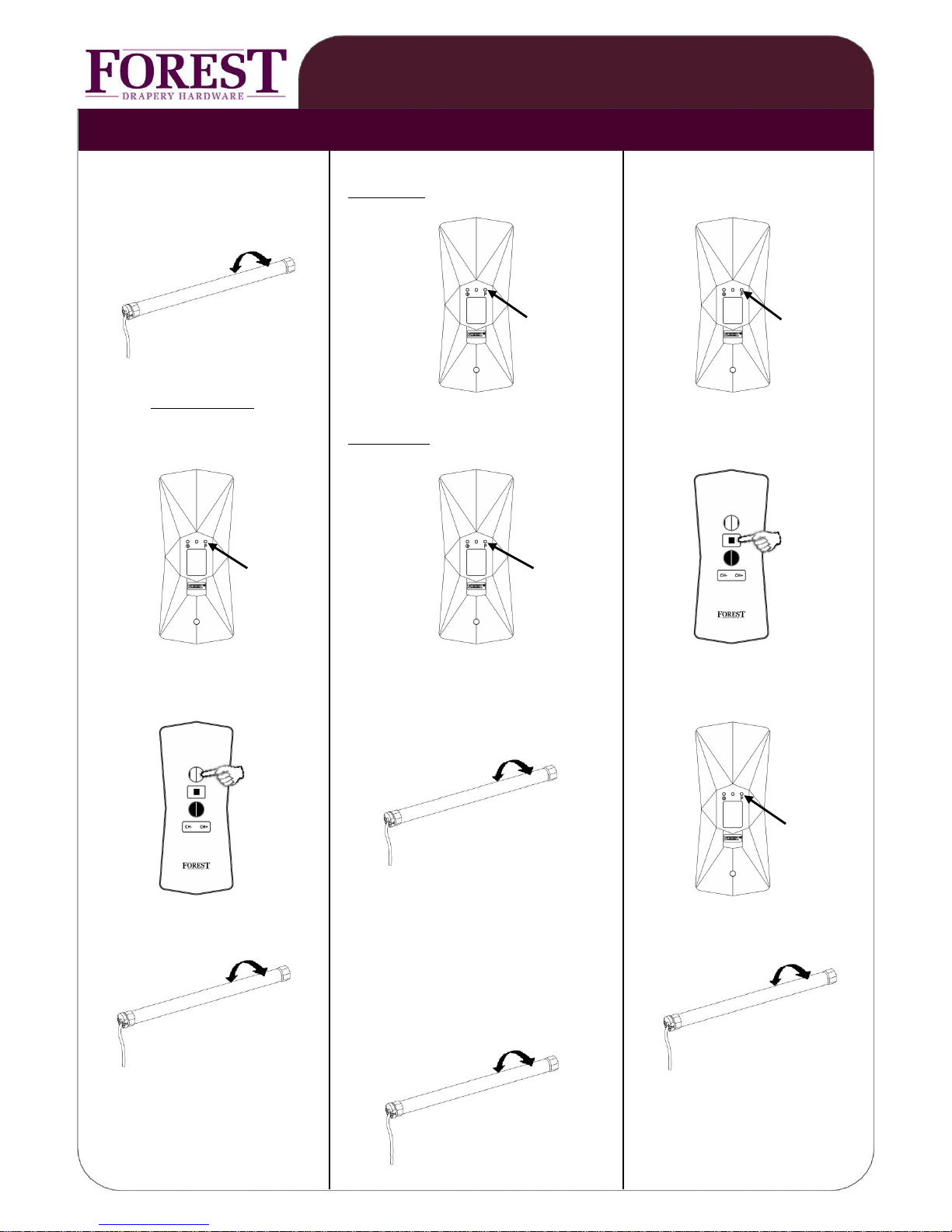

TUBULAR MOTOR
BUILD-IN RECEIVER AND ELECTRONIC LIMIT SETTING
press button on motor, motor will ①st remote: press P button two times press P button one time
turn short to acknowledge
①
2x P 1x P
within 6 seconds:
press P button two times ②nd remote: press P button one time press STOP button one time
②
1x STOP
2x P 1x P
press OPEN button one time motor will turn to acknowledge press P button one time
1x OPEN
1x P
motor will turn to acknowledge to add another channel: motor will turn to acknowledge
1.press 2xP button of programmed channel,
2.select other channel and press P button
\
motor will turn to acknowledge
CHANGING DIRECTION OF ROTATION:
To change the direction of rotation,
keep green button on motor pressed
for 7 sec, until motor turns to
acknowledge.
PROGRAMMING REMOTE ADD MORE REMOTES OR
TO TUBULAR MOTOR: CHANNELS TO TUBULAR MOTOR CANCEL ALL REMOTES
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4

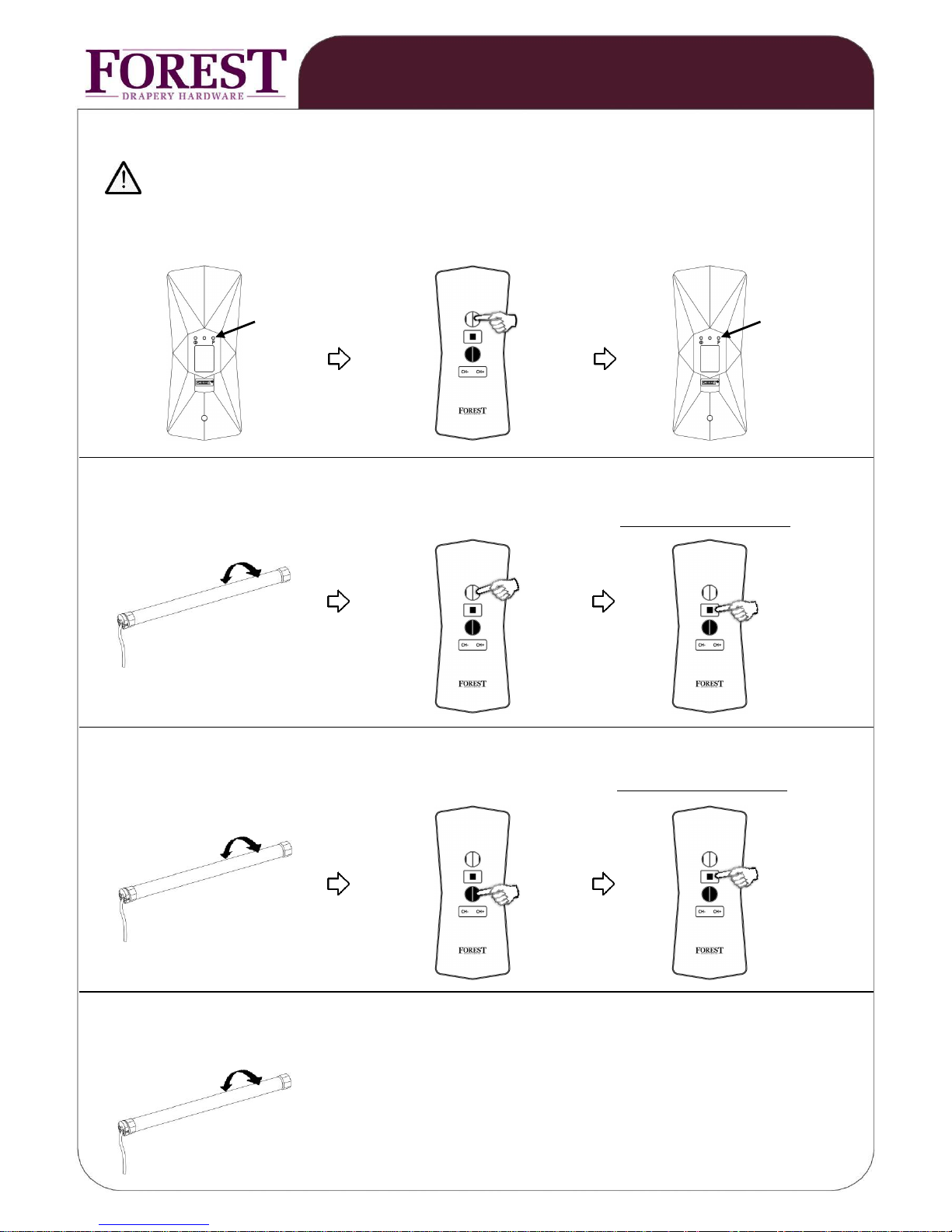

TUBULAR MOTOR
BUILD IN MULTI RECEIVER AND ELECTRONIC LIMIT SETTING
ADJUSTING UPPER AND LOWER END LIMITS:
IMPORTANT: - when more motors are programmed to one channel, end limits of all motors will be adjusted
- during programming, keep the remote within 2 mtr from the receiver/motor
press P button one time press OPEN button one time press P button one time
1x P 1x OPEN 1x P
press STOP button when required
motor will turn adjust to UPPER position height is reached. Press STOP button
to acknowledge 5 times slowly for 1 seconds to confirm
5x STOP
(slowly)
press STOP button when required
motor will turn adjust to LOWER position height is reached. Press STOP button
to acknowledge 5 times slowly for 1 seconds to confirm
5x STOP
(slowly)
motor will turn to acknowledge,
limits have been set successfully.
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4
TUBULAR MOTOR
BUILD IN MULTI RECEIVER AND ELECTRONIC LIMIT SETTING
CANCELLATION OF UPPER AND LOWER END LIMITS:
IMPORTANT: When cancelling end limits, the limits of all motors, programmed to selected channel, will be cancelled
press P button one time press CLOSE button one time press P button one time
1x P 1x P
1x CLOSE
motor will turn to acknowledge
REVERSE DIRECTION SETTING:
When motor is not running, press button on motor for ~ 7 seconds, until motor turns to acknowledge.
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4

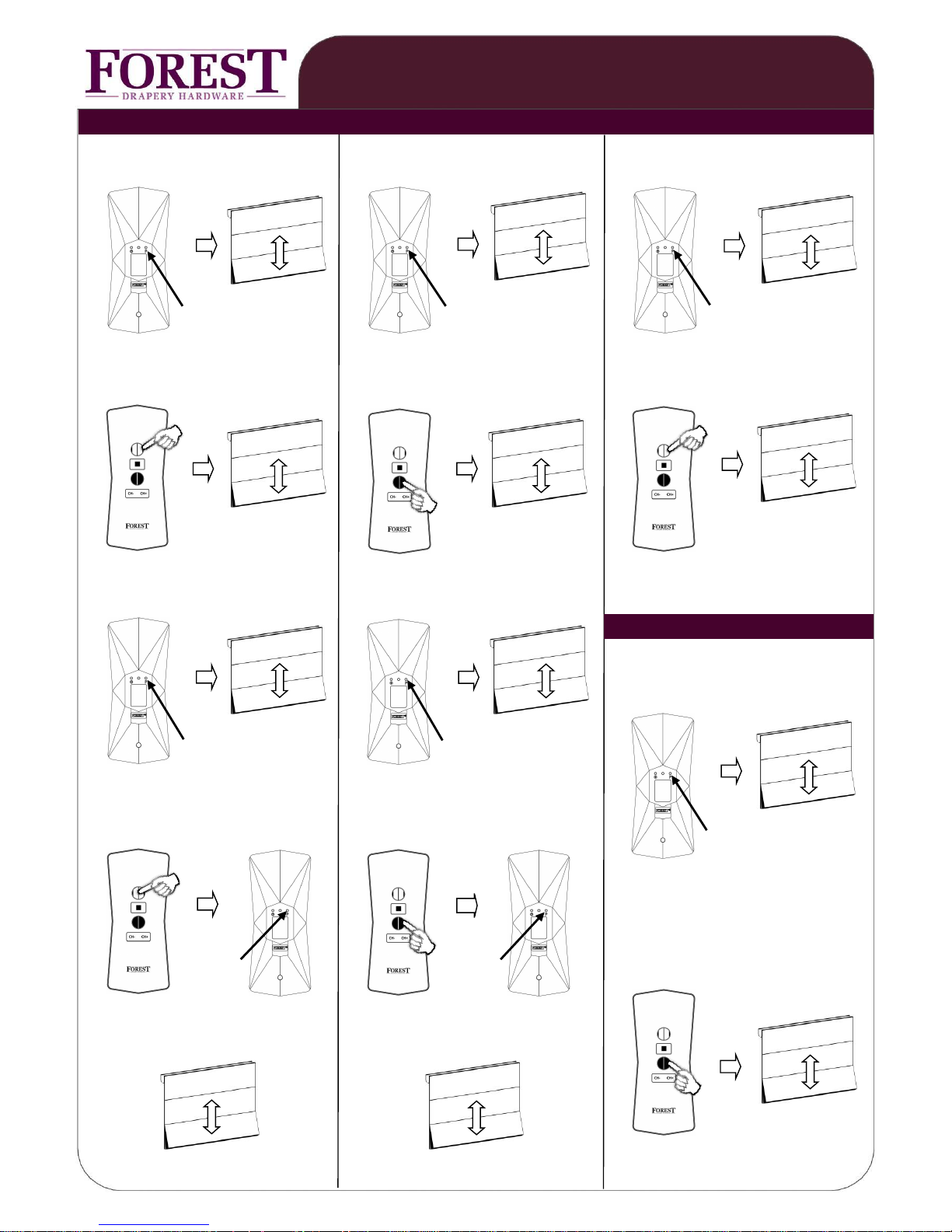

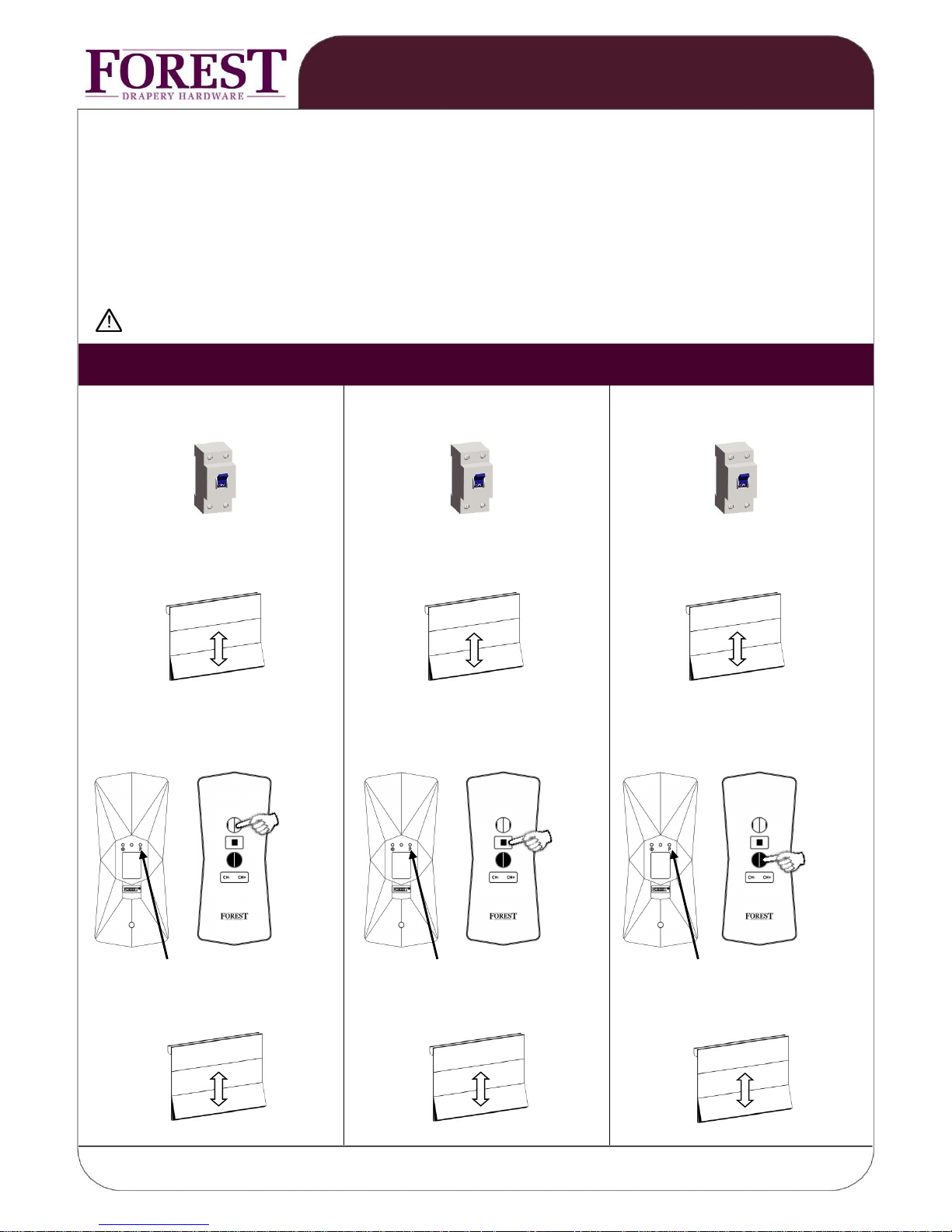

BS 24V DOUBLE SHAFT MOTOR - 36.4800.0000
BUILD-IN RECEIVER - ELECTRONIC LIMIT SETTING
TECHNICAL SPECIFICATION:
● 24Vdc, 16Watt
● nom. 0.8Nm – max. 1.0Nm
● 34 rpm
● max. running time 7 min.
● max. curtain weight 4 kg
● max. 5 cord rolls
● has to be used with Diamond remote, Multi remote and/or Multi wall switch RF
● only to be used in Forest BS system and with Forest power supply for BS motor
IMPORTANT: WHEN USING THE QUICK LOCK CORD ROLL, BE SURE TO LOCK THE CORD BEFORE USING THE MOTOR
switch on power to the motor: switch on power to the motor: switch on power to the motor:
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
within 10 seconds, select channel, within 10 seconds, select channel, within 10 seconds, select channel,
press P button and press OPEN button press P button and press STOP button press P button and press CLOSE button
② press
OPEN 1x ② press
STOP 1x ② press
CLOSE 1x
① press P 1x ① press P 1x ① press P 1x
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
NOTE: if you need to start over, switch off the power and wait at least 20 seconds before switching in the power
PROGRAMMING WALL SWITCH REMOVE PROGRAMMED CHANNEL CHANGE MOTOR DIRECTION
TO BS MOTOR:
07/2016 WDOC Diamond remote www.forestgroup.nl v1.4
BS 24V DOUBLE SHAFT MOTOR - 36.4800.0000
BUILD-IN RECEIVER - ELECTRONIC LIMIT SETTING
press P button once, press P button once, press P button twice,
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
1x P 1x P 2x P
press OPEN button once, press CLOSE button once, press OPEN button once,
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
1x 1x
1x
press P button once, press P button once,
motor will jog to acknowledge: motor will jog to acknowledge:
press P button twice
motor will jog to acknowledge:
1x P 1x P
adjust desired upper end limit and adjust desired lower end limit and
press P to save the upper limit: press P to save the lower limit 2x P
press CLOSE button on remote,
motor will jog twice to acknowledge
1x P 1x P
motor will jog to acknowledge: motor will jog to acknowledge:
1x
SET UPPER END LIMIT SET LOWER END LIMIT DELETE LIMITS
DELETE ALL MEMORY
