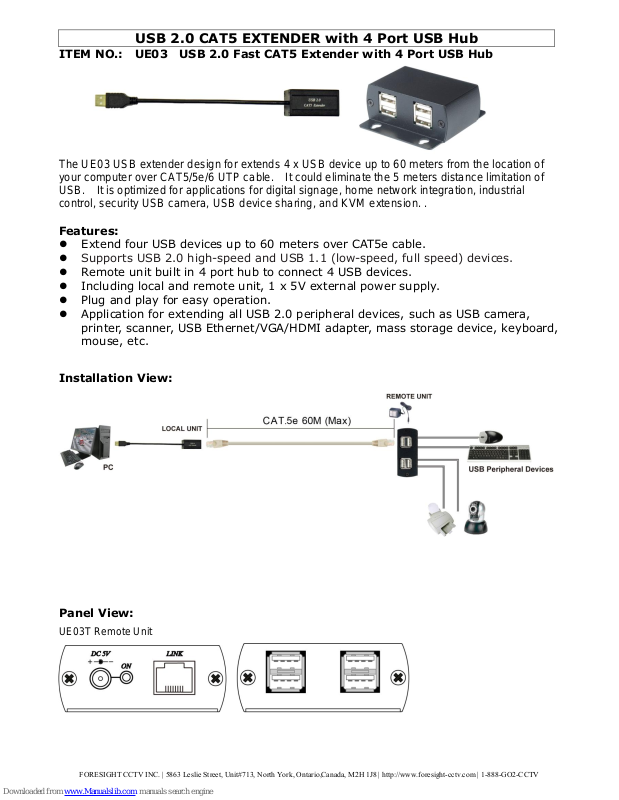

USB 2.0 CAT5 EXTENDER with 4 Port USB Hub
ITEM NO.: UE03 USB 2.0 Fast CAT5 Extender with 4 Port USB Hub
The UE03 USB extender design for extends 4 x USB device up to 60 meters from the location of
your computer over CAT5/5e/6 UTP cable. It could eliminate the 5 meters distance limitation of
USB. It is optimized for applications for digital signage, home network integration, industrial
control, security USB camera, USB device sharing, and KVM extension. .
Features:
Extend four USB devices up to 60 meters over CAT5e cable.
Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices.
Remote unit built in 4 port hub to connect 4 USB devices.
Including local and remote unit, 1 x 5V external power supply.
Plug and play for easy operation.
Application for extending all USB 2.0 peripheral devices, such as USB camera,
printer, scanner, USB Ethernet/VGA/HDMI adapter, mass storage device, keyboard,
mouse, etc.

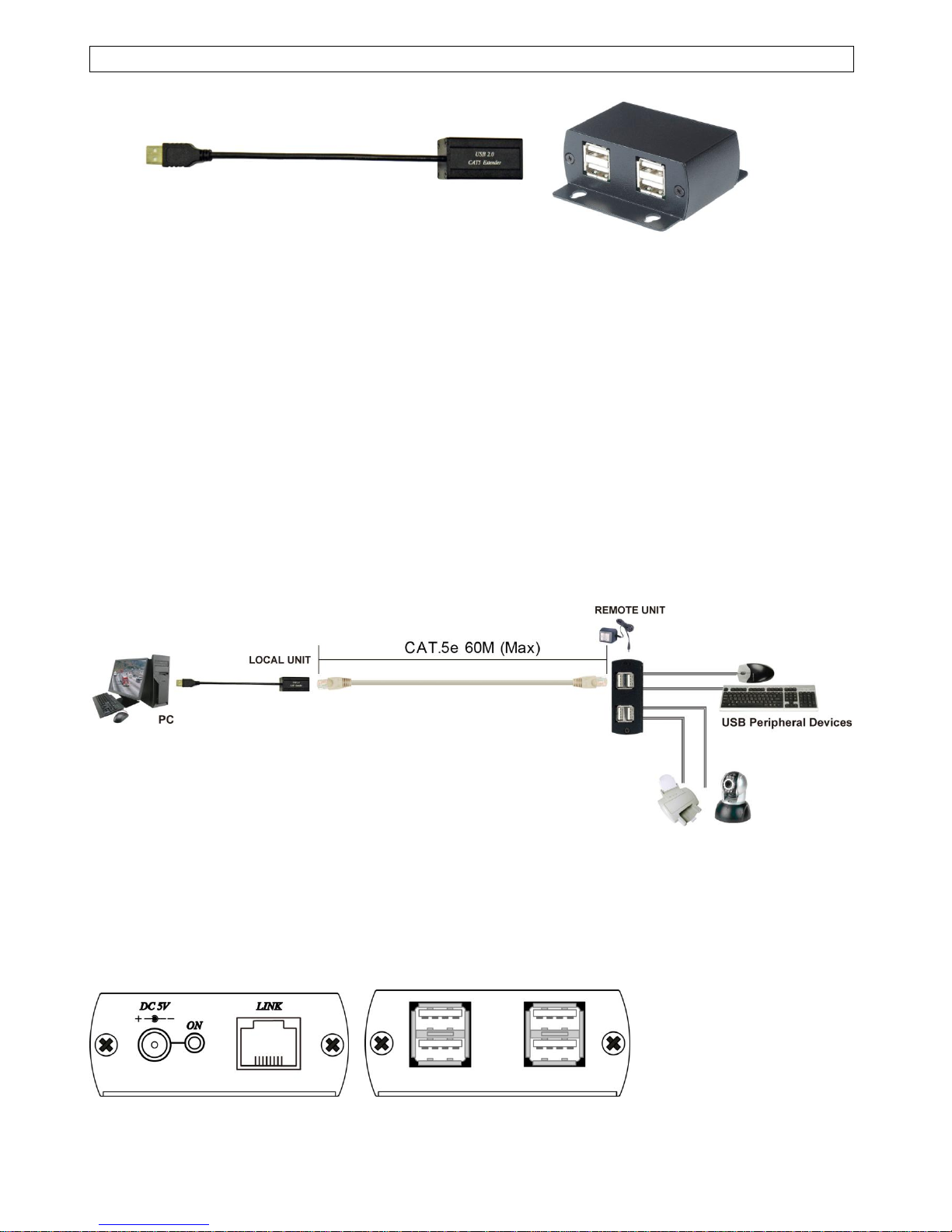

Installation View:
Panel View:
UE03T Remote Unit
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
2
UE03R Local Unit
Cable:
Video Link cable use high quality CAT5E UTP or CAT6 UTP cable.
Please noted STP/FTP cable would less transmission range.

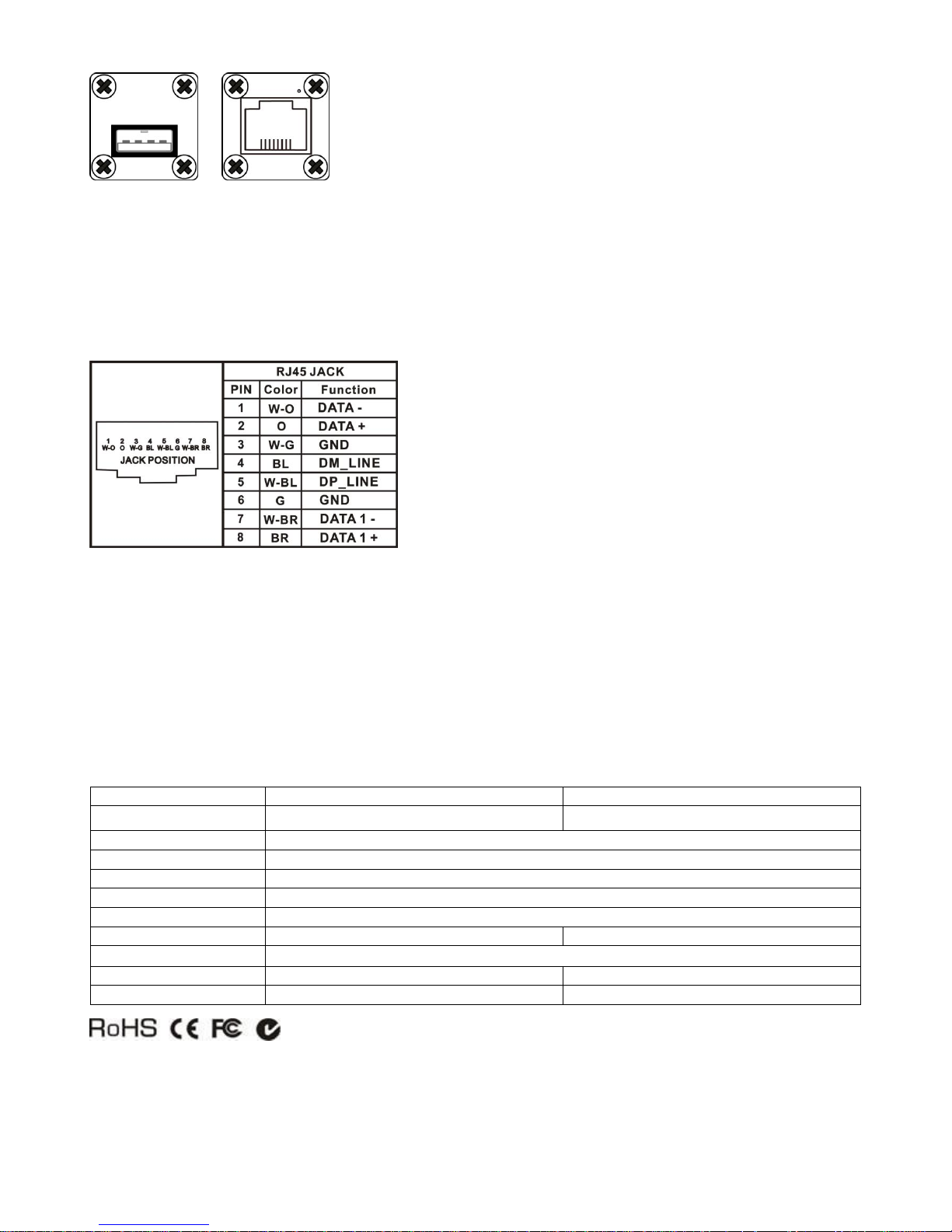

Cable Define:
Caution:
1. UE03 device is not Ethernet product, do not to connect any Ethernet or PoE network
with outside plant routing to avoid any damaged.
2. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave,
radio equipment, high voltage.
Specification:
ITEM NO.
UE03T ( Remote Unit)
UE03R (Local Unit)
Input / Output
USB Type A x 4 (Female)
USB Type A x 1 (Male)
Link Connector
RJ45 x 1
Cable
CAT5/5e/6 cable
Working Distance
CAT.5e: 60M
USB Device Support
Hi-Speed (480Mbps), full speed (12Mbps), low-speed (1.5Mbps)
Power Consumption
4 Port USB Device Can Supply a Total of 1500 mA
Power Adapter
5V DC 2A Regulated (External)
USB Internal Power Supply
Temperature
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions mm
60 x 70 x 27
25.4 x 25.4 x 240 + 190mm USB Cable
Weight g
115
55
Rev. A
