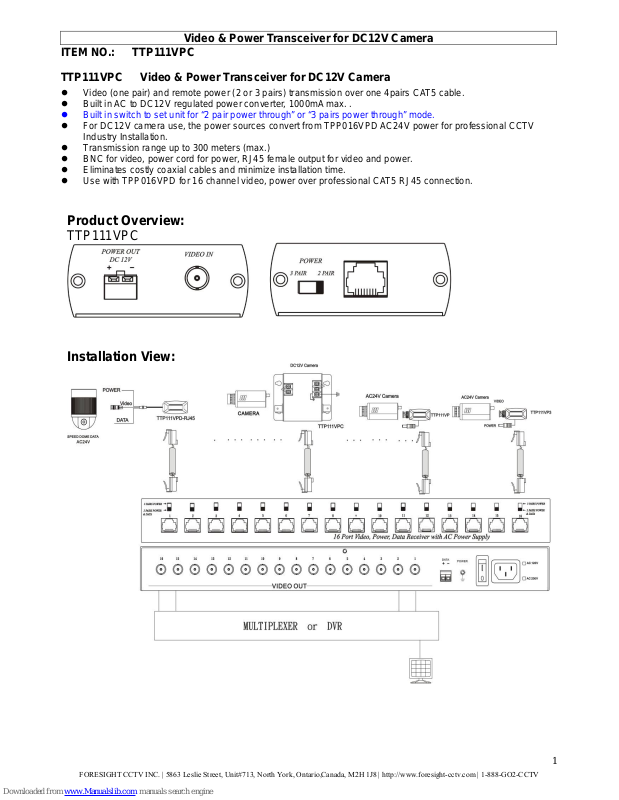

Video & Power Transceiver for DC12V Camera
ITEM NO.: TTP111VPC
TTP111VPC Video & Power Transceiver for DC12V Camera
Video (one pair) and remote power (2 or 3 pairs) transmission over one 4pairs CAT5 cable.
Built in AC to DC12V regulated po wer converter, 1000mA max. .
Built in switch to set unit for “2 pair power through” or “3 pairs power through” mode.
For DC12V camera use, the power sources convert from TPP016VPD AC24V power for professional CCTV
Industry Installation.
Transmission range up to 300 meters (max.)
BNC for video, power cord for power, RJ45 fem ale output for video and power.
Eliminates costly coaxial cables and minimize installation time.
Use with TPP016VPD for 16 channel video, power over professional CAT5 RJ45 connection.

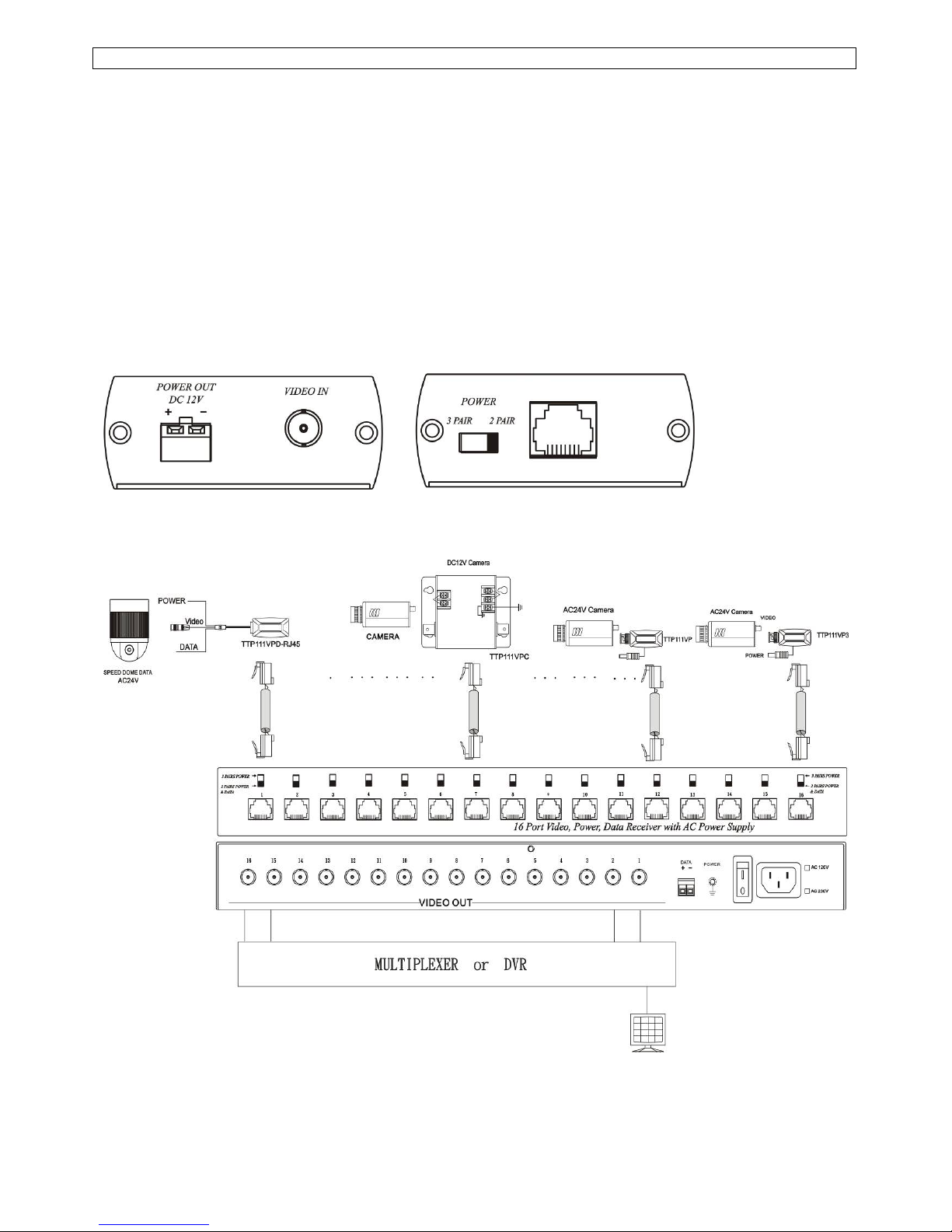

Product Overview:
TTP111VPC
Installation View:
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
2

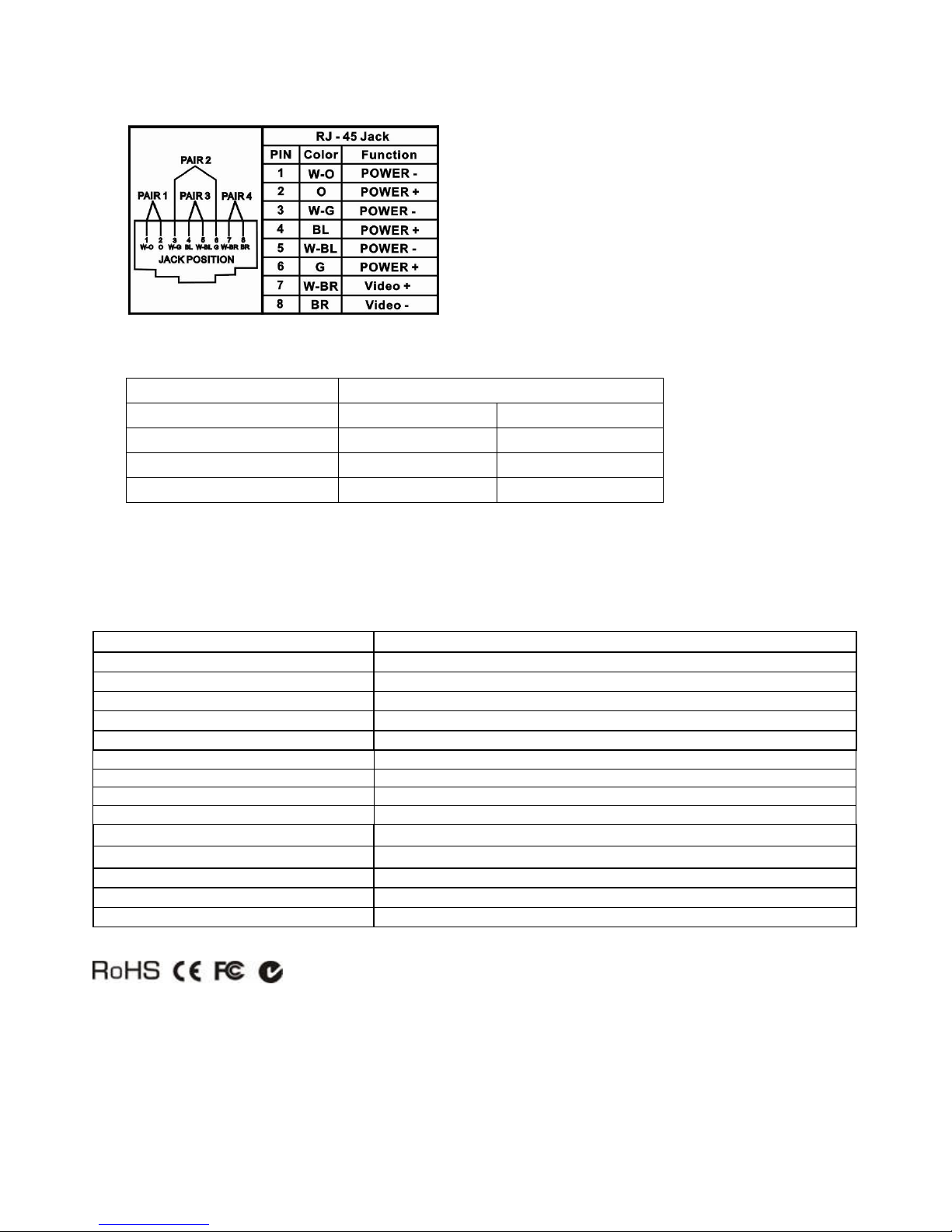

RJ-45 Jack Pin Define for Camera Connection
AC24V Power Distance Chart over UTP CAT5 cable:
CAT5 Cable (24AWG)
Actual Voltage camera at 21V
Power 2 Pairs/AC24V 3 Pairs/AC24V
100 mA
300 Meters
300 Meters
300 mA
100 Meters
225 Meters
1 Amp
30 Meters
45 Meters
Specification:
ITEM NO. TTP111VPC
Video (BNC Connector) 1 (1V p-p, 75 Ohms)
Power V
Transmission Interface RJ45
Transmission Distance 600M(B/W), 300M(COLOR)
Cable Twisted Pair CAT5 (AWG24)
Input Power AC20~28V; DC16~30V
Output Power DC12V Regulated
Output Current 1000mA (MAX)
Material Metal
Storage Temperature
-30℃~70℃
Operation Temperature
-10℃~45℃
Weight 200 g
Dimension W x H x D mm
87x67x27
Material Metal
