Page 1

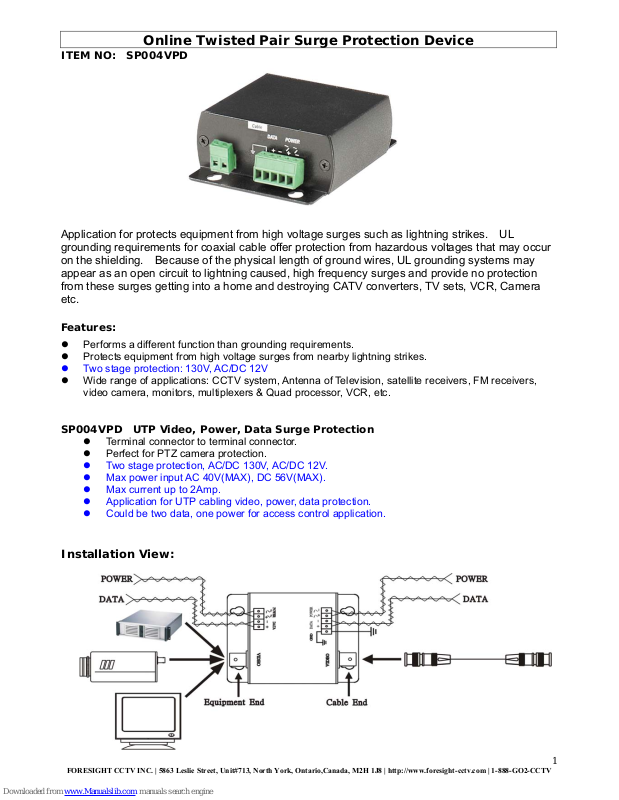

Online Twisted Pair Surge Protection Device
ITEM NO: SP004VPD
Application for protects equipment from high voltage surges such as lightning strikes. UL
grounding requirements for coaxial cable offer protection from hazardous voltages that may occur
on the shielding. Because of the physical length of ground wires, UL grounding systems may
appear as an open circuit to lightning caused, high frequency surges and provide no protection
from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera
etc.
Features:
z Performs a different function than grounding requirements.
z Protects equipment from high voltage surges from nearby lightning strikes.
z Two stage protection: 130V, AC/DC 12V
z Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers,
video camera, monitors, multiplexers & Quad processor, VCR, etc.
SP004VPD UTP Video, Power, Data Surge Protection
z Terminal connector to terminal connector.
z Perfect for PTZ camera protection.
z Two stage protection, AC/DC 130V, AC/DC 12V.
z Max power input AC 40V(MAX), DC 56V(MAX).
z Max current up to 2Amp.
z Application for UTP cabling video, power, data protection.
z Could be two data, one power for access control application.

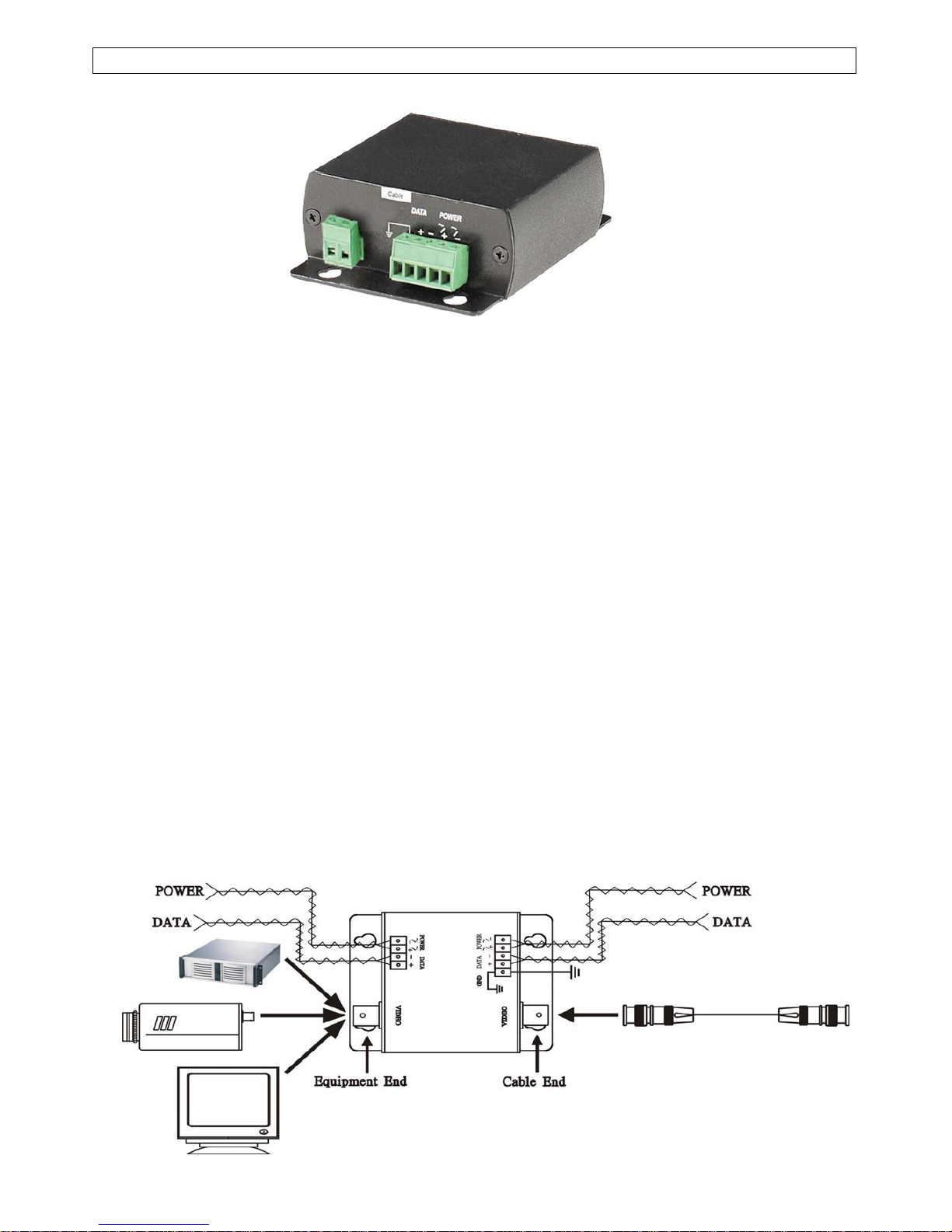

Installation View:
1
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
2
Application
z CATV System
z Antenna of Television
z Video Cassette Recorders
z FM receivers

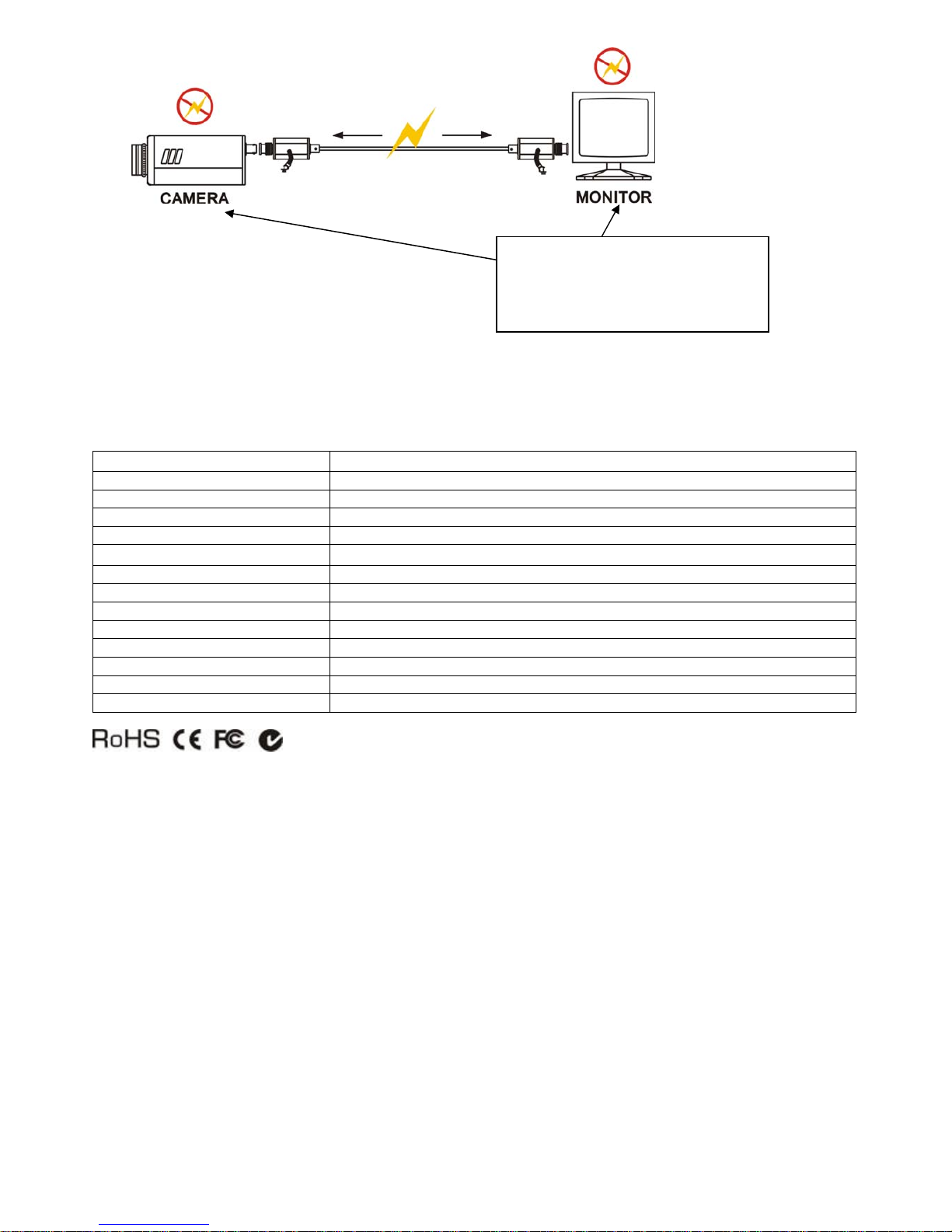

Note:
For ensuring the unit can
protect equipments, the cable
must be connected to ground.
z Video Cameras and monitors
z Multiplexers and Quad Processor
Specification:
ITEM NO. SP004VPD
Surge Protection Attack Time 1 ns
Maximum Surge Voltage 4 KV
Surge Life 300 surges of 100Amps
Normal Resistance Across Coax 10,000 MΩ
Surge Resistance Approx. 0Ω
BAND PASS 0~1 GHZ
Power Passing Capability 130V AC / DC, 65 Vrms at10 Amps
Insertion Loss Less than 0.2 dB
Return Loss (75 ohms) 16dB
Power IN Put – for SP004VPD AC 40V(MAX), DC56V(MAX)
Connectors Terminal
Dimensions W x H x D mm 87x67x27
WEIGHT g 136
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
