Wall Plate HDMI & IR Repeater CAT5 Extender
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
ITEM NO.: HW02 Wall Plate HDMI & IR Repeater CAT5 Extender
HW02 Wall Plate HDMI with IR repeater CAT5 extender is designed to use two low cost CAT5E
cable to extend HDTV sources from DVD players, Blu-ray Disc player PS3. With extra IR repeater
function for easy and friendly control HDMI sources from the remote site.
Features:
z Extends HDMI and IR signal over two CAT5/5e/6 cables.
z Transmission range up to 100 meters.
z Support high resolution up to 1080p.
z Built in auto EQ function, no need to do any adjustment for different range.
z Fully HDCP compliant.
z HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect
z Built in IR repeater function, could be control the source devices from remote side.
z Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
z Package includes: transmitter and receiver unit, one external power adapter, IR emitter cable
and IR receiver cable. ( 1.8 meters（6 ft）)

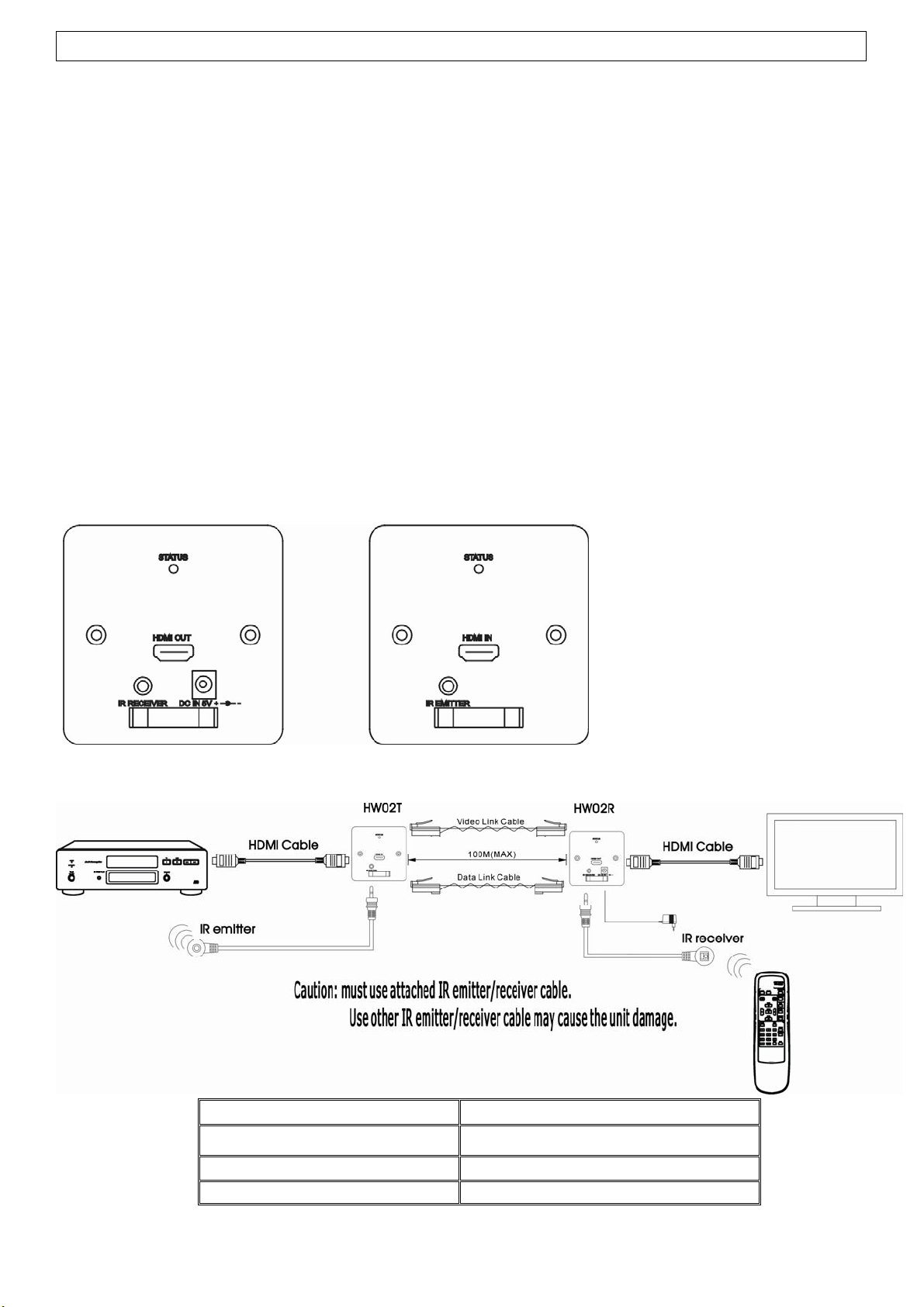

Panel view & Function:
HW02R HW02T
Installation view:
480i / 576i / 480p / 576p
Resolution Transmission Range (Max.)
100M
720p / 1080i 70M
1080p 30M
Page 2
Cable:
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Video Link cable using hi quality CAT5E UTP or CAT6 UTP cable,
CAT6 cable enhances transmission range and signal stability.
Data Link cable using CAT5E UTP/STP cable,
It is not hi speed signal transmission, so using regular CAT5E UTP cable will be ok.
RJ45 pin Define:
Video Link (TIA/EIA-568-B)
1. Orange-white TMDS Data2 +
2. Orange TMDS Data2 -
3. Green-white TMDS Clock +
4. Blue TMDS Data1 +
5. Blue-white TMDS Data1 -
6. Green TMDS Clock -
7. Brown-white TMDS Data0 +
8. Brown TMDS Data0 -
Data Link (TIA/EIA-568-B)
1. Orange-white CEC
2. Orange HPD
3. Green-white SCL
4. Blue HW02R POWER
5. Blue-white IR
6. Green GND
7. Brown-white SDA
8. Brown HW02T POWER
LED Indication:
HW02T Status: Blue = normal.
Red = abnormal ( HDMI equipment power off or cable not have
properly connection)
Flash = IR emitting.
Off = No Power. (HDMI Source power off and no connect with HW02R)
HW02R Status: Blue = Normal.
Red = abnormal ( HDMI equipment power off or cable not have
properly connection)
Off = No power or power source is too low
Caution:
1. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave,
radio equipment, high voltage.
2. HW02 Data Rate support up to 1.65Gbps, but not support 1080p Deep Color signal.
3. IR receiving angle is ±45° with maximum distance 5 meters.
IR emitting angle is ±30° with maximum distance 3 meters.
Specification:
ITEM NO. HW02T HW02R
Resolution 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Data Rate Max 1.65Gbps
Equalization 40dB @ 825MHz (1.65Gbps)
Link Cable Distance CAT5E 70M@1080i , CAT5E 30M @1080p
HDMI Connector HDMI A Type x 1 (Input) HDMI A Type x 1 (Output)
3.5 mm Connector IR emitter IR receiver
Link Connector RJ-45 Shielded x 2
IR Carrier Frequency 38Khz
Power Consumption X 5V 500mA (Max)
Power Supply DC5V 1Amp
Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm 86W x 32H x 86D.
Weight g 120 g x 2
