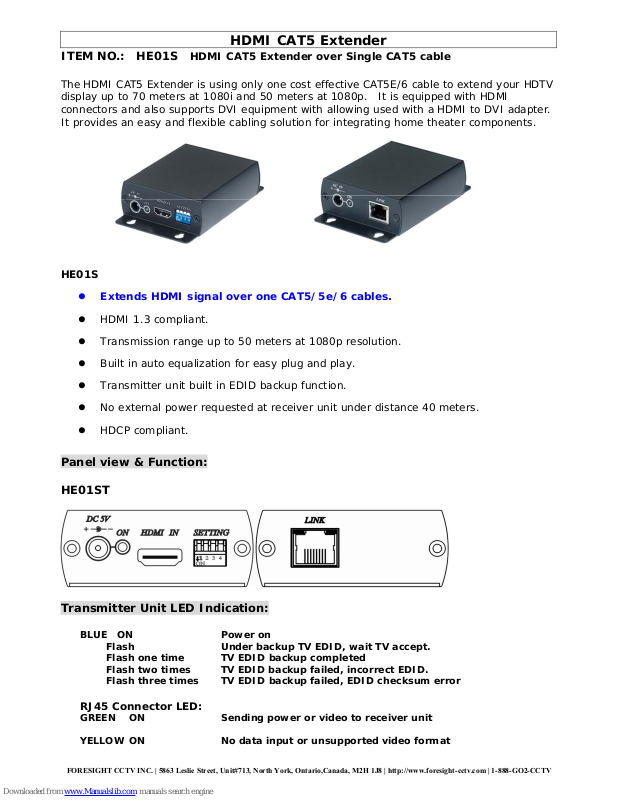

HDMI CAT5 Extender
ITEM NO.: HE01S HDMI CAT5 Extender over Single CAT5 cable
The HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV
display up to 70 meters at 1080i and 50 meters at 1080p. It is equipped with HDMI
connectors and also supports DVI equipment with allowing used with a HDMI to DVI adapter.
It provides an easy and flexible cabling solution for integrating home theater components.
HE01S
Extends HDMI signal over one CAT5/5e/6 cables.
HDMI 1.3 compliant.
Transmission range up to 50 meters at 1080p resolution.
Built in auto equalization for easy plug and play.
Transmitter unit built in EDID backup function.
No external power requested at receiver unit under distance 40 meters.
HDCP compliant.

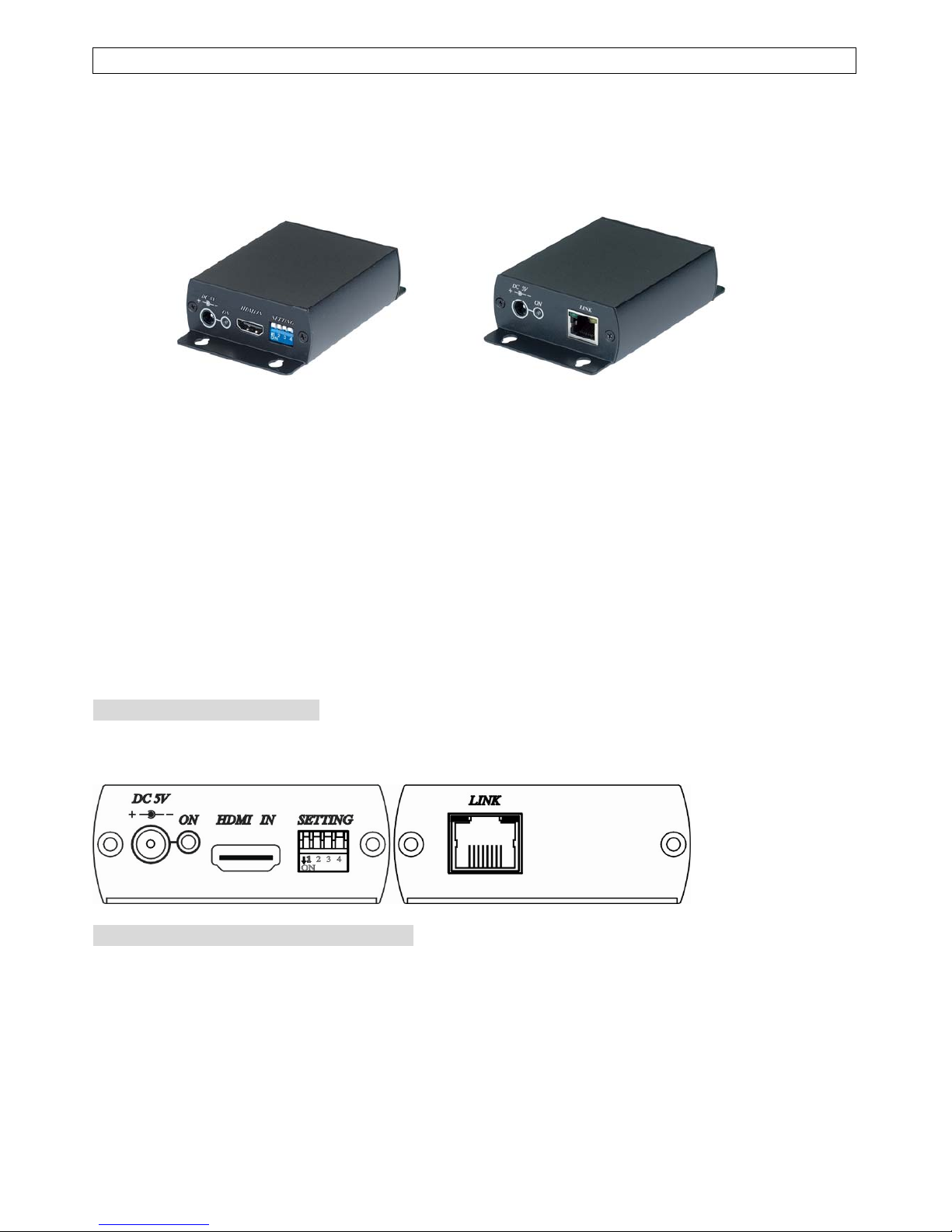

Panel view & Function:
HE01ST
Transmitter Unit LED Indication:
BLUE ON Power on
Flash Under backup TV EDID, wait TV accept.
Flash one time TV EDID backup completed
Flash two times TV EDID backup failed, incorrect EDID.
Flash three times TV EDID backup failed, EDID checksum error
RJ45 Connector LED:
GREEN ON Sending power or video to receiver unit
YELLOW ON No data input or unsupported video format
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
Dip Switch function:
1 ↑ Use the default EDID.
↓ Use the backup TV EDID. ( If backup TV EDID is not correct, it will auto
select the first default EDID)
2 ↑ Select the first default EDID: support 1080i / LPCM 2 Channel.
↓ Select the second default EDID: support 1080p / LPCM 5.1
Channel.
3 ↑ Normal
↓ Backup EDID
( The Dip Switch 1 must at ↓ position, then to start backup).
4 Reserve (Dip switch 4 , do not move to ↓ )
After complete Dip Switch setting, power must be reset ( unplug and plug) to activate
the new EDID.
HE01SR
Receiver unit LED Indication:
BLUE ON Using external power adapter
RJ45 Connector LED:
GREEN ON Power and HDMI signal received from transmitter unit
YELLOW ON No data input or signal too weak

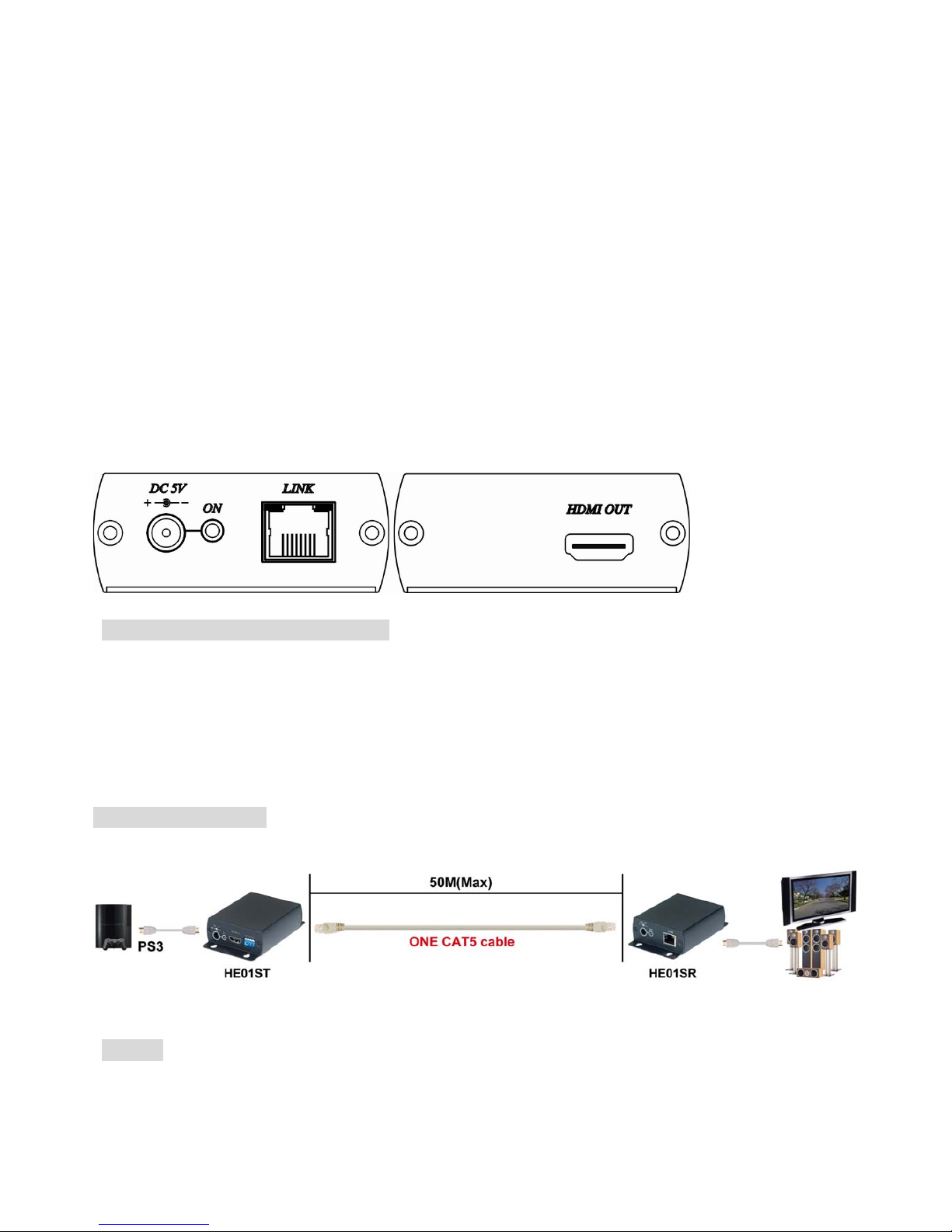

Installation view:
Cable:
Link cable using high quality CAT5e UTP or CAT6 UTP cable.
CAT6 cable is recommend based on distance over 30 meters.
2
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 3
Transmission Distance:
The transmission distance will be affected from different HDMI equipment and
cable quality.
HE01ST to HE01SR
Resolution/Cable Distance(Meter)
1080p/CAT5 45
1080p/CAT6 50
1080i,720p/CAT5 70
RJ45 Define:
Video Link (use TIA/EIA-568-B)
1. Orange-white TMDS DATA2 +
2. Orange TMDS DATA2 -
3. Green-white TMDS CLOCK + / HDMI 5V
4. Blue TMDS DATA1 +
5. Blue-white TMDS DATA1 -
6. Green TMDS CLOCK - / HDMI 0V
7. Brown-white TMDS DATA0 +
8. Brown TMDS DATA0 -
Caution:
The cabling must away from any equipment with electromagnetic wave, such as
microwave ovens, mobile phones, radio equipment, power lines.
Specification:
ITEM NO. HE01ST HE01SR
Video Bandwidth 2.25 Gbps (HDMI 1.3)
Resolution 480i/p, 720p, 1080i/p @ 24/50/60Hz
Link Cable Distance CAT5e 70M @1080i, CAT5e 45M @1080p
Input TMDS Signal 1.2 volts peak to peak
Input DDC Signal 5 Volts peak to peak
HDMI Connector HDMI 19 pin type female connector
Link Connector RJ-45 Shielded with 2 indication LEDS
Power Supply 5V DC 2AMP regulated (External) x 2
Power Consumption 1200mA (Max) 700mA (Max)
Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions W x H x D mm
120x67x27 120x67x27
Weight 180 g 170g
3
